Features of your vehicle
To turn off the blowers
Air conditioning (if equipped)
3rd row climate control
(if equipped)
Front
ODM042283
ONCNCL2005
ODM042284
3rd row

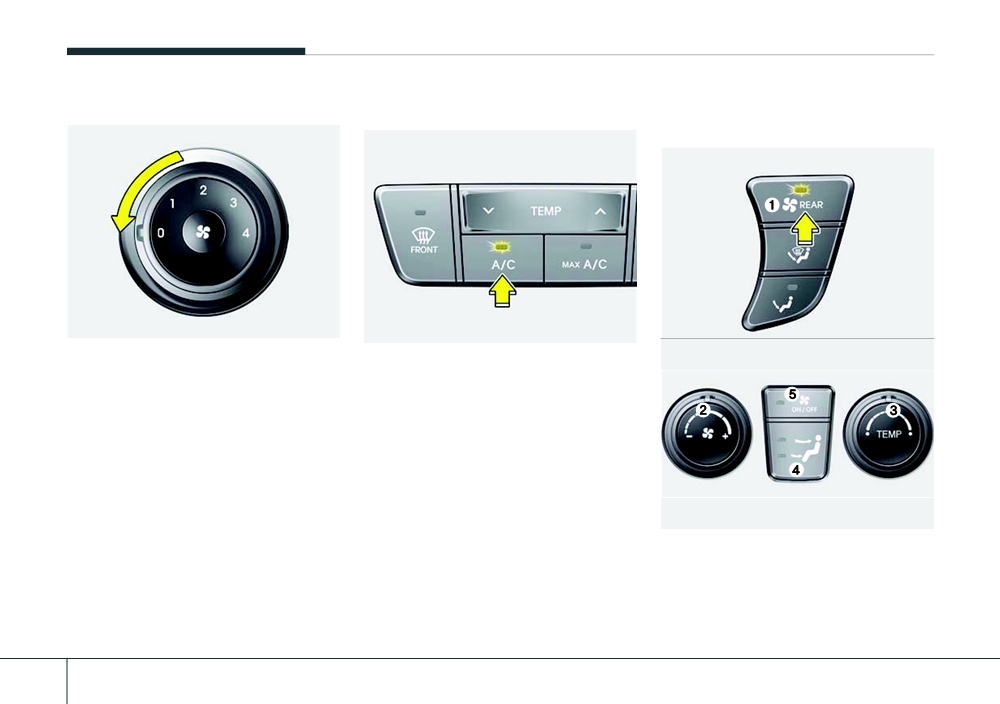

To turn off the blowers, turn the fan
Press the A/C button to turn the air
speed control knob to the "0" posi-
conditioning system on
(indicator
tion.
light will illuminate). Press the button
again to turn the air conditioning sys-
tem off.
ONCNCL2002
1. To turn the 3rd row climate control
on or off, press the 3rd row climate
control ON/OFF button (1) or (5).
4 154
Features of your vehicle
2. Set the fan speed control knob (2)
System operation
Operation Tips
to the desired position.
• To keep dust or unpleasant fumes
Ventilation
3. Set the temperature control knob
from entering the vehicle through
1. Set the mode to the
position.
(3) to the desired position.
the ventilation system, temporarily
2. Set the air intake control to the
set the air intake control to the
4. Select the desired direction of the
outside (fresh) air position.
recirculated air position. Be sure to
air flow by pressing the mode
3. Set the temperature control to the
return the control to the fresh air
selecting button (4).
desired position.
position when the irritation has
passed to keep fresh air in the
4. Set the fan speed control to the
vehicle. This will help keep the driv-
desired speed.
er alert and comfortable.
Air for the heating/cooling system
Heating
is drawn in through the grilles just
1. Set the mode to the
position.
ahead of the windshield. Care
should be taken that these are not
2. Set the air intake control to the
outside (fresh) air position.
blocked by leaves, snow, ice or
other obstructions.
3. Set the temperature control to the
desired position.
To prevent interior fog on the wind-
shield, set the air intake control to
4. Set the fan speed control to the
the fresh air position and fan speed
desired speed.
to the desired position, turn on the
5. If dehumidified heating is desired,
air conditioning system, and adjust
turn the air conditioning system (if
the temperature control to desired
equipped) on.
temperature.
• If the windshield fogs up, set the
mode to the
or
position.
4 155
Features of your vehicle
Air conditioning (if equipped)
NOTICE
CAUTION
HYUNDAI Air Conditioning Systems
When using the air conditioning
are filled with environmentally friend-
The refrigerant system should
system, monitor the temperature
ly refrigerant*.
only be serviced by trained and
gauge closely while driving up
certified technicians to insure
hills or in heavy traffic when out-

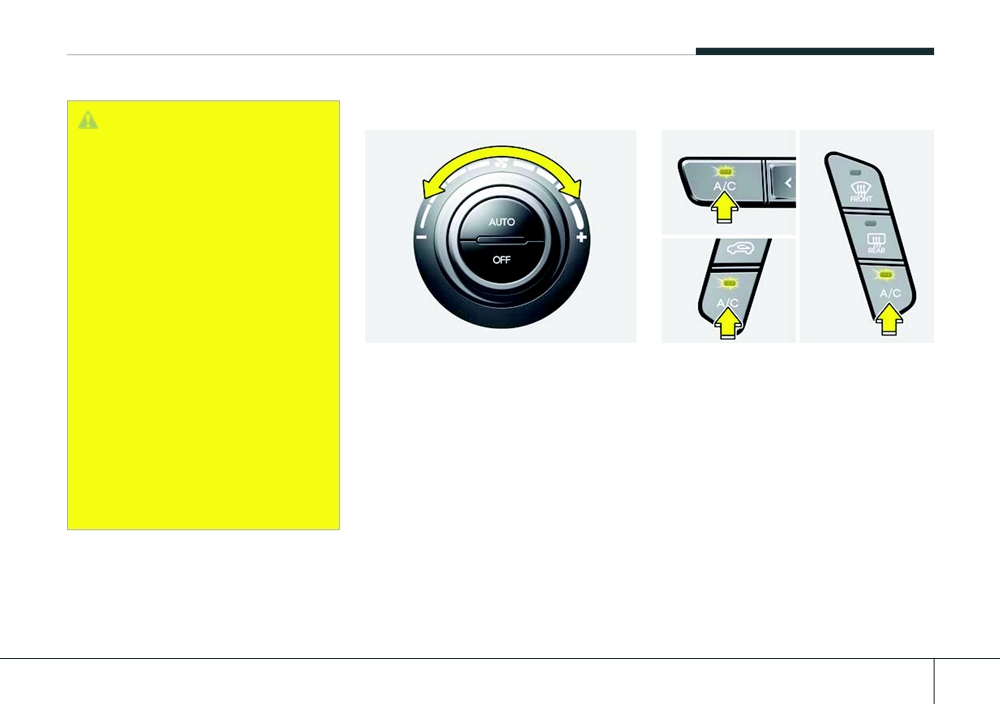

1. Start the engine. Push the air con-
proper and safe operation.
side temperatures are high. Air
ditioning button.
The refrigerant system should
conditioning system operation
2. Set the mode to the
position.
be serviced in a well-ventilat-
may cause engine overheating.
3. Set the air intake control to the out-
ed place.
Continue to use the blower fan but
side air or recirculated air position.
turn the air conditioning system
The air conditioning evaporator
4. Adjust the fan speed control and
off if the temperature gauge indi-
(cooling coil) shall never be
temperature control to maintain
cates engine overheating.
repaired or replaced with one
maximum comfort.
When opening the windows in
removed from a used or sal-
humid weather air conditioning
vaged vehicle and new replace-
may create water droplets inside
ment MAC evaporators shall be
*: Your vehicle is filled with R-134a or
the vehicle. Since excessive water
certified (and labeled) as meet-
R-1234yf according to the regula-
droplets may cause damage to
ing SAE Standard J2842.
tion in your country at the time of
electrical equipment, air condi-
producing. You can find out which
tioning should only be used with
air conditioning refrigerant is
the windows closed.
applied your vehicle at the label
inside of the engine room. Refer to
section 8 for more detail location of
air conditioning refrigerant label.
4 156
Features of your vehicle
Air conditioning system operation tips
When using the air conditioning
Climate control air filter
system, you may notice clear water
If the vehicle has been parked in
direct sunlight during hot weather,
dripping (or even puddling) on the
Outside air
ground under the passenger side
open the windows for a short time
to let the hot air inside the vehicle
of the vehicle. This is a normal sys-
tem operation characteristic.
Recirculated
escape.
air
Use air conditioning to reduce
Operating the air conditioning sys-
tem in the recirculated air position
humidity and moisture inside the
vehicle on rainy or humid days.
provides maximum cooling, how-
ever, continual operation in this
During air conditioning system
mode may cause the air inside the
Blower
operation, you may occasionally
vehicle to become stale.
Heater core
notice a slight change in engine
Climate control
Evaporator
During cooling operation, you may
air filter
core
speed as the air conditioning com-
1LDA5047
occasionally notice a misty air flow
pressor cycles. This is a normal
because of rapid cooling and
The climate control air filter installed
system operation characteristic.
humid air intake. This is a normal
behind the glove box filters the dust
Use the air conditioning system
or other pollutants that come into the
system operation characteristic.
every month only for a few minutes
vehicle from the outside through the
to ensure maximum system per-
heating and air conditioning system.
formance.
If dust or other pollutants accumulate
in the filter over a period of time, the
air flow from the air vents may
decrease, resulting in moisture accu-
mulation on the inside of the wind-
shield even when the outside (fresh)
air position is selected. If this hap-
pens, we recommend that the cli-
mate control air filter be replaced by
an authorized HYUNDAI dealer.
4 157
Features of your vehicle
NOTICE
Checking the amount of air
Replace the filter according to the
conditioner refrigerant and
WARNING - Vehicles
Maintenance Schedule.
compressor lubricant
equipped with R-1234yf*
If the car is being driven in severe
Because the refriger-
When the amount of refrigerant is
conditions such as dusty, rough
ant is mildly inflam-
low, the performance of the air condi-
roads, more frequent climate con-
mable and at very
tioning is reduced. Overfilling also
trol air filter inspections and
high pressure, the air
has a bad influence on the air condi-
changes are required.
conditioning system
tioning system.
When the air flow rate suddenly
should only be serv-
Therefore, if abnormal operation is
decreases, we recommend that the
iced by trained and
found, we recommend that the sys-
system be checked by an author-
certified technicians.
tem be inspected by an authorized
ized HYUNDAI dealer.
It is important that the correct
HYUNDAI dealer.
type and amount of oil and
refrigerant is used.
WARNING - Vehicles
Otherwise, it may cause damage
equipped with R-134a*
to the vehicle and personal injury.
Because the refriger-
ant is at very high
*: Your vehicle is filled with R-134a or
pressure, the air con-
R-1234yf according to the regula-
ditioning
system
tion in your country at the time of
should only be serv-
producing.
iced by trained and certified
technicians. It is important that
the correct type and amount of
oil and refrigerant is used.
Otherwise, it may cause damage
to the vehicle and personal injury.
4 158
Features of your vehicle
AUTOMATIC CLIMATE CONTROL SYSTEM (IF EQUIPPED)

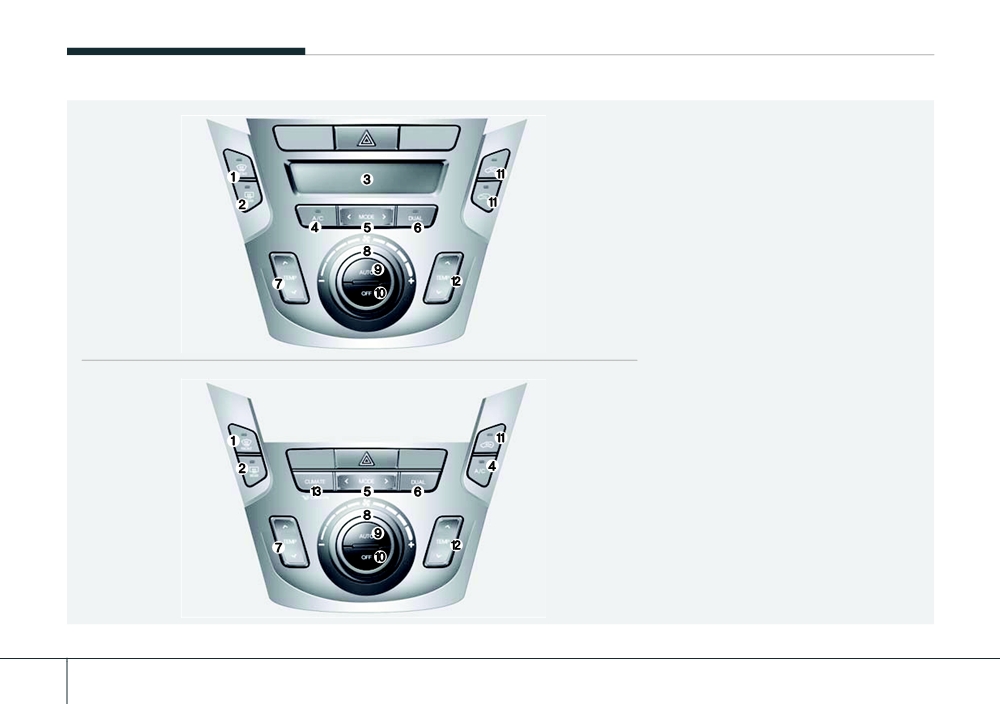

Front climate control (Type A)
Front climate control (Type B)

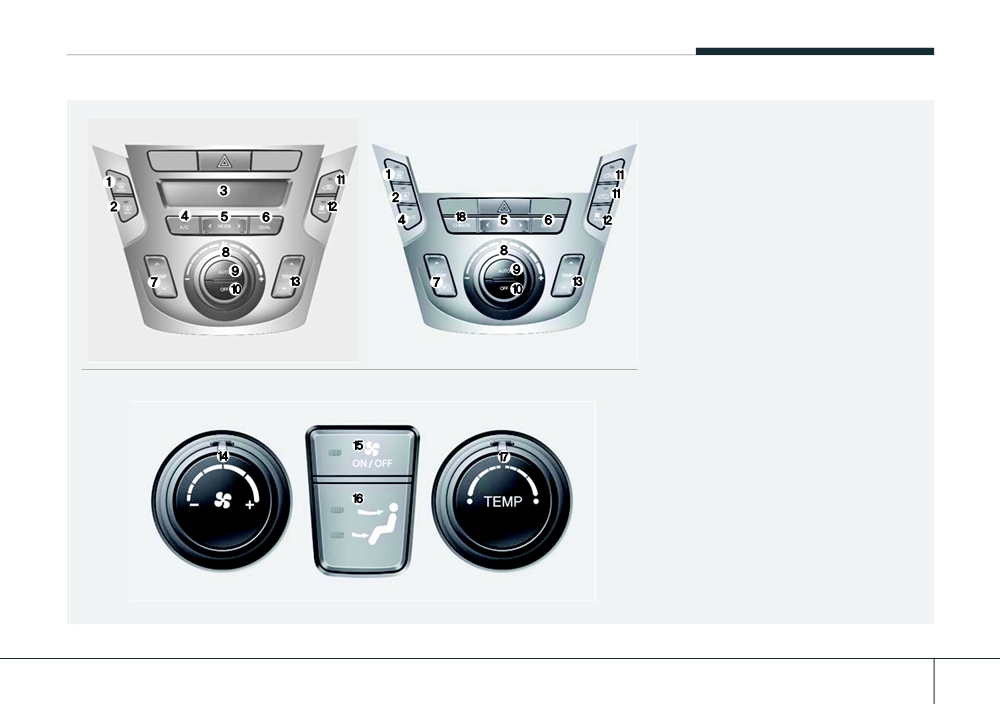

1. Front windshield defrost button
2. Rear window defrost button
3. Display
4. Air conditioning button*
5. Mode selection button
6. Dual temperature control selection button
7. Driver's temperature control button
8. Front fan speed control knob
9. AUTO (automatic control) button
10. Front blower OFF button
11. Air intake control button* or recirculated
air position button*
3rd row climate control (for Type A and B)
12. 3rd row climate control ON/OFF button
(controlled from the front)
13. Passenger's temperature control button
14. 3rd row fan speed control knob
15. 3rd row blower ON/OFF button
16. 3rd row mode selection button
17. 3rd row temperature control knob
18. Climate control information screen
selection button*
* if equipped
ONCNCL2006/ONCNCL2009/ONCNCL2002
4 159
Features of your vehicle
Front climate control (Type C)
1. Front windshield defroster button
2. Rear window defrost button
3. Display
4. Air conditioning button*
5. Mode selection button
6. Dual temperature control selection button
7. Driver's temperature control button
8. Front fan speed control knob
9. AUTO (automatic control) button
Front climate control (Type D)
10. Blower OFF button
11. Air intake control button* or recirculated
air position button*
12. Passenger's temperature control button
13. Climate control information screen
selection button
* if equipped
ODMECL2010/OANNMM2002
4 160
Features of your vehicle
Automatic heating and air con-
NOTICE
ditioning
To turn the automatic operation
off, select any button or switch of
the following:
- Mode selection button
- Air conditioning button
- Front windshield defroster button
- Air intake control button
- Fan speed control switch
The selected function will be con-
trolled manually while other func-
ODM042290
tions operate automatically.

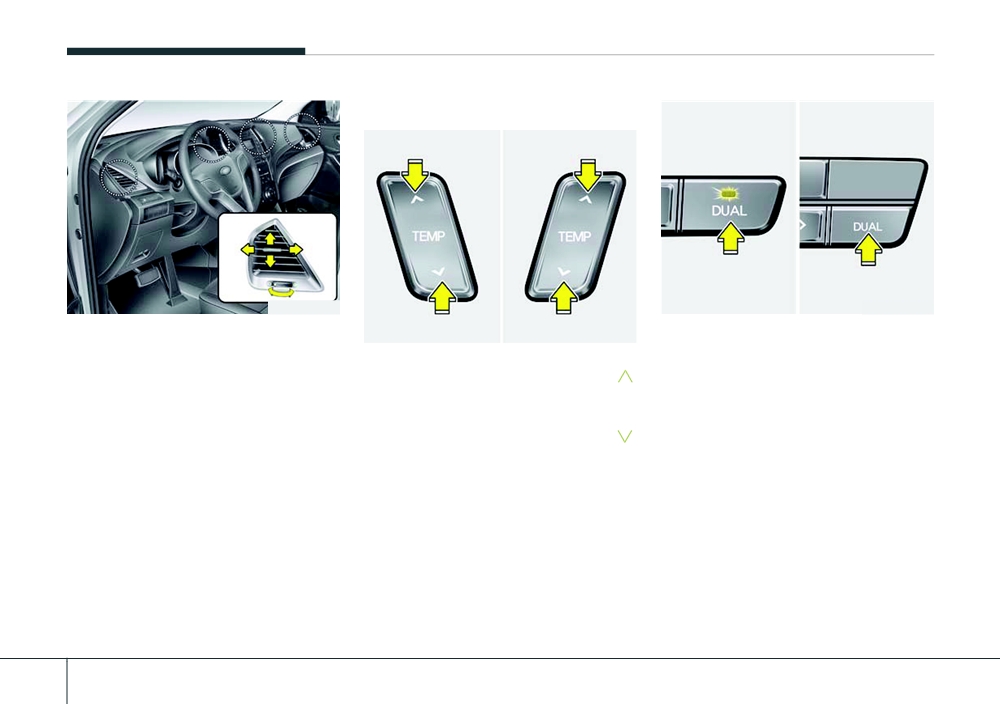

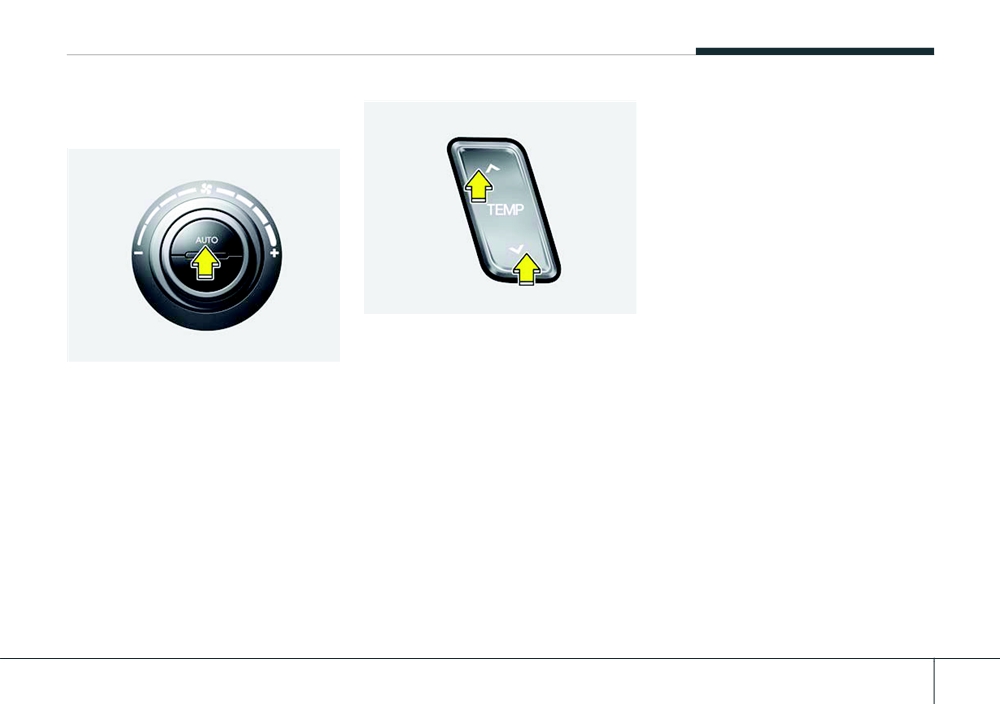

For your convenience and to
2. Set the Driver’s temperature con-
improve the effectiveness of the
trol switch to the desired tempera-
ODM042287
climate control, use the AUTO
ture.
1 Press the AUTO button.
button and set the temperature to
22°C/71°F (23°C/73°F
- Except
The modes, fan speeds, air intake
Europe).
and air-conditioning will be controlled
automatically by setting the tempera-
ture.
4 161
Features of your vehicle
Manual heating and air condi-
Mode selection
tioning
The heating and cooling system can
be controlled manually by pressing
buttons or turning knob(s) other than
the AUTO button. In this case, the
system works sequentially according
to the order of buttons or knob(s)
selected.
1. Start the engine.
2. Set the mode to the desired posi-
ODM042336
tion.
NOTICE
ODM042288
For improving the effectiveness of
Never place anything over the sen-
heating and cooling;

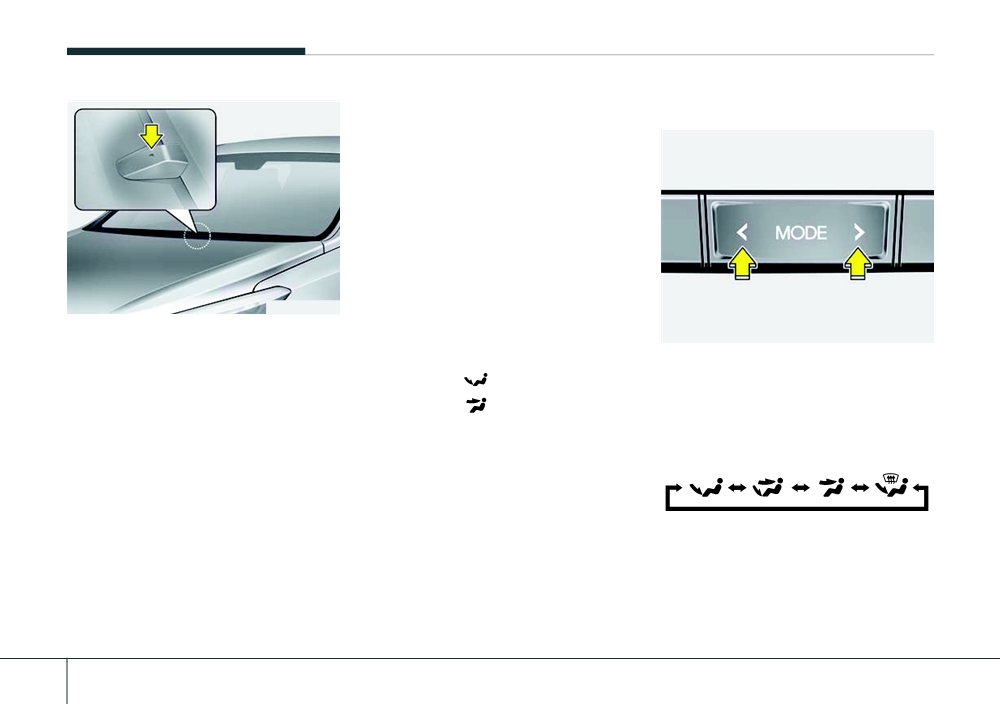

The mode selection button controls
sor located on the instrument panel
the direction of the air flow through
- Heating:
to ensure better control of the heat-
the ventilation system.
ing and cooling system.
- Cooling:
The air flow outlet port is converted
3. Set the temperature control to the
as follows:
desired position.
4. Set the air intake control to the
outside (fresh) air position.
5. Set the fan speed control to the
desired speed.
6. If air conditioning is desired, turn
Refer to the illustration in the
the air conditioning system on.
“Manual climate control system”.
Press the AUTO button in order to
convert to full automatic control of
the system.
4 162
Features of your vehicle
■ Type A
■ Type B
Face-Level
Floor-Level
Air flow is directed toward the upper
Most of the air flow is directed to the
body and face. Additionally, each
floor, with a small amount of the air
outlet can be controlled to direct the
being directed to the windshield and
air discharged from the outlet.
side window defrosters.
Bi-Level
Floor/Defrost-Level
ODM042289
Defrost-Level
Air flow is directed towards the face
Most of the air flow is directed to the
Most of the air flow is directed to the
and the floor.
floor and the windshield with a small
windshield with a small amount of air
amount directed to the side window
directed to the side window defrosters.
defrosters.
4 163
Features of your vehicle
Temperature control
■ Type A
■ Type B
■ The driver’s side
■ The passenger’s side
ODM042279
ODM042291
Instrument panel vents
Adjusting the driver and passenger
ODMECL2003
The outlet vents can be opened or
side temperature individually
The temperature will increase to the
closed separately using the thumb-
1. Press the DUAL button to operate
maximum (HIGH) by holding the
wheel.
the driver and passenger side
button.
temperature individually. Also, if
Also, you can adjust the direction of
The temperature will decrease to the
the passenger side temperature
air delivery from these vents using
minimum (LOW) by holding the
control button is operated, it will
the vent control lever as shown.
button.
automatically change to the DUAL
The temperature will increase or
mode as well.
decrease by 0.5°C/1°F. When set to
2. Operate the driver side tempera-
the lowest temperature, the air condi-
ture control to adjust the driver
tioning will operate continuously.
side temperature. Operate the
passenger side temperature con-
trol to adjust the passenger side
temperature.
4 164
Features of your vehicle
When the driver side temperature is
Adjusting the driver and passenger
Air intake control
set to the highest (HIGH) or lowest
side temperature equally
■ Type A
■ Type B
(LOW) temperature, the DUAL mode
1. Press the DUAL button again to
deactivates for maximum heating or
deactivate DUAL mode. The pas-
cooling.
senger side temperature will be
set to the same temperature as
the driver side.
2. Operate the driver side tempera-
ture control button. The driver and
passenger side temperature will
be adjusted equally.
Temperature conversion
ODMECL2004
You can switch the temperature
The air intake control is used to
mode between Centigrade to
select the outside (fresh) air position
Fahrenheit as follows:
or recirculated air position.
While pressing the OFF button,
To change the air intake control posi-
press the AUTO button for 3 seconds
tion, press the control button.
or more.
The display will change from
Centigrade to Fahrenheit, or from
Fahrenheit to Centigrade.
4 165
Features of your vehicle
Type A
Type B
NOTICE
Recirculated air position
Recirculated air position
Prolonged operation of the heater in
With the recirculated air
With the recirculated air
the recirculated air position (with-
position selected, air
position selected, air
out air conditioning selected) may
from the passenger
from the passenger
cause fogging of the windshield and
compartment will be
compartment will be
side windows and the air within the
drawn through the heat-
drawn through the heat-
passenger compartment may
ing system and heated
ing system and heated
become stale.
or cooled according to
or cooled according to
In addition, prolonged use of the air
the function selected.
the function selected.
conditioning with the recirculated
air position selected will result in
excessively dry air in the passenger
Outside (fresh) air position
Outside (fresh) air position
compartment.
With the outside (fresh)
With the outside (fresh)
air position selected, air
air position selected, air
enters the vehicle from
enters the vehicle from
outside and is heated or
outside and is heated or
cooled according to the
cooled according to the
function selected.
function selected.
4 166
Features of your vehicle
Fan speed control
Air conditioning
WARNING
Continue using the climate
control system in the recircu-
lated air position may allow
humidity to increase inside
the vehicle which may fog the
glass and obscure visibility.
Do not sleep in a vehicle with
the air conditioning or heating
system on. It may cause seri-
ous harm or death due to a
drop in the oxygen level
ODM042293
ODMECL2016
and/or body temperature.
The fan speed control knob allows
Press the A/C button to turn the air
Continue using the climate
you to control the fan speed of the
conditioning system on
(indicator
control system in the recircu-
airflow in the vehicle.
light will illuminate).
lated air position can cause
To change the fan speed:
Press the button again to turn the air
drowsiness or sleepiness,
and loss of vehicle control.
• Turn the knob to the right (+) to
conditioning system off.
Set the air intake control to
increase fan speed.
the outside (fresh) air position
• Turn the knob to the left
(-) to
as much as possible while
decrease fan speed.
driving.
To turn off the fan speed, press the
OFF button.
4 167
Features of your vehicle
OFF mode
Climate information screen
3rd row climate control
selection
(if equipped)
(if equipped)
Front
ONCNCL2007
ODM042295
3rd row
ODM042297
Press the blower OFF button to turn
off the air climate control system.
Press the climate information screen
However, you can still operate the
selection button to display climate
mode and air intake buttons as long
information on the screen.
as the ignition switch is in the ON
position.
ONCNCL2002
1. To turn the 3rd row climate control
on or off, press the 3rd row climate
control ON/OFF button (1) or (5).
4 168
Features of your vehicle
2. Set the fan speed control knob (2)
System operation
Operation Tips
to the desired position.
• To keep dust or unpleasant fumes
Ventilation
3. Set the temperature control knob
from entering the vehicle through
1. Set the mode to the
position.
(3) to the desired position.
the ventilation system, temporarily
2. Set the air intake control to the
set the air intake control to the
4. Select the desired direction of the
outside (fresh) air position.
recirculated air position. Be sure to
air flow by pressing the mode
3. Set the temperature control to the
return the control to the fresh air
selecting button (4).
desired position.
position when the irritation has
passed to keep fresh air in the
4. Set the fan speed control to the
vehicle. This will help keep the driv-
desired speed.
er alert and comfortable.
Air for the heating/cooling system
Heating
is drawn in through the grilles just
1. Set the mode to the
position.
ahead of the windshield. Care
should be taken that these are not
2. Set the air intake control to the
outside (fresh) air position.
blocked by leaves, snow, ice or
other obstructions.
3. Set the temperature control to the
desired position.
To prevent interior fog on the wind-
shield, set the air intake control to
4. Set the fan speed control to the
the fresh air position and fan speed
desired speed.
to the desired position, turn on the
5. If dehumidified heating is desired,
air conditioning system, and adjust
turn the air conditioning system (if
the temperature control to desired
equipped) on.
temperature.
• If the windshield fogs up, set the
mode to the
or
position.
4 169
Features of your vehicle
Air conditioning (if equipped)
NOTICE
CAUTION
HYUNDAI Air Conditioning Systems
When using the air conditioning
are filled with environmentally friend-
The refrigerant system should
system, monitor the temperature
ly refrigerant*.
only be serviced by trained
gauge closely while driving up
and certified technicians to
hills or in heavy traffic when out-
1. Start the engine. Push the air con-
insure proper and safe opera-
side temperatures are high. Air
ditioning button.
tion.
conditioning system operation
2. Set the mode to the
position.
The refrigerant system should
may cause engine overheating.
3. Set the air intake control to the
be serviced in a well-ventilat-
Continue to use the blower fan but
outside air or recirculated air posi-
ed place.
turn the air conditioning system
tion.
off if the temperature gauge indi-
The air conditioning evapora-
4. Adjust the fan speed control and
cates engine overheating.
tor (cooling coil) shall never
temperature control to maintain
When opening the windows in
be repaired or replaced with
maximum comfort.
humid weather air conditioning
one removed from a used or
may create water droplets inside
salvaged vehicle and new
the vehicle. Since excessive water
*: Your vehicle is filled with R-134a or
replacement MAC evaporators
droplets may cause damage to
R-1234yf according to the regula-
shall be certified (and labeled)
electrical equipment, air condi-
tion in your country at the time of
as meeting SAE Standard
tioning should only be used with
producing. You can find out which
J2842.
the windows closed.
air conditioning refrigerant is
applied your vehicle at the label
inside of hood. Refer to section 8
for more detail location of air con-
ditioning refrigerant label.
4 170















Content   ..  13  14  15  16   ..
