FUSES

■ Blade type

A vehicle’s electrical system is pro-

✽ NOTICE

tected from electrical overload dam-

Three kinds of fuses are used: blade

age by fuses.

type for lower amperage rating, car-

This vehicle has 2 (or 3) fuse panels,

tridge type, and fusible link for

Normal

Blown

one located in the driver’s side panel

higher amperage ratings.

bolster, the other in the engine com-

■ Cartridge type

partment near the battery.

WARNING

If any of your vehicle’s lights, acces-

sories, or controls do not work, check

NEVER replace a fuse with any-

the appropriate circuit fuse. If a fuse

thing but another fuse of the

has blown, the element inside the

same rating.

fuse will be melted or broken.

Normal

Blown

• A higher capacity fuse could

If the electrical system does not

cause damage and possibly

■ Multi fuse

work, first check the driver’s side

cause a fire.

fuse panel. Before replacing a blown

• Do not install a wire or alu-

fuse, disconnect the negative battery

minum foil instead of the

cable. Always replace a blown fuse

proper fuse - even as a tem-

with one of the same rating.

porary repair. It may cause

Normal

Blown

If the replacement fuse blows, this

extensive wiring damage and

indicates an electrical problem. Avoid

■ Fusible link

possibly a fire.

using the system involved and imme-

diately consult an authorized

HYUNDAI dealer.

Normal

Blown

OLMB073029/OBH072060

7-61

Maintenance

Instrument panel fuse replace-

CAUTION

ment

Do not use a screwdriver or any

other metal object to remove

fuses because it may cause a

short circuit and damage the

system.

ODH073054

5. Pull the suspected fuse straight

out. Use the removal tool provided

ODH073031

in the engine compartment fuses

1. Turn the engine off.

panel.

2. Turn all other switches OFF.

6. Remove and check the suspected

3. Open the fuse panel cover.

fuse; replace it if it is blown. Spare

fuses are provided in the instru-

4. Refer to the label on the inside of

ment panel fuse panels (or in the

the fuse panel cover to locate the

engine compartment fuse panel).

suspected fuse location.

7. Push in a new fuse of the same

rating, and make sure it fits tightly

in the clips. If it fits loosely, consult

an authorized HYUNDAI dealer.

7-62

In an emergency, if you do not have

Fuse switch

CAUTION

a spare fuse, use a fuse of the same

rating from a circuit you may not

• Always place the fuse switch

need for operating the vehicle, such

as the cigarette lighter fuse.

in the ON position while driv-

ing the vehicle.

If the headlamps or other electrical

components do not work and the

• Do not move the transporta-

tion fuse switch repeatedly.

fuses are OK, check the fuse panel

in the engine compartment. If a fuse

The fuse switch may be dam-

aged.

is blown, it must be replaced with the

same rating.

ODH073032

Always, place the fuse switch to the

ON position.

If you move the switch to the OFF

position, some items such as audio

and digital clock must be reset and

the smart key may not work properly.

7-63

Maintenance

Engine compartment panel

4. Remove and check the suspected

Main fuse

fuse replacement

fuse; replace it if it is blown. To

remove or insert the fuse, use the

fuse puller in the engine compart-

ment fuse panel.

5. Push in a new fuse of the same

rating, and make sure it fits tightly

in the clips. If it fits loosely, consult

an authorized HYUNDAI dealer.

ODH073054

ODH073057A

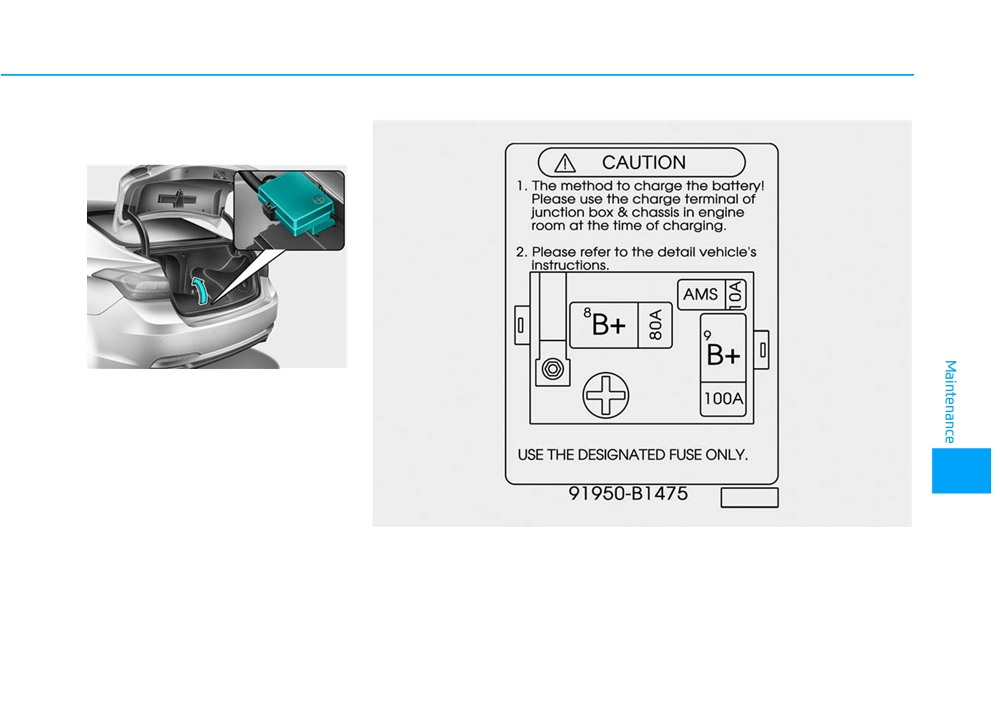

If the main fuse is blown, it must be

removed as follows:

1. Turn off the engine.

2. Disconnect the negative battery

cable.

3. Remove the fuse panel cover by

pressing the tab and pulling it up.

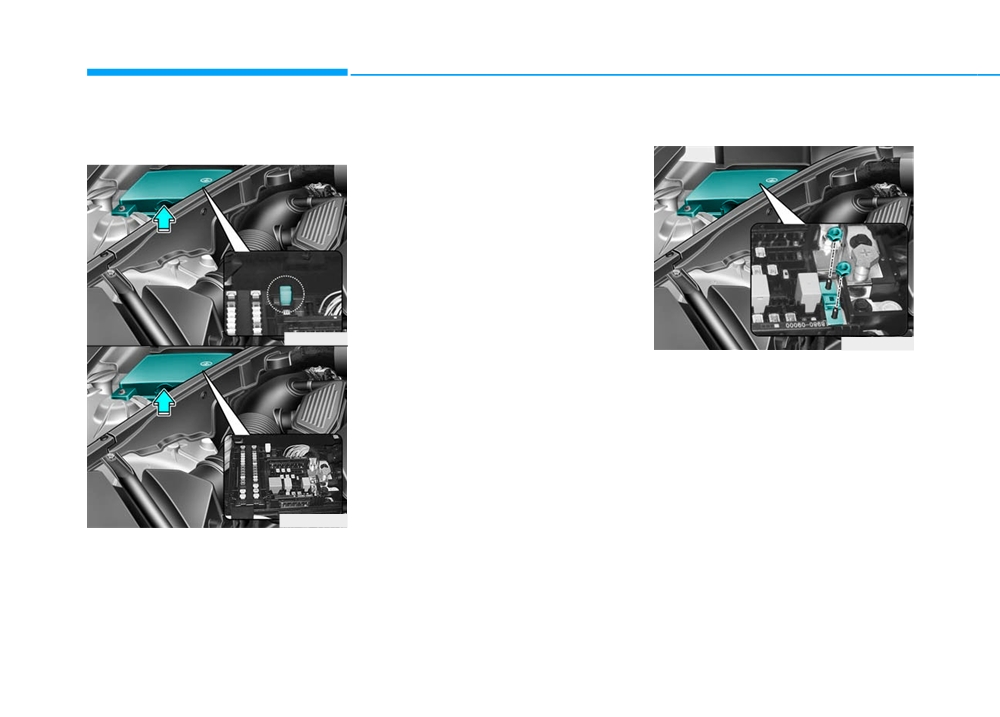

4. Remove the nuts shown in the pic-

ODH073056

ture above.

5. Replace the fuse with a new one

1. Turn the engine off.

of the same rating.

2. Turn all other switches OFF.

6. Reinstall in the reverse order of

3. Remove the fuse panel cover by

removal.

pressing the tap and pulling up.

7-64

✽ NOTICE

Multi fuse

✽ NOTICE

If the main fuse is blown, consult an

If the multi fuse is blown, consult an

authorized HYUNDAI dealer.

ODH073055

If the multi fuse is blown, it must be

removed as follows:

1. Turn off the engine.

2. Disconnect the negative battery

cable.

3. Remove the fuse panel cover by

pressing the tab and pulling up.

4. Remove the bolts shown in the

picture above.

5. Replace the fuse with a new one

of the same rating.

6. Reinstall in the reverse order of

removal.

7-65

Maintenance

Fuse/Relay panel description

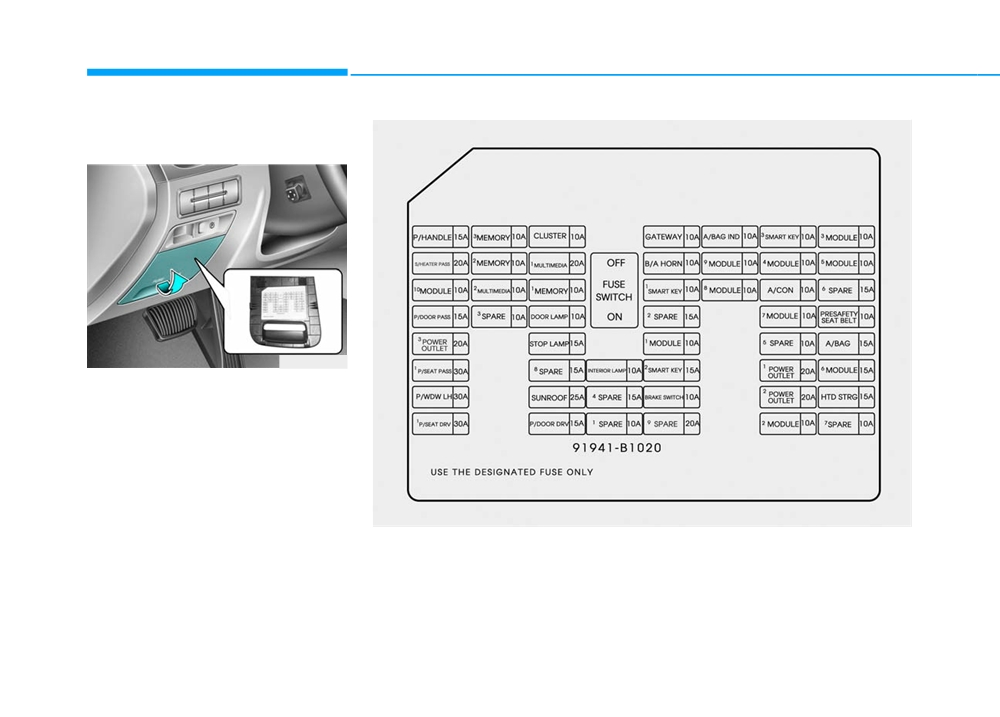

Instrument panel fuse panel

ODH073035

Inside the fuse/relay box cover, you

can find the fuse/relay label describ-

ing fuse/relay name and capacity.

✽ NOTICE

Not all fuse panel descriptions in

this manual may be applicable to

ODH074051N

your vehicle; the information is

accurate at the time of printing.

When you inspect the fuse box on

your vehicle, refer to the fuse box

label.

7-66

Instrument panel fuse panel

Fuse Name

Fuse rating

Circuit Protected

P/HANDLE

15A

Steering Tilt & Telescopic Module

3 MEMORY

10A

Passenger Power Outside Mirror

CLUSTER

10A

Instrument Cluster, Head-Up Display

GATEWAY

10A

Gateway (IG1 (MCU))

A/BAG IND

10A

Instrument Cluster, A/C Control Module

3 SMART KEY

10A

Smart Key Control Module

3 MODULE

10A

BCM, Sport Mode Switch, Stop Lamp Switch, Driver/Passenger Door Module, Rear Door Module LH/RH

S/HEATER PASS

20A

Passenger CCS Module, Passenger Seat Warmer Control Module

2 MEMORY

10A

Driver Power Outside Mirror

1 MULTI MEDIA

20A

Fuse - MULTIMEDIA 2, A/V & Navigation Head Unit

B/A HORN

10A

Burglar Alarm Horn Relay

9 MODULE

10A

Multifunction Switch

Steering Tilt & Telescopic Module, Blind Spot Detection Radar LH/RH Crash Pad Switch,

Tire Pressure Monitoring Module, Console Switch LH/RH, Front Parking Assist Sensor LH/RH,

4 MODULE

10A

Front Parking Assist Sensor (Center), ECS Unit, Electric Parking Brake Switch,

Rear Parking Assist Sensor LH/RH, Rear Parking Assist Sensor (Center), LKAS Module

Multipurpose Check Connector, A/V & Navigation Head Unit, Electro Chromic Mirror, A/C Control Module,

5 MODULE

10A

I-Box, AMP, Driver/Passenger CCS Module, Driver Power Seat Switch, Driver/Passenger Seat Warmer

Control Module, Rear Seat Warmer Control Module LH/RH, Driver IMS Control Module

7-67

Maintenance

Fuse Name

Fuse rating

Circuit Protected

10 MODULE

10A

BCM

2 MULTI MEDIA

10A

Keyboard, I-Box, Front Monitor

Steering Tilt & Telescopic Module, External Buzzer, BCM, Analog Clock, A/C Control Module,

1 MEMORY

10A

Tire Pressure Monitoring Module, Security Indicator, Head-Up Display, Instrument Cluster,

Driver/Passenger Door Module, Rear Door Module LH/RH, Power Trunk Lid Control Module

1 SMART KEY

10A

Start/Stop Button Switch

8 MODULE

10A

BCM, Smart Key Control Module

A/CON

10A

Metal Core Block (PCB #1 - Blower Relay), Ionizer Co2 Sensor, A/C Control Module

P/DOOR PASS

15A

Passenger Door Latch

DOOR LAMP

10A

Driver/Passenger Door Module, Rear Door Module LH/RH

Parking Guide Unit, Head-Up Display Sunroof, Passenger Lumbar Support Unit,

7 MODULE

10A

Clock Spring (Steering Wheel Remote Control Switch)

PRESAFETY

10A

Pre-Safe Seat Belt Module

SEAT BELT

3 POWER OUTLET

20A

Not Used

STOP LAMP

15A

Stop Signal Electronic Module

1 MODULE

10A

Gateway (B+ (MCU)), Rain Sensor, Hazard Switch Trunk Lid Main Switch, Electric Parking Brake Switch

A/BAG

15A

SRS Control Module

1 P/SEAT PASS

30A

Passenger Power Seat Relay Box

Room Lamp, Room Lamp LH/RH, Overhead Console Lamp, Glove Box, Front Vanity Lamp LH/RH,

INTERIOR LAMP

10A

Driver/Passenger Foot Lamp, Trunk Room Lamp LH/RH

7-68

Fuse Name

Fuse rating

Circuit Protected

2 SMART KEY

15A

Smart Key Control Module

1 POWER OUTLET

20A

Front Power Outlet & Cigarette Lighter

Head Lamp LH/RH, Auto Hold & Drive Mode Switch, Auto Head Lamp Leveling Device Module, A/T Shift

6 MODULE

15A

Lever IND.

P/WDW LH

30A

Driver Power Window Module, Rear Door Module LH, Rear Power Window Module LH

SUNROOF

25A

Sunroof Motor

BRAKE SWITCH

10A

Stop Lamp Switch, Smart Key Control Module

2 POWER OUTLET

20A

Front Power Outlet & Cigarette Lighter

HTD STRG

15A

Clock Spring (Steering Wheel Heated Module)

1 P/SEAT DRV

30A

Driver IMS Control Module, Driver Power Seat Relay Box

P/DOOR DRV

15A

Driver Door Latch

BCM, Smart Key Control Module, Overhead Console Lamp, Analog Clock, A/V & Navigation Head Unit,

2 MODULE

10A

Keyboard, I-Box, Front Monitor, Parking Guide Unit

7-69

Maintenance

Engine compartment fuse panel

ODH073033

Inside the fuse/relay box cover, you

can find the fuse/relay label describ-

ing fuse/relay name and capacity.

✽ NOTICE

Not all fuse panel descriptions in

ODH073034

this manual may be applicable to

your vehicle; the information is

accurate at the time of printing.

When you inspect the fuse panel in

your vehicle, refer to the fuse panel

label.

7-70

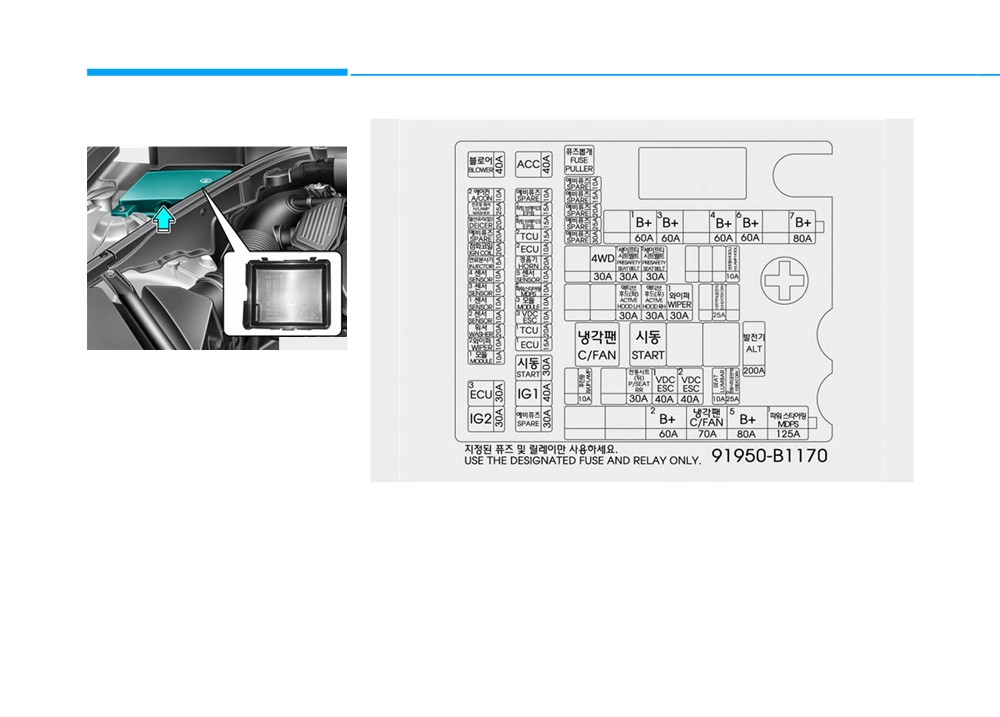

Engine compartment main fuse panel

Fuse Name

Fuse rating

Circuit Protected

Alternator, Multifuse (BATT) - B+2/ B+5/ MDPS 1/ C/FAN, Fuse - P/SEAT DRV 2/ P/SEAT RR/ SEAT

ALT

200A

LUMBAR/ ESC 1/ ESC 2

IGPM (Fuse - BRAKE SWITCH, Leak Current Autocut Device (Fuse - INTERIOR LAMP/ MULTI MEDIA 1/

1 B+

60A

MEMORY 1/ MEMORY 2/ MEMORY 3), IPS 1)

3 B+

60A

IGPM (Fuse - SMART KEY 1/ SMART KEY 2/ MODULE 1/ B/A HORN, IPS 2/IPS 3/IPS 5/IPS 7)

4 B+

60A

IGPM (Fuse - DOOR LAMP/ STOP LAMP, IPS 4/IPS 6)

6 B+

60A

Metal Core Block (PCB #1 Fuse - ECU 3/ IG2/ MODULE 1)

7 B+

80A

Metal Core Block (PCB #2 Fuse - HORN/ ACC/ EPB 1/ EPB 2)

IGPM (Fuse - P/HANDLE/ P/WDW LH/ P/SEAT PASS 1/ S/HEATER PASS/ MODULE 10/ SUNROOF/

2 B+

60A

P/DOOR DRV/ P/DOOR PASS)

C/FAN

70A

RLY. 1 (C/Fan Relay)

5 B+

80A

Metal Core Block (PCB #1 Fuse - BLOWER/ DEICER/ H/LAMP WASHER)

MDPS 1

125A

MDPS Unit

TCM, Transmission Range Switch, Rear Combination Lamp (IN) LH/RH, Electro Chromic Mirror, A/V &

B/UP LAMP

10A

Navigation Head Unit

P/SEAT RR

30A

Not Used

1 ESC

40A

ESC Module, Multipurpose Check Connector

2 ESC

40A

ESC Module, Multipurpose Check Connector

7-71

Maintenance

Fuse Name

Fuse rating

Circuit Protected

SEAT LUMBAR

10A

Driver/Passenger Power Seat Relay Box, Driver/Passenger Lumbar Support Unit

2 P/SEAT DRV

25A

Driver IMS Control Module, Driver Power Seat Switch, Driver Power Seat Relay Box

ACTIVE

30A

Not Used

HOOD LH

ACTIVE

30A

Not Used

HOOD RH

WIPER

30A

Wiper Motor

S/HEATER DRV

25A

Driver CCS Module, Driver Seat Warmer Control Module

4WD

30A

4WD ECM

1 PRESAFETY

30A

Pre-Safe Seat Belt Module

SEAT BELT

2 PRESAFETY

30A

Pre-Safe Seat Belt Module

SEAT BELT

H/LAMP HI SOL

10A

Metal Core Block (PCB #2 - Head Lamp High Solenoid Relay)

7-72

Fuse Name

Fuse rating

Circuit Protected

IG2

30A

IG2 Relay

3 ECU

30A

Engine Control Relay

1 MODULE

10A

4WD ECM, Smart Cruise Control Radar, Active Air Flap

2 WIPER

10A

Metal Core Block (PCB #2 - Wiper Relay)

WASHER

20A

Washer Relay

2 SENSOR

10A

ECM, Oxygen Sensor #1/#2/#3/#4

ECM, Oil Control Valve #1/#2/#3/#4, Canister Close Valve, Purge Control Solenoid Valve, Variable Intake

1 SENSOR

10A

Solenoid Valve #1/#2

3 SENSOR

10A

ECM, Rear Junction Block (Fuel Pump Relay)

4 SENSOR

10A

C/Fan Relay, Camshaft Position Valve (G8BE)

INJECTOR

15A

Injector Drive Box

G6DJ : Condenser, Ignition Coil #1/#2/#3/#4/#5/#6, G8BE : Condenser #1/#2, Ignition Coil

IGN COIL

20A

#1/#2/#3/#4/#5/#6/#7/#8

DEICER

20A

Metal Core Block (PCB #2 - Front Deicer Relay)

H/LAMP WASHER

25A

Head Lamp Washer Relay

2 A/CON

10A

A/C Control Module

BLOWER

40A

Blower Relay

7-73

Maintenance

Fuse Name

Fuse rating

Circuit Protected

IG1

40A

IG1 Relay

START

30A

E/R Junction Block (RLY. 2 - Start Relay)

1 ECU

15A

ECM, Injector Drive Box

1 TCU

20A

TCM

3 ESC

10A

ESC Module, Steering Angle Sensor

3 MODULE

10A

Smart Cruise Control Radar, Active Air Flap

2 MDPS

10A

MDPS Unit

5 SENSOR

10A

G6DJ : Oil Pressure Solenoid Velve

HORN

20A

Horn Relay

2 ECU

10A

ECM, Injector Drive Box, Alternator (G8BE)

2 TCU

15A

TCM, Transmission Range Switch, 4WD ECM

2 EPB

15A

Electric Parking Brake Module

1 EPB

15A

Electric Parking Brake Module

ACC

40A

ACC Relay

7-74

Trunk fuse panel

(Rear fuse box panel)

ODH073036

Inside the fuse/relay box covers, you

can find the fuse/relay label describ-

ing fuse/relay name and capacity.

✽ NOTICE

ODH074052N

Not all fuse panel descriptions in

this manual may be applicable to

your vehicle. It is accurate at the

time of printing. When you inspect

the fuse box on your vehicle, refer to

the fuse box label.

7-75

Maintenance

Fuse Name

Fuse rating

Circuit Protected

P/TRUNK

30A

Power Trunk Lid Control Module

P/DOOR RR RH

15A

Rear Door Latch RH

2 DR LOCK

15A

Passenger Door Module

P/DOOR RR LH

15A

Rear Door Latch LH

3 SPARE

15A

Spare Fuse

1 SPARE

10A

Spare Fuse

2 P/SEAT PASS

25A

Passenger Power Seat Relay Box

F/LID

10A

Fuel Lid Open Relay, Crash Pad Switch

ECS

15A

ECS Unit

1 DR LOCK

10A

Driver Door Module

5 SPARE

15A

Spare Fuse

TRUNK

10A

Trunk Lid Relay, Power Trunk Module Buzzer

S/HEATER RR RH

20A

Rear Seat Warmer Control Module RH

FOG LAMP RR

10A

Not Used

AMP

25A

AMP

S/HEATER RR LH

20A

Rear Seat Warmer Control Module LH

P/WDW RH

30A

Passenger Power Window Module, Rear Power Window Module RH

F/PUMP

20A

Fuel Pump Relay

RR HTD

40A

Rear Defogger Relay

7-76

Trunk fuse panel

• Battery box fuse panel

(Battery box fuse panel)

ODH073037

Inside the fuse/relay box covers, you

can find the fuse/relay label describ-

ing fuse/relay name and capacity.

✽ NOTICE

Not all fuse panel descriptions in

this manual may be applicable to

your vehicle. It is accurate at the

ODH074038N

time of printing. When you inspect

the fuse box on your vehicle, refer to

the fuse box label.

7-77

Content .. 24 25 26 27 ..
