What to do in an emergency
10. Loosen the lug nuts with the
wheel lug nut wrench and
remove them with your fingers.
Remove the wheel from the
studs and lay it flat on the ground
out of the way. Remove any dirt
or debris from the studs, mount-
ing surfaces, and wheel.
11. Install the spare tire onto the
studs of the hub.
12. Tighten the lug nuts with your fin-
ODH063013
ODH063014
gers onto the studs with the
9.Insert the jack handle into the jack
smaller end of the lug nuts clos-
14. Use the wheel lug nut wrench to
and turn it clockwise, raising the
est to the wheel.
tighten the lug nuts in the order
vehicle until the tire clears the
13. Lower the vehicle to the ground
shown. Double-check each lug
ground. Make sure the vehicle is
by turning the jack handle coun-
nut until they are tight. After
stable on the jack.
terclockwise.
changing tires, we recommend
that an authorized HYUNDAI
dealer tighten the lug nuts to their
proper torque as soon as possi-
ble. The wheel lug nut should
be tightened to
65~79 lb.ft
(9~11 kg.m).
6-18
If you have a tire gauge, check the
Use of compact spare tires
CAUTION
tire pressure (see “Tires and Wheels”
(if equipped)
in chapter 8 for tire pressure instruc-
Compact spare tires are designed for
Your vehicle has metric threads
tions.). If the pressure is lower or
emergency use only. Drive carefully
on the studs and lug nuts. Make
higher than recommended, drive
on the compact spare tire and
certain during tire changing
slowly to the nearest service station
always follow the safety precautions.
that the same nuts that were
and adjust it to the recommended
removed are reinstalled. If you
pressure. Always reinstall the valve
have to replace your lug nuts
cap after checking or adjusting tire
WARNING
make sure they have metric
pressure. If the cap is not replaced,
air may leak from the tire. If you lose
threads to avoid damaging the
To prevent compact spare tire
a valve cap, buy another and install it
studs and ensure the wheel is
failure and loss of control pos-
as soon as possible. After changing
properly secured to the hub.
sibly resulting in an accident:
Consult
an
authorized
tires, secure the flat tire and return
• Use the compact spare tire
HYUNDAI dealer for assistance.
the jack and tools to their proper stor-
only in an emergency.
age locations.
• NEVER operate your vehicle
If any of the equipment such as the
over 50 mph (80 km/h).
6
✽ NOTICE
jack, lug nuts, studs, or other equip-
• Do not exceed the vehicle’s
ment is damaged or in poor condi-
maximum load rating or the
Check the tire pressure as soon as
tion, do not attempt to change the
load carrying capacity shown
possible after installing a spare tire.
tire and call for assistance.
on the sidewall of the com-
Adjust it to the recommended pres-
sure.
pact spare tire.
• Do not use the compact spare
tire continuously. Repair or
replace the original tire as
soon as possible to avoid fail-
ure of the compact spare tire.
6-19
What to do in an emergency
When driving with the compact spare
✽ NOTICE
CAUTION
tire mounted to your vehicle:
When the original tire and wheel are
•
Check the tire pressure after
repaired and reinstalled on the vehi-
To prevent damaging the com-
installing the compact spare tire.
cle, the lug nut torque must be set
pact spare tire and your vehicle:
The compact spare tire should be
correctly. The correct lug nut tight-
•
Drive slowly enough for the
inflated to 60 psi (420 kPa).
ening torque is
65-79 lb.ft
(9-11
road conditions to avoid all
•
Do not take this vehicle through an
kg.m).
hazards, such as a potholes
automatic car wash while the com-
or debris.
pact spare tire is installed.
•
Avoid driving over obstacles.
•
Do not use the compact spare tire
The compact spare tire diame-
on any other vehicle because this
ter is smaller than the diame-
tire has been designed especially
ter of a conventional tire and
for your vehicle.
reduces the ground clearance
•
The compact spare tire’s tread life
approximately 1 inch (25 mm).
is shorter than a regular tire.
•
Do not use tire chains on the
Inspect your compact spare tire
compact spare tire. Because
regularly and replace worn com-
of the smaller size, a tire chain
pact spare tires with the same size
will not fit properly.
and design, mounted on the same
•
Do not use the compact spare
wheel.
tire on any other wheels, nor
•
Do not use more than one compact
should standard tires, snow
spare tire at a time.
tires, wheel covers or trim
rings be used with the com-
pact spare wheel.
6-20

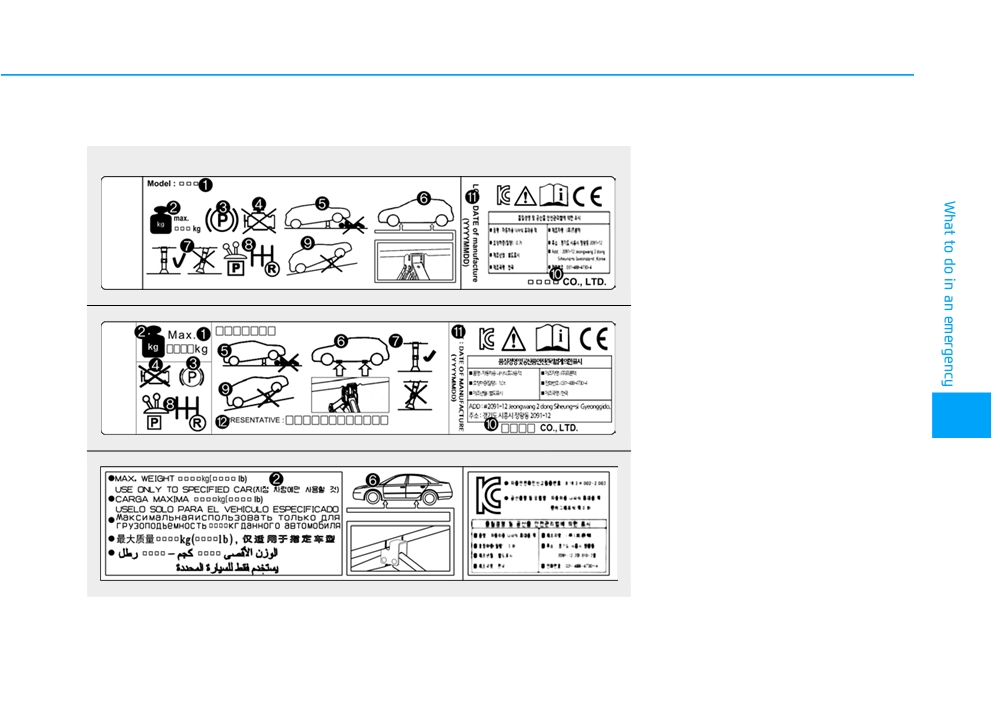

Jack label
■ Example
1. Model Name
• Type A
2. Maximum allowable load
3. When using the jack, set your
parking brake.
4. When using the jack, stop the
engine.
5. Do not get under a vehicle that is
supported by a jack.
OHYK065010
• Type B
6. The designated locations under
the frame
7. When supporting the vehicle, the
base plate of jack must be vertical
under the lifting point.
8. Shift into Reverse gear on vehicles
6
with manual transmission or move
the shift lever to the P position on
OHYK065011
• Type C
vehicles with automatic transmis-
sion.
9. The jack should be used on firm
level ground.
10. Jack manufacturer
11. Production date
12. Representative company and
OHYK064002
address
The actual Jack label in the vehicle may differ from the illustration.
For more detailed specifications, refer to the label attached to the jack.
6-21
What to do in an emergency
TOWING
Towing service
On AWD vehicles, your vehicle must
be towed with a wheel lift and dollies
A
or flatbed equipment with all the
wheels off the ground.
CAUTION
B
The AWD vehicle should never
be towed with the wheels on the
ground. This can cause serious
damage to the transmission or
Dolly
ODH063033
the AWD system.
C
When towing the vehicle by flatbed
equipment, secure wheels by using
On 2WD vehicles, it is acceptable to
chocks and tie-down straps (or soft
tow the vehicle with the front wheels
belts).
on the ground (without dollies) and
Dolly
Do not place straps over body panels
the rear wheels off the ground.
ODH063020
or through the wheels.
If any of the loaded wheels or sus-
If emergency towing is necessary,
pension components are damaged
we recommend having it done by an
CAUTION
or the vehicle is being towed with the
authorized HYUNDAI dealer or a
rear wheels on the ground, use a
commercial tow-truck service.
Do not lift the vehicle by the tow
towing dolly under the rear wheels.
Proper lifting and towing procedures
fitting or body and chassis
are necessary to prevent damage to
When being towed by a commercial
parts. Otherwise the vehicle
the vehicle. The use of wheel dollies
tow truck and wheel dollies are not
may be damaged.
or flatbed is recommended.
used, the rear of the vehicle should
always be lifted, not the front.
6-22
When towing your vehicle in an
Removable towing hook
emergency without wheel dollies :
(if equipped)
1.Set the Engine Start/Stop button in
■ Front
the ACC position.
2.Place the shift lever in N (Neutral).
3.Release the parking brake.
CAUTION
ODH063021
Failure to place the transmis-
sion shift lever in N (Neutral)
may cause internal damage to
ODH063015
the transmission.
■ Rear
6
ODH063022
CAUTION
• Do not tow the vehicle with
the rear wheels on the ground
ODH063016
as this may cause damage to
1.Open the trunk, and remove the
the vehicle.
towing hook from the tool case.
• Do not tow with sling-type
2.Remove the hole cover pressing
equipment. Use wheel lift or
the lower part of the cover on the
flatbed equipment.
bumper.
6-23
What to do in an emergency
3.Install the towing hook by turning it
Emergency towing
If towing service is not available in an
clockwise into the hole until it is
(if equipped)
emergency, your vehicle may be
fully secured.
temporarily towed using a cable or
■ Front
chain secured to the emergency tow-
4.Remove the towing hook and
ing hook at the front (or rear) of the
install the cover after use.
vehicle.
Use extreme caution when towing
the vehicle with a cable or chain. A
driver must be in the vehicle to steer
it and operate the brakes.
Towing in this manner may be done
only on hard-surfaced roads for a
ODH063017
short distance and at low speeds.
■ Rear
Also, the wheels, axles, power train,
steering and brakes must all be in
good condition.
ODH063018
If towing is necessary, we recom-
mend you to have it done by an
authorized HYUNDAI dealer or a
commercial tow truck service.
6-24
Always follow these emergency tow-
CAUTION
ing precautions:
•
Place the Engine Start/Stop button
To avoid damage to your vehicle
in the ACC position so the steering
and vehicle components when
wheel is not locked.
towing:
•
Place the shift lever in N (Neutral).
•
Always pull straight ahead
•
Release the parking brake.
when using the towing hooks.
•
Depress the brake pedal with more
Do not pull from the side or at
force than normal since you will
a vertical angle.
have reduced braking perform-
•
Do not use the towing hooks
ance.
ODH063025
to pull a vehicle out of mud,
•
More steering effort will be
sand or other conditions from
•
Use a towing cable or chain less
required because the power steer-
which the vehicle cannot be
than 16 feet (5 m) long. Attach a
ing system will be disabled.
driven out under its own
white or red cloth (about 12 inches
power.
•
Use a vehicle heavier than your
(30 cm) wide) in the middle of the
own to tow your vehicle.
cable or chain for easy visibility.
•
Limit the vehicle speed to 10
mph (15 km/h) and drive less
6
•
The drivers of both vehicles should
•
Drive carefully so the towing cable
than 1 mile (1.5 km) when tow-
communicate with each other fre-
or chain remains tight during tow-
ing to avoid serious damage
quently.
ing.
to the automatic transmis-
•
Before emergency towing, check
•
Before towing, check the automat-
sion.
that the hook is not broken or dam-
ic transmission for fluid leaks under
aged.
your vehicle. If the automatic trans-
mission fluid is leaking, flatbed
•
Fasten the towing cable or chain
securely to the hook.
equipment or a towing dolly must
be used.
•
Do not jerk the hook. Apply steady
and even force.
6-25
Maintenance
Engine compartment
7-3
Air cleaner
7-35
Maintenance services
7-5
Filter replacement
7-35
Owner's responsibility
7-5
Climate control air filter
7-36
Owner maintenance precautions
7-5
Filter inspection
7-36
Owner maintenance
7-6
Wiper blades
7-38
Owner maintenance schedule
7-7
Blade inspection
7-38
Scheduled maintenance services
7-8
Blade replacement
7-38
Normal maintenance schedule
7-9
Battery
7-40
Maintenance under severe usage conditions
7-22
For best battery service
7-41
Explanation of scheduled maintenance
Battery recharging
7-42
items
7-24
Reset features
7-44
Engine oil
7-27
Tires and wheels
7-45
Checking the engine oil level
7-27
Tire care
7-45
Checking the engine oil and filter
7-28
Recommended cold tire inflation pressures
7-46
Check tire inflation pressure
7-47
Engine coolant
7-29
Tire rotation
7-48
Checking the engine coolant level
7-29
Wheel alignment and tire balance
7-49
Changing engine coolant
7-31
Tire replacement
7-49
Brake fluid
7-32
Wheel replacement
7-50
Checking the brake fluid level
7-32
7
Tire traction
7-50
Washer fluid
7-34
Tire maintenance
7-51
Checking the washer fluid level
7-34
Tire sidewall labeling
7-51
Parking brake
7-34
Tire terminology and definitions
7-55
Checking the parking brake
7-34
All season tires
7-58
Summer tires
7-58
Snow tires
7-58
Radial-ply tires
7-59
Low aspect ratio tires
7-59
Fuses
7-61
Instrument panel fuse replacement
7-62
Engine compartment panel fuse replacement
7-64
Fuse/Relay panel description
7-66
Light bulbs
7-79
Headlamp, position lamp, turn signal lamp, side
marker and front fog lamp bulb replacement
7-79
Side repeater lamp replacement
7-83
Rear combination light bulb replacement
7-83
High mounted stop lamp
7-85
License plate light bulb replacement
7-86
Interior light bulb replacement
7-86
Appearance care
7-87
Exterior care
7-87
Interior care
7-92
7
Emission control system
7-94
California perchlorate notice
7-98
ENGINE COMPARTMENT

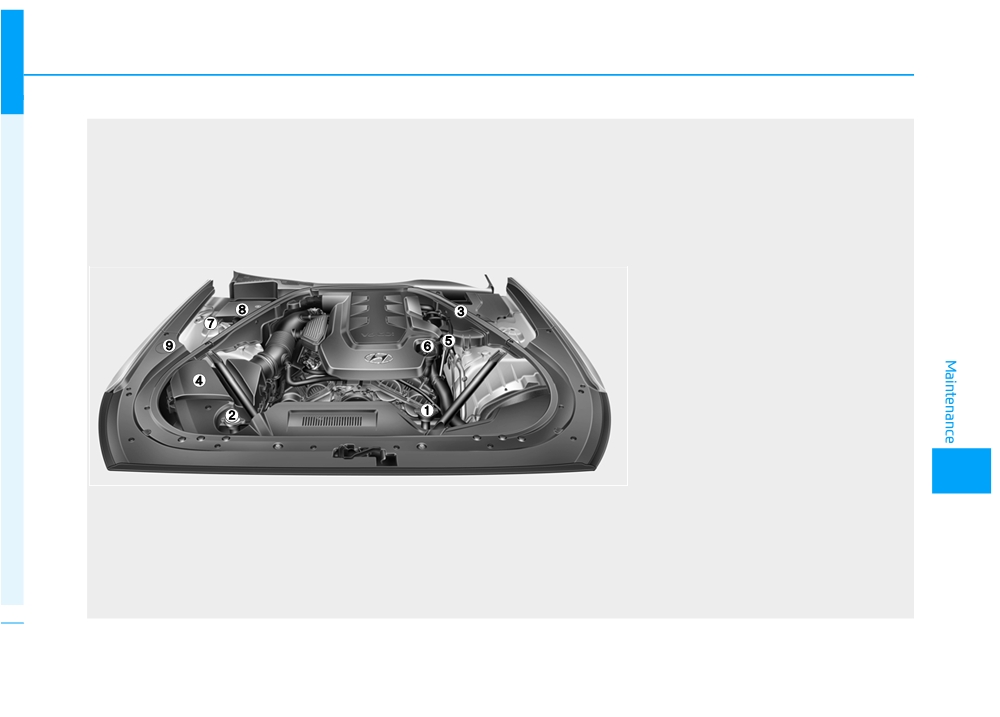

■ Gasoline Engine (Lambda 3.8)
1. Engine coolant reservoir
2. Radiator cap
3. Brake fluid reservoir
4. Air cleaner
5. Engine oil dipstick
6. Engine oil filler cap
7. Windshield washer fluid reservoir
8. Fuse box
9. Jumper terminal
7
The actual engine compartment the vehicle may differ from the illustration.
ODH013005
7-3
Maintenance
■ Gasoline Engine (Tau 5.0)
1. Engine coolant reservoir
2. Radiator cap
3. Brake fluid reservoir
4. Air cleaner
5. Engine oil dipstick
6. Engine oil filler cap
7. Windshield washer fluid reservoir
8. Fuse box
9. Jumper terminal
The actual engine compartment the vehicle may differ from the illustration.
ODH013006L
7-4
MAINTENANCE SERVICES
You should exercise the utmost care
Detailed warranty information is pro-
Certain modifications may also be in
to prevent damage to your vehicle
vided in your Owner’s Handbook &
violation of regulations established
and injury to yourself whenever per-
Warranty Information booklet.
by the U.S. Department of
forming any maintenance or inspec-
Transportation and other federal or
Repairs and adjustments required as
tion procedures.
state agencies.
a result of improper maintenance or
We recommend you have your vehi-
a lack of required maintenance are
cle maintained and repaired by an
not covered.
✽ NOTICE
authorized HYUNDAI dealer. An
Improper owner maintenance dur-
authorized HYUNDAI dealer meets
Owner maintenance precau-
ing the warranty period may affect
HYUNDAI’s high service quality
tions
warranty coverage. For details, read
standards and receives technical
the separate Owner’s Handbook &
support from HYUNDAI in order to
Inadequate, incomplete or insuffi-
Warranty Information booklet pro-
provide you with a high level of serv-
cient servicing may result in opera-
vided with the vehicle. If you’re
ice satisfaction.
tional problems with your vehicle that
unsure about any service or mainte-
could lead to vehicle damage, an
nance procedure, have it done by an
accident, or personal injury. This
Owner’s responsibility
authorized HYUNDAI dealer.
chapter provides instructions only for
Maintenance service and record
the maintenance items that are easy
retention are the owner’s responsibil-
to perform. Several procedures can
ity.
be done only by an authorized
You should retain documents that
HYUNDAI dealer with special tools.
7
show proper maintenance has been
Your vehicle should not be modified
performed on your vehicle in accor-
in any way. Such modifications may
dance with the scheduled mainte-
adversely affect the performance,
nance service charts shown on the
safety or durability of your vehicle
following pages. You need this infor-
and may, in addition, violate condi-
mation to establish your compliance
tions of the limited warranties cover-
with the servicing and maintenance
ing the vehicle.
requirements of your vehicle war-
ranties.
7-5
Maintenance
OWNER MAINTENANCE
The following lists are vehicle checks
WARNING
(Continued)
and inspections that should be per-
•
If you must run the engine
formed by the owner or an author-
Performing maintenance work
during maintenance, do so
ized HYUNDAI dealer at the frequen-
on a vehicle can be dangerous.
out doors or in an area with
cies indicated to help ensure safe,
If you lack sufficient knowledge
plenty of ventilation.
dependable operation of your vehi-
and experience or the proper
•
Keep flames, sparks, or smok-
cle.
tools and equipment to do the
ing materials away from the
Any adverse conditions should be
work, have it done by an author-
battery and fuel-related parts.
brought to the attention of your deal-
ized HYUNDAI dealer. ALWAYS
er as soon as possible.
follow these precautions for
performing maintenance work:
These Owner Maintenance vehicle
checks are generally not covered by
• Park your vehicle on level
warranties and you may be charged
ground, move the shift lever
for labor, parts and lubricants used.
into the P (Park, for automatic
transmission vehicle) posi-
tion, apply the parking brake,
place the Engine Start/Stop
button in the OFF position.
• Block the tires
(front and
back) to prevent the vehicle
from moving.
Remove loose clothing or jew-
elry that can become entan-
gled in moving parts.
(Continued)
7-6
Owner maintenance schedule
While operating your vehicle:
• Check the parking brake.
When you stop for fuel:
•
Note any changes in the sound of
• Check for fluid leaks under your
the exhaust or any smell of
vehicle (water dripping from the air
• Check the engine oil level.
exhaust fumes in the vehicle.
conditioning system during or after
• Check coolant level in the engine
use is normal).
•
Check for vibrations in the steering
coolant reservoir.
wheel. Notice if there is any
• Check the windshield washer fluid
increased steering effort or loose-
At least monthly:
level.
ness in the steering wheel, or
•
Check coolant level in the engine
• Check for low or under-inflated
change in its straight-ahead posi-
coolant reservoir.
tires.
tion.
•
Check the operation of all exterior
•
Notice if your vehicle constantly
lights, including the stoplights, turn
turns slightly or “pulls” to one side
WARNING
signals and hazard warning flash-
when traveling on smooth, level
ers.
Be careful when checking your
road.
•
Check the inflation pressures of all
engine coolant level when the
•
When stopping, listen and check
tires including the spare for tires
engine is hot. This may result in
for unusual sounds, pulling to one
that are worn, show uneven wear,
coolant being blown out of the
side, increased brake pedal travel
or are damaged.
opening and cause serious
or “hard-to-push” brake pedal.
burns and other injuries.
•
Check for loose wheel lug nuts.
•
If any slipping or changes in the
operation of your transmission
7
occurs, check the transmission
fluid level.
•
Check the automatic transmission
P (Park) function.
7-7
Maintenance
SCHEDULED MAINTENANCE
At least twice a year:
At least once a year:
SERVICES
(i.e., every Spring and Fall):
•
Clean body and door drain holes.
Follow
Normal
Maintenance
•
Check radiator, heater and air con-
•
Lubricate door hinges and hood
Schedule if the vehicle is usually
ditioning hoses for leaks or dam-
hinges.
operated where none of the following
age.
conditions apply. If any of the follow-
•
Lubricate door and hood locks and
•
Check windshield washer spray
ing conditions apply, you must follow
latches.
and wiper operation. Clean wiper
the Maintenance Under Severe
•
Lubricate door rubber weather
blades with clean cloth dampened
Usage Conditions.
strips.
with washer fluid.
•
Repeated short distance driving.
•
Check the air conditioning system.
•
Check headlight alignment.
•
Driving in dusty conditions or
•
Inspect and lubricate automatic
•
Check muffler, exhaust pipes,
sandy areas.
transmission linkage and controls.
shields and clamps.
•
Extensive use of brakes.
•
Clean the battery and terminals.
•
Check the seat belts for wear and
•
Driving in areas where salt or other
•
Check the brake fluid level.
function.
corrosive materials are used.
•
Driving on rough or muddy roads.
•
Driving in mountainous areas.
•
Extended periods of idling or low
speed operation.
•
Driving for a prolonged period in
cold temperatures and/or extreme-
ly humid climates.
•
More than 50% driving in heavy
city traffic during hot weather
above 90°F (32°C).
For additional information or assis-
tance see your authorized HYUNDAI
dealer.
7-8
Normal maintenance schedule
The following maintenance services must be performed to ensure good emission control and performance. Keep
receipts for all vehicle emission services to protect your warranty. Where both mileage and time are shown, the fre-
quency of service is determined by whichever occurs first.
*1 : If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended. Additives are available
from your authorized HYUNDAI dealer along with information on how to use them. Do not mix other additives.
*2 : Fuel filter & Fuel tank air filter are considered to be maintenance free but periodic inspection is recommended for
this maintenance schedule depends on fuel quality. If there are some important safety matters like fuel flow restric-
tion, surging, loss of power, hard starting problem etc, replace the fuel filter immediately regardless of mainte-
nance schedule and consult an authorized HYUNDAI dealer for details.
*3 : Front/rear differential oil should be changed anytime they have been submerged in water.
*4 : Inspect for excessive valve noise and/or engine vibration and adjust if necessary. Have an authorized HYUNDAI
dealer perform the operation.
*5 : The drive belt should be replaced when cracks occur or tension is reduced.
❈ Inspect : Inspect and if necessary, adjust, correct, clean or replace.
7
7-9
