Your vehicle at a glance

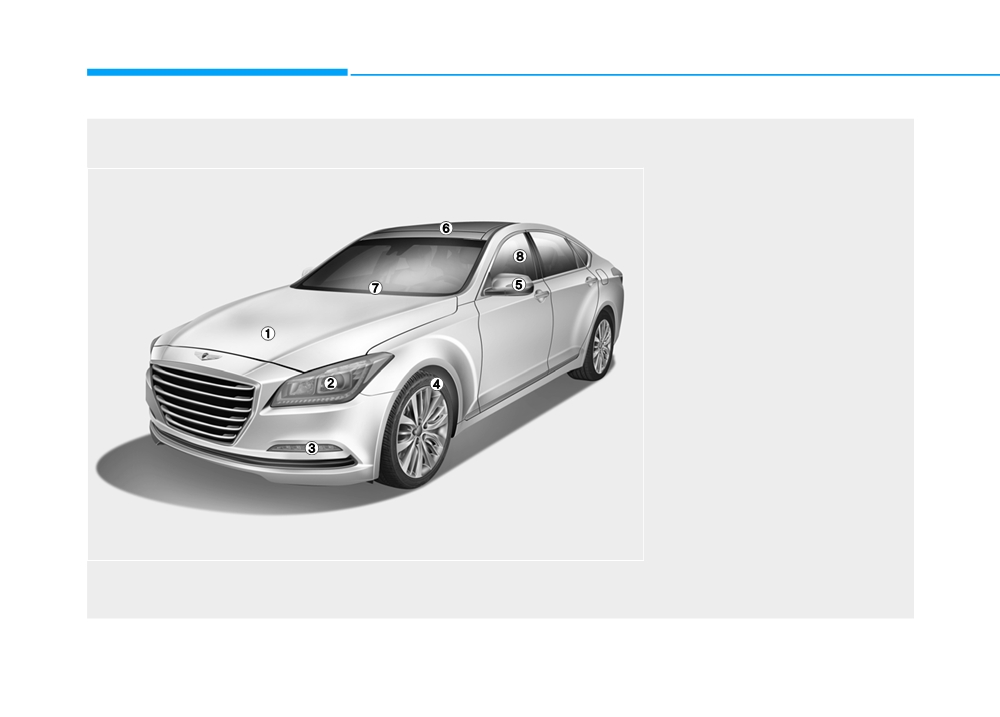

EXTERIOR OVERVIEW (I)
■ Front view
1. Hood
3-48
2. Headlamp
7-79
3. Front fog light
7-79
4. Tires and wheels
7-45
5. Outside rearview mirror
3-36
6. Panorama sunroof
3-44
7. Front windshield wiper blades
7-39
8. Windows
3-40
The actual shape may differ from the illustration.
ODH014001CN
1-2

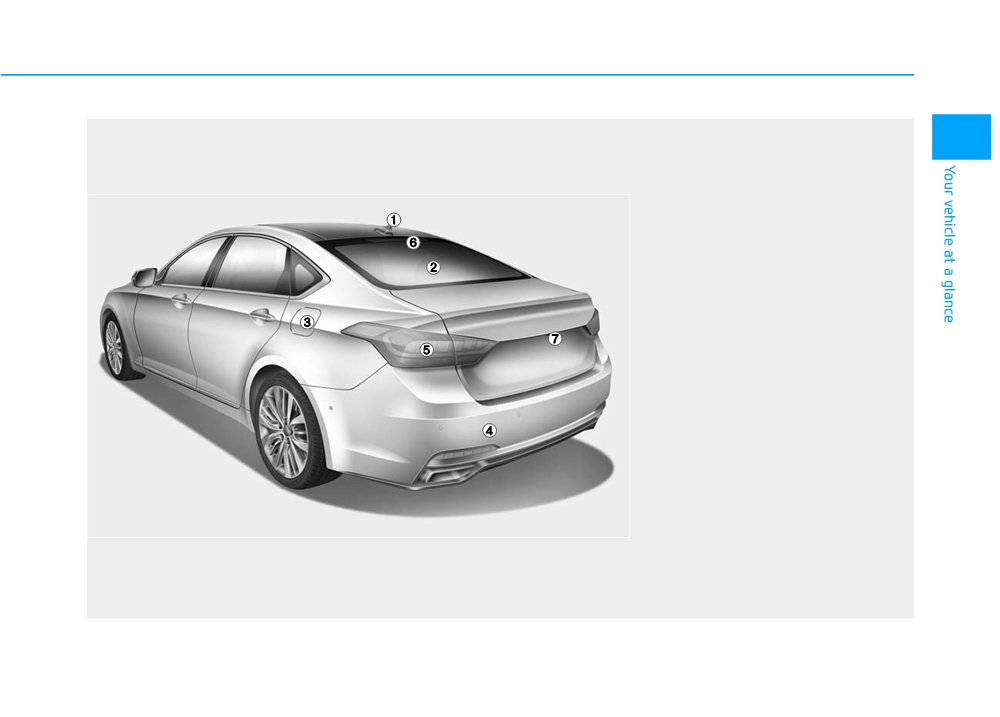

EXTERIOR OVERVIEW (II)
■ Rear view
1
1. Antenna
4-3
2. Defroster
3-132
3. Fuel filler lid
3-59
4. Towing hook
6-23
5. Rear combination lamp
7-83
6. High mounted stop lamp
7-85
7. Rearview camera
3-126
The actual shape may differ from the illustration.
ODH014002N
1-3
Your vehicle at a glance

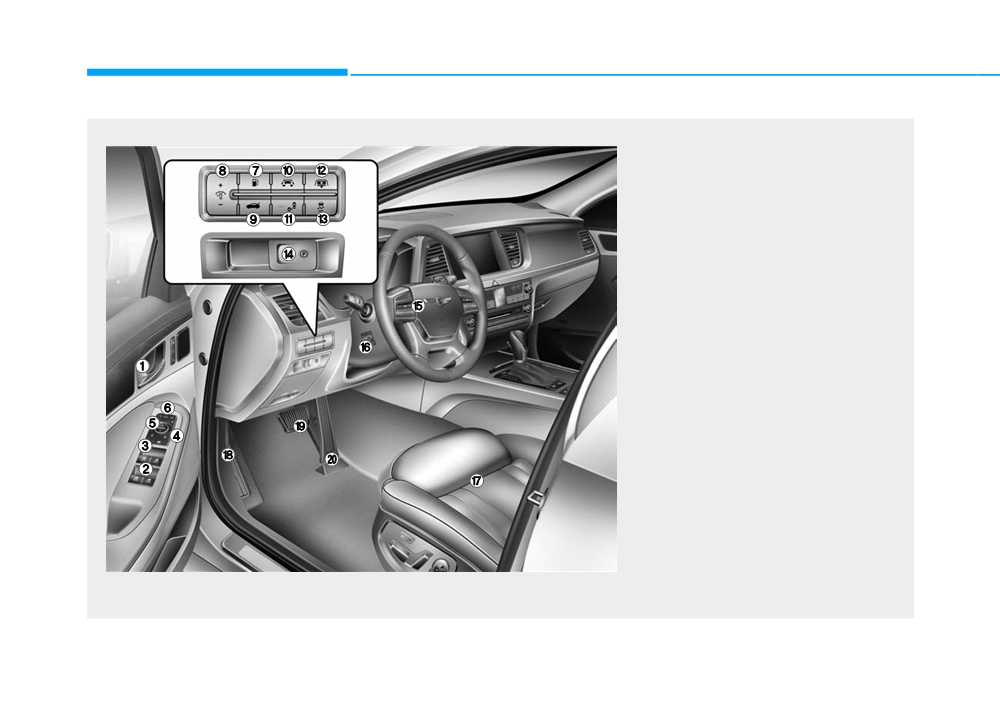

INTERIOR OVERVIEW
1. Door lock/unlock button
3-12
2. Power window switches
3-40
3. Power window lock switch
3-43
4. Central door lock switch
3-13
5. Outside rearview mirror control
switch
3-37
6. Outside rearview mirror folding
button
3-38
7. Fuel filler lid release button
3-59
8. Instrument panel illumination
control switch
3-63
9. Trunk release button
3-49
10. Lane keeping assist system button* ..5-69
11. Blind spot detection system button*..5-78
12. Rear curtain button*
3-160
13. ESC OFF button
5-38
14. Electric parking brake switch*
5-26
15. Steering wheel
3-19
16. Steering wheel tilt/telescope control ..3-19
17. Seat
2-4
18. Hood release lever
3-48
19. Brake pedal
5-23
20. Accelerator pedal
* : if equipped
The actual shape may differ from the illustration.
ODH014003N
1-4

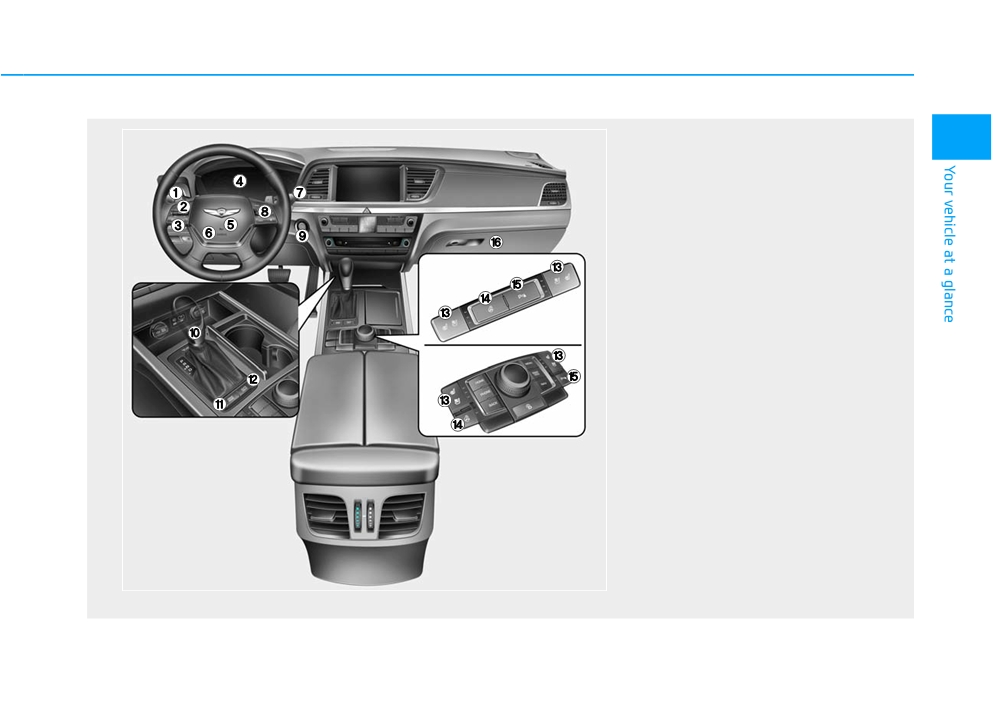

INSTRUMENT PANEL OVERVIEW (I)
1
1. Light control/Turn signals..3-110 / 3-114
2. Steering wheel audio controls*
4-4
3. Bluetooth® wireless technology
hands-free controls*
4-5
4. Instrument cluster
3-62
• Type A
5. Horn
3-21
6. Driver’s front air bag
2-48
7. Wiper/Washer
3-123
8. Advanced smart cruise controls*
5-54
• Type B
9. Engine start/stop button
5-6
10. Automatic transmission
5-11
11. Drive mode integrated control
system
5-42
12. AUTO HOLD
5-31
13. Seat warmers and coolers
2-18
14. Heated steering wheel button
3-20
15. Parking assist system
3-128
16. Glove box
3-154
* : if equipped
The actual shape may differ from the illustration.
ODH014004N
1-5
Your vehicle at a glance

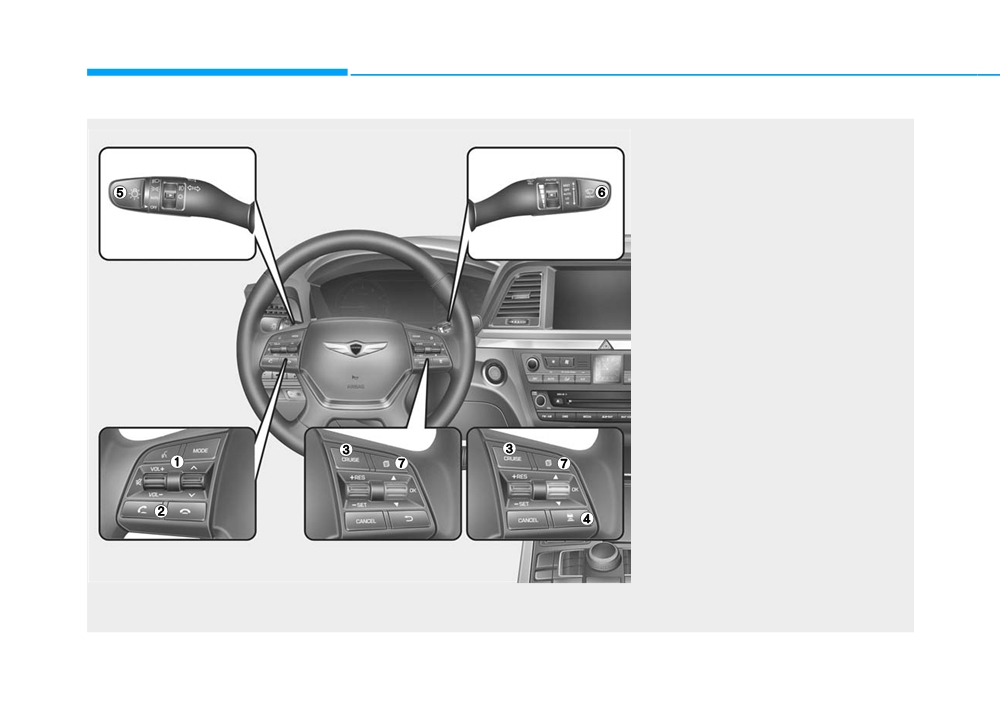

INSTRUMENT PANEL OVERVIEW (II)
1. Audio remote control buttons
4-4
2. Bluetooth® wireless technology
hands-free button
4-5
3. Cruise control button /
Advanced smart cruise control
button
5-50 / 5-54
4. Smart cruise control vehicle-to-vehicle
distance button
5-59
5. Light control /
Turn signals lever
3-110 / 3-114
6. Wiper and washer control lever
3-123
7. LCD display control
3-63
The actual shape may differ from the illustration.
ODH014006N
1-6

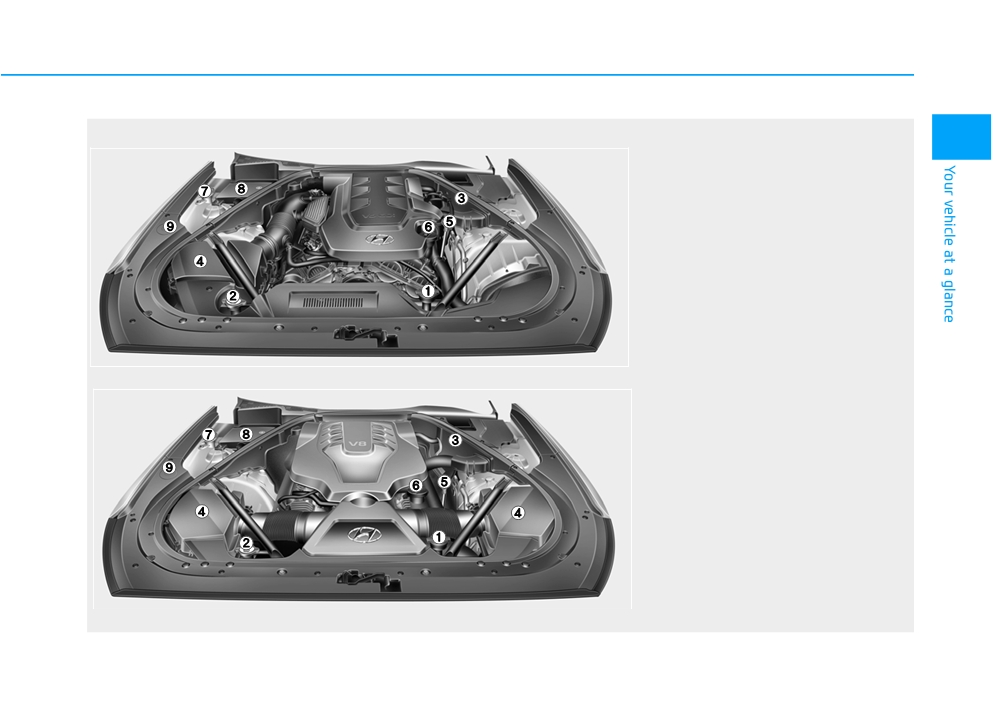

ENGINE COMPARTMENT
■ Gasoline Engine (Lambda 3.8)
1
1. Engine coolant reservoir
7-29
2. Radiator cap
7-29
3. Brake fluid reservoir
7-32
4. Air cleaner
7-35
5. Engine oil dipstick
7-27
6. Engine oil filler cap
7-28
■ Gasoline Engine (Tau 5.0)
7. Windshield washer fluid reservoir
7-34
8. Fuse box
7-61
9. Jumper terminal
6-5
The actual engine room in the vehicle may differ from the illustration.
ODH013005/ODH013006L
1-7
Safety system of your vehicle
Important safety precautions
2-2
Air bag -
Always wear your seat belt
2-2
advanced supplemental restraint system
2-46
Restrain all children
2-2
Where are the air bags?
2-48
Air bag hazards
2-2
How does the air bags system operate?
2-51
2
Driver distraction
2-2
What to expect after an air bag inflates
2-56
Control your speed
2-3
Occupant classification system (OCS)
2-57
Keep your vehicle in safe condition
2-3
Why didn't my air bag go off in a collision? (Air bags
Seats
2-4
are not designed to inflate in every collision.)
2-61
Safety precautions
2-5
SRS care
2-66
Front seats
2-6
Additional safety precautions
2-67
Rear seats
2-11
Air bag warning labels
2-68
Headrest
2-14
Seat warmers and coolers
2-18
Seat belts
2-22
Seat belt safety precautions
2-22
Seat belt warning light
2-23
Seat belt restraint system
2-25
Pre-Safe Seat belt (PSB)
2-30
Additional seat belt safety precautions
2-31
Care of seat belts
2-34
Child restraint system (CRS)
2-35
Selecting a child restraint system (CRS)
2-36
Installing a child restraint system (CRS)
2-38
Safety system of your vehicle
IMPORTANT SAFETY PRECAUTIONS
You will find many safety precautions
Air bag hazards
Driver distraction
and recommendations throughout
While air bags can save lives, they
Driver distraction presents a serious
this section, and throughout this man-
can also cause serious or fatal
and potentially deadly danger, espe-
ual. The safety precautions in this sec-
injuries to occupants who sit too
cially for inexperienced drivers. Safety
tion are among the most important.
close to them, or who are not prop-
should be the first concern when
erly restrained. Infants, young chil-
behind the wheel and drivers need to
Always wear your seat belt
dren, and shorter adults are at the
be aware of the wide array of potential
greatest risk of being injured by an
distractions, such as drowsiness,
A seat belt is your best protection in
inflating air bag. Follow all instruc-
reaching for objects, eating, personal
all types of accidents. Air bags are
tions and warnings in this manual.
grooming, other passengers, and
designed to supplement seat belts,
using cellular phones.
not replace them. So even though
your vehicle is equipped with air bags,
Drivers can become distracted when
they take their eyes and attention off
ALWAYS make sure you and your
passengers wear your seat belts, and
the road or their hands off the wheel
to focus on activities other than driv-
wear them properly.
ing. To reduce your risk of distraction
or getting into an accident:
Restrain all children
• ALWAYS set up your mobile devices
All children under age 13 should ride
(i.e., MP3 players, phones, naviga-
in your vehicle properly restrained in
tion units, etc.) when your vehicle is
a rear seat, not the front seat. Infants
parked or safely stopped.
and small children should be
• ONLY use your mobile device when
restrained in an appropriate child
allowed by laws and when conditions
restraint. Larger children should use
permit safe use. NEVER text or
a booster seat with the lap/shoulder
email while driving. Most states have
belt until they can use the seat belt
laws prohibiting drivers from texting.
properly without a booster seat.
Some states and cities also prohibit
drivers from using handheld phones.
2-2
• NEVER let the use of a mobile
Keep your vehicle in safe condi-
device distract you from driving. You
tion
have a responsibility to your passen-
Having a tire blowout or a mechanical
gers and others on the road to
failure can be extremely hazardous. To
always drive safely, with your hands
2
reduce the possibility of such prob-
on the wheel as well as your eyes
lems, check your tire pressures and
and attention on the road.
condition frequently, and perform all
regularly scheduled maintenance.
Control your speed
Excessive speed is a major factor in
crash injuries and deaths. Generally,
the higher the speed, the greater the
risk, but serious injuries can also
occur at lower speeds. Never drive
faster than is safe for current condi-
tions, regardless of the maximum
speed posted.
2-3
Safety system of your vehicle

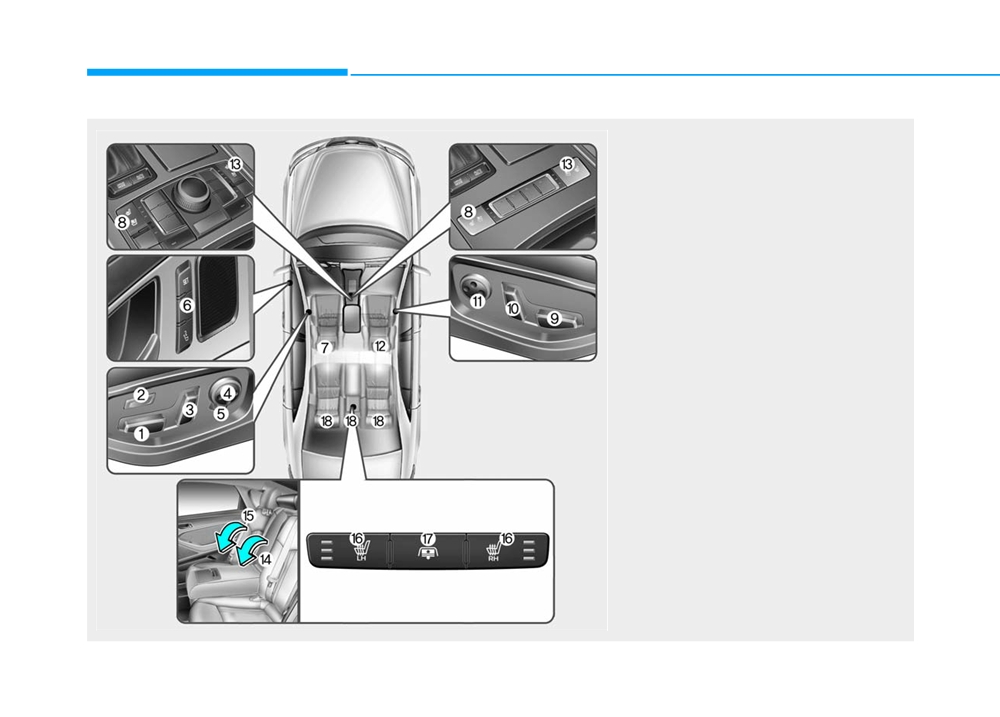

SEATS
Driver’s seat
(1) Seat sliding forward or rearward/
Seat tilt/height adjustment
(2) Seat cushion length adjustment
(3) Seatback angle adjustment
(4) Lumbar support adjustment
(5) Seat bolster adjustment*
(6) Driver position memory system*
(7) Headrest adjustment
(8) Seat warmer/Seat warmer and cooler (by air)*
Front passenger’s seat
(9) Seat sliding forward or rearward/
Seat tilt/height adjustment
(10) Seatback angle adjustment
(11) Lumbar support adjustment*
(12) Headrest adjustment
(13) Seat warmer/Seat warmer and cooler (by air)*
Rear seat
(14) Ski through
(15) Armrest
(16) Seat warmer*
(17) Rear curtain control*
(18) Headrest height adjustment
* : if equipped
ODH035001N
2-4
Safety precautions
The National Highway Traffic Safety
Seat belts
Administration (NHTSA) recommends
Adjusting the seats so that you are sit-
Always fasten your seat belt before
that drivers allow at least 10 inches
ting in a safe, comfortable position
starting any trip.
(25 cm) between the center of the
plays an important role in driver and
At all times, passengers should sit
steering wheel and their chest.
2
passenger safety together with the
upright and be properly restrained.
seat belts and air bags in an accident.
Infants and small children must be
WARNING
restrained in appropriate child restraint
WARNING
systems. Children who have outgrown
To reduce the risk of serious
a booster seat and adults must be
injury or death from an inflating
Do not use a cushion that
restrained using the seat belts.
air bag, take the following pre-
reduces friction between the seat
cautions:
and the passenger. The passen-
ger's hips may slide under the
•
Adjust the driver’s seat as far to
the rear as possible while main-
lap portion of the seat belt during
an accident or a sudden stop.
taining the ability to maintain
full control of the vehicle.
Serious or fatal internal injuries
could result because the seat
•
Adjust the front passenger seat
belt cannot operate properly.
as far to the rear as possible.
•
Hold the steering wheel by the
rim with hands at the 9 o’clock
Air bags
and 3 o’clock positions to mini-
mize the risk of injuries to your
You can take steps to reduce the risk
of being injured by an inflating air
hands and arms.
bag. Sitting too close to an air bag
•
NEVER place anything or any-
greatly increases the risk of injury in
one between the steering wheel
the event the air bag inflates.
and the air bag.
•
Do not allow the front passen-
ger to place feet or legs on the
dashboard to minimize the risk
of leg injuries.
2-5
Safety system of your vehicle

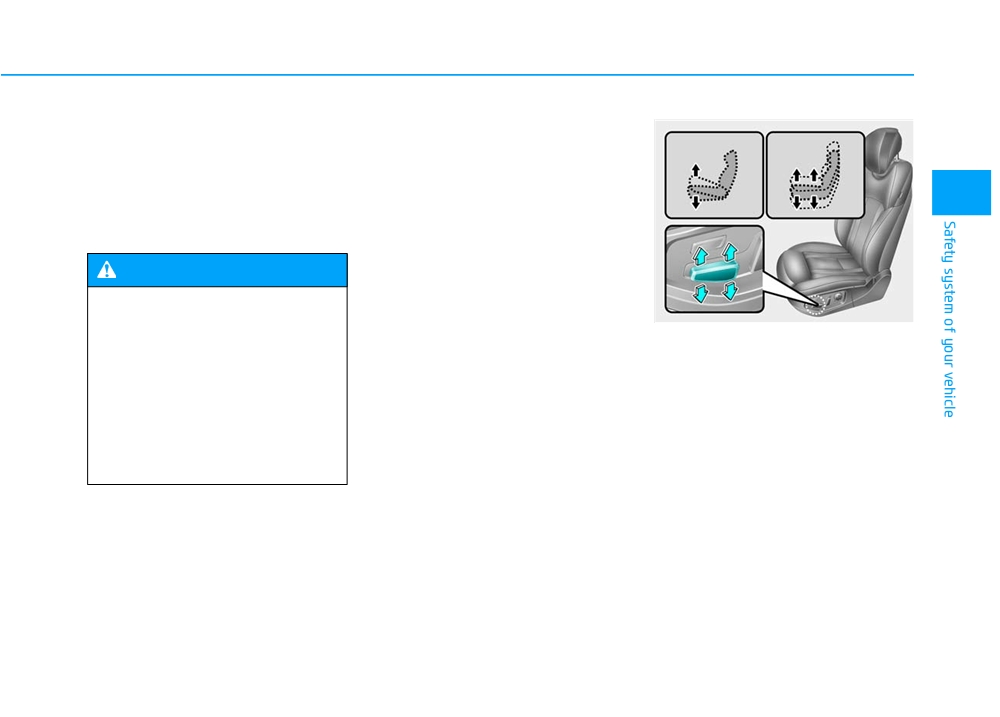

Front seats
WARNING
(Continued)
• Use extreme caution when
WARNING
Take the following precautions
picking small objects trapped
when adjusting your seat belt:
under the seats or between the
Take the following precautions
•
NEVER use one seat belt for
seat and the center console.
when adjusting your seat:
more than one occupant.
Your hands might be cut or
•
NEVER attempt to adjust the
injured by the sharp edges of
•
Always position the seatback
seat while the vehicle is mov-
the seat mechanism.
upright with the lap portion of
ing. The seat could respond
the seat belt snug and low
with unexpected movement
across the hips.
and may cause loss of vehicle
WARNING
•
NEVER allow children or small
control resulting in an acci-
infants to ride in a passenger’s
dent.
To prevent injury:
lap.
•
Do not place anything under
•
Do not route the seat belt
the front seats. Loose objects
• Do not adjust your seat while
across your neck, across sharp
in the driver’s foot area could
wearing your seat belt.
edges, or reroute the shoulder
interfere with the operation of
Moving the seat cushion for-
strap away from your body.
the foot pedals, causing an
ward may cause strong pres-
accident.
sure on your abdomen.
•
Do not allow the seat belt to
become caught or jammed.
•
Do not allow anything to inter-
• Do not allow your hands or
fere with the normal position
fingers to get caught in the
and proper locking of the seat-
seat mechanisms while the
back.
seat is moving.
•
Do not place a cigarette lighter
on the floor or seat. When you
operate the seat, gas may exit
out of the lighter causing a fire.
(Continued)
2-6
Power adjustment
CAUTION
The front seat can be adjusted by
using the control switches located on
To prevent damage to the seats:
the outside of the seat cushion. Before
driving, adjust the seat to the proper
•
Always stop adjusting the
2
position so that you can easily control
seats when the seat has been
the steering wheel, foot pedals and
adjusted as far forward or
controls on the instrument panel.
rearward as possible.
•
Do not adjust the seats longer
WARNING
than necessary when the
engine is turned off. This may
NEVER allow children in the
result in unnecessary battery
ODH033003
vehicle unattended. The power
drain.

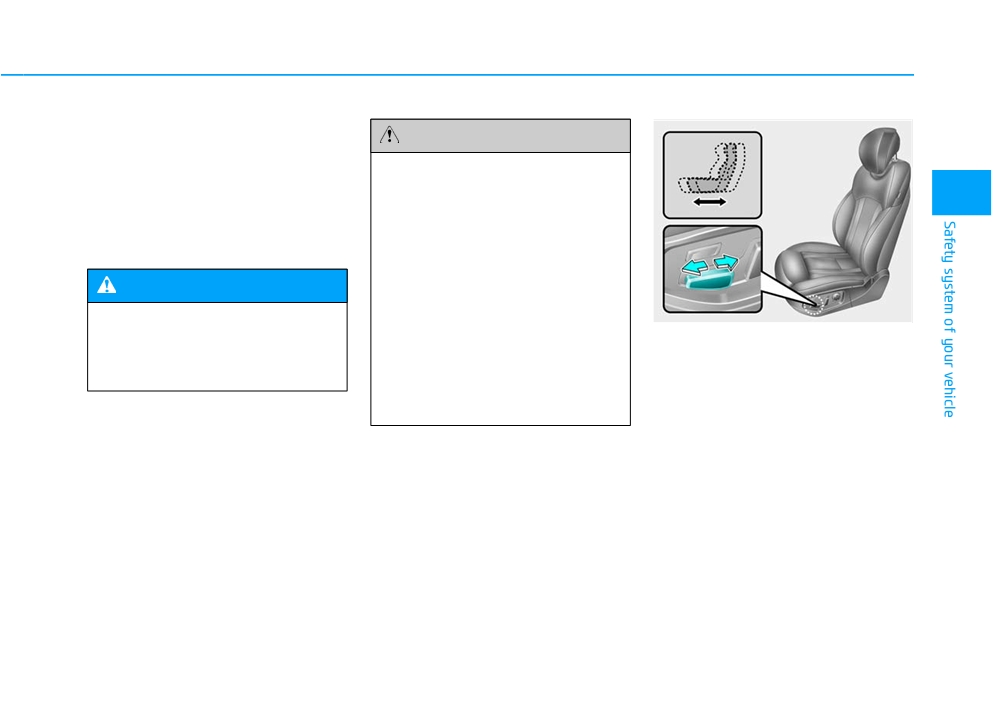

Forward and rearward adjustment
seats are operable when the
•
Do not operate two or more
To move the seat forward or rearward:
engine is turned off.
seats at the same time. This
1. Push the control switch forward or
may result in an electrical mal-
rearward.
function.
2. Release the switch once the seat
reaches the desired position.
2-7
Safety system of your vehicle
To move the front part of cushion rear-
ward:
1. Push the rear part of control switch
to move the seat cushion to the
desired length.
2. Release the switch once the seat
cushion reaches the desired length.
ODH033004
ODH033005

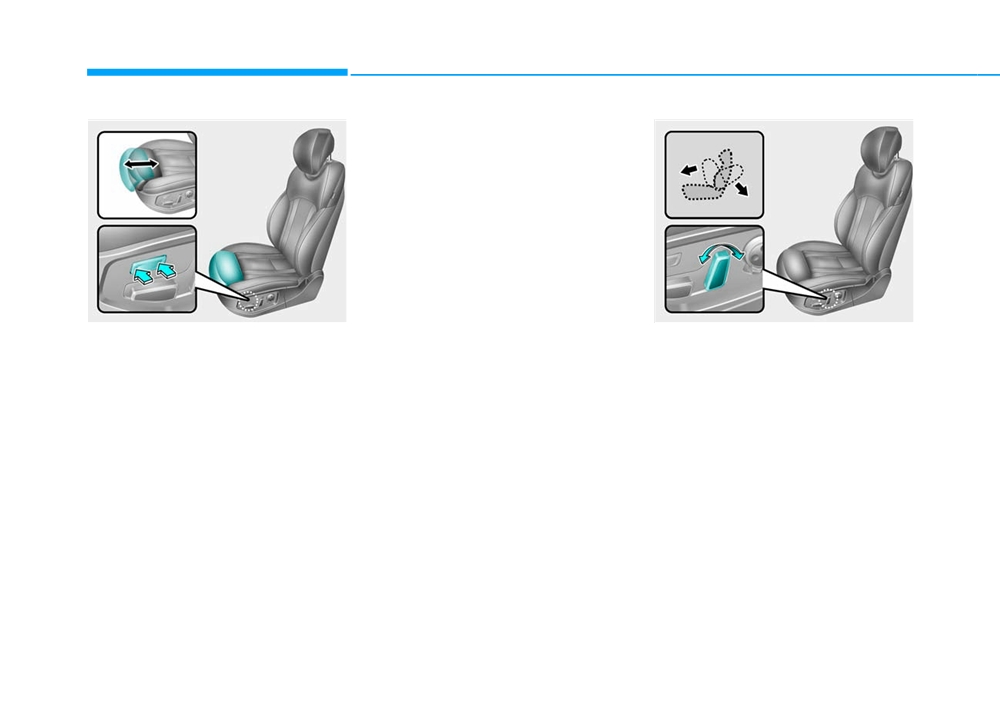

Seat cushion length adjustment
Seatback angle
(for driver's seat, if equipped)
To recline the seatback:
To move the front part of cushion for-
1. Push the control switch forward or
ward:
rearward.
1. Push the front part of control switch
2. Release the switch once the seat-
to move the seat cushion to the
back reaches the desired position.
desired length.
2. Release the switch once the seat
cushion reaches the desired length.
2-8
Reclining seatback
Seat belts must be snug against your
hips and chest to work properly.
Sitting in a reclined position when
When the seatback is reclined, the
the vehicle is in motion can be dan-
shoulder belt cannot do its job
gerous. Even when buckled up, the
protections of your restraint system
because it will not be snug against
2
your chest. Instead, it will be in front
(seat belts and air bags) is greatly
of you. During an accident, you could
reduced by reclining your seatback.
be thrown into the seat belt, causing
neck or other injuries.
WARNING
The more the seatback is reclined,
the greater chance the passenger’s
NEVER ride with a reclined seat-
hips will slide under the lap belt or
ODH033006
back when the vehicle is moving.
the passenger’s neck will strike the
Seat cushion height
Riding with a reclined seatback
shoulder belt.
increases your chance of serious
To change the height of the seat
or fatal injuries in the event of a
cushion:
collision or sudden stop.
1. Pull the front portion of the control
Driver and passengers should
switch up to raise or push down to
ALWAYS sit well back in their
lower the front part of the seat
seats, properly belted, and with
cushion. Pull the rear portion of the
the seatbacks upright.
control switch up to raise or push
down to lower the seat cushion.
2. Release the switch once the seat
reaches the desired position.
2-9
Safety system of your vehicle
According to the equipped feature, the
lumbar support does not operate up or
down when the lumbar support is in
the rearmost position.
In this case, to use the system, slight-
ly increase support by pushing the
front portion of the switch (1).
ODH033007
ODH033008

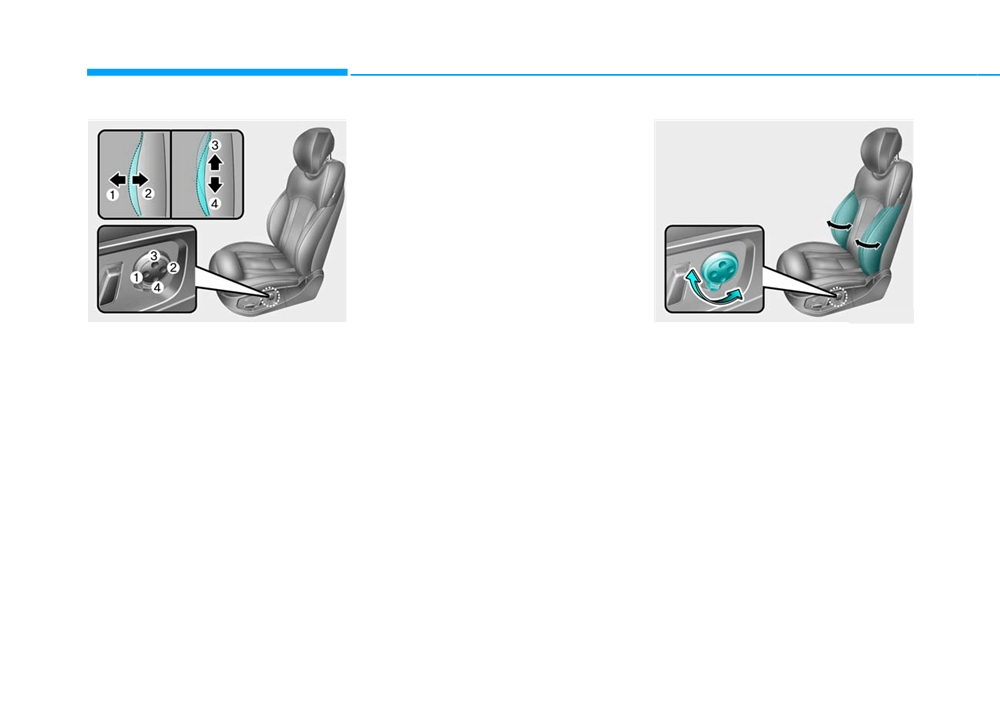

Lumbar support
Seat bolster adjustment
• The lumbar support can be adjust-
(for driver’s seat, if equipped)
ed by pressing the lumbar support
To change the height of seat bolster:
switch.
1. Pull or push the lever.
• Press the front portion of the
2. Release the lever once the bolster
switch (1) to increase support or
reaches the desired position.
the rear portion of the switch (2) to
decrease support.
• To move the support position up or
down, press switch (3) or (4).
2-10
|
|
|
