(Continued)
(Continued)
NOTICE
1) Turn off the Bluetooth® Wireless
4) Reboot the audio system and try
•
Bluetooth® Wireless Technology
Technology feature in your
again.
Handsfree is a feature that
mobile phone.
5) Delete all paired devices, pair and
enables drivers to practice safe
2) Turn off the Bluetooth® Wireless
try again.
driving. Connecting the car
Technology feature in your car
•
It is possible to pair up to five
audio system with a Bluetooth®
audio system.
Bluetooth® Wireless Technology
Wireless Technology phone
- To turn off the Bluetooth®
devices to the car system.
allows the user to conveniently
Wireless Technology feature in
make calls, receive calls, and
•
Phone contact names should be
your car audio system, go to
manage the phone book. Before
saved in English or they may not be
[SETUP] > [Phone] and [turn off]
using the Bluetooth® Wireless
4
displayed correctly.
the Bluetooth® Wireless Technology
Technology, carefully read the
•
The Handsfree call volume and
feature.
contents of this user’s manual.
quality may differ depending on the
•
Bluetooth® Wireless Technology
•
Excessive use or operations
mobile phone.
connection may become intermit-
while driving may lead to negli-
•
Only one Bluetooth® Wireless
tently disconnected in some mobile
gent driving practices and be
Technology device can be connected
phones. Follow these steps to try
the cause of accidents.
at a time.
again.
•
Do not operate the device exces-
•
In some mobile phones, starting the
1) Turn the Bluetooth® Wireless
sively while driving.
ignition while talking through
Technology function within the
•
Viewing the screen for pro-
Bluetooth® Wireless Technology
mobile phone off/on and try
longed periods of time is dan-
enabled handsfree call will result in
again.
gerous and may lead to acci-
the call becoming disconnected.
2) Turn the mobile phone power
dents.
(Switch the call back to your mobile
Off/On and try again.
phone when starting the ignition.)
•
When driving, view the screen
3) Completely remove the mobile
only for short periods of time.
•
If the mobile phone is not paired or
phone battery, reboot, and then
connected, it is not possible to enter
again.
Phone mode. Once a phone is paired
(Continued)
or connected, the guidance screen
will be displayed.
4-71
Multimedia System

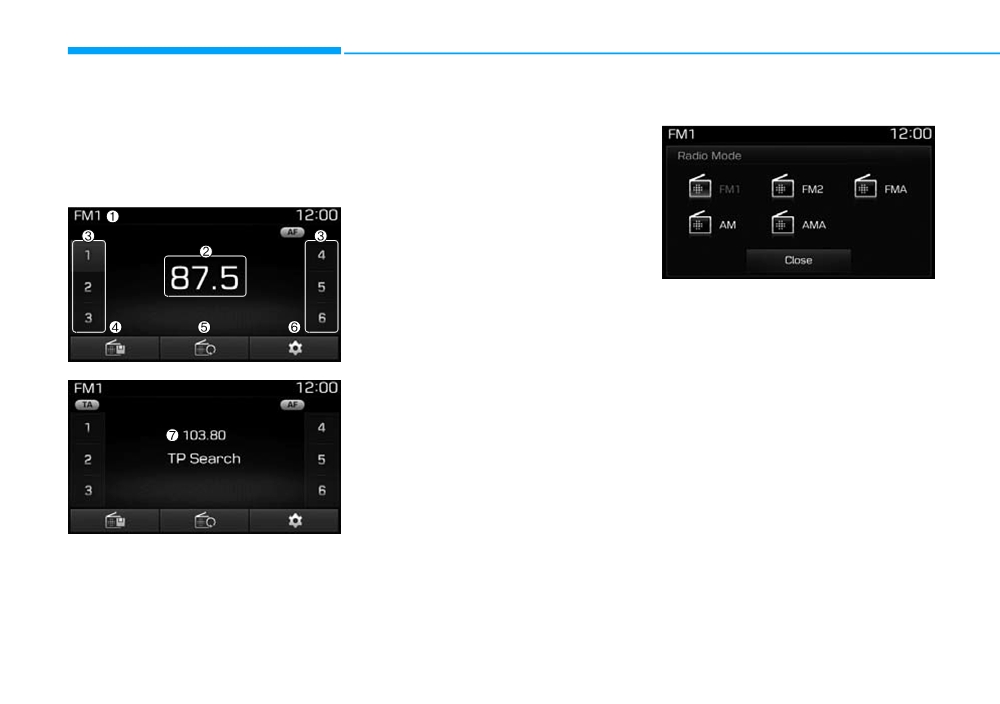

Radio Mode
(1) Mode Display
With the Radio Mode Button
(Type B-1, Type B-2,Type B-3,
Displays currently operating mode.
Type B-4)
(2) Frequency
Radio Mode Display Controls
Displays the current frequency.
(3) Preset
Displays current preset number [1] ~
[6].
Pressing the
[RADIO] button will
change the operating mode in order
(4) Preset Display
of FM1 ➟ FM2 ➟ FMA ➟ AM ➟
Displays saved presets.
AMA.
If
[Pop-up Mode] is turned on within
(5) Auto store
[SETUP] [Display], then pressing
the [RADIO] button will display the
Automatically saves frequencies with
Radio Pop-up Mode screen.
superior reception to Preset buttons.
Turn the TUNE knob to move the
focus. Press the knob to select.
(6) RDS Menu
Displays the RDS Menu.
SEEK
Press the [SEEK TRACK] button to
(7) RDS Info
play the previous/next frequency.
Displays RDS broadcast information.
TUNE
Turn the TUNE knob to select the
desired frequency.
4-72
Auto Store
Scan
Press the [Auto store] button to auto-
Press the
[TA/SCAN] button
:
matically save receivable frequen-
Previews each broadcast for 5 sec-
cies to Preset buttons.
onds each
While Auto Store is operating, press-
Once scan is complete, the previous
ing the [Auto store] button again will
frequency will be restored.
cancel Auto Store and restore the
While Scan is operating, pressing
previous frequency.
and holding the [TA/SCAN] button
will cancel the scan operation.
4

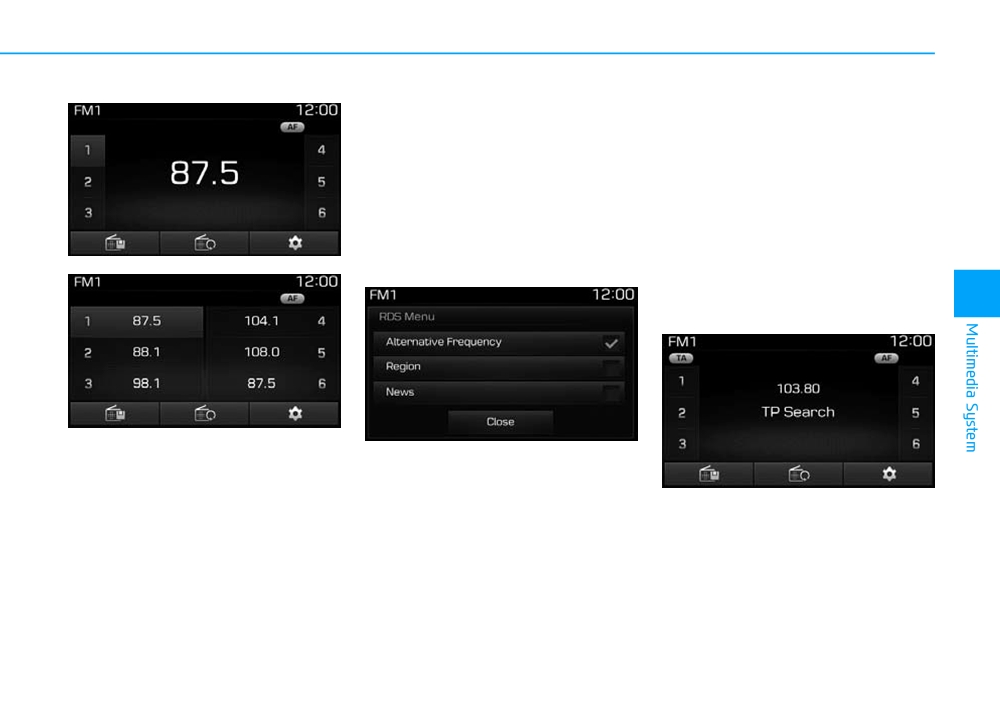

TA (Traffic Announcement)
Selecting/Saving Presets
RDS Menu
Press the [1] ~ [6] buttons to play the
desired preset.
Press the [RDS Menu] button to set
the AF
(Alternative Frequency),
Press the [Preset] button to display
Press the [TA/SCAN] button to turn
Region and News features.
the broadcast information for the fre-
the TA (Traffic Announcement) feature
The RDS Menu is not supported
quency saved to each button.
On/Off.
within AM or AMA mode.
While listening to a frequency you
want to save as a preset, press and
hold one of the [1] ~ [6] preset but-
tons to save the current frequency to
the selected preset.
4-73
Multimedia System

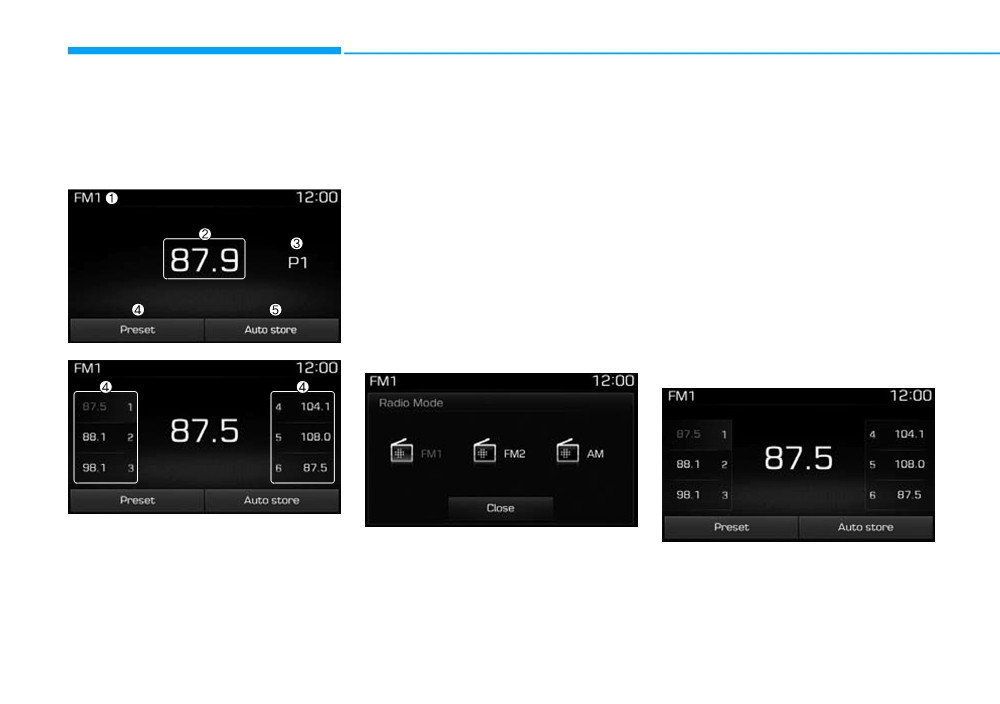

Radio Mode
(3) Preset
If
[Mode Pop-up] is turned on within
(Type B-5, Type B-6)
[SETUP] [Display], then pressing
Displays current preset number [1] ~
the [RADIO] button will display the
[6].
Radio Mode Pop-up screen.
Radio Mode Display Controls
Turn the TUNE knob to move the
(4) Preset Display
focus. Press the knob to select.
Displays preset buttons.
SEEK
Press the [SEEK TRACK] button to
(5) Auto store
play the previous/next frequency.
Automatically saves frequencies with
superior reception to Preset buttons.
TUNE
Turn the TUNE knob to select the
desired frequency.
With the Radio Mode Button
(1) Mode Display
Pressing the
[RADIO] button will
Selecting /Saving Presets
change the operating mode in order
Displays currently operating mode.
Press the [Preset] button to display
of FM1 ➟ FM2 ➟ AM.
the broadcast information for the fre-
(2) Frequency
quency saved to each button.
Displays the current frequency.
4-74
Press the [1] ~ [6] buttons to play the
Media Mode
Mode Display on the Status Bar
desired preset.
While listening to a frequency you
Media Mode Screen
want to save as a preset, press and
When a Bluetooth® Wireless
hold one of the [1] ~ [6] preset but-
Technology, iPod®, USB or AUX
tons to save the current frequency to
device is connected or a CD is
the selected preset.
inserted, the corresponding mode
icon will be displayed.
Auto Store
Icon
Title
Press the [Auto store] button to auto-
4
Bluetooth® Wireless Technology
matically save receivable frequen-
cies to Preset buttons.
CD
Pressing the
[MEDIA] button will
iPod®
Scan
change the operating mode in order
USB
of CD ➟ USB(iPod®) ➟ AUX ➟ My
Press the [SCAN] button to preview
AUX
Music ➟ BT Audio.
frequencies with superior reception
for 5 seconds each.
If
[Pop-up Mode] / [Mode Pop-up] is
turned on within
[SETUP]
Press and hold the [SCAN] button to
[Display], then pressing the [MEDIA]
preview presets for 5 seconds each.
button will display the Media Pop-up
Once scan is complete, the previous
Mode screen.
frequency will be restored.
Turn the TUNE knob to move the
While Scan is operating, pressing
focus. Press the knob to select.
the
[SCAN] button will cancel the
The media mode pop up screen can
scan operation.
be displayed only when there are two
or more media modes turned on.
4-75
Multimedia System

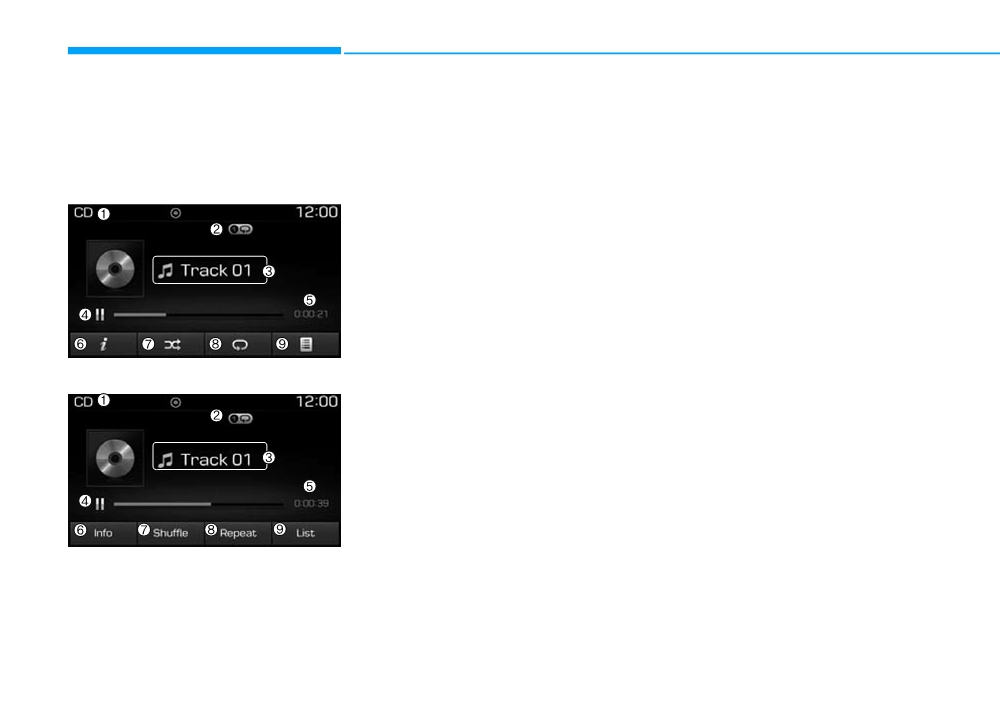

MENU : Audio CD
(1) Mode
(7) Random(Shuffle)
Displays currently operating mode.
Turns the Random(Shuffle) feature
Audio CD Mode Display
on/off.
Controls
(2) Operation State
■ Type B-1, Type B-2, Type B-3, Type B-4
(8) Repeat
From Repeat/Random(Shuffle)/Scan,
displays the currently operating func-
Turns the Repeat feature on/off.
tion.
(9) List
(3) Track Info
Moves to the list screen.
Displays information about the cur-
Turn the TUNE knob left/right to
rent track.
search for tracks. Once the desired
track is displayed, press the knob to
select and play.
(4) Play/Pause
■ Type B-5, Type B-6
Changes the play/pause state.
(5) Play Time
Displays the current play time.
(6) Info
Shows detailed information about
the current track.
4-76
With the Audio CD Mode
Rewinding / Fast-forwarding
Tracks
Playing/Pausing CD Tracks
Once an audio CD is inserted, the
While playing, press and hold the
mode will automatically start and
[SEEK TRACK] button to rewind or
begin playing.
fast-forward the current track.
While playing, press the [II] button to
pause and press [] button to play.
Scan (With RDS)
Only genuine audio CDs are sup-
Press and hold the [TA/SCAN] but-
ported. Other discs may result in

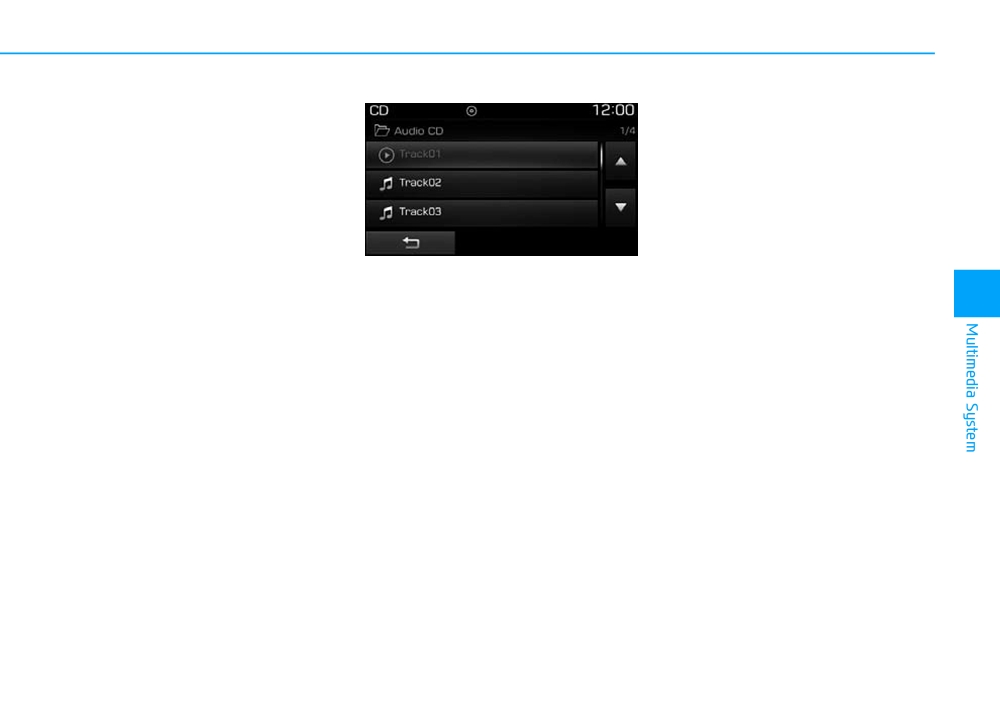

Selecting from the List
ton to play the file
10 seconds of
recognition failure (e.g. copy CD-R,
Turn the TUNE knob left/right to
each file.
4
CDs with labels)
search for the desired track.
Press and hold the [TA/SCAN] but-
The artist and title information are
Once you find the desired track, press
ton again to turn off.
displayed on the screen if track infor-
the TUNE knob to start playing.
mation is included within the audio
Scan (Without RDS)
CD.
Press the [SCAN] button to play the
Changing Tracks
first 10 seconds of each file.
Press the [SEEK TRACK] button to
Press and hold the [SCAN] button
move to the previous or next track.
again to turn off.
Pressing the [SEEK TRACK ∨] but-
ton after the track has been playing
for
2 seconds will start the current
track from the beginning.
Pressing the [SEEK TRACK ∨] button
before the track has been playing for 1
second will start the previous track.
4-77
Multimedia System

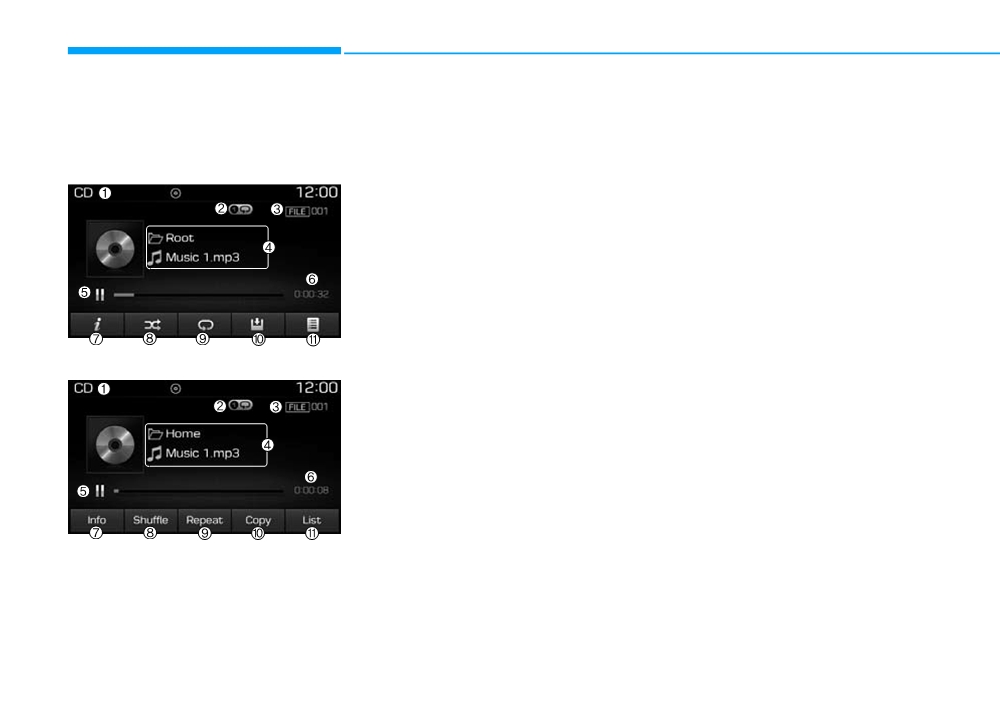

MENU : MP3 CD
(1) Mode
(7) Info
Displays currently operating mode.
Shows detailed information about

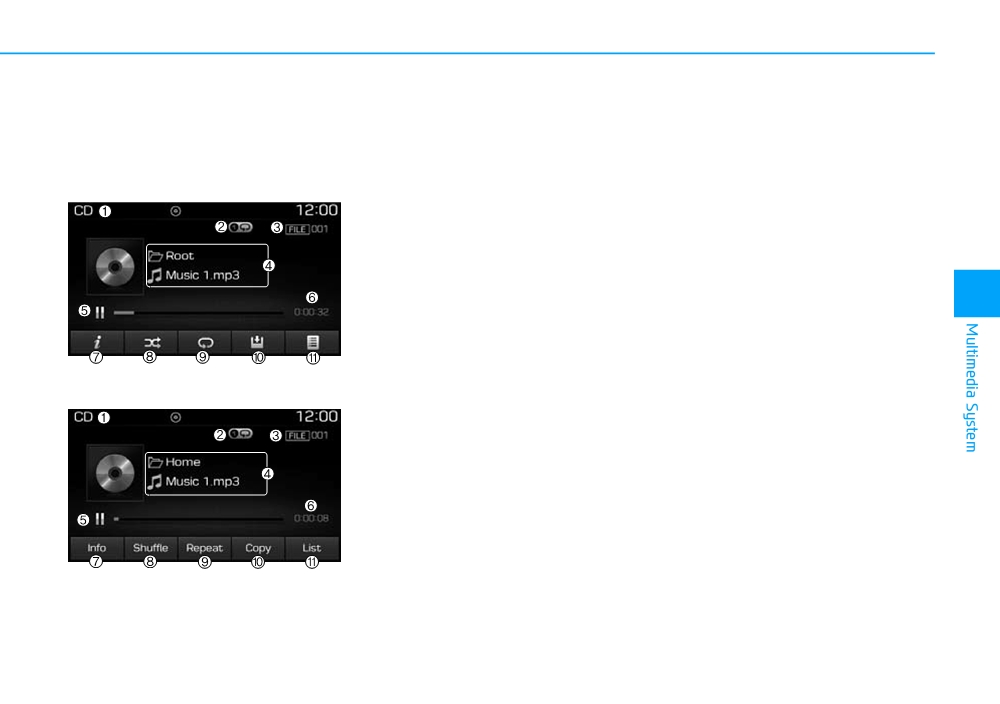

MP3 CD Mode Display Controls
the current file.
■ Type B-1, Type B-2, Type B-3, Type B-4
When the ‘Folder File’ option is set as
(2) Operation State
the default display within Display
From Repeat/Random(Shuffle)/Scan,
setup, the album/artist/file informa-
displays the currently operating func-
tion are displayed as detailed file
tion.
information.
When the ‘Album Artist Song’ option
(3) File Index
is set as the default display, the fold-
Displays the current file number.
er name/file name are displayed as
detailed file information.
(4) File Info
The title, artist and album info are
■ Type B-5, Type B-6
displayed only when such informa-
Displays information about the cur-
tion are recorded within the MP3 file
rent file.
ID3 tag.
(5) Play/Pause
Changes the play/pause state.
(6) Play Time
Displays the current play time.
4-78
(8) Random(Shuffle)
(10) Copy
With the MP3 CD Mode
Turns the Random(Shuffle) feature
Copies the current file into My Music.
Playing/Pausing MP3 Files
on/off.
Selecting another feature during
Once an MP3 disc is inserted the
Each time the button is pressed, the
copying will display a pop-up asking
mode will automatically start and
feature changes in order of Random
whether you wish to cancel copying.
being playing.
(Shuffle) Folder ➟ Random (Shuffle)
To cancel, select “Yes”.
While playing, press the [II] button to
All ➟ Off.
pause and press [] button to play.
• Random(Shuffle) Folder : Plays all

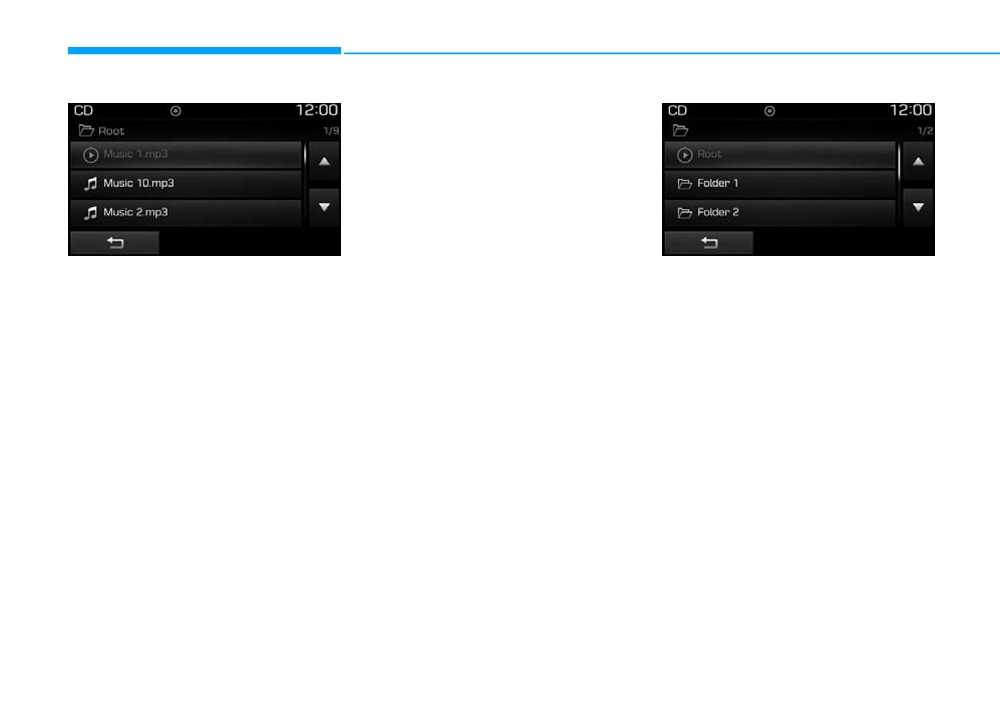

(11) List
If there are numerous files and fold-
files within the current folder in
Moves to the list screen.
ers within the disc, reading time
Random (Shuffle) order.
could take more than 10 seconds
4
Turn the TUNE knob left/right to
• Random(Shuffle) All : Plays all files
and the list may not be displayed or
search for files. Once the desired file
in Random(Shuffle) order.
song searches may not operate.
is displayed, press the knob to select
Once loading is complete, try again.
and play.
(9) Repeat
Turns the Repeat feature on/off.
Changing Files
Each time the button is pressed, the
Press the [SEEK TRACK] button to
feature changes in order of Repeat
move to the previous or next file.
➟ Repeat Folder ➟ Off.
Pressing the [SEEK TRACK ∨] but-
• Repeat : Repeats the current file.
ton after the file has been playing for
• Repeat Folder : Repeats all files
2 seconds will start the current file
within the current Folder.
from the beginning.
Pressing the [SEEK TRACK ∨] but-
ton before the file has been playing
for 1 second will start the previous
file.
4-79
Multimedia System
Scan (With RDS)
Press and hold the [TA/SCAN] button
to play the file 10 seconds of each file.
Press and hold the [TA/SCAN] button
again to turn off.
Scan (Without RDS)
Press the [SCAN] button to play the
Selecting from the List
first 10 seconds of each file.
Searching Folders
Turn the TUNE knob left/right to
Press the [SCAN] button again to
Press the [FOLDER] button to select
search for the desired file.
turn off.
and search folders.
Once the desired folder is displayed,
Once you find the desired file, press
press the TUNE knob to select.
the TUNE knob to start playing.
The first file within the selected fold-
er will begin playing.
Rewinding / Fast-forwarding Files
While playing, press and hold the
[SEEK TRACK] button to rewind or
fast-forward the current file.
4-80
MENU : USB
(1) Mode
(7) Info
Displays currently operating mode.
Displays detailed information for the

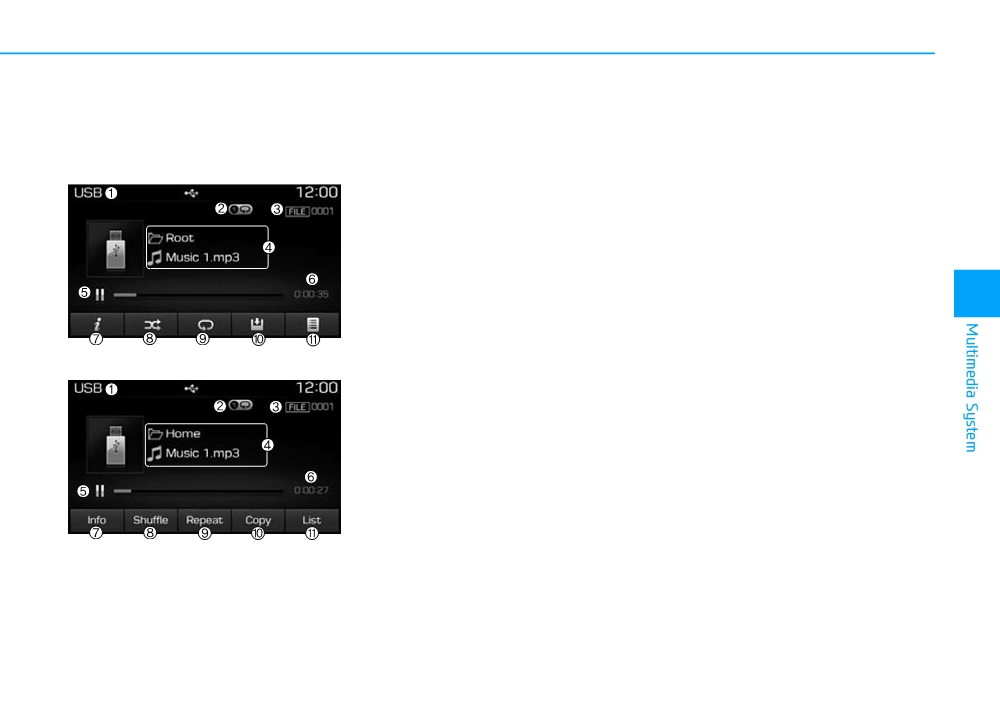

USB Mode Display Controls
current file.
■ Type B-1, Type B-2, Type B-3, Type B-4
When the ‘Folder File’ option is set as
(2) Operation State
the default display within Display
From Repeat/Random(Shuffle)/Scan,
setup, the album/artist/file informa-
displays the currently operating func-
tion are displayed as detailed file
tion.
information.
When the ‘Album Artist Song’ option
(3) File Index
is set as the default display, the fold-
4
Displays the current file number.
er name/file name are displayed as
detailed file information.
(4) File Info
The title, artist and album info are
■ Type B-5, Type B-6
displayed only when such informa-
Displays information about the cur-
tion are recorded within the MP3 file
rent file.
ID3 tag.
(5) Play/Pause
Changes the play/pause state.
(6) Play Time
Displays the current play time.
4-81
Multimedia System
(8) Random(Shuffle)
(10) Copy
With the USB Mode
Turns the Random(Shuffle) feature
Copies the current file into My Music.
Playing/Pausing USB Files
on/off.
Selecting another feature during
Once a USB is connected, the mode
Each time the button is pressed, the
copying will display a pop-up asking
will automatically start and begin
feature changes in order of
whether you wish to cancel copying.
playing a USB file.
Random(Shuffle) Folder ➟ Random
To cancel, select “Yes”.
While playing, press the [II] button to
(Shuffle) All ➟ Off.
pause and press [] button to play.
• Random(Shuffle) Folder : Plays the
(11) List
Loading may require additional time
files in the current folder in ran-
Moves to the list screen.
if there are many files and folders
dom(Shuffle) order.
within the USB and result in faulty list
Turn the TUNE knob left/right to
• Random(Shuffle) All : Plays all files
display or file searching. Normal
search for files. Once the desired file
in random(Shuffle) order.
operations will resume once loading
is displayed, press the knob to select
is complete.
and play.
(9) Repeat
The device may not support normal
operation when using a USB memo-
Turns the Repeat feature on/off.
ry type besides (Metal Cover Type)
Each time the button is pressed, the
USB Memory.
feature changes in order of Repeat
➟ Repeat Folder ➟ Off.
• Repeat : Repeats the current file.
• Repeat Folder : Repeats all files
within the current folder.
4-82
Changing Files
Scan (Without RDS)
Press the [SEEK TRACK] button to
Press the [SCAN] button to play the
move to the previous or next file.
first 10 seconds of each file.
Pressing the [SEEK TRACK ∨] but-
Press the [SCAN] button again to
tonafter the file has been playing for
turn off.
2 seconds will start the current file
from the beginning.
Pressing the [SEEK TRACK ∨] but-
ton before the file has been playing

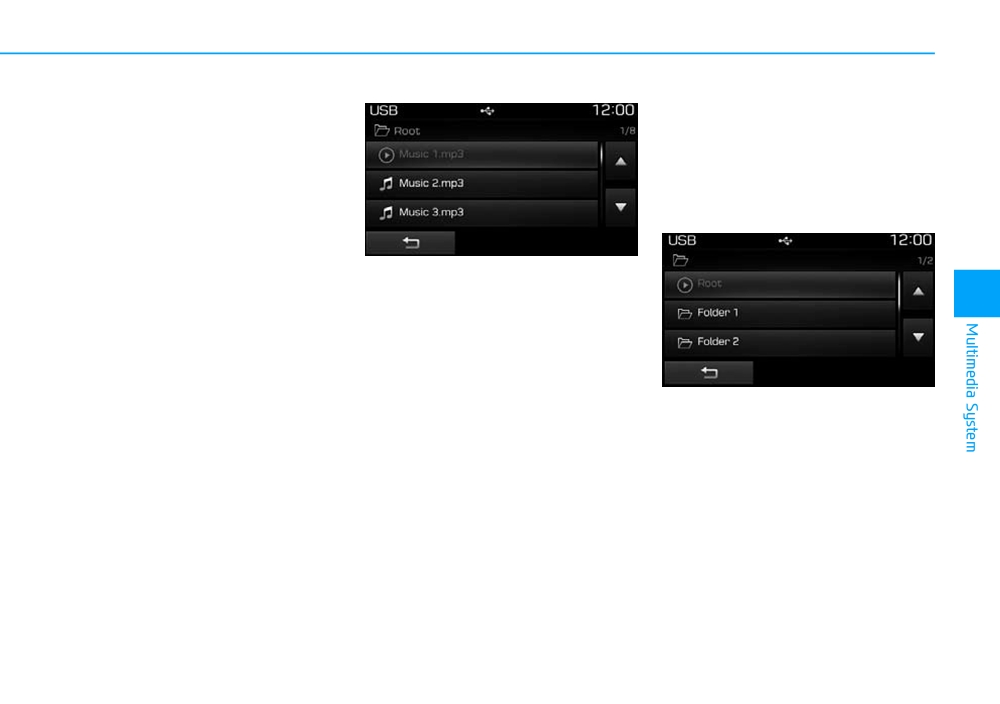

Selecting from the List
for 1 second will start the previous
Turn the TUNE knob left/right to
4
file.
search for the desired file.
Once you find the desired file, press
the TUNE knob to start playing.
Rewinding / Fast-forwarding Files
Searching Folders
While playing, press and hold the
Press the [FOLDER] button to select
[SEEK TRACK] button to rewind or
and search folders.
fast-forward the current file.
Once the desired folder is displayed,
press the TUNE knob to select.
Scan (With RDS)
The first file within the selected fold-
er will begin playing.
Press and hold the [TA/SCAN] but-
tonto play the file 10 seconds of each
file.
Press and hold the [TA/SCAN] but-
ton again to turn off.
4-83
Multimedia System
MENU : iPod®
(1) Mode
(7) Random(Shuffle)
Displays currently operating mode.
Turns the Random(Shuffle) feature

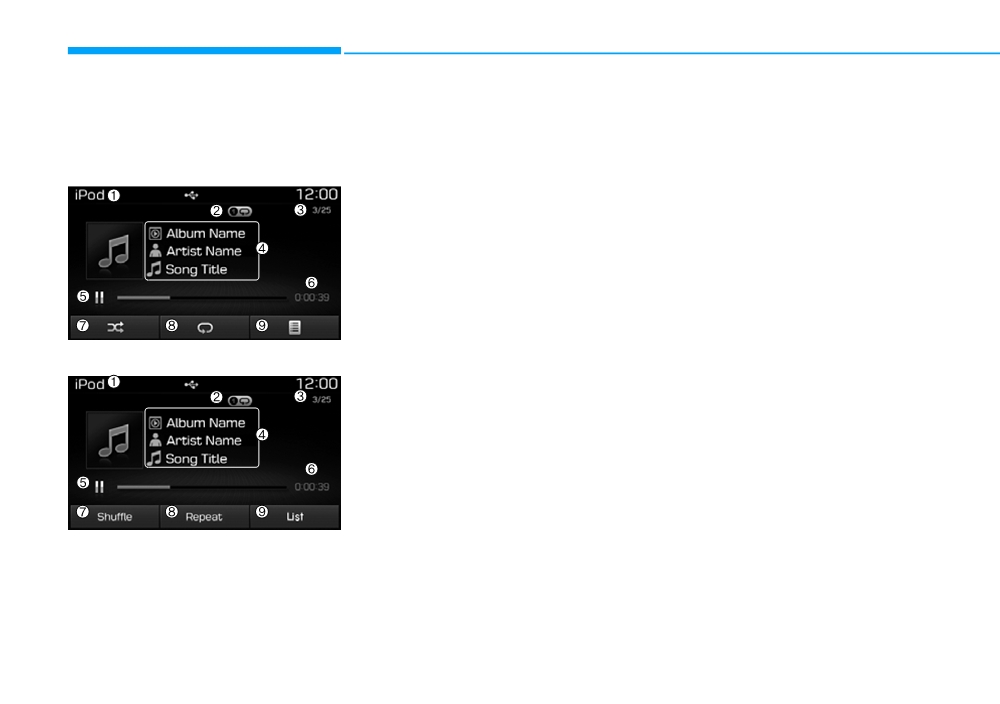

iPod® Mode Display Controls
on/off.
■ Type B-1, Type B-2, Type B-3, Type B-4
• Random(Shuffle) All
: Plays all
(2) Operation State
songs in Random(Shuffle) order.
From Repeat/Random(Shuffle), dis-
plays the currently operating func-
tion.
(8) Repeat
Turns the Repeat feature on/off.
(3) Song Index
• Repeat : Repeats the current song
Displays the current song/total num-
ber of songs.
(9) List
Moves to the list screen.
■ Type B-5, Type B-6
(4) Song Info
Turn the TUNE knob left/right to
Displays information about the cur-
search for the desired category.
rent song.
Once you find the desired category,
press the TUNE knob to select and
play.
(5) Play/Pause
Changes the play/pause state.
(6) Play Time
Displays the current play time.
4-84
With the iPod® Mode
Rewinding / Fast-forwarding Songs
Searching Categories
Playing/Pausing iPod® Songs
While playing, press and hold the
Turn the TUNE knob left/right to
Once an iPod® is connected, the
[SEEK TRACK] button to rewind or
search for the desired category.
mode will automatically start and
fast-forward the current song.
Once you find the desired category,
begin playing an iPod® song.
press the TUNE knob to select and
■ Type B-1, Type B-2, Type B-3, Type B-4
play.
While playing, press the [II] button to
pause and press [] button to play.
There are eight categories that can be
iPod®s with unsupported communi-
searched, including Playlists, Artists,
cation protocols may not properly
Albums, Genres, Songs, Composers,
operate in the audio system.
Audiobooks and Podcasts.
4
Changing Songs

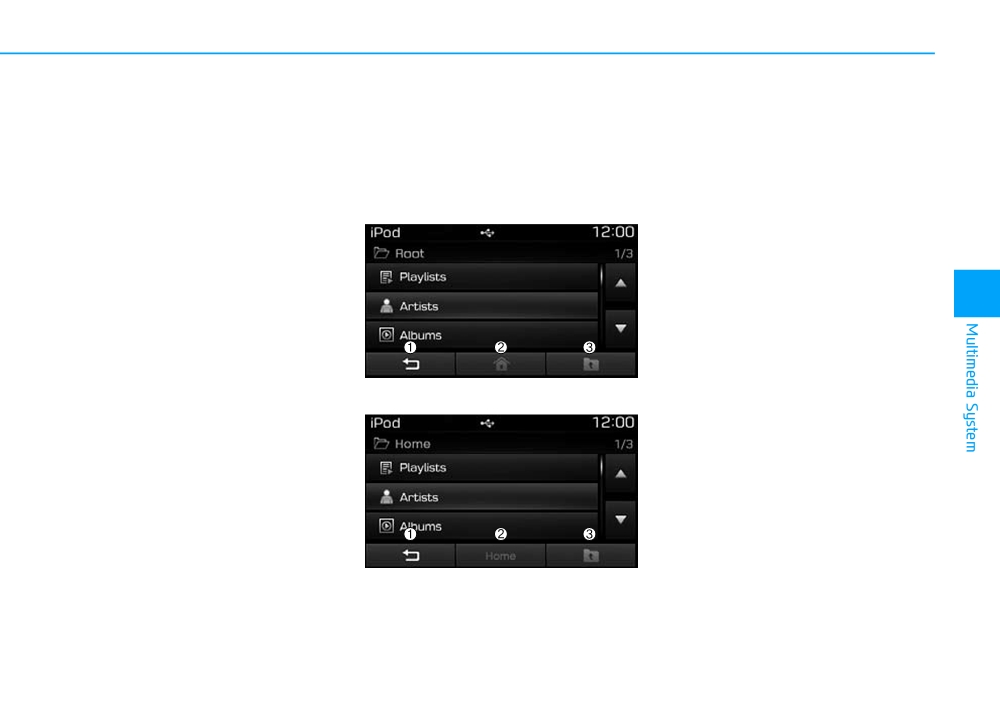

Category Menu
Press the [SEEK TRACK] button to
(1) Displays the play screen.
move to the previous or next song.
(2) Moves to the iPod® root category
screen.
Pressing the [SEEK TRACK ∨] but-
■ Type B-5, Type B-6
(3) Moves to the previous category.
ton after the song has been playing
for
2 seconds will start the current
If the search mode is accessed while
song from the beginning.
playing a song, the most recently
searched category is displayed.
Pressing the [SEEK TRACK ∨] but-
Search steps upon initial connection
ton before the song has been playing
may differ depending on the type of
for 1 second will start the previous
iPod® device.
song.
Slight time differences may exist
depending your iPod® product.
4-85
Multimedia System
MENU : AUX
Connecting an External Device
Fully insert the AUX cable to the AUX
jack upon use.
External audio players (Camcorders,

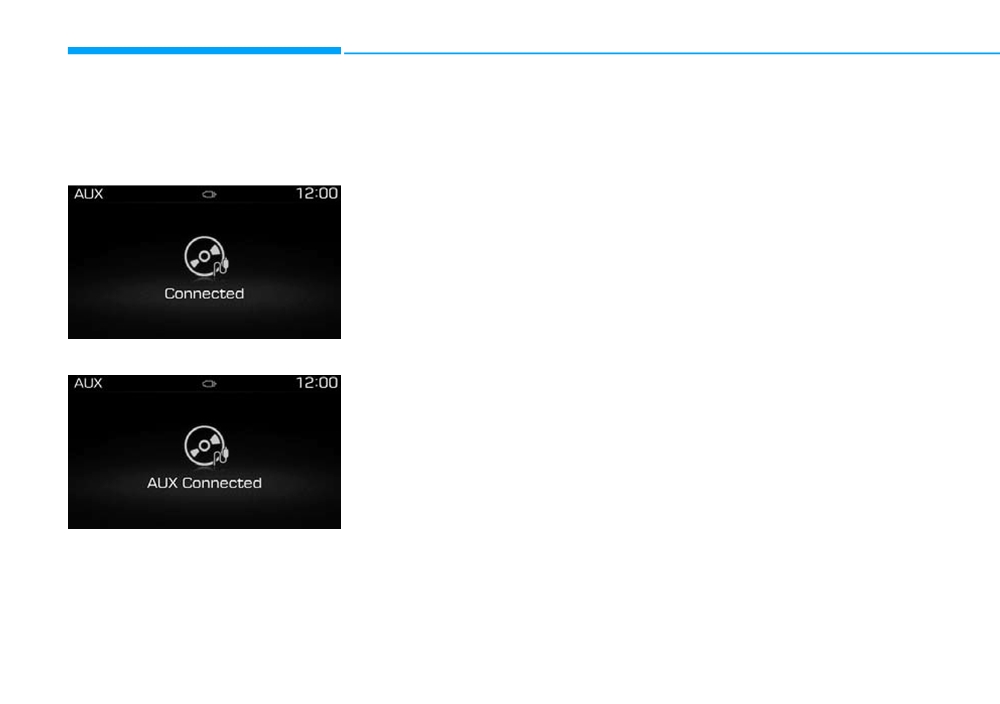

AUX Mode Display Controls
Car VCR, etc.) can be played
through a dedicated cable.
■ Type B-1, Type B-2, Type B-3, Type B-4
If an external device connector is
connected with the AUX terminal,
then AUX mode will automatically
operate. Once the connector is dis-
connected, the previous mode will be
restored.
AUX mode can be used only when
an external audio player (Camcorder,
Car VCR, etc.) has been connected.
■ Type B-5, Type B-6
The AUX volume can be controlled
separately from other audio modes.
Connecting a connector jack to the
AUX terminal without an external
device will convert the system to
AUX mode, but only output noise.
When an external device is not being
used, also remove the connector
jack.
When the external device power is
Press the [MEDIA] button
Select
connected to the power jack, playing
[AUX]
the external device may output
An external device can be connected
noise. In such cases, disconnect the
to play music.
power connection before use.
4-86
MENU : My Music Mode
(1) Mode
(7) Info
Displays currently operating mode.
Displays detailed information for the
My Music Mode Display
current file.
Controls
The title, artist and album info are
(2) Operation State
■ Type B-1, Type B-2, Type B-3, Type B-4
displayed only when such informa-
From Repeat/Random(Shuffle)/Scan,
tion is recorded within the MP3 file
displays the currently operating func-
ID3 tag.
tion.
(8) Random(Shuffle)
(3) File Index
Turns the Random(Shuffle) feature
4
Displays the current file/total number
on/off.
of files.
(9) Repeat
(4) File Info
Turns the Repeat feature on/off.
Displays information about the cur-
■ Type B-5, Type B-6
rent file.
(10) Delete
Deletes the current file.
(5) Play/Pause
Changes the play/pause state.
(11) List
Moves to the list screen.
(6) Play Time
Displays the current play time.
Turn the TUNE knob left/right to
search for files. Once the desired file
is displayed, press the knob to select
and play.
4-87
