Your vehicle at a glance

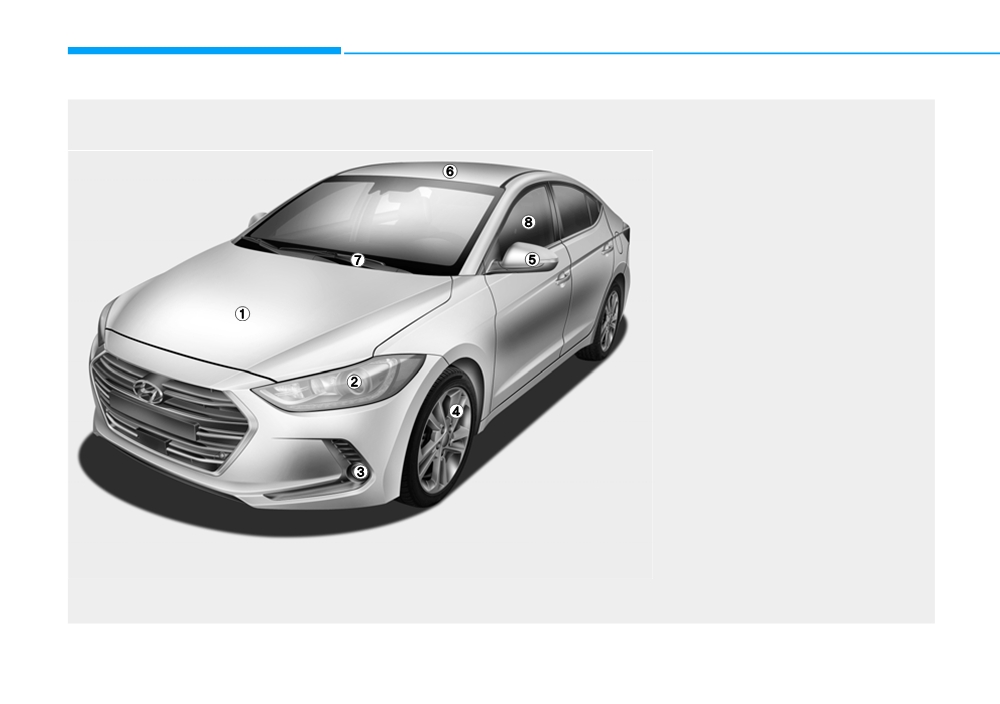

EXTERIOR OVERVIEW (I)
■ Front view
1. Hood
3-41
2. Headlamp
7-85
3. DRL or fog lamp
7-85
4. Tires and wheels
7-52
5. Outside rearview mirror
3-27
6. Sunroof
3-37
7. Front windshield wiper blades
7-45
8. Windows
3-31
The actual shape may differ from the illustration.
OAD015001
1-2

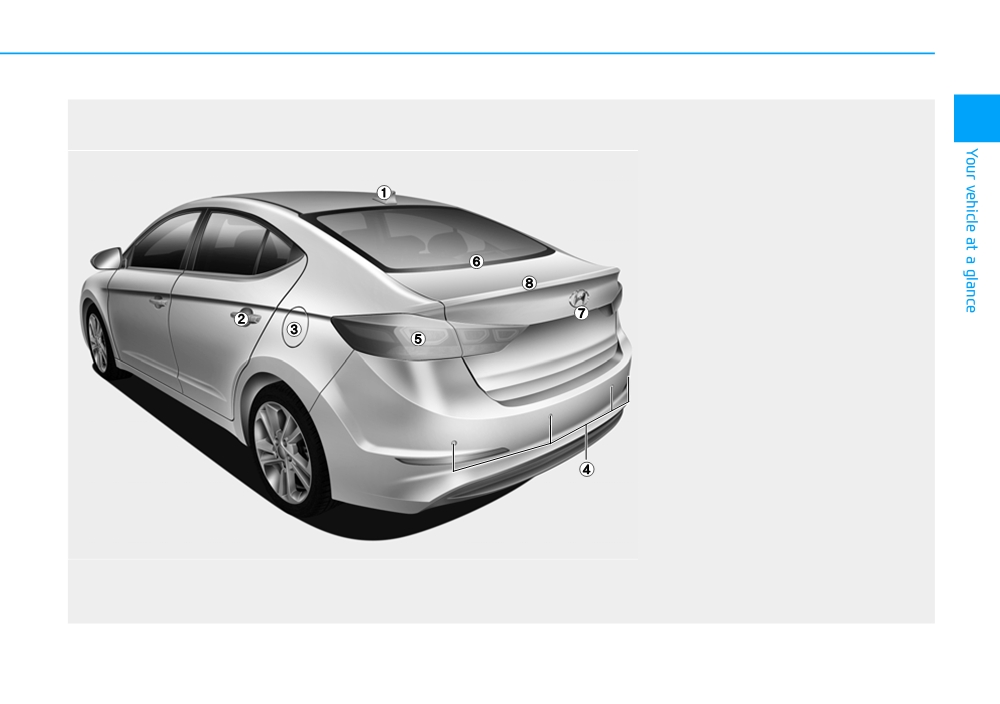

EXTERIOR OVERVIEW (II)
■ Rear view
1
1. Antenna
4-3
2. Doors
3-14
3. Fuel filler door
3-48
4. Rear parking assist system
3-115
5. Rear combination lamp
7-97
6. High mounted stop lamp
7-101
7. Rearview camera
3-114
8. Trunk
3-43
The actual shape may differ from the illustration.
OAD015002
1-3
Your vehicle at a glance

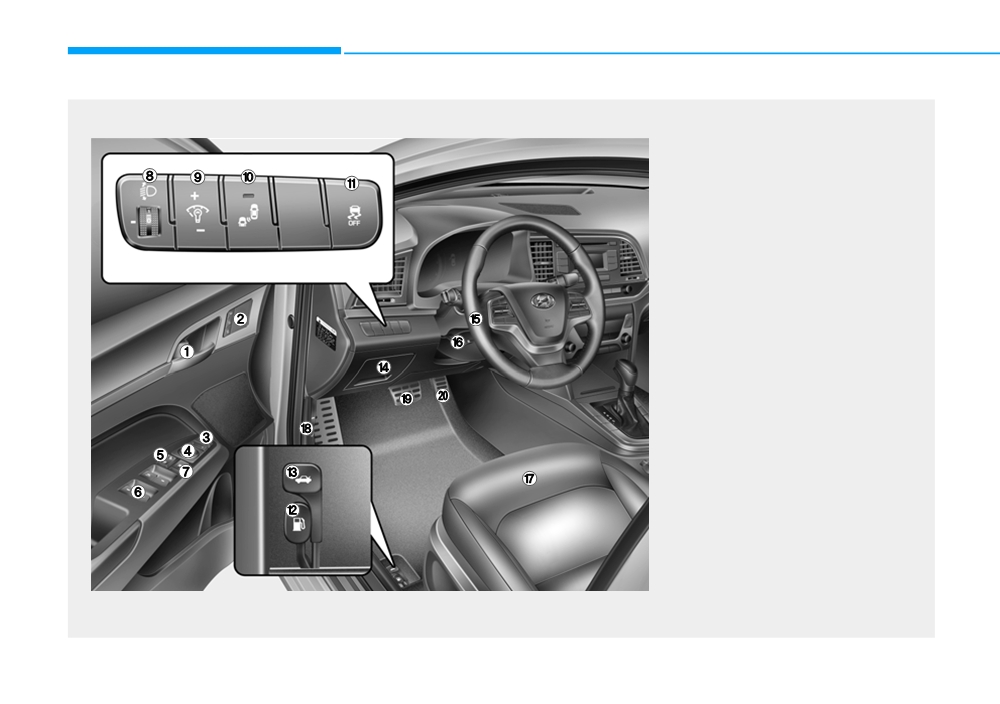

INTERIOR OVERVIEW (I)
■ Left-hand drive
1. Door lock/unlock button
3-16
2. Driver position memory system
3-21
3. Outside rearview mirror folding
switch
3-29
4. Outside rearview mirror control
switch
3-28
5. Central door lock switch
3-17
6. Power window switches
3-31
7. Power window lock switch
3-35
8. Headlight leveling device
3-105
9. Instrument panel illumination
control switch
3-53
10. Blind spot detection system button ..5-63
11. ESC OFF button
5-47
12. Fuel filler door opener
3-48
13. Trunk release lever
3-43
14. Fuse box
7-66
15. Steering wheel
3-23
16. Steering wheel tilt/telescope lever
3-24
17. Seat
2-4
18. Hood release lever
3-41
19. Brake pedal
5-41
20. Accelerator pedal
The actual shape may differ from the illustration.
OAD015003L
1-4

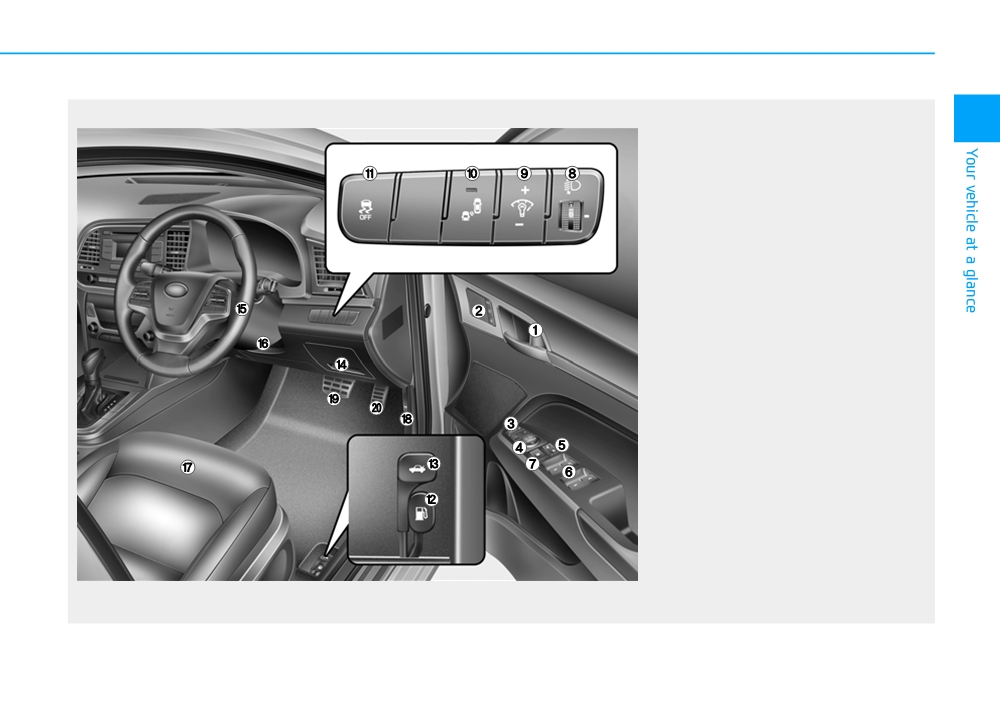

INTERIOR OVERVIEW (II)
■ Right-hand drive
1
1. Door lock/unlock button
3-16
2. Driver position memory system
3-21
3. Outside rearview mirror folding
switch
3-29
4. Outside rearview mirror control
switch
3-28
5. Central door lock switch
3-17
6. Power window switches
3-31
7. Power window lock switch
3-35
8. Headlight leveling device
3-105
9. Instrument panel illumination
control switch
3-53
10. Blind spot detection system button ..5-63
11. ESC OFF button
5-47
12. Fuel filler door opener
3-48
13. Trunk release lever
3-43
14. Fuse box
7-66
15. Steering wheel
3-23
16. Steering wheel tilt/telescope lever
3-24
17. Seat
2-4
18. Hood release lever
3-41
19. Brake pedal
5-41
20. Accelerator pedal
The actual shape may differ from the illustration.
OAD015003RE
1-5
Your vehicle at a glance

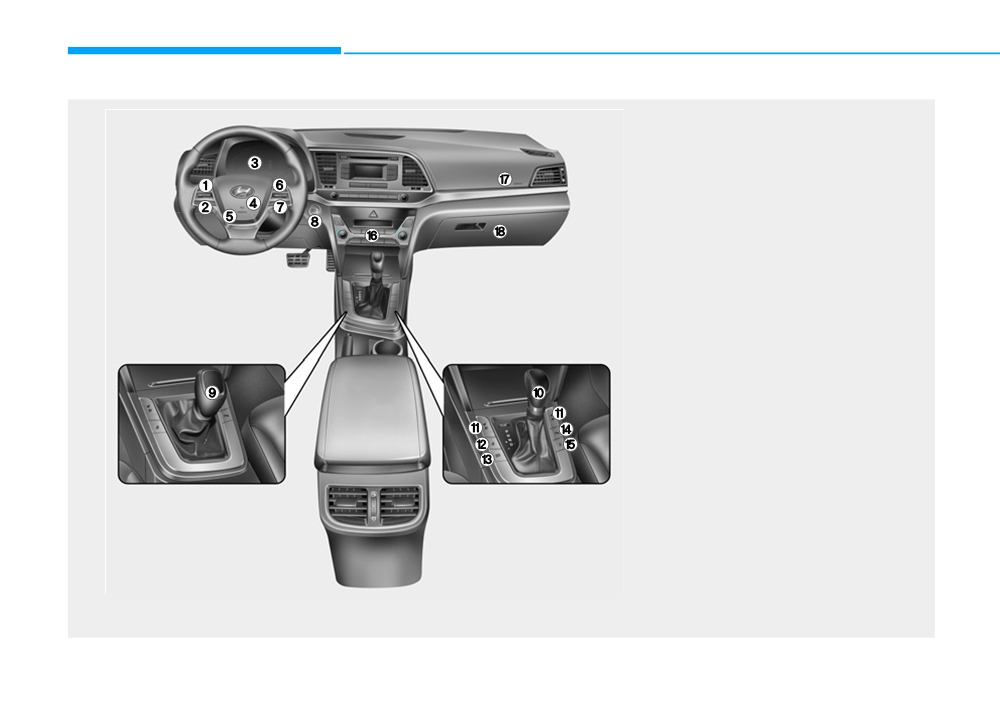

INSTRUMENT PANEL OVERVIEW (I)
■ Left-hand drive
1. Light control / Turn signals
3-99
2. Steering wheel audio controls /
Bluetooth® wireless technology
hands-free controls
4-4, 5
3. Instrument cluster
3-51
4. Horn
3-25
5. Driver's front air bag
2-49
6. Wiper/Washer
3-110
7. Cruise controls
5-71
8. Key ignition switch /
Engine Start/Stop button
5-6, 11
9. Manual transmission
5-20
10. Automatic transmission /
Dual clutch transmission
5-24, 31
11. Seat warmer / Air ventilation seat
2-20
12. Heated steering wheel
3-25
13. Drive mode integrated control system ...5-60
14. Parking assist system
3-118
15. Idle stop and go (ISG)
5-54
16. Manual climate control /
Automatic climate control system..3-123, 134
17. Passenger's front air bag
2-49
18. Glove box
3-154
The actual shape may differ from the illustration.
OAD015005L
1-6

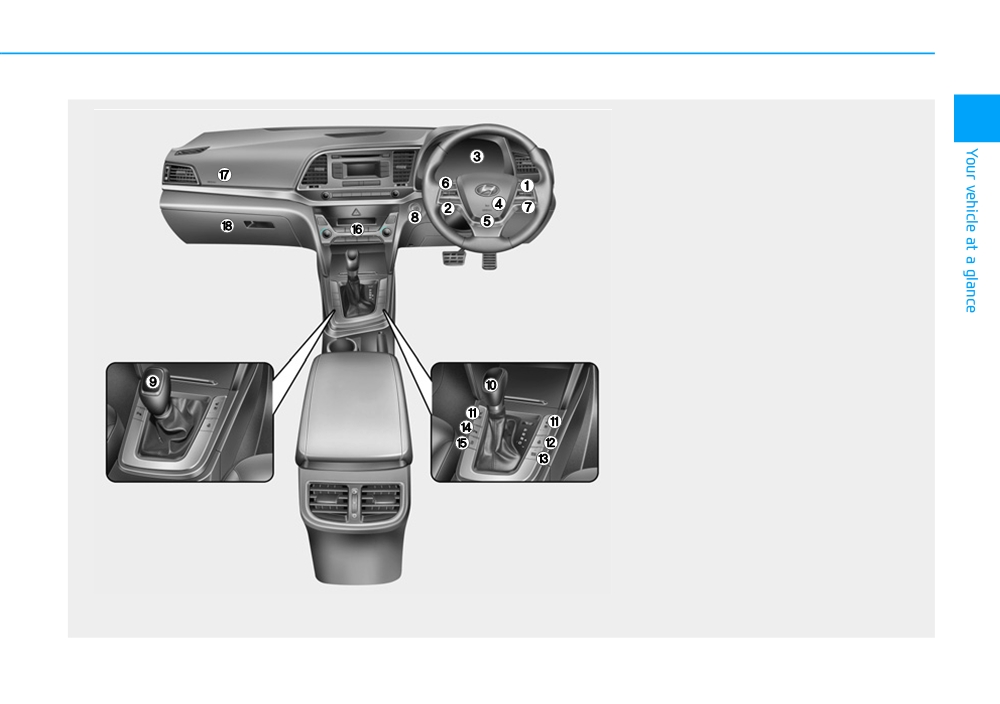

INSTRUMENT PANEL OVERVIEW (II)
■ Right-hand drive
1
1. Light control / Turn signals
3-99
2. Steering wheel audio controls /
Bluetooth® wireless technology
hands-free controls
4-4, 5
3. Instrument cluster
3-51
4. Horn
3-25
5. Driver's front air bag
2-49
6. Wiper/Washer
3-110
7. Cruise controls
5-71
8. Key ignition switch /
Engine Start/Stop button
5-6, 11
9. Manual transmission
5-20
10. Automatic transmission /
Dual clutch transmission
5-24, 31
11. Seat warmer / Air ventilation seat
2-20
12. Heated steering wheel
3-25
13. Drive mode integrated control system ...5-60
14. Parking assist system
3-118
15. Idle stop and go (ISG)
5-54
16. Manual climate control /
Automatic climate control system..3-123, 134
17. Passenger's front air bag
2-49
18. Glove box
3-154
The actual shape may differ from the illustration.
OAD015005RE
1-7
Your vehicle at a glance

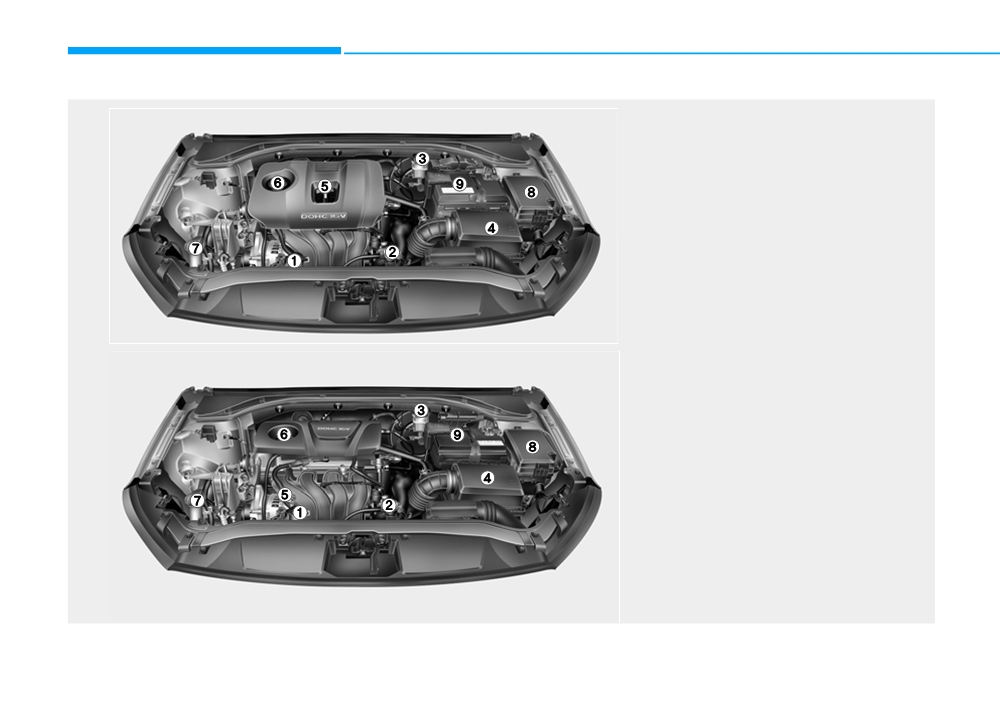

ENGINE COMPARTMENT
■ Gasoline Engine (Nu 2.0 MPI)
1. Engine coolant reservoir
7-36
2. Radiator cap
7-35
3. Brake/clutch fluid reservoir
7-38
4. Air cleaner
7-42
5. Engine oil dipstick
7-32
■ Gasoline Engine (Gamma 1.6 MPI)
6. Engine oil filler cap
7-33
7. Windshield washer fluid reservoir
7-40
8. Fuse box
7-66
9. Battery
7-48
The actual engine room in the vehicle may differ from the illustration.
OAD075100L/OAD075101L
1-8

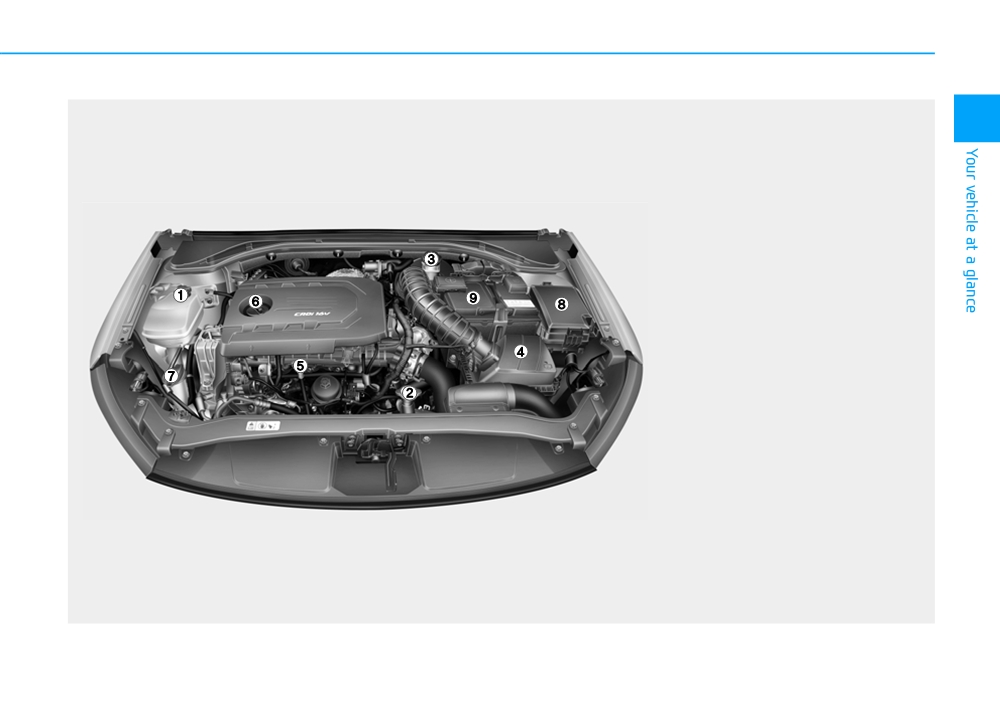

■ Diesel Engine (UII 1.6 TCI)
1
1. Engine coolant reservoir
7-36
2. Radiator cap
7-35
3. Brake/clutch fluid reservoir
7-38
4. Air cleaner
7-42
5. Engine oil dipstick
7-32
6. Engine oil filler cap
7-33
7. Windshield washer fluid reservoir
7-40
8. Fuse box
7-66
9. Battery
7-48
The actual engine room in the vehicle may differ from the illustration.
OAD075001
1-9
Safety system of your vehicle
This chapter provides you with important information about how to protect yourself and your passengers.
It explains how to properly use your seats and seat belts, and how your air bags work.
Additionally, this chapter explains how to properly restrain infants and children in your vehicle.
2
Important safety precautions
2-2
Child restraint system (CRS)
2-34
Always wear your seat belt
2-2
Children always in the rear
2-34
Restrain all children
2-2
Selecting a Child Restraint System (CRS)
2-35
Air bag hazards
2-2
Installing a Child Restraint System (CRS)
2-37
Driver distraction
2-2
Air bag
Control your speed
2-3
- supplemental restraint system
2-46
Keep your vehicle in safe condition
2-3
Where are the air bags?
2-49
Seats
2-4
How does the air bags system operate?
2-52
Safety precautions
2-5
What to expect after an air bag inflates
2-56
Front seats
2-6
Do not install a child restraint on the front
Rear seats
2-12
passenger seat
2-57
Headrest
2-16
Why didn't my air bag go off in a collision?
2-58
Seat warmers and air ventilation seats
2-20
SRS care
2-63
Seat belts
2-24
Additional safety precautions
2-64
Seat belt safety precautions
2-24
Air bag warning labels
2-65
Seat belt warning light
2-25
Seat belt restraint system
2-26
Additional seat belt safety precautions
2-31
Care of seat belts
2-33
Safety system of your vehicle
IMPORTANT SAFETY PRECAUTIONS
You will find many safety precautions
Restrain all children
Driver distraction
and recommendations throughout
All children under age 13 should ride
Driver distraction presents a serious
this section, and throughout this man-
in your vehicle properly restrained in
and potentially deadly danger, espe-
ual. The safety precautions in this sec-
a rear seat, not the front seat. Infants
cially for inexperienced drivers. Safety
tion are among the most important.
and small children should be
should be the first concern when
restrained in an appropriate child
behind the wheel and drivers need to
Always wear your seat belt
restraint. Larger children should use
be aware of the wide array of potential
a booster seat with the lap/shoulder
distractions, such as drowsiness,
A seat belt is your best protection in
belt until they can use the seat belt
reaching for objects, eating, personal
all types of accidents. Air bags are
properly without a booster seat.
grooming, other passengers, and
designed to supplement seat belts,
using cellular phones.
not replace them. So even though
your vehicle is equipped with air bags,
Air bag hazards
Drivers can become distracted when
they take their eyes and attention off
ALWAYS make sure you and your
While air bags can save lives, they
passengers wear your seat belts, and
the road or their hands off the wheel
can also cause serious or fatal
to focus on activities other than driv-
wear them properly.
injuries to occupants who sit too
ing. To reduce your risk of distraction
close to them, or who are not prop-
and an accident:
erly restrained. Infants, young chil-
• ALWAYS set up your mobile devices
dren, and short adults are at the
(i.e., MP3 players, phones, naviga-
greatest risk of being injured by an
tion units, etc.) when your vehicle is
inflating air bag. Follow all instruc-
parked or safely stopped.
tions and warnings in this manual.
• ONLY use your mobile device when
allowed by laws and conditions per-
mit safe use. NEVER text or email
while driving. Most countries have
laws prohibiting drivers from texting.
Some countries and cities also pro-
hibit drivers from using handheld
phones.
2-2
• NEVER let the use of a mobile
Keep your vehicle in safe condi-
device distract you from driving. You
tion
have a responsibility to your passen-
Having a tire blowout or a mechanical
gers and others on the road to
failure can be extremely hazardous. To
always drive safely, with your hands
2
reduce the possibility of such prob-
on the wheel as well as your eyes
lems, check your tire pressures and
and attention on the road.
condition frequently, and perform all
regularly scheduled maintenance.
Control your speed
Excessive speed is a major factor in
crash injuries and deaths. Generally,
the higher the speed, the greater the
risk, but serious injuries can also
occur at lower speeds. Never drive
faster than is safe for current condi-
tions, regardless of the maximum
speed posted.
2-3
Safety system of your vehicle

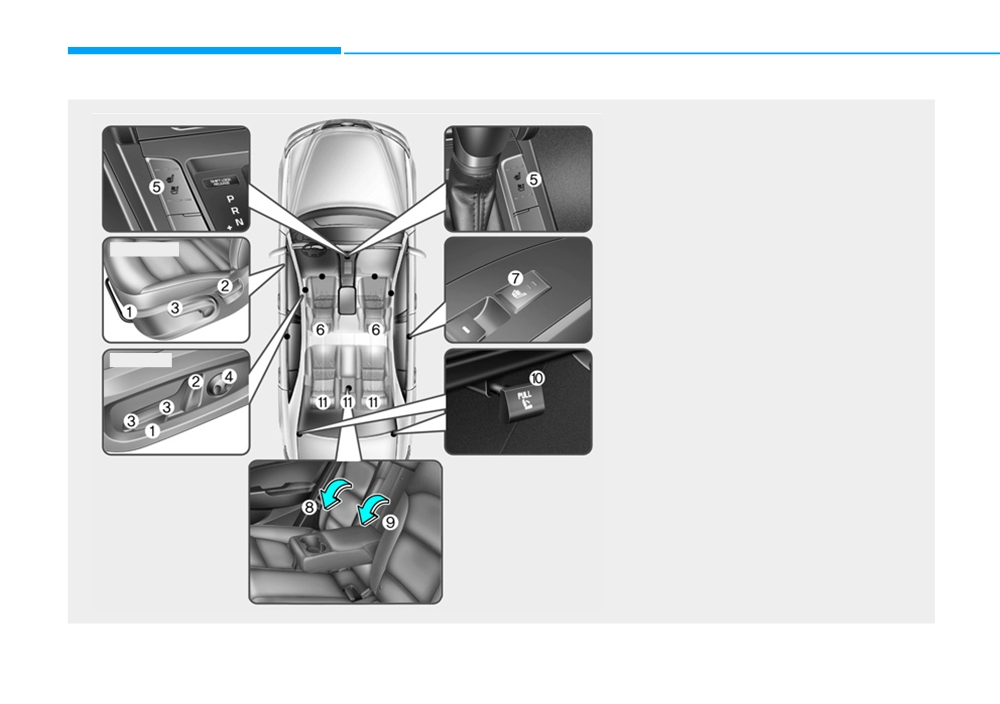

SEATS
Front seat
1. Forward and backward
2. Seatback angle
3. Seat cushion height (Driver’s seat)
Manual seat
4. Lumbar support (Driver’s seat)*
5. Seat warmer or Air ventilation seat *
6. Headrest
Rear seat
Power seat
7. Seat warmer*
8. Armrest
9. Carrying long/narrow cargo*
10. Seatback angle and folding*
11. Headrest
* : if equipped
OAD035001L
2-4
Safety precautions
Air bags
(Continued)
Adjusting the seats so that you are sit-
You can take steps to reduce the risk
•
Hold the steering wheel by the
ting in a safe, comfortable position
of being injured by an inflating air
rim with hands at the 9 o’clock
plays an important role in driver and
bag. Sitting too close to an air bag
and 3 o’clock positions to min-
2
passenger safety together with the
greatly increases the risk of injury in
imize the risk of injuries to
seat belts and air bags in an accident.
the event the air bag inflates. Move
your hands and arms.
your seat as far back as possible
from front air bags, while still main-
•
NEVER place anything or any-
WARNING
one between the air bag.
taining control of the vehicle.
•
Do not allow the front passen-
Do not use a cushion that
ger to place feet or legs on the
WARNING
reduces friction between the seat
dashboard to minimize the risk
and the passenger. The passen-
of leg injuries.
To reduce the risk of serious
ger's hips may slide under the
lap portion of the seat belt during
injury or death from an inflating
air bag, take the following pre-
an accident or a sudden stop.
Serious or fatal internal injuries
cautions:
could result because the seat
• Adjust the driver’s seat as far
belt cannot operate properly.
to the rear as possible while
maintaining the ability to main-
tain full control of the vehicle.
• Adjust the front passenger
seat as far to the rear as possi-
ble.
(Continued)
2-5
Safety system of your vehicle
Seat belts
Front seats
(Continued)
Always fasten your seat belt before
The front seat can be adjusted by
•
Do not route the seat belt
starting any trip.
using the control switches located on
across your neck, across sharp
At all times, passengers should sit
the outside of the seat cushion. Before
edges, or reroute the shoulder
upright and be properly restrained.
driving, adjust the seat to the proper
strap away from your body.
Infants and small children must be
position so that you can easily control
• Do not allow the seat belt to
restrained in appropriate child restraint
the steering wheel, foot pedals and
become caught or jammed.
systems. Children who have outgrown
controls on the instrument panel.
a booster seat and adults must be
restrained using the seat belts.
WARNING
WARNING
Take the following precautions
when adjusting your seat:
Take the following precautions
• NEVER attempt to adjust the
when adjusting your seat belt:
seat while the vehicle is mov-
• NEVER use one seat belt for
ing. The seat could respond
more than one occupant.
with unexpected movement
and may cause loss of vehicle
• Always position the seatback
control resulting in an acci-
upright with the lap portion of
dent.
the seat belt snug and low
across the hips.
• Do not place anything under
the front seats. Loose objects
• NEVER allow children or small
in the driver’s foot area could
infants to ride in a passenger’s
interfere with the operation of
lap.
the foot pedals, causing an
(Continued)
accident.
(Continued)
2-6
Manual adjustment
(Continued)
CAUTION
•
Do not allow anything to inter-
fere with the normal position
To prevent injury:
and proper locking of the seat-
•
Do not adjust your seat while
2
back.
wearing your seat belt.
•
Do not place a cigarette lighter
Moving the seat cushion for-
on the floor or seat. When you
ward may cause strong pres-
operate the seat, gas may exit
sure on your abdomen.
out of the lighter causing a fire.
•
Do not allow your hands or
•
Use extreme caution when
fingers to get caught in the
picking small objects trapped
seat mechanisms while the
under the seats or between
seat is moving.
OAD035002
the seat and the center con-
sole. Your hands might be cut
Forward and rearward adjustment
or injured by the sharp edges
To move the seat forward or rearward:
of the seat mechanism.
1. Pull up the seat slide adjustment
•
If there are occupants in the
lever and hold it.
rear seats, be careful while
2. Slide the seat to the position you
adjusting the front seat posi-
desire.
tion.
3. Release the lever and make sure
the seat is locked in place. Move
forward and rearward without using
the lever. If the seat moves, it is not
locked properly.
2-7
Safety system of your vehicle
Reclining seatback
Seat belts must be snug against your
hips and chest to work properly.
Sitting in a reclined position when
When the seatback is reclined, the
the vehicle is in motion can be dan-
shoulder belt cannot do its job
gerous. Even when buckled up, the
because it will not be snug against
protections of your restraint system
your chest. Instead, it will be in front
(seat belts and/or air bags) is greatly
of you. During an accident, you could
reduced by reclining your seatback.
be thrown into the seat belt, causing
neck or other injuries.
WARNING
The more the seatback is reclined,
the greater chance the passenger’s
NEVER ride with a reclined
OAD035003
seatback when the vehicle is
hips will slide under the lap belt or
the passenger’s neck will strike the
Seatback angle
moving.
shoulder belt.
To recline the seatback:
Riding with a reclined seatback
increases your chance of seri-
1. Lean forward slightly and lift up the
ous or fatal injuries in the event
seatback lever.
of a collision or sudden stop.
2. Carefully lean back on the seat
Drivers and passengers should
and adjust the seatback to the
ALWAYS sit well back in their
position you desire.
seats, properly belted, and with
3. Release the lever and make sure
the seatbacks upright.
the seatback is locked in place.
(The lever MUST return to its orig-
inal position for the seatback to
lock.)
2-8
|
|
|
