Hyundai Azera (2017 year). Instruction - part 28

Maintenance

No.

Fuse rating

Symbol

Protected component

7.5A

MODULE 3

Smart Key Control Module, Rear Seat Warmer LH/RH

A/C Control Module, E/R Junction Block (Blower Relay), Driver/Passenger Seat Warmer Module,

7.5A

A/CON

Active Incar Sensor, Driver/Passenger CCS Control Module

15A

IG1 2

Steering Wheel Heater

20A

IG1 1

E/R Junction Block (ECU 5 10A, ECU 4 10A)

Driver Power Seat Switch, Data Link Connector, A/C Control Module, Driver/Passenger Door Module,

10A

MEMORY 1

Instrument Cluster, Tire Pressure Monitoring Module, Auto Light & Photo Sensor

Rear Door Lamp LH/RH, MAP Lamp, Garnish Lamp LH/RH, Driver/Passenger Door Mood Lamp,

Driver/Passenger Door Lamp, Driver/Passenger Foot Lamp, Driver/Passenger Door Scuff Lamp,

10A

INTERIOR LAMP

Rear Door Mood Lamp LH/RH, Vanity Lamp Switch LH/RH, Rear Door Scuff Lamp LH/RH,

Trunk Room Lamp, Rear Personal Lamp Center/LH/RH

25A

WIPER

Wiper Motor, E/R Junction Block (Washer Relay, Wiper (LO) Relay, Wiper (HI) Relay)

10A

STOP LAMP

Smart Key Control Module, Stop Lamp Switch, Start Stop Button Switch

7.5A

MEMORY 2

RF Receiver

10A

MULTI MEDIA

Front Monitor (Audio/Navigation), A/V & Navigation Head Unit, Telematics Unit, Audio

7.5A

START

Transaxle Range Switch, PCM

7 57

Maintenance

No.

Fuse rating

Symbol

Protected component

20A

SUNROOF

Panorama Sunroof

10A

TRUNK

Trunk Lid Relay, Fuel Filler Door & Trunk Lid Switch

20A

S/HEATER RR

Rear Seat Warmer LH/RH

10A

DRV P/SEAT

25A

P/ WDW LH

Driver Safety Window Module, Rear Power Window Switch LH

25A

AMP

25A

PASS P/SEAT

Passenger Reclining Limit Switch, Power Seat Relay Box RH

25A

P/WDW RH

Passenger Safety Window Module, Rear Power Window Switch RH

25A

SMART KEY

Smart Key Control Module

15A

P/HANDLE

Sport Mode Switch, Steering Tilt & Telescopic Module

20A

S/HEATER FRT

Driver/Passenger Seat Warmer Module, Driver/Passenger CCS Control Module

20A

DR LOCK

Door Lock/Unlock Relay, ICM Relay Box (Two Turn Unlock Relay)

7 58

Maintenance

OHG070023

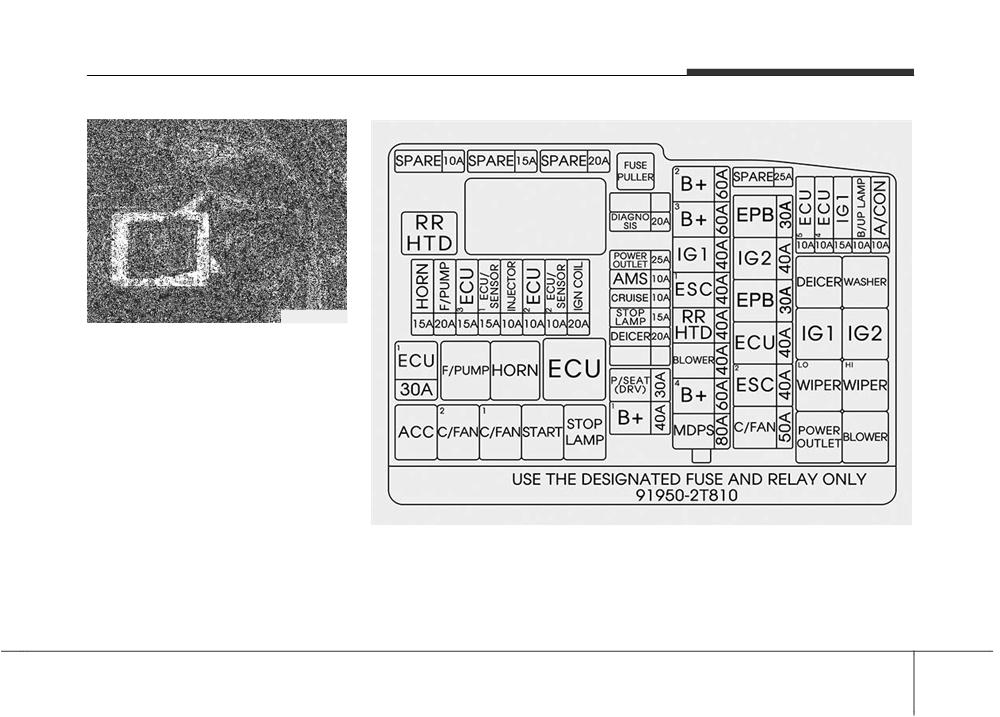

Engine compartment fuse panel

Inside the fuse/relay panel covers, you

can find the fuse/relay label describing

fuse/relay name and capacity.

✽ NOTICE

Not all fuse panel descriptions in

this manual may be applicable to

your vehicle. It is accurate at the

time of printing. When you inspect

the fuse panel in your vehicle, refer

OHG076047N

to the fuse panel label.

7 59

Maintenance

Engine compartment main fuse panel

No.

Fuse rating

Symbol

Protected component

Smart Junction Box (P/HANDLE 15A, SUNROOF 20A, DRV P/SEAT 10A, PASS P/SEAT 25A,

60A

B+2

IPS 2, ARISU-LT 1)

Smart Junction Box (P/WDW 25A, P/WDW RH 25A, S/HEATER FRT 10A, TRUNK 10A,

60A

B+3

P/OUTLET 1 20A)

40A

IG1

PDM 1 (ACC) Relay, PDM 2 (IG1) Relay

40A

ESC1

ESC Module

MULTI

FUSE

40A

RR HTD

RR HTD Relay

40A

BLOWER

Blower Relay

Smart Junction Block (STOP LAMP 10A, S/HEATER RR 20A, IPS 3/4, ARISU-LT 2, AMP 25A,

60A

B+4

P/OUTLET 2 20A)

80A

MDPS

MDPS Unit

10A

A/CON

A/C Control Module

FUSE

10A

B/UP LAMP

Rear Combination Lamp (IN) LH/RH, Electro Chromic Mirror, Audio, Front Monitor

10A

ECU 4

PCM, IDB(Injector Driver Box)

7 60

Maintenance

No.

Fuse rating

Symbol

Protected component

10A

ECU 5

Multipurpose Check Connector

30A

EPB 2

Electronic Parking Brake Module

40A

IG 2

Start Relay, PDM 3 (IG2) Relay

30A

EPB 1

Electronic Parking Brake Module

40A

B+5

EMS Block (ECU 3 15A, ECU 1 30A, F/PUMP 20A, HORN 15A)

FUSE

40A

ESC 2

ESC Module

50A

C/FAN

C/Fan Relay

20A

DIAGNOSIS

Multipurpose Check Connector

10A

AMS

Battery Sensor

10A

CRUISE

Smart Cruise Control Radar

15A

STOP LAMP

Stop Signal Electronic Module

7 61

Maintenance

No.

Fuse rating

Symbol

Protected component

20A

DEICER

Deicer Relay

Driver Lumbar Support Limit Switch, Driver IMS Module,

30A

DRV P/SEAT

Power Seat Relay Box LH, Driver Reclining Limit Switch

Smart Junction Box (DR LOCK 20A, SMART KEY 1 25A,

40A

B+1

Leak Current Autocut Device (Leak Current Autocut Relay,

Leak Current Autocut Switch, IPS 5))

20A

IGN COIL

Ignition Coil #1~#6, Condenser #1/#2

IDB (Injector Driver Box), PCM, Purge Control Solenoid Valve,

10A

SENSOR 2

Oil Control Valve #1 ~ #4, Variable Intake Solenoid Valve #1, #2, Canister Close Valve,

E/R Junction (C/FAN Relay)

FUSE

10A

ECU 2

IDB (Injector Driver Box)

10A

INJECTOR

PCM, EMS Box (F/Pump Relay)

15A

SENSOR 1

PCM, Oxygen Sensor #1~#4

15A

ECU 3

PCM, IDB (Injector Driver Box)

20A

F/PUMP

EMS Block (F/Pump Relay)

15A

HORN

EMS Block (Horn Relay), ICM Relay Box(Burglar Horn Relay)

30A

ECU 1

EMS Block (Engine Control Relay)

7 62

Maintenance

LIGHT BULBS

If you do not have necessary tools,

WARNING - Lights

the correct bulbs and the expertise,

Prior to working on the light,

consult an authorized HYUNDAI

firmly apply the parking brake,

dealer. In many cases, it is difficult to

ensure that the ignition switch is

replace vehicle light bulbs because

changed to the OFF position

other parts of the vehicle must be

and turn off the lights to avoid

removed before you can get to the

sudden movement of the vehicle

bulb. This is especially true if you

and burning your fingers or

have to remove the headlight assem-

receiving an electric shock.

bly to get to the bulb(s).

Removing/installing the headlight

assembly can result in damage to

OHG075025N

Use only the bulbs of the specified

the vehicle.

wattage.

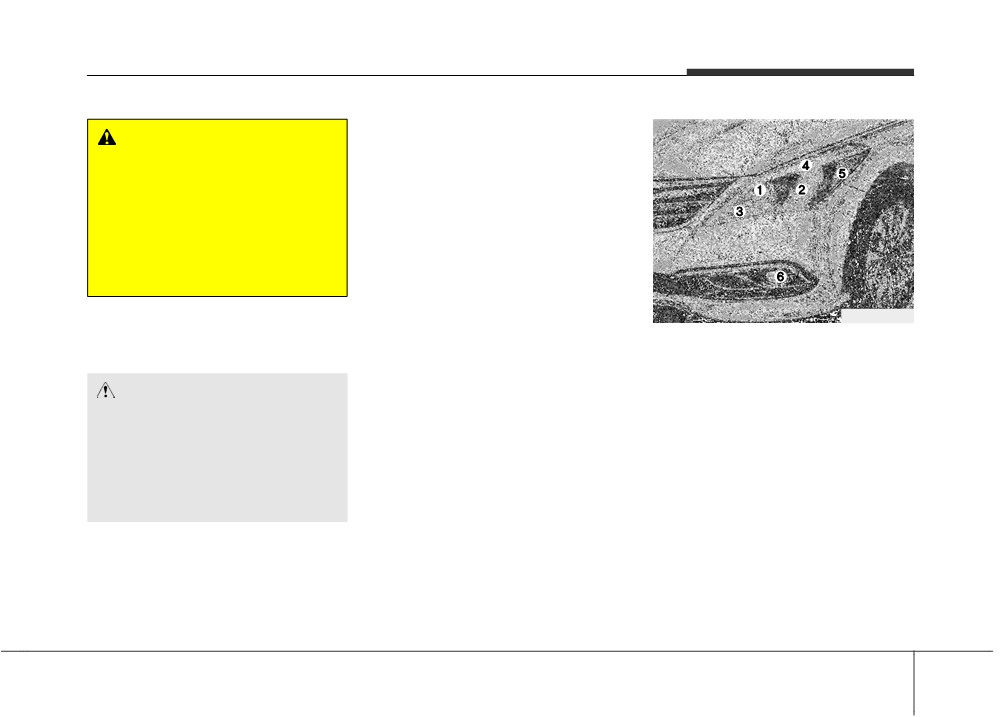

Headlight, position light, turn

signal light, front fog light bulb

✽ NOTICE

replacement

After driving in rain or washing the

CAUTION - Light

(1) Headlight (High) /

vehicle, the headlight and taillight

replacement

DRL (Daytime running light)

lenses could appear frosty. This con-

Be sure to replace the burned-

(2) Headlight (Low)

dition is caused by the temperature

out bulb with one of the same

(3) Front turn signal light

difference between the lamp inside

wattage rating. Otherwise, it

and outside. This is similar to the

(4) Position (Parking) light

may cause damage to the fuse

condensation on your windows

or electric wiring system.

(5) Front side marker

inside your vehicle during the rain

(6) Front fog light

and doesn’t indicate a problem with

your vehicle. If the water leaks into

the lamp bulb circuitry, have the

vehicle checked by an authorized

HYUNDAI dealer.

7 63

Maintenance

•

Always handle them carefully, and

Headlight (HID type)

avoid scratches and abrasions. If

If the light bulb does not operate,

the bulbs are lit, avoid contact with

have the vehicle checked by an

liquids.

authorized HYUNDAI dealer.

•

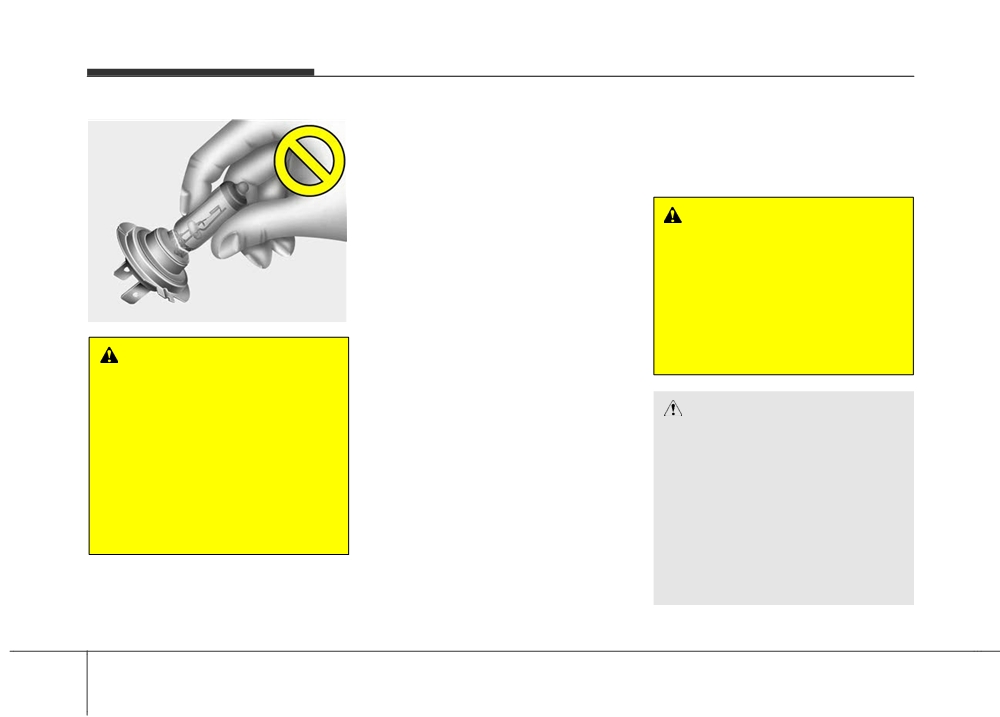

Never touch the glass with bare

hands. Residual oil may cause the

WARNING

bulb to overheat and burst when lit.

- HID Headlight low beam

•

A bulb should be operated only

Do not attempt to replace or

when installed in a headlight.

inspect the low beam (XENON

•

If a bulb becomes damaged or

bulb) due to electric shock dan-

cracked, replace it immediately

ger. If the low beam

(XENON

OHD076046

and carefully dispose of it.

bulb) is not working, have your

vehicle checked by an author-

WARNING - Halogen

ized HYUNDAI Dealer.

bulbs

•

Handle halogen bulbs with

care. Halogen bulbs contain

CAUTION

pressurized gas that will pro-

If your vehicle is equipped with

duce flying pieces of glass that

High Intensity Discharge (HID)

could cause injuries if broken.

headlights, these headlights

•

Wear eye protection when

contain mercury. So if you need

changing a bulb. Allow the

to have your vehicle disposed,

bulb to cool down before han-

you should remove the HID

dling it.

Headlights before disposal. The

removed HID headlights should

be recycled, re-used or dis-

posed as hazardous waste.

7 64

Maintenance

HID lamps have superior perform-

■ High beam

5. Remove the bulb from the head-

ance vs. halogen bulbs. HID lamps

light assembly.

are estimated by the manufacturer to

6. Install a new headlight bulb.

last twice as long or longer than

7. Connect the headlight bulb socket

halogen bulbs depending on their

connector.

frequency of use. They will probably

require replacement at some point in

8. Install the headlight bulb cover by

the life of the vehicle. Cycling the

turning it clockwise.

headlamps on and off more than typ-

ical use will shorten HID lamps life.

If the headlight aiming adjustment is

HID lamps do not fail in the same

OHG070045

necessary after the headlight assem-

■ Low beam

manner as halogen incandescent

bly is reinstalled, consult an author-

lamps. If a headlamp goes out after a

ized HYUNDAI dealer.

period of operation but will immedi-

ately relight when the headlamp

switch is cycled it is likely the HID

lamp needs to be replaced. HID light-

ing components are more complex

than conventional halogen bulbs and

thus have higher replacement cost.

OHG070044

Headlight (bulb type)

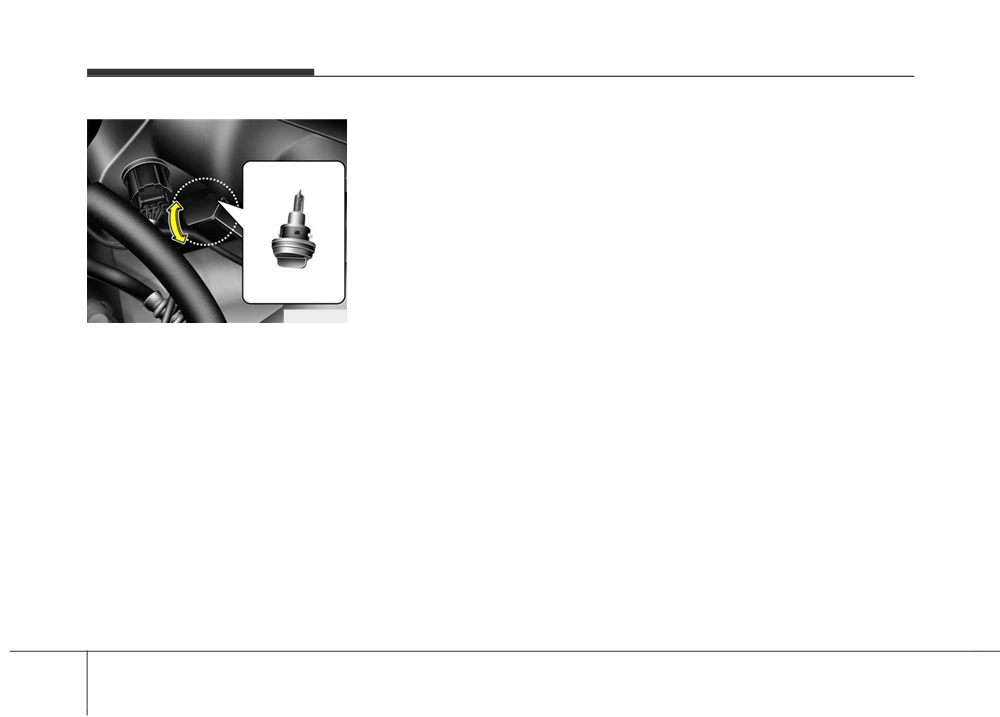

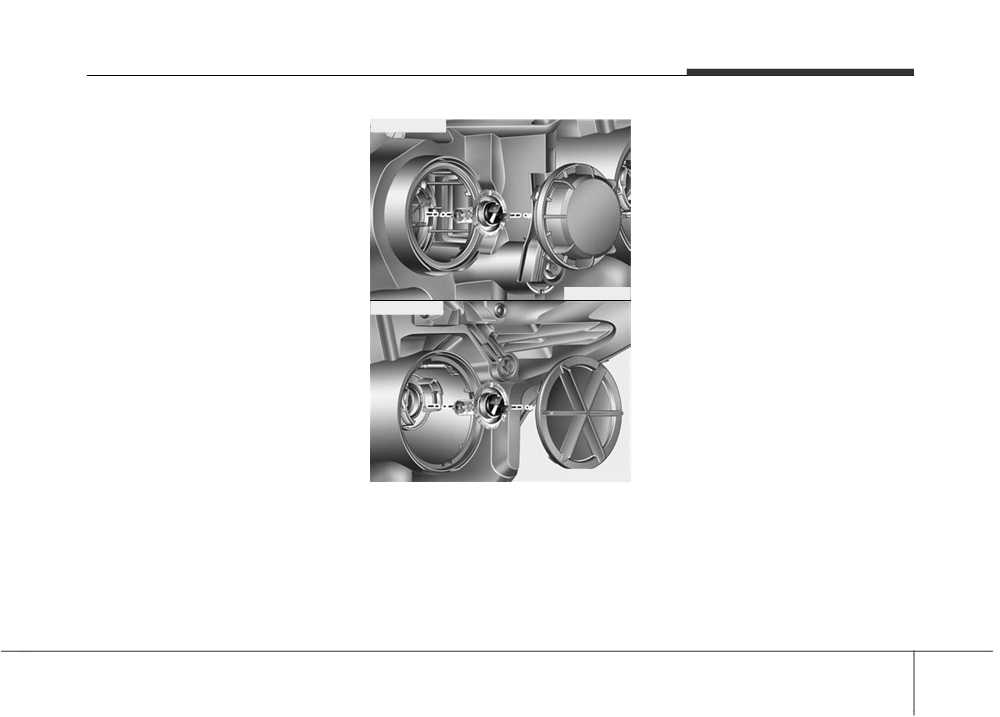

1. Turn off the engine.

2. Open the hood.

3. Remove the headlight bulb cover

by turning it counterclockwise.

4. Disconnect the headlight bulb

socket connector.

7 65

Maintenance

5. Insert a new bulb by inserting it

Position (Parking) light, front fog

into the socket and rotating it until

light and front side marker

it locks into place.

If the light bulb does not operate,

6. Install the socket in the assembly

have the vehicle checked by an

by aligning the tabs on the socket

authorized HYUNDAI dealer.

with the slots in the assembly.

Push the socket into the assembly

✽ NOTICE

and turn the socket clockwise.

A skilled technician should check or

repair the position, front fog lights

and front side marker. Otherwise, it

may damage related parts of the

OHG070042

vehicle.

Turn signal light

1. Turn off the engine.

2. Open the hood.

3. Remove the socket from the

assembly by turning the socket

counterclockwise until the tabs on

the socket align with the slots on

the assembly.

4. Remove the bulb from the socket

by pressing it in and rotating it

counterclockwise until the tabs on

the bulb align with the slots in the

socket. Pull the bulb out of the

socket.

7 66

Maintenance

Stop/tail light and rear side marker

If the light bulb does not operate,

have the vehicle checked by an

authorized HYUNDAI dealer.

✽ NOTICE

A skilled technician should check or

repair the stop/tail light and rear

side marker. Otherwise, it may dam-

age related parts of the vehicle.

OHG070026

OHG075027

Side repeater light bulb

Rear combination light bulb

replacement

If the light bulb does not operate,

(1) Stop and tail light

have the vehicle checked by an

(2) Rear turn signal light

authorized HYUNDAI dealer.

(3) Backup light

(4) Rear side marker

✽ NOTICE

A skilled technician should check or

repair the side repeater light.

Otherwise, it may damage related

parts of the vehicle.

7 67

Maintenance

4. Remove the socket from the

assembly by turning the socket

counterclockwise until the tabs on

the socket align with the slots on

the assembly.

5. Remove the bulb from the socket

by pressing it in and rotating it

counterclockwise until the tabs on

the bulb align with the slots in the

socket. Pull the bulb out of the

OHG070028

socket.

OHG070030

6. Insert a new bulb by inserting it

into the socket and rotating it until

Backup light

it locks into place.

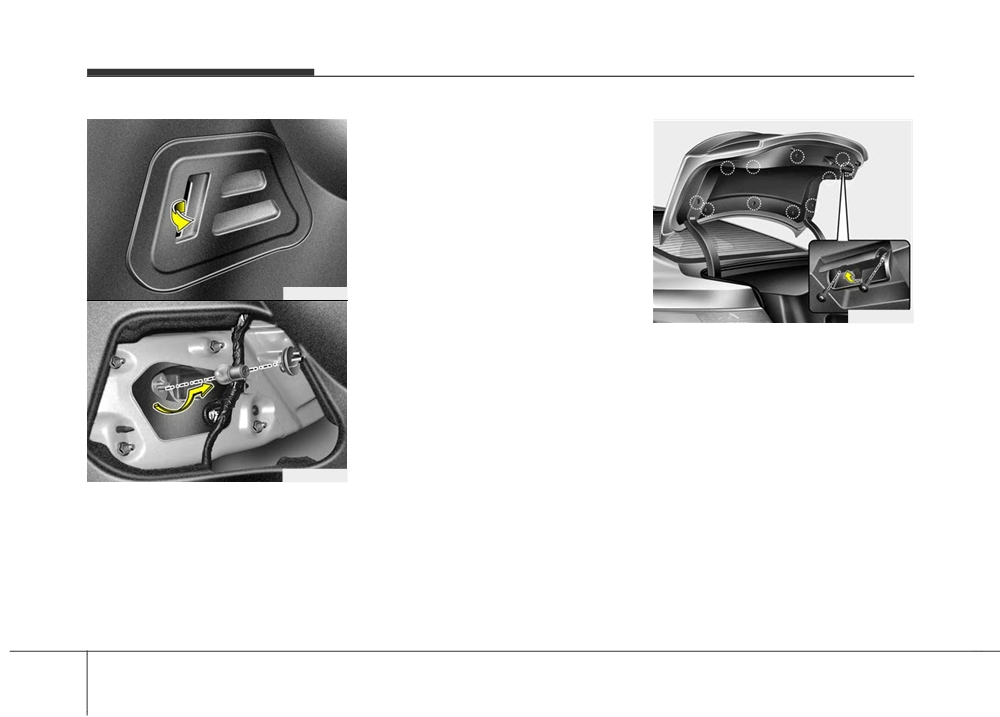

1. Turn off the engine.

7. Install the socket in the assembly

2. Open the trunk.

by aligning the tabs on the socket

3. Loosen the retaining screw of the

with the slots in the assembly.

trunk lid cover and then remove

Push the socket into the assembly

the cover.

and turn the socket clockwise.

4. Remove the socket from the

8. Install the service cover by putting

assembly by turning the socket

OHG070029

it into the service hole.

counter clockwise until the tabs on

Rear turn signal light

the socket align with the slots on

1. Turn off the engine.

the assembly.

2. Open the trunk.

3. Remove the service cover by

pulling out the service cover.

7 68

Maintenance

OHG070040

OHG070031

OHG070039

5. Remove the bulb by pulling it

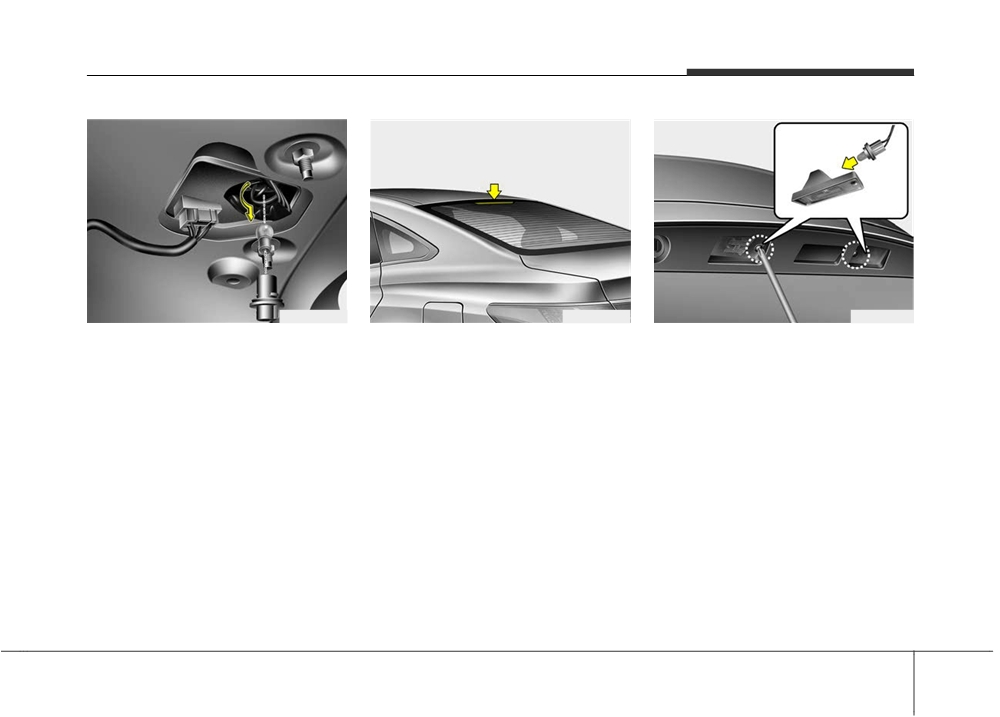

High mounted stop light

License plate light bulb

straight out.

replacement

6. Insert a new bulb by inserting it

If the light bulb does not operate, have

1. Turn off the engine.

into the socket and rotating it until

the vehicle be checked by an author-

2. Loosen the retaining screws with a

it locks into place.

ized HYUNDAI dealer.

philips head screwdriver.

7. Install the socket into the assem-

3. Remove the bulb assembly by

bly by aligning the tabs on the

✽ NOTICE

turning it counterclockwise.

socket with the slots in the assem-

A skilled technician should check or

4. Remove the bulb by pulling it

bly. Push the socket into the

repair the high mounted stop light.

straight out.

assembly and turn the socket

Otherwise, it may affect the per-

clockwise.

5. Install a new bulb.

formance of the curtain airbags or

8. Reinstall the trunk lid cover by

6. Reinstall the bulb assembly

damage related interior parts of the

pushing in the screw.

securely with the retaining screws.

vehicle.

7 69

Maintenance

■ Glove box lamp

Interior light bulb replacement

■ Map lamp

Glove box lamp and luggage room

lamp

1. Using a flat-blade screwdriver,

gently pry the lens from the interi-

or light housing.

2. Remove the bulb by pulling it

straight out.

WARNING - Interior lights

■ Luggage room lamp

Prior to working on the Interior

■ Door courtesy lamp

lights, ensure that the lights are

off to avoid burning your fingers

or receiving an electric shock.

3. Install a new bulb in the socket.

4. Align the lens tabs with the interior

light housing notches and snap

the lens into place.

OHG070033/OHG070034

OHG045029/OHG070036

7 70

Maintenance

■ Room lamp

■ Vanity mirror lamp

Type A

OHG071052A

Type B

Map lamp, room lamp, door cour-

tesy lamp and vanity mirror lamp

If the light bulb does not operate,

have the vehicle checked by an

authorized HYUNDAI dealer.

✽ NOTICE

A skilled technician should check or

repair the interior lights. Otherwise,

it may damage related parts of the

vehicle.

OHG070037/OHG070038

7 71

Maintenance

APPEARANCE CARE

Exterior care

Finish maintenance

CAUTION

Exterior general caution

Washing

To help protect your vehicle’s finish

•

Do not use strong soap, chem-

It is very important to follow the label

from rust and deterioration, wash it

ical detergents or hot water,

directions when using any chemical

thoroughly and frequently at least

and do not wash the vehicle in

cleaner or polish. Read all warning

once a month with lukewarm or cold

direct sunlight or when the

and caution statements that appear

water.

body of the vehicle is warm.

on the label.

If you use your vehicle for off-road

•

Be careful when washing the

driving, you should wash it after each

side windows of your vehicle.

High-pressure washing

off-road trip. Pay special attention to

Especially, with high-pressure

•

When using high-pressure wash-

the removal of any accumulation of

water, water may leak through

ers, make sure to maintain suffi-

salt, dirt, mud, and other foreign mate-

the windows and wet the inte-

cient distance from the vehicle.

rials. Make sure the drain holes in the

rior.

Insufficient clearance or excessive

lower edges of the doors and rocker

•

To prevent damage to the

pressure can lead to component

panels are kept clear and clean.

plastic parts and lamps, do

damage or water penetration.

Insects, tar, tree sap, bird droppings,

not clean with chemical sol-

•

Do not spray the camera, sensors

industrial pollution and similar

vents or strong detergents.

or its surrounding area directly with

deposits can damage your vehicle’s

a high pressure washer. Shock

finish if not removed immediately.

applied from high pressure water

Even prompt washing with plain water

WARNING - Wet brakes

may cause the device to not oper-

may not completely remove all these

After washing the vehicle, test

ate normally.

deposits. A mild soap, safe for use on

the brakes while driving slowly

•

Do not bring the nozzle tip close to

painted surfaces, may be used.

to see if they have been affected

boots (rubber or plastic covers)or

After washing, rinse the vehicle thor-

by water. If braking performance

connectors as they may be dam-

oughly with lukewarm or cold water.

is impaired, dry the brakes by

aged if they come into contact with

Do not allow soap to dry on the finish.

applying them lightly while main-

high pressure water.

taining a slow forward speed.

7 72

Maintenance

Waxing

CAUTION - Drying vehicle

A good coat of wax is a barrier

between your paint and contaminate.

•

Wiping dust or dirt off the

Keeping a good coat of wax on your

body with a dry cloth will

vehicle will help protect it.

scratch the finish.

Wax the vehicle when water will no

•

Do not use steel wool, abra-

longer bead on the paint.

sive cleaners, or strong deter-

gents containing highly alka-

Always wash and dry the vehicle

line or caustic agents on

before waxing. Use a good quality

chrome-plated or anodized

liquid or paste wax, and follow the

aluminum parts. This may

manufacturer’s instructions. Wax all

OJB037800

result in damage to the protec-

metal trim to protect it and to main-

tive coating and cause discol-

tain its luster.

oration or paint deterioration.

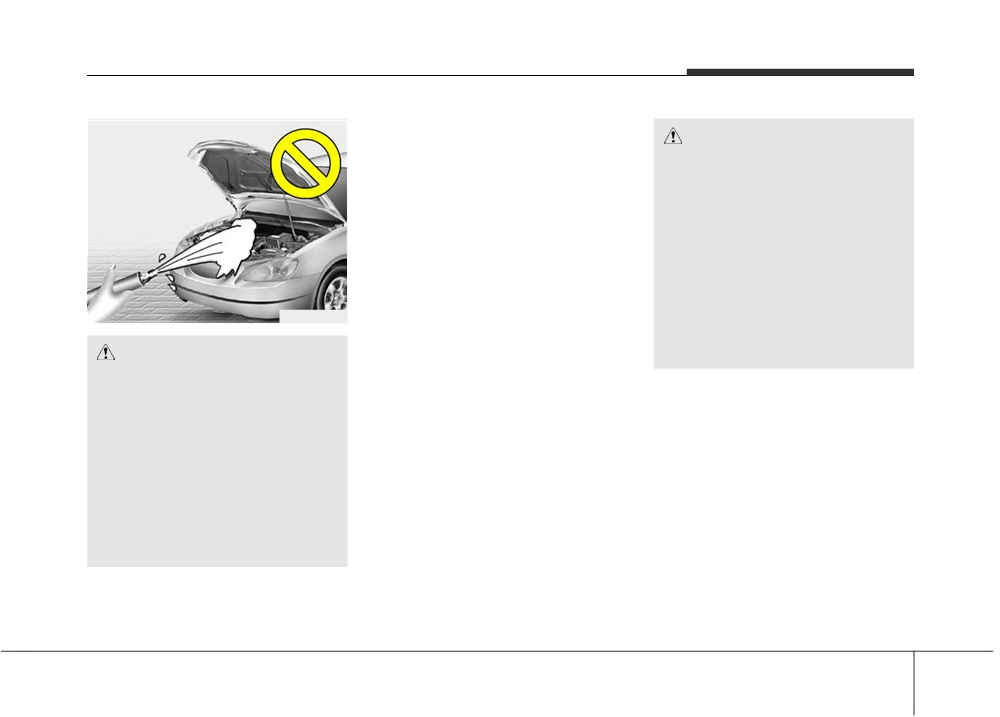

CAUTION - Wetting engine

Removing oil, tar, and similar materi-

•

Water washing in the engine

als with a spot remover will usually

compartment including high

strip the wax from the finish. Be sure

pressure water washing may

to re-wax these areas even if the rest

cause the failure of electrical

of the vehicle does not yet need wax-

circuits located in the engine

ing.

compartment.

•

Never allow water or other liq-

uids to come in contact with

electrical/electronic compo-

nents inside the vehicle as

this may damage them.

7 73

Content .. 26 27 28 29 ..
