Hyundai Azera (2017 year). Instruction - part 16

Features of your vehicle

MY MUSIC MODE

(1) Mode

(8) Repeat

Displays currently operating mode.

Turns the Repeat feature on/off.

Basic Mode Screen

(2) Operation State

(9) Shuffle

From Repeat / Shuffle / Scan, dis-

Turns the Shuffle feature on/off.

plays the currently operating func-

tion.

(10) List

Moves to the list screen.

(3) File Index

Displays the current file/total number

(11) Info

of files.

Displays detailed information for the

current file.

(4) File Info

Displays information about the cur-

(12) Delete

rent file.

Deletes the current file.

(5) Play State

Displays the play/pause state.

(6) Play Time

Displays the current play time.

(7) MENU

Displays the My Music Menu

4 190

Features of your vehicle

Using My Music Mode

Changing Files

Selecting from the List

TRACK

Press the

SEEK

,

keys to

Press the

TUNE knob to search

select the previous or next file.

and select desired files.

Playing/Pausing My Music Files

✽ NOTICE

TRACK

•

Pressing the

key after the

file has been playing for 2 seconds

will start the current file from the

beginning.

TRACK

•

Pressing thex

key before

the file has been playing for 1 sec-

onds will start the previous file.

Once you find the desired file, press

While playing, press the

TUNE

the

TUNE knob to start playing.

knob to pause and press again to

play.

Rewinding / Fast-forwarding Files

While playing, press and hold the

✽ NOTICE

TRACK

keys (over 0.8 sec-

SEEK

,

If there are no files saved within My

onds) to rewind or fast-forward the

Music, the

My Music

button will be

current file.

disabled.

Scan

Press the

SCAN

key to play the first

10 seconds of each file.

4 191

Features of your vehicle

My Music Mode Menu

✽ NOTICE

Info

If you press the

MENU

key, you will

The

1

,

2

keys are shortcut keys

Press the

MENU

key Select

Info

have access to the Repeat, Shuffle,

to set the Repeat and Shuffle fea-

Details for the currently playing file

List, Info and Delete features.

tures.

are displayed.

List

✽ NOTICE

Press the

MENU

key Select

List

The title, artist and album info are

displayed only when such informa-

tion is recorded within the MP3 file

ID3 tag.

Deleting Files

Press the

MENU

key Select

Delete

The currently playing file is deleted.

Repeat

Press the

MENU

key Select

Repeat

Repeat : Repeats the current file.

Press the

TUNE knob to search

for the desired file and press the

Shuffle

TUNE knob to select.

Press the

MENU

key Select

Shuffle

Shuffle : Plays all files in random

order.

4 192

Features of your vehicle

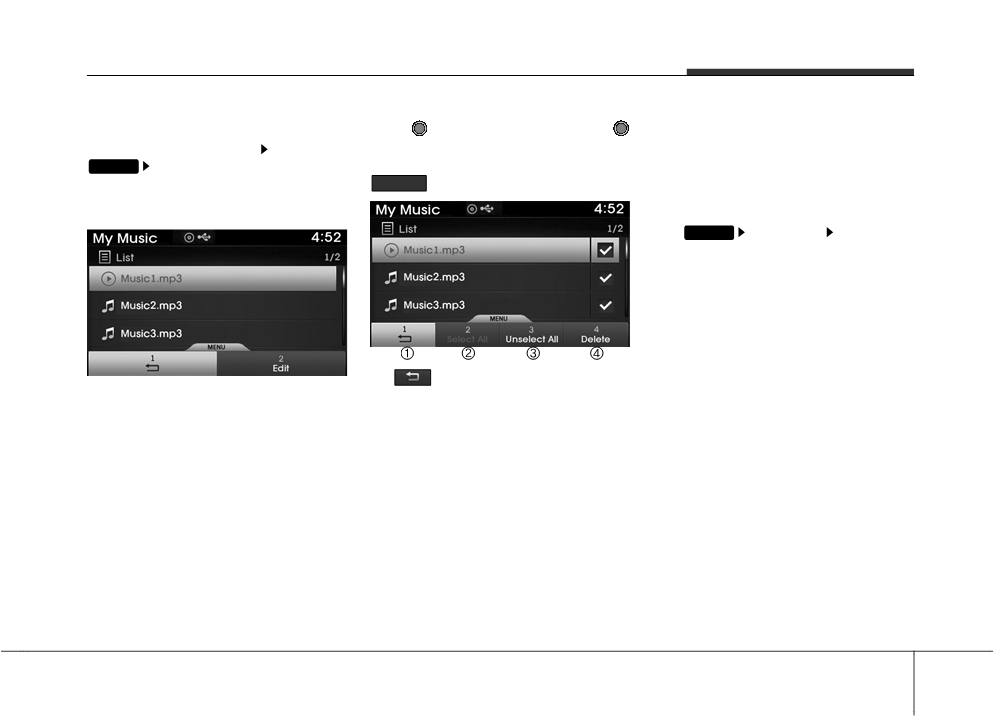

List Menu

Use

TUNE knob and the

✽ NOTICE

From the List screen Press the

TUNE knob to search and select files

• If there is memory available, up to

MENU

Select [Edit].

you want to delete and select the

6,000 files can be saved.

Delete

button from the Menu.

• Identical files cannot be copied

Files saved in My Music can be

more than 1,000 times.

selected and deleted.

• To check memory information, go

to

SETUP

[System]

[Memory

Information]

(1)

: Moves to the previous

screen

(2) Select All: Selects all files

(3) Unselet All: Deselects all select-

ed files

(4) Delete: Deletes selected files

4 193

Features of your vehicle

Bluetooth® Wireless

✽ NOTICE

✽ NOTICE

Technology AUDIO MODE

The play/pause feature may operate

•

If music is not yet playing from

differently depending on the mobile

your mobile device after converting

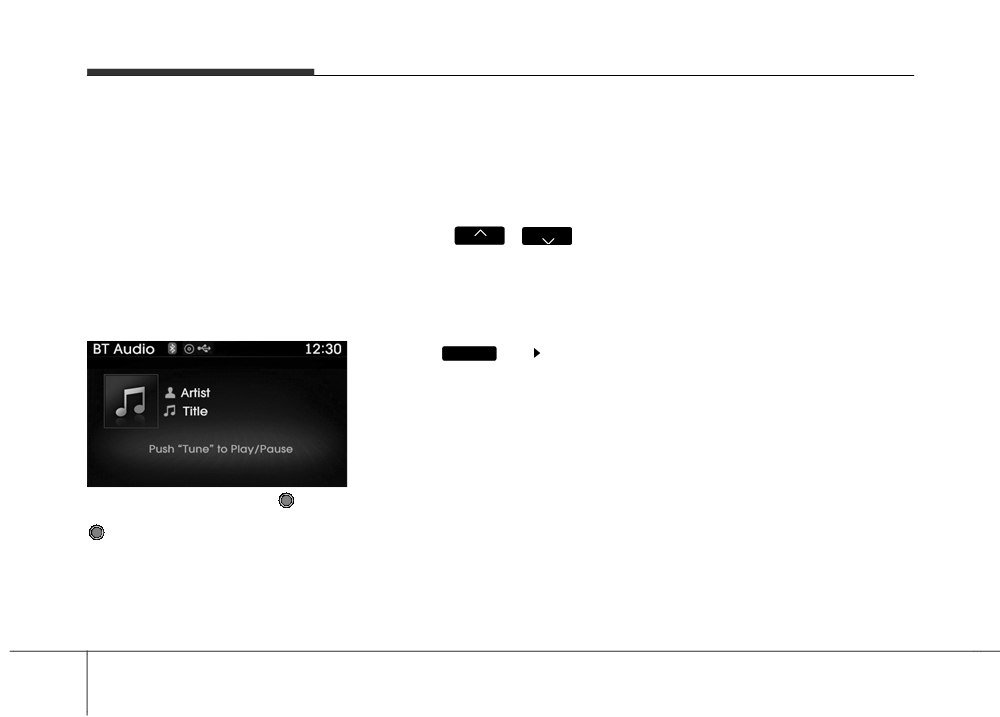

Using Bluetooth® Wireless

phone.

to Bluetooth® Wireless Technology

Technology Audio Mode

Audio mode, pressing the play but-

Changing Files

ton once may start playing the

TRACK

mode. Check to see that music is

Press the

SEEK

,

key to

Playing/Pausing Bluetooth®

playing from the Bluetooth®

move to the previous or next file.

Wireless Technology Audio

Wireless Technology device after

converting to Bluetooth® Wireless

Once a Bluetooth® Wireless

Setting Connection

Technology Audio Mode.

Technology device is connected, the

mode will automatically start.

If a Bluetooth® Wireless Technology

device has not been connected,

press the

SETUP

key

[Phone] but-

ton to display the Bluetooth®

Wireless Technology connection

screen.

It is possible to use the pair phone,

connect/disconnect and delete fea-

tures from your Bluetooth® Wireless

Technology phone.

While playing, press the

TUNE

knob to pause and press

TUNE knob to play.

4 194

Features of your vehicle

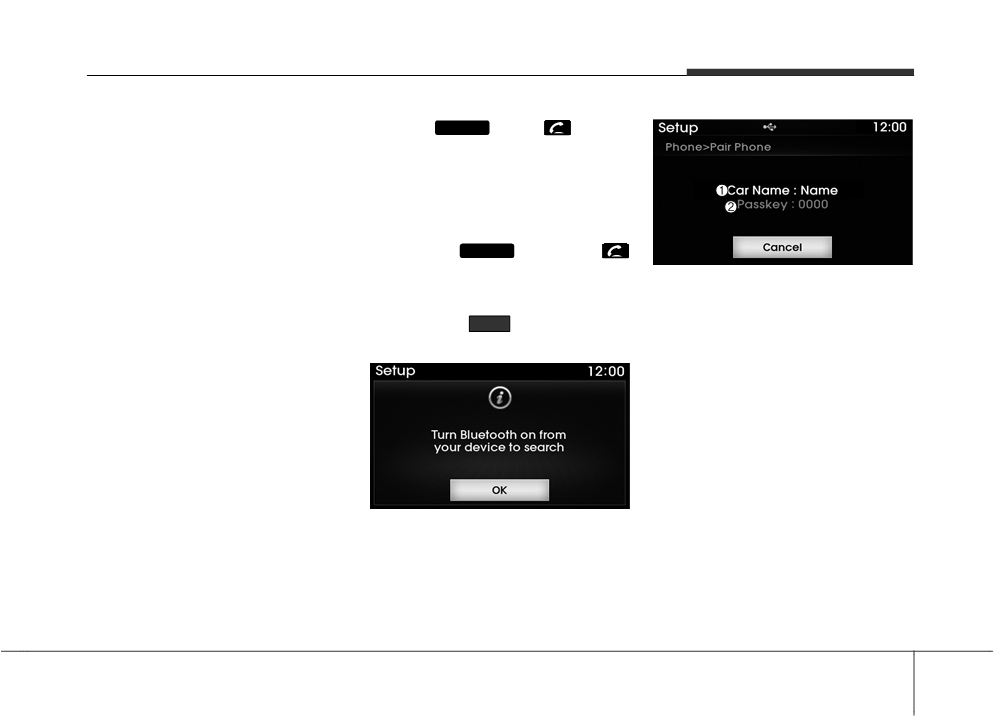

Pairing a Bluetooth® Wireless

Pairing

PHONE

Key /

Key

Technology Device

on the Steering Remote

Controller

What is Bluetooth® Wireless

Technology Pairing?

When No Devices have been

Pairing refers to the process of syn-

Paired

chronizing your Bluetooth® Wireless

1.Press the

PHONE

key or the

Technology phone or device with the

key on the steering remote con-

car audio system for connection.

troller. The following screen is dis-

Pairing is necessary to connect and

played.

1) Car Name : Name of device as

use the Bluetooth® Wireless

2.Select the

OK

button to enter

shown when searching from your

Technology feature.

Bluetooth® Wireless Technology

the Pair Phone screen.

device

2) Passkey : Passkey used to pair the

device

3.From your Bluetooth® Wireless

Technology device

(i.e. Mobile

Phone), search and select your car

audio system.

4 195

Features of your vehicle

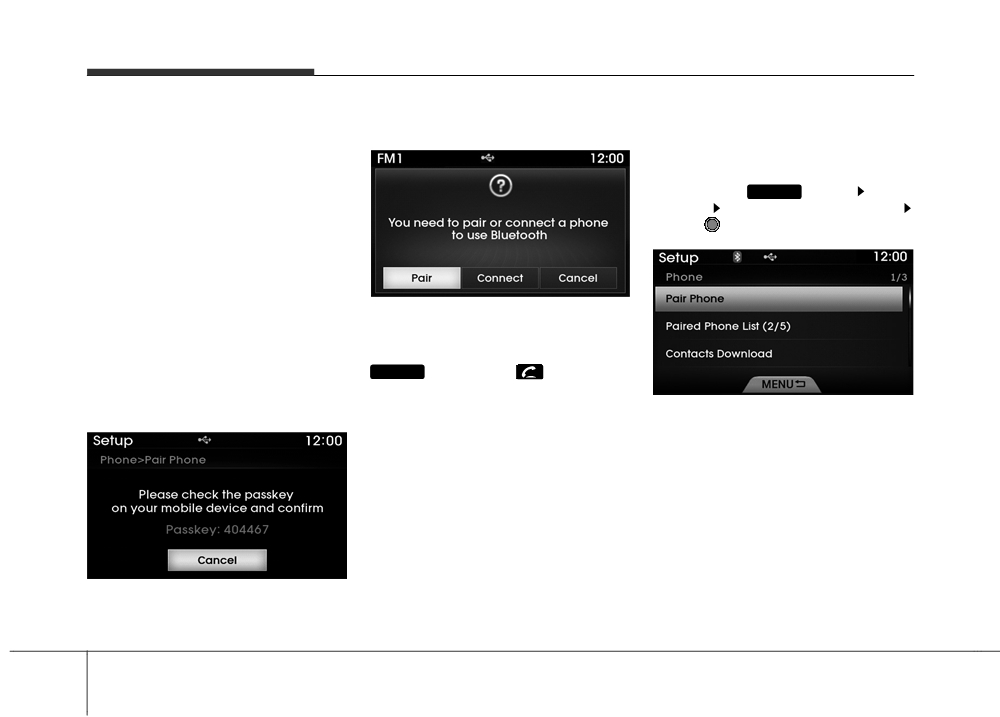

[Non SSP supported device]

✽ NOTICE

Pairing through [PHONE]

(SSP: Secure Simple Pairing)

Setup

4. After a few moments, a screen is

displayed where the passkey is

Press the

SETUP

key Select

entered.

[Phone] Select

[Pair Phone]

Hear, enter the passkey “0000” to

Select TUNE knob

pair your Bluetooth® Wireless

Technology device with the car

audio system.

[SSP supported device]

If Bluetooth® Wireless Technology

4. After a few moments, a screen is

devices are paired but none are cur-

displayed 6 digits passkey.

rently connected, pressing the

PHONE

key or the

key on the

Hear, check the passkey on your

Bluetooth® Wireless Technology

steering wheel displays the following

device and confirm.

screen. Press the

[Pair] button to

pair a new device or press the

1.The following steps are the same

[Connect] to connect a previously

as those described in the section

paired device.

"When No Devices have been

Paired" on the previous page.

5. Once pairing is complete, the fol-

lowing screen is displayed.

4 196

Features of your vehicle

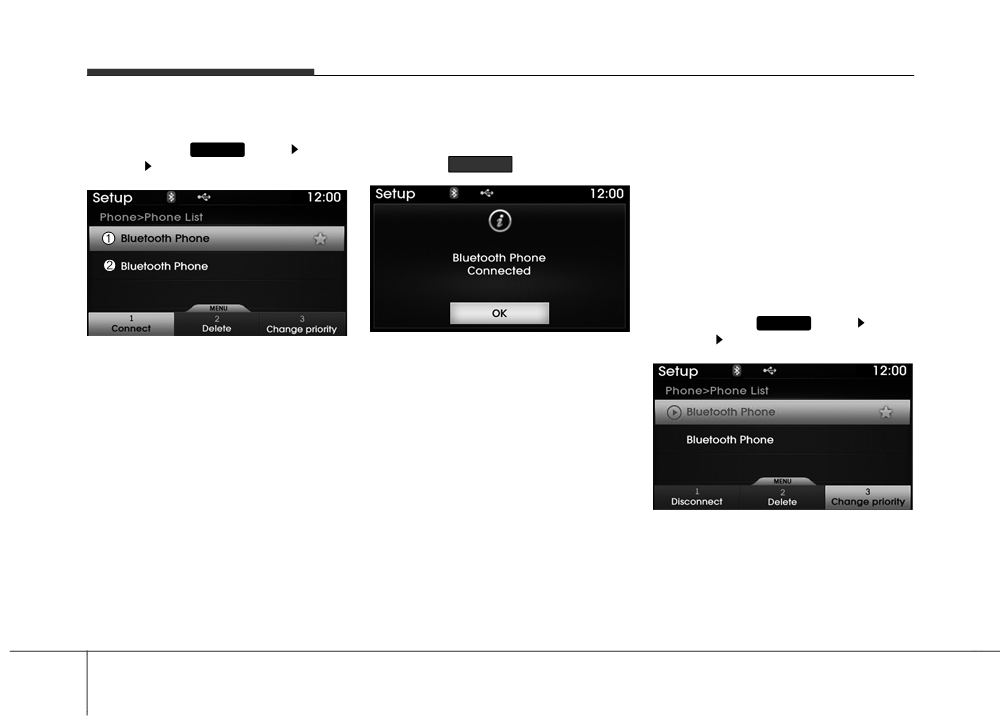

Connecting a Device

From the paired phone list, select the

Changing Priority

Press the

SETUP

key Select

device you want to connect and

[Phone] Select [Paired Phone List]

Select the

Connect

button.

What is Priority?

It is possible to pair up to five

Bluetooth® Wireless Technology

devices with the car audio system.

The "Change Priority" feature is used

to set the connection priority of

paired phones.

Press the

SETUP

key Select

[Phone] Select [Paired Phone List]

1) Connected Phone : Device that is

currently connected

2) Paired Phone

: Device that is

paired but not connected

4 198

Features of your vehicle

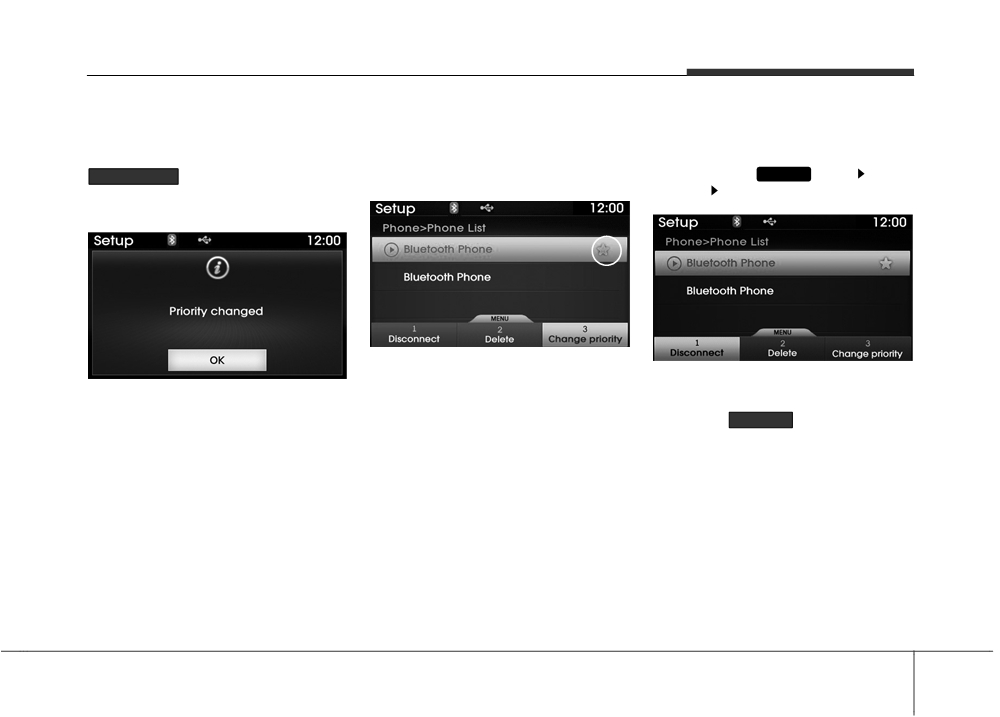

From the paired phone list, select

✽ NOTICE

Disconnecting a Device

the phone you want to switch to the

Priority icon will be displayed when

highest priority, then select the

the selected phone is set as a priori-

Change priority

button from the Menu.

Press the

SETUP

key Select

ty phone.

The selected device will be changed

[Phone] Select [Paired Phone List]

to the highest priority.

From the paired phone list, select the

currently connected device and

select the

Disconnect button.

4 199

Features of your vehicle

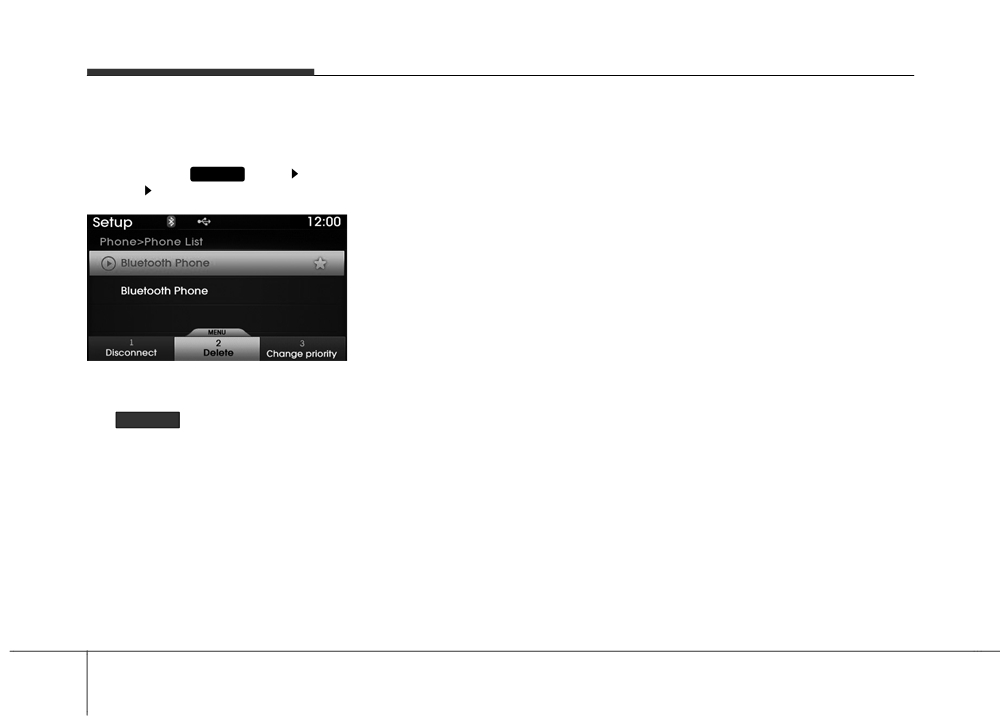

Deleting a Device

✽ NOTICE

• When deleting the currently con-

nected device, the device will auto-

Press the

SETUP

key Select

matically be disconnected to pro-

[Phone] Select [Paired Phone List]

ceed with the deleting process.

• If a paired Bluetooth® Wireless

Technology device is deleted, the

device’s call history and contacts

data will also be deleted.

• To re-use a deleted device, you

must pair the device again.

From the paired phone list, select the

device you want to delete and select

the

Delete

button.

4 200

Features of your vehicle

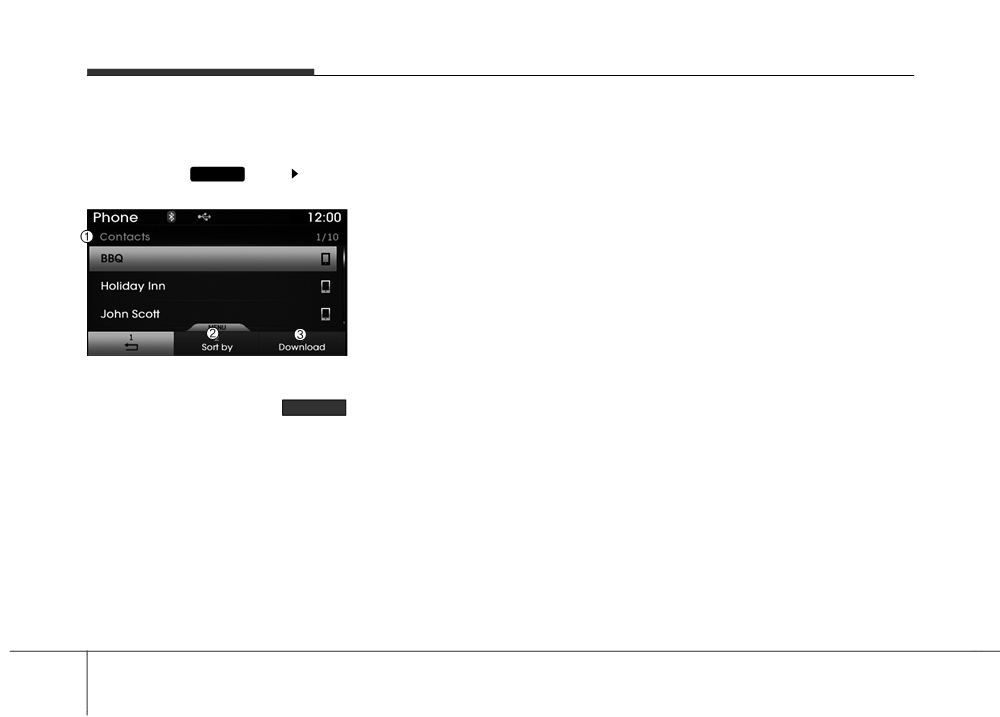

4) Contacts : Displays the Contacts

Favorites

USING Bluetooth® Wireless

list screen

Press the

PHONE

key Select

Technology

5) Setup

: Displays Phone related

[Favorites]

settings.

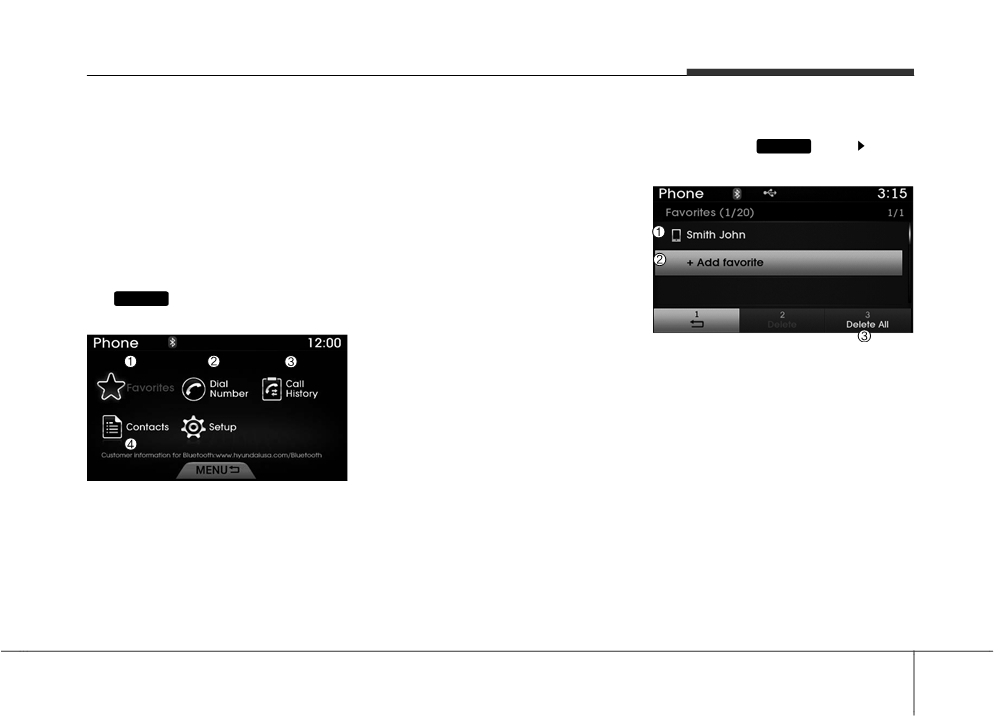

Phone Menu Screen

✽ NOTICE

Phone Menus

•

If you press the [Call History] but-

With a Bluetooth® Wireless

ton but there is no call history

Technology device connected, press

data, a prompt is displayed which

the

PHONE

key to display the Phone

asks to download call history data.

menu screen.

•

If you press the [Contacts] button

but there is no contacts data

stored, a prompt is displayed

1) Saved favorite contact : Connects

which asks to download contacts

call upon selection

data.

•

This feature may not be supported

2) To add favorite : Downloaded con-

in some mobile phones. For more

tacts be saved as favorite.

information on download support,

3) Delete All

: Delete all stored

refer to your mobile phone user’s

favorite contacts

manual.

✽ NOTICE

1) Favorite : Up to 20 frequently used

• To save Favorite, contacts should

contacts saved for easy access

be downloaded.

2) Dial Number : Displays the dial

• Contact saved in Favorites will not

screen where numbers can be

be automatically updated if the

dialed to make calls

contact has been updated in the

phone. To update Favorites, delete

3) Call History : Device the call histo-

the Favorite and create a new

ry list screen

Favorite.

4 201

Features of your vehicle

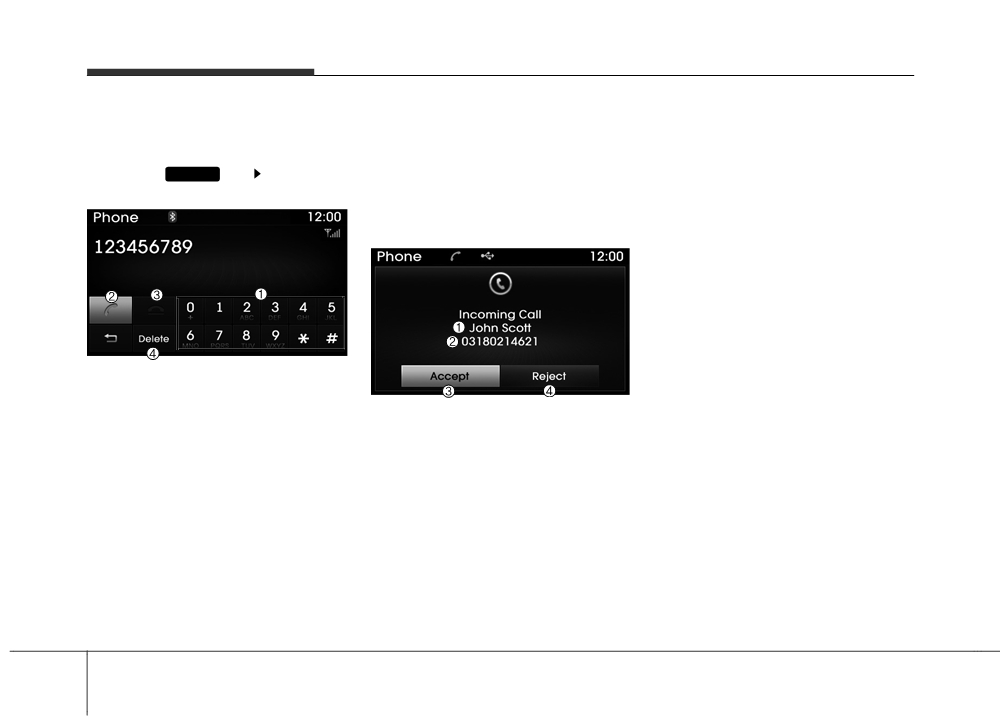

Calling by Dialing a Number

Answering Calls

✽ NOTICE

• When an incoming call pop-up is

displayed, most Audio and SETUP

Press the

PHONE

key Select [Dial

Answering a Call

mode features are disabled. Only

Number]

Answering a call with a Bluetooth®

the call volume will operate.

Wireless Technology device connect-

• The telephone number may not be

ed will display the following screen.

properly displayed in some mobile

phones.

• When a call is answered with the

mobile phone, the call mode will

automatically revert to Private

mode.

1) Dial Pad : Used to enter phone

number

2) Call

: If a number has been

1) Caller : Displays the other party’s

entered, calls the number If no

name when the incoming caller is

number has been entered, switch-

saved within your contacts

es to call history screen

2) Incoming Number : Displays the

3) End : Deletes the entered phone

incoming number

number

3) Accept : Accept the incoming call

4) Delete : Deletes entered numbers

4) Reject : Reject the incoming call

one digit at a time

4 202

Features of your vehicle

During a Handsfree Call

Call History

•

Calls received with hidden caller ID

will not be saved in the call history

list.

Press the

PHONE

key Select [Call

•

Calling through the call history is

History]

not possible when there is no call

history stored or a Bluetooth®

Wireless Technology phone is not

connected.

•

Up to

20 received, dialed and

missed calls are stored in Call

History.

1) Caller : Displays the other party’s

•

Time of received/dialed calls and

name if the incoming caller is

call time information are not saved.

saved within your contacts

2) Incoming Number : Displays the

incoming number

A list of incoming, outgoing and

missed calls is displayed.

3) Call time : Displays the call time

Select the

Download

button to down-

4) End : Ends call

load the call history.

5) Private : Converts to Private mode

6) Out Vol.

: Sets call volume as

1) Call History :

heard by the other party

- Displays recent calls (call history)

7) Mute : Turns Mic Mute On/Off

- Connects call upon selection

2) Download : Download Recent Call

✽ NOTICE

History

If the mic is muted, the other party

• Call history may not be saved in

will not be able to hear your voice.

the call history list in some mobile

phones.

4 203

Features of your vehicle

Contacts

✽ NOTICE

(Continued)

•

It is not possible to begin down-

•

Up to 1,000 contacts saved in your

loading a contact list when the

Bluetooth® Wireless Technology

Press the

PHONE

key Select

contact download feature has been

phone can be downloaded into the

[Contacts]

turned off within the Bluetooth®

car contacts. Contacts that have

Wireless Technology device. In

been downloaded to the car cannot

addition, some devices may

be edited or deleted on the phone.

require device authorization upon

•

Mobile phone contacts are man-

attempting to download contacts.

aged separately for each paired

If downloading does not normally

Bluetooth® Wireless Technology

occur, check the Bluetooth®

device (max 5 devices x 1,000 con-

Wireless Technology device set-

tacts each). Previously down-

tings or the screen state.

loaded data is maintained even if

•

The contacts download feature

the

Bluetooth®

Wireless

may not be supported in some

Technology device has been dis-

mobile phones. For more informa-

connected.

The list of saved phone book entries

tion of supported Bluetooth®

(However, the contacts and call

is displayed. Select the

Download

devices and function support,

history saved to the phone will be

button to download the call history.

refer to your phone’s user manual.

deleted if a paired phone is delet-

ed.)

1) Contacts List :

•

It is possible to download contacts

-Displays downloaded contacts

during Bluetooth streaming audio.

entries

•

When downloading contacts, the

icon will be displayed within the

- Connects call upon selection

status bar.

2) Sort by

: Find a contact in an

(Continued)

alphabetical order.

3) Download

: Download contacts

entries

4 204

Features of your vehicle

VOICE RECOGNITION

If prompt feedback is in [ON], then

4) Do not use special characters

the system will say “Please say a

(e.g., “@”, “hyphen -”, “asterisk *”,

command after the beep (BEEP)”

“ampersand &”).

Using Voice Recognition

• If prompt feedback is in

[OFF]

5) If a name is not recognized from

mode, then the system will only

the contact list, change it to a

Starting Voice Recognition

say “(BEEP)”

more descriptive name (e.g., use

“Grandpa Joseph” instead of “Pa

Shortly press the

key on the

• To change Prompt Feedback

steering wheel remote controller. Say

[On]/[Off], go to

SETUP

[System]

Joe”).

a command.

[Prompt Feedback]

Skipping Prompt Messages

✽ NOTICE

While prompt message is being stat-

ed Shortly press the

key on the

For proper recognition, say the com-

steering remote controller

mand after the voice instruction and

beep tone.

The prompt message is immediately

ended and the beep tone will sound.

Contact List Best Practices

After the “beep”, say the voice com-

mand.

1) Do not store single-name entries

(e.g.,

“Bob”, “Mom”, “Kim”, etc.).

Instead, always use full names

Re-starting Voice Recognition

(including first and last names) for

While system waits for a command

all contacts

(e.g., use

“Jacob

Shortly press the

key on the

Stevenson” instead of “Dad”).

steering remote controller

2) Do not use abbreviations (i.e., use

The command wait state is immedi-

“Lieutenant” instead of

“Lt.” or

ately ended and the beep ton will

“Sergeant” instead of “Sgt.”).

sound. After the “beep”, say the voice

3) Do not use acronyms (i.e., use

command.

“County Finance Department”

instead of “CFD”).

4 205

Features of your vehicle

❈ Illustration on using voice commands

More Help

Here are some examples of mode commands.

• Starting voice command.

You can say a radio type like 'FM', 'AM', or 'Satellite'.

Shortly pressing the

key (under 0.8 seconds):

You can also say a media source like 'USB', 'My

Music', or 'iPod'.

Please say a command after

Additionally, there are phone commands like

the beep (BEEP)

Ding~

"Contacts', 'Call History', or 'Dial Number".

You can find more detailed commands in the user's

More Help

manual.

Please say a command after the beep.

More Help

Here are some examples of mode commands.

• End voice command.

You can say a radio type like 'FM', 'AM', or 'Satellite'.

Shortly pressing the

key (under 0.8 seconds):

You can also say a media source like 'USB', 'My

Music', or 'iPod'.

Please say a command after

Additionally, there are phone commands like

the beep (BEEP)

Ding~

"Contacts', 'Call History', or 'Dial Number".

You can find more detailed commands in the user's

Contacts

manual.

Please say a command after the beep.

Contacts

Please say the name of the contacts you want

• Skipping Voice Recognition

to call (BEEP)

Shortly pressing the

key (under 0.8 seconds):

Cancel

Please say a...

(BEEP)

Di-Ding~(Cancel Sound)

Shortly pressing the

key (under 0.8 seconds)

More Help

4

206

Content   ..  14  15  16  17   ..
