Hyundai Azera (2017 year). Instruction - part 1

Your vehicle at a glance

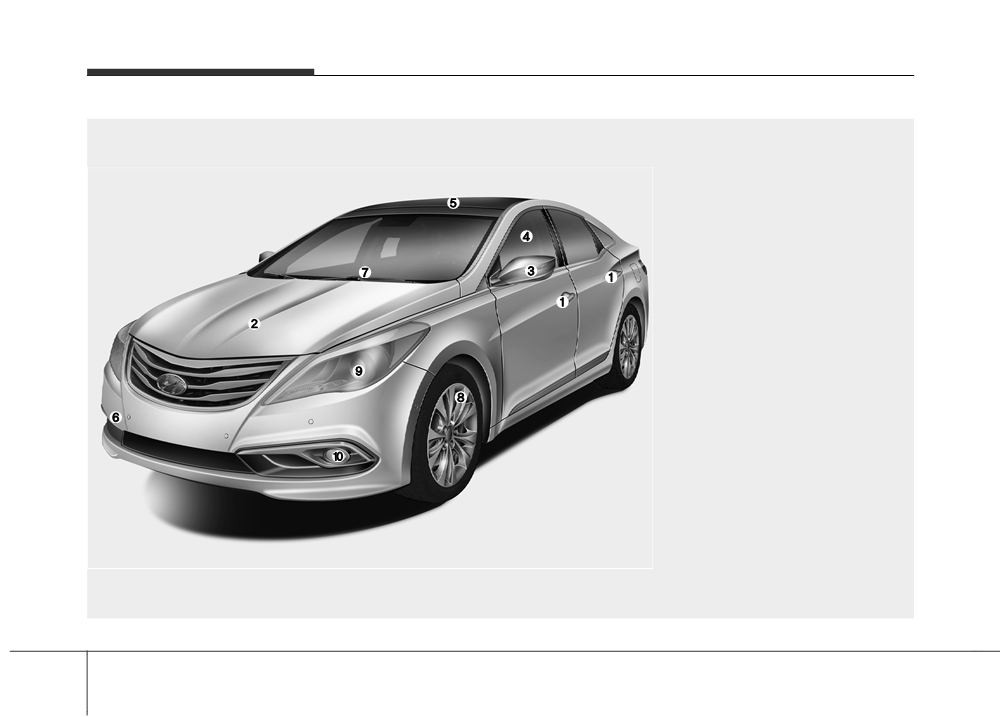

EXTERIOR OVERVIEW I

■ Front view

1. Door handle

4-6

2. Hood

4-29

3. Side view mirrors

4-54

4. Windows

4-25

5. Panorama sunroof

4-35

6. Removable towing hook

6-22

7. Wiper blade

7-32

8. Tires and wheels

7-37

9. Headlamp

7-63

10. Fog light

7-63

The actual shape may differ from the illustration.

OHG015005N

2 2

Your vehicle at a glance

EXTERIOR OVERVIEW II

■ Rear view

1. Door

4-15

2. Trunk

4-19

3. Emergency trunk safety release

4-20

4. Fuel filler lid

4-31

5. Emergency fuel filler lid release

4-34

6. Rear parking assist system

4-95

7. Glass antenna

4-145

8. Rear combination lamp

7-67

The actual shape may differ from the illustration.

OHG015006N

2 3

Your vehicle at a glance

INTERIOR OVERVIEW

1. Seat

3-2

2. Door lock/unlock button

4-16

3. Central door lock switch

4-17

4. Power window switches

4-26

5. Power window lock button

4-28

6. Side view mirrors control switch

4-54

7. Side view mirrors folding button

4-56

8. Seat adjustment

3-4

9. Driver’s position memory system*

4-40

10. Trunk lid release button or lever

4-19

11. Fuel filler lid release button

4-31

12. Hood release lever

4-29

13. Fuse box

7-52

14. Steering wheel tilt control

4-44

15. Steering wheel

4-43

16. Instrument panel illumination control

switch

4-59

17. Active ECO button

5-56

18. Blind spot detection system

button*

5-57

19. ESC OFF button

5-30

* : if equipped

The actual shape may differ from the illustration.

OHG015001N

2 4

Your vehicle at a glance

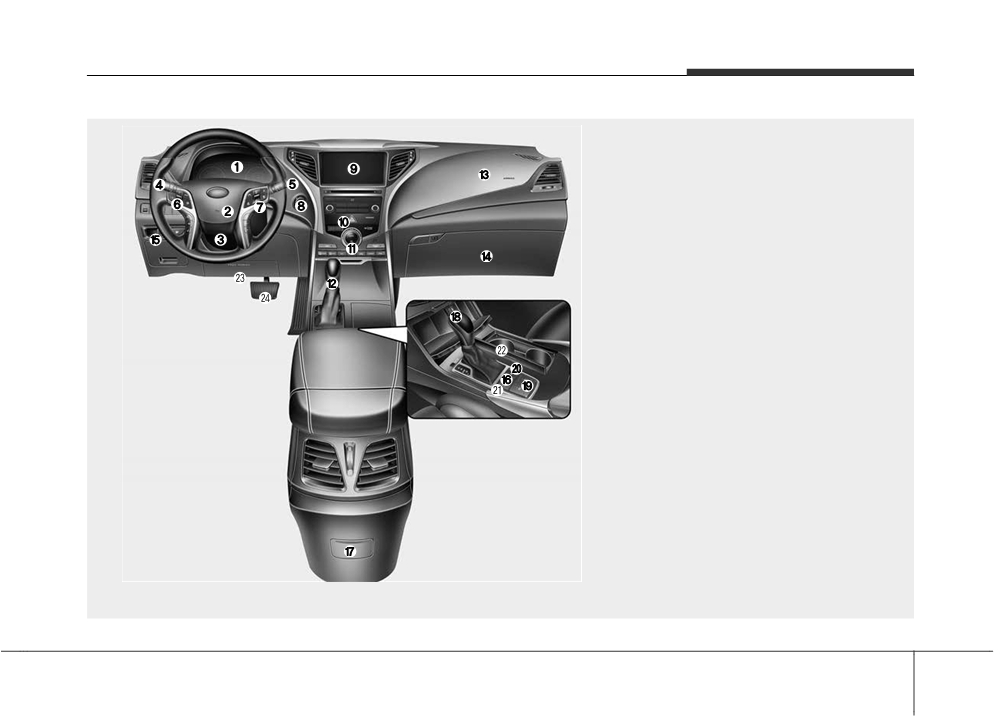

INSTRUMENT PANEL OVERVIEW

1. Instrument cluster

4-58

2. Horn

4-45

3. Driver’s front air bag

3-47

4. Light control/Turn signals

4-102

5. Wiper/Washer

4-107

6. Steering wheel audio control

4-145

7. Cruise control switch or

Smart cruise control switch*

5-38, 5-42

8. Engine start/stop button

5-5

9. Navigation/Audio system

4-147

10. Hazard warning flasher

4-100/6-2

11. Climate control system

4-113, 4-124

12. Shift lever

5-10

13. Passenger’s front air bag

3-47

14. Glove box

4-137

15. Electronic parking brake (EPB)

switch*

5-19

16. Auto hold control switch*

5-25

17. Power outlet

4-140

18. Aux, iPod® and USB

4-147

19. Seat warmer or Seat warmer

with air ventilation

3-9, 3-10

20. Rear curtain button*

4-144

21. Rear parking assist system

OFF button*

4-95

22. Cup holder or Ashtray

4-139

23. Driver's knee air bag

3-47

24. Brake pedal

5-16

The actual shape may differ from the illustration.

* : if equipped

OHG016002N

2 5

Your vehicle at a glance

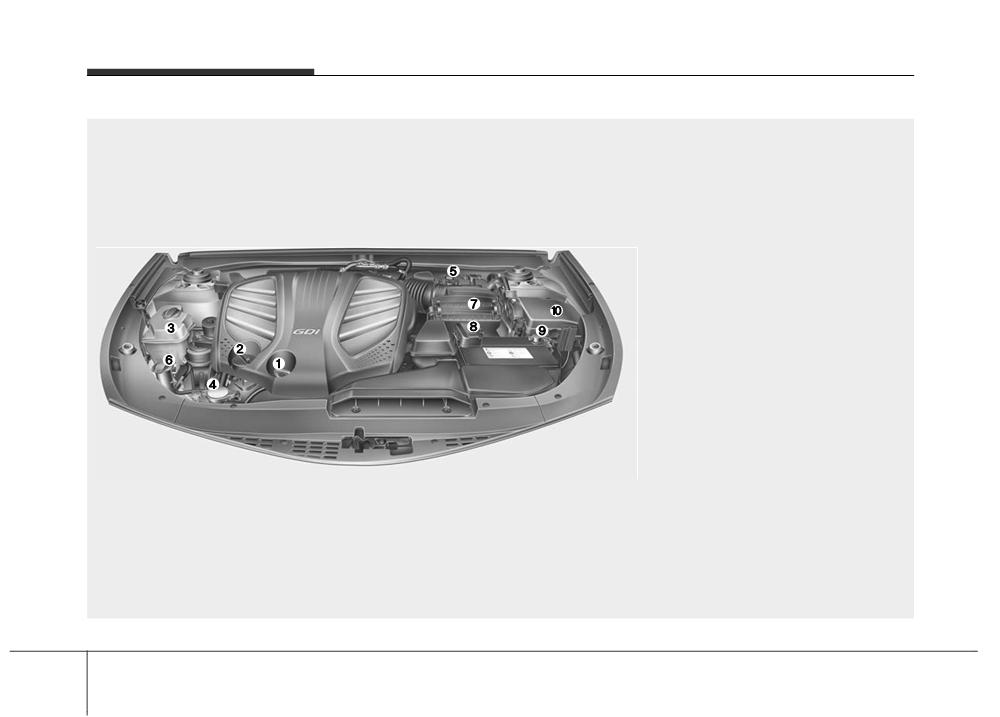

ENGINE COMPARTMENT

1. Engine oil dipstick

7-23

2. Engine oil filler cap

7-23

3. Engine coolant reservoir

7-24

4. Radiator cap

7-26

5. Brake fluid reservoir

7-27

6. Windshield washer fluid reservoir

7-28

7. Air cleaner

7-29

8. Positive battery terminal

7-34

9. Negative battery terminal

7-34

10. Fuse box

7-53

The actual engine room in the vehicle may differ from the illustration.

OHG010004A

2 6

Safety features of your vehicle

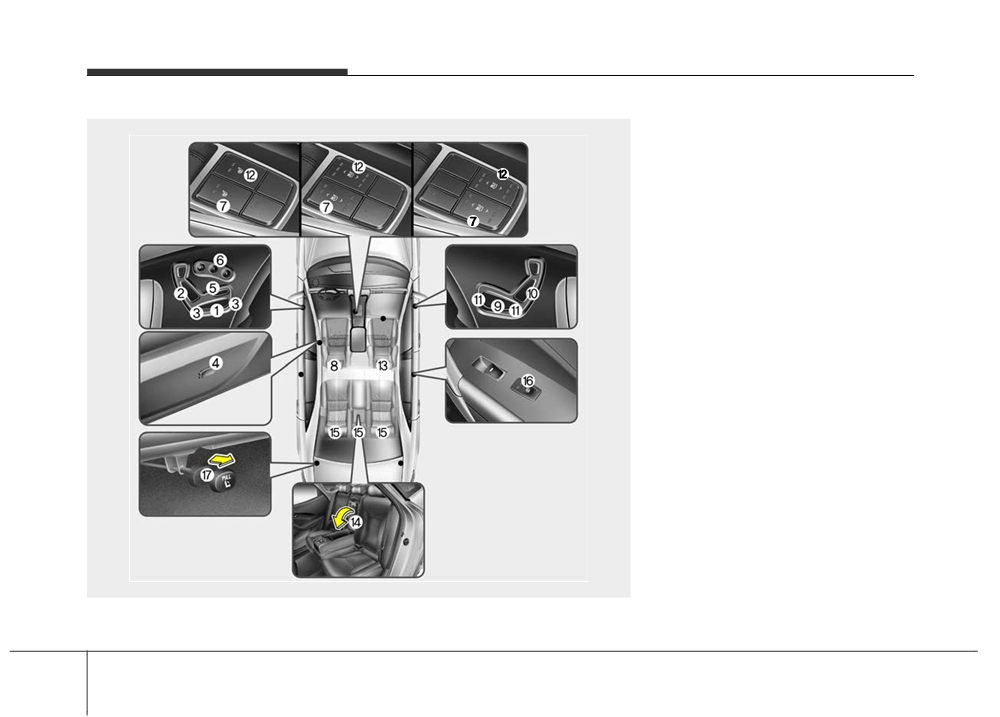

SEATS

Driver’s seat

■ Type A

■ Type B

■ Type C

(1) Forward and rearward

(2) Seatback angle

(3) Seat cushion height

(4) Lumbar support

(5) Cushion extension*

(6) Driver position memory system*

(7) Seat warmer*/

Seat warmer with air ventilation*

(8) Headrest

Front passenger’s seat

(9) Forward and rearward

(10) Seatback angle

(11) Seat cushion height

(12) Seat warmer*/

Seat warmer with air ventilation*

(13) Headrest

Rear seat

(14) Armrest

(15) Headrest

(16) Seat warmer*

(17) Seat folding

OHG036076N

* : if equipped

3 2

Safety features of your vehicle

Front seat

WARNING - Rear

CAUTION

Automatic adjustment

seatbacks

•

The power seat is driven by an

The front seat can be adjusted by

electric motor. Stop the motor

Always lock the rear seatback

using the control switch located on

before driving. Failure to do so

operation once the adjust-

the door and outside of the seat

ment is completed. Excessive

could result in passengers or

cushion. Before driving, adjust the

objects being thrown forward

operation may damage the

seat to the proper position so as to

electrical equipment.

injuring vehicle occupants.

easily control the steering wheel,

•

When in operation, the power

pedals and switches on the instru-

seat consumes a large

ment panel.

amount of electrical power. To

WARNING - Seat

prevent unnecessary charging

adjustment

WARNING

system drain, do not adjust

•

Do not adjust the seat while

The power seat is operable with

the power seat longer than

wearing seat belts. Moving the

the ignition OFF.

necessary while the engine is

seat cushion forward may

not running.

Therefore, children should

cause strong pressure on the

never be left unattended in the

•

Do not operate two or more

abdomen.

power seat control switches at

vehicle.

•

Use extreme caution so that

the same time. Doing so may

hands or other objects are not

result in power seat motor or

caught in the seat mechanisms

electrical component malfunc-

while the seat is moving.

tion.

•

Use extreme caution when

picking small objects trapped

under the seats or between

the seat and the center con-

sole. Your hands might be cut

or injured by the sharp edges

of the seat mechanism.

3 4

Safety features of your vehicle

OHG030007

OHG030008

OHG030009

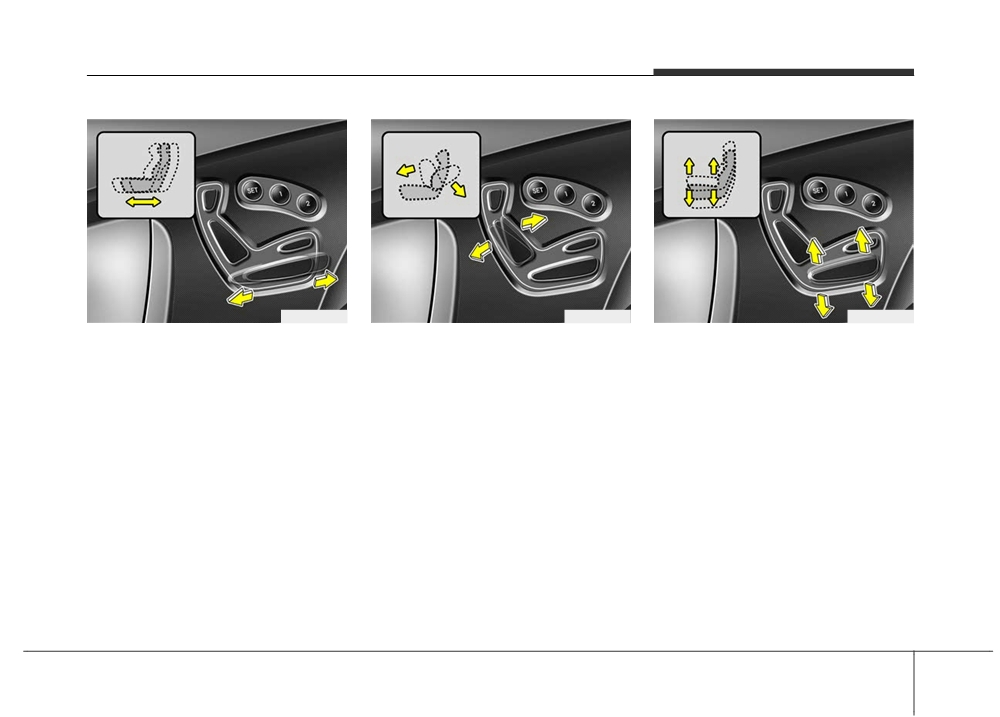

Forward and rearward

Seatback angle

Seat cushion height

1. Push the control switch forward or

1. Push the upper part of the control

1. Push the front portion of the con-

rearward to move the seat to the

switch forward or rearward to move

trol switch up to raise or down to

desired position.

the seatback to the desired angle.

lower the front part of the seat

2. Release the switch once the seat

2. Release the switch once the seat

cushion. Push the rear portion of

reaches the desired position.

reaches the desired position.

the control switch up to raise or

down to lower the rear part of the

seat cushion.

2. Release the switch once the seat

reaches the desired position.

3 5

Safety features of your vehicle

OHG030010

OHG030012

OMG038400

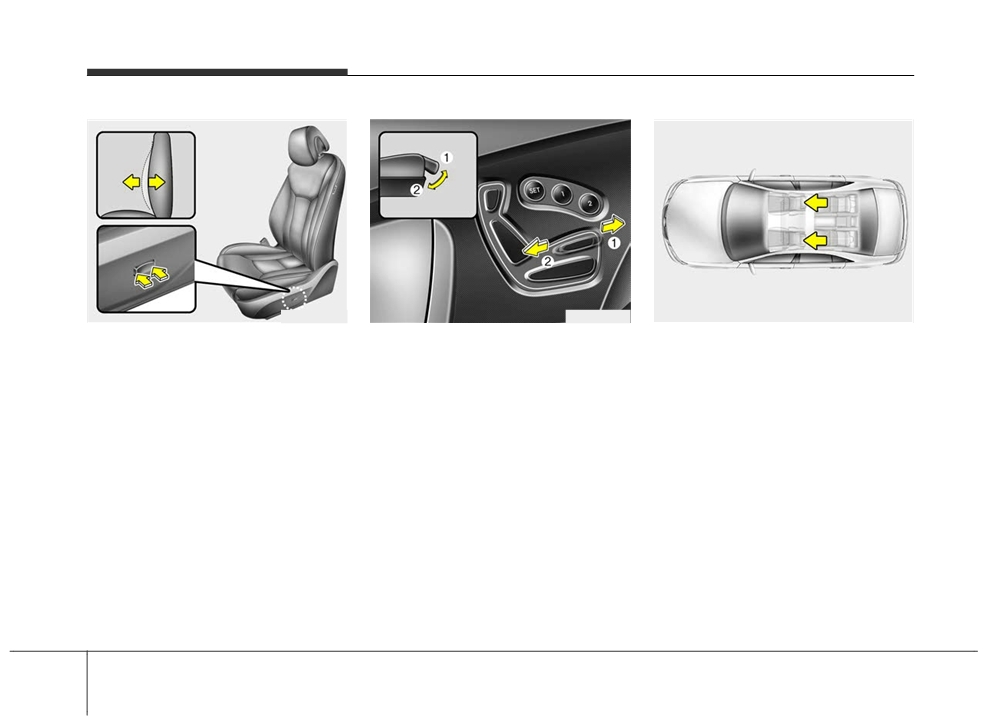

Lumbar support (for driver’s seat)

Cushion extension

Headrest

1. Press the front portion of the

(for driver's seat, if equipped)

The driver's and front passenger's

switch to increase support or the

1. Push the switch forward to raise

seats are equipped with a headrest

rear portion of the switch to

the cushion extension. Push the

for the occupant's safety and comfort.

decrease support.

switch rearward to lower the cush-

The headrest not only provides com-

2. Release the switch once it reach-

ion extension.

fort for the driver and front passenger,

es the desired position.

2. Release the switch once the cush-

but also helps to protect the head and

ion extension reaches the desired

neck in the event of a collision.

position.

3 6

Safety features of your vehicle

For maximum effectiveness in case

of an accident, the headrest should

be adjusted so the middle of the

headrest is at the same height of the

center of gravity of an occupant's

head. Generally, the center of gravity

of most people's head is similar in

height as the top of their eyes.

Also, adjust the headrest as close to

your head as possible.

For this reason, the use of a cushion

OHG030016

OHG030014

that holds the body away from the

seatback is not recommended.

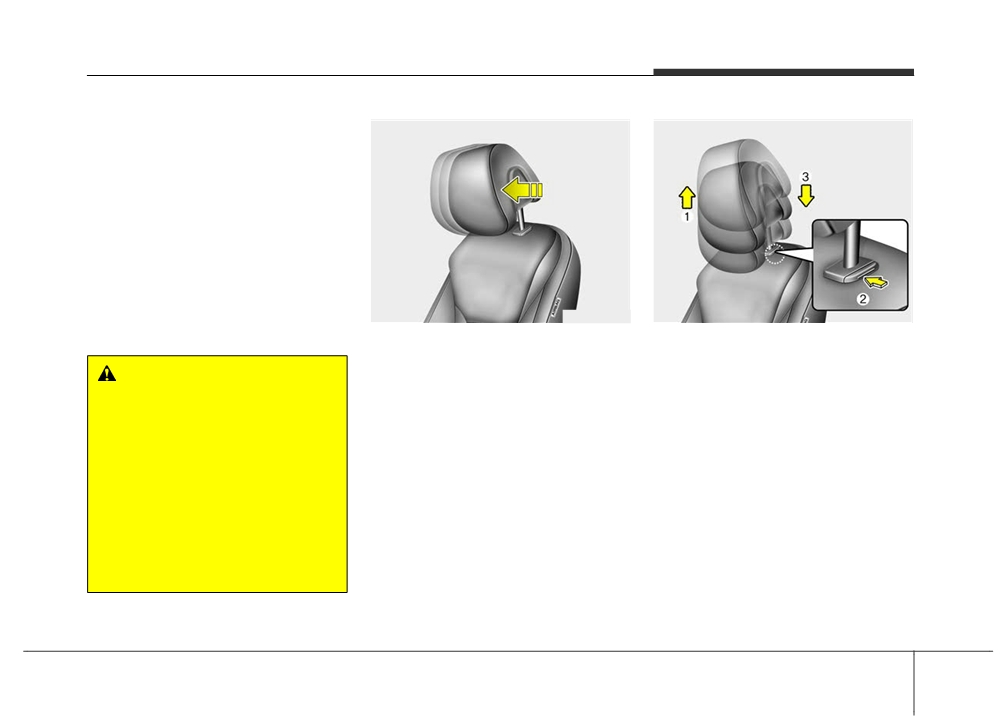

Forward and rearward adjustment

Adjusting the height up and down

The headrest may be adjusted for-

To raise the headrest, pull it up to the

WARNING

ward to

4 different positions by

desired position

(1). To lower the

pulling the headrest forward to the

headrest, push and hold the release

• Do not operate the vehicle

desired detent. To adjust the head-

button (2) on the headrest support

with the headrests removed

rest to it’s furthest rearward position,

and lower the headrest to the desired

as severe injury to the occu-

pull it fully forward to the farthest

position (3).

pants may occur in the event

position and release it. Adjust the

of an accident. Headrests can

headrest so that it properly supports

provide critical neck and head

the head and neck.

support in a crash.

• Do not adjust the headrest

height while the vehicle is in

motion. Driver may lose con-

trol of the vehicle.

3 7

Safety features of your vehicle

CAUTION

OHG034072

OHG034073

OYFH034205

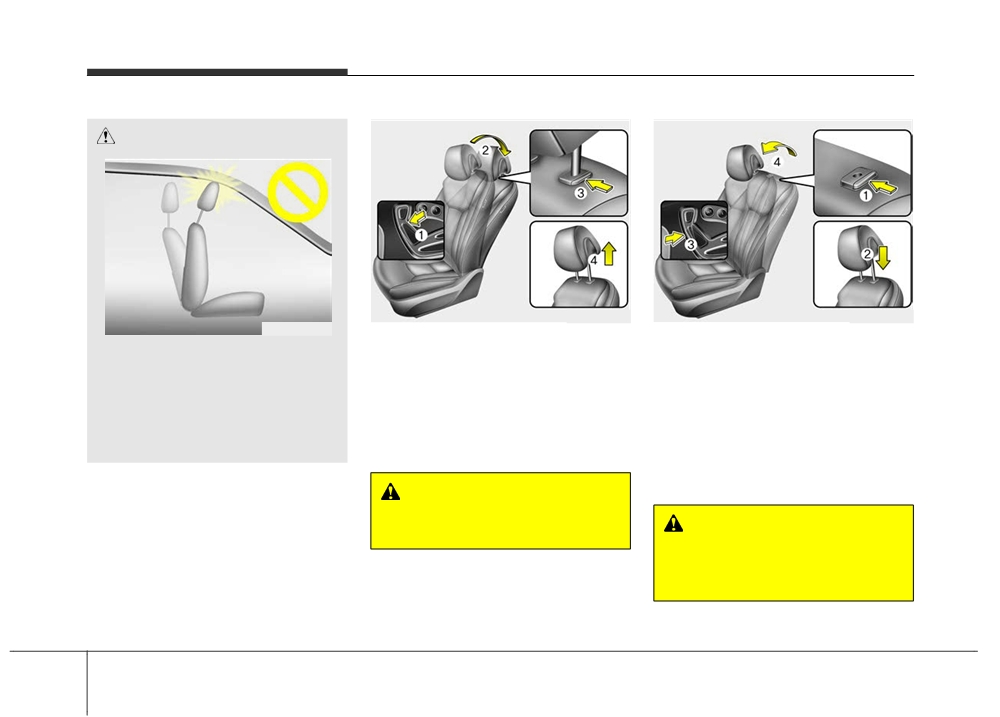

Removal

Reinstall

To remove the headrest:

To reinstall the headrest:

If you recline the seatback

towards the front with the head

1. Recline the seatback (2) with the

1. Put the headrest poles (2) into the

restraint and seat cushion

recline switch (1).

holes while pressing the release

raised, the head restraint may

2. Raise headrest as far as it can go.

button (1).

come in contact with the sunvi-

3. Press the headrest release button

2. Recline the seatback (4) with the

sor or other parts of the vehicle.

(3) while pulling the headrest up (4).

recline switch (3).

3. Adjust the headrest to the appro-

priate height.

WARNING

NEVER allow anyone to ride in a

WARNING

seat with the headrest removed.

Always make sure the headrest

locks into position after rein-

stalling and adjusting it properly.

3 8

Safety features of your vehicle

■ Type A

During mild weather or under condi-

tions where the operation of the seat

CAUTION

warmer is not needed, keep the

•

When cleaning the seats, do

switches in the "OFF" position.

not use an organic solvent

• Each time you press the button,

such as paint thinner, ben-

the temperature setting of the seat

zene, alcohol or gasoline.

will change as follows :

Doing so may damage the sur-

face of the heater or seats.

■ Type A

•

To prevent overheating of the

seat warmer, do not place any-

OHG031018A

OFF → HIGH (

) → LOW (

)

thing on the seats that insu-

■ Type B

lates against heat, such as

blankets, cushions or seat

■ Type B

covers while the seat warmer

is in operation.

OFF

→

HIGH (

)

•

Do not place heavy or sharp

objects on seats equipped

LOW (

)

MIDDLE (

)

with seat warmers. Damage to

the seat warming components

could occur.

• The seat warmer defaults to the

OHG036074N

OFF position whenever the ignition

switch is turned on.

Seat warmer

• With the seat warmer switch in the

The seat warmer is provided to warm

ON position, the heating system in

the front seats during cold weather.

the seat turns off or on automati-

With the ignition switch in the ON

cally depending on the seat tem-

position, push either of the switches

perature.

to warm the driver's seat or the front

passenger's seat.

3 9

Safety features of your vehicle

■ Type A

When the operation of the air ventila-

WARNING - Seat warmer

tion is not needed, keep the switches

burns

in the OFF position.

Never allow passengers who

•

Each time you press the switch,

may not be able to take care of

the airflow changes as follows:

themselves to be exposed to

OFF

→

HIGH (

)

the risk of seat warmer burns.

These include:

1. Infants, children, elderly or

LOW (

)

MIDDLE (

)

disabled persons, or hospital

OHG031019A

outpatients

■ Type B

•

When the air ventilation seat is

2. Persons with sensitive skin

turned on, the seat may get cooler

or those that burn easily

after about 5 minutes.

3. Fatigued individuals

•

The air ventilation seat defaults to

4. Intoxicated individuals

the OFF position whenever the

5. Individuals taking medication

ignition switch is turned to the ON

that can cause drowsiness or

position.

sleepiness

(sleeping pills,

cold tablets, etc.)

OHG036075N

Air ventilation seat

The air ventilation is provided to cool

the front seats during hot weather by

blowing air through small vent holes

on the surface of the seats and seat-

backs. While the engine is running,

press the rear portion of the switch to

cool the driver's seat or the front pas-

senger's seat.

3

10

Safety features of your vehicle

CAUTION - Seat damage

WARNING

•

When cleaning the seats, do

For proper operation of the

not use an organic solvent

occupant classification system:

such as paint thinner, ben-

•

Do not place any items cumu-

zene, alcohol or gasoline.

latively weighing over 2.2 lbs

Doing so may damage the air

(1 kg) in the passenger’s seat-

ventilation seat.

back pocket or on the passen-

•

Do not place heavy or sharp

ger’s seat.

objects on the seat. Those

•

Do not hang onto the front

things may damage the air

passenger seatback.

ventilation seat.

OHG030020

•

Be careful not to spill liquid

Seatback pockets

such as water or beverages on

the seat. If you spill some liquid,

wipe the seat with a dry towel.

WARNING - Seatback

Before using the air ventilation

pockets

seat, dry the seat completely.

Do not put heavy or sharp

objects in the seatback pocket.

An occupant could contact such

objects in a crash. Heavy objects

in the front passenger seatback

could also interfere with the

occupant sensing system.

3 11

Content   ..  1  2  3   ..
