Your vehicle at a glance
EXTERIOR OVERVIEW
■ Front view
1. Hood
3-40
2. Headlamp
3-84, 7-61
3. Fog lamp
3-87, 7-61
4. Tires and wheels
7-31
5. Side View Mirrors
3-28
6. Sunroof
3-35
7. Front windshield wiper blades..3-91, 7-26
8. Windows
3-31
The actual shape may differ from the illustration.
OHCA017001
1-2
■ Rear view
1
1. Antenna
4-2
2. Doors
3-12
3. Fuel filler door
3-47
4. Rear combination lamp
7-67
5. High mounted stop lamp
7-70
6. Rear view monitor
3-93
7. Trunk
3-41
The actual shape may differ from the illustration.
OHCA017002
1-3
Your vehicle at a glance

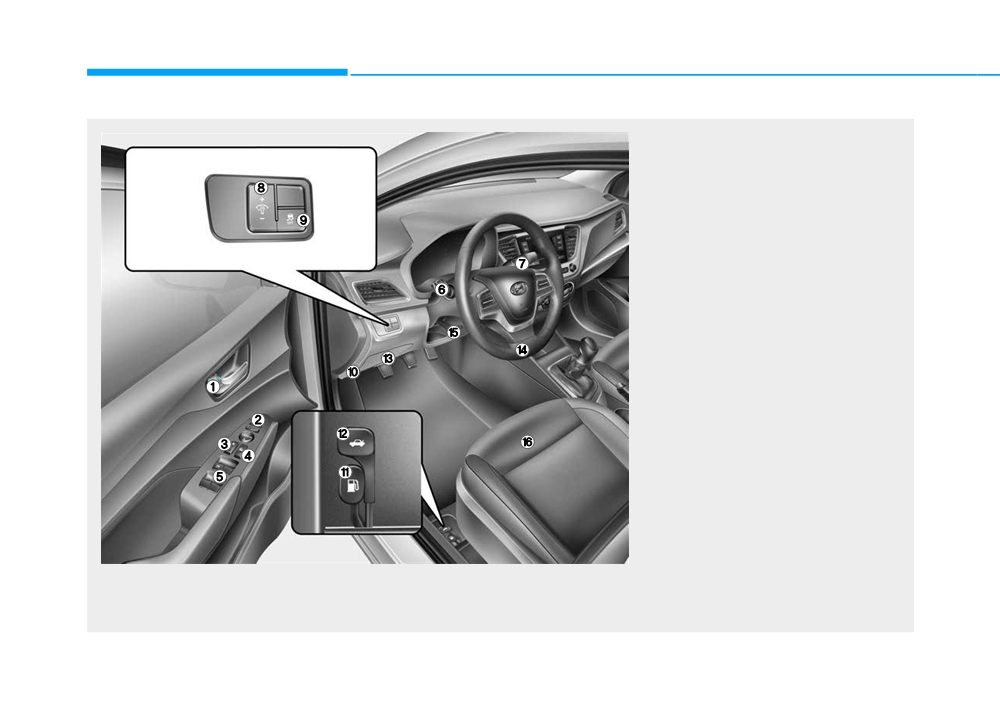

INTERIOR OVERVIEW
1. Door lock/unlock button
3-12
2. Side view mirror control switch
3-30
3. Central door lock switch
3-14
4 Power window lock switch*
3-34
5. Power window switches*
3-31
6. Light control/Turn signals
3-84
7. Wiper/Washer
3-91
8. Instrument panel illumination
control switch
3-51
9. ESC OFF button
5-28
10. Hood release lever
3-40
11. Fuel filler door opener
3-47
12. Trunk release lever
3-41
13. Fuse box
7-47
14. Steering wheel
3-17
15. Steering wheel tilt/telescope lever ..3-18
16. Seat
2-3
The actual shape may differ from the illustration.
OHCA017003
1-4
INSTRUMENT PANEL OVERVIEW
1
1. Steering wheel audio controls/
Bluetooth® wireless technology hands-
free controls
4-3
2. Instrument cluster
3-50
3. Horn
3-19
4. Driver's front air bag
2-41
5. Engine Start/Stop button
5-8
6. Key ignition switch
5-5
7. Manual transmission
5-15
8. Automatic transmission
5-18
9. Manual climate control/Automatic
climate control system
3-94, 3-103
10. Passenger's front air bag
2-41
11. Glove box
3-120
The actual shape may differ from the illustration.
OHCA017004
1-5
Your vehicle at a glance

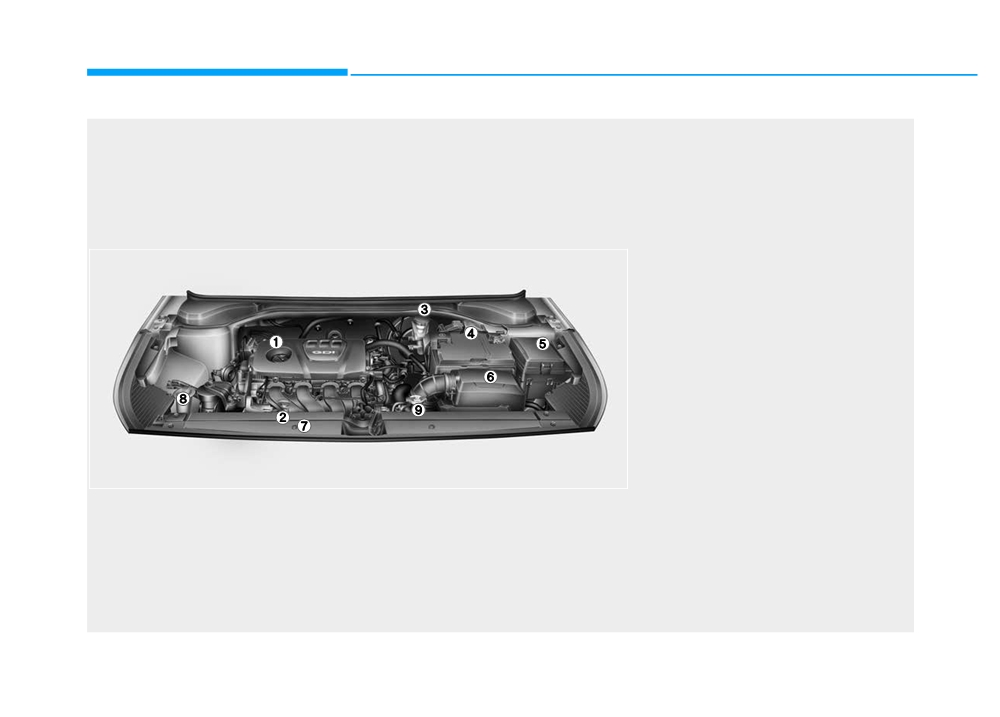

ENGINE COMPARTMENT
■ Gamma 1.6 GDI
1. Engine oil filler cap
7-16
2. Engine oil dipstick
7-16
3. Brake/Clutch fluid reservoir
7-21
4. Battery
7-28
5. Fuse box
7-48
6. Air cleaner
7-23
7. Engine coolant reservoir
7-18
8. Windshield washer fluid reservoir
7-22
9. Radiator cap
7-18
The actual engine compartment in the vehicle may differ from the illustration.
OHCA077001
1-6
Safety system of your vehicle
This chapter provides you with important information about how to protect yourself and your passengers.
It explains how to properly use your seats and seat belts, and how your air bags work.
Additionally, this chapter explains how to properly restrain infants and children in your vehicle.
2
Important safety precautions
2-2
Child restraint system (CRS)
2-28
Always Wear Your Seat Belt
2-2
Children Always in the Rear
2-28
Restrain All Children
2-2
Selecting a Child Restraint System (CRS)
2-29
Air Bag Hazards
2-2
Installing a Child Restraint System (CRS)
2-31
Driver Distraction
2-2
Air bag
Control Your Speed
2-2
- Advanced supplemental restraint system
2-39
Keep Your Vehicle in Safe Condition
2-2
Where Are the Air Bags?
2-41
Seats
2-3
How Does the Air Bag System Operate?
2-44
Safety Precautions
2-4
What to Expect After an Air Bag Inflates
2-49
Front Seats
2-5
Occupant Classification System (OCS)
2-50
Rear Seats
2-8
Why Didn't My Air Bag Go Off in a Collision?
2-55
Head Restraints
2-11
SRS Care
2-60
Seat Warmers
2-14
Additional Safety Precautions
2-61
Seat belts
2-16
Air Bag Warning Labels
2-61
Seat Belt Safety Precautions
2-16
Seat Belt Warning Light
2-17
Seat Belt Restraint System
2-18
Additional Seat Belt Safety Precautions
2-24
Care of Seat Belts
2-27
Safety system of your vehicle
IMPORTANT SAFETY PRECAUTIONS
You will find many safety precautions
Air Bag Hazards
• ONLY use your mobile device when
and recommendations throughout
allowed by laws and when conditions
While air bags can save lives, they can
this section, and throughout this man-
permit safe use. NEVER text or
also cause serious or fatal injuries to
ual. The safety precautions in this sec-
email while driving. Most states have
occupants who sit too close to them, or
tion are among the most important.
laws prohibiting drivers from texting.
who are not properly restrained. Infants,
Some states and cities also prohibit
young children, and shorter adults are
drivers from using handheld phones.
Always Wear Your Seat Belt
at the greatest risk of being injured by
• NEVER let the use of a mobile
an inflating air bag. Follow all instruc-
A seat belt is your best protection in
device distract you from driving. You
tions and warnings in this manual.
all types of accidents. Air bags are
have a responsibility to your passen-
designed to supplement seat belts,
gers and others on the road to
not replace them. So even though
Driver Distraction
always drive safely, with your hands
on the wheel as well as your eyes
your vehicle is equipped with air bags,
Driver distraction presents a serious
and attention on the road.
ALWAYS make sure you and your
and potentially deadly danger, espe-
passengers wear your seat belts, and
cially for inexperienced drivers. Safety
Control Your Speed
wear them properly.
should be the first concern when
behind the wheel and drivers need to
Excessive speed is a major factor in
crash injuries and deaths. Generally,
Restrain All Children
be aware of the wide array of potential
distractions, such as drowsiness,
the higher the speed, the greater the
All children under age 13 should ride
risk, but serious injuries can also occur
reaching for objects, eating, personal
in your vehicle properly restrained in
at lower speeds. Never drive faster than
grooming, other passengers, and
a rear seat, not the front seat. Infants
is safe for current conditions, regard-
using cellular phones.
and small children should be
less of the maximum speed posted.
Drivers can become distracted when
restrained in an appropriate child
they take their eyes and attention off
restraint. Larger children should use
Keep Your Vehicle in Safe
the road or their hands off the wheel to
a booster seat with the lap/shoulder
Condition
focus on activities other than driving.To
belt until they can use the seat belt
reduce your risk of distraction or get-
Having a tire blowout or a mechanical
properly without a booster seat.
ting into an accident:
failure can be extremely hazardous. To
reduce the possibility of such prob-
• ALWAYS set up your mobile devices
(i.e., MP3 players, phones, naviga-
lems, check your tire pressures and
condition frequently, and perform all
tion units, etc.) when your vehicle is
2-2
parked or safely stopped.
regularly scheduled maintenance.
SEATS
2
Front seat
1. Forward and backward
2. Seatback angle
3. Seat cushion height (Driver's seat)
4. Headrest
5. Seat warmer *

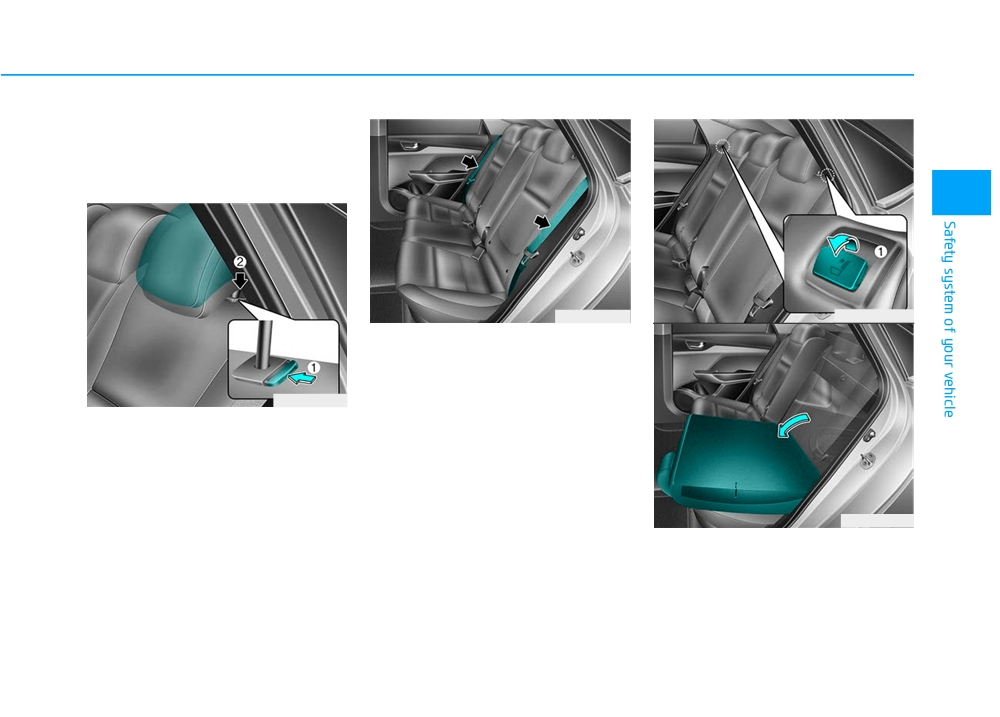

Rear seat
6. Seatback folding*
7. Headrest*
* : if equipped
OHCA037037
2-3
Safety system of your vehicle
Safety Precautions
Air bags
(Continued)
Adjusting the seats so that you are sit-
You can take steps to reduce the risk
• Hold the steering wheel by the
ting in a safe, comfortable position
of being injured by an inflating air
rim with hands at the 9 o'clock
plays an important role in driver and
bag. Sitting too close to an air bag
and 3 o'clock positions to mini-
passenger safety together with the
greatly increases the risk of injury in
mize the risk of injuries to your
seat belts and air bags in an accident.
the event the air bag inflates.
hands and arms.
The National Highway Traffic Safety
• NEVER place anything or any-
WARNING
Administration (NHTSA) recommends
one between the steering wheel
that drivers allow at least 10 inches
and the air bag.
Do not use a cushion that
(25 cm) between the center of the
steering wheel and their chest.
• Do not allow the front passen-
reduces friction between the seat
ger to place feet or legs on the
and the passenger. The passen-
dashboard to minimize the risk
ger's hips may slide under the
WARNING
of leg injuries.
lap portion of the seat belt during
an accident or a sudden stop.
To reduce the risk of serious
Serious or fatal internal injuries
injury or death from an inflating
Seat belts
could result because the seat
air bag, take the following pre-
belt cannot operate properly.
Always fasten your seat belt before
cautions:
driving the vehicle.
• Adjust the driver's seat as far to
At all times, passengers should sit
the rear as possible while main-
upright and be properly restrained.
taining the ability to maintain
Infants and small children must be
full control of the vehicle.
restrained in appropriate child restraint
• Adjust the front passenger seat
systems. Adults and children who
as far to the rear as possible.
have outgrown a booster seat must be
(Continued)
restrained using the seat belts.
2-4
Front Seats
WARNING
(Continued)
• Use extreme caution when
WARNING
Take the following precautions
picking up small objects
when adjusting your seat belt:
trapped under the seats or
Take the following precautions
2
•
NEVER use one seat belt for
between the seat and the cen-
when adjusting your seat:
more than one occupant.
ter console. Your hands might
•
NEVER attempt to adjust the
be cut or injured by the sharp
•
Always position the seatback
seat while the vehicle is mov-
edges of the seat mechanism.
upright with the lap portion of
ing. The seat could respond
the seat belt snug and low
with unexpected movement
across the hips.
and may cause loss of vehicle
CAUTION
•
NEVER allow children or small
control resulting in an acci-
infants to ride on a passen-
dent.
To prevent injury:
ger's lap.
•
Do not place anything under
• Do not adjust your seat while
•
Do not route the seat belt
the front seats. Loose objects
across your neck, across sharp
in the driver's foot area could
wearing your seat belt.
Moving the seat cushion for-
edges, or reroute the shoulder
interfere with the operation of
strap away from your body.
the foot pedals, causing an
ward may cause strong pres-
sure on your abdomen.
•
Do not allow the seat belt to
accident.
become caught or jammed.
•
Do not allow anything to inter-
• Do not allow your hands or
fingers to get caught in the
fere with the normal position
seat mechanisms while the
and proper locking of the seat-
seat is moving.
back.
•
Do not place a cigarette lighter
on the floor or seat. When you
operate the seat, gas may exit
out of the lighter causing a fire.
(Continued)
2-5
Safety system of your vehicle

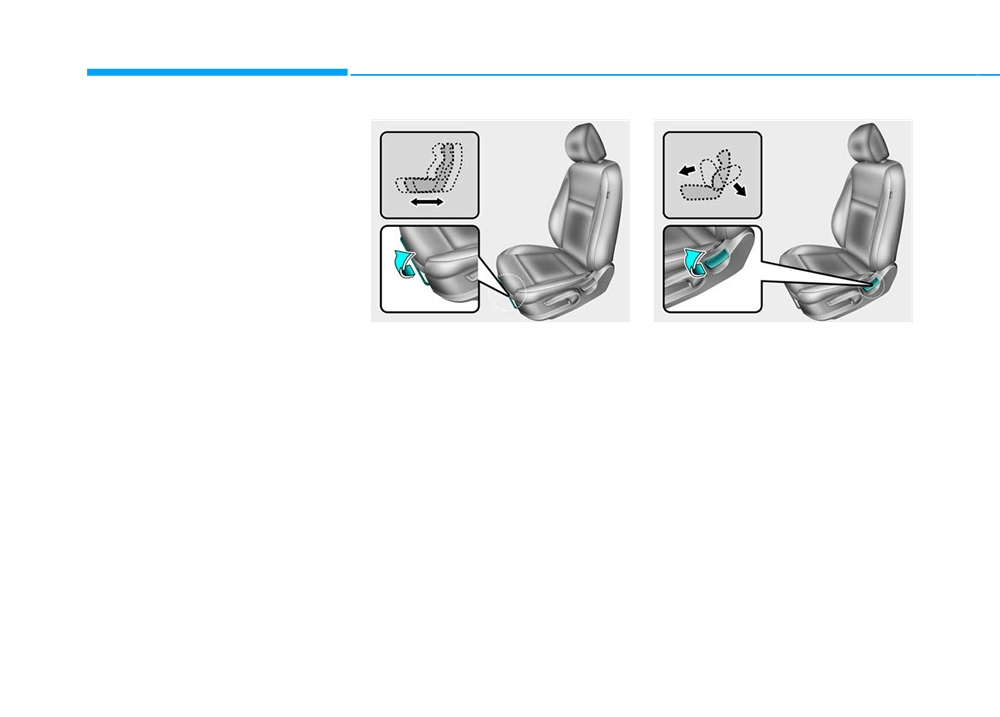

Manual adjustment
The front seat can be adjusted by
using the levers located on the out-
side of the seat cushion. Before driv-
ing, adjust the seat to the proper
position so that you can easily con-
trol the steering wheel, foot pedals
and controls on the instrument
panel.
OYC036002
OYC036003
Forward and rearward adjustment
Seatback angle
To move the seat forward or rearward:
To recline the seatback:
1. Pull up the seat slide adjustment
1. Lean forward slightly and lift up the
lever and hold it.
seatback lever.
2. Slide the seat to the position you
2. Carefully lean back on the seat
desire.
and adjust the seatback to the
3. Release the lever and make sure
position you desire.
the seat is locked in place. Move
3. Release the lever and make sure
forward and rearward without using
the seatback is locked in place.
the lever. If the seat moves, it is not
(The lever MUST return to its orig-
locked properly.
inal position for the seatback to
lock.)
2-6
Reclining seatback
Seat belts must be snug against your
hips and chest to work properly.
Sitting in a reclined position when
When the seatback is reclined, the
the vehicle is in motion can be dan-
shoulder belt cannot do its job
gerous. Even when buckled up, the
protection of your restraint system
because it will not be snug against
2
your chest. Instead, it will be in front
(seat belts and air bags) is greatly
of you. During an accident, you could
reduced by reclining your seatback.
be thrown into the seat belt, causing
neck or other injuries.
WARNING
The more the seatback is reclined,
the greater chance the passenger's
NEVER ride with a reclined
hips will slide under the lap belt or
OYC036004
seatback when the vehicle is
the passenger's neck will strike the
moving.
Seat cushion height
shoulder belt.
(For driver's side)
Riding with a reclined seatback
increases your chance of seri-
To change the height of the seat
ous or fatal injuries in the event
cushion:
of a collision or sudden stop.
• Push down on the lever several
Drivers and passengers should
times, to lower the seat cushion.
ALWAYS sit well back in their
• Pull up on the lever several times,
seats, properly belted, and with
to raise the seat cushion.
the seatbacks upright.
2-7
Safety system of your vehicle
Seatback pocket (if equipped)
Rear Seats
CAUTION
Folding the rear seat
Do not put heavy or sharp
The rear seatbacks can be folded to
objects in the seatback pockets.
facilitate carrying long items or to
In an accident they could come
increase the luggage capacity of the
loose from the pocket and
vehicle.
injure occupants.
WARNING
•
Never allow passengers to sit
on top of the folded down
seatback while the vehicle is
OHCR036002
moving. This is not a proper
The seatback pocket is provided on
seating position and no seat
the back of the front passenger's
belts are available for use.
seatback.
This could result in serious
injury or death in case of an
accident or sudden stop.
WARNING
•
Objects carried on the folded
To prevent the Occupant
down seatback should not
Classification System from mal-
extend higher than the top of
functioning:
the front seatbacks. This
could allow cargo to slide for-
Do not hang onto the front pas-
ward and cause injury or dam-
senger's seatback.
age during sudden stops.
2-8
To fold down the rear seatback:
1. Set the front seatback to the
upright position and if necessary,
slide the front seat forward.
2
OHCA037051
OHCR036004
3. Move the seatbelt toward the out-
board position before folding down
the seatback to avoid the seatbelt
system interfering with the seat-
OHCR036003
back.
2. Lower the rear head restraints to
the lowest position by pushing and
holding the release button (1) and
pushing down on the headrest (2).
OHCA037066
4. Pull up the seatback folding lever
(1), then fold the seat toward the
front of the vehicle.
2-9
Safety system of your vehicle
WARNING
WARNING
When returning the rear seat-
Make sure the vehicle is off, the
back from a folded to an upright
shift lever is in P (Park), and the
position, hold the seatback and
parking brake is securely applied
return it slowly. Ensure that the
whenever loading or unloading
seatback is completely locked
cargo. Failure to take these steps
into its upright position by
may allow the vehicle to move if
pushing on the top of the seat-
the shift lever is inadvertently
back. In an accident or sudden
moved to another position.
stop, the unlocked seatback
OHCA037067
could allow cargo to move for-
5. To use the rear seat, lift and unfold
ward with great force and enter
CAUTION
the seatback to the upright posi-
the passenger compartment,
tion. Push the seatback firmly until
which could result in serious
•
Be careful when loading
it clicks into place. Make sure the
injury or death.
cargo through the rear pas-
seatback is locked in place.
senger seats to prevent dam-
age to the vehicle interior.
WARNING
•
When cargo is loaded through
the rear passenger seats,
Do not place objects in the rear
ensure the cargo is properly
seats, since they cannot be
secured to prevent it from
properly secured and may hit
moving while driving.
vehicle occupants in a collision
•
Unsecured cargo in the pas-
causing serious injury or death.
senger compartment can
cause damage to the vehicle
or injury to it's occupants.
2-10
Head Restraints
NOTICE
(Continued)
The vehicle's front and rear seats
•
To prevent damage, NEVER hit or
have adjustable head restraints. The
pull on the head restraints.
head restraints provide comfort for
2
passengers, but more importantly
they are designed to help protect
CAUTION
passengers from whiplash and other
neck and spinal injuries during an
When there is no occupant in
accident, especially in a rear impact
the rear seats, adjust the height
collision.
of the headrest to the lowest
OLF034072N
position. The rear seat headrest
can reduce the visibility of the
WARNING
Adjust the head restraints so
rear area.
the middle of the head
To reduce the risk of serious
restraint is at the same height
injury or death in an accident,
as the height of the top of the
take the following precautions
eyes.
when adjusting your head
•
NEVER adjust the head
restraints:
restraint position of the dri-
• Always properly adjust the
ver's seat when the vehicle is
head restraints for all passen-
in motion.
gers BEFORE starting the
•
Adjust the head restraint as
vehicle.
close to the passenger's head
• NEVER let anyone ride in a
as possible. Do not use a seat
seat with the head restraints
cushion that holds the body
removed or reversed.
away from the seatback.
(Continued)
•
Make sure the head restraint
locks into position after adjust-
ing it.
2-11
|
|
|
