Your vehicle at a glance

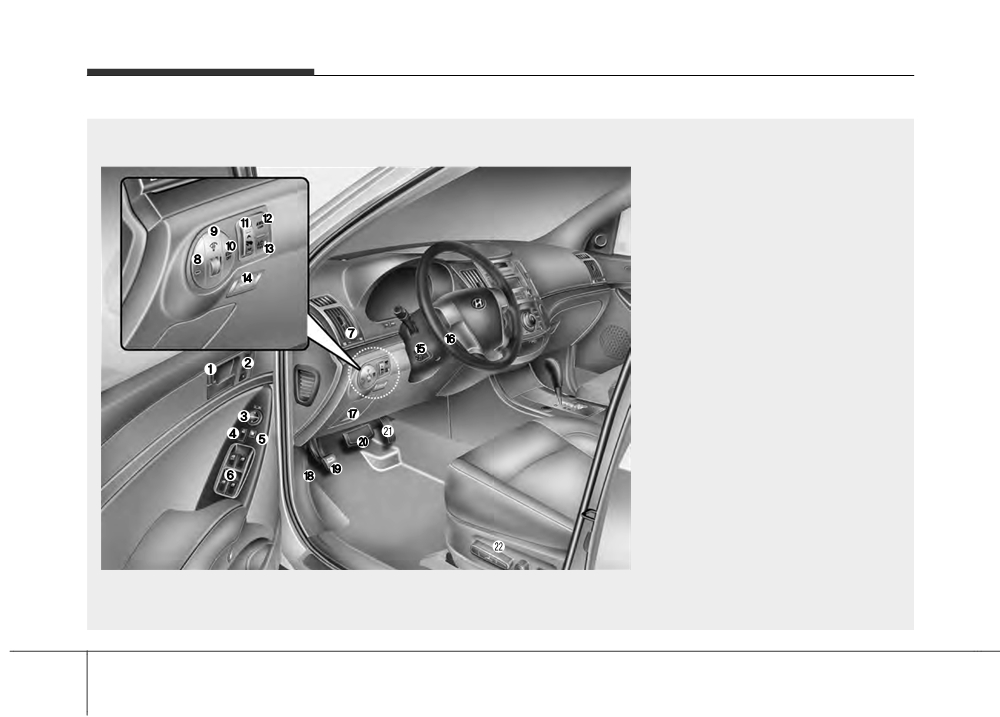

INTERIOR OVERVIEW
1. Door lock/unlock button
4-16
2. Driver position memory system
button*
4-38
3. Outside rearview mirror control
switch
4-49
4. Central door lock switch
4-16
5. Power window lock button
4-29
6. Power window switches
4-26
7. Air vent
4-85
8. Front fog light switch*
4-73
9. Instrument panel illumination control
knob
4-52
10. ESC OFF button
5-26
11. Power adjustable pedal control
switch*
4-39
12. AWD LOCK button*
5-16
13. AC inverter switch*
4-115
14. Power tailgate main control button* 4-21
15. Steering wheel power tilt control* ...4-41
16. Steering wheel
4-40
17. Fuse box
7-44
18. Hood release lever
4-30
19. Parking brake pedal
5-22
20. Brake pedal
5-21
21. Accelerator pedal
5-6
OEN006001N
22. Seat
3-2
* : if equipped
B010000AEN-EU
2 2
Your vehicle at a glance

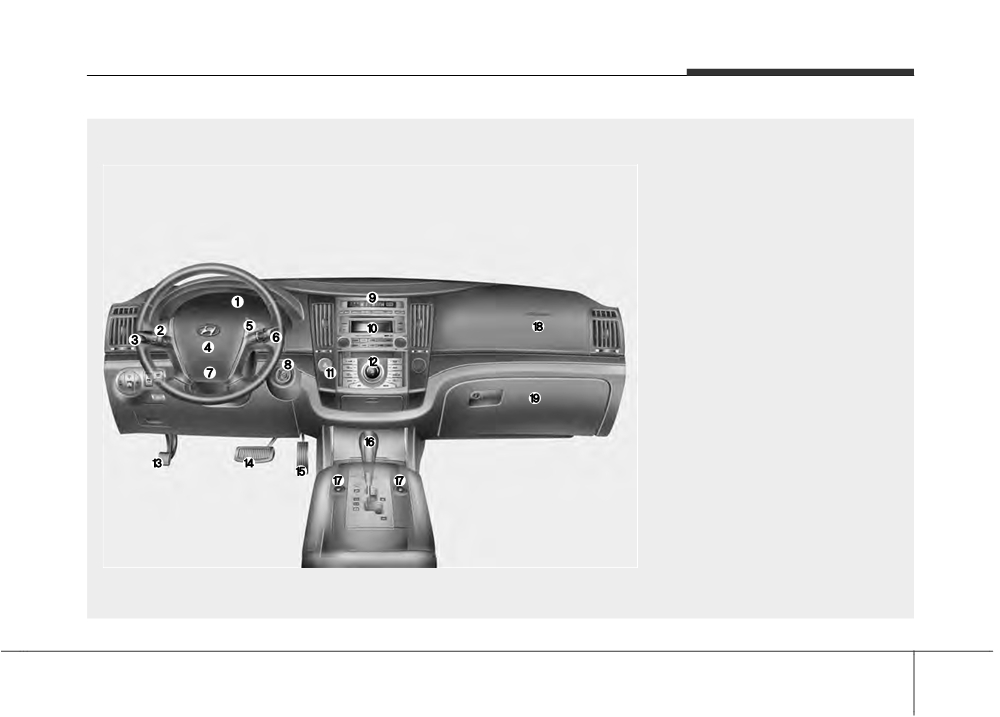

INSTRUMENT PANEL OVERVIEW
1. Instrument cluster
4-51
2. Steering wheel audio controls*
4-121
3. Light control / Turn signals
4-72
4. Horn
4-41
5. Auto cruise controls
5-31
6. Wiper/Washer
4-74
7. Driver’s front air bag
3-52
8. Ignition switch
5-4
9. Digital clock and thermometer
4-117
10. Audio
4-121
11. Hazard warning flasher
switch
4-69 / 6-2
12. Climate control system*
4-84 / 4-96
13. Parking brake pedal
5-22
14. Brake pedal
5-21
15. Accelerator pedal
5-6
16. Shift lever
5-8
17. Seat warmer*
3-8
18. Passenger’s front air bag
3-52
19. Glove box
4-109
* : if equipped
OEN006002N
B020000AEN-EE
2 3
Your vehicle at a glance

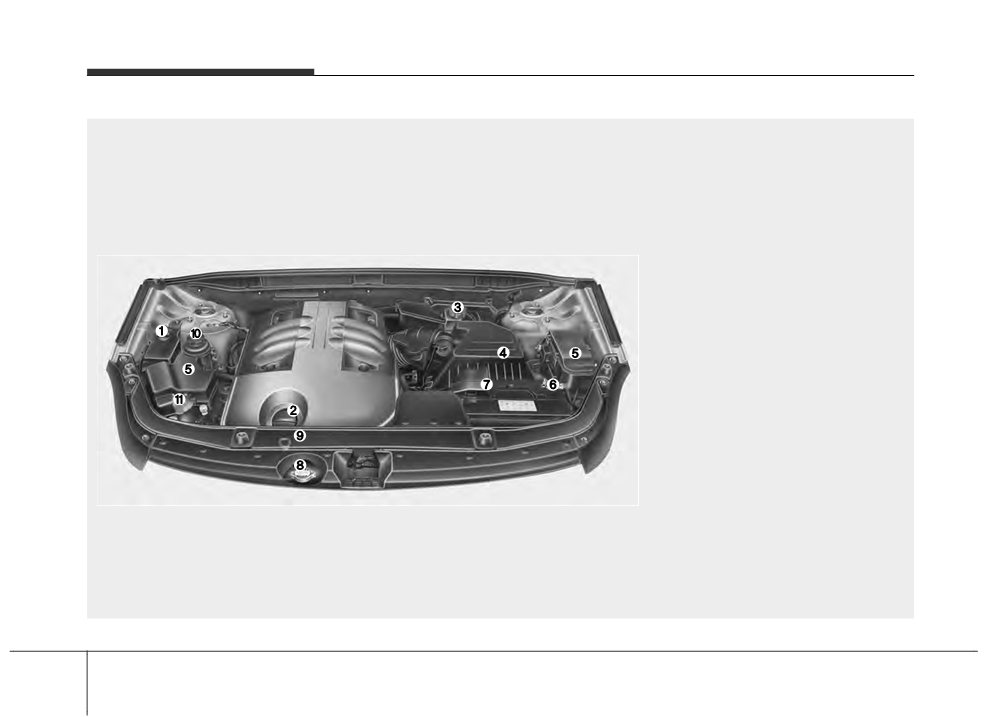

ENGINE COMPARTMENT
1. Engine coolant reservoir
7-16
2. Engine oil filler cap
7-14
3. Brake fluid reservoir
7-18
4. Air cleaner
7-21
5. Fuse box
7-45
6. Negative battery terminal
7-27
7. Positive battery terminal
7-27
8. Radiator cap
7-17
9. Engine oil dipstick
7-14
10. Power steering fluid reservoir
7-19
11. Windshield washer fluid reservoir ...7-20
* The actual engine room in the vehicle may differ from the illustration.
OEN078059
B030000AEN-EU
2 4
Seats / 3-2
Seat belts / 3-21
Child restraint system / 3-33
Air bag - advanced supplemental restraint system / 3-41
Safety features of your vehicle
3
Safety features of your vehicle

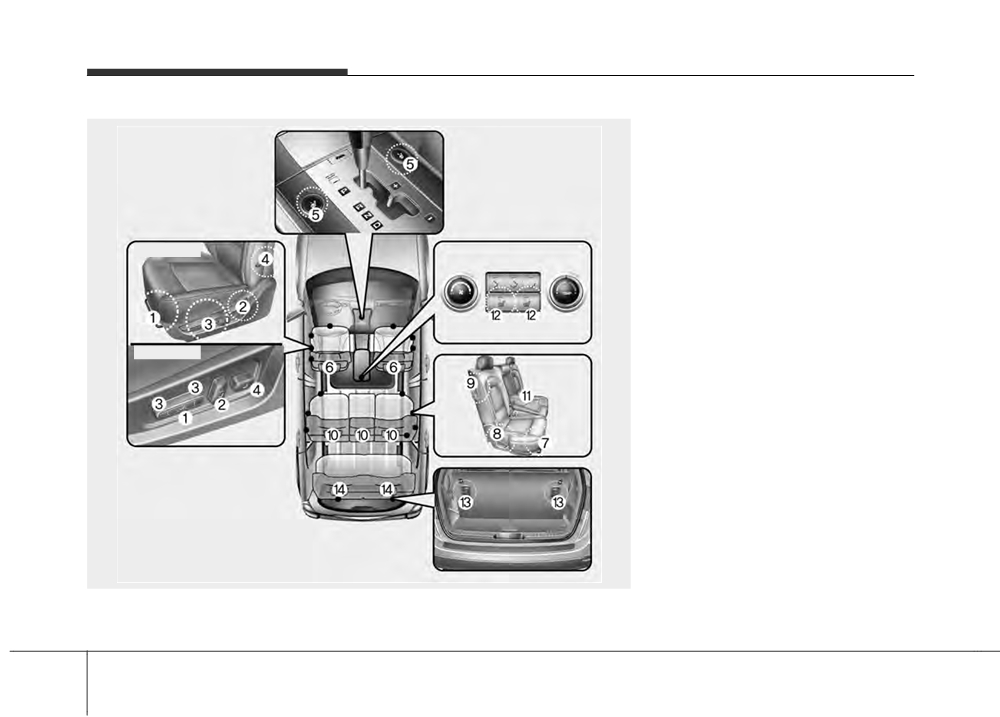

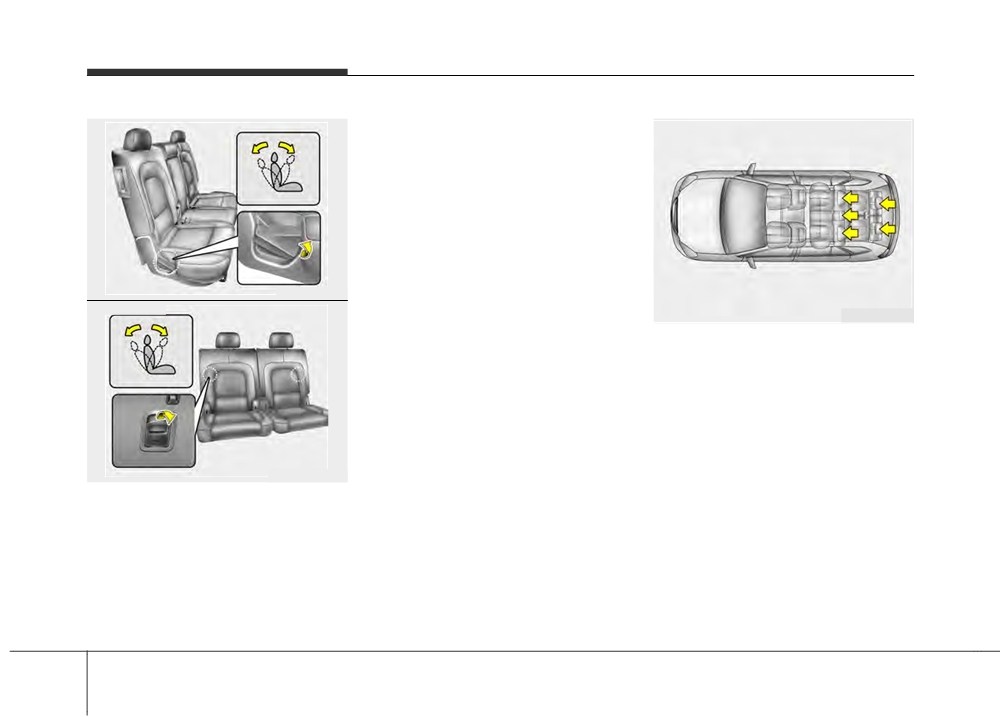

SEATS
Front seat
(1) Forward and backward
(2) Seatback angle
(3) Seat cushion height (Driver’s seat)*
(4) Lumbar support (Driver’s seat)*
(5) Seat warmer*
(6) Headrest
Manual seat
2nd row seat
(7) Forward and backward
(8) Seatback angle
(9) Walk-in seat
Power seat
(10) Headrest
(11) Armrest
(12) Seat warmer*
3rd row seat
(13) Seatback angle
(14) Headrest
*: if equipped
OEN032052N
C010000AEN-EE
3 2
Safety features of your vehicle
WARNING - Loose objects
WARNING - Driver respon-
WARNING - Driver’s seat
Loose objects in the driver’s foot
sibility for passengers
• Never attempt to adjust the seat
area could interfere with the opera-
Riding in a vehicle with the seat-
while the vehicle is moving. This
tion of the foot pedals, possibly
back reclined could lead to serious
could result in loss of control,
causing an accident. Do not place
or fatal injury in an accident. If a
and an accident causing death,
anything under the front seats.
seat is reclined during an accident,
serious injury, or property dam-
the occupant’s hips may slide
age.
under the lap portion of the seat
• Do not allow anything to interfere
belt applying great force to the
with the normal position of the
WARNING - Uprighting
unprotected abdomen. Serious or
seatback. Storing items against a
seat
fatal internal injuries could result.
seatback or in any other way
When you return the seatback to its
The driver must advise the passen-
interfering with proper locking of
upright position, hold the seatback
ger to keep the seatback in an
a seatback could result in serious
and return it slowly and be sure
upright position whenever the vehi-
or fatal injury in a sudden stop or
there are no other occupants
cle is in motion.
collision.
around the seat. If the seatback is
• Always drive and ride with your
returned without being held and
seatback upright and the lap por-
controlled, the back of the seat
tion of the seat belt snug and low
could spring forward resulting in
WARNING
across the hips. This is the best
accidental injury to a person struck
Do not use a sitting cushion that
position to protect you in case of
by the seatback.
reduces friction between the seat
an accident.
and passenger. The passenger's
• In order to avoid unnecessary
hips may slide under the lap por-
and perhaps severe air bag
tion of the seat belt during an acci-
injuries, always sit as far back as
dent or a sudden stop. Serious or
possible from the steering wheel
fatal internal injuries could result
while maintaining comfortable
because the seat belt can't operate
control of the vehicle. We recom-
normally.
mend that your chest be at least
10 inches (250 mm) away from
the steering wheel.
3 3
Safety features of your vehicle
(Continued)
WARNING - Rear seat-
WARNING
• To avoid the possibility of burns
backs (2nd and 3rd row)
• Do not adjust the seat while wear-
from a hot rear floor surface, do
•
The rear seatback must be
ing seat belts. Moving the seat
not remove the carpet in the
securely latched. If not, passen-
cushion forward may cause
cargo area. Emission control
gers and objects could be thrown
strong pressure on the abdomen.
devices beneath this floor gener-
forward resulting in serious
• Use extreme caution so that
ate high temperatures.
injury or death in the event of a
hands or other objects are not
sudden stop or collision.
caught in the seat mechanisms
•
Luggage and other cargo should
while the seat is moving.
be laid flat in the cargo area. If
WARNING
• Do not put a cigarette lighter on
objects are large, heavy, or must
After adjusting the seat, always
the floor or seat. When you oper-
be piled, they must be secured.
check that it is securely locked into
ate the seat, gas may gush out of
Under no circumstances should
place by attempting to move the
the lighter and cause fire.
cargo be piled higher than the
seat forward or rearward without
seatbacks. Failure to follow these
using the lock release lever.
warnings could result in serious
Sudden or unexpected movement
injury or death in the event of a
of the driver's seat could cause you
WARNING
sudden stop, collision or rollover.
to lose control of the vehicle result-
The 3rd row seat is designed for
•
No passenger should ride in the
ing in an accident.
ONLY 2 passengers. Seat belts and
cargo area or sit or lie on folded
head rests are not available for more
seatbacks while the vehicle is
than two passengers. In the case of
moving. All passengers must be
an accident, an unrestrained pas-
properly seated in seats and
senger could be seriously injured or
restrained properly while riding.
killed. All passengers must be prop-
•
When resetting the seatback to
erly seated in seats and restrained
the upright position, make sure it
properly while riding.
is securely latched by pushing it
forward and rearward.
(Continued)
3 4
Safety features of your vehicle
OEN036011
OEN036012
OEN036013

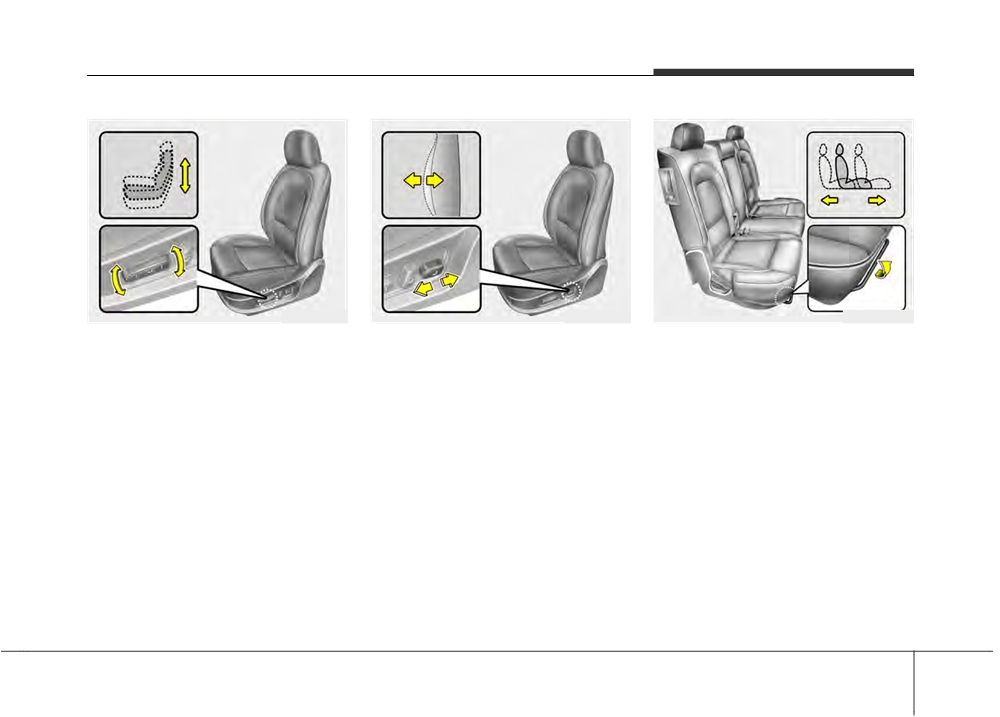

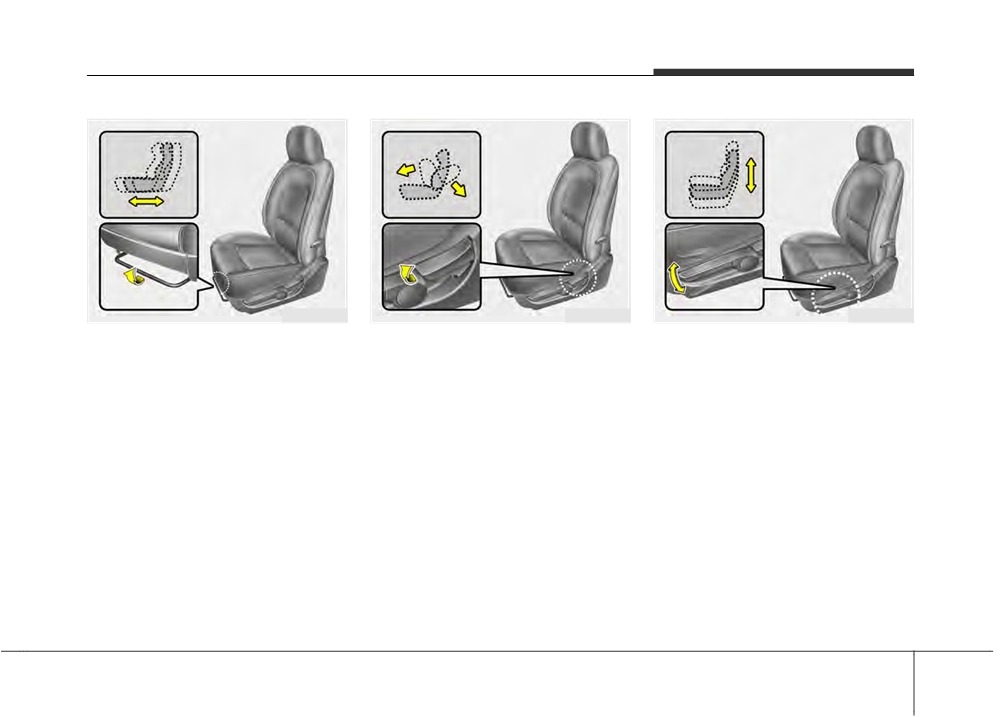

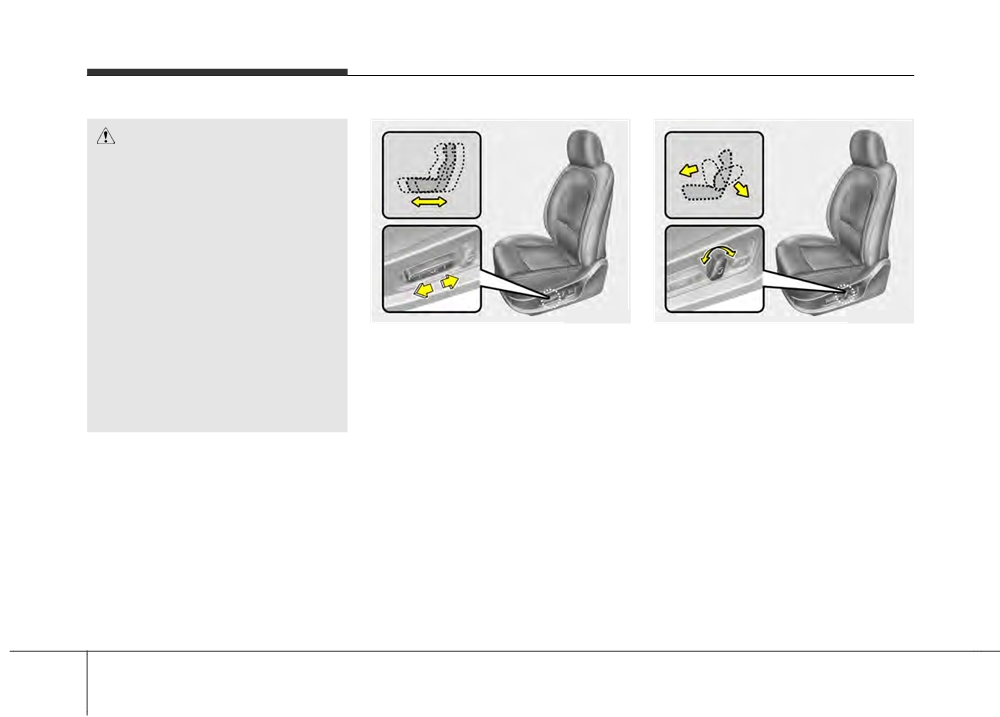

Front seat adjustment - manual
C010102AUN
C010103AUN
Seatback angle
Seat cushion height (for driver’s seat)
C010101AUN
To recline the seatback:
To change the height of the seat cushion,
Forward and rearward
1. Lean forward slightly and lift up on the
push the lever that is located on the out-
To move the seat forward or rearward:
seatback recline lever located on the
side of the seat cushion upwards or
1. Pull the seat slide adjustment lever
outside of the seat at the rear.
downwards.
under the front edge of the seat cush-
2. Carefully lean back on the seat and
• To lower the seat cushion, push the
ion up and hold it.
adjust the seatback of the seat to the
lever down several times.
2. Slide the seat to the position you
position you desire.
• To raise the seat cushion, pull the lever
desire.
3. Release the lever and make sure the
up several times.
3. Release the lever and make sure the
seatback is locked in place. (The lever
seat is locked in place.
MUST return to its original position for
Adjust the seat before driving, and make
the seatback to lock.)
sure the seat is locked securely by trying
to move forward and rearward without
using the lever. If the seat moves, it is not
locked properly.
3 5
Safety features of your vehicle
WARNING
•
For maximum effectiveness in
case of an accident, the headrest
should be adjusted so the middle
of the headrest is at the same
height of the center of gravity of
an occupant's head. Generally,
the center of gravity of most peo-
ple's head is similar with the
height of the top of their eyes.
Also, adjust the headrest as close
OHM038048N
to your head as possible. For this
OEN036007
C010104BEN
reason, the use of a cushion that

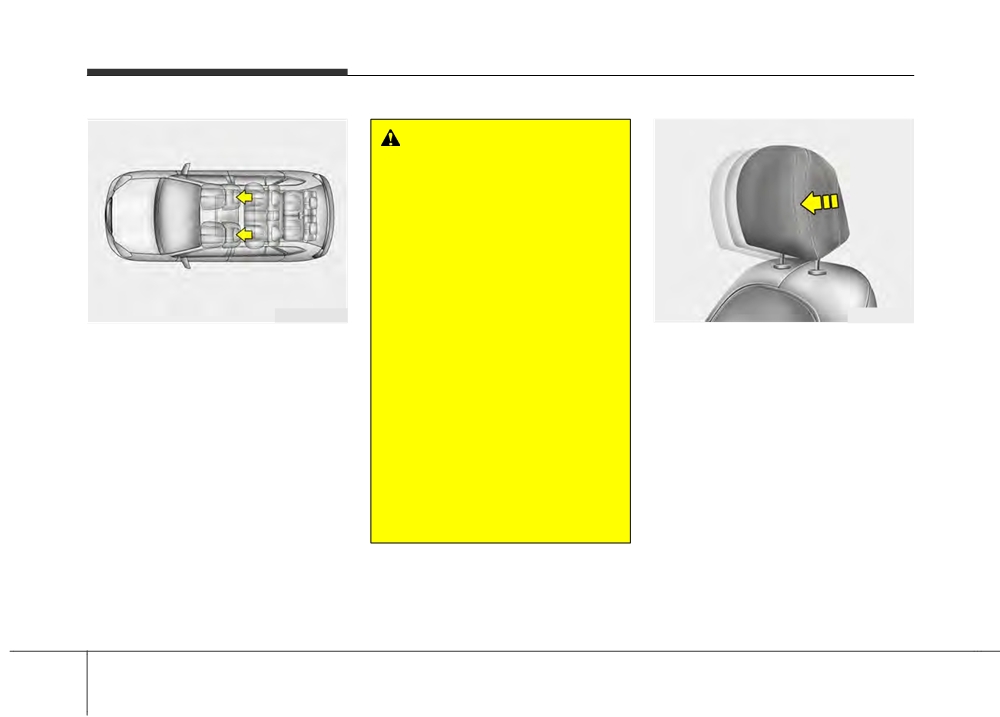

Forward and backward adjustment
holds the body away from the
Headrest
The headrest may be adjusted forward to
seatback is not recommended.
The driver's and front passenger's seats
3 different positions by pulling the head-
are equipped with a headrest for the
•
Do not operate the vehicle with
rest forward to the desired detent. To
occupant's safety and comfort.
the headrests removed as severe
adjust the headrest to it’s furthest back-
The headrest not only provides comfort
injury to the occupants may
wards position, pull it fully forward to the
for the driver and front passenger, but
occur in the event of an accident.
farthest position and release it. Adjust the
also helps to protect the head and neck
Headrests may provide protec-
headrest so that it properly supports the
in the event of a collision.
tion against neck injuries when
head and neck.
properly adjusted.
•
Do not adjust the headrest posi-
tion of the driver's seat while the
vehicle is in motion.
3 6
Safety features of your vehicle
OEN036008
OEN038009
HNF2041-1

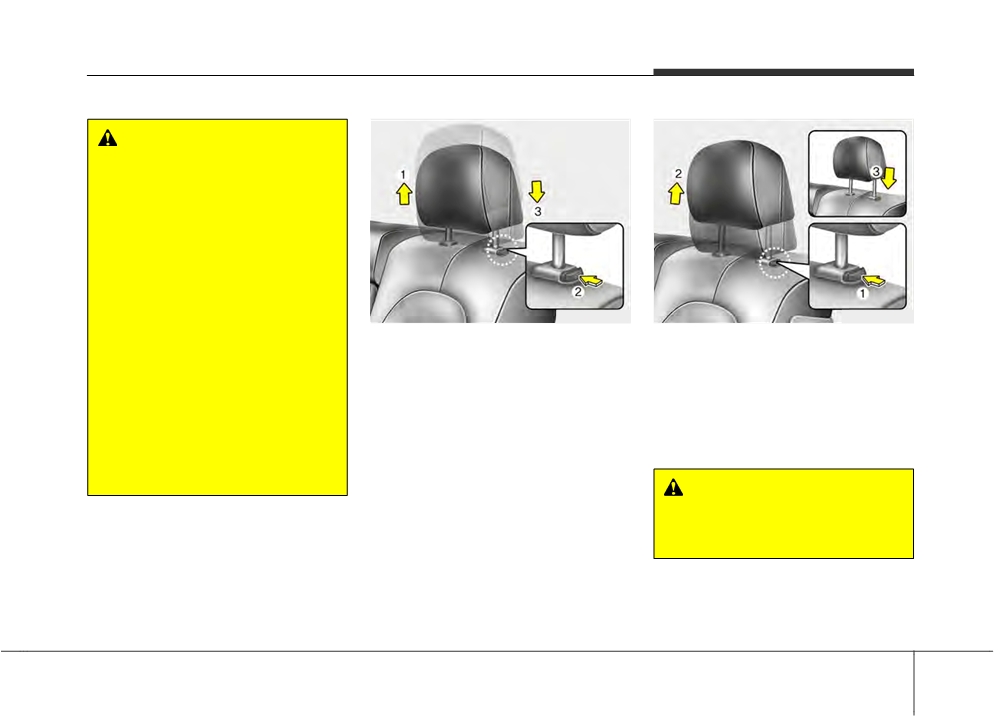

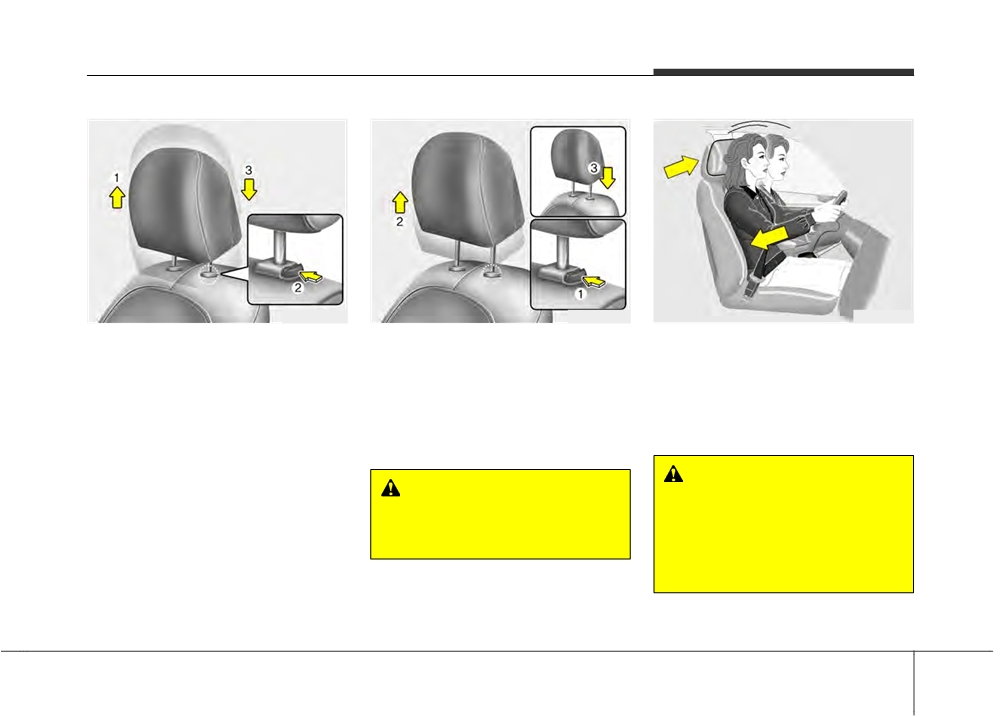

Adjusting the height up and down
Removal
Active headrest (if equipped)
To raise the headrest, pull it up to the
To remove the headrest, raise it as far as
The active headrest is designed to move
desired position (1). To lower the head-
it can go then press the release button (1)
forward and upward during a rear impact.
rest, push and hold the release button (2)
while pulling upward (2).
This helps to prevent the driver's and
on the headrest support and lower the
To reinstall the headrest, put the head-
front passenger’s heads from moving
headrest to the desired position (3).
rest poles (3) into the holes while press-
backward and thus helps minimize neck
ing the release button (1). Then adjust it
injuries.
to the appropriate height.
WARNING
WARNING
A gap between the seat and the
Make sure the headrest locks in
headrest release button may
position after adjusting it to proper-
appear when seating on the seat or
ly protects the occupants.
when you push or pull the seat. Be
careful not to get your finger, etc.
caught in the gap.
3 7
Safety features of your vehicle
• The seat warmer defaults to the OFF
position whenever the ignition switch is
turned on.
✽ NOTICE
With the seat warmer switch in the ON
position, the heating system in the seat
turns off or on automatically depending
on the seat temperature.
CAUTION
OEN036014
OEN036015
•
When cleaning the seats, do not
C010105AEN
C010107AEN
use an organic solvent such as

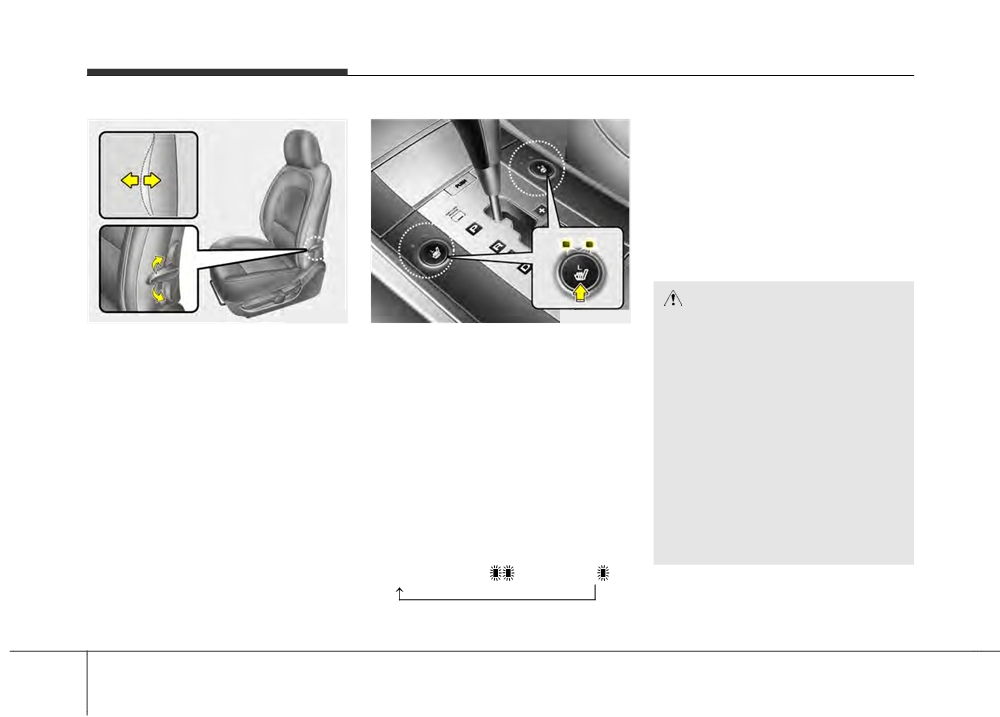

Lumbar support (for driver’s seat)
Seat warmer (if equipped)
paint thinner, benzene, alcohol and
The lumbar support can be adjusted by
The seat warmer is provided to warm the
gasoline. Doing so may damage
moving the lever on the outside of the dri-
front seats during cold weather. With the
the surface of the heater or seats.
ver’s seatback. Pivoting the lever increas-
ignition switch in the ON position, push
•
To prevent overheating the seat
es or decreases lumbar support.
either of the switches to warm the driver's
warmer, do not place anything on
seat or the front passenger's seat.
the seats that insulates against
heat, such as blankets, cushions
During mild weather or under conditions
or seat covers on the seats while
where the operation of the seat warmer
is not needed, keep the switches in the
the seat warmer is in operation.
OFF position.
•
Do not place heavy or sharp
• Each time you push the button, the
objects on seats equipped with
temperature setting of the seat is
seat warmers. Damage to the seat
warming components could occur.
changed as follows :
OFF → HIGH (
)
→ LOW (
)
3 8
Safety features of your vehicle
WARNING - Seat warmer
WARNING
burns
For proper operation of the occu-
Passengers should use extreme
pant classification system:
caution when using seat warmers
• Do not place any items cumula-
due to the possibility of excess
tively weighing over 2.2 lbs (1 kg)
heating or burns. The occupants
in the passenger’s seatback
must be able to feel if the seat is
pocket or on the passenger’s
becoming too warm and to turn the
seat.
seat warmer off. The seat warmer
• Do not hang onto the front pas-
may cause burns even at low tem-
senger seatback.
peratures, especially if used for
long periods of time. In particular,
OEN036010
the driver must exercise extreme
C010108AUN-EU
C010200AEN
care for the following types of pas-

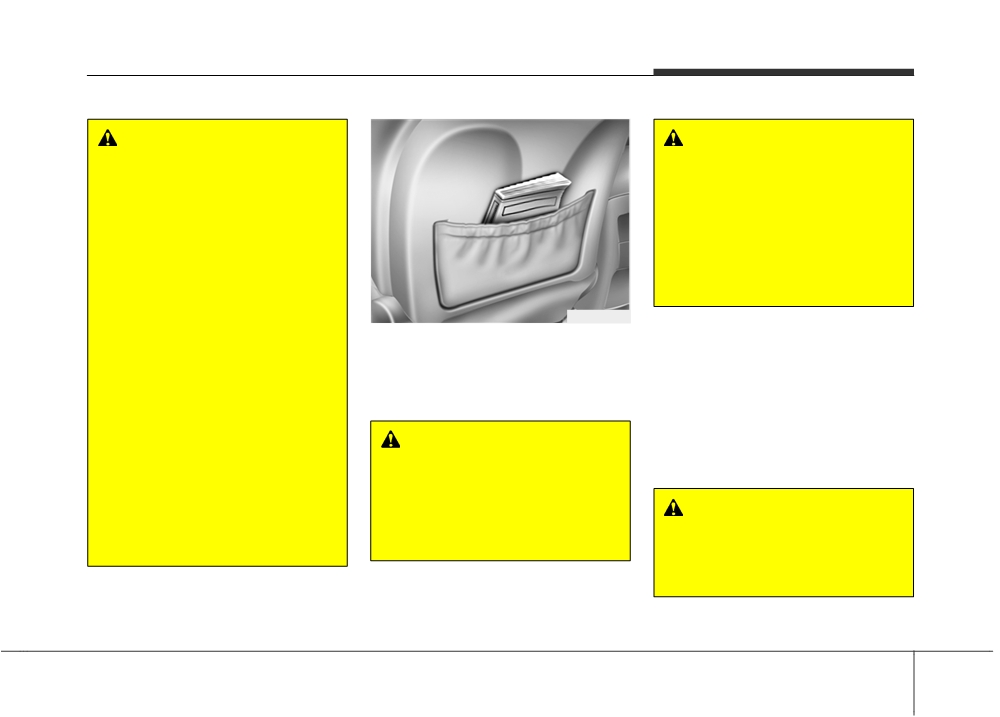

Seatback pocket
Front seat adjustment - power
sengers:
(if equipped)
The seatback pocket is provided on the
1. Infants, children, elderly or dis-
back of the front passenger’s and driver’s
The front seat can be adjusted by using
abled persons, or hospital outpa-
seatbacks.
the control knob located on the outside of
tients
the seat cushion. Before driving, adjust
2. Persons with sensitive skin or
the seat to the proper position so as to
WARNING - Seatback
those that burn easily
easily control the steering wheel, pedals
pockets
3. Fatigued individuals
and switches on the instrument panel.
Do not put heavy or sharp objects
4. Intoxicated individuals
in the seatback pockets. In an acci-
5. Individuals taking medication
dent they could come loose from
WARNING
that can cause drowsiness or
the pocket and injure vehicle occu-
The power seat is operable with the
sleepiness
(sleeping pills, cold
pants.
ignition OFF.
tablets, etc.)
Therefore, children should never be
left unattended in the car.
3 9
Safety features of your vehicle
CAUTION
•
The power seat is driven by an
electric motor. Stop operating
once the adjustment is complet-
ed. Excessive operation may
damage the electrical equipment.
•
When in operation, the power
seat consumes a large amount of
electrical power. To prevent
unnecessary charging system
drain, don’t adjust the power seat
longer than necessary while the
OEN036003
OEN036004
engine is not running.
C010201AUN
C010202AUN
•
Do not operate two or more power
Forward and rearward
Seatback angle
seat control knobs at the same
Push the control knob forward or rear-
Push the control knob forward or rear-
time. Doing so may result in
ward to move the seat to the desired
ward to move the seatback to the desired
power seat motor or electrical
position. Release the knob once the seat
angle. Release the knob once the seat
component malfunction.
reaches the desired position.
reaches the desired position.
3 10
Safety features of your vehicle
OEN036006
OEN036005
OEN032016N
C010203AUN
C010204AEN
Rear seat adjustment
Seat cushion height
Lumbar support (for driver’s seat)
C010301AUN
Pull the front portion of the control knob
Push the control knob forward or back-
Forward and backward (2nd row seat)
up to raise or down to lower the front part
ward to adjust the lumbar support to the
To move the seat forward or backward:
of the seat cushion. Pull the rear portion
desired position. Release the knob once
1. Pull up the seat slide adjustment lever
of the control knob up to raise or down to
the lumbar support reaches the desired
under the front edge of the seat cush-
lower the rear part of the seat cushion.
position.
ion and hold it.
Release the knob once the seat reaches
the desired position.
2. Slide the seat to the position you desire.
3. Release the lever and make sure the
seat is locked in place.
Adjust the seat before driving, and make
sure the seat is locked securely by trying
to move forward and backward without
using the lever. If the seat moves, it is not
locked properly.
3 11
Safety features of your vehicle
■ 2nd row seat
2.2nd row seat
Carefully lean back on the seat and
adjust the seatback of the seat to the
position you desire.
3rd row seat
Hold and adjust the seatback of the
seat to the position you desire.
3. Release the lever and make sure the
seatback is locked in place. (The lever
MUST return to its original position for
OEN032017N
the seatback to lock.)
■ 3rd row seat
OHM038049N
C010303CUN
Headrest
The rear seat(s) is equipped with head-
rests in all the seating positions for the
occupant's safety and comfort.
The headrest not only provides comfort
for passengers, but also helps to protect
the head and neck in the event of a colli-
sion.
OEN032018N
C010302AEN
Seatback angle
To recline the seatback:
1. Pull on the seatback recline lever
located on the outside of the seat at
the rear or on the back of the rear
seatback.
3 12
Safety features of your vehicle
WARNING
•
For maximum effectiveness in
case of an accident, the headrest
should be adjusted so the middle
of the headrest is at the same
height as the center of gravity of
an occupant's head. Generally,
the center of gravity of most peo-
ple's head is similar with the
height of the top of their eyes.
Also, adjust the headrest as close
to your head as possible. For this
OEN032019N
OEN032020N
reason, the use of a cushion that
2nd row headrest
Removal and installation
holds the body away from the
Adjusting the height up and down
To remove the headrest, raise it as far as
seatback is not recommended.
To raise the headrest, pull it up to the
it can go then press the release button
•
Do not operate the vehicle with
desired position (1). To lower the head-
(1) while pulling upward (2).
the headrests removed as severe
rest, push and hold the release button (2)
To reinstall the headrest, put the head-
injury to an occupant may occur
on the headrest support and lower the
rest poles (3) into the holes while press-
in the event of an accident.
headrest to the desired position (3).
ing the release button (1). Then adjust it
Headrests may provide protec-
to the appropriate height.
tion against severe neck injuries
when properly adjusted.
WARNING
Make sure the headrest locks in
position after adjusting it to proper-
ly protect the occupants.
3 13
|
|
|
