Hyundai Tucson (2017 year). Instruction - part 31
Maintenance
Headlamp low beam (LHD side)

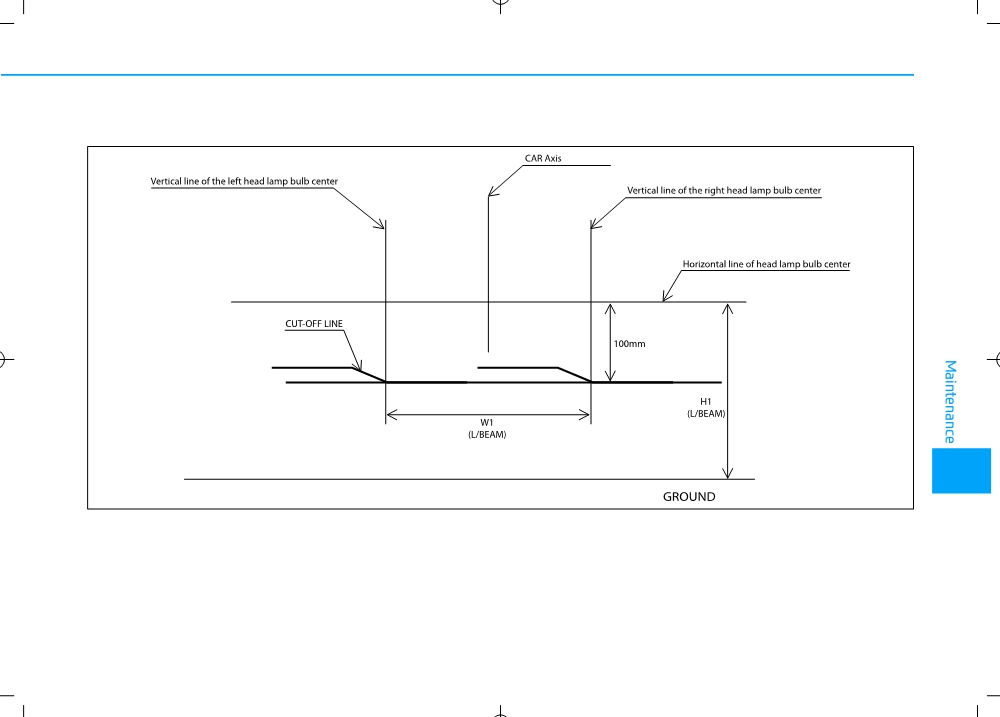

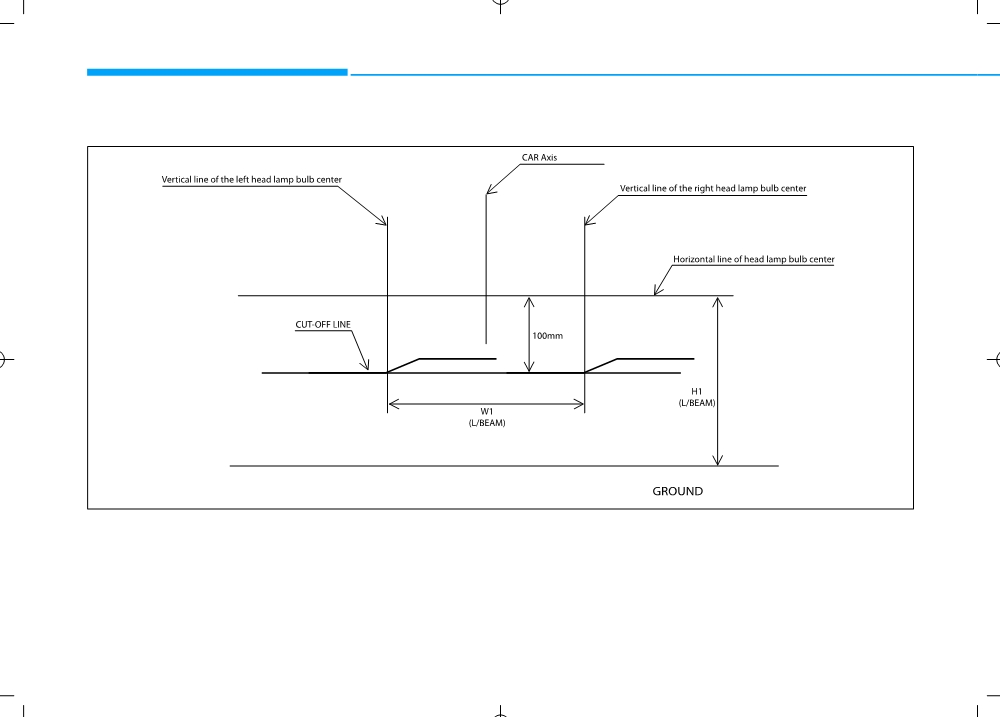

■ Based on 10m screen
OTLE075100
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the picture.
3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.
4. If headlamp leveling device is equipped, adjust the head lamp leveling device switch with 0 positions.
7-84
Headlamp low beam (RHD side)
■ Based on 10m screen
7
OTLE075101
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the picture.
3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.
4. If headlamp leveling device is equipped, adjust the head lamp leveling device switch with 0 positions.
7-85
Maintenance
Front fog lamp

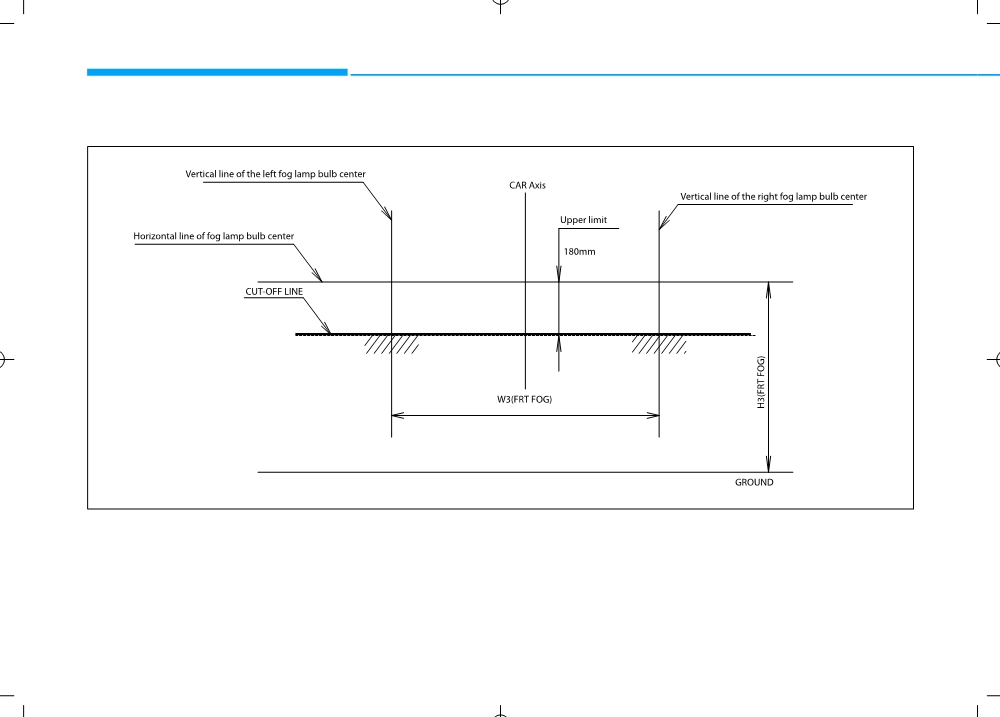

■ Based on 10m screen
OTLE075102
1. Turn the front fog lamp on without the driver aboard.
2. The cut-off line should be projected in the allowable range (shaded region).
7-86
Rear combination light bulb
Outside lamp

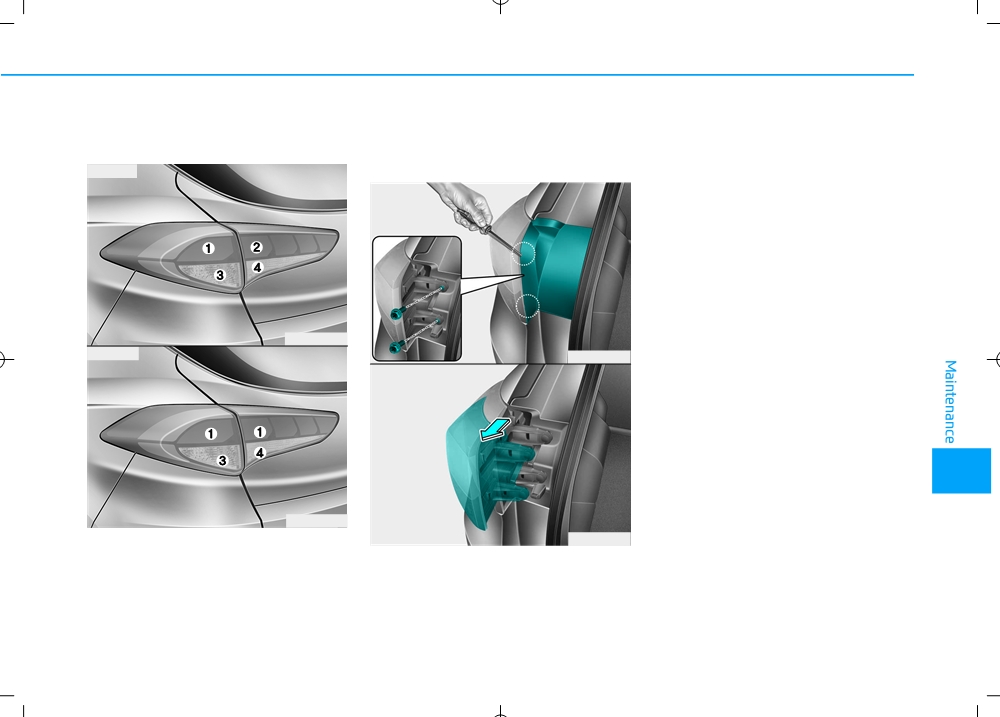

3. Loosen the lamp assembly retain-
replacement
ing screws with a cross-tip screw-
Stop/tail Lamp and Turn signal
driver.
lamp
■ Type A
4. Remove the rear combination
lamp assembly from the body of
the vehicle.
OTL075034
■ Type B
OTL075035
7
OTL075034
OTL075036
(1) Stop lamp
(2) Tail lamp
1. Turn off the engine.
(3) Rear turn signal lamp
2. Open the tailgate.
(4) Back-up lamp
7-87
Maintenance
8.Install the socket in the assembly by
Stop/tail lamp (LED type)
aligning the tabs on the socket with
Stop/tail lamp
If the LED lamp does not operate, we
the slots in the assembly.
recommend you to have the vehicle
Push the socket into the assembly
checked by an authorized HYUNDAI
and turn the socket clockwise.
dealer.
9.Reinstall the lamp assembly to the
body of the vehicle.
Turn Signal lamp
OTL075037

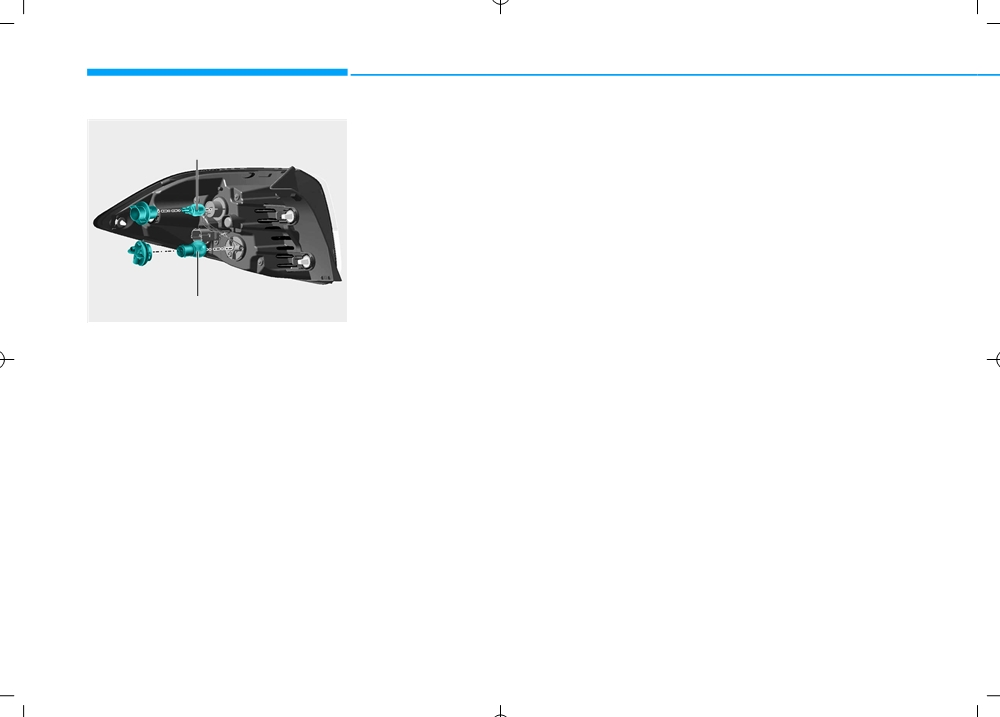

5.Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
6.Remove the bulb from the socket by
pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket.
Pull the bulb out of the socket.
7.Insert a new bulb by inserting it into
the socket and rotating it until it
locks into place.
7-88
Inside lamp
Stop and tail lamp (LED type)
Tail lamp/Back-up lamp
If the LED lamp does not operate, we
recommend you to have the vehicle
checked by an authorized HYUNDAI
dealer.
OTL075039
4.Remove the socket from the
assembly by turning the socket
OTLE075016
counterclockwise until the tabs on
1. Turn off the engine.
the socket align with the slots on
2. Open the tailgate.
the assembly.
5.Pull the bulb out of the socket.

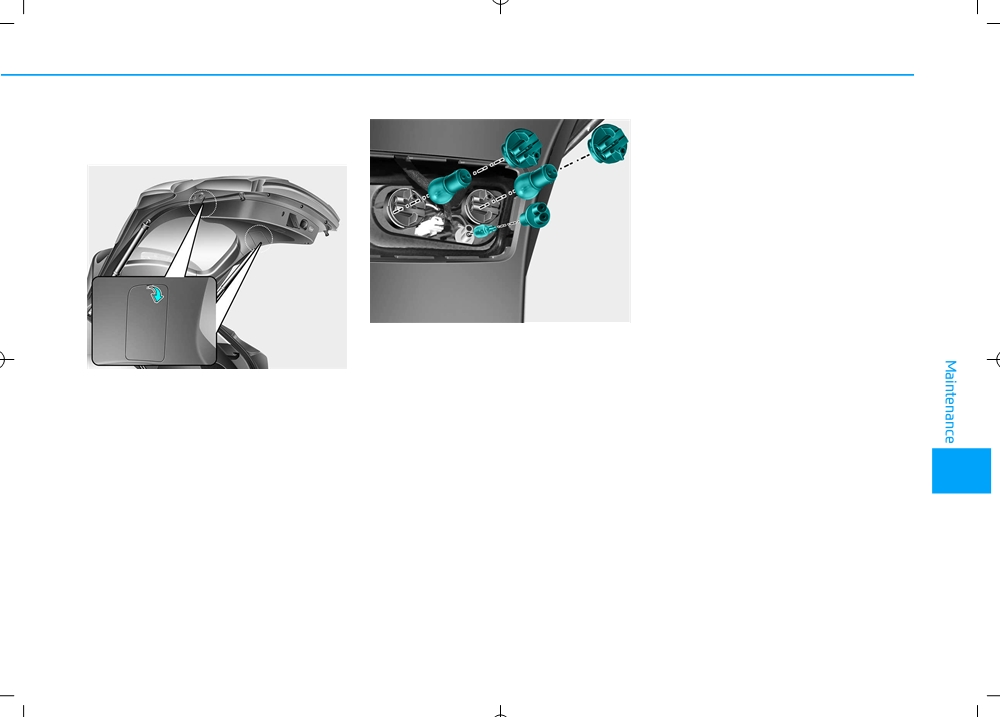

3. Remove the service cover using a
flat-blade screwdriver.
6.Insert a new bulb into the socket.
7.Install the socket into the assembly
7
by aligning the tabs on the socket
with the slots on the assembly and
turning the socket clockwise.
8.Reinstall the lamp assembly to the
body of the vehicle
7-89
Maintenance
Rear fog lamp (if equipped)
High mounted stop lamp
License plate light bulb
1.Remove the socket from the
replacement
replacement
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
2.Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
3.Insert a new bulb in the socket.
4.Reinstall the light assembly to the

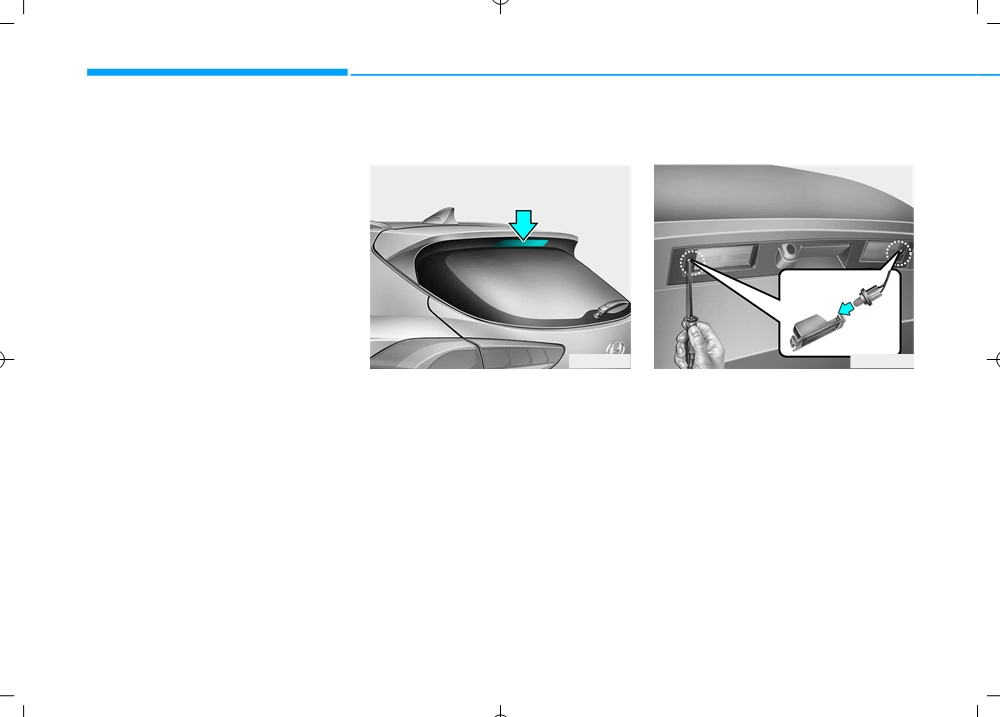

OTL075040
OTL075041
body of the vehicle.
If the high mounted stop lamp does not
1.Loosen the lens retaining screws
operate, we recommend that you con-
with a screwdriver.
tact an authorized HYUNDAI dealer.
2.Remove the lens.
3.Remove the bulb by pulling it straight
out.
4.Install a new bulb.
5.Reinstall the lens securely with the
lens retaining screws.
7-90
Interior light bulb replacement

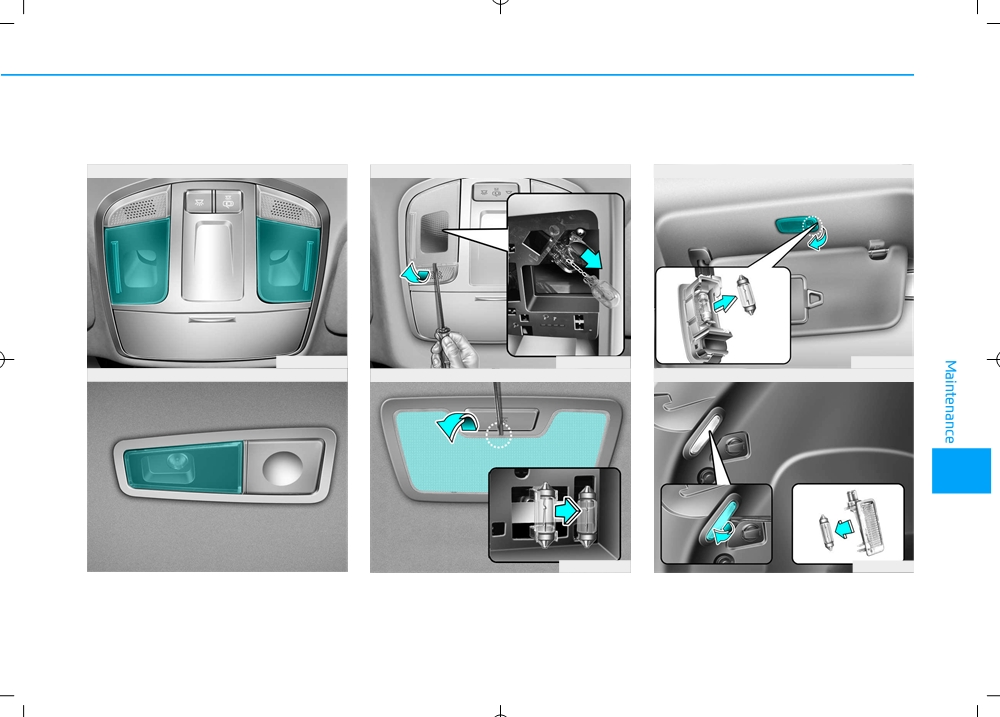

Map lamp, Room lamp, Vanity mirror lamp, Tailgate room lamp and
glove box lamp
Map lamp and Room lamp
■ Map lamp - with sunroof
■ Map lamp - without sunroof
■ Vanity mirror lamp
OTLE075017
OTLE075018
OTL075043
■ Room lamp - with sunroof
■ Room lamp - without sunroof
■ Tailgate room lamp
7
OTL075044
OLFH074029
OTL075045
If the LED lamp does not operate, we
recommend you to have the vehicle
checked by an authorized HYUNDAI
dealer.
7-91
Maintenance

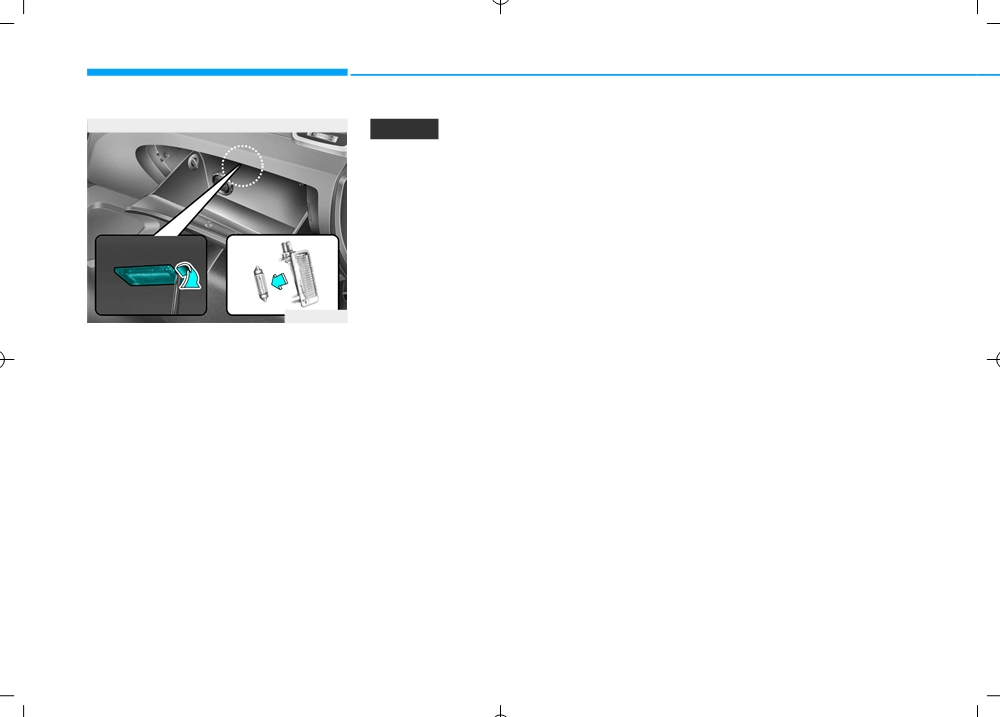

■ Glove box lamp
NOTICE
Be careful not to damage the cover,
tab, and plastic housing.
OTL075046
1. Using a flat-head screwdriver,
gently pry the lens from the interi-
or light housing.
2. Remove the bulb by pulling it
straight out.
3. Install a new bulb in the socket.
4. Align the lens tabs with the interior
light housing notches and snap
the lens into place.
7-92
APPEARANCE CARE
Exterior care
Finish maintenance
NOTICE
Exterior general caution
Washing
•
Do not use strong soap, chemi-
To help protect your vehicle’s finish
It is very important to follow the label
cal detergents or hot water, and
directions when using any chemical
from rust and deterioration, wash it
do not wash the vehicle in direct
thoroughly and frequently at least
cleaner or polish. Read all warning
sunlight or when the body of the
and caution statements that appear
once a month with lukewarm or cold
vehicle is warm.
water.
on the label.
•
Be careful when washing the
If you use your vehicle for off-road
side windows of your vehicle.
driving, you should wash it after each
off-road trip. Pay special attention to
Especially, with high-pressure
the removal of any accumulation of
water, water may leak through
salt, dirt, mud, and other foreign
the windows and wet the interior.
materials. Make sure the drain holes
•
To prevent damage to the plastic
in the lower edges of the doors and
parts and lamps, do not clean
rocker panels are kept clear and
with chemical solvents or strong
clean.
detergents.
Insects, tar, tree sap, bird droppings,
industrial pollution and similar deposits
WARNING
can damage your vehicle’s finish if not
removed immediately.
Wet brakes
Even prompt washing with plain water
7
may not completely remove all these
After washing the vehicle, test
deposits.
the brakes while driving slowly
A mild soap, safe for use on painted
to see if they have been affected
surfaces, may be used.
by water. If braking performance
After washing, rinse the vehicle thor-
is impaired, dry the brakes by
oughly with lukewarm or cold water.
applying them lightly while main-
Do not allow soap to dry on the finish.
taining a slow forward speed.
7-93
Maintenance
High-pressure washing
Waxing
•
When using high-pressure washers,
Wax the vehicle when water will no
make sure to maintain sufficient dis-
longer bead on the paint.
tance from the vehicle.
Always wash and dry the vehicle
before waxing. Use a good quality
Insufficient clearance or excessive
liquid or paste wax, and follow the
pressure can lead to component
manufacturer’s instructions. Wax all
damage or water penetration.
metal trim to protect it and to main-
•
Do not spray the camera, sensors or
tain its luster. Removing oil, tar, and
its surrounding area directly with a
similar materials with a spot remover
high pressure washer. Shock
will usually strip the wax from the fin-
applied from high pressure water
OLMB073082
ish. Be sure to re-wax these areas
may cause the device to not operate
even if the rest of the vehicle does
normally.
NOTICE
not yet need waxing.
•
Do not bring the nozzle tip close to
• Water washing in the engine com-
boots (rubber or plastic covers) or
NOTICE
partment including high pressure
connectors as they may be dam-
water washing may cause the fail-
• Wiping dust or dirt off the body
aged if they come into contact with
ure of electrical circuits located in
with a dry cloth will scratch the
high pressure water.
the engine compartment.
finish.
• Never allow water or other liquids
• Do not use steel wool, abrasive
to come in contact with electri-
cleaners, or strong detergents
cal/electronic components inside
containing highly alkaline or
the vehicle as this may damage
caustic agents on chrome-plated
them.
or anodized aluminum parts. This
may result in damage to the pro-
tective coating and cause discol-
oration or paint deterioration.
7-94
Finish damage repair
Bright-metal maintenance
Underbody maintenance
Deep scratches or stone chips in the
•
To remove road tar and insects,
Corrosive materials used for ice and
painted surface must be repaired
use a tar remover, not a scraper or
snow removal and dust control may
promptly. Exposed metal will quickly
other sharp object.
collect on the underbody. If these
rust and may develop into a major
•
To protect the surfaces of bright-
materials are not removed, acceler-
repair expense.
ated rusting can occur on underbody
metal parts from corrosion, apply a
coating of wax or chrome preser-
parts such as the fuel lines, frame,
NOTICE
vative and rub to a high luster.
floor pan and exhaust system, even
though they have been treated with
•
During winter weather or in coastal
If your vehicle is damaged and
rust protection.
areas, cover the bright metal parts
requires any metal repair or
Thoroughly flush the vehicle under-
with a heavier coating of wax or
replacement, be sure the body
body and wheel openings with luke-
preservative. If necessary, coat the
shop applies anti-corrosion materi-
warm or cold water once a month,
parts with non-corrosive petroleum
als to the parts repaired or replaced.
after off-road driving and at the end of
jelly or other protective compound.
each winter. Pay special attention to
these areas because it is difficult to
see all the mud and dirt. It will do
more harm than good to wet down the
road grime without removing it. The
lower edges of doors, rocker panels,
and frame members have drain holes
7
that should not be allowed to clog with
dirt; trapped water in these areas can
cause rusting.
7-95
Maintenance
Aluminum wheel maintenance
Corrosion protection
WARNING
The aluminum wheels are coated with
Protecting your vehicle from corro-
a clear protective finish.
sion
After washing the vehicle, test
the brakes while driving slowly
By using the most advanced design
to see if they have been affected
NOTICE
and construction practices to combat
by water. If braking performance
corrosion, we produces cars of the
•
Do not use any abrasive cleaner,
is impaired, dry the brakes by
highest quality. However, this is only
polishing compound, solvent,
applying them lightly while main-
part of the job. To achieve the long-
or wire brushes on aluminum
taining a slow forward speed.
term corrosion resistance your vehi-
wheels.
cle can deliver, the owner's coopera-
•
Clean the wheel when it has
tion and assistance is also required.
cooled.
•
Use only a mild soap or neutral
Common causes of corrosion
detergent, and rinse thoroughly
The most common causes of corro-
with water. Also, be sure to clean
sion on your car are:
the wheels after driving on salted
• Road salt, dirt and moisture that is
roads.
allowed to accumulate underneath
•
Do not wash the wheels with high-
the car.
speed car wash brushes.
• Removal of paint or protective coat-
•
Do not use any cleanser contain-
ings by stones, gravel, abrasion or
ing acid or alkaline detergents.
minor scrapes and dents which
leave unprotected metal exposed to
corrosion.
7-96
High-corrosion areas
High temperatures can also acceler-
Keep your car clean
ate corrosion of parts that are not
If you live in an area where your car
The best way to prevent corrosion is
properly ventilated so the moisture
is regularly exposed to corrosive
to keep your car clean and free of
can be dispersed. For all these rea-
materials, corrosion protection is
corrosive materials. Attention to the
sons, it is particularly important to
particularly important. Some of the
underside of the car is particularly
keep your car clean and free of mud
common causes of accelerated cor-
important.
or accumulations of other materials.
rosion are road salts, dust control
This applies not only to the visible sur-
chemicals, ocean air and industrial
• If you live in a high-corrosion area
faces but particularly to the underside
pollution.
— where road salts are used, near
of the car.
the ocean, areas with industrial
pollution, acid rain, etc.—, you
Moisture breeds corrosion
To help prevent corrosion
should take extra care to prevent
Moisture creates the conditions in
corrosion. In winter, hose off the
You can help prevent corrosion from
which corrosion is most likely to occur.
getting started by observing the fol-
underside of your car at least once
For example, corrosion is accelerated
a month and be sure to clean the
lowing:
by high humidity, particularly when
underside thoroughly when winter
temperatures are just above freezing.
is over.
In such conditions, the corrosive
• When cleaning underneath the car,
material is kept in contact with the car
give particular attention to the
surfaces by moisture that is slow to
components under the fenders and
evaporate.
other areas that are hidden from
7
Mud is particularly corrosive because
view. Do a thorough job; just damp-
it is slow to dry and holds moisture in
ening the accumulated mud rather
contact with the vehicle. Although the
than washing it away will acceler-
mud appears to be dry, it can still
ate corrosion rather than prevent
retain the moisture and promote cor-
it. Water under high pressure and
rosion.
steam are particularly effective in
removing accumulated mud and
corrosive materials.
7-97
Maintenance
• When cleaning lower door panels,
Keep paint and trim in good con-
Don't neglect the interior
rocker panels and frame members,
dition
Moisture can collect under the floor
be sure that drain holes are kept
Scratches or chips in the finish
mats and carpeting to cause corro-
open so that moisture can escape
should be covered with "touch-up"
sion. Check under the mats periodi-
and not be trapped inside to accel-
paint as soon as possible to reduce
cally to be sure the carpeting is dry.
erate corrosion.
the possibility of corrosion. If bare
Use particular care if you carry fertil-
metal is showing through, the atten-
izers, cleaning materials or chemi-
tion of a qualified body and paint
cals in the car.
Keep your garage dry
shop is recommended.
These should be carried only in
Don't park your car in a damp, poor-
ly ventilated garage. This creates a
proper containers and any spills or
leaks should be cleaned up, flushed
favorable environment for corrosion.
Bird droppings : Bird droppings are
This is particularly true if you wash
highly corrosive and may damage
with clean water and thoroughly
dried.
your car in the garage or drive it into
painted surfaces in just a few hours.
the garage when it is still wet or cov-
Always remove bird droppings as
ered with snow, ice or mud. Even a
soon as possible.
heated garage can contribute to cor-
rosion unless it is well ventilated so
moisture is dispersed.
7-98
Interior care
Cleaning the upholstery and
Cleaning the lap/shoulder belt
interior trim
webbing
Interior general precautions
Vinyl
Clean the belt webbing with any mild
Prevent chemicals such as perfume,
Remove dust and loose dirt from
soap solution recommended for clean-
cosmetic oil, sun cream, hand cleaner
ing upholstery or carpet. Follow the
and air freshener from contacting the
vinyl with a whisk broom or vacuum
cleaner. Clean vinyl surfaces with a
instructions provided with the soap. Do
interior parts because they may
not bleach or re-dye the webbing
cause damage or discoloration. If they
vinyl cleaner.
because this may weaken it.
do contact the interior parts, wipe them
off immediately.
Fabric
See the instructions that follow for
Cleaning the interior window
Remove dust and loose dirt from fabric
the proper way to clean vinyl.
glass
with a whisk broom or vacuum cleaner.
Clean with a mild soap solution recom-
If the interior glass surfaces of the
NOTICE
mended for upholstery or carpets.
vehicle become fogged (that is, cov-
Never allow water or other liquids to
Remove fresh spots immediately with
ered with an oily, greasy or waxy film),
come in contact with electrical/elec-
a fabric spot cleaner. If fresh spots do
they should be cleaned with glass
tronic components inside the vehi-
not receive immediate attention, the
cleaner. Follow the directions on the
cle as this may damage them.
fabric can be stained and its color can
glass cleaner container.
be affected. Also, its fire-resistant prop-
NOTICE
erties can be reduced if the material is
NOTICE
not properly maintained.
7
When cleaning leather products
Do not scrape or scratch the inside
(steering wheel, seats etc.), use
of the rear window. This may result
NOTICE
neutral detergents or low alcohol
in damage to the rear window
content solutions. If you use high
Using anything but recommended
defroster grid.
alcohol content solutions or acid/
cleaners and procedures may affect
alkaline detergents, the color of
the fabric’s appearance and fire-
the leather may fade or the sur-
resistant properties.
face may get stripped off.
7-99
Maintenance
EMISSION CONTROL SYSTEM
The emission control system of your
1. Crankcase emission control
CAUTION
vehicle is covered by a written limited
system
warranty. Please see the warranty
For the Inspection and Maintenance
The positive crankcase ventilation
information contained in the Service
Test (With Electronic Stability Control
system is employed to prevent air
Passport in your vehicle.
(ESC) system)
pollution caused by blow-by gases
Your vehicle is equipped with an
being emitted from the crankcase.
• To prevent the vehicle from
emission control system to meet all
This system supplies fresh filtered air
misfiring during dynamome-
emission regulations.
to the crankcase through the air
ter testing, turn the Electronic
There are three emission control
intake hose. Inside the crankcase,
Stability Control
(ESC) sys-
systems which are as follows.
the fresh air mixes with blow-by
tem off by pressing the ESC
gases, which then pass through the
switch.
PCV valve into the induction system.
(1) Crankcase emission control sys-
•
After dynamometer testing is
tem
completed, turn the ESC sys-
(2) Evaporative emission control sys-
tem back on by pressing the
2. Evaporative emission con-
tem
ESC switch again.
trol system
(3) Exhaust emission control system
The Evaporative Emission Control
System is designed to prevent fuel
vapors from escaping into the atmos-
In order to assure the proper function
phere.
of the emission control systems, it is
recommended that you have your car
inspected and maintained by an
authorized HYUNDAI dealer in accor-
dance with the maintenance schedule
in this manual.
7-100
