Convenient features of your vehicle
STEERING WHEEL
Electric power steering (EPS)
NOTICE
(Continued)
•
A click noise may be heard from the
The system assists you with steering
If the Electric Power Steering System
the vehicle. If the engine is off or if
EPS relay after the ignition switch is
does not operate normally, the warn-
placed to the ON or LOCK/OFF
the power steering system becomes
ing light (
) will illuminate on the
inoperative, the vehicle may still be
position.
instrument cluster. The steering
steered, but it will require increased
A click noise may be heard from the
wheel may become difficult to con-
steering effort.
EPS relay after the Engine Start/Stop
trol or operate. We recommend to
button is in the ON or OFF position.
Also, the steering effort becomes
take your vehicle to an authorized
heavier as the vehicle’s speed
HYUNDAI dealer and have the sys-
(With Smart key system)
increases and becomes lighter as
tem checked as soon as possible.
•
Motor noise may be heard when the
the vehicle’s speed decreases for
vehicle is at a stop or at a low driv-
better control of the steering wheel.
ing speed.
i
Information
Should you notice any change in the
•
When you operate the steering
The following symptoms may occur
effort required to steer during normal
wheel in low temperature, the steer-
during normal vehicle operation:
vehicle operation, we recommend
ing effort may be high and abnor-
that the system be checked by an
• The steering effort may be high
mal noise may occur. If temperature
authorized HYUNDAI dealer.
immediately after placing the igni-
rises, the noise will disappear. This
tion switch in the ON position.
is a normal condition.
This happens as the system per-
•
When the vehicle is stationary, if
forms the EPS system diagnostics.
you turn the steering wheel all the
When the diagnostics is completed,
way to the left or right continuously,
the steering wheel will return to its
the steering wheel effort increases.
normal condition.
This is not a system malfunction. As
(Continued)
time passes, the steering wheel
effort will return to its normal con-
dition.
3-22
Tilt steering / Telescope steering
After adjusting, pull up the lock-
release lever (1) to lock the steering
wheel in place. Push the steering
WARNING
wheel both up and down to be cer-
tain it is locked in position. Always
Never adjust the steering wheel
adjust the position of the steering
while driving. You may lose
wheel before driving.
steering control and cause
severe personal injury, death or
3
accidents.
i
Information
OTL045010
After adjustment, sometimes the lock-
Pull down the lock-release lever (1) on
release lever may not lock the steering
the steering wheel column and adjust
wheel.
the steering wheel angle (2) and posi-
tion (3). Move the steering wheel, so it
It is not a malfunction. This occurs
points toward your chest, not toward
when two gears are not engaged cor-
your face. Make sure you can see the
rectly. In this case, adjust the steering
instrument cluster warning lights and
wheel again and then lock the steering
gauges.
wheel.
3-23
Convenient features of your vehicle
Heated steering wheel
To turn the heated steering wheel off,
Horn
(if equipped)
press the button again. The indicator
on the button will turn off.
■ Type A
i
Information
The heated steering wheel will turn off
automatically approximately 30 min-
utes after the heated steering wheel is
turned on.
NOTICE
OTLE045007
Do not install any cover or acces-
OTL045012
■ Type B
sory on the steering wheel. This
cover or accessory could cause
To sound the horn, press the area
damage to the heated steering
indicated by the horn symbol on your
wheel system.
steering wheel (see illustration). The
horn will operate only when this area
is pressed.
NOTICE
Do not strike the horn severely to
OTLE045008
operate it, or hit it with your fist.
Do not press on the horn with a
When the ignition switch is in the ON
sharp-pointed object.
position or when the engine is running,
press the heated steering wheel but-
ton to warm the steering wheel. The
indicator on the button will illuminate.
3-24
MIRRORS
Inside rearview mirror
Day/night rearview mirror
WARNING
(if equipped)
Before you start driving, adjust the
rearview mirror to the center on the
NEVER adjust the mirror while
view through the rear window.
driving. This may cause loss of
vehicle control resulting in an
WARNING
accident.
Night
3
Make sure your line of sight is
NOTICE
not obstructed. Do not place
objects in the rear seat, cargo
When cleaning the mirror, use a
area, or behind the rear head-
paper towel or similar material
rests which could interfere with
dampened with glass cleaner. Do
your vision through the rear
not spray glass cleaner directly on
Day
window.
the mirror as that may cause the
OTL045013
liquid cleaner to enter the mirror
Make this adjustment before you
housing.
start driving and while the day/night
WARNING
lever is in the day position.
Pull the day/night lever toward you to
To prevent serious injury during
reduce glare from the headlights of
an accident or deployment of
the vehicles behind you during night
the air bag, do not modify the
driving.
rearview mirror and do not
install a wide mirror.
Remember that you lose some
rearview clarity in the night position.
3-25
Convenient features of your vehicle
Electric Chromic Mirror (ECM)
Electric chromic mirror (ECM)
(if equipped)
with compass (if equipped)
The electric rearview mirror automati-
Rearview display
cally controls the glare from the head-
lamp of the car behind you in night-
time or low light driving conditions.
When the engine is running, the
glare is automatically controlled by
the sensor mounted in the rearview
Indicator
Sensor
mirror. The sensor detects the light
level around the vehicle, and auto-
OTLE045009
matically adjusts to control the head-
lamp glare from vehicles behind you.
To operate the electric rearview
mirror:
Whenever the shift lever is placed in
OTLE045015
R (Reverse), the mirror will automat-
•
Press the ON/OFF button (1) to
1. Feature Control Button
ically go to the brightest setting in
turn the automatic dimming func-
order to improve the drivers view
tion off. The mirror indicator light
2. Status Indicator LED
behind the vehicle.
will turn off.
3. Rear Light Sensor
Press the ON/OFF button (1) to
4. Display Window
turn the automatic dimming func-
Automatic dimming rear view mirror
tion on. The mirror indicator light
automatically controls the glare of
will illuminate.
the headlights of the vehicle behind
•
The mirror defaults to the ON posi-
you when it is turned on by pressing
tion whenever the ignition switch or
and holding the button (1) for more
the Engine Start/Stop button is in
than 3 but less than 6 seconds. It is
the ON position.
turned off by pressing and holding
the button (1) once more for more
than 3 seconds but less than 6 sec-
onds.
3-26
1. To operate Compass feature
2. Calibration procedure
3. Setting the compass zone
Press and release the compass but-
Press and hold the button for more
1. Find your current location and
ton, then the vehicle's directional
than 6 but less than 9 seconds. When
variance zone number on the
heading will be displayed. Pressing
the compass memory is cleared a "C"
zone map.
and releasing the button again will
will appear in the display.
Europe
turn off the display.
- Driving the vehicle in a circle at
3
Heading display
less than 8km/h 2 times or until the
compass heading appears.
- E : East
- Driving in a circle in right-handed
- W : West
direction and opposite direction are
- S : South
possible, and if the calibration is
- N : North
completed, the compass heading
ex) NE : North East
will appear.
- Keep driving in a circle until a com-
pass heading appears.
B520C01JM
Africa
B520C05JM
3-27
Convenient features of your vehicle
Asia
3. Press the button until the new zone
(Continued)
number appears in the display.
After you stop pressing the button
4. When cleaning the mirror, use
in, the display will show a compass
a paper towel or similar mate-
direction within a few seconds.
rial dampened with glass
cleaner. Do not spray glass
cleaner directly on the mirror
CAUTION
as that may cause the liquid
cleaner to enter the mirror
1. Do not install the ski rack,
housing.
antenna, etc. which are
attached to the vehicle by
B520C03JM
means of a magnet.They affect
South America
the operation of the compass.
2. If the compass deviates from
the correct indication soon
after repeated adjustment, we
recommend that you have the
compass checked at an
authorized HYUNDAI dealer.
3. The compass may not indi-
cate the correct compass
point in tunnels or while driv-
ing up or down a steep hill.
B520C04JM
(The compass returns to the
2. Press and hold the button for more
correct compass point when
than 3 but less than 6 seconds.
the vehicle moves to an area
The current zone number will
where the geomagnetism is
appear in the display.
stabilized.)
(Continued)
3-28
Outside rearview mirror
WARNING
CAUTION
•
The right outside rearview mir-
•
Do not scrape ice off the mir-
ror is convex. In some coun-
ror face; this may damage the
tries, the left outside rearview
surface of the glass.
mirror is also convex. Objects
•
If the mirror is jammed with
seen in the mirror are closer
ice, do not adjust the mirror
3
than they appear.
by force. Use an approved
•
Use your interior rearview
spray de-icer
(not radiator
mirror or turn your head and
antifreeze) spray, or a sponge
look to determine the actual
or soft cloth with very warm
distance of following vehicles
water, or move the vehicle to a
OTL045018
when changing lanes.
warm place and allow the ice
to melt.
Be sure to adjust mirror angles
before driving.
Your vehicle is equipped with both
WARNING
left-hand and right-hand outside
Do not adjust or fold the outside
rearview mirrors.
rearview mirrors while driving.
The mirror can be adjusted remotely
This may cause loss of vehicle
with the remote switch.
control resulting in an accident.
The mirror heads can be folded to
prevent damage during an automatic
car wash or when passing through a
narrow street.
3-29
Convenient features of your vehicle
NOTICE
Folding the outside rearview
mirror
•
The mirrors stop moving when
they reach the maximum adjust-
ing angles, but the motor contin-
ues to operate while the switch
is pressed. Do not press the
switch longer than necessary,
the motor may be damaged.
•
Do not attempt to adjust the out-
side rearview mirror by hand or
OTL045069
the motor may be damaged.
Adjusting the rearview mirrors:
1. Press either the L (left side) or R
OTL045019
(right side) button (1) to select the
Manual type
rearview mirror you would like to
To fold the outside rearview mirror,
adjust.
grasp the housing of the mirror and
2. Use the mirror adjustment control
then fold it toward the rear of the
(2) to position the selected mirror
vehicle.
up, down, left or right.
3. After adjustment, put the button
into neutral
(center) position to
prevent inadvertent adjustment.
3-30
- The mirror will fold or unfold when
the door is locked or unlocked by
the button on the outside door
handle.
- The mirror will unfold when you
approach the vehicle (all doors
closed and locked) with a smart
key in possession. (if equipped)
3
NOTICE
OTL045020
The electric type outside rearview
mirror operates even though the
Electric type (if equipped)
ignition switch is in the LOCK/OFF
Left : The mirror will unfold.
position. However, to prevent
Right : The mirror will fold.
unnecessary battery discharge,
do not adjust the mirrors longer
Center (AUTO) :
than necessary while the engine is
The mirror will fold or unfold automat-
not running.
ically as follows:
• Without smart key system
NOTICE
- The mirror will fold or unfold when
Do not fold the electric type out-
the door is locked or unlocked by
side rearview mirror by hand. It
the remote key. (if equipped)
could cause motor failure.
• With smart key system
- The mirror will fold or unfold when
the door is locked or unlocked by
the smart key.
3-31
Convenient features of your vehicle
WINDOWS
Power windows

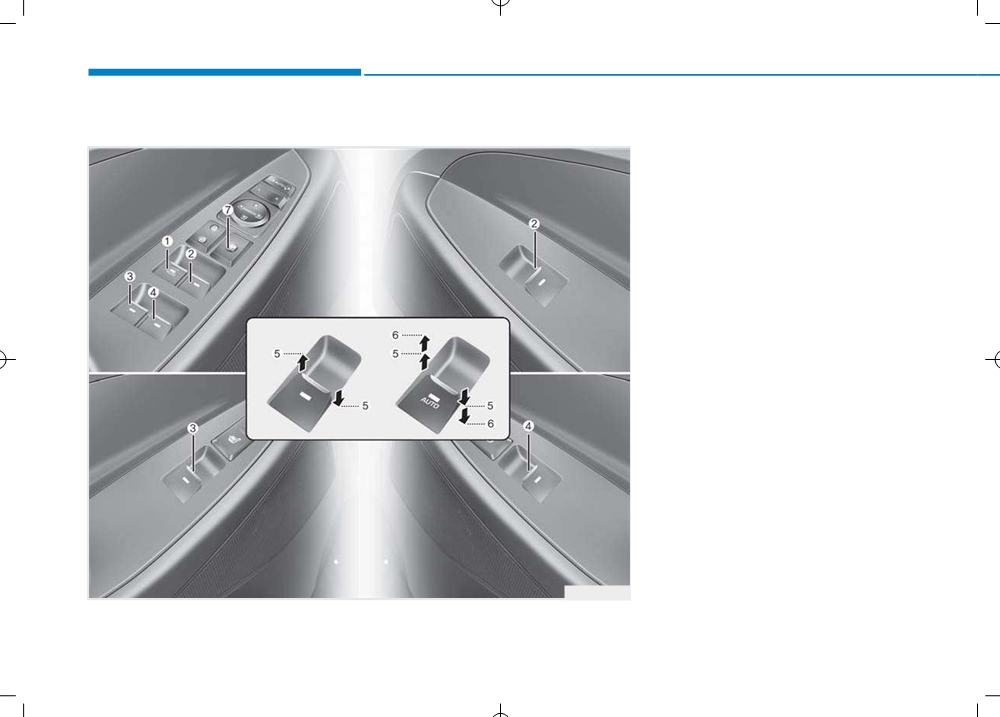

(1) Driver’s door power window
switch
(2) Front passenger’s door power
window switch
(3) Rear door (left) power window
switch
(4) Rear door (right) power window
switch
(5) Window opening and closing
(6) Automatic power window*
(7) Power window lock switch
* : if equipped
OTL045023
3-32
The ignition switch must be in the ON
Window opening and closing
i
Information
position to be able to raise or lower
the windows. Each door has a Power
•
In cold and wet climates, power win-
Window switch to control that door's
dows may not work properly due to
window. The driver has a Power
freezing conditions.
Window Lock switch which can block
•
While driving with the rear windows
the operation of passenger windows.
down or with the sunroof
(if
The power windows will operate for
equipped) opened
(or partially
3
approximately 30 seconds after the
opened), your vehicle may demon-
ignition switch is placed in the ACC
strate a wind buffeting or pulsation
or OFF position. However, if the front
noise. This noise is normal and can be
doors are opened, the Power
reduced or eliminated by taking the
Windows cannot be operated even
following actions. If the noise occurs
within the 30 second period.
with one or both of the rear windows
OTL045024
down, partially lower both front win-
To open:
dows approximately 2.5 cm (1 inch).
WARNING
Press the window switch down to the
If you experience the noise with the
first detent position (5). Release the
To avoid serious injury or death,
sunroof open, slightly close the sun-
switch when you want the window to
do not extend your head, arms
roof.
stop.
or body outside the windows
while driving.
To close:
Pull the window switch up to the first
detent position (5). Release the win-
dow switch when you want the win-
dow to stop.
3-33
Convenient features of your vehicle
Auto up/down window
To reset the power windows
Automatic reversal (if equipped)
(if equipped)
If the power windows do not operate
Pressing or pulling up the power win-
normally, the automatic power win-
dow switch momentarily to the sec-
dow system must be reset as follows:
ond detent position
(6) completely
1. Place the ignition switch to the ON
lowers or lifts the window even when
position.
the switch is released. To stop the
2. Close the window and continue
window at the desired position while
pulling up on the power window
the window is in operation, pull up or
switch for at least one second.
press down and release the switch.
If the power windows do not operate
properly after resetting, it is recom-
mended that the system be checked
by an authorized HYUNDAI dealer.
OLF044032
If a window senses any obstacle
while it is closing automatically, it will
stop and lower approximately 30 cm
(12 inches) to allow the object to be
cleared.
If the window detects the resistance
while the power window switch is
pulled up continuously, the window
will stop upward movement then
lower approximately 2.5 cm (1 inch).
If the power window switch is pulled
up continuously again within 5 sec-
onds after the window is lowered by
the automatic window reversal fea-
ture, the automatic window reversal
will not operate.
3-34
Power window lock switch
When the power window lock switch
i
Information
is pressed:
The automatic reverse feature is only
• The driver's master control can
active when the “Auto Up” feature is
operate all the power windows.
used by fully pulling up the switch to
• The front passenger's control can
the second detent.
operate the front passenger's
power window.
WARNING
3
• The rear passenger's control can-
not operate the rear passengers'
Make sure body parts or other
power window.
objects are safely out of the way
before closing the windows to
avoid injuries or vehicle damage.
WARNING
OTL045025
Objects less than 4 mm (0.16
inch) in diameter caught between
The driver can disable the power
Do not allow children to play
the window glass and the upper
window switches on the rear passen-
with the power windows. Keep
window channel may not be
gers' doors by pressing the power
the driver’s door power window
detected by the automatic reverse
window lock switch.
lock switch in the LOCK posi-
window and the window will not
tion. Serious injury or death can
stop and reverse direction.
result from unintentional win-
dow operation by a child.
3-35
Convenient features of your vehicle
NOTICE
WARNING
(Continued)
•
To prevent possible damage to
•
Do not allow children to play
the power window system, do
•
NEVER leave the keys in your
with the power windows. Keep
not open or close two windows
vehicle with unsupervised
the driver’s door power window
or more at the same time. This
children, when the engine is
lock switch in the LOCK posi-
will also ensure the longevity of
running.
tion
(pressed). Serious injury
the fuse.
•
NEVER leave any child unat-
can result from unintentional
window operation by the child.
•
Never try to operate the main
tended in the vehicle. Even
switch on the driver's door and
very young children may inad-
•
Do not extend your head,
the individual door window
vertently cause the vehicle to
arms or body outside the win-
switch in opposite directions at
move, entangle themselves in
dows while driving.
the same time. If this is done, the
the windows, or otherwise
window will stop and cannot be
injure themselves or others.
opened or closed.
•
Always double check to make
sure all arms, hands, head
and other obstructions are
safely out of the way before
closing a window.
(Continued)
3-36
PANORAMA SUNROOF (IF EQUIPPED)
i
Information
WARNING
• In cold and wet climates, the sun-
roof may not work properly due to
•
Make sure heads, other body
freezing conditions.
parts or objects are out of the
way before using the sunroof.
• After washing the car or after there
is rain, be sure to wipe off any water
•
Do not leave the engine run-
that is on the sunroof before operat-
ning and the key in your vehi-
3
ing it.
cle with unsupervised children.
Unattended children could
NOTICE
operate the sunroof, which
OTL045026
could result in serious injury.
•
Do not continue to move the sun-
If your vehicle is equipped with a
roof control lever after the sun-
sunroof, you can slide or tilt your
roof is fully opened, closed, or
sunroof with the sunroof control lever
WARNING
tilted. Damage to the motor or
located on the overhead console.
system components could occur.
Never adjust the sunroof or
•
Make sure the sunroof is closed
sunshade while driving. This
The ignition switch must be in the ON
fully when leaving your vehicle.
could result in loss of control
position before you can open or
If the sunroof is open, rain or
and an accident that may cause
close the sunroof.
snow may leak through the sun-
death, serious injury, or proper-
roof and wet the interior as well
ty damage.
The sunroof can be operated for
as cause theft.
approximately 30 seconds after the
ignition key is removed or turned to
the ACC or LOCK(or OFF) position.
However, if the front door is opened,
the sunroof cannot be operated even
within 30 seconds.
3-37
Convenient features of your vehicle
Sunshade
Sliding the sunroof
When the sunshade is opened
When the sunshade is closed
If you pull the sunroof control lever
backward, the sunroof glass will slide
all the way open. To stop the sunroof
movement at any point, pull or push
the sunroof control lever momentarily.
i
Information
Only the front glass of the panorama
sunroof opens and closes.
OTL045027
OTL045028
• To open the sunshade, pull the
sunroof control lever backward (1)
If you pull the sunroof control lever
to the first detent position.
backward to the second detent, the
sunshade will slide all the way open
• To close the sunshade when the
then the sunroof glass will slide all
sunroof glass is closed, push the
the way open. To stop the sunroof
sunroof control lever forward (2).
movement at any point, pull or push
To stop the sliding at any point, pull
the sunroof control lever momentarily.
or push the sunroof control lever
momentarily.
3-38
