Your vehicle at a glance

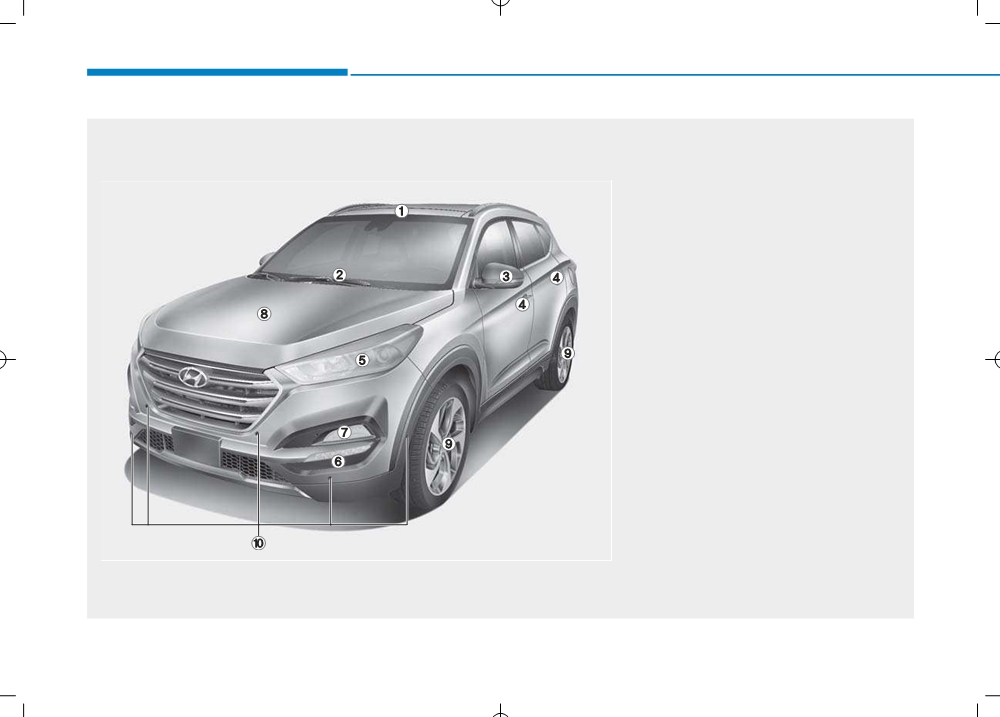

EXTERIOR OVERVIEW (I)
■ Front view
1. Panorama sunroof
3-37
2. Front windshield wiper blades
7-42
3. Outside rearview mirror
3-29
4. Door locks
3-14
5. Head lamp
3-110, 7-76
6. DRL (Daytime Running Light)
3-114
7. Front fog lamp
3-112
8. Hood
3-42
9. Tires and wheels
7-48
10. Driver assist system
3-126
The actual shape may differ from the illustration.
OTLE015006
1-2

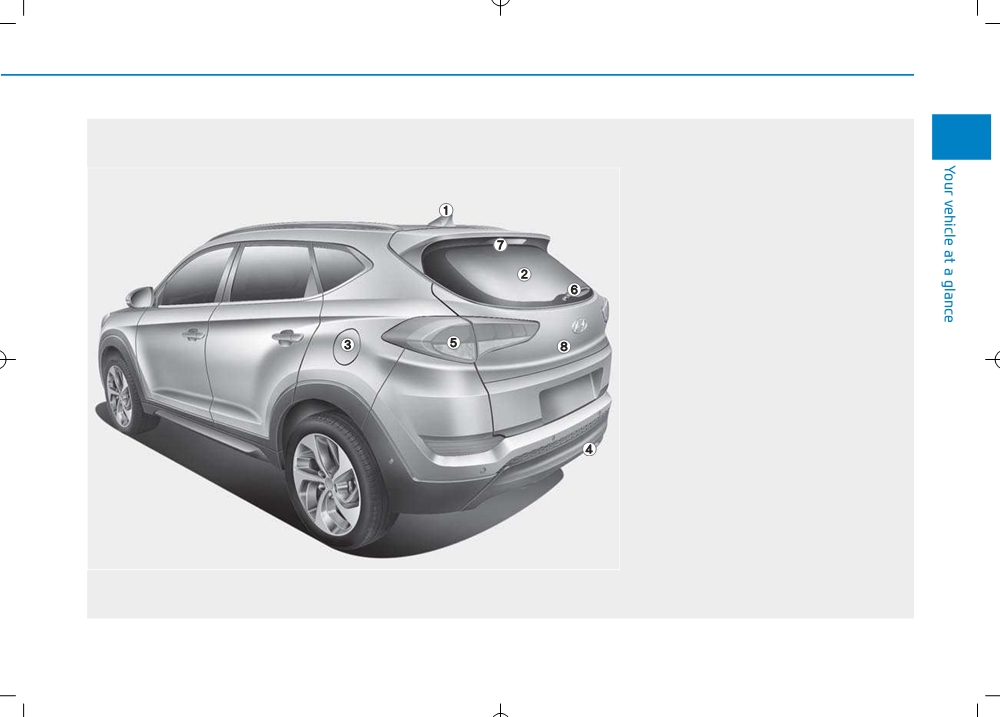

EXTERIOR OVERVIEW (II)
■ Rear view
1
1. Antenna
4-3
2. Defroster
3-152
3. Fuel filler door
3-44
4. Towing hook
6-34
5. Rear combination lamp
7-87
6. Rear window wiper blade
7-43
7. High mounted stop lamp
7-90
8. Tailgate
3-47
The actual shape may differ from the illustration.
OTL015002
1-3
Your vehicle at a glance

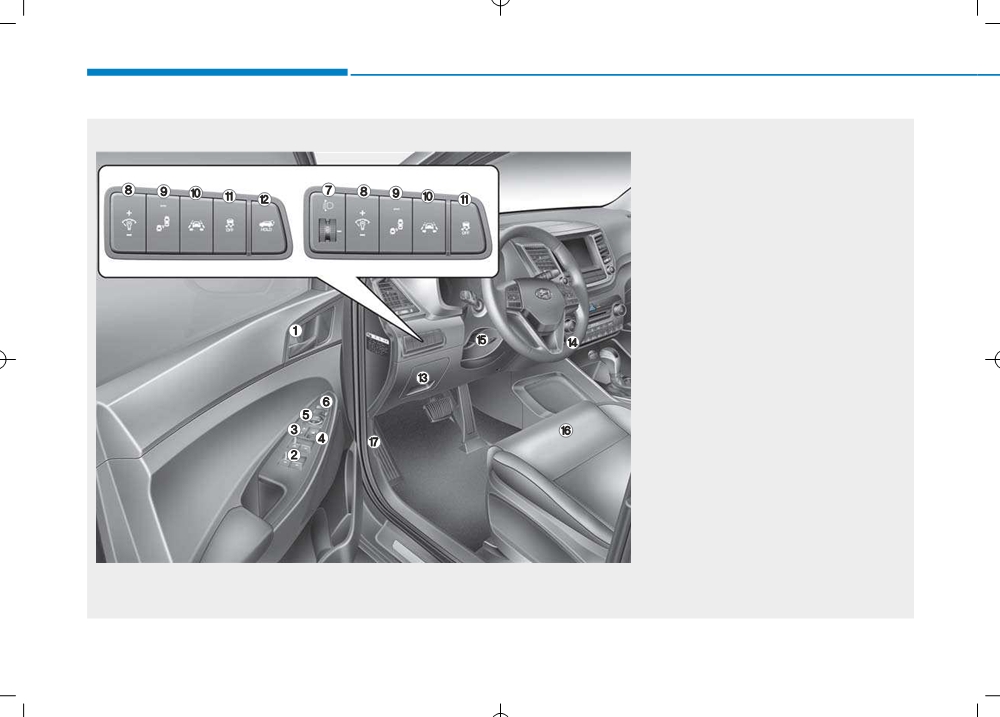

INTERIOR OVERVIEW
1. Door lock/unlock button
3-16
2. Power window switches
3-32
3. Central door lock switch
3-17
4. Power window lock switch
3-35
5. Outside rearview mirror control
switch
3-30
6. Outside rearview mirror folding
button
3-31
7. Headlight leveling device
3-114
8. Instrument panel illumination
control switch
3-62
9. Blind spot detection (BSD) button
5-82
10. Lane keeping assist system
(LKAS)
5-106
11. ESC OFF button
5-55
12. Power tailgate button
3-49
13. Fuse box
7-60
14. Steering wheel
3-22
15. Steering wheel tilt control
3-23
16. Seat
2-4
17. Hood release lever
3-42
The actual shape may differ from the illustration.
OTLE015003
1-4

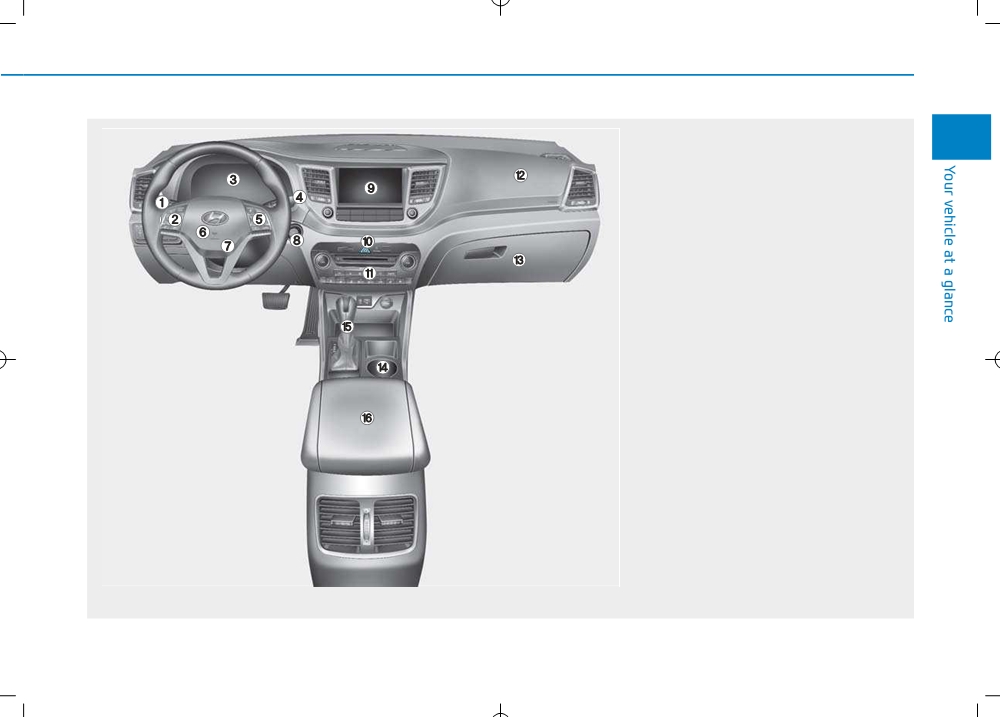

INSTRUMENT PANEL OVERVIEW (I)
1
1. Light control/Turn signals
3-109
2. Steering wheel audio controls/
Bluethooth phone controls
4-4
3. Instrument cluster
3-60
4. Wiper/Washer
3-122
5. Speed limit control/
Cruise control
5-115/5-117
6. Horn
3-24
7. Driver’s front air bag
2-52
8. Ignition switch
5-6
9. Audio/AVN
4-6/Separate manual
10. Hazard warning flasher switch
6-2
11. Climate control system
3-154, 3-165
12. Passenger’s front air bag
2-52
13. Glove box
3-184
14. Cup holder
3-186
15. Shift lever
5-20, 5-24, 5-31
16. Console box
3-183
The actual shape may differ from the illustration.
OTL015004
1-5
Your vehicle at a glance

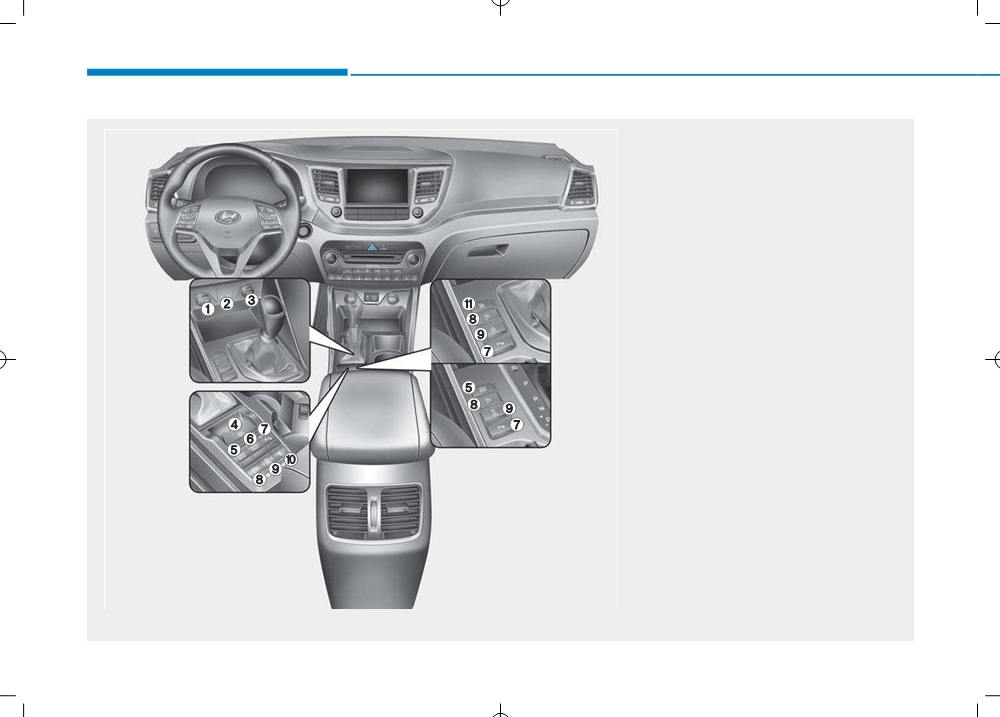

INSTRUMENT PANEL OVERVIEW (II)
1. Power outlet
3-188
2. Aux, USB and iPod®
4-2
3. Cigarette lighter
3-190
4. Electronic parking brake (EPB)
■ Type B
switch
5-43
5. Drive mode button
5-80
6. AUTO HOLD button
5-49
7. Rear parking assist button /
■ Type C
Parking assist system
3-131/3-127
8. Downhill brake control (DBC) button..5-61
■ Type A
9.4WD LOCK button/
Idle stop and go (ISG)
5-65/5-72
10. Smart parking assist system (SPAS)
button
3-134
11. Flex steering wheel button
5-78
The actual shape may differ from the illustration.
OTLE015005
1-6

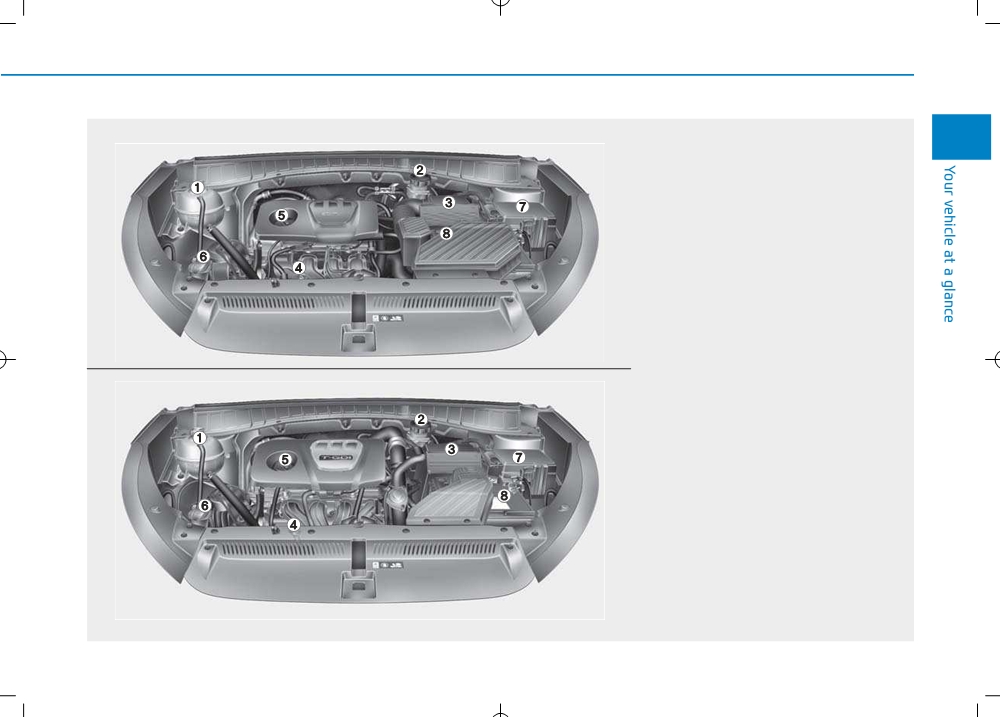

ENGINE COMPARTMENT
■ Gasoline Engine (Gamma 1.6L GDI)
1
1. Engine coolant reservoir/
Radiator cap
7-31
2. Brake/clutch fluid reservoir
7-35
3. Air cleaner
7-38
4. Engine oil dipstick
7-28
5. Engine oil filler cap
7-28
6. Windshield washer fluid reservoir
7-36
■ Gasoline Engine (Gamma 1.6L T-GDI)
7. Fuse box
7-60
8. Battery
7-44
The actual engine room in the vehicle may differ from the illustration.
OTLE075001/OTLE075002
1-7
Your vehicle at a glance

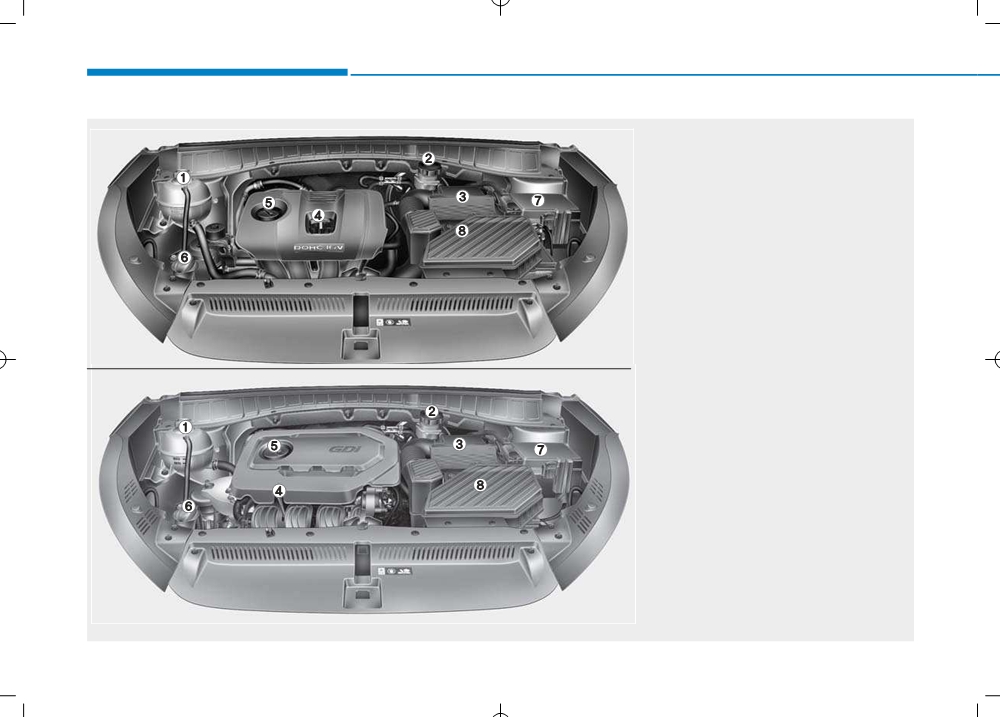

■ Gasoline Engine (Nu 2.0 MPI)
1. Engine coolant reservoir/
Radiator cap
7-31
2. Brake/clutch fluid reservoir
7-35
3. Air cleaner
7-38
4. Engine oil dipstick
7-28
5. Engine oil filler cap
7-28
6. Windshield washer fluid reservoir
7-36
■ Gasoline Engine (Theta II 2.4 GDI)
7. Fuse box
7-60
8. Battery
7-44
The actual engine room in the vehicle may differ from the illustration.
OTLE075003/OTLE075104
1-8

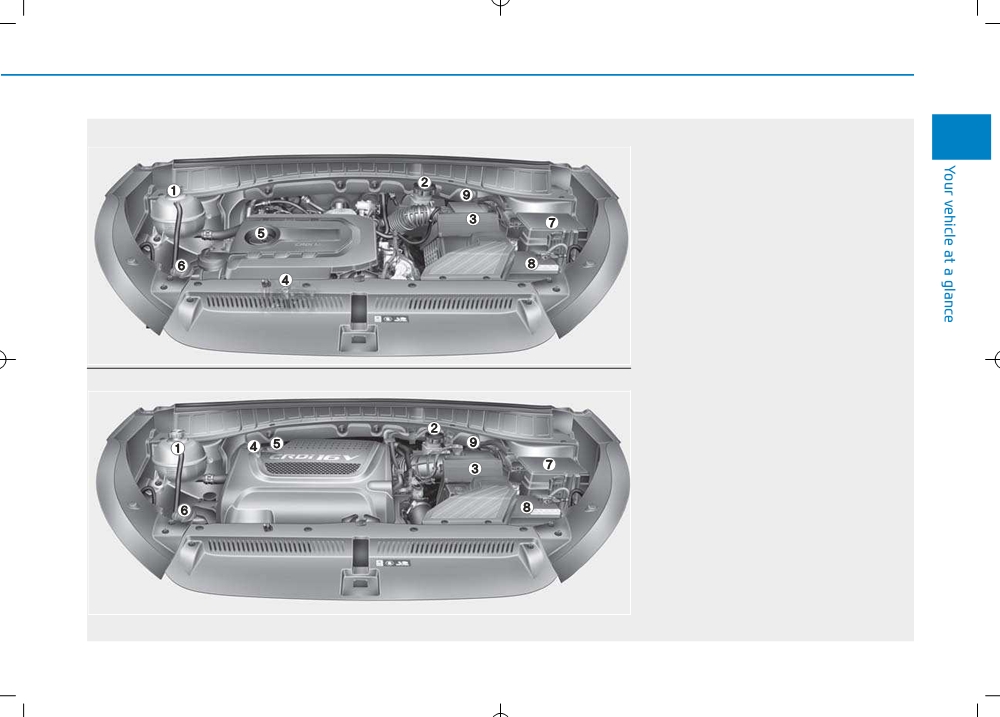

■ Diesel Engine (U2 1.7 TCI)
1
1. Engine coolant reservoir/
Radiator cap
7-31
2. Brake/clutch fluid reservoir
7-35
3. Air cleaner
7-38
4. Engine oil dipstick
7-29
5. Engine oil filler cap
7-30
6. Windshield washer fluid reservoir
7-36
■ Diesel Engine (R 2.0 TCI)
7. Fuse box
7-60
8. Battery
7-44
9. Fuel filter
7-37
The actual engine room in the vehicle may differ from the illustration.
OTL075002/OTL075001
1-9
Safety system of your vehicle
This chapter provides you with important information about how to protect yourself and your passengers.
It explains how to properly use your seats and seat belts, and how your air bags work.
Additionally, this chapter explains how to properly restrain infants and children in your vehicle.
2
Important safety precautions
2-2
Child Restraint System (CRS)
2-38
Always wear your seat belt
2-2
Our Recommendation: Children always in the rear ...2-38
Restrain all children
2-2
Selecting a Child Restraint System (CRS)
2-39
Air bag hazards
2-2
Installing a Child Restraint System (CRS)
2-41
Driver distraction
2-2
Air bag
Control your speed
2-3
- supplemental restraint system
2-50
Keep your vehicle in safe condition
2-3
Where are the air bags?
2-52
Seats
2-4
How does the air bags system operate?
2-57
Safety precautions
2-5
What to expect after an air bag inflates
2-61
Front seats
2-6
Do not install a Child Restraint System on the front
Rear seats
2-13
passenger seat unless the air bag is deactivated ...2-62
Headrest
2-16
Why didn't my air bag go off in a collision?
2-63
Seat warmers and air ventilation seats
2-20
SRS care
2-68
Seat belts
2-24
Additional safety precautions
2-69
Seat belt safety precautions
2-24
Air bag warning labels
2-69
Seat belt warning light
2-25
Active hood lift system
2-70
Seat belt restraint system
2-28
Possible activation situations
2-70
Additional seat belt safety precautions
2-34
Non-activation situations
2-71
Care of seat belts
2-37
System malfunction
2-72
Safety system of your vehicle
IMPORTANT SAFETY PRECAUTIONS
You will find many safety precautions
Restrain all children
Driver distraction
and recommendations throughout
All children under age 13 should ride
Driver distraction presents a serious
this section, and throughout this man-
in your vehicle properly restrained in
and potentially deadly danger, espe-
ual. The safety precautions in this sec-
a rear seat, not the front seat. Infants
cially for inexperienced drivers. Safety
tion are among the most important.
and small children should be
should be the first concern when
restrained in an appropriate Child
behind the wheel and drivers need to
Always wear your seat belt
Restraint System. Larger children
be aware of the wide array of potential
should use a booster seat with the
distractions, such as drowsiness,
A seat belt is your best protection in
lap/shoulder belt until they can use
reaching for objects, eating, personal
all types of accidents. Air bags are
the seat belt properly without a
grooming, other passengers, and
designed to supplement seat belts,
booster seat.
using cellular phones.
not replace them. So even though
your vehicle is equipped with air bags,
Drivers can become distracted when
they take their eyes and attention off
ALWAYS make sure you and your
Air bag hazards
passengers wear your seat belts, and
the road or their hands off the wheel
While air bags can save lives, they
to focus on activities other than driv-
wear them properly.
can also cause serious or fatal
ing. To reduce your risk of distraction
injuries to occupants who sit too
and an accident:
close to them, or who are not prop-
• ALWAYS set up your mobile devices
erly restrained. Infants, young chil-
(i.e., MP3 players, phones, naviga-
dren, and short adults are at the
tion units, etc.) when your vehicle is
greatest risk of being injured by an
parked or safely stopped.
inflating air bag. Follow all instruc-
tions and warnings in this manual.
• ONLY use your mobile device when
allowed by laws and conditions per-
mit safe use. NEVER text or email
while driving. Most countries have
laws prohibiting drivers from texting.
Some countries and cities also pro-
hibit drivers from using handheld
phones.
2-2
• NEVER let the use of a mobile device
Keep your vehicle in safe condi-
distract you from driving. You have a
tion
responsibility to your passengers and
Having a tire blowout or a mechanical
others on the road to always drive
failure can be extremely hazardous. To
safely, with your hands on the wheel
2
reduce the possibility of such prob-
as well as your eyes and attention on
lems, check your tire pressures and
the road.
condition frequently, and perform all
regularly scheduled maintenance.
Control your speed
Excessive speed is a major factor in
crash injuries and deaths. Generally,
the higher the speed, the greater the
risk, but serious injuries can also
occur at lower speeds. Never drive
faster than is safe for current condi-
tions, regardless of the maximum
speed posted.
2-3
Safety system of your vehicle

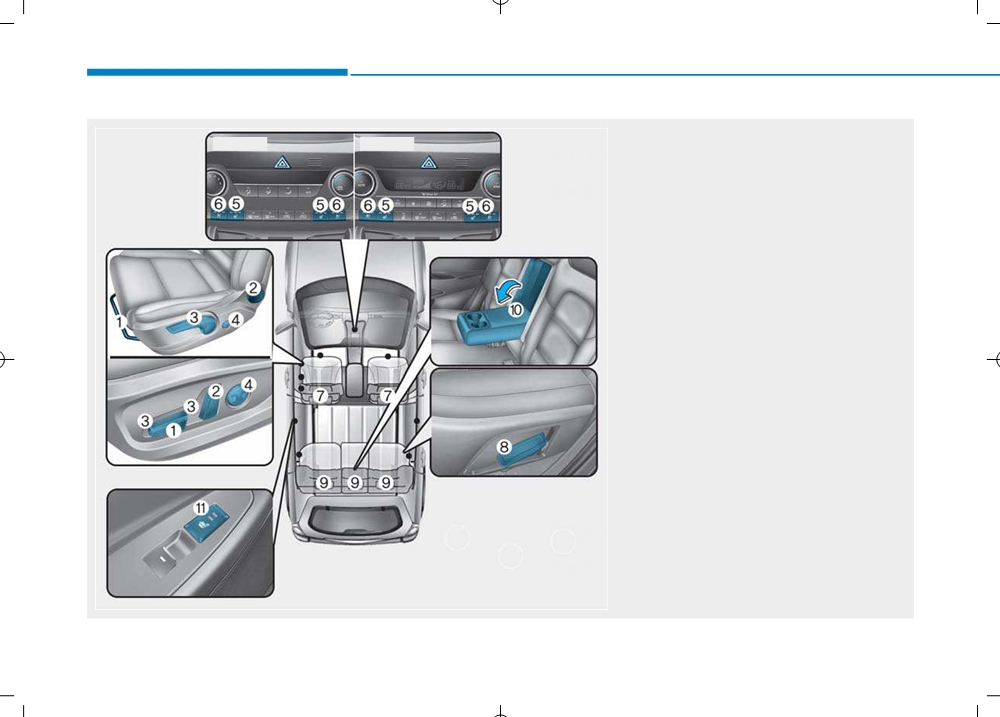

SEATS
■ Type A
■ Type B
Front seat
(1) Forward and backward
(2) Seatback angle
(3) Seat cushion height (Driver’s seat)
(4) Lumbar support (Driver’s seat)*
(5) Seat warmer*
(6) Air ventilation seat*
(7) Headrest
2nd row seat
(8) Seatback angle and folding
(9) Headrest
(10) Armrest
(11) Seat warmer*
* : if equipped
OTLE035001
2-4
Safety precautions
Air bags
(Continued)
Adjusting the seats so that you are sit-
You can take steps to reduce the risk
•
Hold the steering wheel by the
ting in a safe, comfortable position
of being injured by an inflating air
rim with hands at the 9 o’clock
plays an important role in driver and
bag. Sitting too close to an air bag
and 3 o’clock positions to min-
2
passenger safety together with the
greatly increases the risk of injury in
imize the risk of injuries to
seat belts and air bags in an accident.
the event the air bag inflates. Move
your hands and arms.
your seat as far back as possible
from front air bags, while still main-
•
NEVER place anything or any-
WARNING
one between the air bag.
taining control of the vehicle.
•
Do not allow the front passen-
Do not use a cushion that reduces
ger to place feet or legs on the
WARNING
friction between the seat and the
dashboard to minimize the risk
passenger.The passenger's hips
of leg injuries.
To reduce the risk of serious
may slide under the lap portion
of the seat belt during an acci-
injury or death from an inflating
air bag, take the following pre-
dent or a sudden stop.
cautions:
Serious or fatal internal injuries
• Adjust the driver’s seat as far
could result because the seat
to the rear as possible main-
belt cannot operate properly.
taining the ability to control of
the vehicle.
• Adjust the front passenger seat
as far to the rear as possible.
(Continued)
2-5
Safety system of your vehicle
Seat belts
Front seats
(Continued)
Always fasten your seat belt before
The front seat can be adjusted by
•
Do not route the seat belt
starting any trip.
using the control switches located on
across your neck, across sharp
At all times, passengers should sit
the outside of the seat cushion. Before
edges, or reroute the shoulder
upright and be properly restrained.
driving, adjust the seat to the proper
strap away from your body.
Infants and small children must be
position so that you can easily control
• Do not allow the seat belt to
restrained in appropriate Child Restraint
the steering wheel, foot pedals and
become caught or jammed.
Systems. Children who have outgrown a
controls on the instrument panel.
booster seat and adults must be
restrained using the seat belts.
WARNING
WARNING
Take the following precautions
when adjusting your seat:
Take the following precautions
• NEVER attempt to adjust the
when adjusting your seat belt:
seat while the vehicle is mov-
• NEVER use one seat belt for
ing. The seat could respond
more than one occupant.
with unexpected movement
and may cause loss of vehicle
• Always position the seatback
control resulting in an acci-
upright with the lap portion of
dent.
the seat belt snug and low
across the hips.
• Do not place anything under
the front seats. Loose objects
• NEVER allow children or small
in the driver’s foot area could
infants to ride in a passenger’s
interfere with the operation of
lap.
the foot pedals, causing an
(Continued)
accident.
(Continued)
2-6
Manual adjustment
(Continued)
CAUTION
•
Do not allow anything to inter-
fere with the normal position
To prevent injury:
and proper locking of the seat-
•
Do not adjust your seat while
2
back.
wearing your seat belt.
•
Do not place a cigarette lighter
Moving the seat cushion for-
on the floor or seat. When you
ward may cause strong pres-
operate the seat, gas may exit
sure on your abdomen.
out of the lighter causing a fire.
•
Do not allow your hands or
•
Use extreme caution when
fingers to get caught in the
picking small objects trapped
seat mechanisms while the
under the seats or between
seat is moving.
OTLE035002
the seat and the center con-
sole. Your hands might be cut

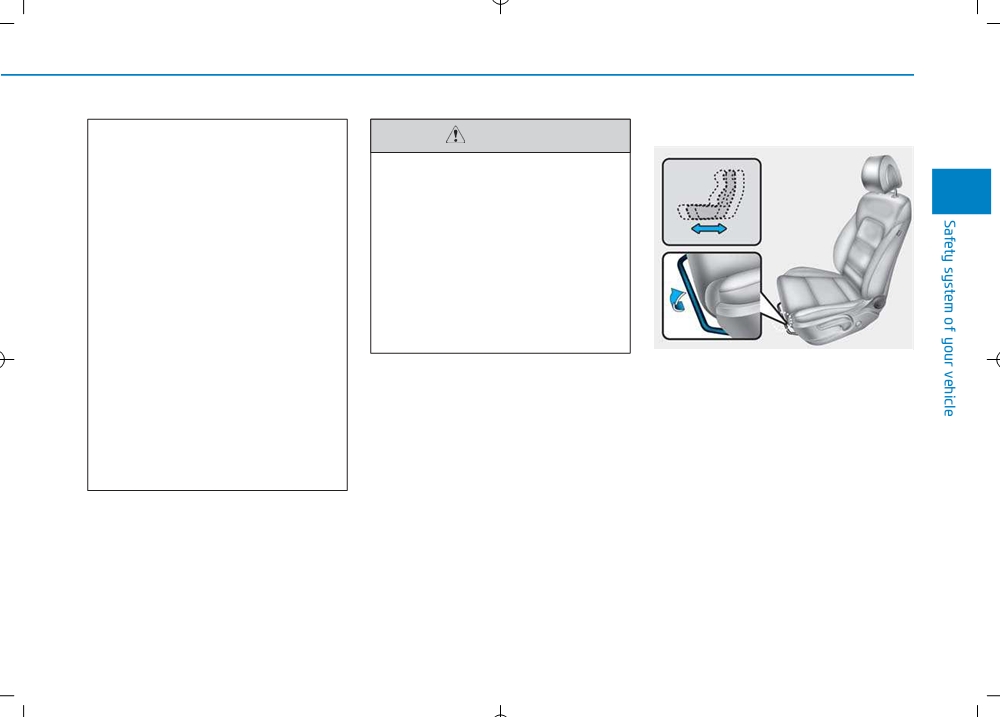

Forward and rearward adjustment
or injured by the sharp edges
To move the seat forward or rearward:
of the seat mechanism.
1. Pull up the seat slide adjustment
•
If there are occupants in the
lever and hold it.
rear seats, be careful while
2. Slide the seat to the position you
adjusting the front seat posi-
desire.
tion.
3. Release the lever and make sure
the seat is locked in place. Move
forward and rearward without using
the lever. If the seat moves, it is not
locked properly.
2-7
Safety system of your vehicle
Reclining seatback
Seat belts must be snug against your
hips and chest to work properly.
Sitting in a reclined position when
When the seatback is reclined, the
the vehicle is in motion can be dan-
shoulder belt cannot do its job
gerous. Even when buckled up, the
because it will not be snug against
protections of your restraint system
your chest. Instead, it will be in front
(seat belts and/or air bags) is greatly
of you. During an accident, you could
reduced by reclining your seatback.
be thrown into the seat belt, causing
neck or other injuries.
WARNING
The more the seatback is reclined,
the greater chance the passenger’s
NEVER ride with a reclined seat-
OTLE035003
back when the vehicle is moving.
hips will slide under the lap belt or
the passenger’s neck will strike the

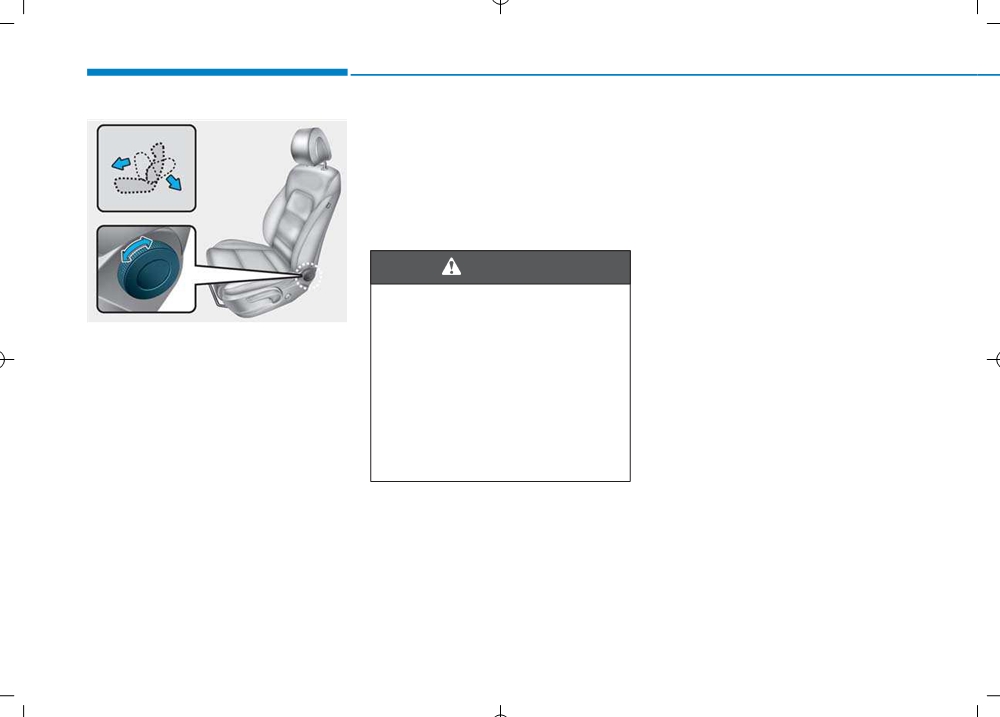

Seatback angle
Riding with a reclined seatback
shoulder belt.
To recline the seatback:
increases your chance of seri-
ous or fatal injuries in the event
1. Roll the seatback knob rearward.
of a collision or sudden stop.
2. Carefully lean back on the seat
Drivers and passengers should
and adjust the seatback to the
ALWAYS sit well back in their
position you desire.
seats, properly belted, and with
3. Release the knob and make sure
the seatbacks upright.
the seatback is locked in place.
2-8
|
|
|
