Hyundai Tucson Fuel Cell (2016 year). Instruction

Safety system of your vehicle

5. Remove as much slack from the

✽ NOTICE

belt as possible by pushing down

When the seat belt is allowed to

on the child restraint system while

retract to its fully stowed position, the

feeding the shoulder belt back into

retractor will automatically switch

the retractor.

from the “Automatic Locking” mode

6. Push and pull on the child restraint

to the emergency lock mode for nor-

system to confirm that the seat

mal adult usage.

belt is holding it firmly in place. If it

is not, release the seat belt and

WARNING

repeat steps 2 through 6.

7. Double check that the retractor is

If the retractor is not in the

OLMB033098

in the “Automatic Locking” mode

“Automatic Locking” mode, the

4. Slowly allow the shoulder portion

by attempting to pull more of the

child restraint can move when

of the seat belt to retract and listen

seat belt out of the retractor. If you

your vehicle turns or stops sud-

for an audible “clicking” or “ratchet-

cannot, the retractor is in the

denly. A child can be seriously

ing” sound. This indicates that the

“Automatic Locking” mode.

injured or killed if the child

retractor is in the

“Automatic

restraint is not properly anchored

Locking” mode. If no distinct sound

If your CRS manufacturer instructs or

in the car, including manually

is heard, repeat steps 3 and 4.

recommends you to use a tether

pulling the seat belt all the way

anchor with the lap/shoulder belt,

out to shift the rectractor to the

refer to the previous pages for more

“Automatic Locking” mode.

information.

To remove the child restraint, press

the release button on the buckle and

then pull the lap/shoulder belt out of

the restraint and allow the seat belt

to retract fully.

2-46

Safety system of your vehicle

This vehicle is equipped with an

WARNING

Advanced Supplemental Air Bag

System for the driver’s seat and front

AIR BAG SAFETY PRECAUTIONS

passenger’s seats.

The front air bags are designed to

ALWAYS use seat belts and child restraints - every trip, every time,

supplement the three-point seat

everyone! Even with air bags, you can be seriously injured or killed in

belts. For these air bags to provide

a collision if you are improperly belted or not wearing your seat belt

protection, the seat belts must be

when the air bag inflates.

worn at all times when driving.

NEVER place a child in any child restraint or booster seat in the front

You can be severely injured or killed

passenger seat. An inflating air bag could forcefully strike the infant

in an accident if you are not wearing

or child causing serious or fatal injuries.

a seat belt. Air bags are designed to

ABC - Always Buckle Children under age 13 in the back seat. It is the

supplement seat belts, but do not

safest place for children of any age to ride. If a child age 13 or older

replace them. Also, air bags are not

must be seated in the front seat, he or she must be properly belted

designed to deploy in every collision.

and the seat should be moved as far back as possible.

In some accidents, the seat belts are

All occupants should sit upright with the seatback in an upright posi-

the only restraint protecting you.

tion, centered on the seat cushion with their seat belt on, legs com-

fortably extended and their feet on the floor until the vehicle is parked

and the power cell module is turned off. If an occupant is out of posi-

tion during an accident, the rapidly deploying air bag may forcefully

contact the occupant causing serious or fatal injuries.

You and your passengers should never sit or lean unnecessarily

close to the air bags or lean against the door or center console.

Move your seat as far back as possible from front air bags, while still

maintaining control of the vehicle. NHTSA recommends that drivers

allow at least 10 inches (25 cm) between the center of the steering

wheel and the chest.

2-48

Where are the air bags?

■ Driver’s front air bag

WARNING

Driver’s and passenger’s front

air bags

To reduce the risk of serious

Your vehicle is equipped with a

injury or death from an inflating

Advanced Supplemental Restraint

front air bags, take the following

System (SRS) and lap/shoulder belts

precautions:

at both the driver and passenger

•

Seat belts must be worn at all

seating positions.

times to help keep occupants

The SRS consists of air bags which

positioned properly.

OLMB033058

are located in the center of the steer-

• Move your seat as far back as

■ Passenger’s front air bag

ing wheel and the passenger's side

possible from front air bags,

front panel pad above the glove box.

while still maintaining control

The air bags are labeled with the let-

of the vehicle.

ters “AIR BAG” embossed on the pad

• Never lean against the door or

covers.

center console.

• Do not allow the front passen-

ger to place their feet or legs on

the dashboard.

•

No objects should be placed

OLMB033059

over or near the air bag mod-

The purpose of the SRS is to provide

ules on the steering wheel,

the vehicle's driver and front passen-

instrument panel, and the front

gers with additional protection than

passenger's panel above the

that offered by the seat belt system

glove box. Such objects could

alone. The SRS uses sensors to

cause harm if the vehicle is in a

gather information about the driver's

crash severe enough to cause

seat position, the driver's and front

the air bags to deploy.

passenger's seat belt usage and

impact severity.

2-49

Safety system of your vehicle

Side impact air bags

The side impact air bags are

WARNING

designed to deploy only during certain

side impact collisions, depending on

To reduce the risk of serious

the crash severity, angle, speed and

injury or death from an inflating

point of impact.

side impact air bag, take the fol-

The side impact air bags do not only

lowing precautions:

deploy on the side of the impact but

•

Seat belts must be worn at all

also on the opposite side.

times to help keep occupants

For vehicles equipped with a rollover

positioned properly.

sensor the side and curtain air bags

•

Do not allow passengers to

on both sides of the vehicle may

lean their heads or bodies

OLMB033062

deploy if a rollover or possible

onto doors, put their arms on

rollover is detected.

the doors, stretch their arms

The side impact air bags are not

out of the window, or place

designed to deploy in all side impact

objects between the doors

or rollover situations.

and seats.

•

Hold the steering wheel at the

9 o’clock and 3 o’clock posi-

tions, to minimize the risk of

injuries to your hands and

arms.

OLM032310N

•

Do not use any accessory

seat covers. This could reduce

Your vehicle is equipped with a side

impact air bag in each seat. The pur-

or prevent the effectiveness

of the system.

pose of the air bag is to provide the

vehicle's driver and the front passen-

•

Do not place any objects over

ger with additional protection than that

the air bag or between the air

offered by the seat belt alone.

bag and yourself.

2-50

Curtain air bags

They are designed to help protect the

WARNING

heads of the front seat occupants

and the rear outboard seat occupants

•

Do not place any objects

in certain side impact collisions.

between the door and the

The curtain air bags are designed to

seat. They may become dan-

deploy only during certain side

gerous projectiles if the side

impact collisions, depending on the

impact air bag inflates.

crash severity, angle, speed and

•

Do not install any accessories

impact.

on the side or near the side

The curtain air bags do not only

impact air bags.

deploy on the side of the impact but

•

Do not cause impact to the

OLMB033064

also on the opposite side.

doors when the ignition

For vehicles equipped with a rollover

switch is in the ON position or

sensor the side and curtain air bags

this may cause the side air

on both sides of the vehicle may

bags to inflate.

deploy if a rollover or possible

•

If the seat or seat cover is

rollover is detected.

damaged, have the vehicle

The curtain air bags are not designed

checked and repaired by an

to deploy in all side impact or rollover

authorized HYUNDAI Tucson

situations.

Fuel Cell dealer.

OLM032311N

Curtain air bags are located along

both sides of the roof rails above the

front and rear doors.

2-51

Safety system of your vehicle

How does the air bags system

10. “PASSENGER AIR BAG OFF”

WARNING

operate?

indicator

11. Occupant classification system

To reduce the risk of serious

injury or death from an inflating

12. Driver’s and front passenger’s

curtain air bags, take the follow-

seat belt buckle sensors

ing precautions:

13. Anchor pre-tensioner assembly

•

All seat occupants must wear

seat belts at all times to help

The SRSCM continually monitors all

keep occupants positioned

SRS components while the ignition

properly.

switch is ON to determine if a crash

•

Properly secure child restraints

impact is severe enough to require

as far away from the door as

air bag deployment or pre-tensioner

possible.

seat belt deployment.

OLM039302N/Q

•

Do not allow passengers to

lean their heads or bodies

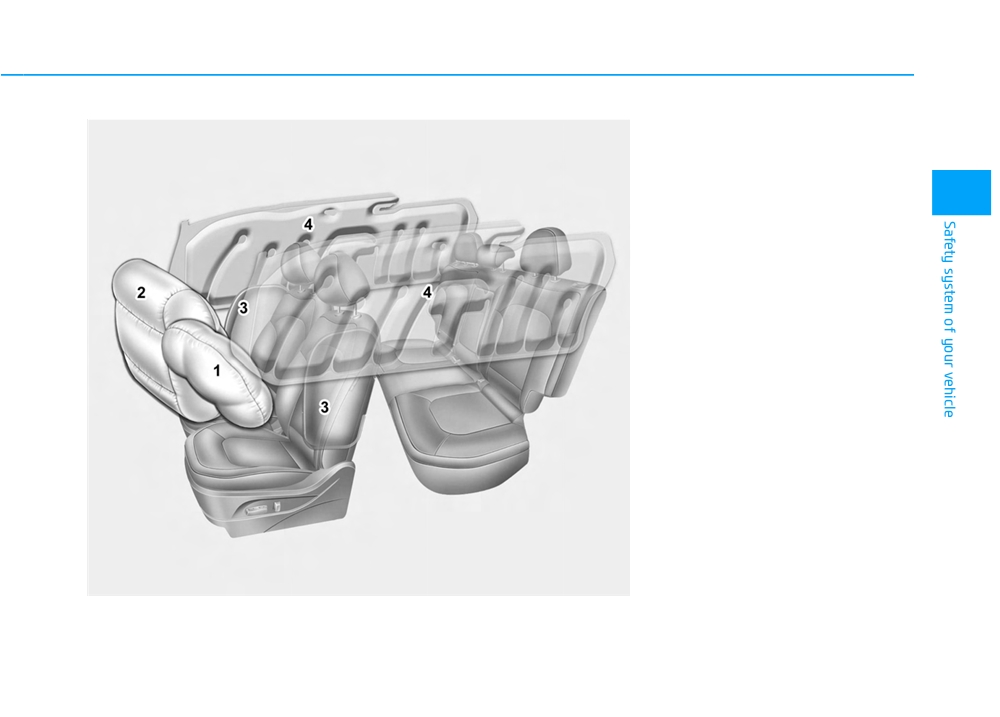

The SRS consists of the following

onto doors, put their arms on

components:

the doors, stretch their arms

1. Driver's front air bag module

out of the window, or place

2. Passenger's front air bag module

objects between the doors

and seats.

3. Side impact air bag modules

•

Do not open or repair the side

4. Curtain air bag modules

curtain air bags.

5. Retractor pre-tensioner assemblies

6. Air bag warning light

7. SRS control module (SRSCM)/

Rollover sensor

8. Front impact sensors

9. Side impact sensors

2-52

SRS warning light

During a moderate to severe frontal

WARNING

collision, sensors will detect the vehi-

cle’s rapid deceleration. If the rate of

If your SRS malfunctions, the

deceleration is high enough, the con-

air bag may not inflate properly

trol unit will inflate the front air bags.

during an accident increasing

The front air bags help protect the

the risk of serious injury or

The SRS

(Supplement Restraint

driver and front passenger by

death.

System) air bag warning light on the

responding to frontal impacts in

If any of the following condi-

instrument panel displays the air bag

which seat belts alone cannot provide

tions occur, your SRS is mal-

symbol depicted in the illustration. The

adequate restraint. When needed,

functioning:

system checks the air bag electrical

the side air bags help provide protec-

system for malfunctions. The light indi-

• The light does not turn on for

tion in the event of a side impact or

cates that there is a potential problem

approximately six seconds

rollover by supporting the side upper

with your air bag system, which could

when the ignition switch is

body area.

include your side and curtain air bags

placed in the ON position.

• Air bags are activated

(able to

used for rollover protection.

• The light stays on after illumi-

inflate if necessary) only when the

nating for approximately six

ignition switch is in the ON position.

seconds.

• Air bags inflate in the event of a

• The light comes on while the

severe frontal or side collision to

vehicle is in motion.

help protect the occupants from

• The light blinks when the

serious physical injury.

power cell module is running.

• There is no single speed at which

Have an authorized HYUNDAI

the air bags will inflate. Generally,

air bags are designed to inflate

Tucson Fuel Cell dealer inspect

the SRS as soon as possible if

based upon the severity of a colli-

sion and its direction. These two

any of these conditions occur.

factors determine whether the sen-

sors produce an electronic deploy-

ment/inflation signal.

2-53

Safety system of your vehicle

•

Air bag deployment depends on a

•

To help provide protection, the air

You can take steps to reduce the risk

number of factors including vehicle

bags must inflate rapidly. The

of being injured by an inflating air

speed, angles of impact and the

speed of air bag inflation is a con-

bag. The greatest risk is sitting too

density and stiffness of the vehicles

sequence of extremely short time

close to the air bag. An air bag needs

or objects which your vehicle

in which to inflate the air bag

about 10 inches (25 cm) of space to

impacts during a collision. The

between the occupant and the

inflate. NHTSA recommends that

determining factors are not limited

vehicle structures before the occu-

drivers allow at least

10 inches

to those mentioned above.

pant impacts those structures. This

(25 cm) between the center of the

speed of inflation reduces the risk

steering wheel and the chest.

•

The front air bags will completely

of serious or life-threatening

inflate and deflate in an instant. It is

injuries and is thus a necessary

virtually impossible for you to see

part of air bag design.

the air bags inflate during an acci-

dent. It is much more likely that you

However, the rapid air bag inflation

will simply see the deflated air bags

can also cause injuries which can

hanging out of their storage com-

include facial abrasions, bruises

partments after the collision.

and broken bones because the

inflation speed also causes the air

•

In addition to inflating in serious

bags to expand with a great deal of

side collisions, vehicles equipped

force.

with a rollover sensor, side and

curtain air bags will inflate if the

•

There are even circumstances

sensing system detects a rollover.

under which contact with the air

When a rollover is detected, side

bag can cause fatal injuries, espe-

cially if the occupant is positioned

and curtain air bags will remain

inflated longer to help provide pro-

excessively close to the air bag.

tection from ejection, especially

when used in conjunction with the

seat belts.

2-54

■ Driver’s front air bag (1)

■ Driver’s front air bag (2)

WARNING

To reduce the risk of serious

injury or death from an inflating

air bag, take the following pre-

cautions:

•

NEVER place a child restraint

in the front passenger seat.

Always properly restrain chil-

dren under age 13 in the rear

seats of the vehicle.

OLMB033054

OLMB033055

•

Adjust the front passenger’s

When the SRSCM detects a suffi-

Upon deployment, tear seams mold-

and driver’s seats as far to the

ciently severe impact to the front of

ed directly into the pad covers will

rear as possible while allow-

the vehicle, it will automatically

separate under pressure from the

ing you to maintain full con-

deploy the front air bags.

expansion of the air bags. Further

trol of the vehicle.

opening of the covers allows full

•

Hold the steering wheel with

inflation of the air bags.

hands at the 9 o’clock and 3

A fully inflated air bag, in combina-

o’clock positions.

tion with a properly worn seat belt,

•

Never place anything or any-

slows the driver's or the passenger's

one between the air bag and

forward motion, reducing the risk of

the seat occupant.

head and chest injury.

•

Do not allow the front passen-

ger to place their feet or legs

on the dashboard.

2-55

Safety system of your vehicle

■ Driver’s front air bag (3)

What to expect after an air bag

WARNING

inflates

To prevent objects from becom-

After a frontal or side air bag inflates,

ing dangerous projectiles when

it will deflate very quickly. Air bag

the passenger's air bag inflates:

inflation will not prevent the driver

from seeing out of the windshield or

•

Do not install or place any

being able to steer. Curtain air bags

objects

(drink holder, CD

may remain partially inflated for

holder, stickers, etc.) on the

some time after they deploy.

front passenger's panel above

OLMB033056

the glove box where the pas-

■ Passenger’s front air bag

senger's air bag is located.

WARNING

•

Do not install a container of

liquid air freshener near the

After an air bag inflates, take

instrument cluster or on the

the following precautions:

instrument panel surface.

• Open your windows and

doors as soon as possible

after impact to reduce pro-

longed exposure to the smoke

and powder released by the

inflating air bag.

OLMB033057

• Do not touch the air bag stor-

After complete inflation, the air bag

age area’s internal compo-

immediately starts deflating, enabling

nents immediately after an air

the driver to maintain forward visibili-

bag has inflated. The parts

ty and the ability to steer or operate

that come into contact with an

other controls.

inflating air bag may be very

hot.

2-56

Noise and smoke from inflating

Occupant Classification

WARNING

air bag

System (OCS)

When the air bags inflate, they make

•

Always wash exposed skin

a loud noise and they leave smoke

areas thoroughly with luke-

and powder in the air inside of the

warm water and mild soap.

vehicle. This is normal and is a result

•

Always have an authorized

of the ignition of the air bag inflator.

HYUNDAI Tucson Fuel Cell

After the air bag inflates, you may

dealer replace the air bag

feel substantial discomfort in breath-

immediately after deployment.

ing because of the contact of your

Air bags are designed to be

chest with both the seat belt and the

used only once.

air bag, as well as from breathing the

smoke and powder. The powder may

aggravate asthma for some people. If

OLMF034052N

you experience breathing problems

after an air bag deployment, seek

Your vehicle is equipped with an

medical attention immediately.

Occupant Classification System

Though the smoke and powder are

(OCS) in the front passenger's seat.

nontoxic, they may cause irritation to

The OCS is designed to detect the

the skin, eyes, nose, throat, etc. If

presence of a properly-seated front

this is the case, wash and rinse with

passenger and determine if the pas-

cold water immediately and seek

senger's front air bag should be

medical attention if the symptoms

enabled (may inflate) or not. The dri-

persist.

ver's front air bag is not affected or

controlled by the OCS.

2-57

Safety system of your vehicle

Main components of the

Front passenger seat adult occu-

The OCS may not function properly if

Occupant Classification System

pants who are properly seated and

the passenger takes actions which

wearing the seat belt properly,

can affect the classification system.

•

A detection device located within

should not cause the passenger air

These include:

the front passenger seat cushion.

bag to be automatically turned OFF.

•

Failing to sit in an upright position.

•

Electronic system to determine

However, if the occupant does not sit

whether the passenger air bag

•

Leaning against the door or center

in the seat properly (for example, by

systems

(both front and side)

console.

not sitting upright, by sitting on the

should be activated or deactivated.

•

Sitting towards the sides of the

edge of the seat, or by otherwise

•

An indicator light located on the

being out of position), this could

front of the seat.

instrument panel which illuminates

cause the sensor to turn the air bag

•

Putting their legs on the dashboard

the words "PASSENGER AIR BAG

OFF.

or resting them on other locations

OFF" indicating the front passen-

which reduce the passenger

You will find the "PASSENGER AIR

ger air bag system is deactivated.

weight on the front seat.

BAG OFF" indicator on the center

•

The instrument panel air bag indi-

facia panel. This system detects the

•

Wearing the seat belt improperly.

cator light is interconnected with

conditions 1-4 in the following table

•

Reclining the seatback.

the OCS.

and activates or deactivates the front

passenger air bag based on these

conditions.

Always be sure that you and all vehi-

cle occupants are seated properly

and wearing the seat belt properly for

the most effective protection by the

air bag and the seat belt.

2-58

Condition and operation in the front passenger Occupant Classification System

Indicator/Warning light

Devices

Condition detected by the

“PASSENGER

SRS

Front passenger

occupant classification system

AIR BAG OFF”

warning light

air bag

indicator light

1. Adult*1

Off

Activated

2. Infant*2 or child restraint sys-

Off

Deactivated

tem with 12 months old*3

3. Unoccupied

Off

Deactivated

4. Malfunction in the system

Off

Activated

*1 The system judges a person of adult size as an adult. When a smaller adult sits in the front

passenger seat, the system may recognize him/her as a child depending on his/her physique

and posture.

*2 Do not allow children to ride in the front passenger seat. When a larger child who has out-

grown a child restraint system sits in the front passenger seat, the system may recognize

him/her as an adult depending upon his/her physique or sitting position.

*3 Never install a child restraint system on the front passenger seat.

2-59

Safety system of your vehicle

WARNING

Riding in an improper position or placing weight on the front passenger's seat when it is unoccupied by a

passenger adversely affects the OCS. To reduce the risk of serious injury or death:

• NEVER put a heavy load in

• NEVER ride with the seat-

the front seat or seatback

back reclined when the

pocket.

vehicle is moving.

OLMB033099

OLMB033103

• NEVER place your feet on

• NEVER place your feet or

the front passenger seat-

legs on the dashboard.

back.

OLMB033100

OLMB033102

• NEVER sit with your hips

• NEVER lean on the door or

shifted towards the front

center console or sit on

of the seat.

one side of the front pas-

senger seat.

OLMB033101

OLMB033104

2-60

If the "PASSENGER AIR BAG OFF"

Do Not Install a Child Restraint

indicator is still on, ask the passen-

in the Front Passenger’s Seat

ger to move to the rear seat.

WARNING

Never allow an adult passenger

to ride in the front passenger

seat when the “PASSENGER AIR

BAG OFF” indicator is illuminat-

ed. During a collision, the air bag

B990A01O

will not inflate if the indicator is

Proper seated position for OCS

illuminated. Have your passen-

ger move to the rear seat.

If the “PASSENGER AIR BAG OFF”

1JBH3051

indicator is on when an adult is seat-

Even though your vehicle is equipped

ed in the front passenger seat, place

with the OCS, never install a child

the ignition switch to the LOCK/OFF

✽ NOTICE

restraint in the front passenger’s seat.

position and ask the passenger to sit

An inflating air bag can forcefully

properly (sitting upright with the seat

The "PASSENGER AIR BAG OFF"

strike a child or restraint resulting in

back in an upright position, centered

indicator illuminates for approxi-

serious or fatal injury.

on the seat cushion with their seat

mately 4 seconds after the ignition

belt on, legs comfortably extended

switch is in the ON position or after

and their feet on the floor). Restart

the power cell module is started. If

the power cell module and have the

the front passenger seat is occupied,

person remain in that position. This

the OCS will then classify the front

will allow the system to detect the

passenger after several more sec-

person and to enable the passenger

onds.

air bag.

2-61

Safety system of your vehicle

Why Didn’t My Air Bag Go Off

Air bag collision sensors

WARNING

in a Collision? (Air bags are

not designed to inflate in

WARNING

•

NEVER place a rear-facing or

every collision.)

front-facing child restraint in

To reduce the risk of an air bag

the front passenger’s seat of

There are certain types of accidents

deploying unexpectedly and

the vehicle.

in which the air bag would not be

causing serious injury or death:

expected to provide additional protec-

•

An inflating frontal air bag

tion. These include rear impacts, sec-

•

Do not hit or allow any objects

could forcefully strike a child

ond or third collisions in multiple

to impact the locations where

resulting in serious injury or

impact accidents, as well as low

air bags or sensors are

death.

speed impacts. Damage to the vehicle

installed.

•

Always properly restrain chil-

indicates a collision energy absorp-

•

Do not perform maintenance

dren in an appropriate child

tion, and is not an indicator of whether

on or around the air bag sen-

restraint in the rear seat of the

or not an air bag should have inflated.

sors. If the location or angle of

vehicle.

the sensors is altered, the air

bags may deploy when they

should not or may not deploy

when they should.

•

Do not install bumper guards

or replace the bumper with a

non-genuine HYUNDAI parts.

This may adversely affect the

collision and air bag deploy-

ment performance.

(Continued)

2-62

Hyundai Tucson Fuel Cell (2016 year). Instruction - part 4
