Hyundai Sonata Hybrid (2017 year). Instruction - part 32

Specifications, Consumer information and Reporting safety defects

Engine

8-2

Dimensions

8-2

Bulb Wattage

8-3

Tires and Wheels

8-4

Volume and Weight

8-5

Air Conditioning System

8-5

Recommended Lubricants and Capacities

8-6

Recommended SAE Viscosity Number

8-8

Vehicle Identification Number (VIN)

8-9

Vehicle Certification Label

8-9

Tire Specification and Pressure Label

8-10

Engine Number

8-10

Refrigerant Label

8-10

Consumer Information

8-11

Reporting Safety Defects

8-12

Specifications, Consumer information and Reporting safety defects

DIMENSIONS

Items

in (mm)

Overall length

191.1 (4,855)

Overall width

73.4 (1,865)

Overall height

58.1 (1,475)

205/65R16

63.5 (1,614)

Front tread

215/55R17

63.1 (1,602)

235/45R18

62.9 (1,597)

205/65R16

63.8 (1,621)

Rear tread

215/55R17

63.3 (1,609)

235/45R18

63.3 (1,609)

Wheelbase

110.4 (2,805)

ENGINE

Items

1.6 T-GDI

2.0 T-GDI

2.4 GDI

Displacement

97.09 (1,591)

121.92 (1,998)

143.96 (2,359)

cu. in (cc)

Bore x Stroke

3.03x3.36 (77x85.4)

3.39x3.39 (86x86)

3.46x3.82 (88x97)

in. (mm)

Firing order

1-3-4-2

No. of cylinders

4, In-line

8-2

BULB WATTAGE

Light Bulb

Bulb Type

Wattage (W)

Low

9005L+

Type A

Headlamps

High

9005HL+

Type B

Low/High

D3S

Turn signal lamps

PY28/8W

Type A, B

LED

Front

Position lamps

Type C

PY28/8W

Type A, B

LED

Daytime running lights

Type C

9005HL+

Side repeater lamps

LED

Side marker lamps

W5W

Type A

Stop/Tail lamps (Outside)

P28/8W

28/8

(Bulb)

Tail lamp

Rear combina-

Type B

Stop/Tail lamps (Outside)

LED

tion lamp

(LED)

Stop/Tail lamps (Inside)

LED

Rear

Turn signal lamps

PY27W

All

Back up lamps

W16

High mounted stop lamp

LED

License plate lamps

W5W

Luggage room lamp

Festoon

with sunroof

LED

Map lamps

without sunroof

W10W

Interior

with panorama sunroof

LED

Room lamps

without sunroof, conventional sunroof

Festoon

Vanity mirror lamps

Festoon

8-3

Specifications, Consumer information and Reporting safety defects

TIRES AND WHEELS

Inflation pressure

kPa (psi)

Wheel lug nut

Items

Tire Size

Wheel Size

torque kgf•m

Normal Load

Maximum Load

(lbf•ft, N.m)

Front

Rear

Front

Rear

205/65R16

6.5JX16

235 (34)

Full size tire

215/55R17

7.0JX17

235 (34)

9~11

235/45R18

7.5JX18

235 (34)

(65~79, 88~107)

Compact spare tire

T125/80D16

4.0TX16

420 (60)

(if equipped)

T135/80D17

4.0TX17

420 (60)

If your vehicle is not equipped with a compact spare tire, your vehicle will be equipped with a Tire Mobility Kit.

CAUTION

When replacing tires, use the same size originally supplied with the vehicle.

Using tires of a different size can damage the related parts or not work properly.

NOTICE

• It is permissible to add 3 psi to the standard tire pressure specification if colder temperatures are expect-

ed soon.

Tires typically loose 1psi (7kPa) for every 12°F temperature drop. If extreme temperature variations are

expected, recheck your tire pressure as necessary to keep them properly inflated.

• An air pressure generally decreases, as you drive up to a high-altitude area above sea level. Thus, if you

plan to drive a high-altitude area, check the tire pressures in advance. If necessary, inflate them to a prop-

er level. (Air inflation per altitude : +2.4 psi/1 mile)

8-4

VOLUME AND WEIGHT

Items

1.6 T-GDI

2.0 T-GDI

2.4 GDI

Gross vehicle weight

4321 (1960)

4630 (2100)

4497 (2040)

lbs. (kg)

Luggage volume

16.3 cu ft (462 l)

cu ft (l)

AIR CONDITIONING SYSTEM

Items

Weight of Volume

Classification

1.6 T-GDI

18.5±0.70 (525±20)

Refrigerant

2.0 T-GDI

18.5±0.70 (525±20)

R-134a

oz. (g)

2.4 GDI

20.2±0.70 (575±20)

Compressor lubricant

2.82±0.35 (80±10)

PAG (ND-OIL8)

oz. (cc)

Contact an authorized HYUNDAI dealer for more details.

8-5

Specifications, Consumer information and Reporting safety defects

RECOMMENDED LUBRICANTS AND CAPACITIES

To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.

The correct lubricants also help promote engine efficiency that results in improved fuel economy.

Lubricant

Volume

Classification

Engine oil *1 *2

API Service SM*3 or above / ILSAC GF-4 or above /

1.6 T-GDI

4.75 US qt. (4.5

(drain and refill)

ACEA A5 or above

Recommends

2.0 T-GDI

5.07 US qt. (4.8

ACEA A5 or above

API Service SM*3 or above / ILSAC GF-4 or above /

2.4 GDI

5.07 US qt. (4.8

ACEA A5 or above

MICHANG ATF SP-IV / SK ATF SP-IV /

NOCA ATF SP-IV / HYUNDAI genuine ATF SP-IV or

Automatic transmission fluid

7.50 US qt. (7.1

other brands meeting the above specification

approved by Hyundai Motor Co.,

SK HK MTF 70W /

H.K.SHELL SPIRAX S6 GHME 70W /

GS CALTEX GS MTF HD 70W

Dual clutch transmission fluid

2.00 US qt. (1.9

Use the Dual Clutch Fluid approved by HYUNDAI

Motor Company. Consult and authorized Hyundai

dealer for details.

*1 Refer to the recommended SAE viscosity numbers on the next page.

*2 Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing

the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s

time, they can offer significant cost and energy savings.

*3 If the API service SM engine oil is not available in your country, you are able to use API service SL.

8-6

Lubricant

Volume

Classification

1.6 T-GDI

7.50 US qt. (7.1 l)

Mixture of antifreeze and water

Coolant

2.0 T-GDI

7.92 US qt. (7.5 l)

(Ethylene glycol base coolant for aluminum radiator)

2.4 GDI

7.60 US qt. (7.2 l)

Brake fluid

0.7~0.8 US qt. (0.7~0.8 l)

FMVSS116 DOT-3 or DOT-4

Fuel

18.5 US gal. (70 l)

Unleaded gasoline

8-7

Specifications, Consumer information and Reporting safety defects

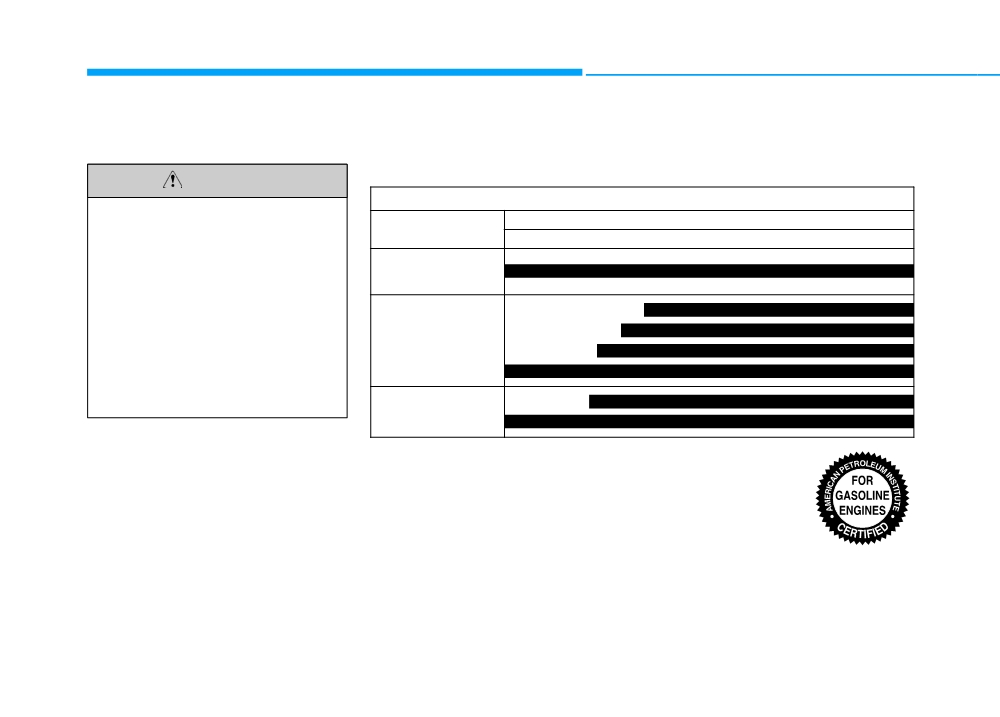

Recommended SAE viscosity

When choosing an oil, consider the range of temperature your vehicle will be

number

operated in before the next oil change. Proceed to select the recommended

oil viscosity from the chart.

CAUTION

Temperature Range for SAE Viscosity Numbers

Always be sure to clean the area

°C

-30

-20

-10

around any filler plug, drain

Temperature

(°F)

-10

100

120

plug, or dipstick before check-

ing or draining any lubricant.

Engine Oil

5W-30, 5W-40

(1.6 T-GDI) *1

This is especially important in

dusty or sandy areas and when

20W-50

the vehicle is used on unpaved

Engine Oil

15W-40

roads. Cleaning the plug and

dipstick areas will prevent dirt

(2.0 T-GDI)

10W-30

and grit from entering the

5W-30, 5W-40

engine and other mechanisms

that could be damaged.

Engine Oil

10W-30

(2.4 GDI) *2

5W-20, 5W-30

Engine oil viscosity (thickness) has

an effect on fuel economy and cold

*1 For better fuel economy, it is recommended to use the engine oil

weather operating (engine start and

of a viscosity grade 5W-30 (API SM / ILSAC GF-4 / ACEA A5 or

engine oil flowability). Lower viscosi-

above). However, if the engine oil is not available in your country,

ty engine oils can provide better fuel

select the proper engine oil using the engine oil viscosity chart.

economy and cold weather perform-

*2 For better fuel economy, it is recommended to use the engine oil

ance, however, higher viscosity

of a viscosity grade SAE 5W-20 (API SM / ILSAC GF-4). However,

engine oils are required for satisfac-

if the engine oil is not available in your country, select the proper

tory lubrication in hot weather. Using

engine oil using the engine oil viscosity chart.

oils of any viscosity other than those

recommended could result in engine

damage.

8-8

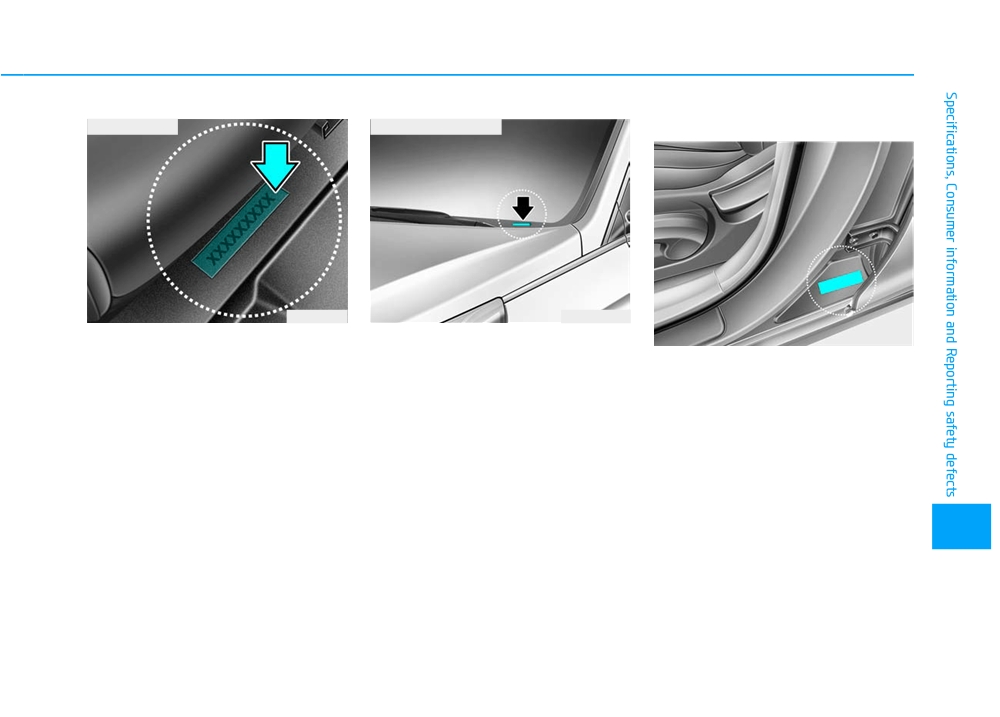

VEHICLE IDENTIFICATION NUMBER (VIN)

VEHICLE CERTIFICATION

■ Frame number

■ VIN label (if equipped)

LABEL

OLF084001

OLF084006N

The vehicle identification number

The VIN is also on a plate attached

OLF086002N

(VIN) is the number used in register-

to the top of the dashboard. The

The vehicle certification label attached

ing your car and in all legal matters

number on the plate can easily be

on the driver's side center pillar gives

pertaining to its ownership, etc.

seen through the windshield from

the Vehicle Identification Number

outside.

The number is punched on the floor

(VIN).

under the passenger seat. To check

the number, open the cover.

8-9

Specifications, Consumer information and Reporting safety defects

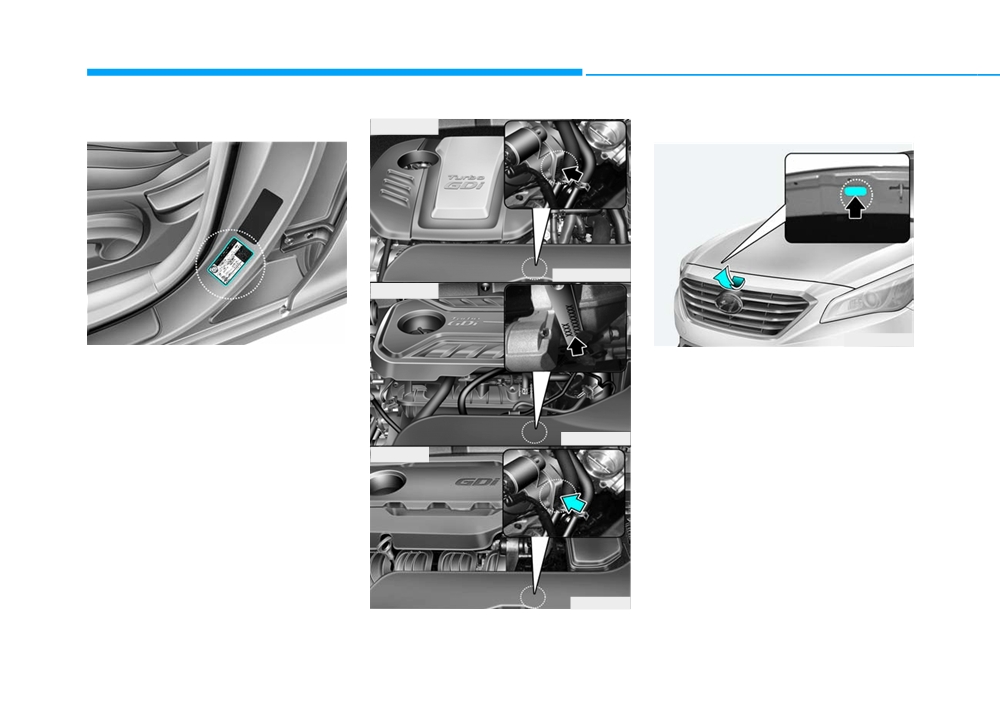

TIRE SPECIFICATION AND

ENGINE NUMBER

REFRIGERANT LABEL

PRESSURE LABEL

■ 1.6 T-GDI

(IF EQUIPPED)

OLF084008N

■ 2.0 T-GDI

OLF084007N

OLF084005N

The tires supplied on your new vehi-

The refrigerant label provides infor-

cle are chosen to provide the best

mation such as refrigerant type and

performance for normal driving.

amount.

The tire label located on the driver's

The label is located on the underside

side center pillar gives the tire pres-

OLF084009N

of the hood.

sures recommended for your car.

■ 2.4 GDI

OLF084004

The engine number is stamped on the

engine block as shown in the drawing.

8-10
