EMERGENCY COMMODITY (IF EQUIPPED)
Your vehicle is equipped with emer-
First aid kit
To check the tyre pressure, take the
gency commodities to help you
following steps:
Supplies for use in giving first aid
respond to emergency situation.
1. Unscrew the inflation valve cap
such as scissors, bandage and
adhesive tape, etc. are provided.
that is located on the rim of the
tyre.
Fire extinguisher
2. Press and hold the gauge against
If there is small fire and you know
Triangle reflector
the tyre valve. Some air will leak
how to use the fire extinguisher, fol-
Place the triangle reflector on the
as you begin and more will leak if
low these steps carefully.
road to warn oncoming vehicles dur-
you don't press the gauge in firm-
1. Pull out the safety pin at the top of
ing emergencies, such as when the
ly.
the extinguisher that keeps the
vehicle is parked by the roadside due
3. A firm non-leaking push will acti-
handle from being accidentally
to problems.
vate the gauge.
pressed.
4. Read the tyre pressure on the
2. Aim the nozzle towards the base
Tyre pressure gauge
gauge to see whether the tyre
of the fire.
(if equipped)
pressure is low or high.
3. Stand approximately 2.5 m (8 ft)
Tyres normally lose some air in day-
5. Adjust the tyre pressure to the
away from the fire and squeeze
to-day use, and you may have to add
specified pressure. Refer to "Tyres
6
the handle to discharge the extin-
a air periodically and usually it is not
and Wheels" in chapter 8.
guisher. If you release the handle,
a sign of a leaking tyre, but of normal
6. Reinstall the inflation valve cap.
the discharge will stop.
wear. Always check tyre pressure
4. Sweep the nozzle back and forth
when the tyres are cold because tyre
at the base of the fire. After the fire
pressure increases with tempera-
appears to be out, watch carefully
ture.
since it may re-ignite.
6-37
Maintenance
Engine compartment
7-3
Air cleaner
7-22
Maintenance services
7-6
Filter replacement
7-22
Owner's responsibility
7-6
Climate control air filter
7-24
Owner maintenance precautions
7-6
Filter inspection
7-24
Owner maintenance
7-7
Filter replacement
7-24
Owner maintenance schedule
7-8
Wiper blades
7-25
Scheduled maintenance services
7-9
Blade inspection
7-25
Blade replacement
7-25
Explanation of scheduled maintenance items.7-10
Battery
7-28
Engine oil
7-13
For best battery service
7-29
Checking the engine oil level (Petrol engine)
7-13
Battery capacity label
7-29
Checking the engine oil level (Diesel Engine)
7-14
Battery recharging
7-30
Checking the engine oil and filter
7-15
Reset items
7-31
Engine coolant
7-16
Checking the engine coolant level
7-16
Tyres and wheels
7-32
Changing the engine coolant
7-18
Tyre care
7-32
Recommended cold tyre inflation pressures
7-33
Brake/clutch fluid
7-19
Check tyre inflation pressure
7-34
Checking the brake/clutch fluid level
7-19
Tyre rotation
7-34
Washer fluid
7-20
Wheel alignment and tyre balance
7-35
Checking the washer fluid level
7-20
7
Tyre replacement
7-36
Parking brake
7-21
Wheel replacement
7-37
Checking the parking brake
7-21
Tyre traction
7-37
Fuel Filter (For Diesel)
7-22
Tyre maintenance
7-37
Draining water from fuel filter
7-22
Tyre sidewall labelling
7-37
Fuel filter cartridge replacement
7-22
Low aspect ratio tyres
7-41
Fuses
7-42
Emission control system
7-81
Instrument panel fuse replacement
7-43
Crankcase emission control system
7-81
Engine compartment panel fuse replacement
7-44
Evaporative emission control system
7-81
Fuse/Relay panel description
7-45
Exhaust emission control system
7-82
Light bulbs
7-59
Selective Catalytic Reduction
7-85
Headlamp, position lamp, turn signal lamp
Urea gauge
7-85
and daytime running light bulb replacement
7-60
Malfunction with the SCR system
7-87
Front fog lamp
7-63
Clearing the vehicle-restarting restriction
7-88
Headlamp and front fog lamp aiming
7-64
Adding the urea solution
7-89
Side repeater lamp replacement
7-69
Storing the urea solution
7-92
Rear combination lamp bulb replacement
7-69
Urea solution purity
7-92
High mounted stop lamp replacement
7-71
License plate light bulb replacement
7-72
Interior light bulb replacement
7-72
Appearance care
7-74
Exterior care
7-74
Interior care
7-78
7

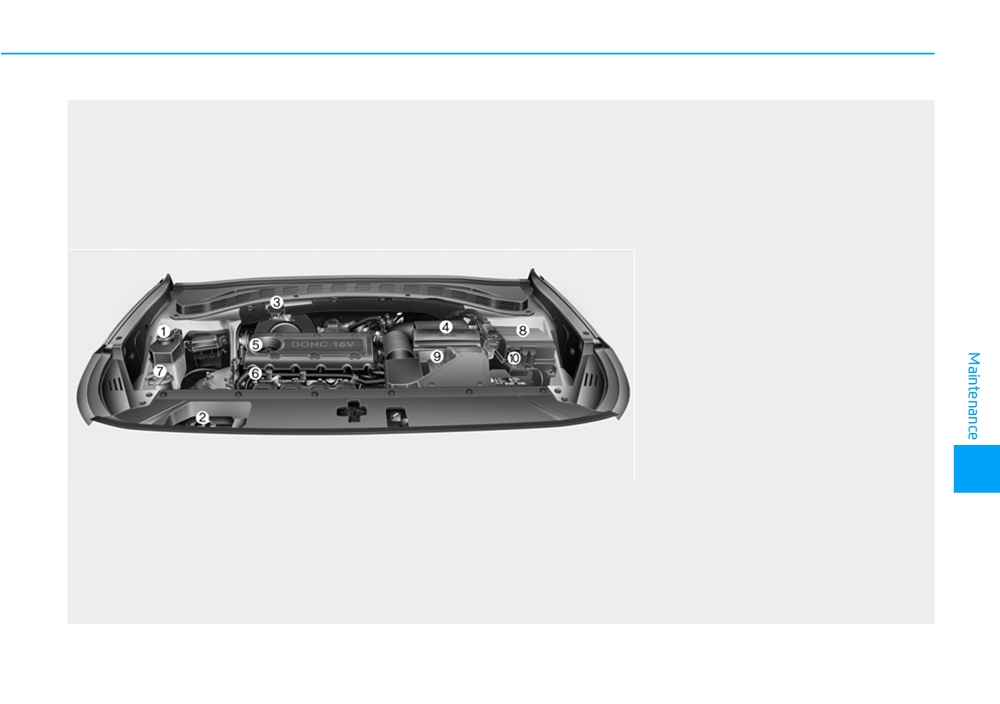

ENGINE COMPARTMENT
■ Petrol Engine (Theta 2.4 MPI)
1. Engine coolant reservoir
2. Engine coolant cap
3. Brake/clutch fluid reservoir
4. Air cleaner
5. Engine oil filler cap
6. Engine oil dipstick
7. Windscreen washer fluid reservoir
8. Fuse box
9. Battery terminal [+]
10. Battery terminal [-]
7
The actual engine compartment in the vehicle may differ from the illustration.
OTM078085R
7-3
Maintenance

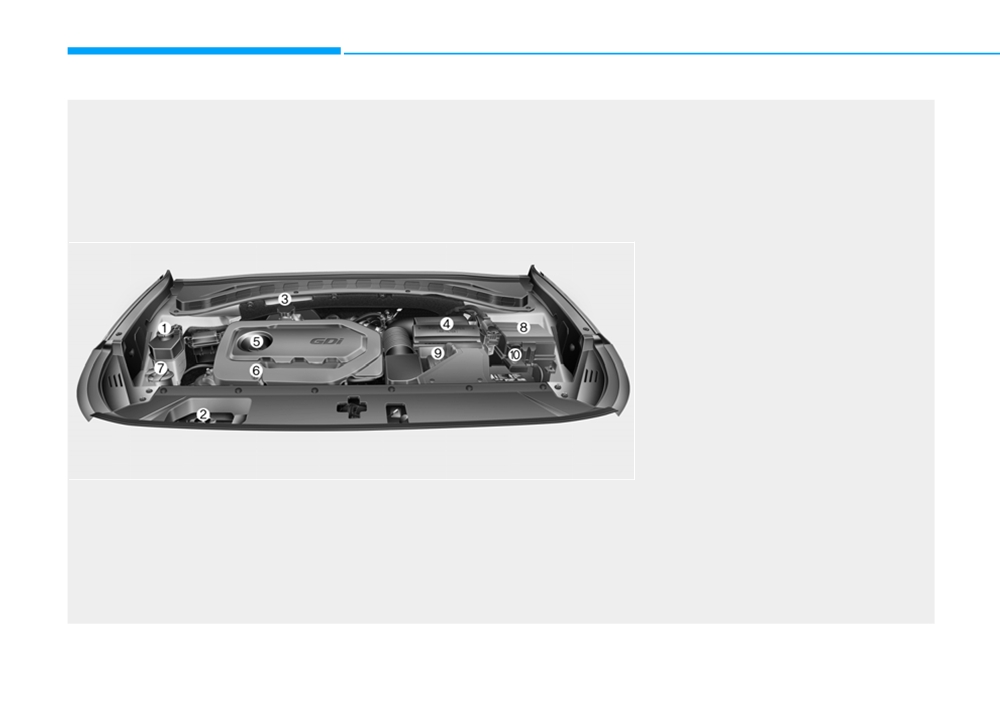

■ Petrol Engine (Theta 2.4 GDI)
1. Engine coolant reservoir
2. Engine coolant cap
3. Brake/clutch fluid reservoir
4. Air cleaner
5. Engine oil filler cap
6. Engine oil dipstick
7. Windscreen washer fluid reservoir
8. Fuse box
9. Battery terminal [+]
10. Battery terminal [-]
The actual engine compartment in the vehicle may differ from the illustration.
OTM078084R
7-4

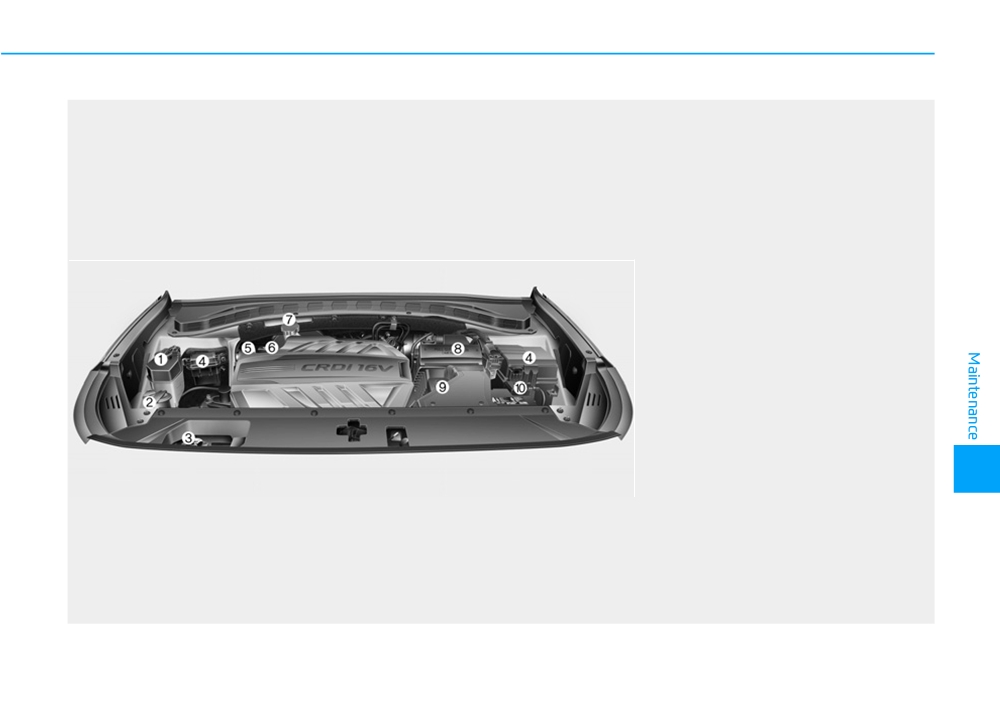

■ Diesel Engine (R 2.0/2.2)
1. Engine coolant reservoir
2. Windscreen washer fluid reservoir
3. Engine coolant cap
4. Fuse box
5. Engine oil dipstick
6. Engine oil filter cap
7. Brake/clutch fluid reservoir
8. Air cleaner
9. Battery terminal [+]
10. Battery terminal [-]
7
The actual engine compartment in the vehicle may differ from the illustration.
OTM078020R
7-5
Maintenance
MAINTENANCE SERVICES
You should exercise the utmost care
Detailed warranty information is pro-
NOTICE
to prevent damage to your vehicle
vided in your Warranty Booklet.
and injury to yourself whenever per-
Improper owner maintenance dur-
Repairs and adjustments required as
forming any maintenance or inspec-
ing the warranty period may affect
a result of improper maintenance or
tion procedures.
warranty coverage. For details,
a lack of required maintenance are
read the separate Warranty Booklet
We recommend you have your vehi-
not covered.
provided with the vehicle. If you're
cle maintained and repaired by a
unsure about any servicing or
HYUNDAI authorised repairer. a
Owner maintenance precautions
maintenance procedure, we rec-
HYUNDAI authorised repairer meets
ommend that the system be serv-
HYUNDAI’s high service quality
Inadequate, incomplete or insuffi-
iced by a HYUNDAI authorised
standards and receives technical
cient servicing may result in opera-
repairer.
support from HYUNDAI in order to
tional problems with your vehicle that
provide you with a high level of serv-
could lead to vehicle damage, an
ice satisfaction.
accident, or personal injury. This
chapter provides instructions only for
the maintenance items that are easy
Owner’s responsibility
to perform.
Maintenance service and record
Several procedures can be done
retention are the owner’s responsibil-
only by a HYUNDAI authorised
ity.
repairer with special tools.
You should retain documents that
Your vehicle should not be modified
show proper maintenance has been
in any way. Such modifications may
performed on your vehicle in accor-
adversely affect the performance,
dance with the scheduled mainte-
safety or durability of your vehicle
nance service. You need this infor-
and may, in addition, violate condi-
mation to establish your compliance
tions of the limited warranties cover-
with the servicing and maintenance
ing the vehicle.
requirements of your vehicle war-
ranties.
7-6
OWNER MAINTENANCE
WARNING
• If you must run the engine
WARNING
during maintenance, do so
Performing maintenance work
out doors or in an area with
Diesel Engine
on a vehicle can be dangerous.
plenty of ventilation.
Never manipulate or modify the
If you lack sufficient knowledge
• Keep flames, sparks, or smok-
injection system whilst running
and experience or the proper
ing materials away from the
the diesel engine or within 30
tools and equipment to do the
battery and fuel-related parts.
seconds after turning OFF the
work, we recommend that the
diesel engine. The high-pressure
system be serviced by a
pump, high-pressure pipes, rail,
HYUNDAI authorised repairer.
The following lists are vehicle checks
and injectors are still subject to
ALWAYS follow these precau-
and inspections that should be per-
high pressure immediately after
tions for performing mainte-
formed by the owner or a HYUNDAI
stopping the diesel engine.
nance work:
authorised repairer at the frequencies
When the fuel leakage vents out,
• Park your vehicle on level
indicated to help ensure safe, depend-
able operation of your vehicle.
it may cause serious body injury.
ground, move the shift lever
Any people, who are implanted
into the P (Park, for automatic
Any adverse conditions should be
with the artificial cardiac pace-
transmission vehicle) position
brought to the attention of your dealer
maker, should remain away from
or neutral (for manual trans-
as soon as possible.
the ECU or the wiring harness by
mission vehicle) position,
These Owner Maintenance vehicle
at least 30 cm, whilst running the
apply the parking brake, and
checks are generally not covered by
diesel engine. The high currents
7
place the ignition switch in
warranties and you may be charged
of the electronic engine control
the LOCK/ OFF position.
for labour, parts and lubricants used.
system produce a considerable
•
Block the tyres
(front and
amount of magnetic fields.
back) to prevent the vehicle
from moving.
Remove loose clothing or jew-
ellery that can become entan-
gled in moving parts.
7-7
Maintenance
Owner maintenance schedule
Whilst operating your vehicle:
At least monthly:
•
Note any changes in the sound of
• Check coolant level in the engine
When you stop for fuel:
the exhaust or any smell of exhaust
coolant reservoir.
• Check the engine oil level.
fumes in the vehicle.
• Check the operation of all exterior
• Check the coolant level in the
•
Check for vibrations in the steering
lights, including the stoplights, turn
engine coolant reservoir.
wheel. Notice if there is any
signals and hazard warning flashers.
• Check the windscreen washer fluid
increased steering effort or loose-
• Check the inflation pressures of all
level.
ness in the steering wheel, or
tyres including the spare for tyres
• Check for low or under-inflated
change in its straight-ahead position.
that are worn, show uneven wear,
tyres.
•
Notice if your vehicle constantly turns
or are damaged.
slightly or “pulls” to one side when
• Check for loose wheel lug nuts.
WARNING
travelling on smooth, level road.
•
When stopping, listen and check for
At least twice a year:
Be careful when checking your
unusual sounds, pulling to one side,
engine coolant level when the
increased brake pedal travel or
(i.e., every Spring and Autumn)
engine is hot. This may result in
“hard-to-push” brake pedal.
• Check radiator, heater and air condi-
coolant being blown out of the
tioning hoses for leaks or damage.
•
If any slipping or changes in the
opening and cause serious
operation of your transmission
• Check windscreen washer spray
burns and other injuries.
occurs, check the transmission fluid
and wiper operation. Clean wiper
level.
blades with a clean cloth damp-
ened with washer fluid.
•
Check the automatic transmission
P (Park) function.
• Check headlamp alignment.
•
Check the parking brake.
• Check muffler, exhaust pipes,
shields and clamps.
•
Check for fluid leaks under your
vehicle (water dripping from the air
• Check the seat belts for wear and
conditioning system during or after
function.
use is normal).
7-8
SCHEDULED MAINTENANCE SERVICES
At least once a year:
Follow Normal Maintenance Schedule if the vehicle is usually operated where
•
Clean body and door drain holes.
none of the following conditions apply.
•
Lubricate door hinges and bonnet
If any of the following conditions apply, you must follow the Maintenance Under
Severe Usage Conditions.
hinges.
•
Lubricate door and bonnet locks
• Repeated driving short distance of less than 5 miles (8 km) in normal tem-
and latches.
perature or less than 10 miles (16 km) in freezing temperature
•
Lubricate door rubber weather
• Extensive engine idling or low speed driving for long distances
strips.
• Driving on rough, dusty, muddy, unpaved, graveled or salt-spread roads
•
Check the air conditioning system.
• Driving in areas using salt or other corrosive materials or in very cold weath-
•
Inspect and lubricate automatic
er
transmission linkage and controls.
• Driving in heavy traffic area
•
Clean the battery and terminals.
• Driving on uphill, downhill, or mountain road repeatedly
•
Check the brake fluid level.
• Towing a trailer or using a camper, or roof rack
• Driving as a patrol car, taxi, other commercial use of vehicle towing
• Driving over 106 mph (170 km/h)
• Frequently driving in stop-and-go condition
7
If your vehicle is operated under the above conditions, you should inspect,
replace or refill more frequently than Normal Maintenance Schedule which is
provided in your Service Booklet.
7-9
Maintenance
EXPLANATION OF SCHEDULED MAINTENANCE ITEMS
Engine oil and filter
Fuel lines, fuel hoses and con-
Vapour hose and fuel filler cap
nections
The engine oil and filter should be
The vapour hose and fuel filler cap
changed at the intervals specified in
Check the fuel lines, fuel hoses and
should be inspected at those inter-
the maintenance schedule. If the
connections for leakage and dam-
vals specified in the maintenance
vehicle is being driven in severe con-
age. We recommend that the fuel
schedule. Make sure that a new
ditions, more frequent oil and filter
lines, fuel hoses and connections be
vapour hose or fuel filler cap is cor-
changes are required.
replaced by a HYUNDAI authorised
rectly replaced.
repairer.
Drive belts
Vacuum crankcase ventilation
hoses (if equipped)
Inspect all drive belts for evidence of
Fuel filter (cartridge)
cuts, cracks, excessive wear or oil
Inspect the surface of hoses for evi-
A clogged-up fuel filter may limit the
saturation and replace if necessary.
dence of heat and/or mechanical
vehicle driving speed, damage the
Drive belts should be checked peri-
damage. Hard and brittle rubber,
emission system, and cause the
odically for proper tension and
cracking, tears, cuts, abrasions, and
hard starting. When a considerable
adjusted as necessary.
excessive swelling indicate deterio-
amount of foreign substances are
ration. Particular attention should be
accumulated in the fuel tank, the fuel
paid to examine those hose surfaces
CAUTION
filter should be replaced.
nearest to high heat sources, such
Upon installing a new fuel filter, oper-
as the exhaust manifold.
When you are inspecting the belt,
ate the diesel engine for several min-
Inspect the hose routing to ensure
place the ignition switch to the
utes, and check the connections for
that the hoses do not come in con-
LOCK/OFF or ACC position.
any leakages. We recommend you to
tact with any heat source, sharp
have the fuel filter replaced by a
edges or moving component which
HYUNDAI authorised repairer.
might cause heat damage or
mechanical wear. Inspect all hose
connections, such as clamps and
couplings, to make sure they are
secure, and that no leaks are pres-
ent. Hoses should be replaced
immediately if there is any evidence
of deterioration or damage.
7-10
Air cleaner filter
Cooling system
i
Information
We recommend that the air cleaner
Check the cooling system parts,
Automatic transmission fluid colour is
filter be replaced by a HYUNDAI
such as radiator, coolant reservoir,
red when new.
authorised repairer.
hoses and connections for leakage
As the vehicle is driven, the automatic
and damage. Replace any damaged
transmission fluid will begin to look
parts.
Spark plugs
darker.
(for Petrol engine)
This is a normal condition. It does not
Engine coolant
Make sure to install new spark plugs
need to be replaced based on the
of the correct heat range.
The coolant should be changed at
colour change.
the intervals specified in the mainte-
nance schedule.
NOTICE
WARNING
The use of a non-specified fluid
Do not disconnect and inspect
Manual transmission fluid
could result in transmission mal-
spark plugs when the engine is
(if equipped)
function and failure.
hot. You may burn yourself.
Inspect the manual transmission
Use only specified automatic
fluid according to the maintenance
transmission fluid.
schedule.
(Refer to
“Recommended lubri-
Valve clearance
cants and capacities” in chapter 8.)
(for Petrol engine)
7
Inspect excessive valve noise and/or
Automatic transmission fluid
engine vibration and adjust if neces-
(if equipped)
sary. We recommend that the system
Automatic transmission fluid should
be serviced by a HYUNDAI autho-
not be checked under normal usage
rised repairer.
conditions.
We recommend that the automatic
transmission fluid is changed by a
HYUNDAI authorised repairer accord-
ing to the maintenance schedule.
7-11
Maintenance
Brake hoses and lines
Brake pads, calipers and
Steering gear rack, linkage &
rotors
boots/lower arm ball joint
Visually check for proper installation,
chafing, cracks, deterioration and
Check the pads for excessive wear,
With the vehicle stopped and engine
any leakage. Replace any deteriorat-
discs for run out and wear, and
off, check for excessive free-play in
ed or damaged parts immediately.
calipers for fluid leakage.
the steering wheel.
For more information on checking
Check the linkage for bends or dam-
the pads or lining wear limit, refer to
age. Check the dust boots and ball
Brake/Clutch fluid
the HYUNDAI web site.
joints for deterioration, cracks, or
(if equipped)
damage. Replace any damaged
Check the brake/clutch fluid level in
parts.
the brake fluid reservoir. The level
should be between “MIN” and “MAX”
Suspension mounting bolts
Drive shafts and boots
marks on the side of the reservoir.
Check the suspension connections
Use only hydraulic brake fluid con-
Check the drive shafts, boots and
for looseness or damage. Retighten
forming to DOT 3 or DOT 4 specifi-
clamps for cracks, deterioration, or
to the specified torque.
cation.
damage. Replace any damaged
parts and, if necessary, repack the
grease.
Parking brake
Inspect the parking brake system
Air conditioning refrigerant/
including the parking brake lever and
compressor
cables.
Check the air conditioning lines and
connections for leakage and dam-
age.
7-12
ENGINE OIL
Checking the engine oil level
NOTICE
WARNING
(Petrol engine)
•
Do not overfill the engine oil.
Radiator hose
It may damage the engine.
Be very careful not to touch the
•
Do not spill engine oil, when
radiator hose when checking or
adding or changing engine oil. If
adding the engine oil as it may
you drop the engine oil on the
be hot enough to burn you.
engine room, wipe it off immedi-
ately.
•
When you wipe the oil dipstick,
you should wipe it with a clean
cloth. When mixed with debris, it
can cause engine damage.
OTM078021L
1. Be sure the vehicle is on level
ground.
2. Start the engine and allow it to reach
normal operating temperature.
3. Turn the engine off and wait for a
7
few minutes (about 5 minutes) for
the oil to return to the oil pan.
4. Pull the dipstick out, wipe it clean,
and re-insert it fully.
5. Pull the dipstick out again and
check the level. The level should
be between F (Full) and L (Low).
6. If it is near or at L, add enough oil
to bring the level to F.
7-13
Maintenance
Checking the engine oil level
1. Follow all of the oil manufacturer’s
(Diesel Engine)
precautions.
2. Be sure the vehicle is on the level
ground in P (Park) with the parking
brake set. If possible, block the
wheels.
3. Turn the engine on and allow the
engine to reach normal operating
temperature.
4. Turn the engine off and wait for a
few minutes (about 5 minutes) for
OTM078022L
the oil to return to the oil pan.
Use only the specified engine oil.
5. Pull the dipstick out again and
(Refer to “Recommended lubricants
OTM078060
check the level.
and capacities” in chapter 8.)
6. The level should be in the C range.
Figure
Required action
If the level is in the D range, add
Recommend to contact a
enough engine oil to bring the
Range (A)
HYUNDAI authorised repair-
level up to the C range.
Range (B)
Do not refill engine oil.
Normal.
You may add engine oil as
Range (C)
long as the oil level does not
go above the C range.
You must add oil and make
Range (D)
sure that the oil level is in the
C Range.
7-14
Checking the engine oil and filter
WARNING
Used engine oil may cause irri-
tation or cancer of the skin if
left in contact with the skin for
prolonged periods of time. Used
engine oil contains chemicals
that have caused cancer in lab-
oratory animals. Always protect
your skin by washing your
hands thoroughly with soap
OTM078061
and warm water as soon as pos-
7. If it is near or at L, add enough oil
sible after handling used oil.
to bring the level to F. Do not over-
fill.
We recommend that the engine oil
and filter be replaced by a HYUNDAI
Use only the specified engine oil.
authorised repairer.
(Refer to “Recommended lubricants
and capacities” in chapter 8.)
7
WARNING
Radiator hose
Be very careful not to touch the
radiator hose when checking or
adding engine oil as it may be
hot enough to burn you.
7-15
Maintenance
ENGINE COOLANT
The high-pressure cooling system
Checking the engine coolant
If the coolant level is low, add enough
has a reservoir filled with year-round
level
distilled (deionised) water. Bring the
antifreeze coolant. The reservoir is
level to MAX, (or F (Full)) but do not
filled at the factory.
overfill.
Check the antifreeze protection and
If frequent additions are required, we
coolant concentration level at least
recommend that the system be
once a year, at the beginning of the
inspected by a HYUNDAI authorised
winter season, and before travelling
repairer.
to a colder climate.
NOTICE
• When the engine overheats from
low engine coolant, suddenly
adding engine coolant may cause
OTM078023
cracks in the engine. To prevent
Check the condition and connections
damage, add engine coolant
of all cooling system hoses and
slowly in small quantities.
heater hoses. Replace any swollen
• Do not drive with no engine
or deteriorated hoses.
coolant. It may cause water pump
The coolant level should be filled
failure and engine seizure, etc.
OTM078024
between MAX and MIN (or F (Full)
and L (Low)) marks on the side of the
coolant reservoir when the engine is
cool.
7-16
