Driving through water

WARNING

• Try to avoid driving in deep stand-

ing water. It may stall your engine

Exercise extreme caution driv-

and clog your exhaust pipes.

ing up or down steep hills. The

vehicle may flip depending on

• If you need to drive in water, stop

the grade, terrain and water/

your vehicle, set the vehicle in

mud conditions.

4WD LOCK mode and drive under

5 mph (8 km/h).

• Do not change gear whilst driving

in water.

OLMB053017

CAUTION

Driving up or down hills

•

Driving uphill

5

Always drive slowly in water. If

- Before starting off, check if it is

you drive too fast, water may

possible to drive uphill.

get into the engine compart-

- Drive as straight as possible.

ment and wet the ignition sys-

tem causing your vehicle to

•

Driving downhill

suddenly stop.

- Do not change gear whilst driving

OLMB053018

downhill. Select gear before driv-

ing downhill.

WARNING

- Drive slowly using engine braking

whilst driving downhill.

Do not drive across the contour

- Drive straight as possible.

of steep hills. A slight change in

the wheel angle can destabilize

the vehicle, or a stable vehicle

may lose stability if the vehicle

stops its forward motion. Your

vehicle may roll over and lead to

a serious injury or death.

5-59

Driving your vehicle

Additional driving conditions

Emergency precautions

Towing

•

Become familiar with the off-road

Tyres

4WD vehicles must be towed with a

conditions before driving.

wheel lift and dollies or flatbed equip-

Do not use tyre and wheel with dif-

•

Always pay attention when driving

ment with all the wheels off the

ferent size and type from the one

ground. For more information, refer

off-road and avoid dangerous

originally installed on your vehicle. It

areas.

to "Towing" in chapter 6.

can affect the safety and perform-

•

Drive slowly when driving in heavy

ance of your vehicle, which could

wind.

lead to steering failure or rollover

Dynamometer testing

causing serious injury.

•

Reduce vehicle speed when cor-

A full-time 4WD vehicle must be test-

nering. The centre of gravity of

When replacing the tyres, be sure to

ed on a special four wheel chassis

4WD vehicles is higher than con-

equip all four tyres with the tyre and

dynamometer.

ventional

2WD vehicles, making

wheel of the same size, type, tread,

them more likely to roll over when

brand and load-carrying capacity. If

you rapidly turn corners.

you equip your vehicle with any

tyre/wheel combination not recom-

•

Always hold the steering wheel firm-

mended by HYUNDAI for off-road

ly when you are driving off-road.

driving, you should not use these

tyres for highway driving.

WARNING

Do not grab the inside of the

WARNING

steering wheel when you are

Never start or run the engine

driving off-road. You may hurt

whilst a full-time 4WD vehicle is

your arm by a sudden steering

raised on a jack. The vehicle can

manoeuvre or from steering

slip or roll off of a jack causing

wheel rebound due to an impact

serious injury or death to you or

with objects on the ground. You

those nearby.

could lose control of the steer-

ing wheel which may lead to

serious injury or death.

5-60

Reducing the risk of a rollover

CAUTION

This multi-purpose passenger vehi-

cle is defined as a Sports Utility

• Never engage the parking

Vehicle

(SUV). SUV’s have higher

brake whilst performing the

ground clearance and a narrower

test.

track to make them capable of per-

• When the vehicle is lifted up,

forming in a wide variety of off-road

do not operate the front and

applications. Specific design charac-

rear wheel separately. All four

teristics give them a higher centre of

wheels should be operated.

Temporary Free Roller

gravity than ordinary vehicles. An

Roll Tester (Speedometer)

advantage of the higher ground

OTM058013

clearance is a better view of the

WARNING

A full-time 4WD vehicle should not

road, which allows you to anticipate

be tested on a 2WD roll tester. If a

problems. They are not designed for

Keep away from the front of the

5

2WD roll tester must be used, per-

cornering at the same speeds as

vehicle whilst the vehicle is in

form the following procedure:

conventional passenger vehicles,

gear on the dynamometer. The

any more than low-slung sports cars

1. Check the tyre pressures recom-

vehicle can jump forward and

are designed to perform satisfactori-

mended for your vehicle.

cause serious injury or death.

ly in off-road conditions. Due to this

2. Place the front wheels on the roll

risk, driver and passengers are

tester for a speedometer test as

strongly recommended to buckle

shown in the illustration.

their seat belts. In a rollover crash,

3. Release the parking brake.

an unbelted person is more likely to

4. Place the rear wheels on the tem-

die than a person wearing a seat

belt. There are steps that a driver

porary free roller as shown in the

illustration.

can make to reduce the risk of a

rollover. If at all possible, avoid sharp

turns or abrupt manoeuvres, do not

load your roof rack with heavy cargo,

and never modify your vehicle in any

way.

5-61

Driving your vehicle

WARNING

WARNING

WARNING

Rollover

Your vehicle is equipped with

Jacked vehicle

tyres designed to provide safe

As with other Sports Utility

Whilst a full-time 4WD vehicle is

ride and handling capability. Do

Vehicle (SUV), failure to operate

being raised on a jack, never

not use a size and type of tyre

this vehicle correctly may result

start the engine or cause the

and wheel that is different from

in loss of control, an accident or

tyres to rotate.

the one that is originally

vehicle rollover.

There is a danger that rotating

installed on your vehicle. It can

•

Utility vehicles have a signifi-

affect the safety and perform-

tyres touching the ground could

cantly higher rollover rate

ance of your vehicle, which

cause the vehicle to fall off the

than other types of vehicles.

could lead to steering failure or

jack and to jump forward or

•

Specific design characteris-

rollover and serious injury.

rearward.

tics (higher ground clearance,

When replacing the tyres, be

narrower track, etc.) give this

sure to equip all four tyres with

vehicle a higher centre of

the tyre and wheel of the same

gravity than ordinary vehicles.

size, type, tread, brand and

load-carrying capacity. If you

•

A SUV is not designed for cor-

nevertheless decide to equip

nering at the same speeds as

your vehicle with any tyre/wheel

conventional vehicles.

combination not recommended

•

Avoid sharp turns or abrupt

by HYUNDAI for off road driv-

manoeuvres.

ing, you should not use these

•

In a rollover crash, an unbelt-

tyres for highway driving.

ed person is significantly

more likely to die than a per-

son wearing a seat belt. Make

sure everyone in the vehicle is

properly buckled up.

5-62

IDLE STOP AND GO (ISG) SYSTEM (IF EQUIPPED)

The ISG system is to reduce the fuel

To activate the ISG system

i

Information

consumption by automatically shut-

Prerequisite for activation

ting down the engine, when the vehi-

The ISG system operates in the fol-

cle is at a standstill (i.e. red stop light,

stop sign, and traffic jam).

lowing situations.

The engine is automatically started

-

The driver's seatbelt is fastened.

upon satisfying the starting condi-

-

The driver's door and the bonnet

tions.

are closed.

WTF-444

The ISG system is always active,

-

The brake vacuum pressure is

when the engine is running.

adequate.

•

The ISG system is not activated,

-

The battery is sufficiently charged.

when the prerequisites to activate

i

Information

the ISG system are unsatisfied. In

-

The outside temperature is between

this case, the ISG OFF button indi-

When the engine is automatically

-10 °C and 35 °C (14 °F and 95 °F).

cator illuminates, and the auto stop

5

started by the ISG system, some warn-

-

The engine coolant temperature is

indicator (

) illuminates in yellow

ing lights (i.e. ABS, ESC, ESC OFF,

not too low.

on the instrument cluster.

EPS, and parking brake warning

-

The system is not in the diagnostic

•

When the above indicator remains

light) may illuminate for a few sec-

mode.

illuminated on the instrument clus-

onds due to the low battery voltage.

-

The steering wheel is not steered

ter, we recommend that you have

However, it does not indicate a mal-

excessively.

(for automatic trans-

the ISG system checked by a

function with the ISG system.

mission vehicle)

HYUNDAI authorised repairer.

-

The vehicle is driven on a steep

incline. (for automatic transmission

vehicle)

5-63

Driving your vehicle

Auto stop

Automatic transmission vehicle

In auto stop mode, when the driver

To stop the engine in idle stop mode

1. Decrease the vehicle speed to 0

opens the bonnet, the ISG system

will be deactivated.

km/h.

Manual transmission vehicle

When the system is deactivated:

2. Depress the brake pedal with the

1. Decrease the vehicle speed to 3

shift lever in D

(Drive) or N

■ Type A

mph (5 km/h).

(Neutral).

2. Set the gear in N (Neutral).

The auto stop indicator (

) illumi-

3. Release the clutch pedal.

nates in green on the instrument

The auto stop indicator (

) illumi-

cluster, when the engine stops.

nates in green on the instrument

cluster, when the engine stops.

i

Information

The driving speed must reach at least

i

Information

5 mph (8 km/h) after an idle stop to

The driving speed must reach at least

stop the engine in idle stop mode

6 mph (10 km/h) after an idle stop to

again.

OTM058134R

stop the engine in idle stop mode

■ Type B

again.

OTM048416R

The ISG OFF button indicator illumi-

nates.

5-64

Auto start

The engine is automatically restart-

ed in the following situations.

To restart the engine in the auto

stop mode

-

The fan speed of the manual cli-

mate control system is set above

Manual transmission vehicle

the 3rd position, with the air condi-

• Depress the clutch pedal with the

tion ON.

gear in N (Neutral).

-

The fan speed of the automatic cli-

The auto stop indicator (

) goes

mate control system is set above

OFF on the instrument cluster, when

the 6th position, with the air condi-

the engine is restarted.

tion ON.

-

A certain period of time has

OTLE055036

Automatic transmission vehicle

elapsed with the air condition ON.

The message, "Auto Stop deactivat-

• Release the brake pedal.

-

The defroster is activated.

ed. Start manually", appears on the

• When Auto Hold is activated, if you

5

-

The brake vacuum pressure is low.

LCD display with a beep sound.

release the brake pedal, the

-

The battery is weak.

engine will be in the auto stop

-

The driving speed exceeds 3 mph

At this time, restart the vehicle man-

state. However, if you depress the

(5 km/h) (for manual transmission

ually by:

accelerator pedal, the engine will

vehicle).

Manual transmission vehicle

start again.

-

The driving speed exceeds

1.2

The auto stop indicator (

) goes

Depressing the clutch and brake

mph (2 km/h) (for automatic trans-

OFF on the instrument cluster, when

pedal with the gear in neutral.

mission vehicle).

the engine is restarted.

-

The vehicle is shifted to P (Park) or

Automatic transmission vehicle

R (Reverse) when the brake pedal

Depressing the brake pedal with the

is depressed.

shift lever in P (Park) or N (Neutral).

But for your safety, restart the vehicle

in the P (Park) position.

5-65

Driving your vehicle

- The door is opened or seat belt is

The auto start is temporarily deac-

unfastened when the brake pedal

tivated in the following situations.

is depressed.

The auto stop indicator (

) blinks

in green for 5 seconds on the instru-

ment cluster and a message "Auto

Start" will appear on the LCD display.

OOS057093R

Automatic transmission vehicle

When the shift lever is shifted from N

OOS057092R

(Neutral) to R (Reverse), D (Drive) or

Manual transmission vehicle

Manual shift mode without the brake

When the gear is shifted without the

pedal depressed. A message "Press

clutch pedal depressed. A message

brake pedal before driving on" will

"Press clutch pedal before driving

appear on the LCD display. To acti-

on" will appear on the LCD display.

vate auto start, depress the brake

To activate auto start, shift to neutral

pedal.

and depress the clutch pedal.

5-66

To deactivate the ISG system

ISG system malfunction

i

Information

• Press the ISG OFF button to deac-

The ISG system may not operate:

• When you cannot turn OFF the ISG

tivate the ISG system. Then, the

When there is a malfunction with the

OFF button indicator by pressing the

ISG OFF button indicator illumi-

ISG sensors or the ISG system.

ISG OFF button, or when the mal-

nates, and the message "Auto

function with the ISG system per-

Stop System Off" appears on the

sists, we recommend that you contact

LCD display.

The followings occur, when there is

a HYUNDAI authorised repairer.

a malfunction with the ISG system:

• Press the ISG OFF button again to

• You can turn off the ISG OFF but-

reactivate the ISG system. Then,

• The auto stop indicator (

) will

ton indicator by driving over

50

the ISG OFF button indicator turns

blink in yellow on the instrument

mph (80 km/h) for up to 2 hours

OFF.

cluster.

with the fan speed below the 2nd

• The light on the ISG OFF button

position. If the ISG OFF button

will illuminate.

indicator remains ON, we recom-

mend that you contact a HYUNDAI

5

authorised repairer.

WARNING

When the engine is in auto stop

mode, the engine may restart.

Before leaving the vehicle or

checking the engine compart-

ment, stop the engine by plac-

ing the ignition switch to the

LOCK/OFF position or remov-

ing the ignition key.

5-67

Driving your vehicle

The battery sensor deactiva-

Prerequisites to reactivate the

NOTICE

tion

battery sensor

•

Use only the genuine HYUNDAI

Keep the engine in the OFF status

ISG battery for replacement. If

for 4 hours, and attempt to restart the

not, the ISG system may not nor-

engine 3 to 4 times for the battery-

mally operate.

sensor reactivation.

•

Do not recharge the ISG battery

Pay extreme caution not to connect

with a general battery charger. If

any accessories (i.e. navigation and

not, it may damage or explode

black box) to the vehicle with the

the ISG battery.

engine in the OFF status. If not, the

•

Do not remove the battery cap. If

battery sensor may not be reactivat-

not, the battery electrolyte,

ed.

which is harmful to the human

body, may leak out.

OTM058025L

i

Information

[A] : Battery sensor

The ISG system may not operate in

The battery sensor is deactivated,

the following situations.

when the battery is disconnected

- There is a malfunction with the ISG

from the negative pole for mainte-

system.

nance purpose.

- The battery is weak.

In this case, the ISG system is limit-

- The brake vacuum pressure is low.

edly operated due to the battery sen-

In those cases, we recommend that

sor deactivation. Thus, the driver

you have the ISG system checked by a

needs to take the following proce-

HYUNDAI authorised repairer.

dures to reactivate the battery sen-

sor after disconnecting the battery.

5-68

FLEX STEERING WHEEL (IF EQUIPPED)

Normal mode

OTM058137R

OTM058135L

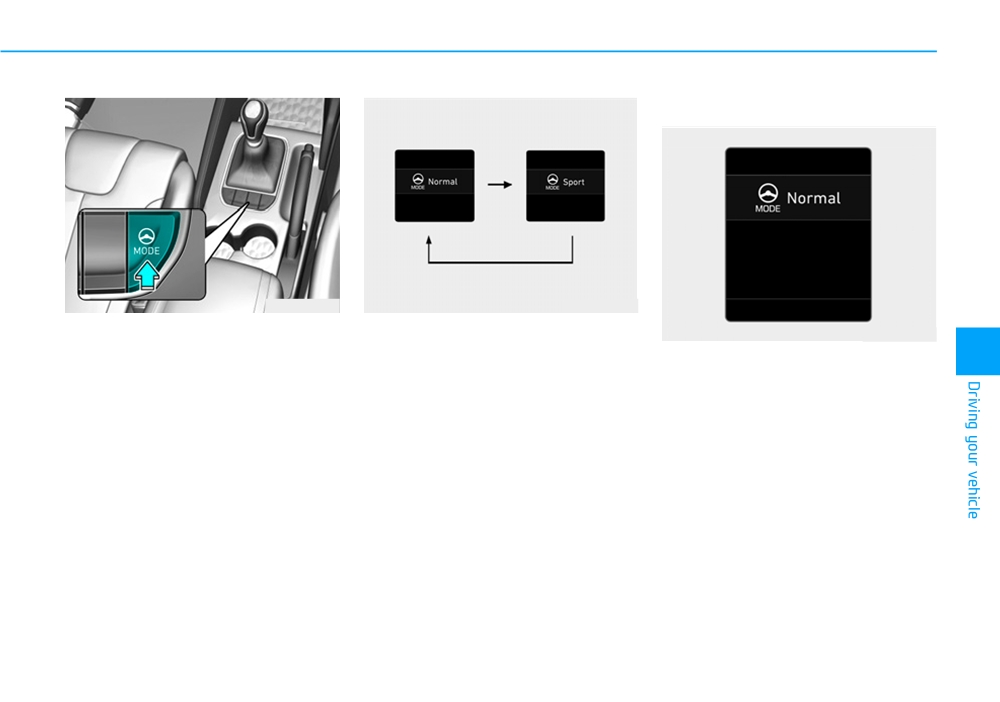

The flex steering wheel controls

When the steering mode button is

OTM058136L

steering effort as driver's preference

pressed, the selected steering mode

5

The normal mode offers medium

or road condition.

will appear on the LCD display.

steering effort.

You can select the desired steering

If the steering mode button is

mode by pressing the steering mode

pressed within 4 seconds, the steer-

button.

ing mode will change as above pic-

tures.

If the steering wheel mode button is

not pressed for about 4 seconds, the

LCD display will change to the previ-

ous screen.

5-69

Driving your vehicle

Sport mode

CAUTION

•

For your safety, if you press

the steering mode button

whilst operating the steering

wheel, the LCD display will

change, but the steering effort

will not change immediately.

After operating the steering

wheel, the steering effort will

change automatically to the

selected mode.

OTM058138L

•

Be careful when changing the

steering mode whilst driving.

The steering wheel becomes heav-

ier. The sport mode is usually used

•

When the electronic power

when driving in highway.

steering is not working prop-

erly, the flex steering wheel

will not work.

5-70

DRIVE MODE INTEGRATED CONTROL SYSTEM (IF EQUIPPED)

■ Type A

• SMART mode : SMART mode

SMART mode

automatically adjusts the driving

mode (ECO ↔ COMFORT ↔

SPORT) in accordance with the

driver's driving habits.

• COMFORT mode : COMFORT

mode provides soft driving and

comfortable riding.

• SPORT mode : SPORT mode pro-

vides sporty but firm riding.

• ECO mode : ECO mode improves

OTM058026R

fuel efficiency for eco-friendly driv-

■ Type B

ing.

OTM058139L

The driving mode will be set to COM-

5

FORT or ECO mode when the

engine is restarted. if it is in SMART/

COMFORT/SPORT mode. COM-

FORT mode will be set, when the

engine is restarted.

If it is in Eco mode, Eco mode will be

set when the engine is restarted.

OTM058027R

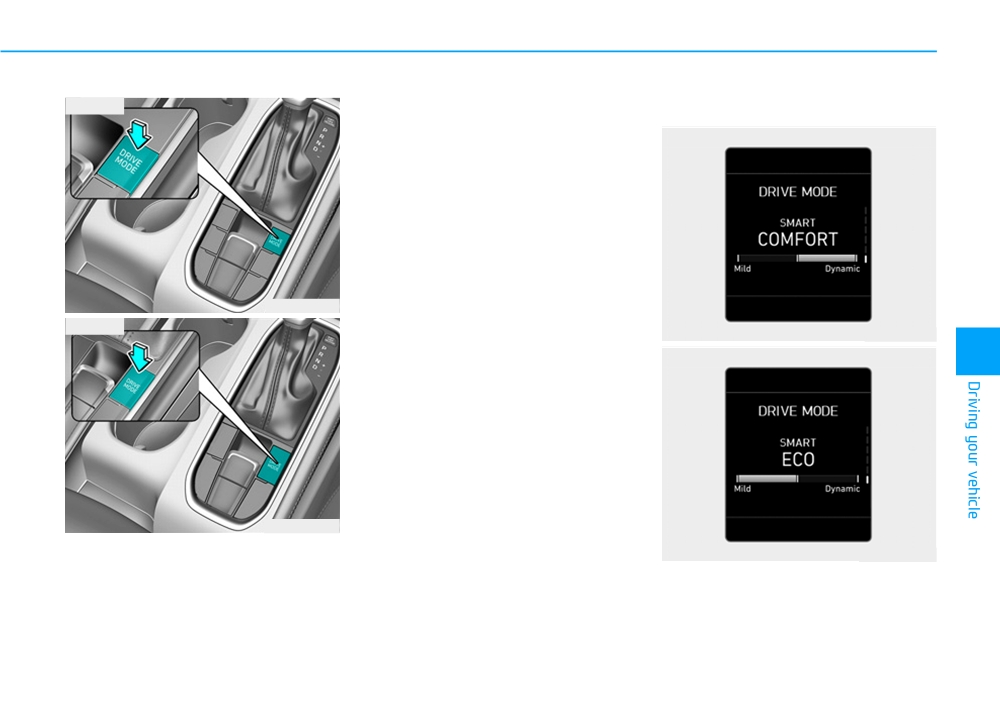

The drive mode may be selected

OTM058140L

according to the driver's preference

or road condition.

The mode changes whenever the

DRIVE MODE button is pressed.

5-71

Driving your vehicle

•

Press the DRIVE MODE button to

i

Information

activate SMART mode. When

SMART mode is activated, the

•

When you mildly drive the vehicle

indicator illuminates on the instru-

in SMART mode, the driving mode

ment cluster.

changes to ECO mode to improve

fuel efficiency. However, the actual

•

The vehicle starts in SMART

fuel efficiency may differ in accor-

mode, when the engine was turned

dance with your driving situations

OFF in SMART mode.

(i.e. upward/downward slope, vehi-

•

SMART mode automatically con-

cle deceleration/acceleration).

trols the vehicle driving, such as

•

When you dynamically drive the

gear shifting patterns, engine

vehicle in SMART mode by abrupt-

OTM058141L

torque, riding quality (if equipped

ly decelerating or sharply curving,

with the electronic suspension sys-

the driving mode changes to

tem), and power distribution

(if

SMART mode selects the

SPORT mode. However, it may

equipped with the Four-Wheel

SMART

proper driving mode

adversely affect fuel economy.

Drive

(4WD) system), in accor-

among ECO, COMFORT

dance with the driver's driving

and SPORT by judging

habits.

the driver's driving habits (i.e. mild or

dynamic) from the brake pedal

depression or the steering wheel

operation.

5-72

Driving your vehicle

SPORT mode

• When SPORT mode is activated:

ECO mode

- The engine rpm will tend to

SPORT mode manages

When the Drive Mode is

the driving dynamics by

remain raised over a certain

set to ECO mode, the

SPORT

ECO

length of time even after releas-

automatically adjusting

engine and transmission

the steering effort, and

ing the accelerator

control logic are changed

the engine and transmission control

- Upshifts are delayed when accel-

to maximise fuel efficiency.

logic for enhanced driver perform-

erating

• When ECO mode is selected by

ance.

pressing the DRIVE MODE button,

• When SPORT mode is selected by

i

Information

the ECO indicator (green colour)

pressing the DRIVE MODE button,

will illuminate.

In SPORT mode, the fuel efficiency

the SPORT indicator

(orange

• If the vehicle is set to ECO mode,

may decrease.

colour) will illuminate.

when the engine is turned OFF

• Whenever the engine is restarted,

and restarted the Drive Mode set-

the Drive Mode will revert back to

ting will remain in ECO mode.

COMFORT mode. If SPORT mode

is desired, re-select SPORT mode

i

Information

from the DRIVE MODE button.

Fuel efficiency depends on the driver's

driving habit and road condition.

5-74

Content   ..  21  22  23  24   ..
