Hyundai Santa Fe (2019 year). Instruction - part 11

Shift to P to edit settings /

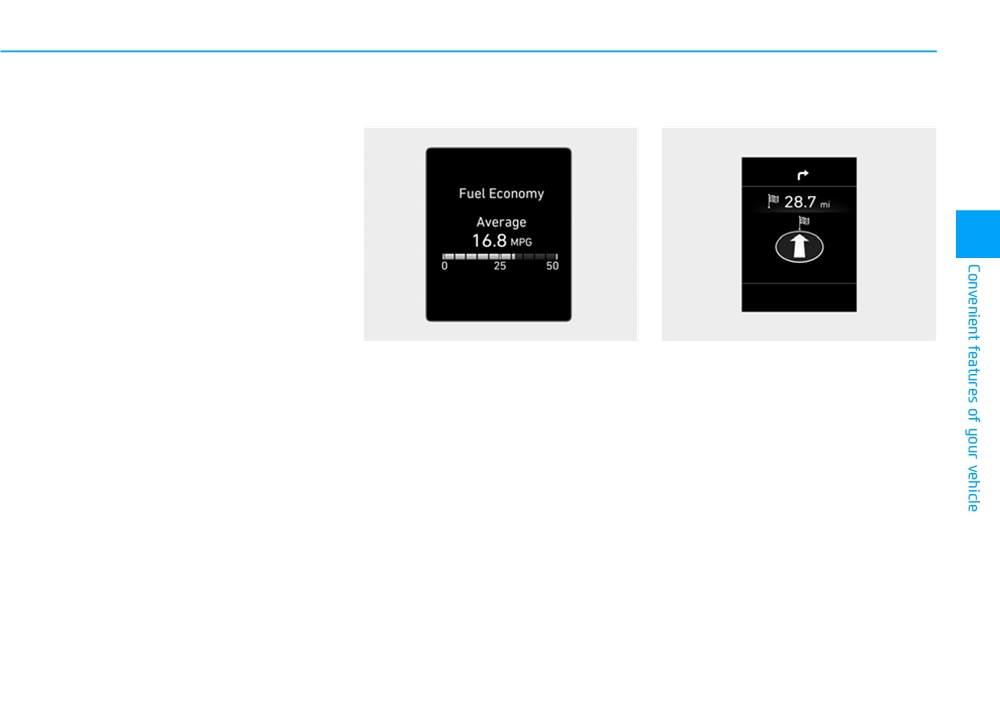

Trip computer mode

Turn By Turn (TBT) mode

Engage parking brake to edit

settings

This warning message illuminates if

you try to select an item from the

User Settings mode whilst driving.

- Manual transmission

For your safety, change the User

Settings after engaging the parking

brake.

- Automatic transmission

For your safety, change the User

OIK047124N

OPDE046147R

Settings after parking the vehicle,

The trip computer mode displays

This mode displays the state of the

applying the parking brake and

information related to vehicle driving

navigation.

moving the shift lever to P (Park).

parameters including fuel economy,

tripmeter information and vehicle

Quick guide (Help, if equipped)

speed.

This mode provides quick guides for

For more details, refer to "Trip

the systems in the User Settings

Computer" in this chapter.

mode.

Select an item, press and hold the

OK button.

For more details about each sys-

tem, refer to this Owner’s Manual.

3-93

Convenient features of your vehicle

Assist mode

OTM048125R

OTM048127L

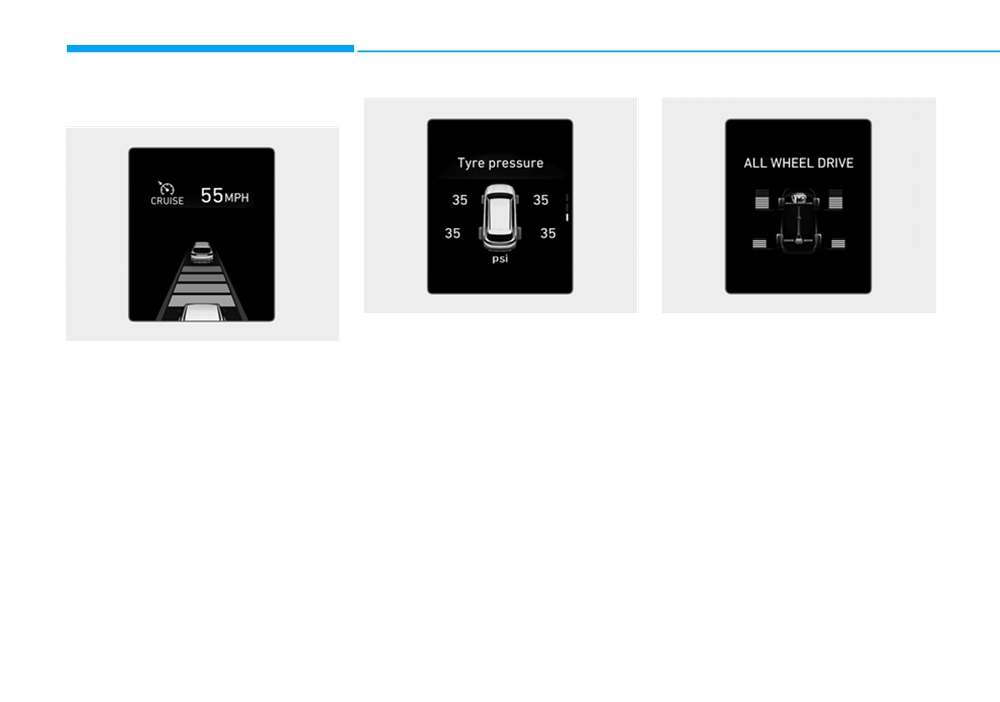

Tyre Pressure

Driving force distribution (4WD)

OTM048124R

This mode displays information relat-

SCC/LKA/DAW

ed to Tyre Pressure.

ed to 4WD driving force.

This mode displays the state of the

If the vehicle is in 4WD lock state,

Smart Cruise Control (SCC), Lane

For more details, refer to "Tyre

this mode is not displayed.

Keeping Assist

(LKA) and Driver

Pressure Monitoring System

Attention Warning (DAW).

(TPMS)" in chapter 6.

For more details, refer to the "Four

Wheel Drive (4WD)" in the chapter

For more details, refer to each

system information in chapter 5.

3-94

Warning message mode

User settings mode

If one of followings occurs, warning

In this mode, you can change the

messages will be displayed on the

settings of the instrument cluster,

LCD display for several seconds.

doors, lamps, etc.

- Low washer fluid (if equipped)

1. Head-up display (if equipped)

Exterior lamp malfunction

2. Driver assistance

(if equipped)

3. Door

Blind-Spot Collision Warning

4. Lights

(BCW) system malfunction

5. Sound

(if equipped)

6. Convenience

Tyre Pressure Monitoring System

(TPMS, if equipped)

7. Service interval

High Beam Assist (HBA) malfunc-

8. Other features

tion (if equipped)

9. Languages

Forward Collision-Avoidance

10. Reset

Assist (FCA) malfunction

(if equipped)

The information provided may dif-

fer depending on which functions

are applicable to your vehicle.

3-95

Convenient features of your vehicle

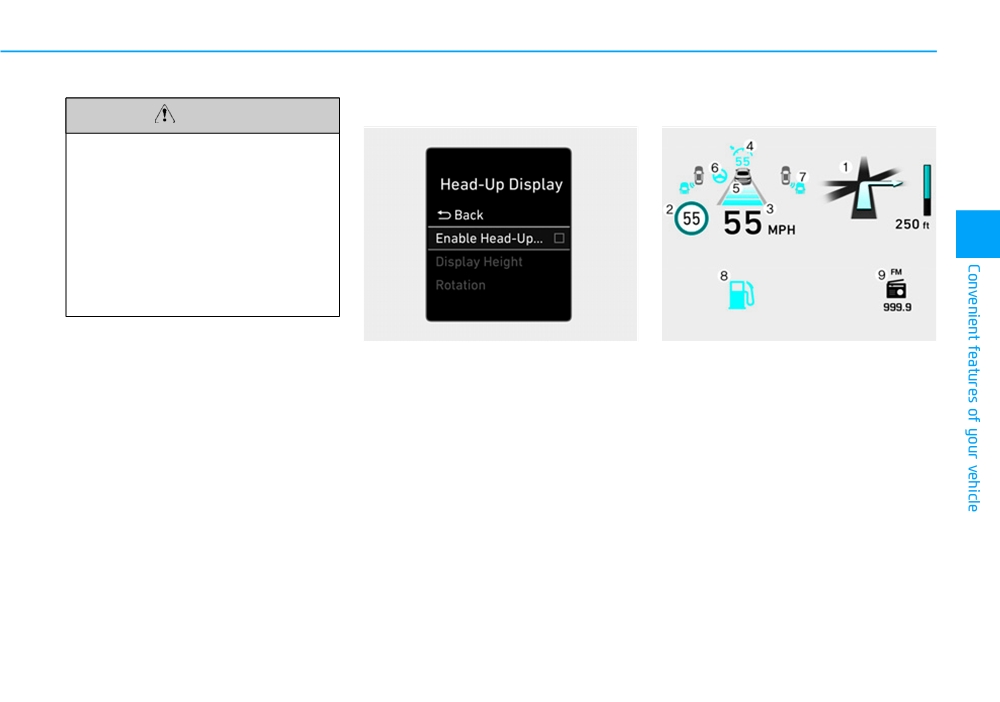

1. Head-up display

Items

Explanation

Enable Head-up display

If this item is checked, Head-Up Display will be activated.

Display height

To adjust the height of the image displayed.

Rotation

To adjust the angle of the image displayed.

Brightness

To adjust the brightness of the image displayed.

Content selection

To select the content to be displayed.

• Large/Medium/Small

Speedometer size

To select the speedometer size displayed.

• White/Orange/Green

Speedometer colour

To select the speedometer colour displayed.

3-96

2. Driver assistance

Items

Explanation

• Fast/Normal/Slow

SCC response

To adjust the sensitivity of the Smart Cruise Control system.

For more details, refer to ''Smart Cruise Control with Stop & Go'' in chapter 5.

• Leading vehicle departure alert

To activate or deactivate the Leading vehicle departure alert.

For more details, refer to the "Leading vehicle departure alert" in chapter 5.

Driving assist

• ISLW (Speed Limit Warning)

To activate or deactivate the Warning.

For more details, refer to "Warning (ISLW)" in chapter 5.

To adjust the sensitivity of the Driver Attention Warning.

DAW(Driver Attention Warning)

- Off/High sensitivity / Normal sensitivity

For more details, refer to the "Driver Attention Warning (DAW)" in chapter 5.

To adjust the warning timing of the driver assistance system.

Warning timing

- Normal / Later

To adjust the warning volume of the driver assistance system.

Warning volume

- High / Medium / Low

3-97

Convenient features of your vehicle

2. Driver assistance

Items

Explanation

To adjust the Lane Keeping Assist function.

- LKA (Lane Keeping Assist)

Lane safety

- LDW (Lane Departure Warning)

- Off

For more details, refer to the "Lane Keeping Assist (LKA) system" in chapter 5.

To adjust the Forward Collision-Avoidance Assist function.

- Active assist

Forward safety

- Warning only

- Off

For more details, refer to the "Forward Collision-Avoidance Assist system" in chapter 5.

• SEA(Safe Exit Assistance)

To activate or deactivate the Safe Exit Assistance.

For more details, refer to the "Safe Exit Assistance" in chapter 5.

• RCCW (Rear Cross-Traffic Collision Warning)

To activate or deactivate the Rear Cross-Traffic Collision Warning function.

Blind-spot safety

For more details, refer to "Rear Cross-traffic Collision Warning (RCW)" in chapter 5.

• Active assist

• Warning only

• Off

3-98

3. Door

Items

Explanation

• Disable : The auto door lock operation will be deactivated.

• Enable on Speed: All doors will be automatically locked when the vehicle speed exceeds 9.3mph

Auto lock

(15km/h).

• Enable on Shift: All doors will be automatically locked if the automatic transmission shift lever is shift-

ed from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position.

• Disable : The auto door unlock operation will be cancelled.

• On key out/On vehicle off : All doors will be automatically unlocked when the ignition key is removed

Auto unlock

from the ignition switch or the Engine Start/Stop button is set to the OFF position.

• On Shift to P: All doors will be automatically unlocked if the automatic transmission shift lever is shift-

ed to the P (Park) position.

To activate or deactivate the lock/unlock sound.

Lock/Unlock sound

If you lock the door with a remote control key again after locking the door, the alarm beeps.

If this item is checked, the power tailgate function will be activated.

Power tailgate

For more details, refer to "Power tailgate" in this chapter.

To adjust the power tailgate speed.

Power tailgate speed

- Normal/Fast

For more details, refer to "Power tailgate" in this chapter.

To activate or deactivate the smart tailgate.

Smart tailgate

For more details, refer to "Smart tailgate" in this chapter.

3-99

Convenient features of your vehicle

4. Lights

Items

Explanation

• Off: The one touch turn signal function will be deactivated.

• 3, 5, 7 Flashes: The turn signal indicator will blink 3, 5, or 7 times when the turn signal lever is moved

One touch turn indicator

slightly.

For more details, refer to "Lighting" in this chapter.

To activate or deactivate the headlamp delay function.

Head lamp delay

For more details, refer to "Lighting" in this chapter.

To activate or deactivate the traffic change function.

Travel mode

For more details, refer to “Lighting” in this chapter.

5. Sound

Items

Explanation

Welcome sound

To activate or deactivate the welcome sound.

3-100

6. Convenience

Items

Explanation

• Off: The seat easy access function is deactivated.

• Normal/Extended: When you turn off the engine, the driver's seat will automatically move rearward

Seat easy access

short (Normal) or long (Extended) for you to enter or exit the vehicle more comfortably.

For more details, refer to "Driver Position Memory System" in this chapter.

To activate or deactivate the Rear seat passenger alert.

Rear seat passenger alert

For more details, refer to "Rear Occupant Alert (ROA) system" in this chapter.

• On door unlock: The outside rearview mirrors are unfolded and the welcome light turns on automati-

cally when the doors are unlocked.

• On driver approach: The outside rearview mirrors are unfolded and the welcome light turns on auto-

Welcome mirror/light

matically when the vehicle is approached with the smart key.

For more details, refer to ''Welcome System'' in this chapter.

To activate or deactivate the wireless charging system in the front seat.

Wireless charging system

For more details, refer to "Wireless mobile phone charging system" in this chapter.

To activate or deactivate the Wiper/ Light mode.

Wiper/Lights display

When activated, the LCD display shows the selected Wiper/Light mode whenever you changed the

mode.

• Off : The Auto Rear Wiper function will be deactivated.

Auto rear wiper (reverse)

• ON : If you move the shift lever from D to R when the front wiper operates, the rear wiper will operate

automatically. Then, if you move the shift lever from R to D, the rear wiper will stop.

To activate or deactivate the gear position pop-up.

Gear position pop-up

When activated, the gear position will be displayed on the LCD display.

Icy road warning

To activate or deactivate the icy road warning.

3-101

Convenient features of your vehicle

7. Service interval

Items

Explanation

Service interval

To activate or deactivate the service interval function.

Adjust interval

If the service interval menu is activated, you may adjust the time and distance.

Reset

To reset the service interval.

Information

To use the service interval menu, consult a HYUNDAI authorised repairer.

If the service interval is activated and the time and distance is adjusted, messages are displayed in the following situations

each time the vehicle is turned on.

- Service in

: Displayed to inform the driver the remaining mileage and days to service.

- Service required

: Displayed when the mileage and days to service has been reached or passed.

Information

If any of the following conditions occur, the mileage and number of days to service may be incorrect.

- The battery cable is disconnected.

- The fuse switch is turned off.

- The battery is discharged.

3-102

8. Other features

Items

Explanation

• Off: The average fuel economy will not reset automatically whenever refuelling.

• After ignition: When the engine has been OFF for 4 hours or longer the average fuel economy

will reset automatically.

Fuel economy auto reset

• After refuelling: The average fuel economy will reset automatically after adding 6 litres (1.3

lmp. gal.) of fuel or more and after driving speed exceeds 1 mph (1 km/h).

For more information, refer to "Trip Computer" in this chapter.

To select the fuel economy unit.

Fuel economy unit

(UK gallon, US gallon)

To select the temperature unit.

Temperature unit

(°C,°F)

To select the tyre pressure unit.

Tyre pressure unit

(psi, kPa, bar)

9. Language (if equipped)

Items

Explanation

Language

Choose the language. You can choose the language in AVN device.(if equipped)

10. Reset

Items

Explanation

You can reset the menus in the User Settings Mode. All menus in the User Settings Mode are

Reset

reset to factory settings, except language and service interval.

3-103

Convenient features of your vehicle

TRIP COMPUTER

The trip computer is a microcomput-

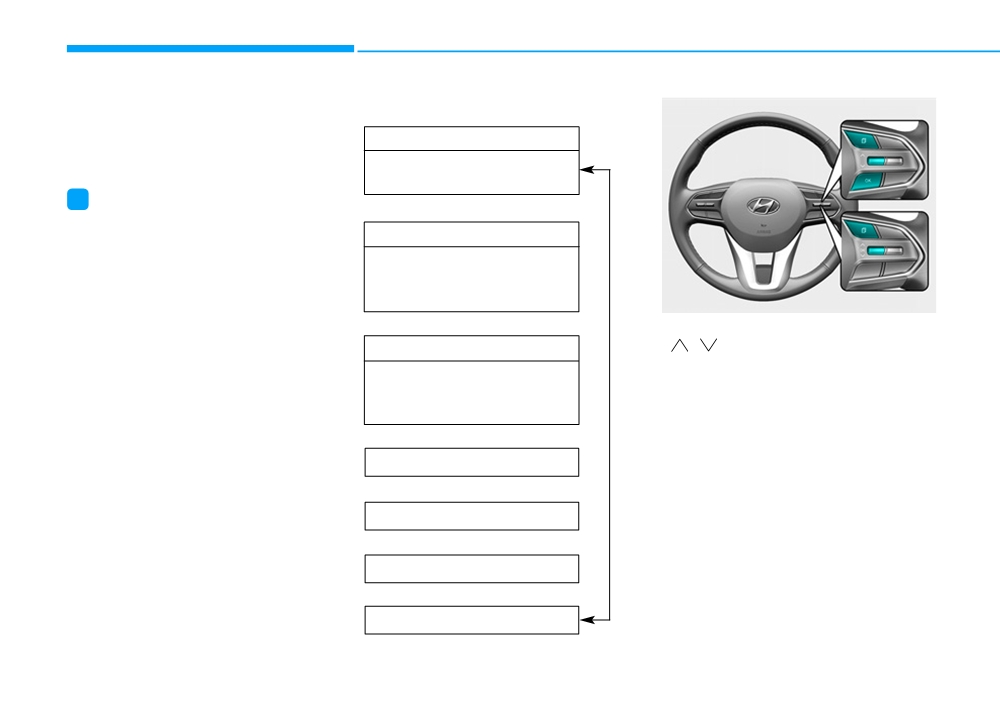

Trip modes

er-controlled driver information sys-

tem that displays information related

Fuel Economy

to driving.

• Average Fuel Economy

• Instant Fuel Economy

Information

↕

Some driving information stored in the

Accumulated Info

trip computer (for example Average

Vehicle Speed) resets if the battery is

• Tripmeter

disconnected.

• Average Fuel Economy

• Elapsed Time

OTM048414

↕

To change the trip mode, toggle the

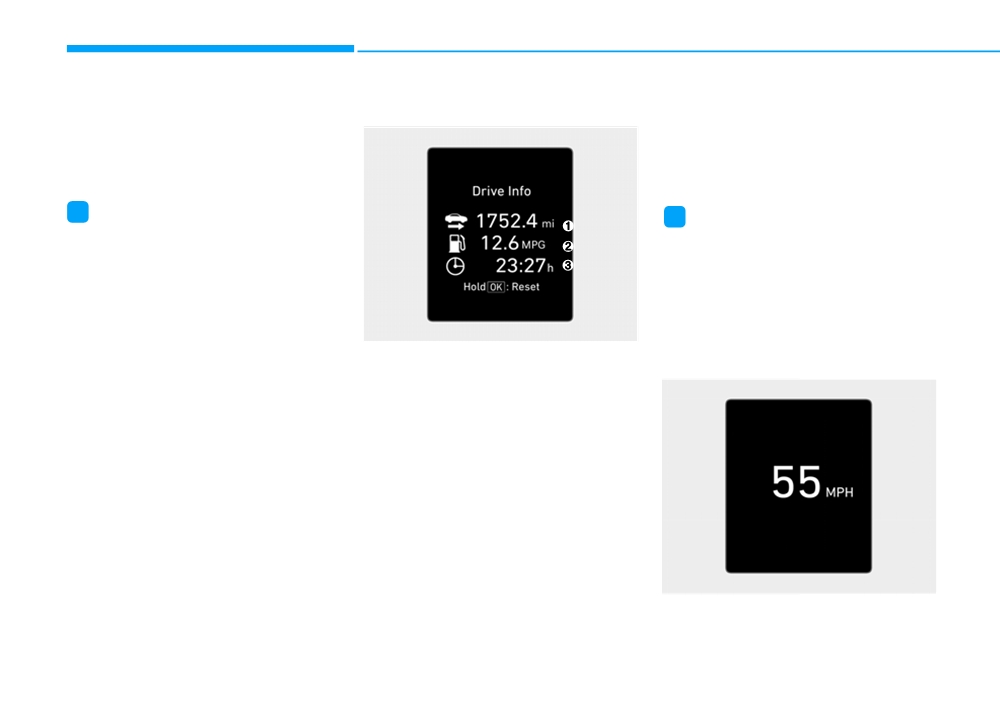

Drive Info

“

” switch on the steering wheel.

• Tripmeter

• Average Fuel Economy

• Elapsed Time

↕

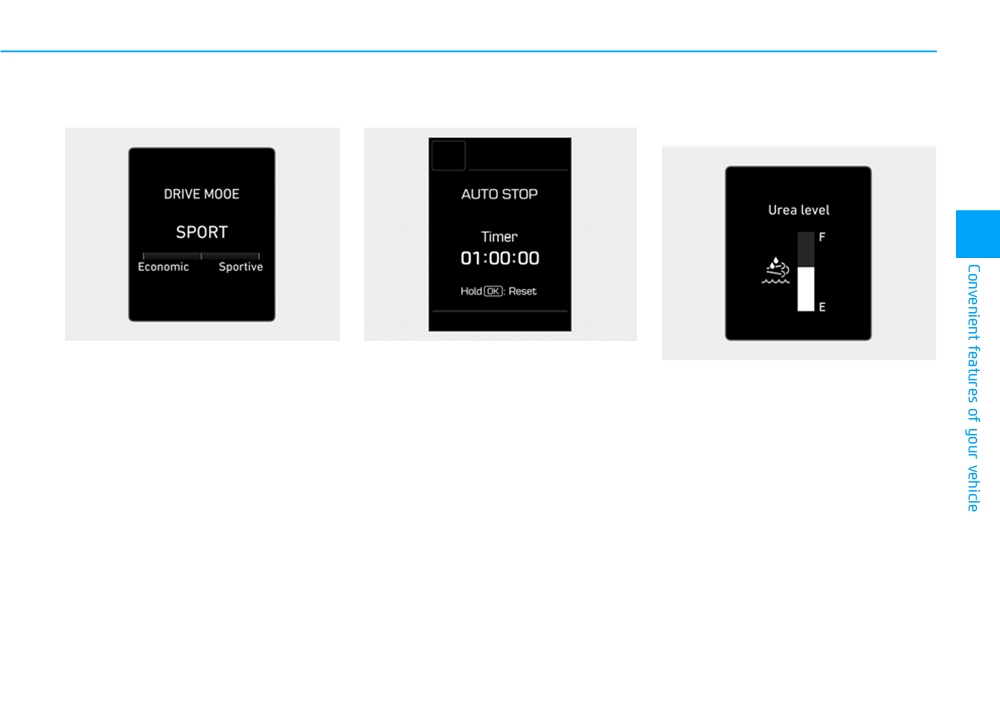

Digital Speedometer

↕

Smart Shift

↕

Auto stop (if equipped)

↕

Urea level (if equipped)

3-104

Fuel economy

Automatic reset

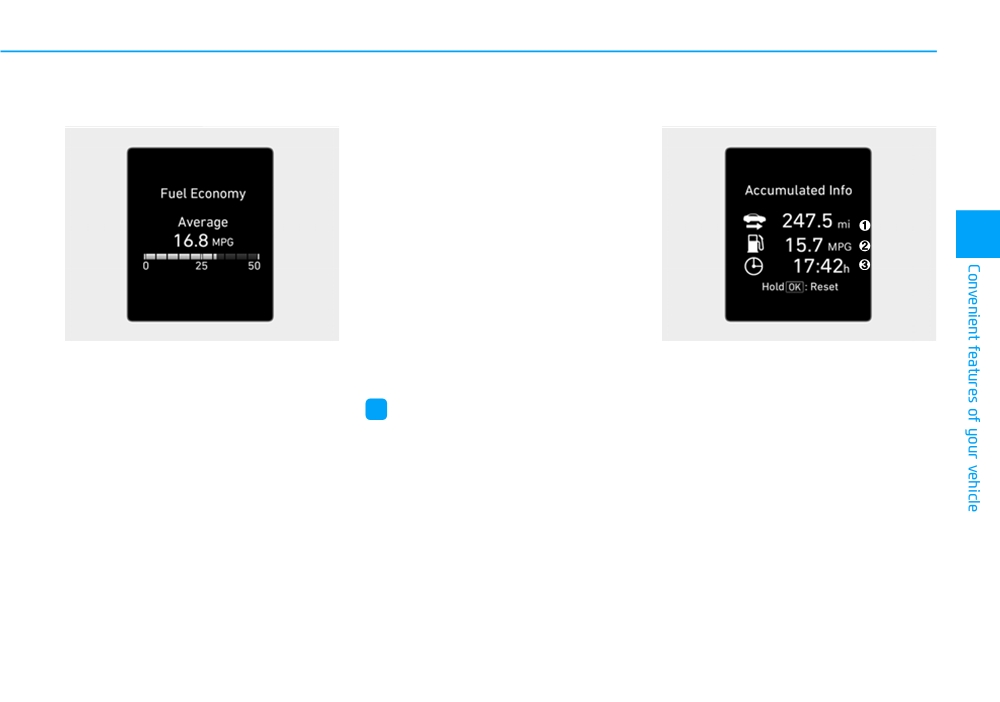

Accumulated Info display

To automatically reset the average

fuel economy after refuelling, select

the "Fuel economy auto reset" mode

in the User Settings menu on the

LCD display.

- After ignition: The average fuel

economy will reset automatically

whenever it has passed 4 hours

after turning OFF the engine.

- After refuelling: The average fuel

economy will reset automatically

OIK047124N

when driving speed exceeds

OTM048173R

km/h, after adding 6 litres (1.3 lmp.

This display shows the accumulated

Average Fuel Economy (1)

gal.) of fuel or more.

trip distance

(1), the average fuel

• The average fuel economy is calcu-

economy (2), and the total driving

lated by the total driving distance

Information

time (3).

and fuel consumption since the last

The average fuel economy may be

The information is accumulated

average fuel economy reset.

inaccurate, when the vehicle drives

starting from the last reset.

• The average fuel economy can be

shorter than 0.19 miles (300 metres)

To manually reset the information,

reset both manually and automati-

after turning ON the Engine Start/Stop

press and hold the OK button when

cally.

button.

viewing the Accumulated driving info.

The trip distance, the average fuel

Manual reset

economy, and total driving time will

Instant Fuel Economy (2)

To clear the average fuel economy

reset simultaneously.

• This mode displays the instant fuel

manually, press the [OK] button on

economy during the last few sec-

the steering wheel for more than 1

onds when the vehicle speed is

second when the average fuel econo-

more than 6.2 mph (10 km/h).

my is displayed.

3-105

Convenient features of your vehicle

The accumulated driving information

Drive Info display

The driving information will continue

will continue to be counted whilst the

to be counted whilst the engine is still

engine is still running (for example,

running (for example, when the vehi-

when the vehicle is in traffic or

cle is in traffic or stopped at a stop

stopped at a stop light).

light.)

Information

The vehicle must be driven for a min-

imum of 0.19 miles (300 metres) since

the last ignition key cycle before the

average fuel economy will be recalcu-

lated.

OTM048174R

Digital Speedometer

This display shows the trip distance

(1), the average fuel economy (2),

and the total driving time (3).

The information is combined for each

ignition cycle. However, when the

engine has been OFF for 4 hours or

longer the Drive Info screen will reset.

To manually reset the information,

press and hold the OK button when

viewing the Drive Info. The trip dis-

tance, the average fuel economy, and

total driving time will reset simultane-

ously.

OIK047151N

This message shows the speed of

the vehicle (MPH).

3-106

Smart Shift

Auto stop time (if equipped)

Urea level gauge

(for diesel engine, if equipped)

OIK047179L

OTL045191L

OTM048163L

This mode displays the currently

This mode displays the elapsed time of

selected drive mode.

Auto stop by "Idle stop and go system".

This mode displays the amount of

the remaining urea solution in the

For more details, refer to "Drive

For more details, refer to the "Idle

urea solution tank.

Mode Integrated Control System''

stop and go system" in chapter 5.

in chapter 5.

3-107

Convenient features of your vehicle

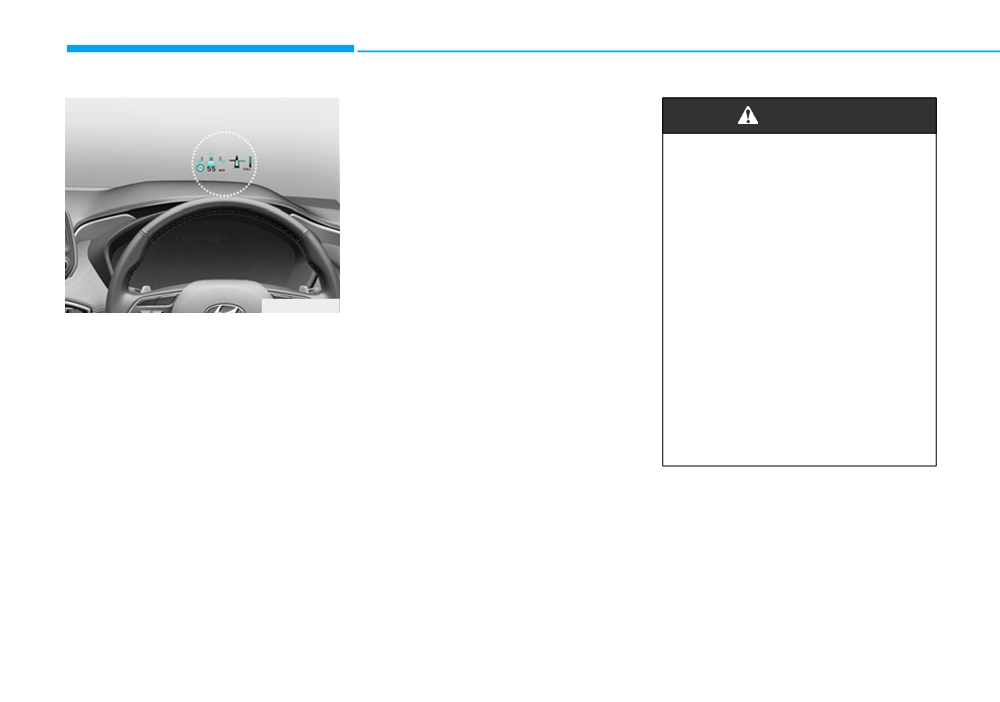

HEAD UP DISPLAY (HUD) (IF EQUIPPED)

Precautions whilst using the

WARNING

head up display

It may be difficult to read information

•

Do not tint the front wind-

on the head up display in the follow-

screen glass or add other

ing situations.

types of metallic coating.

- The driver is improperly positioned

Otherwise, the head up dis-

in the driver’s seat.

play image may be invisible.

- The driver wears polarised sun-

•

Do not place any accessories

glasses.

on the crash pad or attach any

- An object is located above the

objects on the windscreen

head up display cover.

glass.

OTM048044E

- The vehicle is driven on a wet road.

•

The Blind-spot Collision

The head up display is a transparent

Warning (BCW) system warn-

display which projects a shadow of

- Any improper lighting accessory is

ings on the head up display

some information of the instrument

installed inside the vehicle, or there

are mere supplemental. Do not

cluster and navigation on the display

is incoming light from outside of

solely depend on them to

located on the windscreen glass.

the vehicle.

change lanes. Always take a

- The driver wears glasses.

look around before changing

- The driver wears contact lenses.

lanes.

When it is difficult to read the head

up display information, adjust the

head up display angle or the head up

display brightness level in the User

Settings Mode. For more information,

refer to "LCD Display" in this chapter.

3-108

Head-up display ON/OFF

Head Up Display Information

CAUTION

When replacing the front wind-

screen glass of the vehicles

equipped with the head up dis-

play, replace it with a wind-

shield glass designed for the

head up display operation.

Otherwise, duplicated images

may be displayed on the wind-

screen glass.

OIK047152N

OTM048442R

To activate the head up display,

1. Turn By Turn

(TBT) navigation

select ‘Head-UP Display’ on the User

information (if equipped)

Settings mode on the instrument

2. Road signs (if equipped)

cluster LCD display.

3. Speedometer

If you do not select

‘Head-Up

4. Cruise setting speed (if equipped)

Display’, the head up display will be

deactivated.

5. Smart Cruise Control (SCC) infor-

mation (if equipped)

6. Lane Keeping Assist (LKA) system

information (if equipped)

7. Blind-spot Collision Warning (BCW)

system information (if equipped)

8. Warning lights (Low fuel)

9. Audio/Video information

3-109

Content .. 9 10 11 12 ..
