Your vehicle at a glance

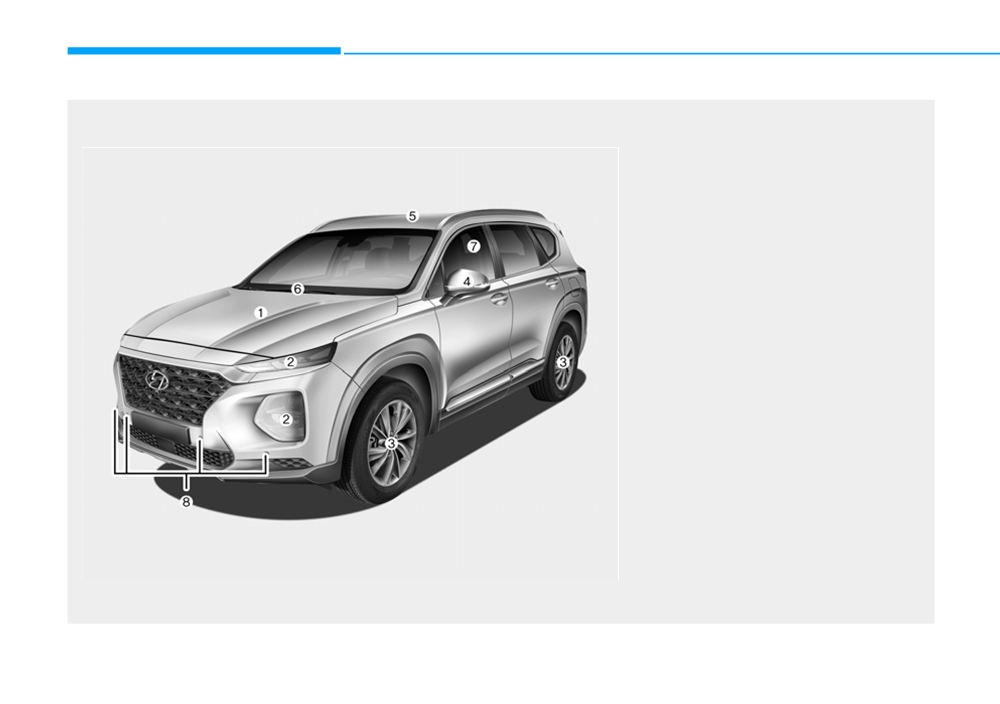

EXTERIOR OVERVIEW (I)
■ Front view
1. Bonnet
3-46
2. Head lamp
3-112, 7-60
3. Tyres and wheels
7-32, 8-4
4. Outside rearview mirror
3-32
5. Sunroof
3-41
6. Front windscreen wiper blades
7-25
7. Windows
3-36
8. Parking Distance Warning system
(Reverse/Forward)
3-136
The actual shape may differ from the illustration.
OTM018001
1-2

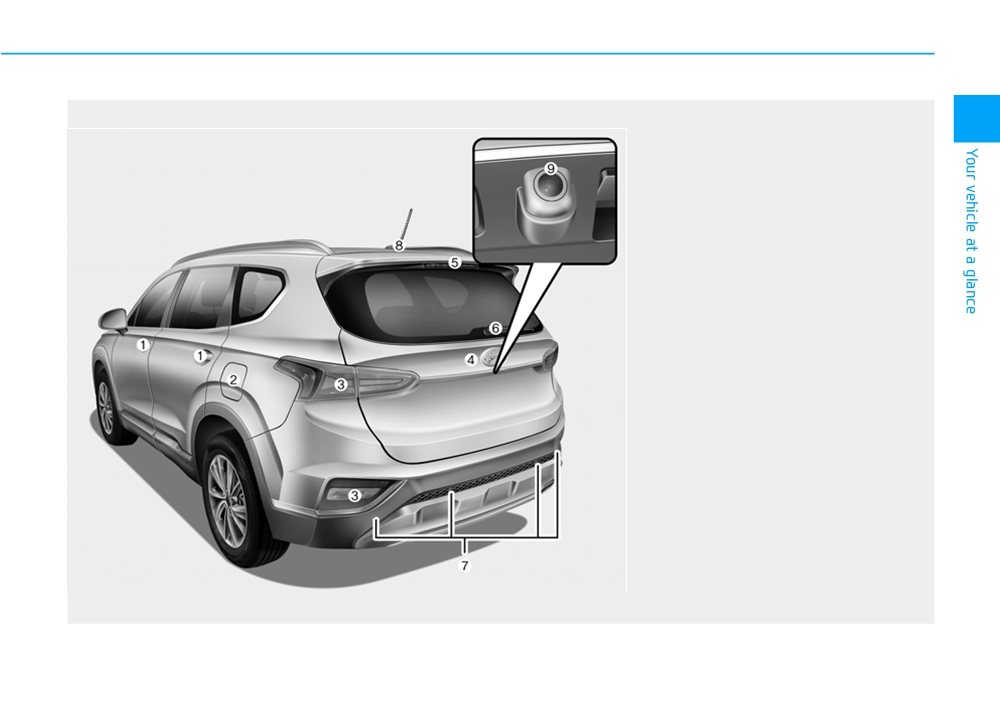

EXTERIOR OVERVIEW (II)
■ Rear view
1
1. Door
3-13
2. Fuel filler door
3-58
3. Rear combination lamp
7-69
4. Tailgate
3-47
5. High mounted stop lamp
7-71
6. Rear windscreen wiper
3-129
7. Parking Distance Warning system
(Reverse)
3-132
8. Antenna
4-2
9. Rear view monitor
3-130
The actual shape may differ from the illustration.
OTM018002L
1-3
Your vehicle at a glance

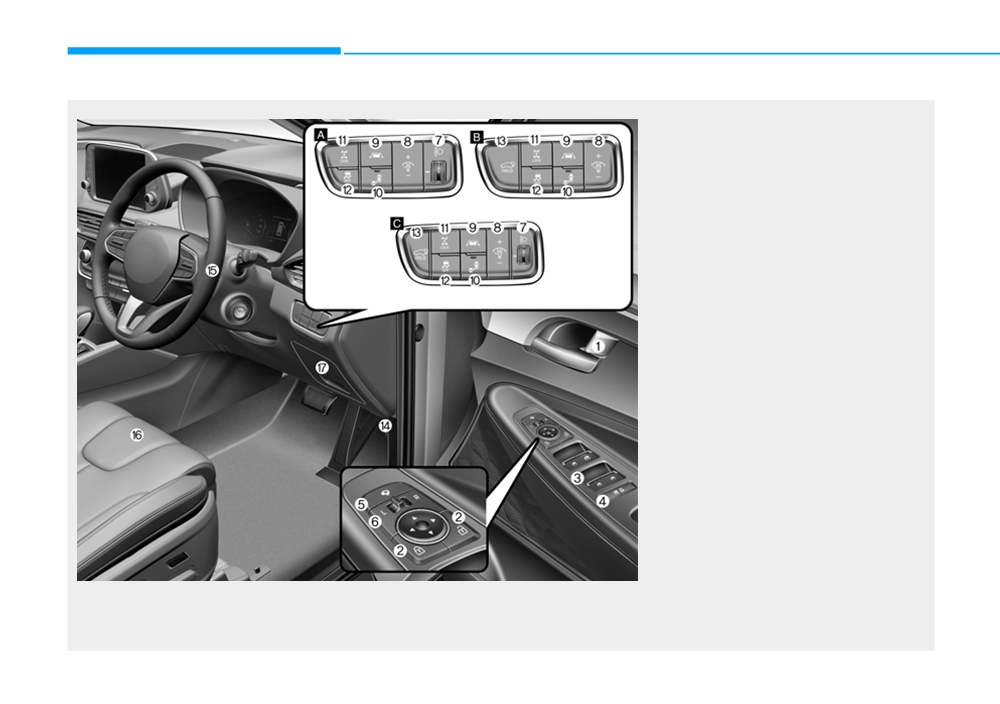

INTERIOR OVERVIEW
1. Inside door handle
3-14
2. Central door lock switch
3-15
3. Power window switches
3-36
4. Power window lock button
3-39
Electronic child safety lock button
3-17
5. Outside rearview mirror folding
3-34
6. Outside rearview mirror control
3-33
7. Headlight levelling device
3-119
8. Instrument panel illumination
control switch
3-62
9. Lane keeping assist (LKA) system ..5-146
10. Blind-spot Collision Warning (BCW)
system
5-103
11.4WD lock button
5-55
12. ESC OFF button
5-46
13. Power tailgate button
3-49
14. Bonnet release lever
3-46
15. Steering wheel
3-26
16. Seat
2-4
17. Fuse box
7-44
[A] : Type A, [B] : Type B, [C] : Type C
OTM018003R
The actual shape may differ from the illustration.
1-4

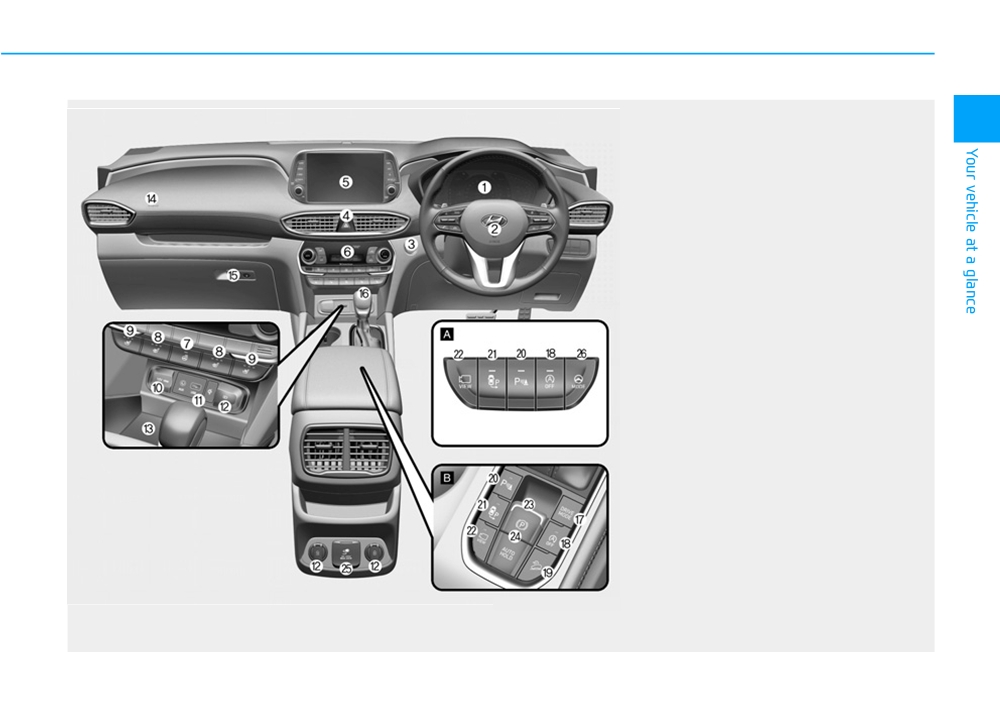

INSTRUMENT PANEL OVERVIEW
1. Instrument cluster
3-61
1
2. Horn
3-28
3. Engine Start/Stop button
5-12
4. Hazard warning flasher switch
6-2
5. Audio system
4-8
Navigation system
4-4
6. Manual climate control system
3-162
Automatic climate control system
3-171
7. Heated steering wheel
3-27
8. Seat warmer
2-24
9. Seat warmer/Air ventilation seat
2-25
10. Power outlet
3-190
11. Aux,USB and iPod®
4-2
12. USB charger
3-191
13. Wireless mobile phone charging system
3-193
14. Passenger’s front air bag
2-54
15. Glove box
3-185
16. Manual transmission shift lever
5-20
Automatic transmission shift lever
5-23
17. Drive mode button
5-71
18. Idle stop and go (ISG) OFF button
5-64
19. DBC button
5-52
20. Parking Distance Warning
(Reverse/Forward) button
3-137
21. Parking assist button
3-149
22. Surround view monitor
3-140
23. Electronic Parking Brake (EPB)
5-34
24. Auto Hold
5-40
25. AC 220V inverter
3-192
OTM018004R
26. Flex steering button
5-69
[A] : Type A, [B] : Type B
The actual shape may differ from the illustration.
1-5
Your vehicle at a glance
ENGINE COMPARTMENT

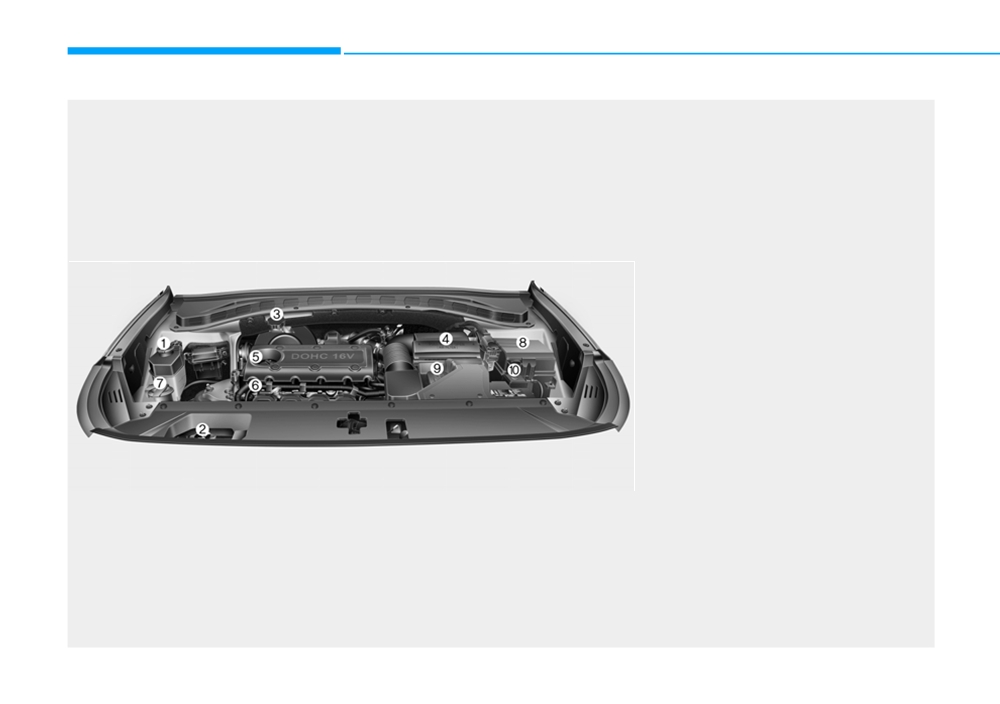

■ Petrol Engine (Theta 2.4 MPI)
1. Engine coolant reservoir
7-16
2. Engine coolant cap
7-16
3. Brake/clutch fluid reservoir
7-19
4. Air cleaner
7-22
5. Engine oil filler cap
7-14
6. Engine oil dipstick
7-13
7. Windscreen washer fluid reservoir
7-20
8. Fuse box
7-44
9. Battery terminal [+]
7-28
10. Battery terminal [-]
7-28
The actual engine compartment in the vehicle may differ from the illustration.
OTM078085R
1-6

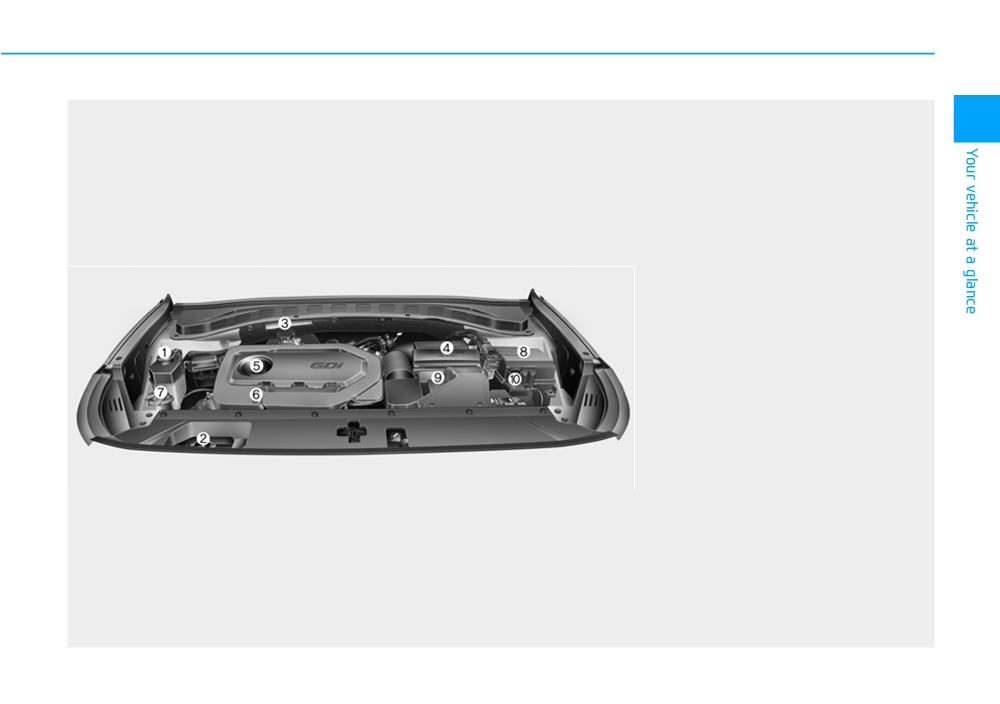

■ Petrol Engine (Theta 2.4 GDI)
1
1. Engine coolant reservoir
7-16
2. Engine coolant cap
7-16
3. Brake/clutch fluid reservoir
7-19
4. Air cleaner
7-22
5. Engine oil filler cap
7-14
6. Engine oil dipstick
7-13
7. Windscreen washer fluid reservoir
7-20
8. Fuse box
7-44
9. Battery terminal [+]
7-28
10. Battery terminal [-]
7-28
The actual engine compartment in the vehicle may differ from the illustration.
OTM078084R
1-7
Your vehicle at a glance

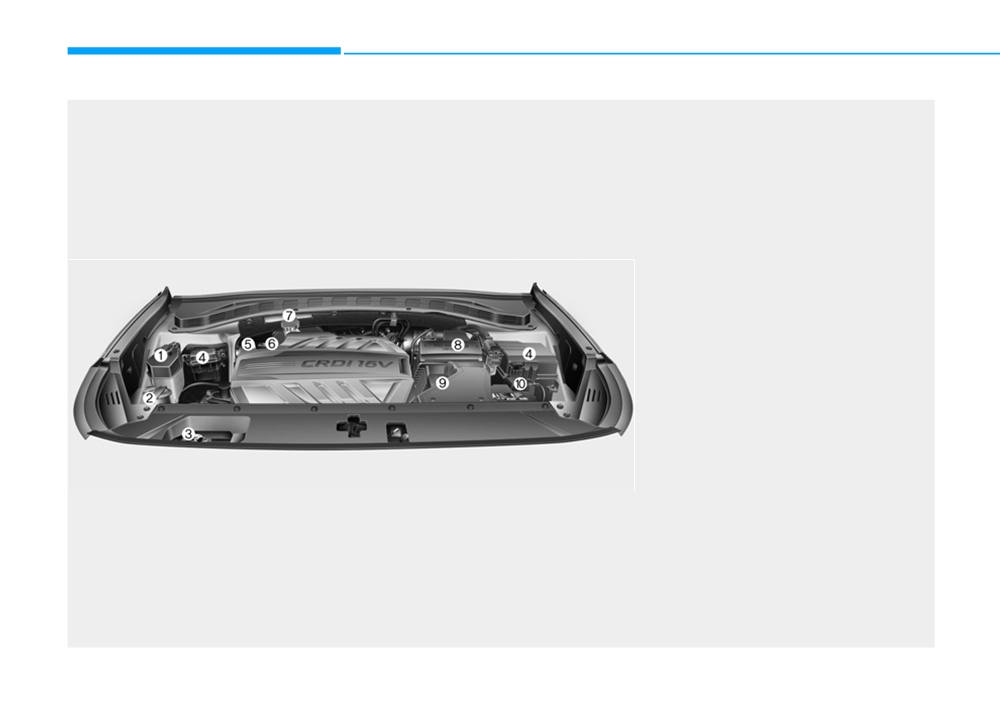

■ Diesel Engine (R 2.0/2.2)
1. Engine coolant reservoir
7-16
2. Windscreen washer fluid reservoir
7-20
3. Engine coolant cap
7-16
4. Fuse box
7-44
5. Engine oil dipstick
7-14
6. Engine oil filler cap
7-15
7. Brake/clutch fluid reservoir
7-19
8. Air cleaner
7-22
9. Battery terminal [+]
7-28
10. Battery terminal [-]
7-28
The actual engine compartment in the vehicle may differ from the illustration.
OTM078020R
1-8
Safety system of your vehicle
This chapter provides you with important information about how to protect yourself and your passengers.
It explains how to properly use your seats and seat belts, and how your air bags work.
Additionally, this chapter explains how to properly restrain infants and children in your vehicle.
2
Important safety precautions
2-2
Child restraint system (CRS)
2-40
Always wear your seat belt
2-2
Our recommendation:Children always in the rear..2-40
Restrain all children
2-2
Selecting a Child Restraint System (CRS)
2-41
Air bag hazards
2-2
Installing a Child Restraint System (CRS)
2-43
Driver distraction
2-2
Suitability of each seating position for belted &
Control your speed
2-3
ISOFIX Child Restraint Systems according to UN
Keep your vehicle in safe condition
2-3
regulations
2-48
Seats
2-4
Air bag - supplemental restraint system
2-52
Safety precautions
2-5
Where are the air bags?
2-54
Front seats
2-6
How does the air bags system operate?
2-59
Rear seats
2-12
What to expect after an air bag inflates
2-62
Head restraint
2-19
Why didn't my air bag go off in a collision?
2-64
Seat warmers and air ventilation seats
2-24
SRS care
2-69
seat belts
2-27
Additional safety precautions
2-70
Seat belt safety precautions
2-27
Air bag warning labels
2-70
Seat belt warning light
2-28
Seat belt restraint system
2-31
Additional seat belt safety precautions
2-37
Care of seat belts
2-39
Safety system of your vehicle
IMPORTANT SAFETY PRECAUTIONS
You will find many safety precautions
Restrain all children
Driver distraction
and recommendations throughout
All children under age 13 should ride
Driver distraction presents a serious
this section, and throughout this man-
in your vehicle properly restrained in
and potentially deadly danger, espe-
ual. The safety precautions in this sec-
a rear seat, not the front seat. Infants
cially for inexperienced drivers. Safety
tion are among the most important.
and small children should be
should be the first concern when
restrained in an appropriate Child
behind the wheel and drivers need to
Always wear your seat belt
Restraint System. Larger children
be aware of the wide array of potential
should use a booster seat with the
distractions, such as drowsiness,
A seat belt is your best protection in
lap/shoulder belt until they can use
reaching for objects, eating, personal
all types of accidents. Air bags are
the seat belt properly without a
grooming, other passengers, and
designed to supplement seat belts,
booster seat.
using mobile phones.
not replace them. So even though
Drivers can become distracted when
your vehicle is equipped with air bags,
they take their eyes and attention off
ALWAYS make sure you and your
Air bag hazards
the road or their hands off the wheel
passengers wear your seat belts, and
Whilst air bags can save lives, they
to focus on activities other than driv-
wear them properly.
can also cause serious or fatal
ing. To reduce your risk of distraction
injuries to occupants who sit too
and an accident:
close to them, or who are not prop-
• ALWAYS set up your mobile devices
erly restrained. Infants, young chil-
(i.e., MP3 players, phones, naviga-
dren, and short adults are at the
tion units, etc.) when your vehicle is
greatest risk of being injured by an
parked or safely stopped.
inflating air bag. Follow all instruc-
tions and warnings in this manual.
• ONLY use your mobile device when
allowed by laws and conditions per-
mit safe use. NEVER text or email
whilst driving. Most countries have
laws prohibiting drivers from texting.
Some countries and cities also pro-
hibit drivers from using handheld
phones.
2-2
• NEVER let the use of a mobile device
Keep your vehicle in safe condi-
distract you from driving. You have a
tion
responsibility to your passengers and
Having a tyre blowout or a mechanical
others on the road to always drive
failure can be extremely hazardous. To
safely, with your hands on the wheel
2
reduce the possibility of such prob-
as well as your eyes and attention on
lems, check your tyre pressures and
the road.
condition frequently, and perform all
regularly scheduled maintenance.
Control your speed
Excessive speed is a major factor in
crash injuries and deaths. Generally,
the higher the speed, the greater the
risk, but serious injuries can also
occur at lower speeds. Never drive
faster than is safe for current condi-
tions, regardless of the maximum
speed posted.
2-3
Safety system of your vehicle

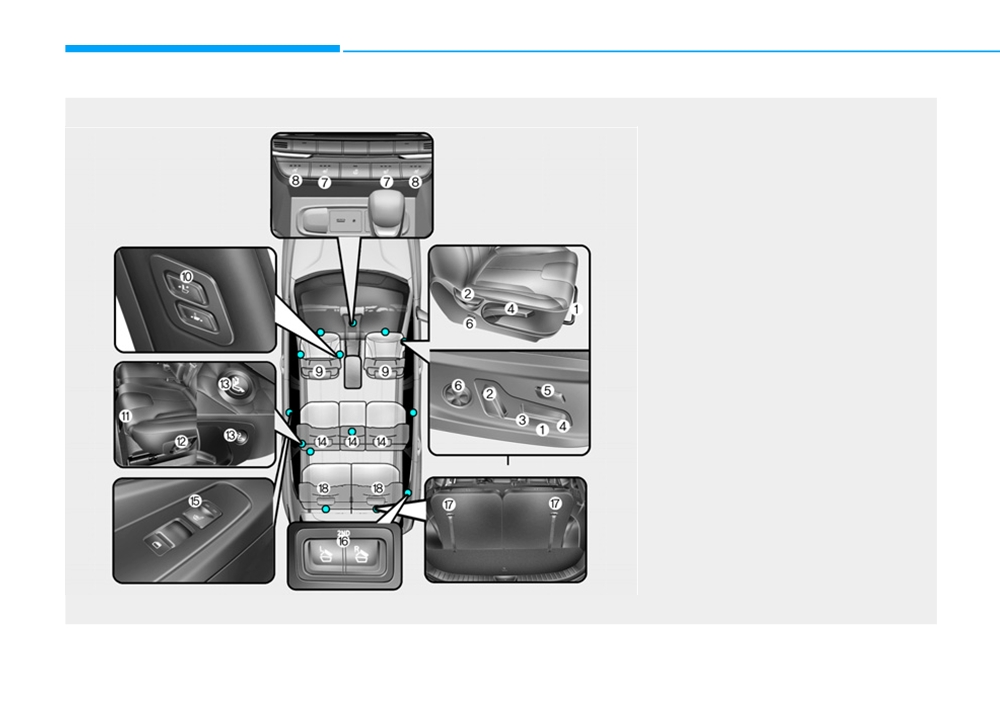

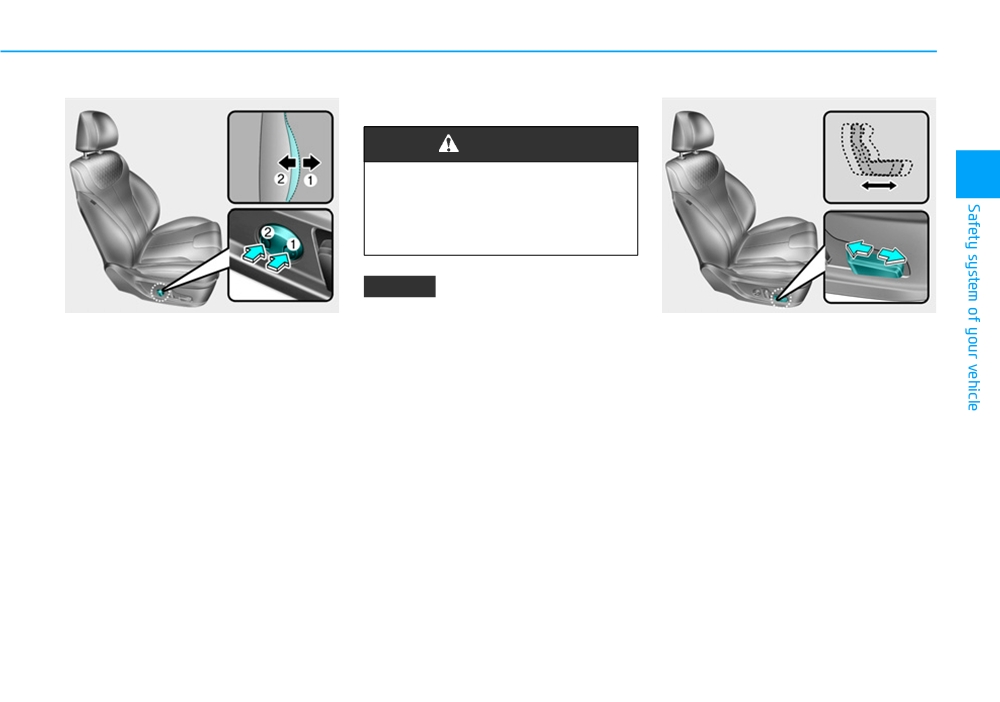

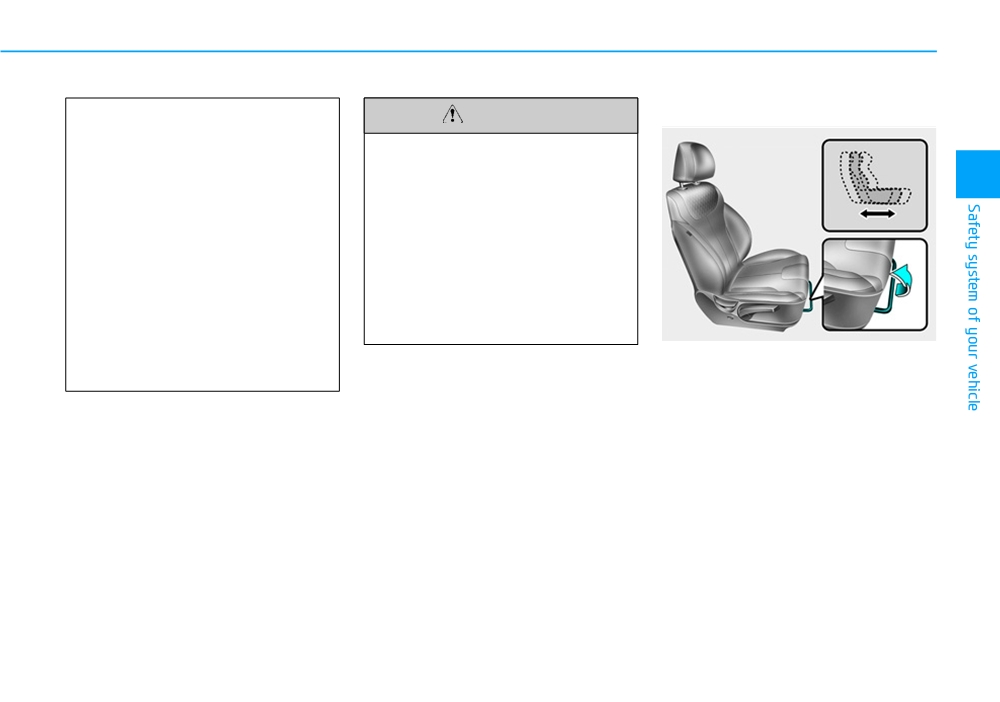

SEATS

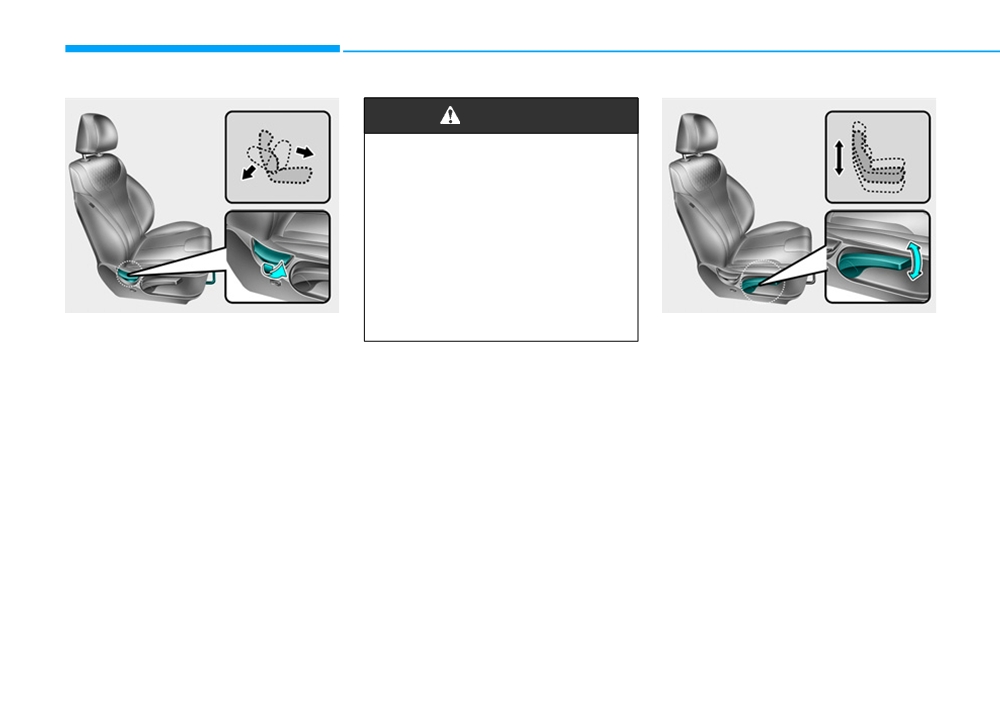

Front seat
(1) Forward and backward
(2) Seatback angle
(3) Seat cushion angle
(4) Seat cushion height
(5) Seat cushion length
(6) Lumbar support (Driver’s seat)
(7) Seat warmer
(8) Air ventilation seat
(9) Head restraint
(10) Passenger seat adjustment
(seat sliding, seatback angle)
2nd row seat
(11) Forward and backward
(12) Seatback angle
(13) Walk-in switch
(14) Head restraint
(15) Seat warmer
(16) 2nd row seat remote folding switch
3rd row seat
(17) Seatback folding
(18) Head restraint
OTM038001R
2-4
Safety precautions
Seat belts
WARNING
Adjusting the seats so that you are sit-
Always fasten your seat belt before
ting in a safe, comfortable position
starting any trip. At all times, passen-
To reduce the risk of serious
plays an important role in driver and
gers should sit upright and be prop-
injury or death from an inflating
2
passenger safety, together with seat
erly restrained. Infants and small
air bag, take the following pre-
belts and air bags, in an accident.
children must be restrained in appro-
cautions:
priate Child Restraint Systems.
•
Adjust the driver’s seat as far
Children who have outgrown a
WARNING
to the rear as possible main-
booster seat and adults must be
taining the ability to control the
restrained using the seat belts.
Do not use a cushion that reduces
vehicle.
friction between the seat and the
•
Adjust the front passenger seat
passenger.The passenger's hips
as far to the rear as possible.
may slide under the lap portion
•
Hold the steering wheel by the
of the seat belt during an acci-
rim with hands at the 9 o’clock
dent or a sudden stop.
and 3 o’clock positions to min-
Serious or fatal internal injuries
imise the risk of injuries to
could result because the seat
your hands and arms.
belt cannot operate properly.
•
NEVER place anything or any-
one between you and the air
bag.
Air bags
•
Do not allow the front passen-
You can take steps to reduce the risk
ger to place feet or legs on the
of being injured by an inflating air
dashboard to minimise the risk
bag. Sitting too close to an air bag
of leg injuries.
greatly increases the risk of injury in
the event the air bag inflates. Move
your seat as far back as possible
from front air bags, whilst still main-
taining control of the vehicle.
2-5
Safety system of your vehicle
Front seats
WARNING
WARNING
The front seat can be adjusted by
Take the following precautions
using the control lever (or knob) or
Take the following precautions
when adjusting your seat belt:
switches located on the outside of the
when adjusting your seat:
seat cushion. Before driving, adjust
•
NEVER use one seat belt for
•
NEVER attempt to adjust the
the seat to the proper position so that
more than one occupant.
seat whilst the vehicle is mov-
you can easily control the steering
•
Always position the seatback
ing. The seat could respond
wheel, foot pedals and controls on the
upright with the lap portion of
with unexpected movement
instrument panel.
the seat belt snug and low
and may cause loss of vehicle
across the hips.
control resulting in an accident.
•
NEVER allow children or small
•
Do not place anything under
infants to ride on a passenger’s
the front seats. Loose objects
lap.
in the driver’s foot area could
interfere with the operation of
•
Do not route the seat belt
the foot pedals, causing an
across your neck, across sharp
accident.
edges, or reroute the shoulder
strap away from your body.
•
Do not allow anything to inter-
fere with the normal position
•
Do not allow the seat belt to
become caught or jammed.
and proper locking of the seat-
back.
2-6
Manual adjustment
•
Do not place a cigarette lighter
CAUTION
on the floor or seat. When you
operate the seat, gas may exit
To prevent injury:
out of the lighter causing a fire.
2
•
Do not adjust your seat whilst
•
Use extreme caution when
wearing your seat belt.
picking up small objects
Moving the seat cushion for-
trapped under the seats or
ward may cause strong pres-
between the seat and the centre
sure on your abdomen.
console. Your hands might be
•
Do not allow your hands or
cut or injured by the sharp
fingers to get caught in the
edges of the seat mechanism.
seat mechanisms whilst the
•
If there are occupants in the
seat is moving.
rear seats, be careful whilst
OTM038003R
adjusting the front seat posi-
Forward and rearward adjustment
tion.
To move the seat forward or rearward:
1. Pull up the seat slide adjustment
lever and hold it.
2. Slide the seat to the position you
desire.
3. Release the lever and make sure
the seat is locked in place. Move
forward and rearward without using
the lever. If the seat moves, it is not
locked properly.
2-7
Safety system of your vehicle
WARNING
NEVER ride with a reclined seat-
back when the vehicle is moving.
Riding with a reclined seatback
increases your chance of seri-
ous or fatal injuries in the event
of a collision or sudden stop.
Drivers and passengers should
ALWAYS sit well back in their
OTM038004R
seats, properly belted, and with
OTM038005R
the seatbacks upright.
Seatback angle
Seat cushion height (if equipped)
To recline the seatback:
To change the height of the seat
1. Lean forward slightly and lift up the
Seat belts must be snug against your
cushion:
seatback lever.
hips and chest to work properly.
•
Push down the lever several times,
When the seatback is reclined, the
to lower the seat cushion.
2. Carefully lean back on the seat
shoulder belt cannot do its job
and adjust the seatback to the
•
Pull up the lever several times, to
because it will not be snug against
position you desire.
raise the seat cushion.
your chest. Instead, it will be in front
3. Release the knob and make sure
of you. During an accident, you could
the seatback is locked in place.
be thrown into the seat belt, causing
neck or other injuries.
Reclining seatback
The more the seatback is reclined,
Sitting in a reclined position when
the greater chance the passenger’s
the vehicle is in motion can be dan-
hips will slide under the lap belt or
gerous. Even when buckled up, the
the passenger’s neck will strike the
protections of your restraint system
shoulder belt.
(seat belts and/or air bags) is greatly
reduced by reclining your seatback.
2-8
Power adjustment (if equipped)
WARNING
2
NEVER allow children in the
vehicle unattended. The power
seats are operable when the
engine is turned off.
NOTICE
OTM038006R
OTM038002R
To prevent damage to the seats:
Lumbar support
Forward and rearward adjustment
• Always stop adjusting the seats
(for driver’s seat, if equipped)
when the seat has been adjust-
To move the seat forward or rearward:
• The lumbar support can be adjust-
ed as far forward or rearward as
1. Push the control switch forward or
ed by pressing the lumbar support
possible.
rearward.
switch.
• Do not adjust the seats longer
2. Release the switch once the seat
• Press the front portion of the switch
than necessary when the engine
reaches the desired position.
(1) to increase support or the rear
is turned off. This may result in
portion of the switch (2) to decrease
unnecessary battery drain.
support.
• Do not operate two or more
seats at the same time. This may
result in an electrical malfunc-
tion.
2-9
|
|
|
