FEATURES OF YOUR HYUNDAI

129

HOW TO PRESET STATIONS

o When completed, any preset sta-

8. Best Station Memory Button

tion may be recalled by selecting

(BSM) (If Installed)

Six AM and twelve FM stations may be

AM, FM1 or FM2 band and the

programmed into the memory of the

When the BSM button is pressed for

appropriate station button.

radio. Then, by simply pressing the

two seconds or longer, the six chan-

band select button and/or one of the

nels from the highest field intensity are

6. BAND Selector

six station select buttons, you may

selected next and stored in memory.

recall any of these stations instantly.

Pressing the

FM/AM

button changes

The stations selected are stored in the

To program the stations, follow these

the AM, FM1 and FM2 bands. The

sequence frequency from the first pre-

steps:

mode selected is shown on the dis-

set key.

play.

o Press band selector to set the band

SCAN Button (If Installed)

for AM, FM1 and FM2.

7. EQUALIZER Button

When the scan button is pressed, the

o Select the desired station to be

Press the EQ button to select the

frequency will increase and the receiv-

stored by seek or manual tuning.

CLASSIC, JAZZ, ROCK and DEFEAT

able stations will be tuned in one after

o Determine the preset station select

MODE for the desired tone quality.

another, receiving each station for 5

button you wish to use to access

Each press of the button changes the

seconds. To stop scanning, press the

that station.

display as follows;

scan button again.

o Press the station select button for

more than two seconds. A select

button indicator will show in the dis-

CLASSIC  JAZZ  ROCK  DEFEAT

play indicating which select button

CAUTION:

you have depressed. The frequency

o Do not place beverages close to

display will flash after it has been

the audio system. The audio sys-

stored into the memory with a beep

tem mechanism may be damaged

sound. You should then release the

if you spill them.

button, and proceed to program the

o Do not impact on the audio sys-

next desired station. A total of 18

tem, or the audio system mecha-

stations can be programmed by

nism could be damaged.

selecting one AM and two FM sta-

tions per button.

FEATURES OF YOUR HYUNDAI

131

H290D02O-GAT

3. TAPE PROGRAM Button

6. DOLBY Button

1. FF/REW Button

This allows you to play the reverse side

If you get background noise during tape

o Fast forward tape winding starts when

of the tape by merely depressing the

PLAY, you can reduce this consider-

the FF (

) button is pressed during

program button. An arrow will appear in

ably by merely pressing the DOLBY

the PLAY or REW mode.

the display to show tape direction.

button. If you want to cancel the DOLBY

o Tape play starts when the FF (

)

feature, press the button again.

button is pressed again during the

4. TAPE EJECT button

FF mode.

o Tape rewinding starts when the REW

o When the

button is pressed with

(

) button is pressed during the

the cassette loaded, the cassette is

CAUTION:

PLAY or FF mode.

ejected.

o Do not insert anything like coins

o Tape play starts when the REW (

)

o When the

button is pressed

into the player slot as damage to

button pressed again during the REW

during the FF/REW mode, the cas-

the unit may occur.

mode.

sette is ejected.

o Do not place beverages close to

the audio system. The playback

2. AUTO MUSIC Select Button

5. EQ Button

mechanism may be damaged if

you spill them.

Press the button to find the starting

Press the EQ button to select the CLAS-

o Do not impact on the audio sys-

point of each song in a prerecorded

SIC, JAZZ, ROCK and DEFEAT MODE

tem, or the playback mechanism

music tape. The quiet space between

for the desired tone quality. Each press

could be damaged.

songs (must have at least a 4 sec. gap)

of the button changes the display as

can be identified by the AUTO MUSIC

follows;

Select button.

CLASSIC  JAZZ  ROCK  DEFEAT

o Pressing the

button will play the

beginning of the next music seg-

ment.

o Pressing the

button will start

replay at the beginning of the music

just listened to.

FEATURES OF YOUR HYUNDAI

133

H290F03O-GAT

3. TRACK UP/DOWN

6. CD EJECT Button

1. CD Select Button

o The desired track on the disc cur-

When the

button is pressed with

o Insert the CD with the label facing

rently being played can be selected

a CD loaded, the CD will eject.

upward.

using the track number.

o Insert the CD to start CD playback,

o Press

button once to skip for-

7. SCAN Button (If Installed)

during radio operation or cassette

ward to the beginning of the next

tape playing.

o Press the SCAN button to playback

track. Press

button once to skip

o When a disc is in the CD deck, if you

the first 10 seconds of each track.

back to the beginning of the track.

press the CD/CDC button the CD

o Press the SCAN button again within

player will begin playing even if the

10 sec. when you have reached the

4. REPEAT

radio or cassette player is being

desired track.

used.

o To repeat the track you are cur-

o The CD player can be used when

rently listening to, press the RPT

NOTE:

the ignition switch is in either the

button. To cancel, press again.

o To assure proper operation of

"ON" or "ACC" position.

o If you do not release RPT operation

the unit, keep the vehicle interior

when the track ends, it will automati-

temperature within a normal

2. FF/REW (

)

cally be replayed.

range by using the vehicle's air

This process will be continued until

conditioning or heating system.

If you want to fast forward or reverse

you push the button again.

o When replacing the fuse, replace

through the compact disc track, push

it with a fuse having the correct

and hold the FF (

) or REW (

)

5. EQUALIZER Button

capacity.

button.

o The preset station frequencies

When you release the button, the com-

Press the EQ button to select the

are all erased when the car bat-

pact disc player will resume playing.

CLASSIC, JAZZ, ROCK and DEFEAT

tery is disconnected. Therefore,

MODE for the desired tone quality.

all data will have to be set again

Each press of the button changes the

if this should occur.

display as follows;

CLASSIC  JAZZ  ROCK  DEFEAT

1 FEATURES OF YOUR HYUNDAI

134

o Do not add any oil to the rotating

o Avoid using CD-Recordable or CD-

parts. Keep magnets, screwdriv-

Rewritable as the player could not

ers and other metallic objects

CAUTION:

be operated in recording way of

away from the tape mechanism

o Do not insert warped or poor

the CD maker. When using the

and head.

quality discs into the CD player

compact disc player, genuine

o This equipment is designed to

as damage to the unit may occur.

CDs are recommended.

be used only in a 12 volt DC

o Do not insert anything like coins

battery system with negative

into the player slot as damage to

ground.

the unit may occur.

o This unit is made of precision

o Do not place beverages close to

parts. Do not attempt to disas-

the audio system. The playback

semble or adjust any parts.

mechanism may be damaged if

o When driving your vehicle, be

you spill them.

sure to keep the volume of the

o Do not impact on the audio sys-

unit set low enough to allow you

tem, or the playback mechanism

to hear sounds coming from the

could be damaged.

outside.

o Driving on the off-roads or other

o Do not expose this equipment

vibrations may skip your com-

(including the speakers and tape)

pact disc. Do not use the audio

to water or excessive moisture.

system on off-roads as the discs

could be scratched and damaged.

o Do not grip or pull out the disc

with your hand while the disc is

being pulled into the unit by the

self loading mechanism. These

can cause poor disc scratching

to occur or trouble in the com-

pact disc player.

1 FEATURES OF YOUR HYUNDAI

136

B290H03HP-GAT

2. DISC Select Button

o If you do not release RPT operation

The CD auto changer is located in the

when the track ends, it will automati-

right side of the luggage compartment.

To select the CD you want, push "

TUNE

DISC

cally be replayed.

to change the disc number.

o To use the CD auto changer.

This process will be continued until

you push the button again.

1. Open the sliding lid of the CD auto

3. TRACK UP/DOWN

changer.

6. SCAN Button (If Installed)

2. To eject the compact disc maga-

o The desired track on the disc cur-

o Press the SCAN button to playback

zine, press the EJECT button lo-

rently being played can be selected

the first 10 seconds of each track.

cated inside the CD auto changer.

using the track number.

o Press the SCAN button again within

3. Insert the discs into the magazine.

o Press

once to skip forward to

10 sec. for the desired track.

4. Push the magazine into the CD auto

the beginning of the next track. Press

changer and close the sliding lid.

once to skip back to the begin-

ning of the track.

7. EQ Button

o The CD auto changer can be used

Press the EQ button to select the

when the ignition switch is in either

4. FF/REW (

)

CLASSIC, JAZZ, ROCK and DEFEAT

"ON" or "ACC" position.

If you want to fast forward or reverse

MODE for the desired tone quality.

through the compact disc track, push

Each press of the button changes the

1. CD CHANGER Select Button

and hold in the FF (

) or REW (

)

display as follows;

When the CD changer magazine con-

button.

tains discs, press the "CD/CDC" but-

When you release the button, the com-

CLASSIC  JAZZ  ROCK  DEFEAT

ton and the CD changer can be used

pact disc player will resume playing.

even if the radio or cassette player is

being used. The Hyundai CD changer

5. REPEAT

can hold up to eight discs. The disc

o To repeat the track you are listening

number will be lit, and the track num-

to, press the RPT button. To cancel,

ber, and elapsed time will be displayed.

press again.

FEATURES OF YOUR HYUNDAI

137

NOTE:

o Avoid using CD-Recordable or CD-

o When replacing the fuse, replace

Rewritable as the player could not

CAUTION:

it with a fuse having the correct

be operated in recording way of

o Do not insert warped or poor

capacity.

the CD maker. When using the

quality discs into the CD changer

o This equipment is designed to

compact disc changer, genuine

as damage to the unit may occur.

be used only in a 12 volt DC

CDs are recommended.

o Do not insert anything like coins

battery system with negative

into the changer slot as damage

ground.

to the unit may occur.

o This unit is made of precision

o Do not place beverages close to

parts. Do not attempt to disas-

the audio system. The playback

semble or adjust any parts.

mechanism may be damaged if

o When driving your vehicle, be

you spill them.

sure to keep the volume of the

o Do not impact on the audio sys-

unit set low enough to allow you

tem, or the playback mechanism

to hear sounds coming from the

could be damaged.

outside.

o Driving on the off-roads or other

vibrations may skip your com-

pact disc. Do not use the audio

system on off-roads as the discs

could be scratched and damaged.

o Do not grip or pull out the disc

with your hand while the disc is

being pulled into the unit by the

self loading mechanism. These

can cause poor disc scratching

to occur or trouble in the com-

pact disc player.

1 FEATURES OF YOUR HYUNDAI

138

B890A01Y-AAT

AUDIO FAULT CODE

If you see any error indication in the display while using the system in the CD or Tape mode, find the cause in the chart below.

If you cannot clear the error indication, take the car to your Hyundai dealer.

INDICATION

CAUSE

SOLUTION

CD DECK MECHANICAL ERROR

After resetting the audio system, push the eject button.

Er2

If disc is not ejected, consult your Hyundai dealer.

(EJECT ERROR, LOADING ERROR)

Make sure the disc is not scratched or damaged.

FOCUS ERROR

Er3

Press the eject button and pull out the disc.

DATA READ ERROR

Then insert a normal CD disc.

Check if the disc is inserted correctly in the CD player.

Er6

DISC ERROR

Make sure the disc is not scratched or damaged.

TAPE DECK ERROR

After resetting the audio system, push the eject button.

Er8

TAPE EJECT ERROR

If tape does not eject, consult your Hyundai dealer.

Fault code will reset automatically when the temperature returns

HHH

TEMPERATURE IS TOO HIGH

to normal.

NO DISC IN MAGAZINE

Insert disc in magazine or insert CD magazine in the auto

no CD

NO CD MAGAZINE IN THE AUTO

changer.

CHANGER

FEATURES OF YOUR HYUNDAI

CARE OF DISCS

139

B850A02F-AAT

Damaged Disc

Keep Your Discs Clean

Proper Handling

Do not attempt to play damaged,

warped or cracked discs. These could

severely damage the playback mecha-

nism.

Storage

When not in use, place your discs in

their individual cases and store them in

a cool place away from the sun, heat,

and dust.

Do not grip or pull out the disc with your

B850A02L

B850A01L

hand while the disc is being pulled into

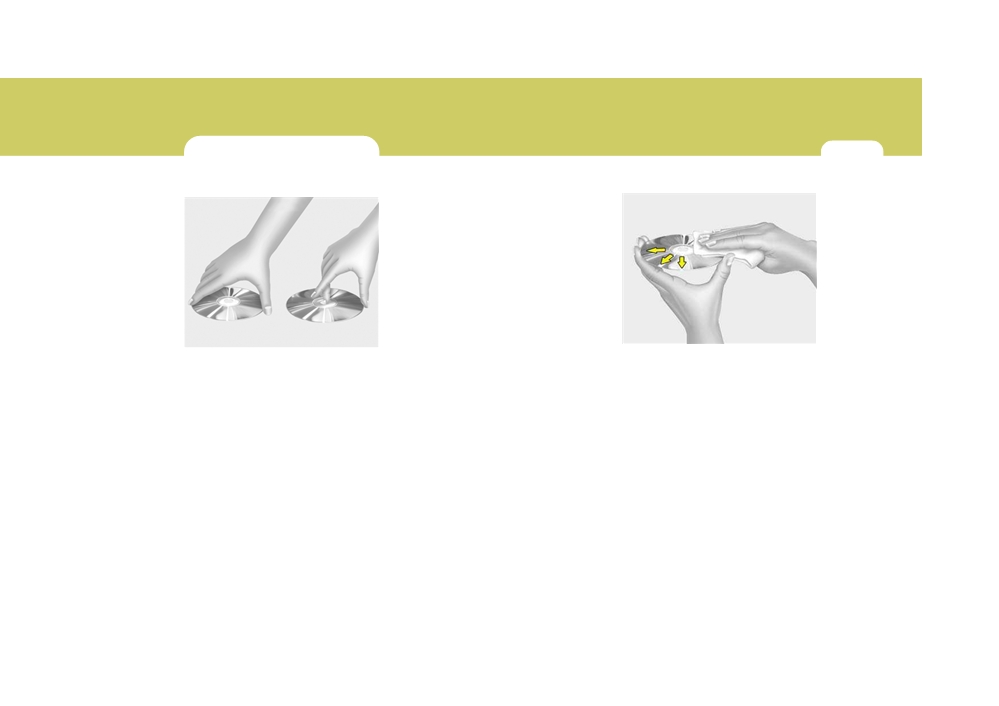

Handle your disc as shown. Do not drop

Fingerprints, dust, or soil on the sur-

the unit by the self loading mechanism.

the disc. Hold the disc so you will not

face of a disc could cause the pickup to

leave fingerprints on the surface. If the

skip signal tracks. Wipe the surface

surface is scratched, it may cause the

clean with a clean soft cloth.

pickup to skip signal tracks. Do not

If the surface is heavily soiled, dampen

affix tape, paper, or gummed labels on

a clean soft cloth in a solution of mild

the disc. Do not write on the disc.

neutral detergent to wipe it clean.

1 FEATURES OF YOUR HYUNDAI

140

CARE OF CASSETTE TAPES

B860A01A-AAT

Never leave a cassette inserted in

Be sure that the cassette label is not

the player when not being played.

loose or peeling off or tape ejection

This could damage the tape player

may be difficult.

unit and the cassette tape.

Never touch or soil the actual audio

We strongly recommend against the

tape surfaces.

use of tapes longer than C-60 (60

Keep all magnetized objects, such

minutes total). Tapes such as C-

as electric motors, speakers or trans-

120 or C-180 are very thin and do

formers away from your cassette

not perform as well in the automo-

tapes and tape player unit.

tive environment.

Store cassettes in a cool, dry place

with the open side facing down to

prevent dust from setting in the cas-

B860A01L

sette body.

Proper care of your cassette tapes will

Avoid repeated fast reverse usage

extend the tape life and increase your

to replay one given tune or tape

listening enjoyment. Always protect

section. This can cause poor tape

your tapes and cassette cases from

winding to occur, and eventually

direct sunlight, severe cold and dusty

cause excessive internal drag and

conditions. When not in use, cassettes

poor audio quality in the cassette. If

should always be stored in the protec-

this occurs, it can sometimes be

tive cassette case in which they were

corrected by fast winding the tape

originally supplied. When the vehicle is

from end to end several times. If this

B860A01HP

very hot or cold, allow the interior

does not correct the problem, do not

temperature to become more comfort-

continue to use the tape in your

able before listening to your cassettes.

vehicle.

FEATURES OF YOUR HYUNDAI

ANTENNA

141

B870A01A-GAT

Fixed Rod Antenna

Head

Cotton applicator

B860A02L

B860A03L

o The playback head, capstan and

NOTE:

B870C01HP

pinch rollers will develop a coating

Look at a tape before you insert it.

Your car uses a fixed rod antenna to

of tape residue that can result in

If the tape is loose, tighten it by

receive both AM and FM broadcast

deterioration of sound quality, such

turning one of the hubs with a pen-

signals.

as a wavering sound. They should

cil or your finger.

This antenna is a removable type. To

be cleaned monthly using a com-

If the label is peeling off, do not put

remove the antenna, turn the antenna

mercially available head cleaning

it in the player. It may cause the

counterclockwise. To install the an-

tape or special solution available

tape jam in the drive mechanism

tenna, turn the antenna clockwise.

from audio specialty shops. Follow

when you try to eject it.

the supplier's directions carefully and

Do not leave tape sitting where they

never oil any part of the tape player

are exposed to hot warm or, high

CAUTION:

unit.

humidity, such as on top of the

Be sure to remove the antenna be-

o Always be sure that the tape is

dashboard or in the player.

fore washing the car in an auto-

tightly wound on its reel before in-

If a tape is exposed to excessively

matic car wash or the antenna may

serting in the player. Rotate a pencil

hot or cold, let it reach a moderate

be damaged.

in the drive sprockets to wind up any

temperature before putting it in the

slack.

player.

1 FEATURES OF YOUR HYUNDAI

142

B880C02B-GAT

Glass Antenna (If Installed)

CAUTION:

o Do not clean the inner side of the

rear quarter glass with an abra-

sive type of glass cleaner or use

a scraper to remove foreign de-

posits from the inner surface of

the glass as this may cause dam-

age to the antenna elements.

o Avoid adding metallic coating

such as Ni, Cd, and so on. These

can disturb receiving AM and FM

HHP2184

broadcast signals.

When the radio power switch is turned

on while the ignition key is in either the

"ON" or "ACC" position, your car will

receive both AM and FM broadcast

signals through the antenna in the rear

quarter glass.

2 DRIVING YOUR HYUNDAI

C010A01HP-AAT

WARNING: ENGINE EXHAUST CAN BE DANGEROUS!

Engine exhaust fumes can be extremely dangerous. If, at any time, you smell exhaust fumes inside the vehicle,

open the windows immediately.

o Do not inhale exhaust fumes.

Exhaust fumes contain carbon monoxide, a colorless, odorless gas that can cause unconsciousness and death

by asphyxiation.

o Be sure the exhaust system does not leak.

The exhaust system should be checked whenever the vehicle is raised to change the oil or for any other purpose.

If you hear a change in the sound of the exhaust or if you drive over something that strikes the underneath side

of the car, have the exhaust system checked as soon as possible by your Hyundai dealer.

o Do not run the engine in an enclosed area.

Letting the engine idle in your garage, even with the garage door open, is a hazardous practice. Never run the

engine in your garage any longer than it takes to start the engine and back the car out.

o Avoid idling the engine for prolonged periods with people inside the car.

If it is necessary to idle the engine for a prolonged period with people inside the car, be sure to do so only in

an open area with the air intake set at "Fresh" and fan operating at one of the higher speeds so fresh air is drawn

into the interior.

If you must drive with the tail gate open because you are carrying objects that make this necessary:

1. Close all windows.

2. Open side vents.

3. Set the air intake control at "Fresh", the air flow control at "Floor" or "Face" and the fan at one of the higher

speeds.

To assure proper operation of the ventilation system, be sure the ventilation air intakes located just in front of

the windshield are kept clear of snow, ice, leaves or other obstructions.

DRIVING YOUR HYUNDAI

BEFORE STARTING THE

ENGINE

C020A02A-AAT

Before you start the engine, you should

WARNING:

always:

WARNING:

Your vehicle is equipped with tires

Always wear appropriate shoes when

designed to provide for safe ride

Look around the vehicle to be sure

operating your vehicle.

and handling capability.

there are no flat tires, puddles of

Unsuitable shoes (high heels, ski

Do not use a size and type of tire

oil, water or other indications of

boots, etc.) may interfere with your

and wheel that is different from the

possible trouble.

ability to use the brake and accelera-

one that was originally installed on

After entering the car, check to be

tor pedal, and the clutch (if installed).

your vehicle. It can affect the safety

sure the parking brake is engaged.

and performance of your vehicle,

Check that all windows, and lights

which could lead to handling fail-

are clean.

ure or rollover and serious injury.

Check that the interior and exterior

When replacing the tires, be sure to

mirrors are clean and in position.

equip all four tires with the tire and

Check your seat, seatback and

wheel of the same size, type, tread,

headrest to be sure they are in their

brand and load-carrying capacity.

proper positions.

If you nevertheless decide to equip

Lock all the doors.

your vehicle with any tire/wheel

Fasten your seat belt and be sure

combination not recommended by

that all other occupants have fas-

Hyundai for off-road driving, you

tened theirs.

should not use these tires for high-

Turn off all lights and accessories

way driving.

that are not needed.

When you turn the ignition switch

to "ON", check that all appropriate

warning lights are operating and

that you have sufficient fuel.

10. Check the operation of warning

lights and all bulbs when key is in

the "ON" position.

Hyundai Terracan (2007 year). Instruction - part 9
