Introduction
FUEL REQUIREMENTS
Your new vehicle is designed to use only
Gasoline containing alcohol and
unleaded fuel having a pump octane
WARNING
methanol
number
((R+M)/2) of
87
(Research
•
Do not "top off" after the nozzle
Gasohol, a mixture of gasoline and
Octane Number 91) or higher.
automatically shuts off when
ethanol (also known as grain alcohol),
refueling.
and gasoline or gasohol containing
Your new vehicle is designed to obtain
•
Tighten the cap until it clicks one
methanol (also known as wood alcohol)
maximum performance with UNLEADED
time, otherwise the Malfunction
are being marketed along with or instead
FUEL, as well as minimize exhaust emis-
Indicator Light “
” will illumi-
of leaded or unleaded gasoline.
sions and spark plug fouling.
nate.
Do not use gasohol containing more than
10% ethanol, and do not use gasoline or
•
Always check that the fuel cap is
gasohol containing any methanol. Either
installed securely to prevent fuel
CAUTION
of these fuels may cause drivability prob-
spillage in the event of an acci-
Never add any fuel system cleaning
dent.
lems and damage to the fuel system.
agents to the fuel tank other than
Discontinue using gasohol of any kind if
what has been specified. (Consult
drivability problems occur.
an authorized HYUNDAI dealer for
Vehicle damage or drivability problems
details.)
may not be covered by the manufactur-
er’s warranty if they result from the use
of:
1. Gasohol containing more than
10%
ethanol.
2. Gasoline or gasohol containing
methanol.
3. Leaded fuel or leaded gasohol.
1 3
Introduction
"E85" fuel is an alternative fuel com-
Do not use methanol
For customers who do not use TOP TIER
prised of 85 percent ethanol and 15 per-
Fuels containing methanol (wood alco-
Detergent Gasoline regularly, and have
cent gasoline, and is manufactured
hol) should not be used in your vehicle.
problems starting or the engine does not
exclusively for use in Flexible Fuel
This type of fuel can reduce vehicle per-
run smoothly, additives that you can buy
Vehicles. “E85” is not compatible with
formance and damage components of
separately may be added to the gasoline.
your vehicle. Use of “E85” may result in
the fuel system.
If TOP TIER Detergent Gasoline is not
poor engine performance and damage to
available, one bottle of additive added to
your vehicle's engine and fuel system.
the fuel tank at every engine oil change is
HYUNDAI recommends that customers
CAUTION
recommended. Additives are available
do not use fuel with an ethanol content
Your New Vehicle Limited Warranty
from your authorized HYUNDAI dealer
exceeding 10 percent.
may not cover damage to the fuel
along with information on how to use
system and any performance prob-
them. Do not mix other additives.
lems that are caused by the use of
CAUTION
fuels containing methanol.
Operation in foreign countries
Your New Vehicle Limited Warranty
If you are going to drive your vehicle in
does not cover damage to the fuel
system or any performance prob-
another country, be sure to:
Gasolines for cleaner air
lems caused by the use of “E85” fuel.
• Observe all regulations regarding reg-
To help contribute to cleaner air,
istration and insurance.
HYUNDAI recommends that you use
• Determine that acceptable fuel is avail-
good quality gasolines treated with deter-
able.
gent additives such as TOP TIER
CAUTION
Detergent Gasoline, which help prevent
Never use gasohol which contains
deposit formation in the engine. These
methanol. Discontinue use of any
gasolines will help the engine run clean-
gasohol product which impairs dri-
er and enhance performance of the
vability.
Emission Control System. For more infor-
mation on TOP TIER Detergent
Gasoline, please go to the website
1 4
Introduction
VEHICLE BREAK-IN PROCESS
No special break-in period is needed. By
following a few simple precautions for the
CALIFORNIA PROPOSI-
first 600 miles (1,000 km) you may add to
TION 65 WARNING
the performance, economy and life of
Items contained in motor vehicles
your vehicle.
or emitted from them are known to
•
Do not race the engine.
the State of California to cause can-
•
While driving, keep your engine speed
cer and birth defects or reproduc-
(rpm, or revolutions per minute)
tive harm. These include:
between 2,000 rpm and 4,000 rpm.
• Gasoline and its vapors
•
Do not maintain a single speed for long
• Engine exhaust
periods of time, either fast or slow.
• Used engine oil
Varying engine speed is needed to
properly break-in the engine.
• Interior passenger compartment
•
Avoid hard stops, except in emergen-
components and materials
cies, to allow the brakes to seat prop-
• Component parts which are sub-
erly.
ject to heat and wear
•
Don't let the engine idle longer than 3
In addition, battery posts, terminals
minutes at one time.
and related accessories contain
•
Don't tow a trailer during the first 1,200
lead, lead compounds and other
miles (2,000 km) of operation.
chemicals known to the State of
California to cause cancer and
reproductive harm.
1 5
Introduction
VEHICLE DATA COLLECTION AND EVENT DATA RECORDERS
This vehicle is equipped with an event
These data can help provide a better
To read data recorded by an EDR, spe-
data recorder (EDR). The main pur-
understanding of the circumstances
cial equipment is required, and
pose of an EDR is to record, in certain
in which crashes and injuries occur.
access to the vehicle or the EDR is
crash or near crash-like situations,
NOTE: EDR data are recorded by your
needed.
such as an air bag deployment or hit-
vehicle only if a nontrivial crash situa-
In addition to the vehicle manufactur-
ting a road obstacle, data that will
tion occurs; no data are recorded by
er, other parties, such as law enforce-
assist in understanding how a vehi-
the EDR under normal driving condi-
ment, that have the special equip-
cle's systems performed. The EDR is
tions and no personal data
(e.g.,
ment, can read the information if they
designed to record data related to
name, gender, age, and crash loca-
have access to the vehicle or the EDR.
vehicle dynamics and safety systems
tion) are recorded. However, other
for a short period of time, typically 30
parties, such as law enforcement,
seconds or less. The EDR in this vehi-
could combine the EDR data with the
cle is designed to record such data
type of personally identifying data
as:
routinely acquired during a crash
* How various systems in your vehicle
investigation.
were operating:
* Whether or not the driver and pas-
senger
safety
belts
were
buckled/fastened;
* How far (if at all) the driver was
depressing the accelerator and/or
brake pedal; and,
* How fast the vehicle was traveling.
1 6
Introduction
INDICATOR SYMBOLS ON THE INSTRUMENT CLUSTER
Seat belt warning light
Charging system warning light
Trunk ajar warning light
High beam indicator
Malfunction indicator light
Tail light indicator
Low tire pressure telltale
Turn signal indicator
Air bag warning light
(TPMS malfunction indicator)
ESC indicator
Cruise indicator
ECO
ECO indicator (if equipped)
(ESC malfunction indicator)
Automatic transaxle shift
ESC OFF indicator
Cruise SET indicator
indicator (if equipped)
Manual transaxle shift
ABS warning light
Immobilizer indicator
indicator (if equipped)
Electric power steering (EPS)
Parking brake & Brake fluid
Low fuel level warning light
EPS
system warning light
warning light
(if equipped)
Front fog light indicator
Door open position indicator
Engine oil pressure warning light
(if equipped)
(if equipped)
* For more detailed explanations, refer to “Instrument cluster” in section 4.
1 7
Your vehicle at a glance
2
Interior overview / 2-2
Instrument panel overview / 2-3
Engine compartment / 2-4
Your vehicle at a glance
INTERIOR OVERVIEW
1. Door lock/unlock button
4-19
2. Outside rearview mirror control
switch
4-44
3. Central door lock switch
4-19
4. Power window lock switch
4-27
5. Power window switches
4-24
6. Hood release lever
4-28
7. Parking brake*
5-22
8. Instrument panel illumination control
switch
4-47
9. Active ECO button*
5-35
10. ESC OFF button
5-26
11. Fuel filler lid release button
4-29
12. Trunk lid release switch
4-22
13. Fuse box
7-50
14. Brake pedal
5-26
15. Accelerator pedal
5-6, 5-9
16. Steering wheel
4-35
17. Steering wheel manual tilt control* ...4-36
* : if equipped
OYF011001N
2 2
Your vehicle at a glance

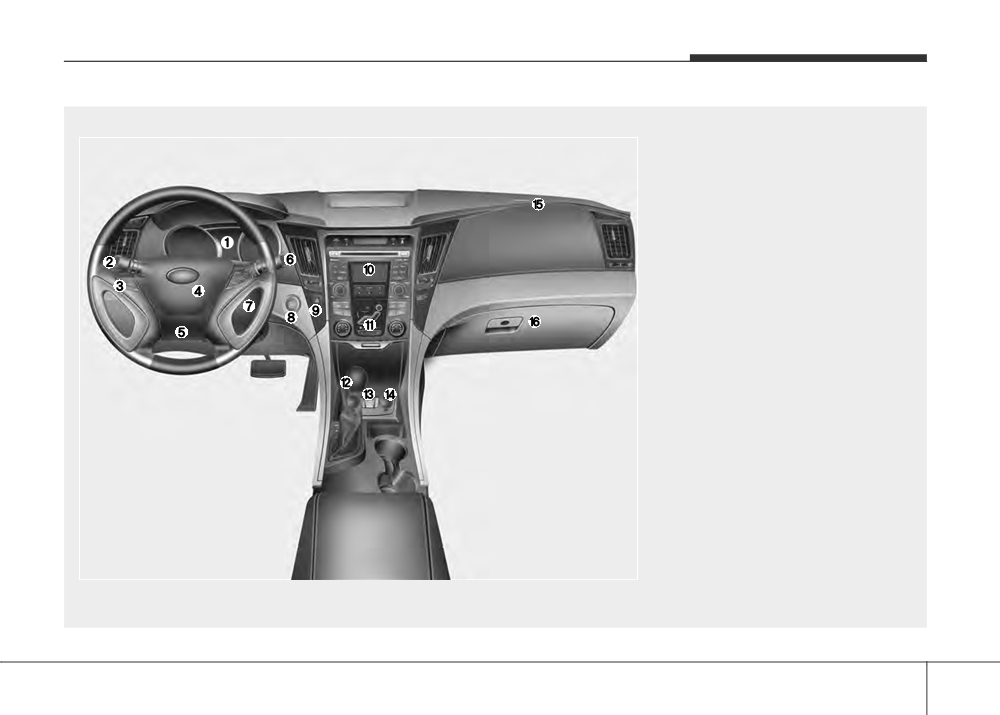

INSTRUMENT PANEL OVERVIEW
1. Instrument cluster
4-46
2. Light control/Turn signals
4-69
3. Audio controls
4-105
4. Horn
4-36
5. Driver’s front air bag
3-49
6. Wiper/Washer
4-73
7. Ignition switch*
5-4
8. Engine start/stop button*
5-7
9. Hazard warning flasher
switch
4-68, 6-2
10. Audio*
4-105
11. Climate control system
4-79
12. Shift lever
5-11, 5-14
13. AUX, USB, iPod
4-103
14. Power outlet
4-101
15. Passenger’s front air bag
3-49
16. Glove box
4-98
* : if equipped
OYF019002N
2 3
Your vehicle at a glance

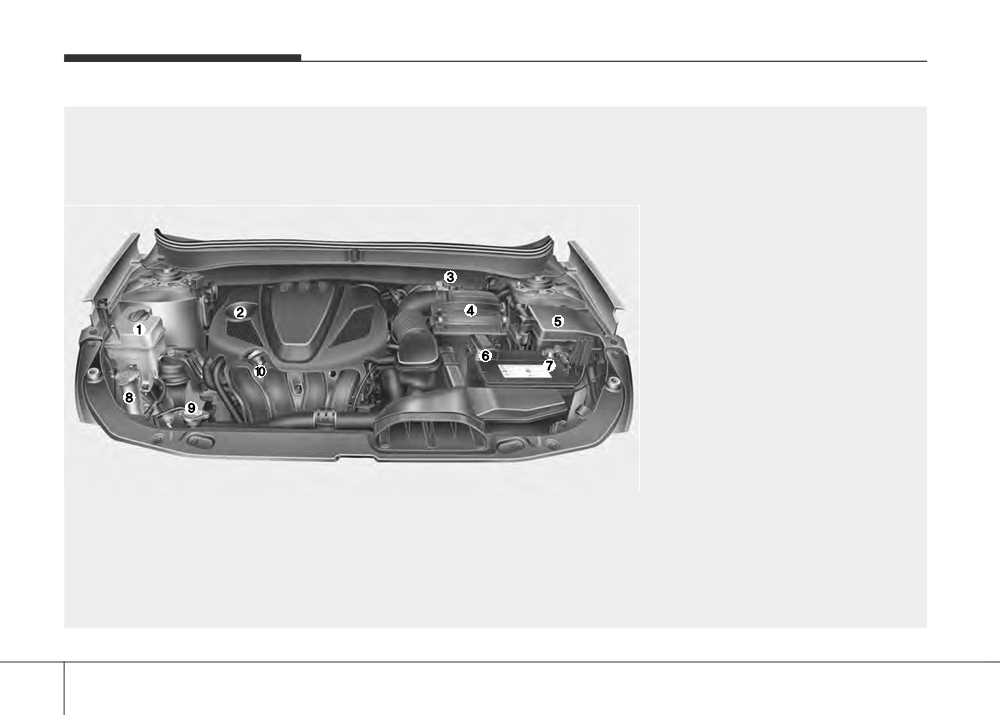

ENGINE COMPARTMENT
■ 2.4 GDI
1. Engine coolant reservoir
7-24
2. Engine oil filler cap
7-22
3. Brake/clutch fluid reservoir
7-26
4. Air cleaner
7-29
5. Fuse box
7-50
6. Positive battery terminal
7-34
7. Negative battery terminal
7-34
8. Windshield washer fluid reservoir
7-27
9. Radiator cap
7-25
10. Engine oil dipstick
7-22
* : if equipped
* The actual engine room in the vehicle may differ from the illustration.
OYF071060
2 4
Your vehicle at a glance

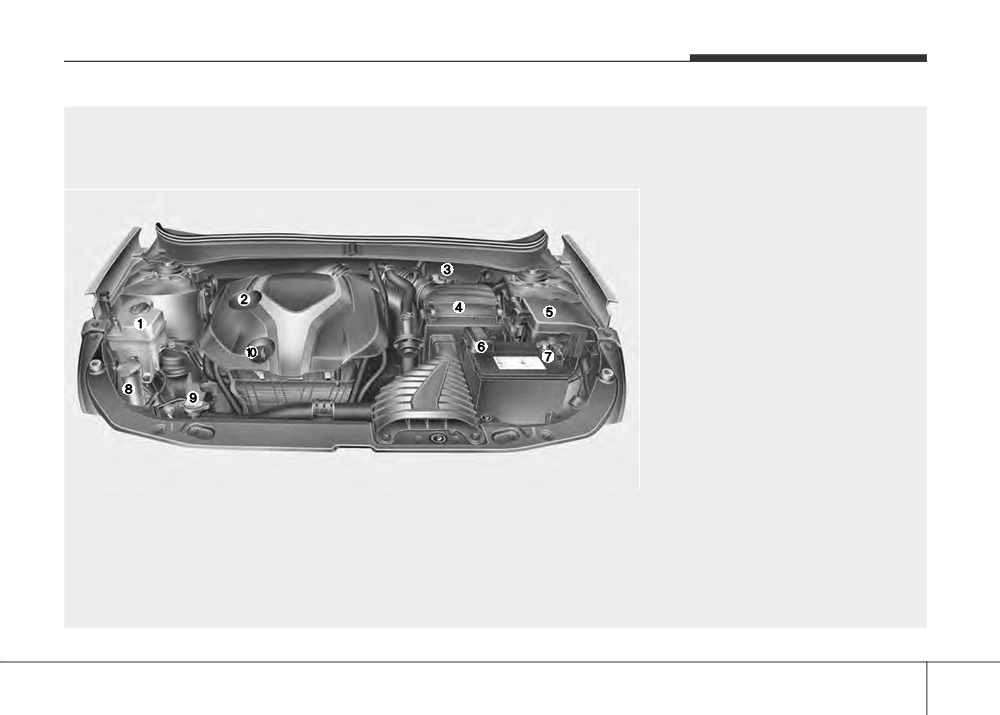

■ 2.0 TGDI
1. Engine coolant reservoir
7-24
2. Engine oil filler cap
7-22
3. Brake/clutch fluid reservoir
7-26
4. Air cleaner
7-29
5. Fuse box
7-50
6. Positive battery terminal
7-34
7. Negative battery terminal
7-34
8. Windshield washer fluid reservoir
7-27
9. Radiator cap
7-25
10. Engine oil dipstick
7-22
* : if equipped
* The actual engine room in the vehicle may differ from the illustration.
OYF071200N
2 5
Seats / 3-2
Seat belts / 3-17
Child restraint system / 3-29
Air bag - advanced supplemental restraint system / 3-37
Safety features of your vehicle
3
Safety features of your vehicle
SEATS
Driver’s seat
Type A
Type B
(1) Forward and backward
(2) Seatback angle
(3) Seat cushion height
(4) Lumbar support*
(5) Seat warmer*
(6) Headrest
Type A
Front passenger’s seat
(7) Forward and backward
(8) Seatback angle*
(9) Seat warmer*
(10) Headrest
Type B
Rear seat
(11) Headrest
(12) Seatback folding knob
(13) Armrest
(14) Seat warmer*
*: if equipped
OYF039001N
3 2
Safety features of your vehicle
WARNING - Loose objects
WARNING - Driver respon-
WARNING - Driver’s seat
Loose objects in the driver’s foot
sibility for passengers
• Never attempt to adjust the seat
area could interfere with the opera-
Riding in a vehicle with the seat-
while the vehicle is moving. This
tion of the foot pedals, possibly
back reclined could lead to serious
could result in loss of control,
causing an accident. Do not place
or fatal injury in an accident. If a
and an accident causing death,
anything under the front seats.
seat is reclined during an accident,
serious injury, or property dam-
the occupant’s hips may slide
age.
under the lap portion of the seat
• Do not allow anything to interfere
belt, applying great force to the
with the normal position of the
WARNING - Uprighting
unprotected abdomen. Serious or
seatback. Storing items against a
seat
fatal internal injuries could result.
seatback or in any other way
When you return the seatback to its
The driver must advise the passen-
interfering with proper locking of
upright position, hold the seatback
ger to keep the seatback in an
a seatback could result in serious
and return it slowly and be sure
upright position whenever the vehi-
or fatal injury in a sudden stop or
there are no other occupants
cle is in motion.
collision.
around the seat. If the seatback is
• Always drive and ride with your
returned without being held and
seatback upright and the lap por-
controlled, the back of the seat
tion of the seat belt snug and low
could spring forward resulting in
across the hips. This is the best
accidental injury to a person struck
position to protect you in case of
by the seatback.
an accident.
• In order to avoid unnecessary
and perhaps severe air bag
injuries, always sit as far back as
possible from the steering wheel
while maintaining comfortable
control of the vehicle. We recom-
mend that your chest be at least
10 inches (250 mm) away from
the steering wheel.
3 3
Safety features of your vehicle
(Continued)
WARNING - Rear seat-
• When resetting the seatback to
backs
the upright position, make sure it
•
The rear seatback must be
is securely latched by pushing it
securely latched. If not, passen-
forward and rearwards.
gers and objects could be thrown
• To avoid the possibility of burns,
forward resulting in serious
do not remove the carpet in the
injury or death in the event of a
cargo area. Emission control
sudden stop or collision.
devices beneath this floor gener-
•
Luggage and other cargo should
ate high temperatures.
be laid flat in the cargo area. If
objects are large, heavy, or must
OYF039002
be piled, they must be secured.
Under no circumstances should
WARNING
Front seat
cargo be piled higher than the
After adjusting the seat, always
Manual adjustment
seatbacks. Failure to follow these
check that it is securely locked into
Forward and rearward
warnings could result in serious
place by attempting to move the
injury or death in the event of a
To move the seat forward or rearward:
seat forward or reverse without
sudden stop, collision or rollover.
1. Pull the seat slide adjustment lever up
using the lock release lever.
•
No passenger should ride in the
Sudden or unexpected movement
and hold it.
cargo area or sit or lie on folded
of the driver's seat could cause you
2. Slide the seat to the position you
seatbacks while the vehicle is
to lose control of the vehicle result-
desire.
moving. All passengers must be
ing in an accident.
3. Release the lever and make sure the
properly seated in seats and
seat is locked in place.
restrained properly while riding.
Adjust the seat before driving, and make
(Continued)
sure the seat is locked securely by trying
to move forward and rearward without
using the lever. If the seat moves, it is not
locked properly.
3 4
Safety features of your vehicle
Automatic adjustment (if equipped)
The front seat can be adjusted by using
the control switch located on the outside
of the seat cushion. Before driving, adjust
the seat to the proper position so as to
easily control the steering wheel, pedals
and switches on the instrument panel.
WARNING
The power seat is operable with the
ignition OFF.
OYF039003
OYF039004
Therefore, children should never be
left unattended in the vehicle.
Seatback angle
Seat cushion height (for driver’s seat)
To recline the seatback:
To change the height of the seat cushion,
1. Lean forward slightly and lift up the
push the lever upwards or downwards.
seatback recline lever.
• To lower the seat cushion, push the
2. Carefully lean back on the seat and
lever down several times.
adjust the seatback of the seat to the
• To raise the seat cushion, pull the lever
position you desire.
up several times.
3. Release the lever and make sure the
seatback is locked in place. (The lever
MUST return to its original position for
the seatback to lock.)
3 5
Safety features of your vehicle
CAUTION
•
The power seat is driven by an
electric motor. Stop operating
once the adjustment is complet-
ed. Excessive operation may
damage the electrical equipment.
•
When in operation, the power
seat consumes a large amount of
electrical power. To prevent
unnecessary charging system
drain, don’t adjust the power seat
longer than necessary while the
OYF039005
OYF039007
engine is not running.
Forward and rearward
Seat cushion height (for driver’s seat)
•
Do not operate two or more power
Push the control switch forward or rear-
Pull the front portion of the control switch
seat control switches at the same
ward to move the seat to the desired
up to raise or push down to lower the
time. Doing so may result in
position. Release the switch once the
front part of the seat cushion. Pull the
power seat motor or electrical
seat reaches the desired position.
rear portion of the control switch up to
component malfunction.
raise or push down to lower the rear part
of the seat cushion. Release the switch
once the seat reaches the desired posi-
tion.
3 6
|
|
|
