Features of your vehicle
Sunvisor
To use the vanity mirror, pull down
Power outlet
the visor and slide the mirror cover
■ Front
(3).
Adjust the sunvisor extension
(if
equipped) forward or backward (4).
CAUTION
• Always have the switch in the
off position when the vanity
mirror lamp is not in use. If the
ODMECO2037
sunvisor is closed without the
■ Center
OYF049145
lamp off, it may discharge the
battery or damage the sunvi-
sor.
• Always use the sunvisor
extension, after swinging the
sunvisor to the side.
ODM042318
■ Rear (if equipped)
HTG2174
Use the sunvisor to shield direct light
through the front or side windows.
To use a sunvisor, pull it downward.
To use a sunvisor for a side window,
pull it downward, unsnap it from the
OANNCO43015
bracket (1) and swing it to the side (2).
4 173
Features of your vehicle
The power outlet is designed to pro-
vide power for mobile telephones or
CAUTION
WARNING
other devices designed to operate
•
Use the power outlet only
Do not put fingers or foreign
with vehicle electrical systems. The
when the engine is running
elements (pin, etc.) into a power
devices should draw less than 10
and remove the accessory
outlet and do not touch with a
amps with the engine running.
plug after use. Using the
wet hand. You may get an elec-
accessory plug for prolonged
tric shock.
periods of time with the
engine off could cause the
battery to discharge.
•
Only use 12V electric acces-
sories which are less than 10A
in electric capacity.
•
Adjust the air-conditioner or
heater to the lowest operating
level when using the power
outlet.
•
Close the cover when not in
use.
•
Some electronic devices can
cause electronic interference
when plugged into a vehicle’s
power outlet. These devices
may cause excessive audio
static and malfunctions in
other electronic systems or
devices used in your vehicle.
4 174
Features of your vehicle
Clothes hanger
Floor mat anchor(s)
WARNING
■ Type A
■ Type B
The floor mat must be properly
anchored so that it will not
interfere with the operation of
the accelerator pedal. Any inter-
ference with the accelerator
pedal could cause the accelera-
tor pedal to be unable to return
to the idle position. A pedal that
cannot return to the idle posi-
tion could lead to an accident
which may result in severe per-
ODMECO2038
ODMECO2034
sonal injury or death.
To use the hanger, pull down the
When using a floor mat on the front
upper portion of hanger.
floor carpet, make sure it attaches to
the floor mat anchor(s) in your vehi-
cle. This keeps the floor mat from
WARNING
sliding forward.
Do not hang other objects such
as hangers or hard objects
except clothes. Also, do not put
heavy, sharp or breakable
objects in the clothe pockets. In
an accident or when the curtain
air bag is inflated, it may cause
vehicle damage or personal
injury.
4 175
Features of your vehicle
Aux, USB and iPod® port
Luggage net (holder)
WARNING
(if equipped)
The following must be observed
■ Type A
when installing ANY floor mat
to the vehicle, so that it will not
interfere with the pedal.
• Ensure that the floor mats are
securely attached to the vehi-
cle’s floor mat anchor(s)
before driving the vehicle.
• Do not use ANY floor mat that
cannot be firmly attached to
the vehicle’s floor mat anchors.
ONC046090
OANNCO43017
■ Type B
• Do not stack floor mats on top
You can use the AUX port to connect
of one another (e.g. all-weath-
audio devices and the USB port to
er rubber mat on top of a car-
plug in a USB device or iPod®.
peted floor mat). Only a single
floor mat should be installed
in each position.
✽ NOTICE
IMPORTANT - Your vehicle was
When using a portable audio device
manufactured with driver’s side
connected to the power outlet, noise
floor mat anchors that are
may occur during playback. If this
designed to securely hold the
happens, use the power source of the
OANNCO43018
floor mat in place. To avoid any
portable audio device.
interference with pedal opera-
To keep items from shifting in the
❈ iPod® is a trademark of Apple Inc.
cargo area, you can use the four
tion, HYUNDAI recommends
that only the HYUNDAI floor mat
holders located in the cargo area to
designed for use in your vehicle
attach the luggage net. If necessary,
be installed.
contact your authorized HYUNDAI
dealer to obtain a luggage net.
4
176
Features of your vehicle
✽ NOTICE
Cargo security screen
To use the cargo security screen
(if equipped)
Vehicles equipped with a luggage
rail system may use the shackles to
hook the luggage net.
CAUTION
To prevent damage to the goods
or the vehicle, care should be
taken when carrying fragile or
bulky objects in the luggage
compartment.
OANNCO43020
OANNCO43019
1. Pull the cargo security screen
WARNING
Use the cargo security screen to
towards the rear of the vehicle by
To avoid eye injury, DO NOT
the handle (1).
hide items stored in the cargo area.
overstretch the luggage net.
2. Insert the guide pin into the guide
ALWAYS keep your face and
(2).
body out of the luggage net’s
recoil path. DO NOT use the
luggage net when the strap has
✽ NOTICE
visible signs of wear or dam-
Pull out the cargo security screen
age.
with the handle in the center to pre-
vent the guide pin from falling out of
the guide.
4 177
Features of your vehicle
When the cargo security screen is not
To remove the cargo security
To remove the cargo security
in use:
screen
screen from the luggage tray
1. Pull the cargo security screen
backward and up to release it from
the guides.
2. The cargo security screen will
automatically slide back in.
✽ NOTICE
The cargo security screen may not
automatically slide back in if the
cargo security screen is not fully
OANNCO43021
pulled out. Fully pull it out and then
ODMECO2039
let go.
1. Pull up the screen board.
2. Push in the guide pin.
3. While pushing the guide pin, pull
out the cargo security screen.
OANNCO43022
1. Push in the guide pin.
2. While pushing the lever, pull out
the cargo security screen.
3. Open the luggage tray and keep the
cargo security screen in the tray.
4 178
Features of your vehicle
Side curtain (if equipped)
WARNING
•
Do not place objects on the
cargo security screen. Such
objects may be thrown about
inside the vehicle and possi-
bly injure vehicle occupants
during an accident or when
braking.
•
Never allow anyone to ride in
the luggage compartment. It
is designed for luggage only.
•
Maintain the balance of the
ODM042343
vehicle and locate the weight
To use the side curtain:
as forward as possible.
1. Lift the curtain by the hook (1).
2. Hang the curtain on both sides of
CAUTION
the hook.
Since the cargo security screen
may be damaged or malformed,
do not put luggage on it when it
is used.
4 179
Features of your vehicle
EXTERIOR FEATURES
Roof rack (if equipped)
✽ NOTICE
CAUTION
If the vehicle is equipped with a sun-
• When carrying cargo on the
roof, be sure not to position cargo
roof rack, take the necessary
onto the roof rack in such a way that
precautions to make sure the
it could interfere with sunroof oper-
cargo does not damage the
ation.
roof of the vehicle.
• When carrying large objects
on the roof rack, make sure
they do not exceed the overall
roof length or width.
ODM042345
If the vehicle has a roof rack, you can
load cargo on top of your vehicle.
4 180
Features of your vehicle
(Continued)
WARNING
•
Always drive slowly and turn
• The following specification is
corners carefully when carry-
the maximum weight that can
ing items on the roof rack.
be loaded onto the roof rack.
Severe wind updrafts, caused
Distribute the load as evenly
by passing vehicles or natural
as possible onto the roof rack
causes, can cause sudden
and secure the load firmly.
upward pressure on items
loaded on the roof rack. This
ROOF
100 kg (220 lbs.)
is especially true when carry-
RACK
EVENLY DISTRIBUTED
ing large, flat items such as
wood panels or mattresses.
Loading cargo or luggage in
This could cause the items to
excess of the specified weight
fall off the roof rack and cause
limit on the roof rack may
damage to your vehicle or
damage your vehicle.
others around you.
•
The vehicle center of gravity
•
To prevent damage or loss of
will be higher when items are
cargo while driving, check fre-
loaded onto the roof rack.
quently before or while driv-
Avoid sudden starts, braking,
ing to make sure the items on
sharp turns, abrupt maneu-
the roof rack are securely fas-
vers or high speeds that may
tened.
result in loss of vehicle con-
trol or rollover resulting in an
accident.
(Continued)
4 181
Features of your vehicle
AUDIO SYSTEM
✽ NOTICE
Antenna
•
If you install an aftermarket HID
headlamp, your vehicle's audio
and electronic device may mal-
function.
•
Prevent caustic solutions such as
perfume and cosmetic oil from
contacting the dashboard because
they may cause damage or discol-
oration.

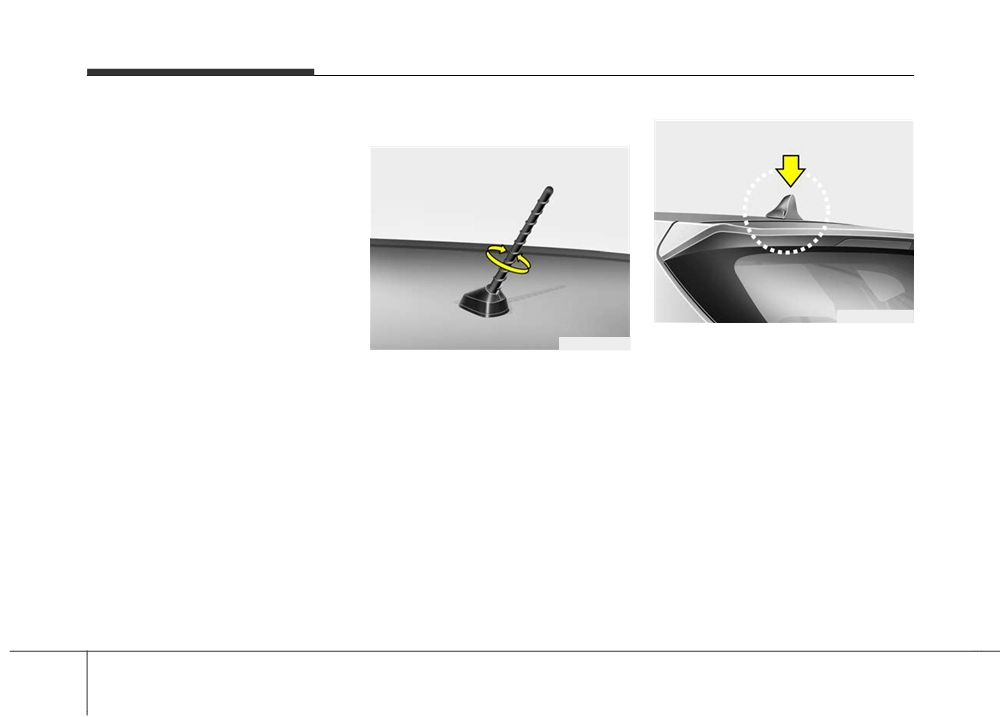

OANNMM2901
Shark fin antenna
OHM048154L
The shark fin antenna receives
Roof antenna
transmitted data. (for example: GPS
The roof antenna receives both AM
and DAB signals)
and FM broadcast signals. Rotate
the roof antenna in a counterclock-
wise direction to remove it. Rotate it
in a clockwise direction to reinstall it.
4 182
Features of your vehicle
✽ NOTICE
Steering wheel audio control
MODE (1)
•
Remove the antenna by rotating it
Press the button to change audio
in a counter-clockwise direction,
source.
before entering a place with a low
floor height. If not, the antenna
SEEK/PRESET (
/
) (2)
may be damaged.
The SEEK/PRESET button has dif-
•
Securely install the antenna in the
ferent functions based on the system
upright position. This is to guar-
mode.
antee proper signal reception.
However, you may fold and
For the following functions the button
remove the antenna, before park-
should be pressed for 0.8 second or
ing the vehicle or loading the lug-
more.
gage on the roof rack.
ODM042327
•
Do not load the luggage near the
RADIO mode
antenna. This is to guarantee
The steering wheel incorporates
proper signal reception.
audio control buttons on the left hand
It will function as the AUTO SEEK
side of the steering wheel.
select button.
CD/USB/iPod® mode
CAUTION
It will function as the FF/REW button.
Do not operate audio remote
control buttons simultaneously.
If the SEEK/PRESET button is
pressed for less than 0.8 second, it
will work as follows in each mode.
4 183
Features of your vehicle
RADIO mode

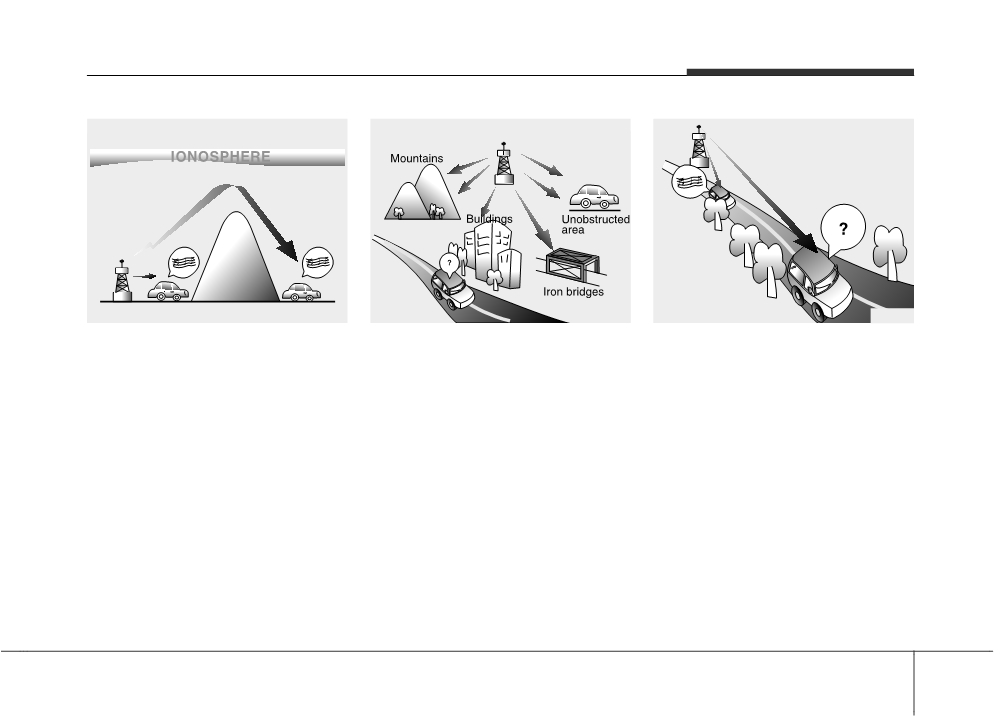

How vehicle audio works
This can be due to factors, such as
the distance from the radio station,
It will function as the PRESET STA-
FM reception
closeness of other strong radio sta-
TION buttons.
tions or the presence of buildings,
bridges or other large obstructions in
CD/USB/iPod® mode
the area.
It will function as TRACK UP/DOWN
button.
VOLUME (VOL+/-) (3)
• Push the lever upward
(+) to
increase the volume.
• Push the lever downward
(-) to
decrease the volume.
JBM001
AM and FM radio signals are broad-
MUTE (4)
casted from transmitter towers locat-
ed around your city. They are inter-
• Press the button to mute the sound.
cepted by the radio antenna on your
• Press the button to turn off the
vehicle. This signal is then processed
microphone during a telephone call.
by the radio and sent to your vehicle
speakers.
Detailed information for audio control
When a strong radio signal has
buttons are described in the following
reached your vehicle, the precise
pages in this section.
engineering of your audio system
ensures the best possible quality
reproduction. However, in some
cases the signal coming to your vehi-
cle may not be strong and clear.
4 184
Features of your vehicle
AM reception
FM radio station
JBM002
JBM003
JBM004

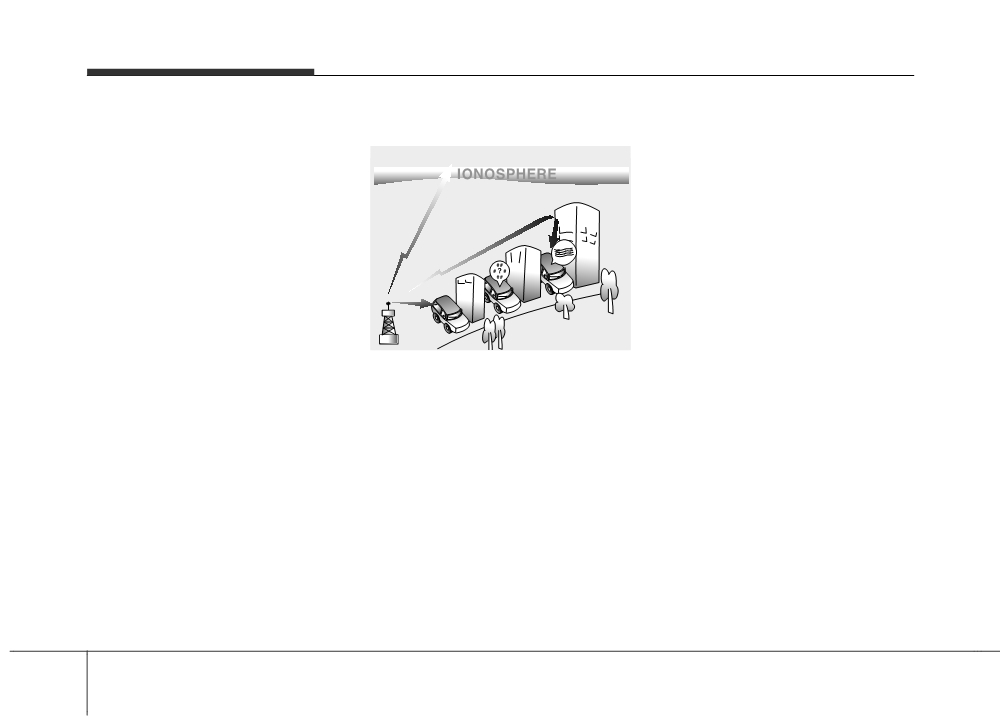

AM broadcasts can be received at
FM broadcasts are transmitted at
• Fading
- As your vehicle moves
greater distances than FM broad-
high frequencies and do not bend to
away from the radio station, the
casts. This is because AM radio
follow the earth's surface. Because
signal will weaken and sound will
waves are transmitted at low fre-
of this, FM broadcasts generally
begin to fade. When this occurs,
quencies. These long distance, low
begin to fade within short distances
we suggest that you select another
frequency radio waves can follow the
from the station. Also, FM signals are
stronger station.
curvature of the earth rather than
easily affected by buildings, moun-
• Flutter/Static - Weak FM signals or
travelling straight. In addition, they
tains, and obstructions. This can lead
large obstructions between the
curve around obstructions resulting
to undesirable or unpleasant listen-
transmitter and your radio can dis-
in better signal coverage.
ing conditions which might lead you
turb the signal causing static or
to believe a problem exists with your
fluttering noises to occur. Reducing
radio. The following conditions are
the treble level may lessen this
normal and do not indicate radio
effect until the disturbance clears.
trouble:
4 185
Features of your vehicle
Using a cellular phone or a two-
way radio
WARNING
When a cellular phone is used inside
Do not use a cellular phone
the vehicle, noise may be produced
while driving. Stop at a safe
from the audio system. This does not
location to use a cellular phone.
mean that something is wrong with
the audio equipment. In such a case,
try to operate mobile devices as far
from the audio equipment as possible.
CAUTION
JBM005
When using a communication
•
Station Swapping - As an FM sig-
system such as a cellular phone
nal weakens, another more power-
or a radio set inside the vehicle,
ful signal near the same frequency
a separate external antenna
may begin to play. This is because
must be fitted. When a cellular
your radio is designed to lock onto
phone or a radio set is used
the clearest signal. If this occurs,
with an internal antenna alone,
select another station with a
it may interfere with the vehi-
stronger signal.
cle's electrical system and
•
Multi-Path Cancellation
- Radio
adversely affect safe operation
signals being received from sever-
of the vehicle.
al directions can cause distortion
or fluttering. This can be caused by
a direct and reflected signal from
the same station, or by signals
from two stations with close fre-
quencies. If this occurs, select
another station until the condition
has passed.
4
186
Features of your vehicle

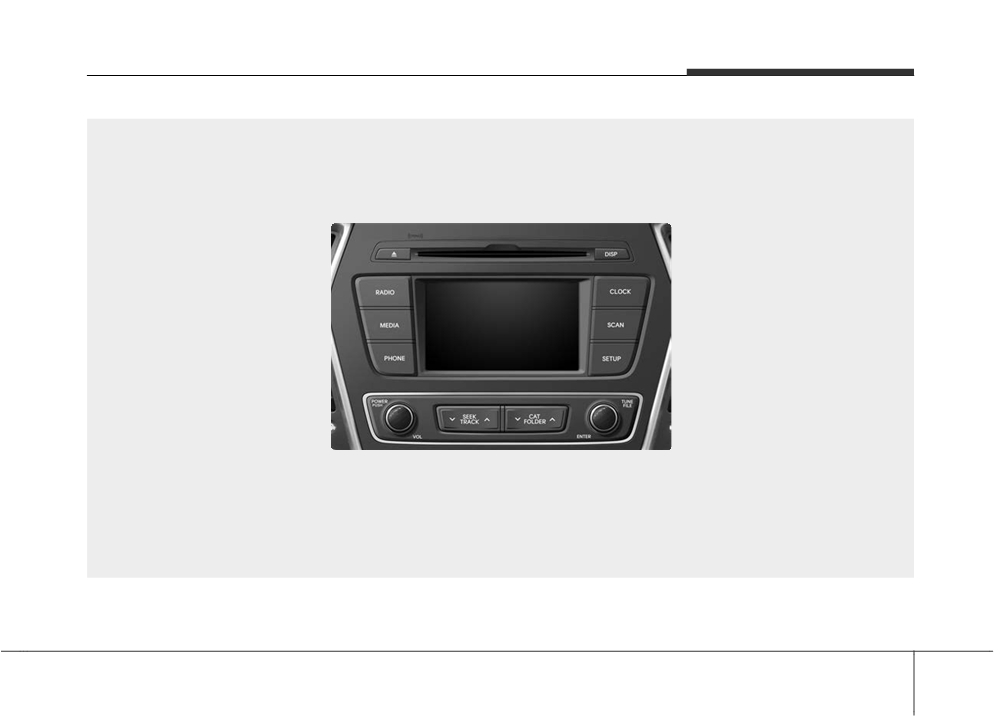

AUDIO (With Touch Screen)
■ Type B
ANB50000EU
4 187
Features of your vehicle

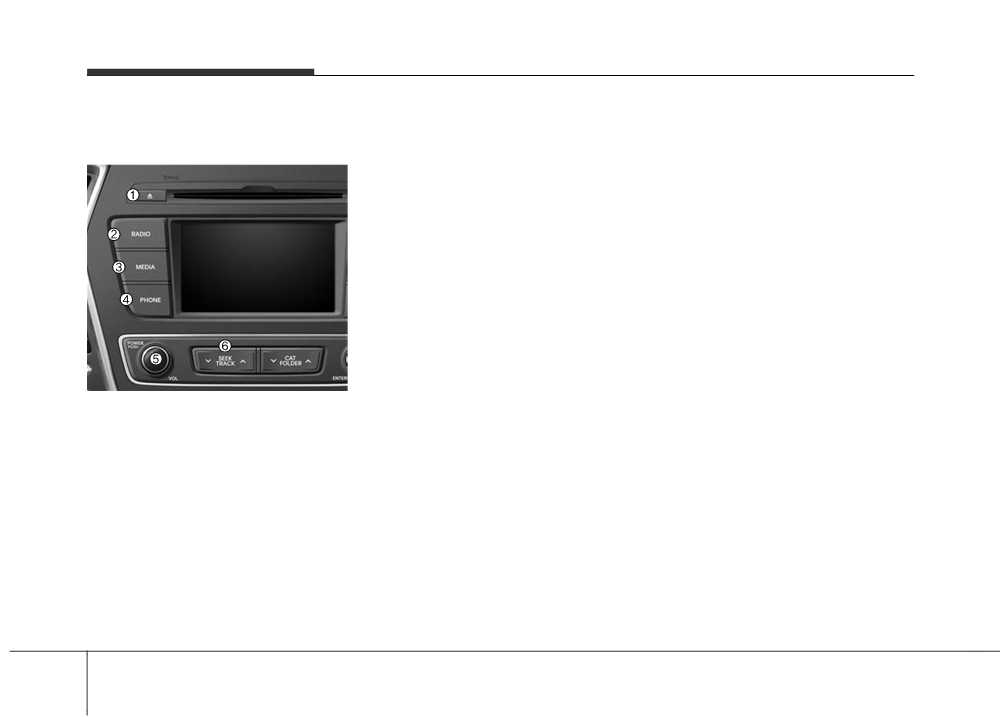

Features of Your Audio
(2) RADIO
(6) SEEK TRACK
• Changes to FM/AM/SiriusXM*
•
When pressed briefly
mode.
- Radio mode
: Plays previous/
• Each time the button is pressed,
next frequency.
the mode is changed in the order
- Media (CD/USB/iPod®/My Music)
of FM1 ➟ FM2 ➟ AM ➟ XM1* ➟
modes
: Changes the track,
XM2* ➟ XM3*.
Song(file).
*: if equipped
•
When pressed and held
- Radio mode
: Continuously
(3) MEDIA
changes the frequency. Upon
• Changes to CD/USB(iPod®)/AUX
release, plays the current fre-
quency.
/My Music/iPod® Audio mode.
- Media(CD/USB/iPod®/My Music)
• Each time the button is pressed,
modes : Rewinds or fast forwards
the mode is changed in the order
the track or file.
of CD ➟ USB(iPod®) ➟ AUX ➟ My
Music ➟ BT(Bluetooth®) Audio.
- During a Handsfree call, controls
(1) EJECT
the call volume.
• Ejects the disc.
(4) PHONE
• Changes to Phone mode.
• When a phone is not connected,
the connection screen is displayed.
(5) POWER/VOL knob
• Power : Press to turn power on/off.
• Volume : Turn left/right to control
volume.
4 188
Features of your vehicle

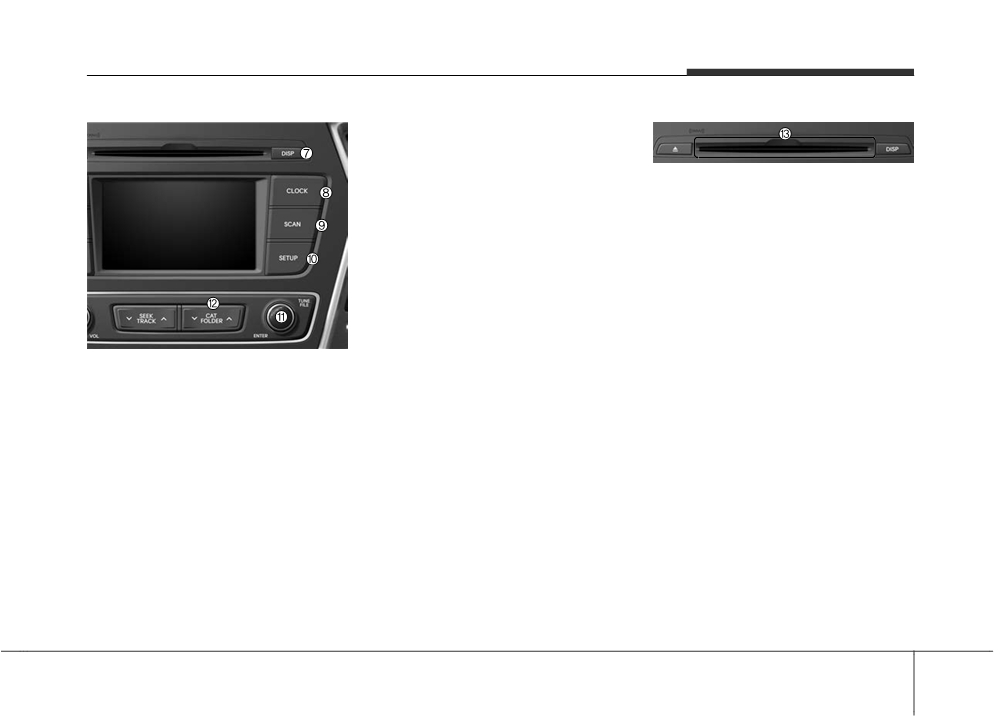

(9) SCAN
• Radio mode : Previews all receiv-
able broadcasts for
5 seconds
each.
(13) DISC-IN LED
• Media (CD/USB/My Music) modes
: Previews each song (file) for 10
• LED that indicates whether a disc
seconds each.
is inserted.
(10) SETUP
• Changes to Setup mode.
(11) TUNE knob
• Radio mode
: Turn to change
broadcast frequencies.
(7) DISP
• Media
(CD/USB/iPod®/My Music)
• Turns the monitor display on/off.
modes : Turn to search tracks/chan-
nels/files.
(8) CLOCK
• Displays the time/date/day.
(12) CAT/FOLDER
• SiriusXM Radio* : Category Search.
• MP3 CD/USB mode : Search Folder.
*: if equipped
4 189
