Hyundai Santa Fe Sport (2018 year). Instruction - part 11

Features of your vehicle

Driving Assist (if equipped)

Items

Explanation

SCC (Smart Cruise Control)

Choose the sensitivity of the smart cruise control.

response (if equipped)

For more details, refer to "Advanced Smart Cruise Control System" in chapter 5.

AEB (Automatic Emergency

To activate or deactivate the AEB system.

Braking) (if equipped)

For more details, refer to "Automatic Emergency Braking (AEB)" in chapter 5.

To adjust the initial warning alert time for the Forward Collision Warning / Automatic Emergency

FCW (Forward Collision

Braking system. The option settings are Late, Normal, or Early.

Warning, if equipped)

For more information, refer to "Automatic Emergency Braking (AEB)" in chapter 5.

RCTA (Rear Cross Traffic

If this item is checked, the rear cross traffic alert function will be activated.

Alert) (if equipped)

For more details, refer to "Blind Spot Detection System" in chapter 5.

4 88

Features of your vehicle

Door

Items

Explanation

• Disable : The auto door lock operation will be deactivated.

• Enable on Speed : All doors will be automatically locked when the vehicle speed exceeds

Automatically Lock

9.3mph (15km/h).

• Enable on Shift : All doors will be automatically locked if the automatic transaxle shift lever is shifted

from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position.

• Disable : The auto door unlock operation will be canceled.

• Vehicle Off : All doors will be automatically unlocked when the ignition key is removed from the

Automatically Unlock

ignition switch or the Engine Start/Stop button is set to the OFF position.

• On Shift to P : All doors will be automatically unlocked if the automatic transaxle shift lever is

shifted to the P (Park) position.

• Off : The two press unlock function will be deactivated. Therefore, all doors will unlock if the

door unlock button is pressed.

Two Press Unlock

• On : Only the driver's door will unlock if the door unlock button is pressed. When the door

unlock button is pressed again within 4 seconds, the remaining doors will unlock.

If this item is checked, the horn feedback operation will be activated.

Horn Feedback

After locking the door by pressing the lock button on the remote key, if you press the lock button

(if equipped)

again within 4 seconds, the warning sound will operate once to indicate that all doors are locked.

Power Liftgate

If this item is checked, the power liftgate (power tailgate) function will be activated.

(Power Tailgate) (if equipped)

For more details, refer to "Liftgate (Tailgate)" in this chapter.

If this item is checked, the smart liftgate (smart tailgate) function will be activated.

Smart Liftgate

If the power tailgate function is not activated, you can not activate this function.

(Smart Tailgate) (if equipped)

For more details, refer to "Liftgate (Tailgate)" in this chapter.

4 89

Features of your vehicle

Light

Items

Explanation

• Off: The one touch turn signal function will be deactivated.

• 3, 5, 7 Flashes : The lane change signals will blink 3, 5, or 7 times when the turn signal lever is

One Touch Turn Signal

moved slightly.

For more details, refer to "Light" in this chapter.

Head Lamp Delay

• If this item is checked, the head lamp delay function will be activated.

Welcome Light

• If this item is checked, the welcome light function will be activated.

(If equipped)

Sound

Items

Explanation

Park Assist System Vol.

• Adjust the Park Assist System volume. (Level 1~3)

(if equipped)

BSD (Blind Spot Detection)

• If this item is checked, the blind spot detection sound will be activated.

Sound (if equipped)

For more details, refer to "Blind Spot Detection System" in chapter 5.

Welcome Sound

• If this item is checked, the welcome sound function will be activated.

(if equipped)

4 90

Features of your vehicle

Convenience

Items

Explanation

• None: The seat easy access function will be deactivated.

• Normal/Extended:

- When you turn off the engine, the driver’s seat will automatically move rearward short

Seat Easy Access

(Normal) or long (Extended) for you to enter or exit the vehicle more comfortably.

(if equipped)

- If you change the Engine Start/Stop button from the OFF position to the ACC, ON, or START

position, the driver’s seat will return to the original position.

For more details, refer to "Driver Position Memory System" in chapter 3.

Steering Position

If this item is checked, the warning function regarding the steering wheel alignment will be activated.

If this item is checked, LCD display shows a selected wiper/light mode whenever you changed

Wiper/Lights Display

its mode.

Gear Position Pop-up

If this item is checked, the gear position will be displayed when you move the shift lever.

Service interval

Items

Explanation

This mode, you can activate the service interval function with mileage (km or mi.) and period

(months).

Service Interval

• Off : The service interval function will be deactivated.

• On :You can set the service interval (mileage and months).

For more details, refer to "Service Mode" in this chapter.

4 91

Features of your vehicle

Other features

Items

Explanation

Fuel Economy Auto Reset

If this item is checked, the average fuel economy will reset automatically when refueling.

Fuel Economy Unit

Choose the fuel economy unit. (Km/L, L/100km, MPG)

Temperature Unit

Choose the temperature unit. (°C,°F)

Tire Pressure Unit

Choose the tire pressure unit. (psi, kPa, bar)

(if equipped)

Language

Choose the language.

(if equipped)

4 92

Features of your vehicle

Warning Messages

Low Key Battery

Press START (POWER) button

(for smart key system)

while turn steering

Shift to P (for smart key system)

(for smart key system)

■ Type A

■ Type B

■ Type A

■ Type B

■ Type A

■ Type B

ODM046068L/ODM046132L

ODM046066L/ODM046133L

ODM046669L/ODM046626L

• This warning message illuminates

if you try to turn off the engine with-

if the battery of the smart key is

• This warning message illuminates

out the shift lever in P (Park) posi-

discharged when the Engine

if the steering wheel does not

tion.

Start/Stop Button changes to the

unlock normally when the Engine

OFF position.

Start/Stop Button is pressed.

• At this time, the Engine Start/Stop

Button turns to the ACC position (If

• It means that you should press the

you press the Engine Start/Stop

Engine Start/Stop Button while

Button once more, it will turn to the

turning the steering wheel right

ON position).

and left.

4 93

Features of your vehicle

Steering wheel unlocked

Check steering wheel lock

Press brake pedal to start engine

(for smart key system)

system (for smart key system)

(for smart key system)

■ Type A

■ Type B

■ Type A

■ Type B

■ Type A

■ Type B

ODM046627L/ODM046628L

ODM046629L/ODM046630L

ODM046067L/ODM046136L

• This warning message illuminates

if the steering wheel does not lock

if the Engine Start/Stop Button

if the steering wheel does not lock

normally when the Engine

changes to the ACC position twice

when the Engine Start/Stop Button

Start/Stop Button changes to the

by pressing the button repeatedly

changes to the OFF position.

OFF position.

without depressing the brake pedal.

• It means that you should depress

the brake pedal to start the engine.

4 94

Features of your vehicle

Key not in vehicle

Key not detected

Press START (POWER) button

(for smart key system)

again (for smart key system)

■ Type A

■ Type B

■ Type A

■ Type B

■ Type A

■ Type B

ODM046064L/ODM046138L

ODM046065L/ODM046139L

ODM046070L/ODM046192L

• This warning message illuminates

if the smart key is not in the vehicle

if the smart key is not detected

if you can not operate the Engine

when you press the Engine

Start/Stop Button when there is a

Start/Stop Button.

problem with the Engine Start/Stop

Button system.

• It means that you could start the

engine by pressing the Engine

Start/ Stop Button once more.

• If the warning illuminates each

time you press the Engine

Start/Stop Button, have your vehi-

cle inspected by an authorized

HYUNDAI dealer.

4 95

Features of your vehicle

Press START button with key

Check fuse BRAKE SWITCH

Shift to P or N to start engine

(for smart key system)

■ Type A

■ Type B

■ Type A

■ Type B

■ Type A

■ Type B

ODM046069L/ODM046140L

ODM046081L/ODM046194L

ODM046624L/ODM046625L

• This warning message illuminates

if you press the Engine Start/Stop

if the brake switch fuse is not func-

if you try to start the engine with

Button while the warning message

tioning and should be checked.

the shift lever not in the P (Park) or

“Key not detected” is illuminating.

N (Neutral) position.

• It means that you should replace

• At this time, the immobilizer indica-

the fuse with a new one. If that is

tor light blinks.

not possible, you can start the

✽ NOTICE

engine by pressing the Engine

You can start the engine with the

Start/Stop Button for 10 seconds in

shift lever in the N (Neutral) position.

the ACC position.

But, for your safety, we recommend

that you start the engine with the

shift lever in the P (Park) position.

4 96

Features of your vehicle

Door, Liftgate (Tailgate), Hood

Sunroof Open (if equipped)

Open

CAUTION

■ Type A

■ Type B

Before driving the vehicle, you

■ Type A

should confirm that the door/

liftgate

(tailgate)/hood is fully

closed. Also, check there is no

door/hood/liftgate

(tailgate)

open warning light or message

displayed on the instrument

cluster.

■ Type B

ODM046633L/ODM046634L

• This warning message is dis-

played if you turn off the engine

when the sunroof is opened.

ODM046073/ODM046153

• This warning message is displayed

indicating which door, or the lift-

gate (tailgate), or the hood is open.

4 97

Features of your vehicle

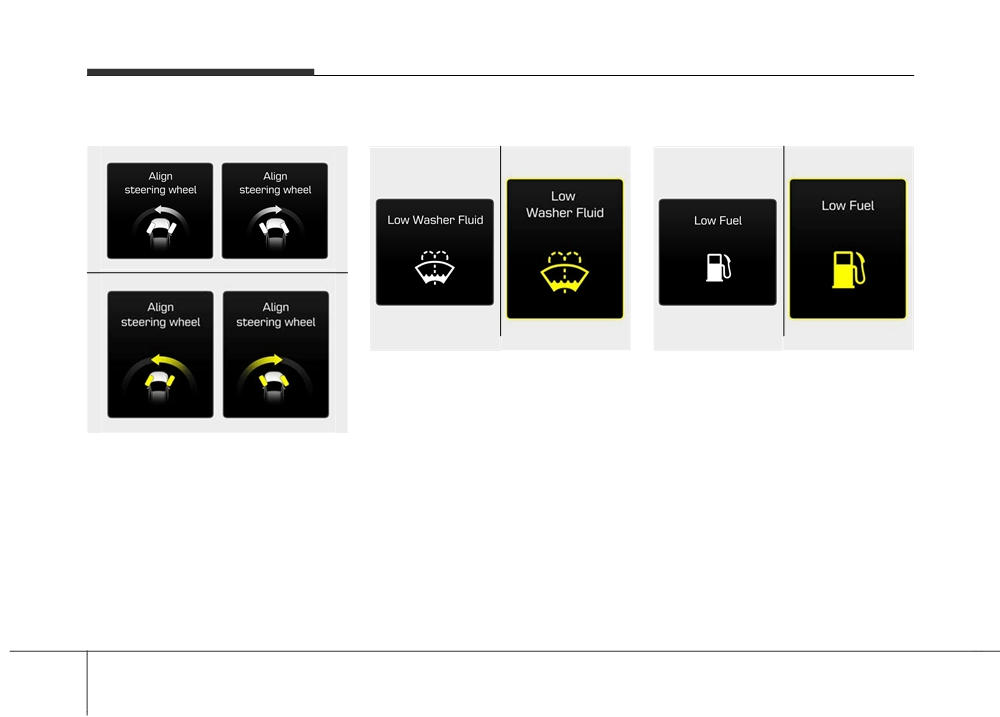

Align steering wheel (if equipped)

Low Washer Fluid (if equipped)

Low Fuel

■ Type A

■ Type B

■ Type A

■ Type B

ODM046631L/ODM046632L

ODM046657L/ODM046658L

• This warning message illuminates

on the service reminder menu if

if the fuel tank is nearly empty.

the washer fluid level in the reser-

- When the low fuel level warning

voir is nearly empty.

ODM046663L/ODM046664L

light illuminates.

• It means that you should refill the

- When the trip computer displays

• This warning message illuminates

washer fluid.

"--- mile (or km)" as distance to

if you start the engine when the

empty.

steering wheel is turned to more

than 90 degrees to the left or right.

• It means that you should turn the

Add fuel as soon as possible.

steering wheel and make the angle

of the steering wheel be less than

30 degrees.

4 98

Features of your vehicle

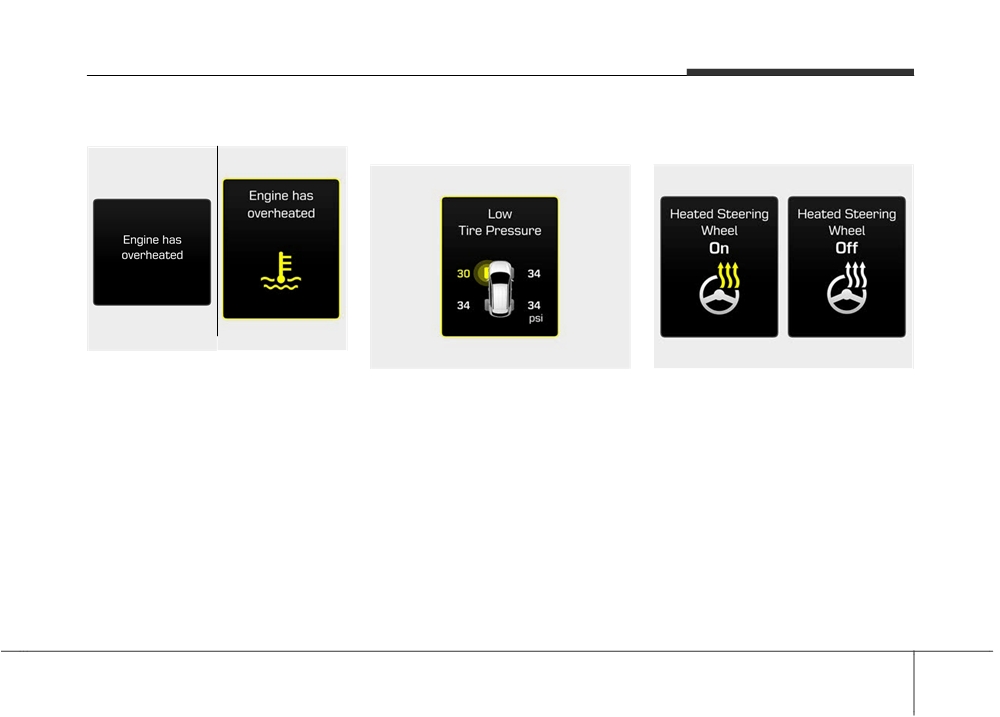

Engine has overheated

Low Tire Pressure

Heated Steering Wheel On/Off

(if equipped)

■ Type A

■ Type B

ODM046653L/ODM046654L

• This warning message illuminates

OAN067005N

ODM046650L

when the engine coolant tempera-

• This warning message illuminates

• This message illuminates if you turn

ture is above 248°F (120°C).

if the tire pressure is low with the

on/off the heated steering wheel

• It means that the engine is over-

Engine/Start button in the ON posi-

feature.

heating and may become damaged.

tion.

For more details, refer to "Heated

If your vehicle is overheated, refer to

For more details, refer to "Tire

Steering Wheel" in this chapter.

"Overheating" in chapter 6.

Pressure Monitoring System (TPMS)"

in chapter 6.

4 99

Features of your vehicle

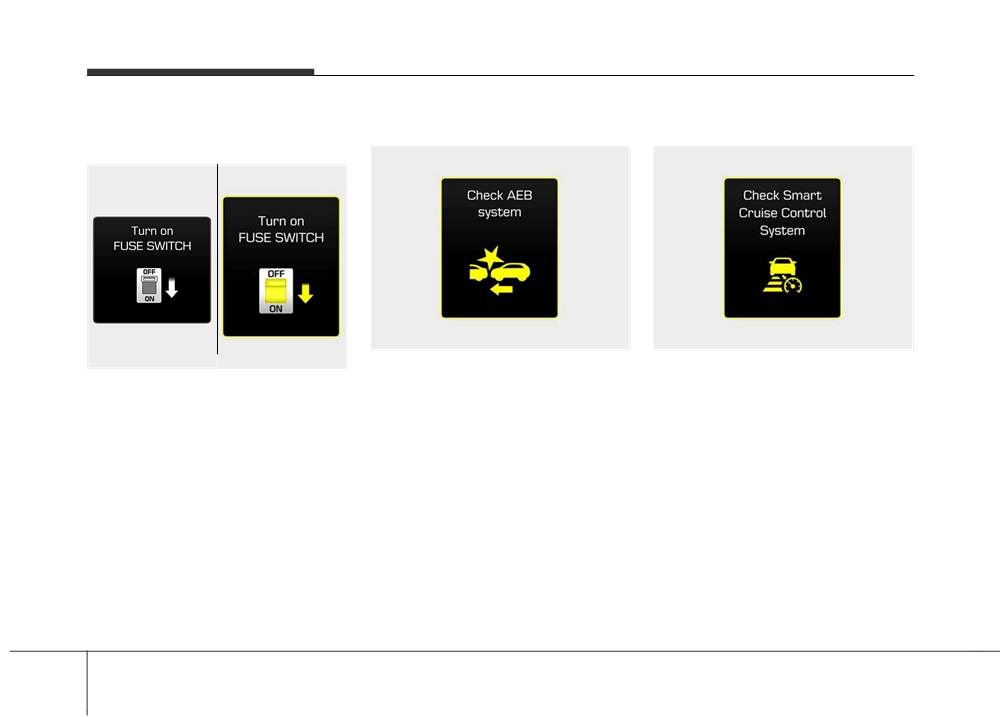

Turn on FUSE SWITCH

Check AEB system (if equipped)

Check SCC System (if equipped)

(if equipped)

■ Type A

■ Type B

ODM046661L

ODM046662L

ODM046091L/ODM046164L

• This warning message illuminates

if there is a malfunction with the

if the fuse switch under the steer-

Automatic Emergency Braking

advanced smart cruise control sys-

ing wheel is OFF.

(AEB) system, have your vehicle

tem, have your vehicle inspected

inspected by an authorized

by an authorized HYUNDAI dealer.

• It means that you should turn the

HYUNDAI dealer.

fuse switch on.

For more details, refer to "Advanced

For more details, refer to "Automatic

Smart Cruise Control System" in chap-

For more details, refer to “Fuses” in

Emergency Braking (AEB) system" in

ter 5.

chapter 7.

chapter 5.

4 100

Features of your vehicle

Check BSD System (if equipped)

Check headlight (if equipped)

✽ NOTICE

■ Type A

■ Type B

• When replacing the bulb, use the

same wattage bulb.

For more information, refer to

"BULB WATTAGE" in chapter 8.

• If the different wattage bulb is

equipped with the vehicle, this

warning message is not displayed.

ODM056071L

ODM046637/ODM046638

• This warning message illuminates

• This warning message illuminates if

if there is a malfunction with the

there is a malfunction with the head-

Blind Spot Detection (BSD) sys-

lamp. In this case, have your vehicle

tem. And the BSD system will be

inspected by an authorized

automatically deactivated, have

HYUNDAI dealer.

your vehicle inspected by an

authorized HYUNDAI dealer.

For more details, refer to "Blind Spot

Detection (BSD) System" in chapter 5.

4 101

Features of your vehicle

TRIP COMPUTER

Overview

Trip Modes

FUEL ECONOMY

Description

• Distance To Empty

The trip computer is a microcomput-

• Average Fuel Economy

er-controlled driver information sys-

tem that displays information related

• Instant Fuel Economy

to driving.

TRIP A

✽ NOTICE

Some driving information stored in

• Tripmeter [A]

the trip computer

(for example

• Average Vehicle Speed [A]

Average Vehicle Speed) resets if the

• Elapsed Time [A]

battery is disconnected.

ONC047617N

To change the trip mode, press the

MOVE button

TRIP B

• Tripmeter [B]

• Average Vehicle Speed [B]

• Elapsed Time [B]

Digital speedometer

4 102

Features of your vehicle

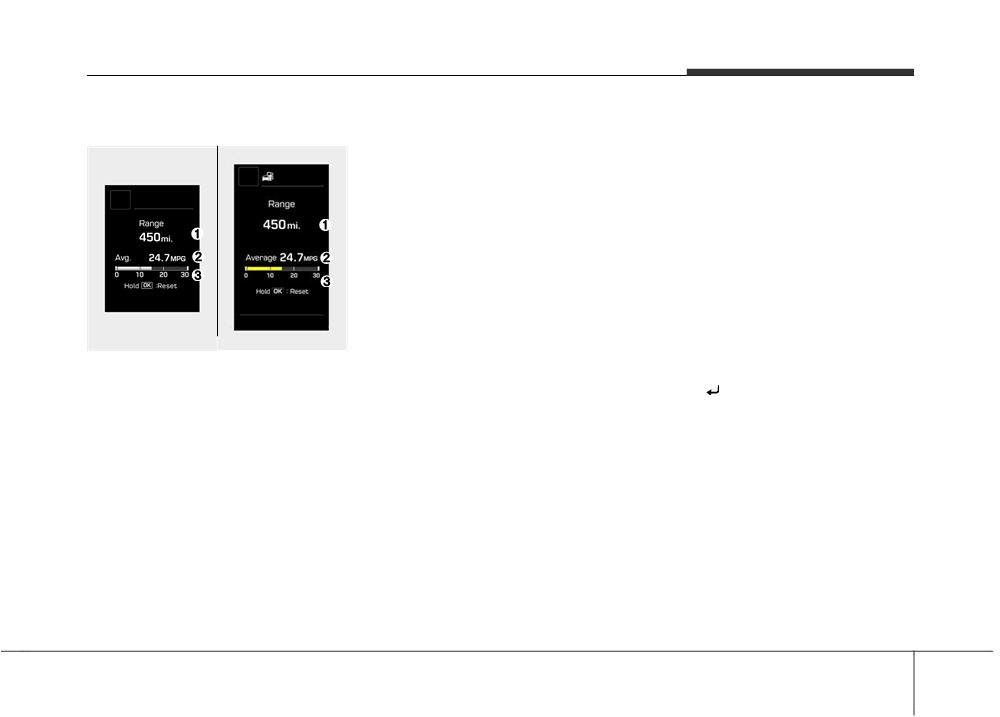

Fuel Economy

✽ NOTICE

Average Fuel Economy (2)

•

If the vehicle is not on level ground

• The average fuel economy is calcu-

■ Type A

■ Type B

or the battery power has been

lated by the total driving distance

interrupted, the distance to empty

and fuel consumption since the last

function may not operate correctly.

average fuel economy reset.

•

The distance to empty may differ

- Fuel economy range: 0.0 ~ 99.9

from the actual driving distance as

MPG or L/100km

it is an estimate of the available

• The average fuel economy can be

driving distance.

reset both manually and automati-

•

The trip computer may not register

cally.

additional fuel if less than 1.6 gal-

lons (6 liters) of fuel are added to

the vehicle.

Manual reset

ONC047133N/ONC047134N

•

The fuel economy and distance to

To clear the average fuel economy

empty may vary significantly based

manually, press the SELECT/RESET

Distance To Empty (1)

on driving conditions, driving

button

on the steering wheel for

• The distance to empty is the esti-

habits, and condition of the vehicle.

more than 1 second when the aver-

mated distance the vehicle can be

age fuel economy is displayed.

driven with the remaining fuel.

- Distance range : 1 ~ 9999 mi or 1

~ 9999 km.

• If the estimated distance is below 1

mi. (1 km), the trip computer will dis-

play "----" as distance to empty.

4 103

Features of your vehicle

Automatic reset

Instant Fuel Economy (3)

Trip A/B

To make the average fuel economy

• This mode displays the instant fuel

■ Type A

■ Type B

be reset automatically whenever

economy during the last few sec-

refueling, select the "Auto Reset"

onds when the vehicle speed is

mode in User Setting menu of the

more than 6.2 MPH (10 km/h).

LCD display

(Refer to "LCD

- Fuel economy range: 0 ~ 50 MPG

Display").

or 0 ~ 30 L/100km

Under "Auto Reset" mode, the aver-

age fuel economy will be cleared to

zero (--.-) when the vehicle speed

exceeds 1 km/h after refueling more

than 1.6 gallons (6 liters).

ODM046603N_1/ONC047132N

Tripmeter (1)

• The tripmeter is the total driving dis-

tance since the last tripmeter reset.

- Distance range: 1 ~ 9999.9 mi. or

• To reset the tripmeter, press the

SELECT/RESET button on the

steering wheel for more than

second when the tripmeter is dis-

played.

4 104

Content .. 9 10 11 12 ..
