Your vehicle at a glance
EXTERIOR OVERVIEW
■ Front view
1. Panoramic sunroof
4-50
2. Front windshield wiper blades
7-39
3. Side view mirrors
4-76
4. Door locks
4-21
5. Headlight
7-73
6. Front fog light
4-132
7. Hood
4-44
8. Tires and wheels
7- 44 / 8-4
❈ The actual shape may differ from the illustration.
OAN017008N
2 2
Your vehicle at a glance
■ Rear view
1. Antenna
4-182
2. High mounted stop lamp
7-79
3. Defroster
4-145
4. Rear window wiper blade
7-40
5. Fuel filler door
4-46
6. Rear combination lamp
7-76
7. Rearview camera
4-124
8. Parking assist system
4-120
❈ The actual shape may differ from the illustration.
ODM016002
2 3
Your vehicle at a glance

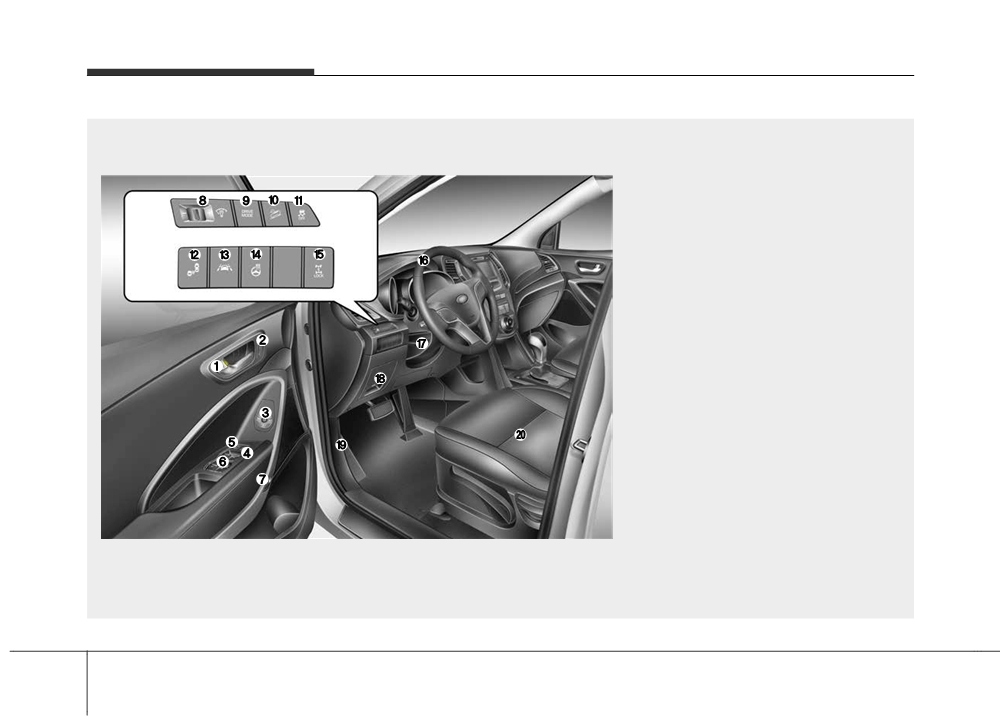

INTERIOR OVERVIEW (I)
1. Inside door handle
4-23
2. Driver position memory system
3-15
3. Side view mirrors control
4-76
4. Power window lock button
4-43
5. Central door lock switch
4-23
6. Power window switch
4-39
7. Fuel-filler door opener
4-46
8. Instrument panel illumination
control knob
4-80
9. Drive mode button or
Active ECO button
5-28, 5-100
10. DBC button
5-51
11. ESC OFF button
5-46
12. BSD on/off button
5-89
13. LDWS button
5-96
14. Heated steering wheel button
4-58
15. AWD LOCK button
5-22
16. Steering wheel
4-56
17. Tilt and telescopic steering
control lever
4-57
18. Inner panel fuse
7-64
19. Hood release lever
4-44
20. Seat
3-4
❈ The actual shape may differ from the illustration.
OAN017001N
2 4
Your vehicle at a glance
INTERIOR OVERVIEW (II)
■ Type A
1. Power outlet
4-173
2. Aux, USB and iPod®
4-176
3. Transaxle shift lever
5-14
4. Seat warmer or
Air ventilation seat button
3-12, 3-13
5. Parking assist system button
4-120
■ Type B
6. Multi-view camera system
on/off button
4-125
7. Cup holder
4-172
8. AUTO HOLD button
5-40
9. EPB switch
5-34
❈ The actual shape may differ from the illustration.
OAN017002N
2 5
Your vehicle at a glance
INSTRUMENT PANEL OVERVIEW
1. Lighting control lever
4-127
2. Audio remote control buttons
4-183
3. Bluetooth hands-free
buttons
4-219
4. Cruise control button
5-67
5. LCD display control buttons
4-84
6. Horn
4-58
7. Driver’s front air bag
3-60
8. Wiper and washer control lever
4-137
9. Ignition switch/
Engine start/stop button
5-6, 5-9
10. Audio
4-182
11. Hazard warning flasher
4-126
12. Climate control system
4-147, 4-157
13. Passenger's front air bag
3-60
14. Glove box
4-169
❈ The actual shape may differ from the illustration.
ODM016004
2 6
Your vehicle at a glance

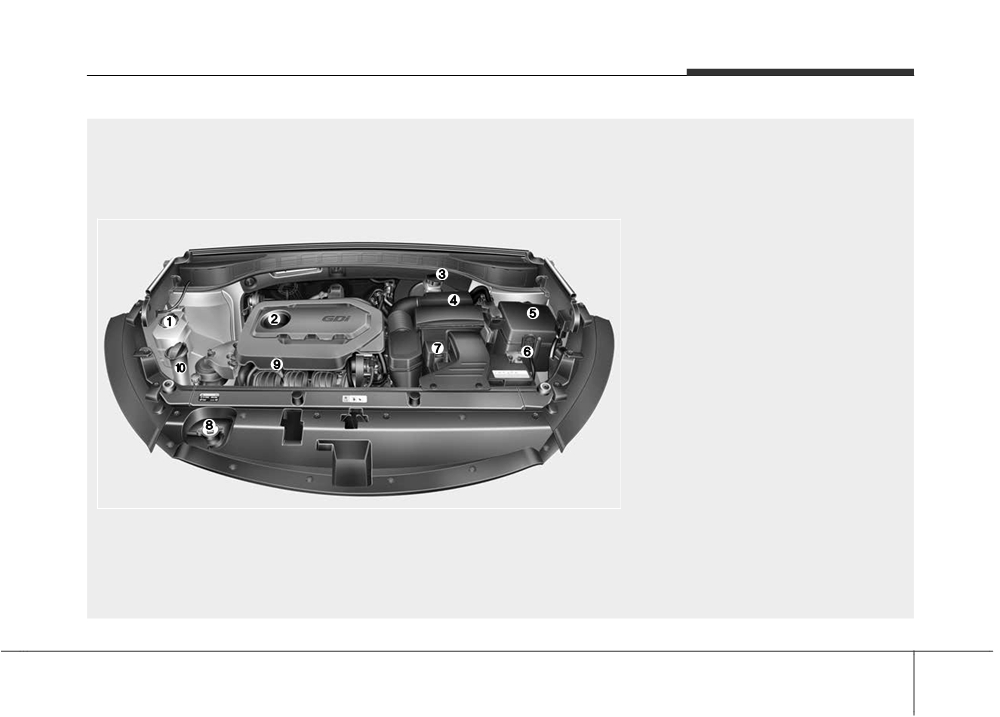

ENGINE COMPARTMENT
■ Gasoline 2.4L GDI
1. Engine coolant reservoir
7-29
2. Engine oil filler cap
7-26
3. Brake fluid reservoir
7-31
4. Air cleaner
7-34
5. Fuse box
7-68
6. Negative battery terminal
7-41
7. Positive battery terminal
7-41
8. Radiator cap
7-30
9. Engine oil dipstick
7-26
10. Windshield washer fluid reservoir
7-33
❈ The actual shape may differ from the illustration.
OAN077003N
2 7
Your vehicle at a glance
■ Gasoline 2.0L TURBO GDI
1. Engine coolant reservoir
7-29
2. Engine oil filler cap
7-26
3. Brake fluid reservoir
7-31
4. Air cleaner
7-34
5. Fuse box
7-68
6. Negative battery terminal
7-41
7. Positive battery terminal
7-41
8. Radiator cap
7-30
9. Engine oil dipstick
7-26
10. Windshield washer fluid reservoir
7-33
❈ The actual shape may differ from the illustration.
OAN077004N
2 8
Safety features of your vehicle
Important safety precautions
3-2
Air bag - supplemental restraint system
3-47
• Always Wear Your Seat Belt
3-2
• How does the air bag system operate
3-48
• Restrain All Children
3-2
• Air bag warning light
3-50
• Air Bag Hazards
3-2
• SRS components and functions
3-51
• Driver Distraction
3-2
• Occupant classification system
3-54
• Control Your Speed
3-3
• Main components of occupant classification system. 3-55
• Keep Your Vehicle in Safe Condition
3-3
• Driver's and passenger's front air bag
3-60
3
Seat
3-4
• Side air bag
3-65
• Front seat adjustment - Manual
3-7
• Curtain air bag
3-66
• Front seat adjustment - Power
3-8
• SRS Care
3-73
• Driver position memory system (for power seat). . . 3-15
• Additional safety precautions
3-74
• Rear seat adjustment
3-17
• Air bag warning label
3-75
Seat belts
3-26
• Seat belt restraint system
3-26
• Pre-tensioner seat belt
3-31
• Seat belt precautions
3-34
• Care of seat belts
3-37
Child restraint system
3-38
• Using a child restraint system
3-40
• Securing a child restraint seat with
"Tether Anchor" system
3-43
• Securing a child restraint seat with child seat
lower anchor system
3-45
Safety features of your vehicle
IMPORTANT SAFETY PRECAUTIONS
You will find many safety precautions
Restrain All Children
Driver Distraction
and recommendations throughout
All children under age 13 should ride
Driver distraction presents a serious
this section, and throughout this
in your vehicle properly restrained in
and potentially deadly danger, espe-
manual. The safety precautions in
a rear seat, not the front seat. Infants
cially for inexperienced drivers.
this section are among the most
and small children should be
Safety should be the first concern
important.
restrained in an appropriate child
when behind the wheel and drivers
restraint. Larger children should use
need to be aware of the wide array of
Always Wear Your Seat Belt
a booster seat with the lap/shoulder
potential distractions, such as
belt until they can use the seat belt
drowsiness, reaching for objects,
A seat belt is your best protection in
properly without a booster seat.
eating, personal grooming, other
all types of accidents. Air bags are
passengers, and using cellular
designed to supplement seat belts,
phones.
not replace them. So even though
Air Bag Hazards
Drivers can become distracted when
your vehicle is equipped with air
While air bags can save lives, they
bags, ALWAYS make sure you and
they take their eyes and attention off
can also cause serious or fatal
the road or their hands off the wheel
your passengers wear your seat
injuries to occupants who sit too
belts, and wear them properly.
to focus on activities other than driv-
close to them, or who are not prop-
ing. To reduce your risk of distraction
erly restrained. Infants, young chil-
or getting into an accident:
dren, and shorter adults are at the
greatest risk of being injured by an
inflating air bag. Follow all instruc-
tions and warnings in this manual.
3 2
Safety features of your vehicle
•
ALWAYS set up your mobile
Control Your Speed
Keep Your Vehicle in Safe
devices (i.e., MP3 players, phones,
Condition
Excessive speed is a major factor in
navigation units, etc.) when your
crash injuries and deaths. Generally,
Having a tire blowout or a mechani-
vehicle is parked or safely stopped.
the higher the speed, the greater the
cal failure can be extremely haz-
•
ONLY use your mobile device
risk, but serious injuries can also
ardous. To reduce the possibility of
when allowed by laws and when
occur at lower speeds. Never drive
such problems, check your tire pres-
conditions permit safe use. NEVER
faster than is safe for current condi-
sures and condition frequently, and
text or email while driving. Most
tions, regardless of the maximum
perform all regularly scheduled
states have laws prohibiting drivers
speed posted.
maintenance.
from texting. Some states and
cities also prohibit drivers from
using handheld phones.
•
NEVER let the use of a mobile
device distract you from driving.
You have a responsibility to your
passengers and others on the road
to always drive safely, with your
hands on the wheel as well as your
eyes and attention on the road.
3 3
Safety features of your vehicle

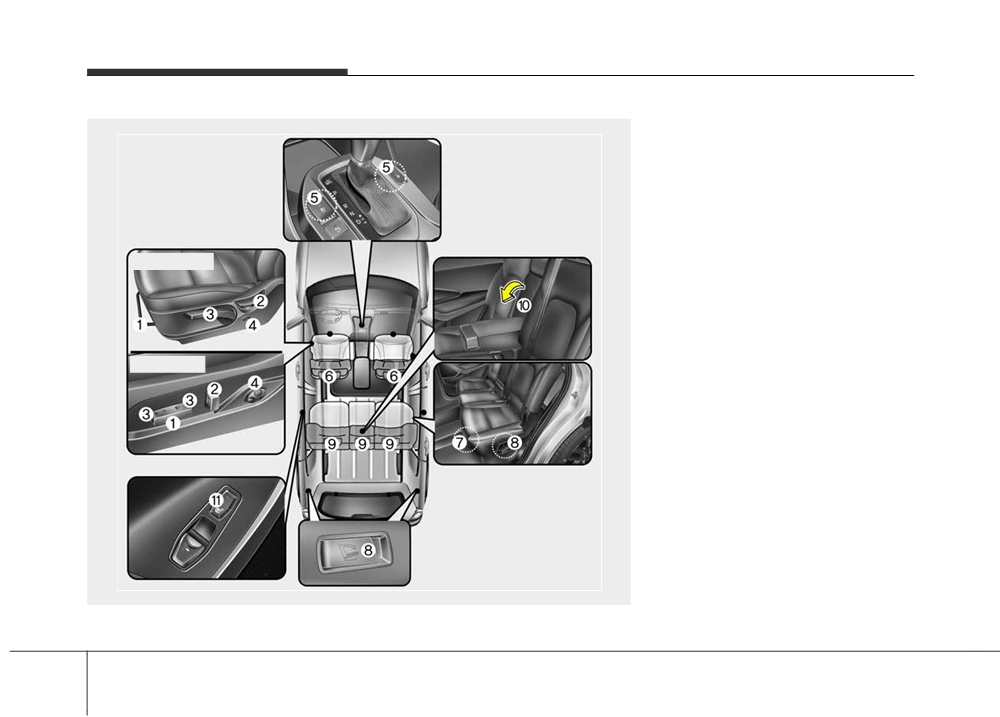

SEATS

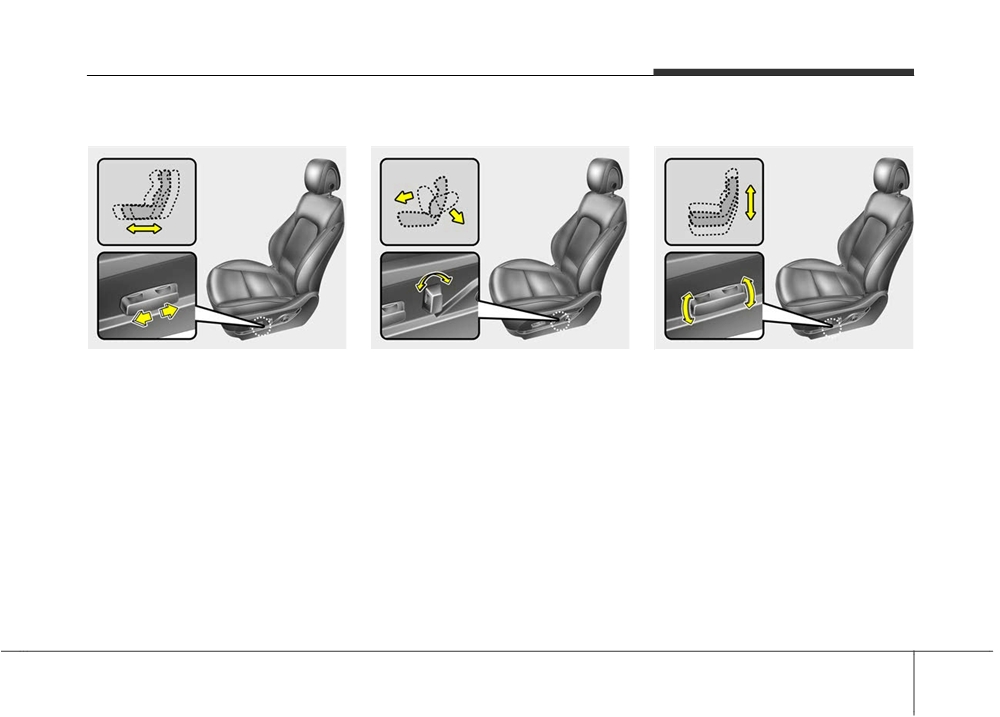

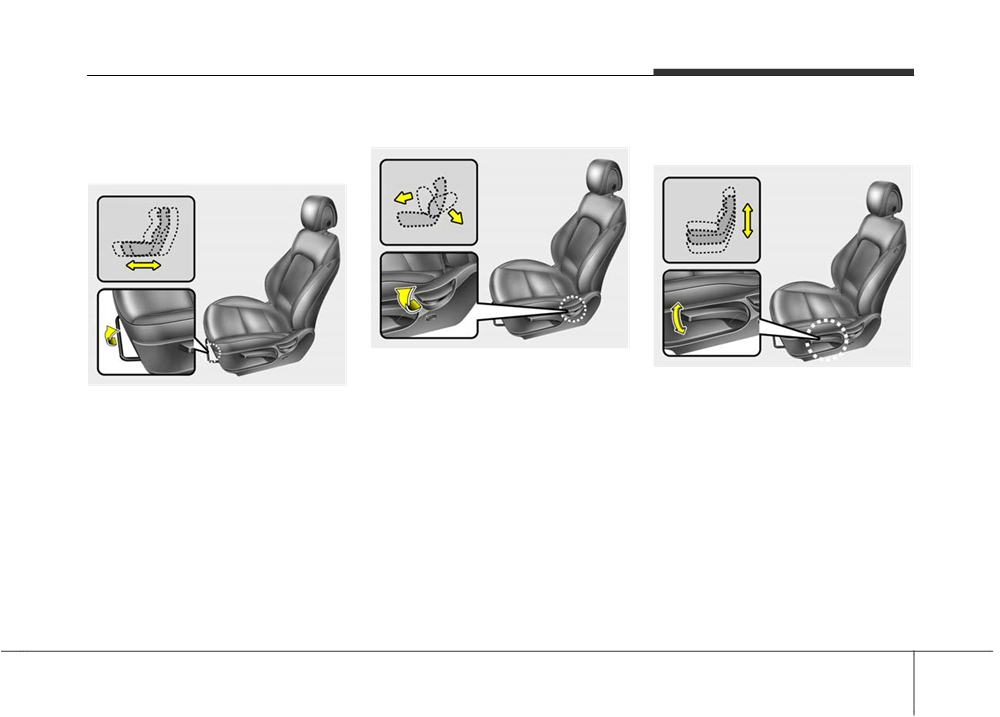

Front seat
(1) Forward and backward
(2) Seatback angle
(3) Seat cushion height*
(4) Lumbar support (Driver's seat)*
(5) Seat warmer* /
Air ventilation seat*

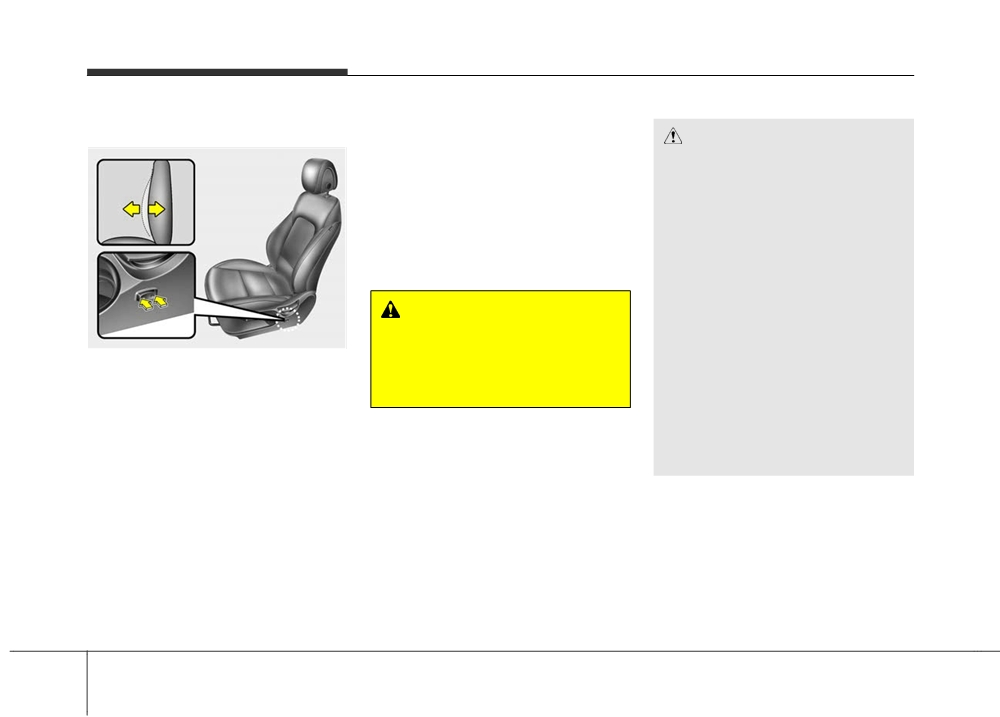

Manual seat
(6) Headrest
Rear seat
(7) Forward and backward*
Power seat
(8) Seatback angle and folding
(9) Headrest
(10) Armrest
(11) Seat warmer*
* if equipped
OANNSA2001
* The actual feature in the vehicle may differ from the illustration.
3 4
Safety features of your vehicle
WARNING - Loose
WARNING - Driver
WARNING - Driver’s seat
objects
responsibility for passengers
To avoid serious injury or death:
Loose objects in the driver’s
Riding in a vehicle with the
•
Never attempt to adjust the
foot area could interfere with
seatback reclined could lead to
seat while the vehicle is mov-
the operation of the foot pedals,
serious or fatal injury in an acci-
ing. This could result in loss
possibly causing an accident.
dent. If a seat is reclined during
of control, and an accident
Do not place anything under the
an accident, the occupant’s
causing death, serious injury,
front seats.
hips may slide under the lap
or property damage.
portion of the seat belt, apply-
•
Do not allow anything to inter-
ing great force to the unprotect-
fere with the normal position
ed abdomen. Serious or fatal
WARNING - Uprighting
of the seatback. Storing items
internal injuries could result.
seat
against a seatback or in any
The driver must advise the pas-
other way interfering with
When you return the seatback
senger to keep the seatback in
proper locking of a seatback
to its upright position, hold the
an upright position whenever
could result in serious or fatal
seatback and return it slowly
the vehicle is in motion.
injury in a sudden stop or col-
and be sure there are no other
lision.
occupants around the seat. If
the seatback is returned with-
•
In order to avoid unnecessary
WARNING
out being held and controlled,
and perhaps severe air bag
the back of the seat could
Occupants should never sit on
injuries, always sit as far back
spring forward resulting in acci-
seat cushions. The passenger's
as possible from the steering
dental injury to a person struck
hips may slide under the lap
wheel while maintaining com-
by the seatback.
portion of the seat belt during
fortable control of the vehicle.
an accident or a sudden stop.
We recommend that your
Serious or fatal internal injuries
chest be at least 10 inches
could result because the seat
(250 mm) away from the steer-
belt cannot operate normally.
ing wheel.
3 5
Safety features of your vehicle
(Continued)
WARNING - Rear
WARNING
•
Luggage and other cargo
seatbacks
•
Do not adjust the seat while
should be laid flat in the cargo
•
The rear seatback must be
wearing seat belts. Moving the
area or on the folded rear
securely latched. If not, pas-
seat cushion forward may
seatback. If objects are large,
sengers and objects could be
cause strong pressure on the
heavy, or must be piled, they
thrown forward resulting in
abdomen.
must be secured. Under no
serious injury or death in the
•
Use extreme caution so that
circumstances should cargo
event of a sudden stop or col-
hands or other objects are not
be piled higher than the seat-
lision.
caught in the seat mechanisms
backs. Failure to follow these
•
No passenger should ride in
while the seat is moving.
warnings could result in seri-
the cargo area or sit or lie on
ous injury or death in the
•
Do not place a cigarette
folded seatbacks while the
event of a sudden stop, colli-
lighter on the floor or seat.
vehicle is moving. All passen-
sion or rollover.
When you operate the seat,
gers must be properly seated
gas may exit out of the lighter
in seats and restrained prop-
and cause a fire.
erly while riding.
WARNING
•
Use extreme caution when
•
When resetting the seatback
picking small objects trapped
After adjusting the seat, always
to the upright position, make
under the seats or between
check that it is securely locked
sure it is securely latched by
the seat and the center con-
into place by attempting to
pushing it forward and rear-
sole. Your hands might be cut
move the seat forward or
wards.
or injured by the sharp edges
reverse without using the lock
•
To avoid the possibility of
of the seats mechanism.
release lever. Sudden or unex-
burns, do not remove the car-
pected movement of the dri-
pet in the cargo area. Emission
ver's seat could cause you to
control devices beneath this
lose control of the vehicle
floor generate high tempera-
resulting in an accident.
tures.
(Continued)
3 6
Safety features of your vehicle
Front seat adjustment - Manual
Seatback angle
Seat cushion height
(if equipped)
(for driver's seat, if equipped)
Forward and rearward
OANNSA2008
To recline the seatback:
OANNSA2009
OANNSA2007
1. Lean forward slightly and lift up the
To change the height of the seat
seatback recline lever.
To move the seat forward or rearward:
cushion, push the lever upwards or
2. Carefully lean back on the seat
downwards.
1. Pull the seat slide adjustment
and adjust the seatback of the
lever up and hold it.
• To lower the seat cushion, push the
seat to the position you desire.
lever down several times.
2. Slide the seat to the position you
3. Release the lever and make sure
desire.
• To raise the seat cushion, pull the
the seatback is locked in place.
lever up several times.
3. Release the lever and make sure
(The lever MUST return to its orig-
the seat is locked in place.
inal position for the seatback to
Adjust the seat before driving, and
lock.)
make sure the seat is locked secure-
ly by trying to move forward and rear-
ward without using the lever. If the
seat moves, it is not locked properly.
3 7
Safety features of your vehicle
Lumbar support (for driver’s seat)
Front seat adjustment - Power
CAUTION
(if equipped)
•
The power seat is driven by an
The front seat can be adjusted by
electric motor. Stop operating
using the control knobs located on
once the adjustment is com-
the outside of the seat cushion.
pleted. Excessive operation
Before driving, adjust the seat to the
may damage the electrical
proper position so as to easily con-
equipment.
trol the steering wheel, pedals and
switches on the instrument panel.
•
When in operation, the power
seat consumes a large amount
of electrical power. To prevent
WARNING
unnecessary battery drain,
The power seat is operable with
don’t adjust the power seat
OANNSA2010
the ignition OFF.
longer than necessary while
1. Press the front portion of the
the engine is not running.
Therefore, children should never
switch to increase support or the
be left unattended in the vehicle.
•
Do not operate two or more
rear portion of the switch to
power seat control knobs at the
decrease support.
same time. Doing so may result
2. Release the switch once it reach-
in power seat motor or electri-
es the desired position.
cal component malfunction.
3 8
Safety features of your vehicle
Forward and backward
Seatback angle
Seat cushion height (if equipped)
OANNSA2011
OANNSA2012
OANNSA2013
1. Push the control switch forward or
1. Push the control switch forward or
1. Pull the front portion of the control
backward to move the seat to the
backward to move the seatback to
switch up to raise or down to lower
desired position.
the desired angle.
the front part of the seat cushion.
Pull the rear portion of the control
2. Release the switch once the seat
2. Release the switch once the seat
switch up to raise or down to lower
reaches the desired position.
reaches the desired position.
the rear part of the seat cushion.
2. Release the switch once the seat
reaches the desired position.
3 9
|
|
|
