Hyundai Equus (2016 year). Instruction - part 2

8

Specifications, Consumer

information and Reporting

safety defects

Dimensions

8-2

Bulb wattage

8-2

Tires and wheels

8-3

Recommended lubricants

and capacities

8-4

Recommended SAE viscosity

number

8-5

Vehicle identification number

(VIN)

8-6

Vehicle certification label...8-6

Tire specification and

pressure label

8-6

Engine number

8-7

Refrigerant label

8-7

Consumer information

8-8

Reporting safety defects

8-9

F21

Your vehicle at a glance

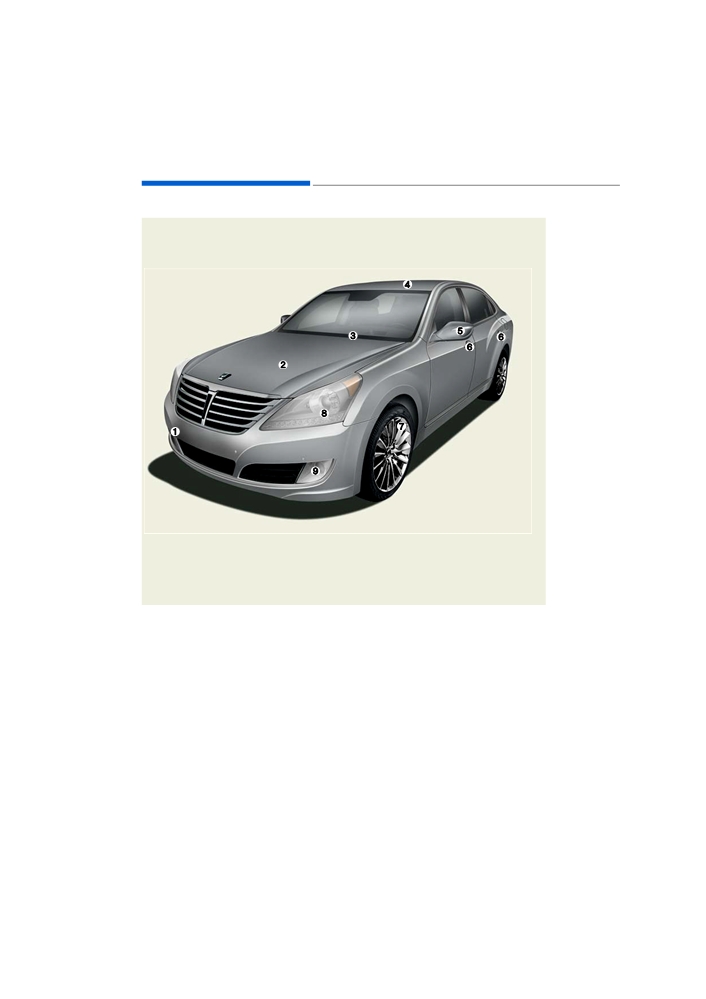

EXTERIOR OVERVIEW

■ Front view

❈ The actual shape may differ from the illustration.

OVI015001N

1. Towing hook

6-22

6. Door locks

3-14

2. Hood

3-33

7. Tires and wheels

7-42, 8-3

3. Front windshield wiper blades

3-115, 7-36

8. Headlamps

3-111, 7-70

4. Sunroof

3-37

9. Front fog light

3-113, 7-70

5. Outside rearview mirror

3-58

1-2

Your vehicle at a glance

01

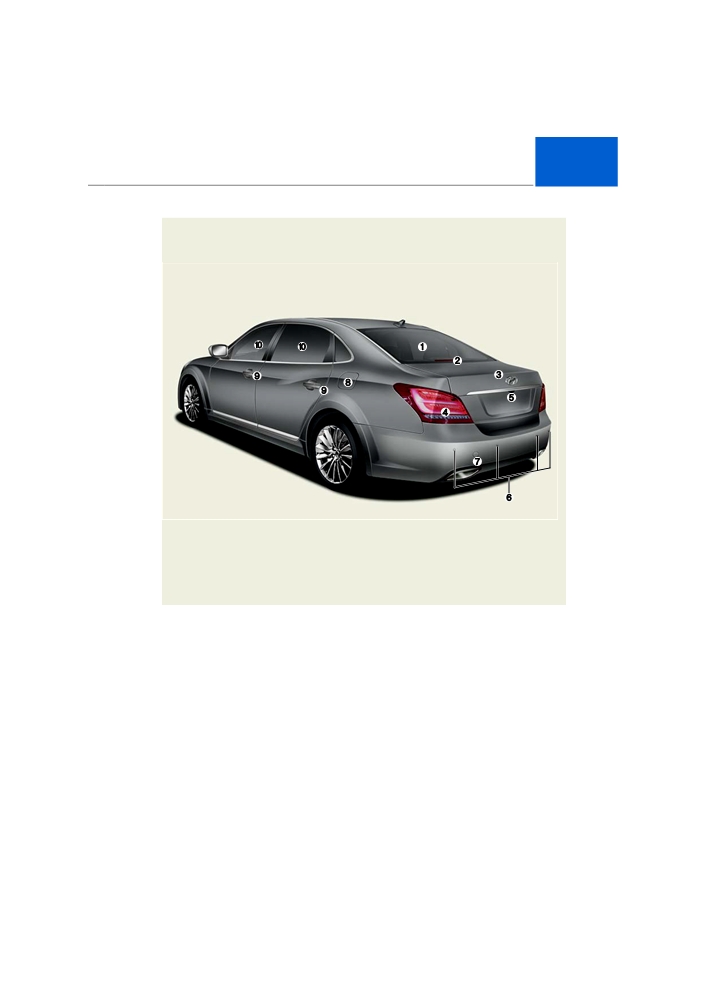

■ Rear view

❈ The actual shape may differ from the illustration.

OVI015002N

1. Glass antenna and Defroster . . . 4-2, 3-122

6. Parking assist system

3-102

2. High mounted stop light

7-75

7. Towing hook

6-22

3. Trunk

3-18

8. Fuel filler lid

3-34

4. Rear combination light

7-75

9. Door locks

3-14

5. Rearview camera

3-107

10. Window

3-28

1-3

Your vehicle at a glance

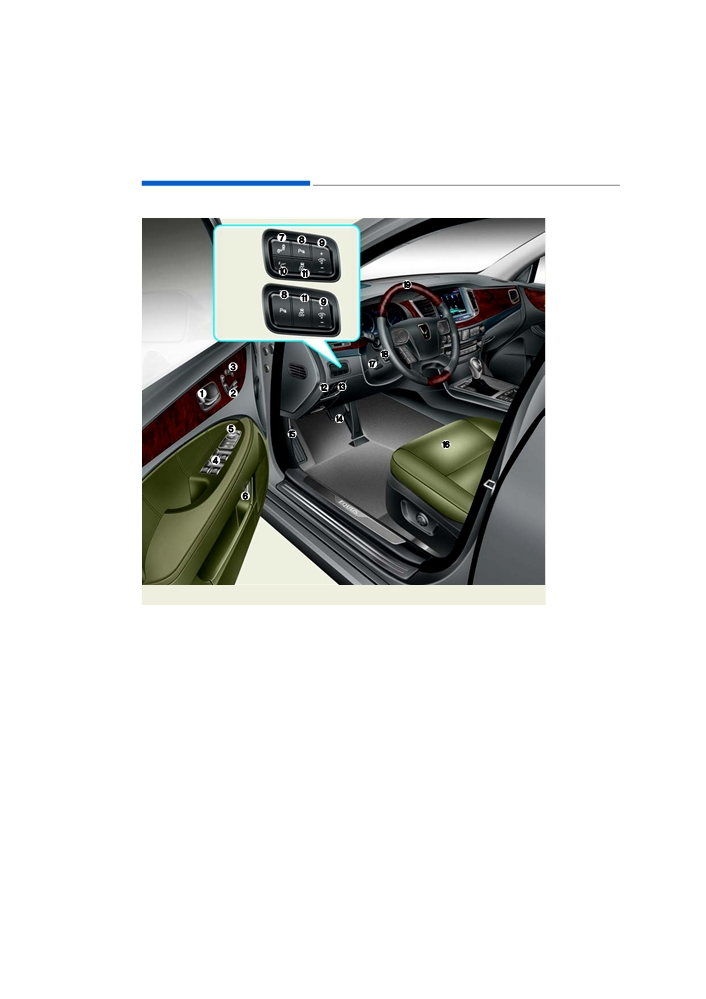

INTERIOR OVERVIEW

■ Type A

■ Type B

❈ The actual shape may differ from the illustration.

OVI015003N

1. Inside door handle

3-15

11. ESC (Electronic stability control)

off button

5-28

2. Driver’s seat control

2-5

12. Trunk lid release switch or

3. Driver position memory system button ..3-40

power trunk main control switch ..3-18/3-19

4. Power window switch

3-28

13. EPB (Electric parking brake) switch

5-19

5. Outside rearview mirror control

3-58

14. Brake pedal

5-17

6. Fuel-filler lid opener

3-34

15. Hood release lever

3-33

7. BSD (Blind spot detection) on/off button ..5-58

16. Seats

2-2

8. Parking assist system on/off button

3-102

17. Tilt/Telescope steering control lever

3-42

9. Instrument panel illumination

18. Heated steering wheel on/off button

3-43

control button

3-64

19. Steering wheel

3-42

10. HUD (Head up display) on/off button...3-100

1-4

Your vehicle at a glance

01

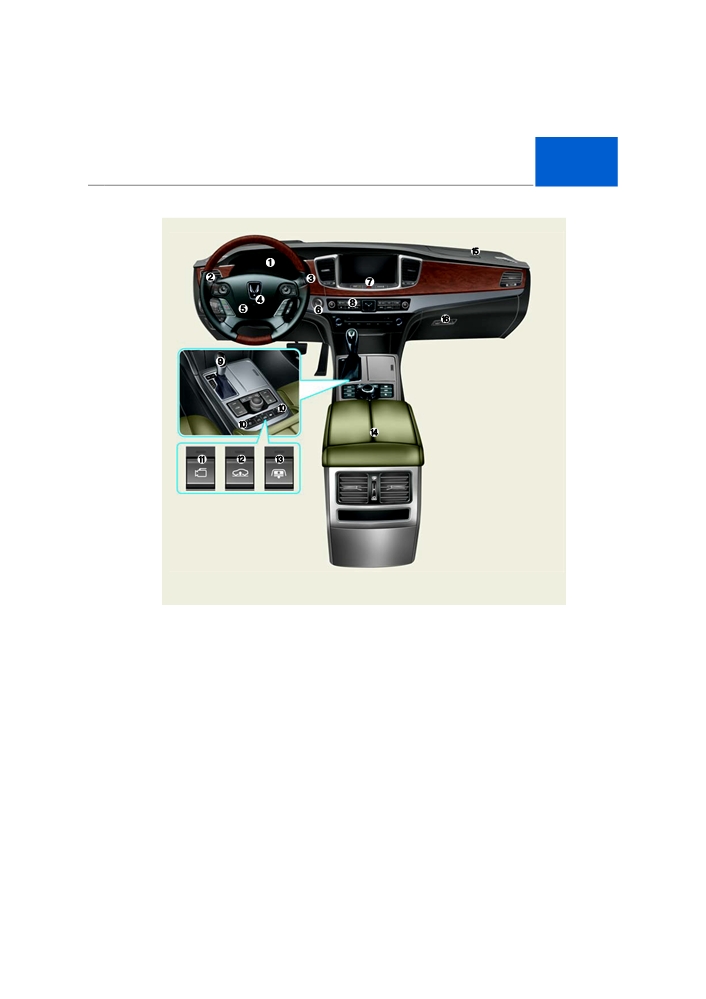

INSTRUMENT PANEL OVERVIEW

❈ The actual shape may differ from the illustration.

OVI015004N

1. Instrument cluster

3-62

10. Climate control system seat

2-9

2. Lighting control lever

3-110

11. Multi-view camera system

on/off button

3-108

3. Wiper and washer control lever

3-115

12. Vehicle height control button

5-36

4. Horn

3-43

13. Rear curtain folding button

3-152

5. Driver’s front air bag

2-54

14. Center console storage box

3-141

6. Engine Start/Stop Button

5-7

15. Passenger’s front air bag

2-54

7. Hazard warning flasher

6-2

8. Climate control system

3-123

16. Glove box

3-141

9. Shift lever

5-11

1-5

Your vehicle at a glance

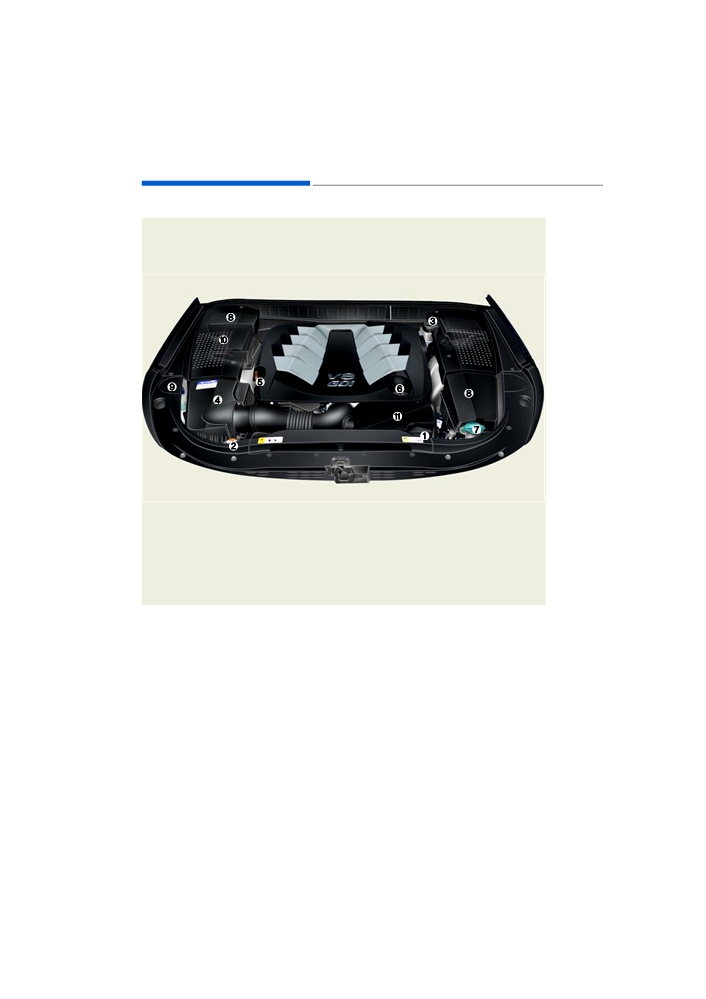

ENGINE COMPARTMENT

❈ The actual shape may differ from the illustration.

OVI015006N

1. Engine coolant reservoir

7-27

7. Windshield washer fluid reservoir

7-32

2. Radiator cap

7-29

8. Fuse box

7-56

3. Brake fluid reservoir

7-30

9. Power steering fluid reservoir

7-31

4. Air cleaner

7-33

10. Jump start connector

6-4

5. Engine oil dipstick

7-25

11. Chamber air cleaner

7-34

6. Engine oil filler cap

7-25

1-6

Safety system of your vehicle

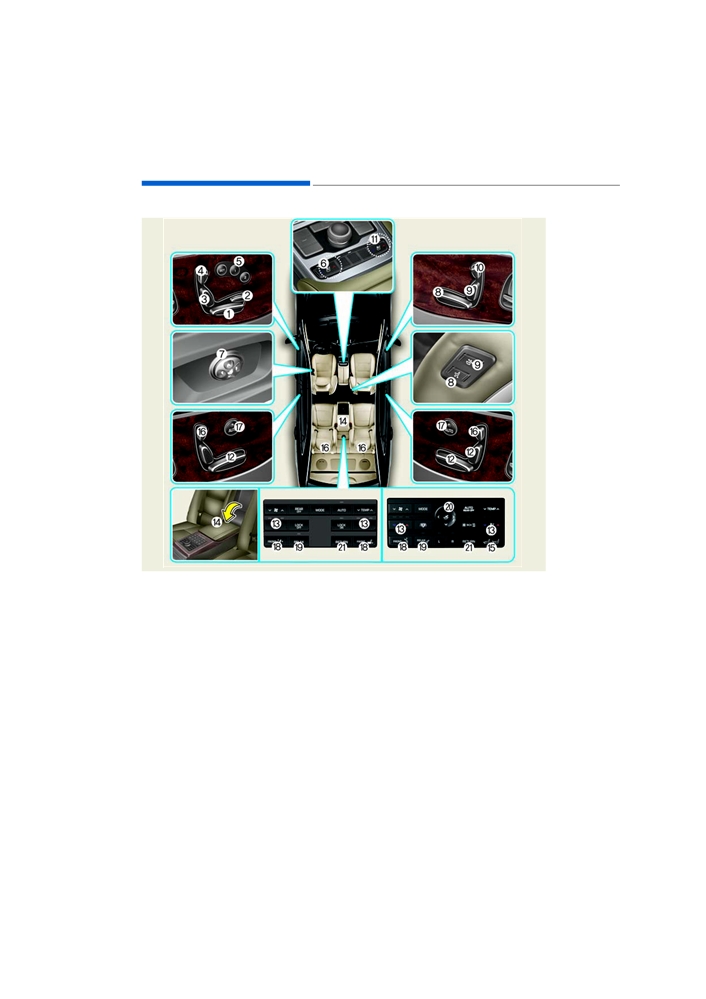

SEATS

OVI035001N

Driver’s seat

Rear seat

(1) Seat sliding forward or backward**/

(12) Seat sliding forward or backward

Seat height and cushion tilting adjust-

adjustment with seatback angle

ment

adjustment

(2) Seat cushion length adjustment

(13) Climate control system seat*

(3) Seatback angle adjustment

(14) Armrest

(4) Head restraint height adjustment

(15) Leg support angle adjustment

(5) Driver position memory system

(16) Head restraint height adjustment

(6) Climate control system seat*

(17) Easy access

(7) Lumbar support adjustment

(18) Front passenger side walk-in seat

(19) Rear relaxation seat system

Front passenger’s seat

(20) Lumbar support adjustment

(8) Seat sliding forward or backward/

(21) Return switch

Seat height and cushion tilting

adjustment*

*: if equipped

(9) Seatback angle adjustment

**: The height of the driver’s head restraint is

(10) Head restraint height adjustment

automatically and simultaneously adjust-

ed with the driver’s seat sliding.

(11) Climate control system seat*

2-2

Safety system of your vehicle

02

WARNING

WARNING

- Loose objects

- Driver’s seat

Any objects in the driver’s foot

•

Never attempt to adjust the

area may interfere with pedal

seat position while the vehicle

operation, possibly causing an

is in motion. This may result in

accident. Do not place anything

loss of control and an acci-

under the driver’s seat.

dent, causing death, serious

injury, or property damage.

•

Do not allow anything to dis-

turb the seatback position.

WARNING

Any items stored behind a

seatback or any other items,

- Driver’s responsibility for pas-

which disturb the proper

sengers

latching of a seatback, may

result in serious or fatal injury

Riding in a seatback-reclined

in a sudden stop or collision.

seat may lead to serious or fatal

injury in an accident. When a

•

Always drive and ride with

seatback is reclined in an acci-

your seatback upright and the

dent, the occupant may slide

lap portion of the seat belt

below the lap portion of the seat

snug and low across the hips.

belt and be applied with great

This is the best position to

force on the unprotected

protect you in case of an acci-

abdomen. Serious or fatal inter-

dent.

nal injuries may result. The driv-

•

In order to avoid unnecessary

er must advise passengers to

and perhaps severe air bag

keep the seatback in an upright

injuries, always sit as far back

position whenever the vehicle is

as possible from the steering

in motion.

wheel while comfortably

maintaining the control of the

vehicle. We recommend that

your chest be at least 10 inch-

WARNING

es

(250mm) away from the

steering wheel.

Do not place a seat cushion,

because it reduces friction

between a seat and a passenger.

The passenger may slide below

the lap portion of the seat belt in

an accident or a sudden stop.

Serious or fatal internal injuries

may result because the seat belt

does not normally operate.

2-3

Safety system of your vehicle

Front seat adjustment

WARNING

The front seat position can be adjust-

•

Do not adjust the seat while

ed by pressing the control switches

fastening a seat belt. Moving

on the doors. Before driving, adjust

the seat cushion forward may

the seat position, as desired, so as to

apply strong pressure on the

easily control the steering wheel,

abdomen.

pedals and instrument-panel but-

tons.

•

While adjusting the seat posi-

tion, use extreme caution not

to caught hands or other

CAUTION

objects inside the seat com-

ponents.

The power seat is operable,

even when the ignition is OFF.

•

Do not leave a cigarette

lighter on the floor mat or

Therefore, children should

seat. The operation of seat

never be left unattended in the

adjustment may leak gas out

vehicle.

of the lighter and cause a fire.

•

Use extreme caution when

CAUTION

picking small objects trapped

under the seats or between

Do not adjust the seat position,

the seat and the center con-

while fastening a seat belt.

sole. Your hands might be cut

Moving the seat cushion forward

or injured by the sharp edges

may apply strong pressure on the

of the seat mechanism.

abdomen.

NOTICE

• The power seat is operated by

electric motors. Pause the motor

operation after each seat-position

adjustment. Excessive motor

operation may damage the elec-

tric equipment.

• The operation of a power seat

consumes a large amount of elec-

tric power. To prevent unneces-

sary battery drain, when the

engine is turned OFF, do not

adjust the power seat longer than

necessary.

• Do not press two power seat con-

trol switches or more at the same

time. Doing so may fail the electric

motor or components.

2-4

Safety system of your vehicle

02

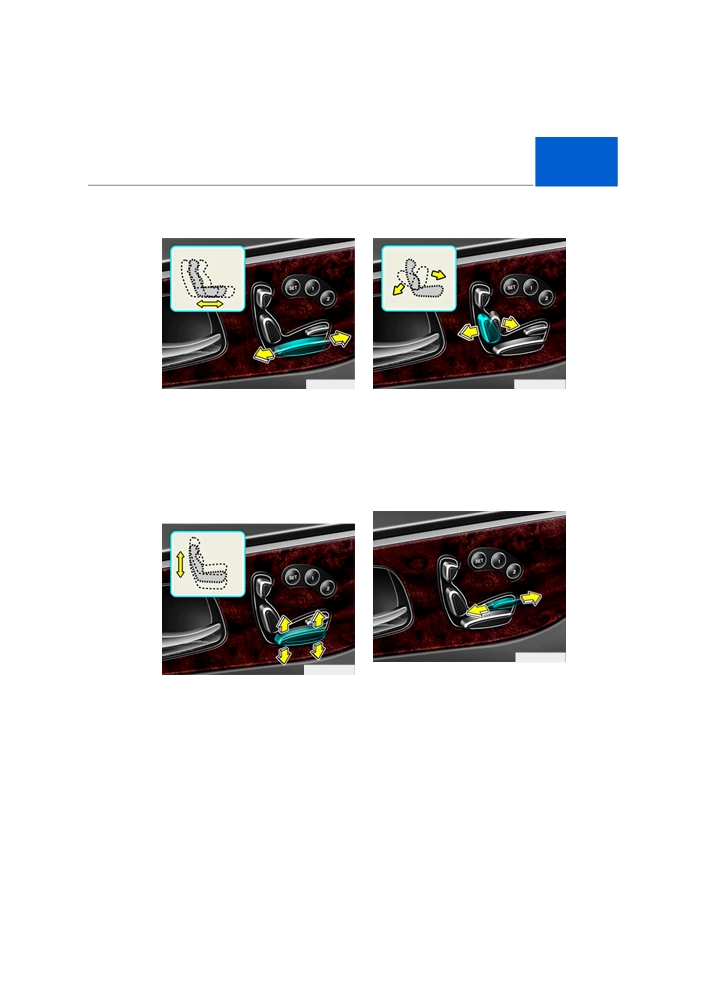

Forward and rearward

Seatback Reclining

OVI035002N

OVI035004N

Push the control buttons forward or

Push the upper part of the control

backwards to adjust the seat to the

switch either forwards or backwards

desired position. Release the button,

to recline the seatback, as desired.

once the seat is adjusted as desired.

Release the switch, once the seat-

The adjustment of the seat position

back is adjusted as desired.

simultaneously changes the head

restraint to the proper position.

Cushion length adjustment

(for driver’s seat)

Seat cushion height and tilt

OVI035003N

OVI035005N

Push the control switch either for-

Pull up the front portion of the control

wards or backwards to move the seat

switch to raise the front part of the

cushion to the desired length.

seat cushion, or pull it down to lower

Release the switch, once the cush-

the front part. Pull up the rear portion

ion length is adjusted as desired.

of the control switch up to raise the

rear part of the seat cushion, or pull

it down to lower the rear part.

Release the switch, once the seat is

adjusted as desired.

2-5

Safety system of your vehicle

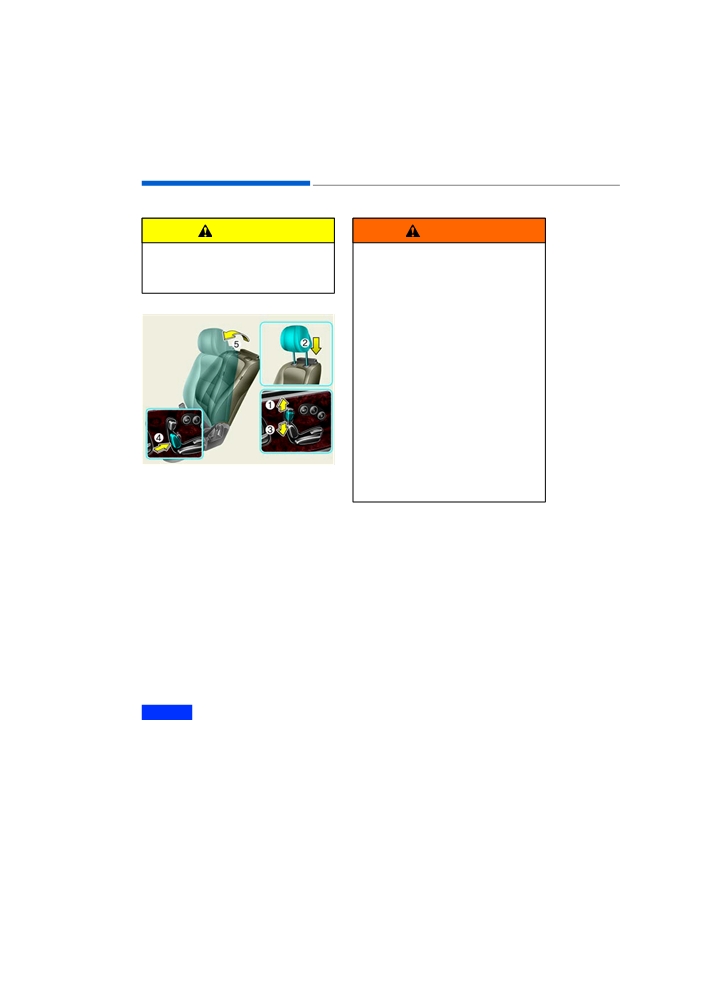

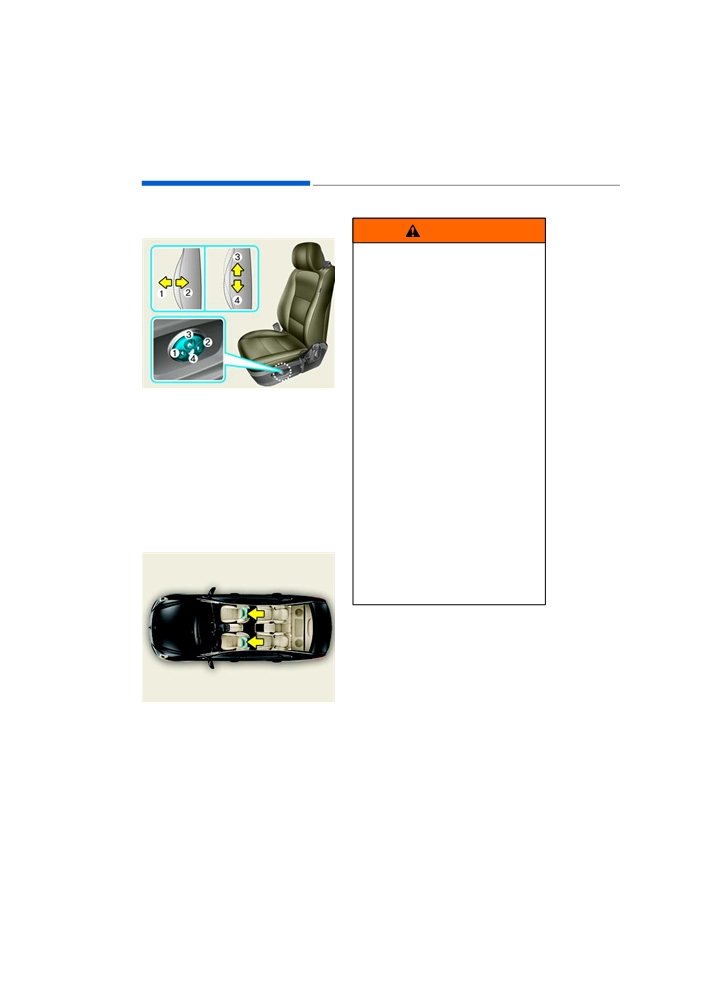

Lumbar support (for driver’s seat)

WARNING

•

For maximum effects in case

of an accident, the median

height of a head restraint

should be adjusted to the

gravity center of the occu-

pant’s head.

Generally, the center of gravi-

ty of most people’s head is

located at the top of their

eyes. Also, adjust the head

OVI035006N

restraint as close to your head

as possible. For this reason,

The lumbar support can be adjusted

the use of a cushion, which

by pressing the lumbar support switch

holds the body away from the

on the side of the driver’s seat. Press

seatback, is not recommend-

the front portion of the switch (1) to

ed.

increase support, or press the rear

portion (2) to decrease support.

•

Do not drive the vehicle with a

head restraint removed,

Move the lumbar-support component

because severe injury may

up or down by pressing either (3) or

occur to an occupant in the

(4).

event of an accident. A prop-

erly-adjusted head restraint

Head Restraint

may provide protection

against neck injury.

•

Do not adjust the driver's

head restraint, while the vehi-

cle is in motion.

OVI035103N

The driver’s and front passenger’s

seats are equipped with head

restraints for their safety and comfort.

The head restraints not only provide

comfort for the driver and front pas-

senger, but also protect their heads

and necks in the event of a collision.

2-6

Safety system of your vehicle

02

OVI035007N

OYFH034205

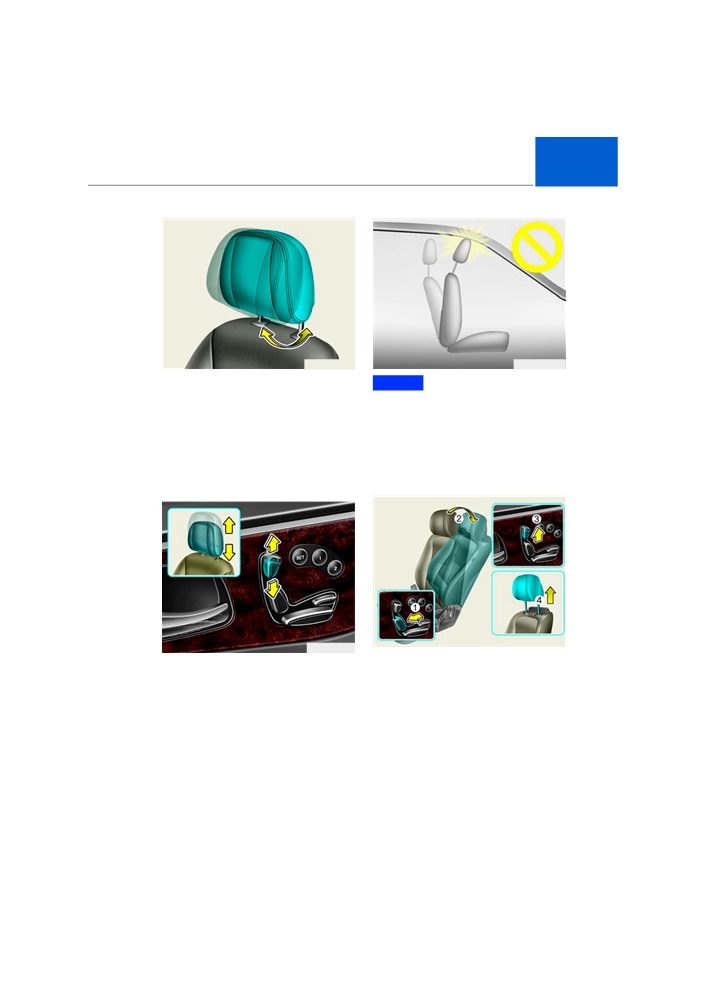

Adjusting a head restraint forward

NOTICE

and backwards

If

you recline the seatback

A head restraint may be adjusted in a

towards the front with the head

direction of arrows by pulling the

restraint and seat cushion raised,

lower part of the head restraint either

the head restraint may come in

forwards or backwards. Adjust a

contact with the sunvisor or other

head restraint, so it properly sup-

parts of the vehicle.

ports the head and neck.

OVI035101N

OVI035010N

Removal

Adjusting the head restraint up and

down

To remove the head restraint:

Pull up the control switch to raise the

1. Recline the seatback (2) by press-

head restraint, or pull it down to

ing the recliner control switch (1).

lower the head restraint. Release the

2. Raise the head restraint to the

switch, once the head restraint is

highest by pressing up the switch

adjusted as desired.

(3). Then, take off the head

restraint (4).

2-7

Safety system of your vehicle

CAUTION

WARNING

Never allow anyone to take a

•

When a head restraint is not

seat, of which a head restraint is

securely installed, a head

removed.

restraint may not normally

and actively operate. When

reinstalling a head restraint,

securely latch it, as instructed

in the procedures.

•

Always confirm that a head

restraint is fully latched in the

right position, after rein-

stalling it.

•

Do not operate the vehicle,

when a head restraint is

removed, as severe injury to

an occupant may occur in the

event of an accident. A head

OVI035102N

restraint may provide protec-

Reinstall

tion against neck injuries

when properly adjusted.

To reinstall a head restraint:

1. Raise a head restraint to the high-

est by pressing up the switch (1).

2. Put the poles of the head restraint

(2) into the holes. Then, pull down

the switch

(3) until the head

restraint lowers to the lowest.

3. To securely install the head

restraint, raise and lower the head

restraint 2 or 3 times by pressing

the switch.

4. Recline the seatback (5) by press-

ing the recliner control switch (4).

5. Adjust the head restraint to the

appropriate height.

NOTICE

Do not attempt to reinstall a head

restraint from the incorrect height,

other than from the highest. Do not

force it. It causes damage to the

head restraint.

2-8

Safety system of your vehicle

02

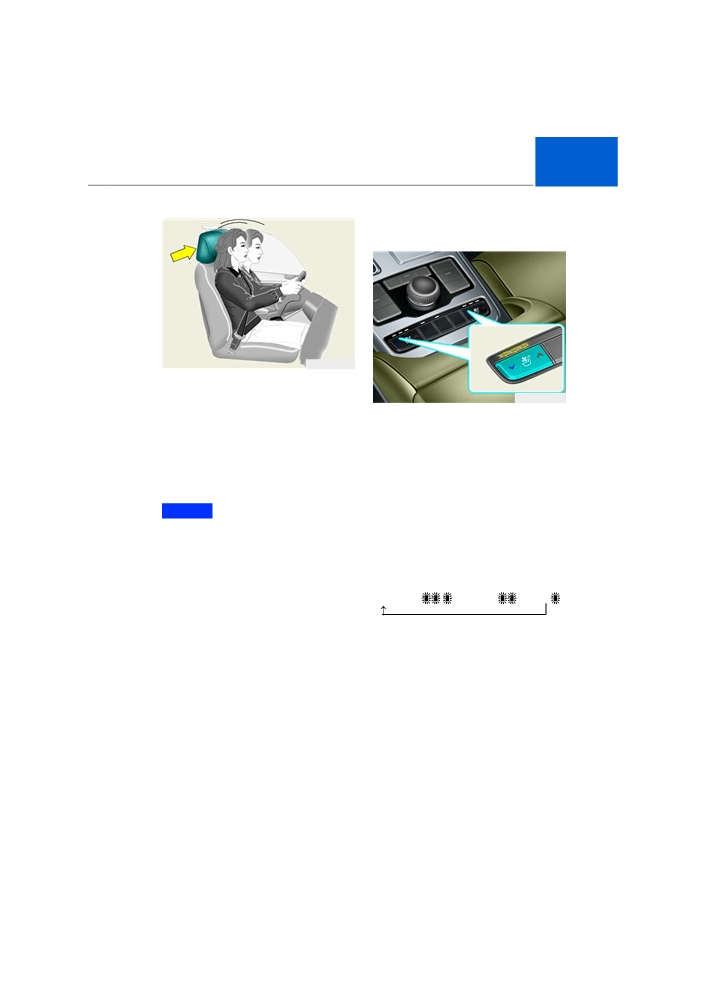

Climate control system seat

(if equipped)

OVI035104N

Electronic active head restraint

The electronic active head restraint

OVI035013N

is designed to automatically adjust

This system cools or warms the front

its position forwards and upwards,

seats by blowing air through small

when a rear impact is detected. This

vent holes both on the seat cushions

helps to prevent the driver’s and front

and on seatbacks.

passenger’s heads from moving

backwards and thus helps minimize

While the engine is running, press

the rear portion of the button to cool

neck injuries.

or warm the driver’s or the front pas-

senger’s seats.

NOTICE

When the operation of the climate

The electronic active head

system seat is unnecessary, press

restraint is a safety device to

OFF the button.

reduce injury in a rear impact. Do

• Each time you press the button,

not intentionally hit or pull the

the air flow changes as follows:

head restraint.

OFF→HIGH(

)→MIDDLE(

)→LOW(

)

• When pressing the button for 1.5

seconds or over with the climate

control system ON, the climate

control system seat will be turned

OFF.

• The default setting of the climate

control system seat resets is OFF,

when the Engine Start/Stop Button

is turned ON.

• With the climate control system

seat ON, the system automatically

operates or stops in accordance

with a seat temperature.

2-9

Safety system of your vehicle

NOTICE

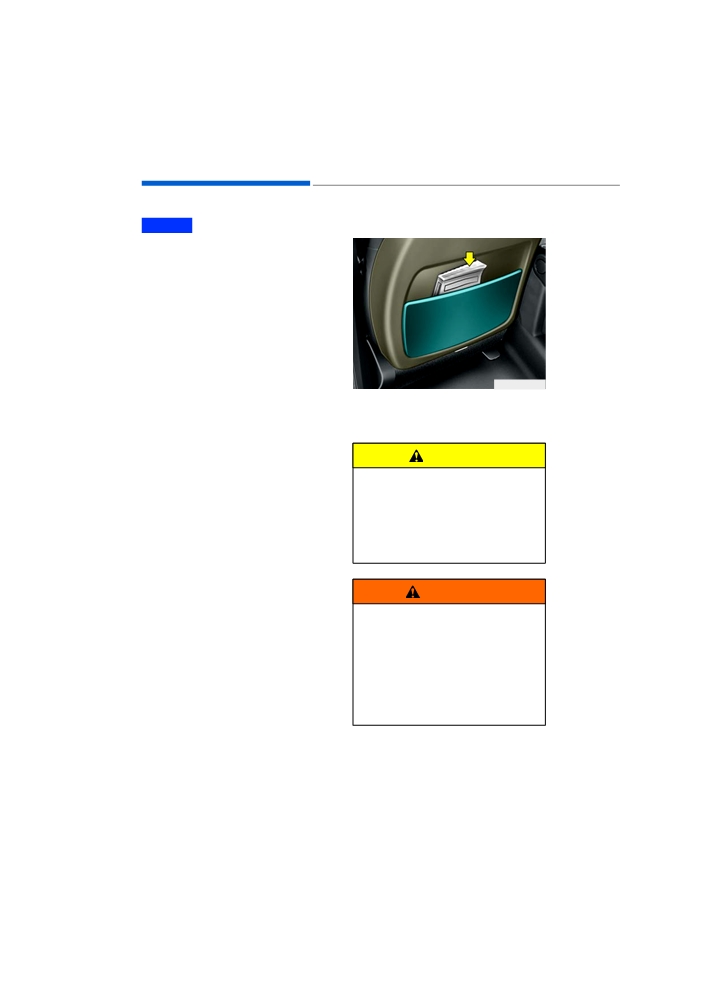

Seatback pocket

•

The climate control system seat

is a supplementary cooling and

warming system. Operate the

climate control system seat after

turning ON the climate control

system. Operate the climate

control seat for a prolonged

period of time without turning

ON the climate control system

may reduce performance of the

climate control system seat.

•

When cleaning the seats, do not

OVI035105N

use an organic solvent such as

The seatback pockets are located on

thinner, benzene, alcohol and

the back of the driver's and the front

gasoline. Such solvent may

passenger’s seats.

damage the seat surface.

•

Do not spill liquid such as water

CAUTION

or beverages over the front seat

cushions and seatbacks.

- Seatback pocket

Otherwise, the air vent holes

may be blocked and prevent the

Do not put a heavy or sharp

object inside the seatback

system from working properly.

pockets. In an accident, it may

•

Do not leave materials, such as

fall out from the pocket and

plastic bags or newspapers,

injure an occupant.

under the seats. The air vent

hole may not properly operate,

because the air intake is

blocked.

WARNING

•

When the air vent hole does not

operate, restart the vehicle. If a

For proper operation of the

occupant classification system:

problem persists, we recom-

mend that the system be

• Do not put any items cumula-

inspected by an authorized

tively weighing over 2.2 lbs.

EQUUS dealer.

(1kg) inside the seatback

pockets.

• Do not hang anything onto the

front passenger’s seatback.

2-10

Content   ..   1  2  3   ..
