Your vehicle at a glance

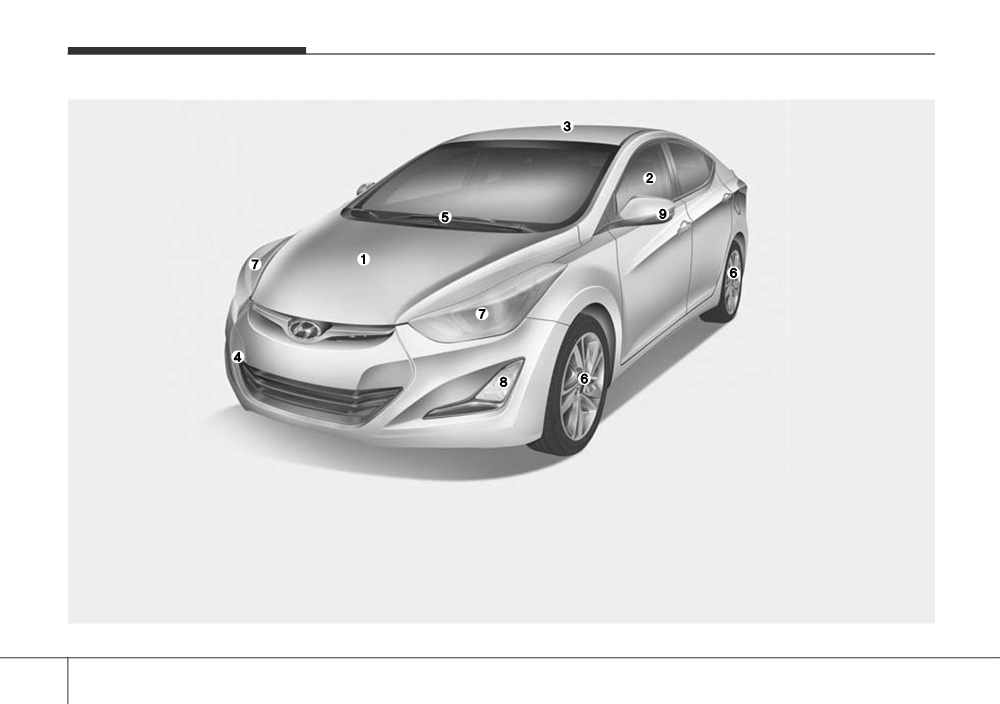

EXTERIOR OVERVIEW I
■ Front
1. Hood
4-29
6. Tires and wheels
7-41
2. Windows
4-24
7. Headlight
7-70
3. Sunroof*
4-34
8. Fog light*
7-74
4. Removable towing hook*
6-29
9. Side repeater light*
7-74
5. Wiper blade
7-35
*: if equipped
OMD014005N
2 2
Your vehicle at a glance

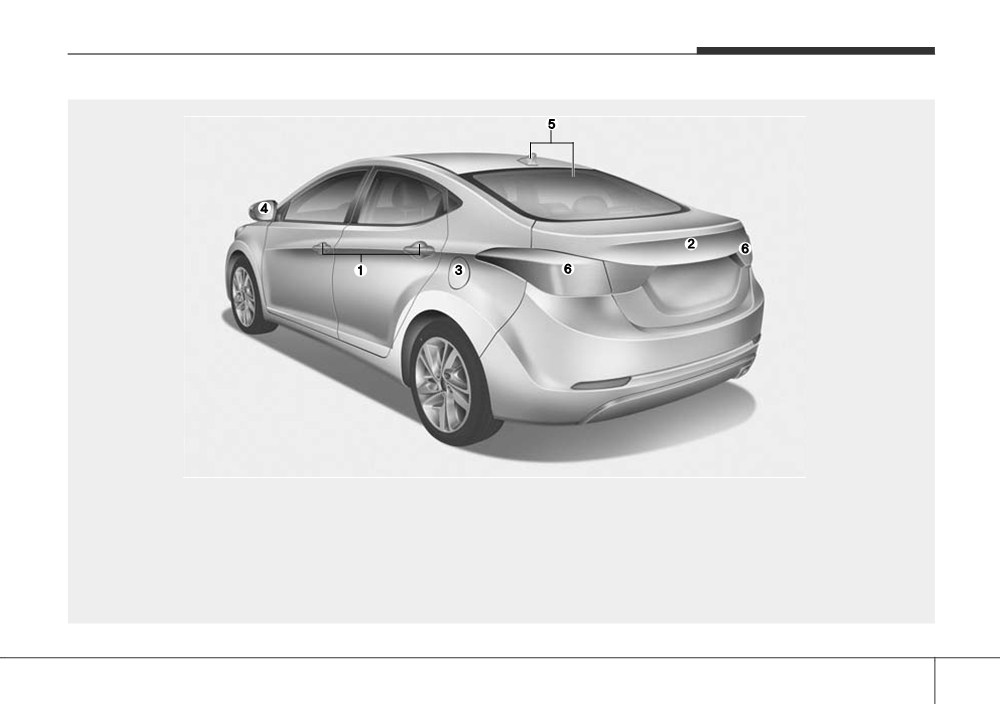

EXTERIOR OVERVIEW II
■ Rear
1. Door lock
4-14
4. Outside rearview mirror
4-48
2. Trunk
4-21
5. Antenna
4-119
3. Fuel filler lid
4-31
6. Rear combination lamp
7-75
OMD014006N
2 3
Your vehicle at a glance

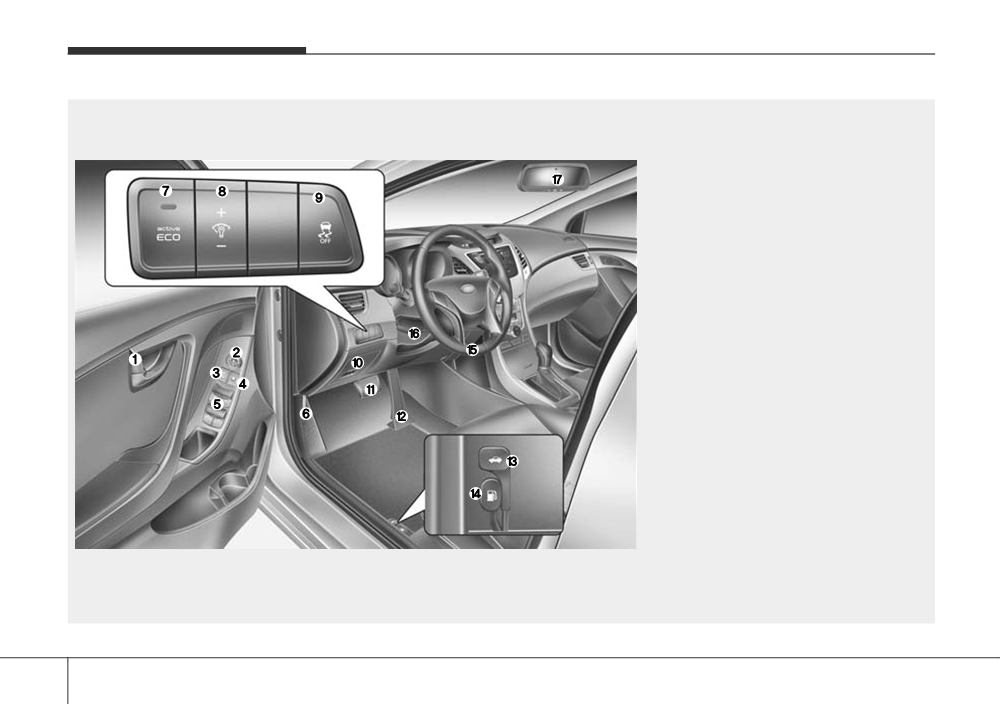

INTERIOR OVERVIEW
1. Inside door handle
4-16
2. Outside rearview mirror control
switch*
4-49
3. Central door lock switch
4-17
4. Power window lock switch*
4-27
5. Power window switches
4-24
6. Hood release lever
4-29
7. Active ECO
5-42
8. Instrument panel illumination
4-52
9. ESC (Electronic Stability Control)
OFF button
5-35
10. Fuse box
7-58
11. Brake pedal
5-29
12. Accelerator pedal
5-8, 5-15
13. Trunk lid release lever
4-21
14. Fuel filler door opener
4-31
15. Steering wheel
4-38
16. Steering wheel tilt lever
4-39
17. Inside rearview mirror
4-42
* : if equipped
OMD014001N
2 4
Your vehicle at a glance

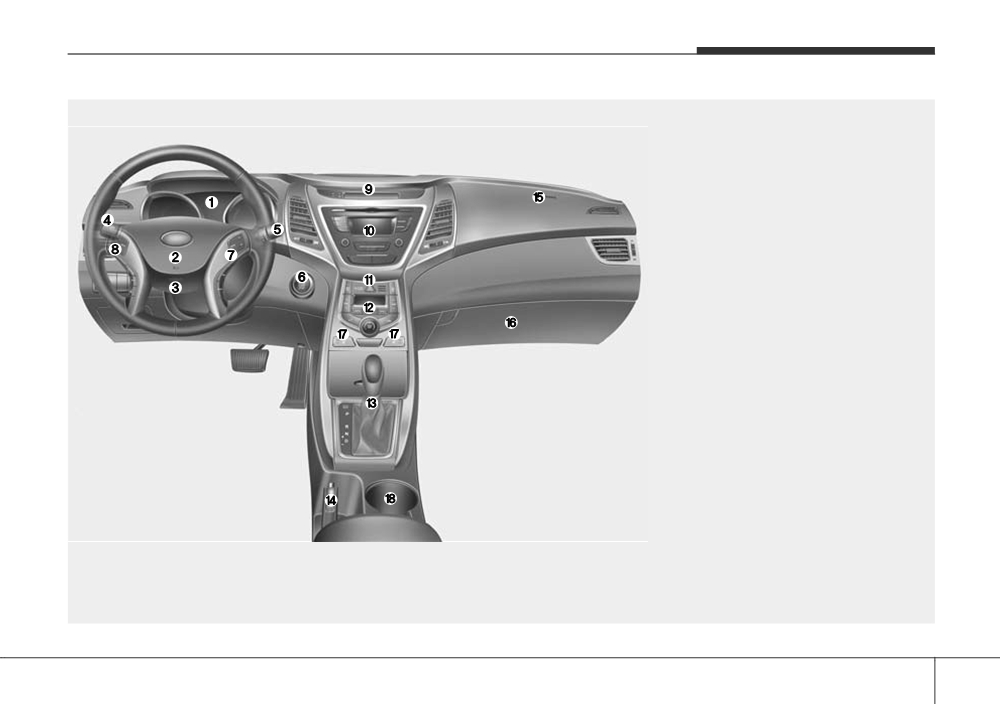

INSTRUMENT PANEL OVERVIEW
1. Instrument cluster
4-51
2. Horn
4-41
3. Driver’s front air bag
3-46
4. Light control/Turn signals
4-72, 4-75
5. Wiper/Washer
4-80
6. Key ignition switch*/
Engine start/stop button*
5-5, 5-9
7. Cruise control switch*
5-44
8. Audio remote control*
4-120
9. Digital clock
4-112
10. Audio controls*
4-134, 4-186
11. Hazard warning flasher switch
6-2
12. Climate control system
4-83, 4-93
13. Shift lever
5-18, 5-22
14. Parking brake
5-30
15. Passenger’s front air bag
3-46
16. Glove box
4-110
17. Seat warmer*
3-19
18. Cup holder
4-114
* : if equipped
❈ The actual instrument panel in the vehicle may differ from the illustration.
OMD014002N
2 5
Your vehicle at a glance

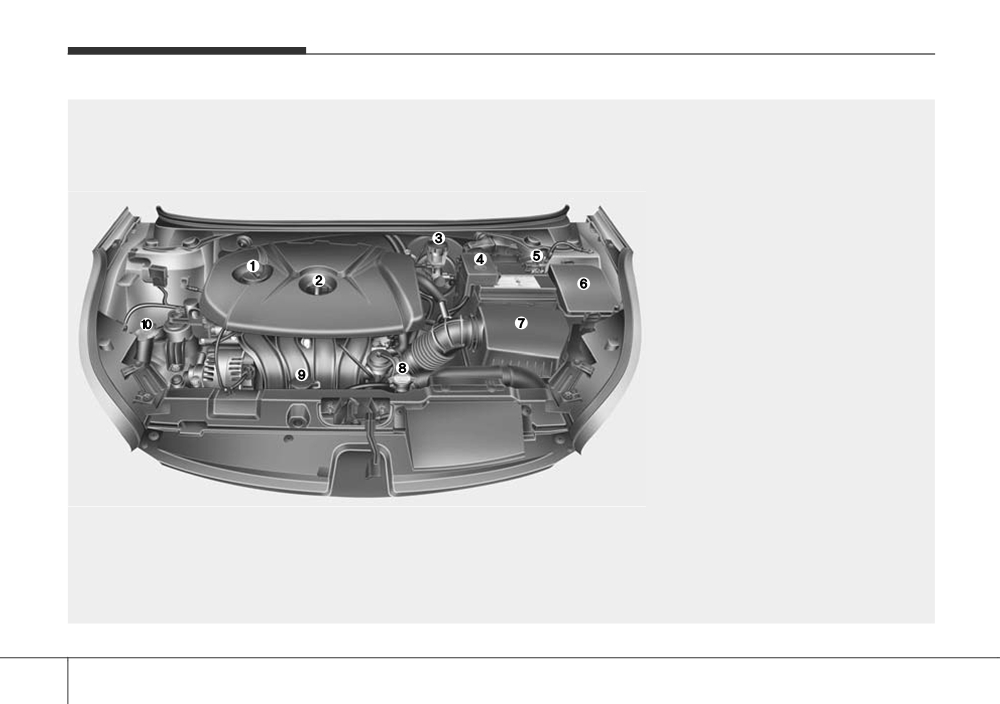

ENGINE COMPARTMENT
1. Engine oil filler cap
7-25
2. Engine oil dipstick
7-24
3. Brake/clutch fluid reservoir
7-25
4. Positive battery terminal
7-37
5. Negative battery terminal
7-37
6. Fuse box
7-60
7. Air cleaner
7-31
8. Radiator cap
7-26
9. Engine coolant reservoir
7-37
10. Windshield washer fluid reservoir
7-30
❈ The actual engine compartment in the vehicle may differ from the illustration.
OMD070047N
2 6
Safety features of your vehicle
Important safety precautions
3-2
Air bag - advanced supplemental restraint
• Always wear your seat belt
3-2
system
3-44
• Restrain all children
3-2
• Where are the air bags?
3-46
• Air bag hazards
3-2
• SRS components and functions
3-49
• Driver distraction
3-2
• What to expect after an air bag inflates
3-53
• Control your speed
3-3
• Occupant Classification System (OCS)
3-54
• Keep your vehicle in safe condition
3-3
• Why Didn’t My Air Bag Go Off in a Collision? . . . 3-59
3
Seats
3-4
• SRS care
3-64
• Safety precautions
3-5
• Additional safety precautions
3-65
• Front seats
3-6
• Air bag warning labels
3-66
• Rear seats
3-12
• Headrest
3-15
• Seat warmers
3-19
Seat belts
3-21
• Seat belt safety precautions
3-21
• Seat belt warning light
3-22
• Seat belt restraint system
3-23
• Additional seat belt safety precautions
3-29
• Care of seat belts
3-32
Child restraint system (CRS)
3-33
• Selecting a Child Restraint System (CRS)
3-34
• Installing a Child Restraint System (CRS)
3-36
Safety features of your vehicle
IMPORTANT SAFETY PRECAUTIONS
You will find many safety precautions
Restrain all children
Driver distraction
and recommendations throughout
All children under age 13 should ride
Driver distraction presents a serious
this section, and throughout this man-
in your vehicle properly restrained in
and potentially deadly danger, espe-
ual. The safety precautions in this sec-
a rear seat, not the front seat. Infants
cially for inexperienced drivers. Safety
tion are among the most important.
and small children should be
should be the first concern when
restrained in an appropriate child
behind the wheel and drivers need to
Always wear your seat belt
restraint. Larger children should use
be aware of the wide array of potential
a booster seat with the lap/shoulder
distractions, such as drowsiness,
A seat belt is your best protection in
belt until they can use the seat belt
reaching for objects, eating, personal
all types of accidents. Air bags are
properly without a booster seat.
grooming, other passengers, and
designed to supplement seat belts,
using cellular phones, to name a few.
not replace them. So even though
your vehicle is equipped with air bags,
Air bag hazards
Drivers can become distracted when
they take their eyes and attention off
ALWAYS make sure you and your
While air bags can save lives, they
passengers wear your seat belts, and
the road or their hands off the wheel
can also cause serious or fatal
to focus on activities other than driv-
wear them properly.
injuries to occupants who sit too
ing. To reduce your risk of distraction
close to them, or who are not prop-
or getting into an accident:
erly restrained. Infants, young chil-
• ALWAYS set up your mobile devices
dren, and shorter adults are at the
(i.e., MP3 players, phones, naviga-
greatest risk of being injured by an
tion units, etc.) when your vehicle is
inflating air bag. Follow all instruc-
parked or safely stopped.
tions and warnings in this manual.
• ONLY use your mobile device when
allowed by laws and when conditions
permit safe use. NEVER text or
email while driving.
3 2
Safety features of your vehicle
• NEVER let the use of a mobile
Keep your vehicle in safe condi-
device distract you from driving. You
tion
have a responsibility to your passen-
Having a tire blowout or a mechanical
gers and others on the road to
failure can be extremely hazardous. To
always drive safely, with your hands
reduce the possibility of such prob-
on the wheel as well as your eyes
lems, check your tire pressures and
and attention on the road.
condition frequently, and perform all
regularly scheduled maintenance.
Control your speed
Excessive speed is a major factor in
crash injuries and deaths. Generally,
the higher the speed, the greater the
risk, but serious injuries can also
occur at lower speeds. Never drive
faster than is safe for current condi-
tions, regardless of the maximum
speed posted.
3 3
Safety features of your vehicle

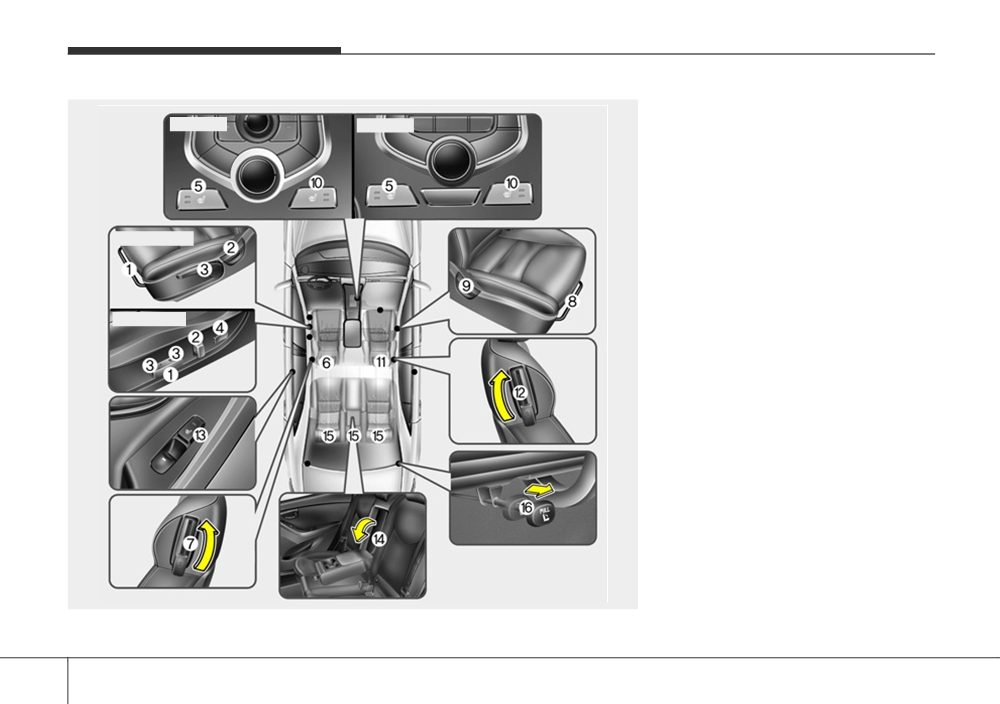

SEATS
Driver’s seat
■ Type A
■ Type B
(1) Seat adjustment, forward/rearward
(2) Seatback recliner
(3) Seat adjustment, height
(4) Lumbar support*
(5) Seat warmer*
■ Manual seat
(6) Headrest adjustment
(7) Walk-in seat*
Front passenger seat
■ Power seat
(8) Seat adjustment, forward/rearward
(9) Seatback recliner
(10) Seat warmer*
(11) Headrest adjustment
(12) Walk-in seat *
Rear seat
(13) Seat warmer*
(14) Armrest
(15) Headrest adjustment
(16) Seat back folding knob (trunk)*
* : if equipped
OMD034001N
3 4
Safety features of your vehicle
Safety precautions
Seat belts
WARNING
Adjusting the seats so that you are sit-
Always fasten your seat belt before
ting in a safe, comfortable position
To reduce the risk of serious
starting any trip.
injury or death from an inflating
plays an important role in driver and
At all times, passengers should sit
passenger safety together with the
air bag, take the following pre-
upright and be properly restrained.
cautions:
seat belts and air bags in an accident.
Infants and small children must be
•
Adjust the driver’s seat as far to
restrained in appropriate child
the rear as possible while main-
restraint systems. Children who have
WARNING
taining the ability to maintain
outgrown a booster seat and adults
Do not use a cushion that
full control of the vehicle.
must be restrained using the seat
reduces friction between the
belts.
•
Adjust the front passenger seat
seat and the passenger. The
as far to the rear as possible.
passenger's hips may slide
•
Hold the steering wheel by the
under the lap portion of the seat
rim with hands at the 9 o’clock
belt during an accident or a
and 3 o’clock positions to mini-
sudden stop. Serious or fatal
mize the risk of injuries to your
internal injuries could result
hands and arms.
because the seat belt cannot
operate normally.
•
NEVER place anything or any-
one between the steering wheel
and the air bag.
Air bags
•
Do not allow the front passen-
ger to place feet or legs on the
You can take steps to reduce the risk
dashboard to minimize the risk
of being injured by an inflating air
of leg injuries.
bag. Sitting too close to an air bag
greatly increases the risk of injury in
the event the air bag inflates.
3 5
Safety features of your vehicle
Front seats
WARNING
WARNING
Take the following precautions
To prevent injury:
WARNING
when adjusting your seat belt:
•
Do not adjust your seat while
Take the following precautions
•
NEVER use one seat belt for
wearing your seat belt.
when adjusting your seat:
more than one occupant.
Moving the seat cushion for-
•
NEVER attempt to adjust the
ward may cause strong pres-
•
Always position the seatback
seat while the vehicle is mov-
sure on your abdomen.
upright with the lap portion of
ing. The seat could respond
the seat belt snug and low
•
Do not allow your hands or
with unexpected movement
across the hips.
fingers to get caught in the
and may cause loss of vehicle
•
NEVER allow children or small
control resulting in an acci-
seat mechanisms while the
seat is moving.
infants to ride in a passenger’s
dent.
lap.
•
Use extreme caution when
•
Do not place anything under
picking small objects trapped
•
Do not route the seat belt
the front seats. Loose objects
under the seats or between
across your neck, across sharp
in the driver’s foot area could
the seat and the center con-
edges, or reroute the shoulder
interfere with the operation of
sole. Your hands might be cut
strap away from your body.
the foot pedals, causing an
or injured by the sharp edges
•
Do not allow the seat belt to
accident.
of the seats mechanism.
become caught or jammed.
•
Do not allow anything to inter-
fere with the normal position
and proper locking of the seat-
back.
•
Do not place a cigarette lighter
on the floor or seat. When you
operate the seat, gas may exit
out of the lighter causing a fire.
3 6
Safety features of your vehicle
Manual adjustment
Reclining seatback
Sitting in a reclined position when
the vehicle is in motion can be dan-
gerous. Even when buckled up, the
protection of your restraint system
(seat belts and air bags) is greatly
reduced by reclining your seatback.
WARNING
NEVER ride with a reclined
OMD030003
seatback when the vehicle is
moving.
Seatback angle
OMD030002
Riding with a reclined seatback
To recline the seatback:
Forward and rearward adjustment
increases your chance of seri-
1. Lean forward slightly and lift up the
To move the seat forward or rearward:
ous or fatal injuries in the event
seatback lever.
of a collision or sudden stop.
1. Pull up the seat slide adjustment
2. Carefully lean back on the seat
lever and hold it.
Drivers and passengers should
and adjust the seatback to the
ALWAYS sit well back in their
2. Slide the seat to the position you
position you desire.
seats, properly belted, and with
desire.
3. Release the lever and make sure
the seatbacks upright.
3. Release the lever and make sure
the seatback is locked in place.
the seat is locked in place. Move
(The lever MUST return to its orig-
forward and rearward without using
inal position for the seatback to
the lever. If the seat moves, it is not
lock.)
locked properly.
3 7
Safety features of your vehicle
Seat belts must be snug against your
Power adjustment
hips and chest to work properly.
The front seat can be adjusted by
When the seatback is reclined, the
using the control switches located on
shoulder belt cannot do its job
the outside of the seat cushion. Before
because it will not be snug against
driving, adjust the seat to the proper
your chest. Instead, it will be in front
position so that you can easily control
of you. During an accident, you could
the steering wheel, foot pedals and
be thrown into the seat belt, causing
controls on the instrument panel.
neck or other injuries.
The more the seatback is reclined,
WARNING
the greater chance the passenger’s
hips will slide under the lap belt or
OMD030004
NEVER allow children in the
the passenger’s neck will strike the
vehicle unattended. The power
Seat cushion height
shoulder belt.
seats are operable when the
(for driver’s seat)
engine is turned off.
To change the height of the seat
cushion:
• Push down on the lever several
times, to lower the seat cushion.
• Pull up on the lever several times,
to raise the seat cushion.
3 8
Safety features of your vehicle
WARNING
To prevent damage to the seats:
•
Always stop adjusting the
seats when the seat has been
adjusted as far forward or
rearward as possible.
•
Do not adjust the seats longer
than necessary when the
engine is turned off. This may
result in unnecessary battery
OMD030006
OMD030007
drain.
Forward and rearward adjustment
Seatback angle
•
Do not operate two or more
seats at the same time. This
To move the seat forward or rearward:
To recline the seatback:
may result in an electrical mal-
1. Push the control switch forward or
1. Push the control switch forward or
function.
rearward.
rearward.
2. Release the switch once the seat
2. Release the switch once the seat-
reaches the desired position.
back reaches the desired position.
3 9
Safety features of your vehicle
Reclining seatback
Seat belts must be snug against your
hips and chest to work properly.
Sitting in a reclined position when
When the seatback is reclined, the
the vehicle is in motion can be dan-
shoulder belt cannot do its job
gerous. Even when buckled up, the
because it will not be snug against
protections of your restraint system
your chest. Instead, it will be in front
(seat belts and air bags) is greatly
of you. During an accident, you could
reduced by reclining your seatback.
be thrown into the seat belt, causing
neck or other injuries.
WARNING
The more the seatback is reclined,
NEVER ride with a reclined seat-
the greater chance the passenger’s
back when the vehicle is moving.
hips will slide under the lap belt or
OMD030008
Riding with a reclined seatback
the passenger’s neck will strike the
Seat cushion height
increases your chance of serious
shoulder belt.
(for driver’s seat)
or fatal injuries in the event of a
To change the height of the seat
collision or sudden stop.
cushion:
Drivers and passengers should
1. Pull the front portion of the control
ALWAYS sit well back in their
switch up to raise or push down to
seats, properly belted, and with
lower the front part of the seat
the seatbacks upright.
cushion. Pull the rear portion of
the control switch up to raise or
push down to lower the rear part of
the seat cushion.
2. Release the switch once the seat
reaches the desired position.
3 10
Safety features of your vehicle
Seatback pocket
WARNING
Do not put heavy or sharp
objects in the seatback pockets.
In an accident they could come
loose from the pocket and
injure occupants.
OMD030009
Lumbar support
OMD030013
(for driver’s seat, if equipped)
The seatback pocket is provided on
To adjust the lumbar support:
the back of the front seatbacks.
1. Press the front portion of the
switch to increase support or the
WARNING
rear portion of the switch to
decrease support.
To prevent the occupant classi-
fication system from malfunc-
2. Release the switch once it reach-
es the desired position.
tioning:
• Do not place any items total
weighing over 1 kg (2.2 lbs) in
the seatback pocket on the
passenger’s seat.
• Do not hang onto the front
passenger’s seatback.
3 11
|
|
|
