System Setting
Turning Bluetooth System Off
i
Information
Press the
SETUP
key Select
To turn Bluetooth® Wireless Technology
[Phone] Select
[Bluetooth System
back on, go to
SETUP
[Phone] and
Memory Information
Off]
press “Yes”.
Press the
SETUP
key Select
Once Bluetooth® Wireless Technology
[System] Select [Memory Information]
is turned off, Bluetooth® Wireless
Technology related features will not be
supported within the audio system.
4
This feature displays information
related to system memory.
1) Using : Displays capacity currently
in use
2) Capacity : Displays total capacity
4-75
Multimedia System
Language
SETUP (Except RDS Model)
Display Settings
Press the
SETUP
key Select
[System] Select [Language]
Starting Mode
Adjusting the Brightness
Press the
SETUP
key Select
[Display] Select [Brightness]
Press the
SETUP
key to display the
Setup screen.
This feature is used to change the
system.
If the language is changed, the sys-
Use the
,
buttons to adjust the
tem will restart and apply the select-
screen brightness or set the
ed language.
You can select and control options
Brightness on Automatic, Daylight, or
related to [Display], [Sound], [Phone]
Night mode.
and [System].
Press the
Default
button to reset.
1) Automatic : Adjusts the brightness
automatically
2) Day : Always maintains the bright-
ness on high
3) Night
: Always maintains the
brightness on low
4-76
Mode Pop up
Text Scroll (If equipped)
Media Display
Press the
SETUP
key Select
Press the
SETUP
key Select
Press the
SETUP
key Select
[Display] Select [Mode Pop up]
[Display] Select [Text Scroll]
[Display] Select [Media Display]
4
This feature is used to display the
This feature is used to scroll text dis-
This feature is used to change the
Mode Pop up screen when entering
played on the screen when it is too
information displayed within USB
radio and media modes.
long to be displayed at once.
and MP3 CD modes.
When this feature is turned on,
When turned on, the text is repeat-
pressing the
FM/AM
or
MEDIA
key
edly scrolled. When turned off, the
1) Folder File
: Displays file name
will display the Mode Pop up screen.
text is scrolled just once.
and folder name
2) Album Artist Song
: Displays
i
Information
album name/artist name/song
The media Mode Pop up screen can be
displayed only when two or more
media modes have been connected.
4-77
Multimedia System
Sound Settings
Use the
,
,
,
buttons to
SDVC (Speed Dependent
adjust the Fader/Balance settings.
Volume Control)
Use the
,
buttons to adjust the
Press the
SETUP
key Select
Sound Settings
Bass/Middle/Treble settings.
[Sound] Select
[Speed Dependent
Press the
SETUP
key Select
Vol.]
Press the
Default
button to reset.
[Sound] Select [Sound Setting]
The volume level is controlled auto-
matically according to the vehicle
speed. SDVC can be set by selecting
from On/Off.
Touch Screen Beep
Press the
SETUP
key Select
[Sound] Select [Touch Screen Beep]
4-78
Bluetooth® Wireless
Viewing Paired Phone List
1)
: Moves to the previous
Technology Setting
screen
Press the
SETUP
key Select
[Phone] Select [Paired Phone List]
2) Connect/Disconnect Phone
:
Connect/disconnects currently
Pairing a New Device
selected phone
Press the
SETUP
key Select
3) Delete
: Deletes the currently
[Phone] Select [Pair Phone]
selected phone
4) Change Priority
: Sets currently
selected phone to highest connec-
tion priority
4
i Information
- BEFORE DOWNLOADING
Contacts
This feature is used to view mobile
phones that have been paired with
• Only contacts within connected
the audio system. Upon selecting a
phones can be downloaded. Also
Bluetooth® Wireless Technology
paired phone, the setup menu is dis-
check to see that your mobile phone
devices can be paired with the audio
played.
supports the download feature.
system.
• To learn more about whether your
For more information, refer to the
For more information, refer to the
mobile phone supports contacts
“Setting
Bluetooth®
Wireless
“Pairing through Phone Setup” sec-
downloads, refer to your mobile
Technology Connection” section with-
tion within Bluetooth® Wireless
phone user’s manual.
in Bluetooth® Wireless Technology.
Technology.
• The contacts for only the connected
phone can be downloaded. Before
downloading, check to see whether
your phone supports the download
feature.
4-79
Multimedia System
Downloading Contacts
Auto Download (Contacts)
Outgoing Volume
Press the
SETUP
key Select
(If equipped)
Press the
SETUP
key Select
[Phone] Select [Contacts Download]
Press the
SETUP
key Select
[Phone] Select [Outgoing Volume]
[Phone] Select [Auto Download]
The contacts is downloaded from the
Use the
,
buttons to adjust the
mobile phone and the download
This feature is used to automatically
outgoing volume level.
progress is displayed.
download mobile contacts entries
once a Bluetooth® Wireless
Turning Bluetooth System Off
Technology phone is connected.
i
Information
Press the
SETUP
key Select
• Up to 1,000 contacts entries can be
i
Information
[Phone] Select
[Bluetooth System
copied into car contacts.
Off]
• The Auto Download feature will
• Up to 1,000 contacts entries can be
download mobile contacts entries
Once Bluetooth® Wireless Technology
saved for each paired device.
every time the phone is connected.
is turned off, Bluetooth® Wireless
• Upon downloading contacts data,
The download time may differ
Technology related features will not be
depending on the number of saved
previously saved contacts data will
supported within the audio system.
contacts entries and the communi-
be deleted. However, contacts
cation state.
entries saved to other paired phones
are not deleted.
• When downloading a contacts, first
check to see that your mobile phone
supports the contacts download fea-
ture.
4-80
System Setting
Language (For Colombia Model)
Press the
SETUP
key Select
[System] Select [Language]
Memory Information
Press the
SETUP
key Select
[System] Select [Memory Information]
4
❈ This feature is used to change the
system and voice recognition lan-
guage.
This feature displays information
❈ if the language is changed, the
related to system memory.
system will restart and apply the
selected language.
i
Information
1) Using : Displays capacity currently
To turn Bluetooth® Wireless Technology
in use
back on, go to
SETUP
[Phone] and
2) Capacity : Displays total capacity
press “Yes”.
4-81
Multimedia System
REAR VIEW CAMERA
(If equipped)
• The system has been equipped
with a rear view camera for user
safety by allowing a wider rear
range of vision.
• The rear view camera will automat-
ically operate when the ignition key
is turned ON and the transmission
lever is set to R.
• The rear view camera will automat-
ically stop operating when set to a
different lever.
NOTICE
The rear view camera has been
equipped with an optical lens to
provide a wider range of vision
and may appear different from the
actual distance. For safety, directly
check the rear and left/right sides.
4-82
SEEK
SYSTEM CONTROLLERS AND
1.
EJECT
5.
TRACK
FUNCTIONS
• Ejects the disc.
•
When pressed shortly
-
Radio mode : plays previous/next
Audio Head Unit
FM/AM
2.
frequency.
• Changes to FM/AM mode.
-
Media
(CD/USB/iPod®/My Music)
• Each time the key is pressed,the
modes : changes the track, Song(file)
mode is changed in order of FM ➟
•
When pressed and held
FM2 ➟ AM
-
Radio mode : continuously changes
the frequency. Upon release, plays
3.
MEDIA
4
the current frequency.
• Changes to CD, USB(iPod), AUX
-
Media(CD/USB/iPod7 pt/My Music)
mode.
modes : rewinds or fast forwards the
• Each time the key is pressed, the
track or file
mode is changed in order of CD,
-
During a Handsfree call, controls the
USB(iPod), AUX.
call volume.
4.
POWER/VOL knob
• Turns the audio system on/off
when the ignition switch is on ACC
or ON.
• If the knob is turned clockwise/
counterclockwise, the volume will
increase/decrease.
4-83
Multimedia System
AST
9.
TUNE knob
7.
SCAN
• Radio Mode
• Radio mode
: turn to change
broadcast frequencies.
- Press the key (under 0.8 seconds)
: Previews each broadcast for 5
• Media (CD/USB/iPod®/My Music)
seconds each.
modes : turn to search tracks/
channels/files.
- Press and hold the key (over 0.8
seconds)
: Previews the broad-
casts saved in Preset
1
9.
SETUP PUSH/ENTER
~
6
for 5 seconds each.
• AUDIO
AST
❈ Press the
SCAN
key again to con-
Select the item to change the BASS,
tinue listening to the currently
TREBLE, FADER and BALANCE
selected channel.
tune mode.
• USB, iPod mode
Press the
SETUP PUSH/ENTER
AST
- Press the
SCAN
key (under 0.8
knob to select each mode and rotate
seconds)
: Previews each song
the
SETUP PUSH/ENTER knob
(file) for 10 seconds each
clockwise or counter clockwise.
AST
❈ Press the
SCAN
key again to
• BASS Control
continue listening to the current
To increase the BASS, rotate the
song (file).
knob clockwise, while to decrease
6.
DISP
the BASS, rotate the
SETUP
PUSH/ENTER knob clockwise or
• Each time the key is shortly
8.
INFO
counter clockwise.
pressed, sets Screen Off ➟ Screen
• Display details about the current
• TREBLE Control
On ➟ Screen Off.
mode.
To increase the TREBLE, rotate the
❈ Audio operation is maintained and
knob clockwise, while to decrease
only the screen will be turned Off.
the TREBLE, rotate the
SETUP
In the Screen Off state, press any
PUSH/ENTER knob clockwise or
key to turn the Screen On again.
counter clockwise.
4-84
• FADER Control
Turn the control
SETUP PUSH/
ENTER knob clockwise to empha-
11.
1
~
6
(Preset)
size rear speaker sound
(front
12. CD Slot
speaker sound will be attenuated).
•
Press
1
~
6
key less than
• Insert a CD label side up and gen-
When the control SETUP PUSH/
0.8 seconds to play the station
tly push in while ignition switch is
ENTER knob is turned counterclock-
saved in each key.
on ACC or ON. The audio automat-
wise, front speaker sound will be
•
Press
1
~
6
key more
ically switches to CD mode and
emphasized (rear speaker sound will
than 0.8 seconds or longer to save
begins to play the CD.
be attenuated).
the current station to the respective
• If the audio was turned off, audio
• BALANCE Control
key with a beep.
power will automatically turned on
4
Rotare the
SETUP PUSH/
as the CD is inserted.
ENTER knob clockwise to empha-
size right speaker sound (left speak-
• This audio only recognizes 12cm-
er sound will be attenuted). When the
size, CD-DA (Audio CD) or ISO
control
SETUP PUSH/ ENTER
data-CD (MP3 CD ).
knob is turnde counter clockwise, left
• If UDF data-CD or non-CD (e.g.
speaker sound will be emphasized
DVD) is inserted, "Reading Error"
(right speaker sound will be attenuat-
message will be displayed and the
ed).
disc will be ejected.
10.
FOLDER
• Search and move between folders.
4-85
Multimedia System
Caring for disc
• Depending on the type of CD-
R/CD-RW CDs, certain CDs may
•
If the temperature inside the car is
not operate normally according to
too high, open the car windows to
manufacturing companies or mak-
ventilate before using the system.
ing and recording methods. In such
•
It is illegal to copy and use
circumstances, continued use may
MP3/WMA files without permis-
cause malfunctions to your audio
sion. Use CDs that are created
system.
only by lawful means.
•
Do not apply volatile agents, such
i
Information - Playing an
as benzene and thinner, normal
Incompatible Copy Protected
cleaners and magnetic sprays
Audio CD
made for analogue disc onto CDs.
Some copy protected CDs, which do not
•
To prevent the disc surface from
comply with international audio CD
getting damaged, hold CDs by the
standards (Red Book), may not play on
edges or the center hole only.
your car audio. Please note that inabili-
•
Clean the disc surface with a piece
ties to properly play a copy protected
of soft cloth before playback (wipe
CD may indicate that the CD is defec-
it from the center to the outside
tive, not the CD player.
edge).
•
Do not damage the disc surface or
i
Information
attach pieces of sticky tape or
paper.

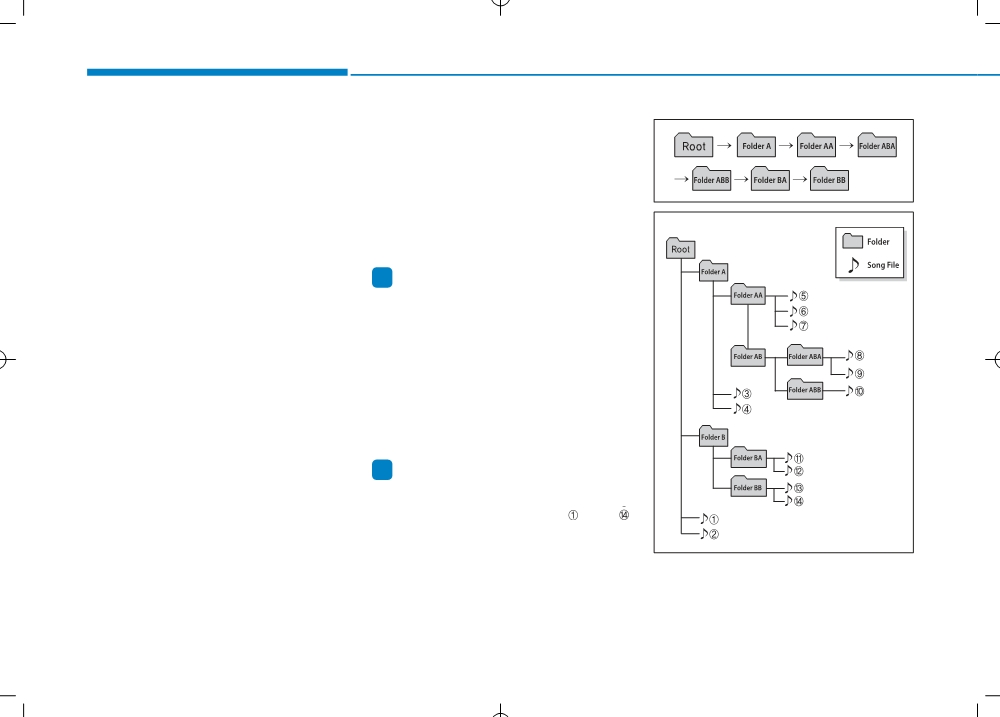

Order of playing files (folders) :
•
Make certain only CDs are insert-
1.Song playing order
:
to
ed into the CD player (Do not insert
sequentially.
more than one CD at a time).
2.Folder playing order :
•
Keep CDs in their cases after use to
❈ If no song file is contained in the
protect them from scratches or dirt.
folder, that folder is not dis-
played.
4-86
SEEK
BASIC METHOD OF USE : CD
2.
1 RPT
(REPEAT)
5.
TRACK
Press this key for less than 0.8 sec-
SEEK
•
Press
TRACK
key for less than
onds to activate 'RPT' mode and
0.8 seconds to play from the begin-
more than 0.8 seconds to activate
'FLD RPT' mode.
ning of current song.
SEEK
•
Press
TRACK
key for less than
• RPT : Only a track (file) is repeat-
0.8 seconds and press again with-
edly played back.
in
1 second to play the previous
• FLD RPT (MP3/WMA Only) : Only
song.
files in a folder are repeatedly
SEEK
played back.
•
Press
TRACK
key for 0.8 sec-
4
onds or longer to initiate reverse
direction high speed sound search
3.
2 RDM
(RANDOM)
of current song.
Press this key for less than 0.8 sec-
SEEK
•
Press
TRACK
key for less than
onds to activate ‘RDM’ mode and
0.8 seconds to play the next song.
more than 0.8 seconds to activate
SEEK
‘ALL RDM’ mode.
•
Press
TRACK
key for 0.8 sec-
onds or longer to initiate forward
• FLD.RDM : Only files/tracks in a
direction high speed sound search
folder/disc are played back in a
of current song.
random sequence.
• A.RDM (MP3/WMA Only) : All files
in a disc are played back in the ran-
1.
MEDIA
dom sequence.
If the CD is loaded, turns to CD
mode. If no CD, it displays
“No
4.
3 SCR
(Scroll)
Media” for 3 seconds and returns to
the previous mode.
• Scroll the file name
❈ USB, MP3 CD, iPod only
4-87
Multimedia System
7.
INFO
While song is playing
INFO
key
information on the current song is
displayed in the order.
TITLE ➟ ARTIST ➟ ALBUM
8.
FOLDER
• Press
FOLDER
key to move to
child folder of the current folder
and display the first song in the
folder.
• Press
FOLDER
key to move to
parent folder of the current folder
and display the first song in the
folder.
9.
ENTER knob
AST
Press the
ENTER knob key to
6.
SCAN
play the select song.
Play each song in the CD for 10 sec-
onds. To cancel SCAN Play, press
this key again.
4-88
CAUTION
(Continued)
(Continued)
•
Take precautions for static
•
If you repeatedly connect or
In using usb device
electricity when connecting or
disconnect the USB device in
disconnecting the external
a short period of time, it may
•
To use an external USB device,
USB device.
break the device.
make sure the device is not
connected when starting up
•
An encrypted MP3 PLAYER is
•
You may hear a strange noise
the vehicle. Connect the device
not recognizable.
when connecting or discon-
after starting up.
•
Depending on the condition of
necting a USB device.
•
If you start the engine when
the external USB device, the
•
If you disconnect the external
the USB device is connected, it
connected external USB
USB device during playback in
4
may damage the USB device.
device can be unrecognizable.
USB mode, the external USB
(USB flashdrives are very sen-
•
When the formatted byte/sec-
device can be damaged or may
sitive to electric shock.)
tor setting of External USB
malfunction. Therefore, discon-
nect the external USB device
•
If the engine is started up or
device is not either 512BYTE
when the audio is turned off or
turned off while the external
or 2048BYTE, then the device
in another mode. (e.g, Radio or
USB device is connected, the
will not be recognized.
CD)
external USB device may not
•
Use only a USB device format-
•
Depending on the type and
work.
ted to FAT 12/16/32.
capacity of the external USB
•
It may not play inauthentic
•
USB devices without USB I/F
device or the type of the files
MP3 or WMA files.
authentication may not be
stored in the device, there is a
1) It can only play MP3 files with
recognizable.
difference in the time taken
the compression rate between
•
Make sure the USB connec-
for recognition of the device.
8Kbps~320Kbps.
tion terminal does not come in
•
Do not use the USB device for
2) It can only play WMA music
contact with the human body
purposes other than playing
files with the compression rate
or other objects.
music files.
between 8Kbps~320Kbps.
(Continued)
(Continued)
(Continued)
4-89
Multimedia System
(Continued)
(Continued)
(Continued)
•
Use of USB accessories such
•
Some non-standard USB
•
Please avoid using USB mem-
as rechargers or heaters using
devices (METAL COVER TYPE
ory products which can be
USB I/F may lower perform-
USB) can be unrecognizable.
used as key chains or cellular
ance or cause trouble.
phone accessories as they
•
Some USB flash memory
could cause damage to the
•
If you use devices such as a
readers
(such as CF, SD,
USB jack. Please make certain
USB hub purchased separate-
microSD, etc.) or external-
only to use plug type connec-
ly, the vehicle’s audio system
HDD type devices can be
tor products as shown below.
may not recognize the USB
unrecognizable.
device. In that case, connect
•
Music files protected by DRM
the USB device directly to the
(DIGITAL RIGHTS MANAGE-
multimedia terminal of the
MENT) are not recognizable.
vehicle.
•
The data in the USB memory
•
If the USB device is divided by
may be lost while using this
logical drives, only the music
audio. Always back up impor-
files on the highest-priority
tant data on a personal stor-
drive are recognized by car
age device.
audio.
(Continued)
•
Devices such as MP3 Player/
Cellular phone/Digital camera
can be unrecognizable by
standard USB I/F can be unrec-
ognizable.
(Continued)
4-90
(Continued)
i
Information - USING THE
iPod® DEVICE
•
When connecting iPod® with the
iPod® Power Cable, insert the connec-
•
Some iPod® models may not sup-
port communication protocol and
tor to the multimedia socket complete-
files may not properly play.
ly. If not inserted completely, commu-
nications between iPod® and audio
Supported iPod® models:
may be interrupted.
- iPod® Mini
•
When adjusting the sound effects of
- iPod® 4th (Photo) ~ 6th (Classic)
the iPod® and the audio system, the
generation
sound effects of both devices will
- iPod® Nano 1st~4th generation
4
overlap and might decrease or distort
- iPod® Touch 1st~2nd generation
the quality of the sound.
•
The order of search or playback of
• Deactivate
(turn off) the equalizer
songs in the iPod® can be different
function of an iPod® when adjusting
from the order searched in the audio
the audio system’s volume, and turn
system.
off the equalizer of the audio system
•
If the iPod® disabled due to its own
when using the equalizer of an iPod®.
malfunction, reset the iPod®. (Reset:
Refer to iPod® manual)
•
When not using iPod® with car
•
An iPod® may not operate normally
audio, detach the iPod® cable from
on low battery.
iPod®. Otherwise, iPod® may remain
•
To use iPod® features within the
in accessory mode, and may not work
audio, use the cable provided upon
properly.
purchasing an iPod® device.
•
Beside support 1M cable when pur-
•
Skipping or improper operation may
chasing iPod/iPhone products, Long
occur depending on the characteris-
Cable cannot be recognized.
tics of your iPod®/iPhone® device.
(Continued)
4-91
