LCD display (if equipped)
LCD modes
LCD display control
Modes
Symbol
Explanation
This mode displays information related to
driving such as tripmeter, fuel economy,
Trip Computer
etc.
For more information, refer to "Trip
3
Computer" in this chapter.
This mode displays information such
Information
or
or
service intervals, warning messages, etc.
In this mode, you can change settings of
OGS045053
User Settings
the doors, lamps, etc.
The LCD display modes can be
changed by using the control switches.
(1)
/
: Changing LCD modes
(2) ▲, ▼ : Changing items for each
LCD modes
(3) OK / RESET : Selecting or reset-
ting items
3-63
Convenient features of your vehicle
Cannot edit settings while driving
Trip computer mode
Information mode
■ Manual transaxle
■ Automatic transaxle
OGS045140/OGS045139
OGS045104
OGS045105

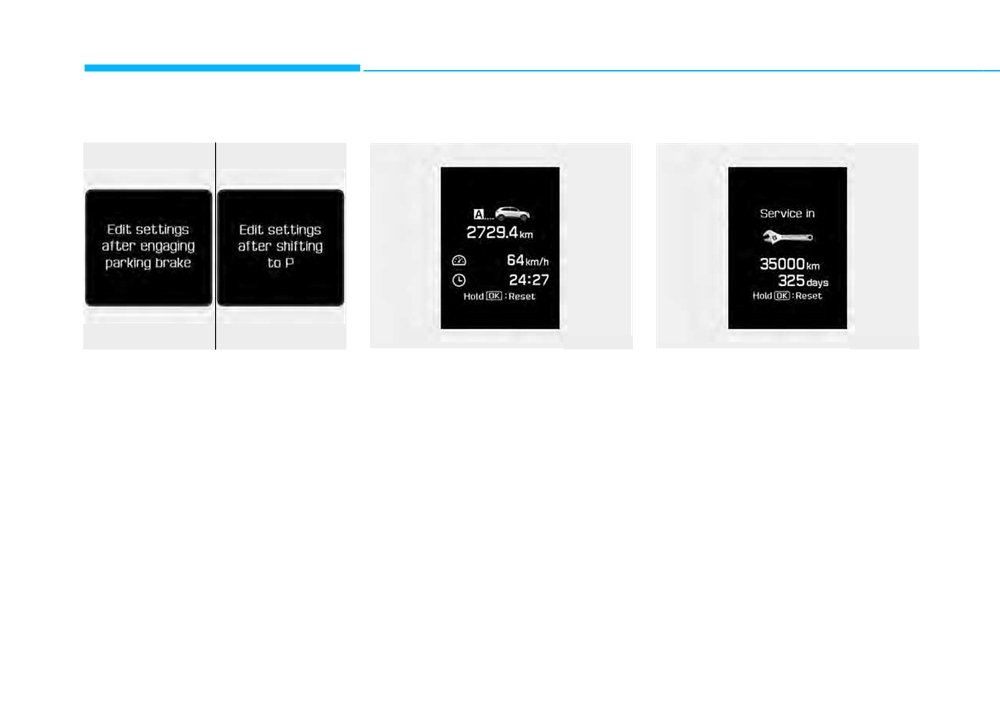

This warning message appears if
The trip computer mode displays
Service Interval
you try to adjust the User Settings
information related to vehicle driving
Service in
while driving.
parameters including distance to
It calculates and displays when you
empty, fuel economy, trip meter infor-
For safety, change the User Settings
need a scheduled maintenance
after parking the vehicle and engaging
mation and vehicle speed.
service (mileage or days).
the parking brake (manual transaxle)
If the remaining mileage or time
or moving the shift lever to P (Park)
For more details, refer to
“Trip
reaches 1,500 km (900 miles) or 30
position (automatic transaxle).
Computer” in this chapter.
days, "Service in" message is dis-
played for several seconds each time
you set the ignition switch to the ON
position.
For the setting of the service interval,
refer to "User Settings Mode" of the
LCD display.
3-64
W arning M essage
If one of followings occurs, warning
messages will be displayed on the
information mode for several seconds.
- Low fuel etc.
3
OGS045106
OGS045107

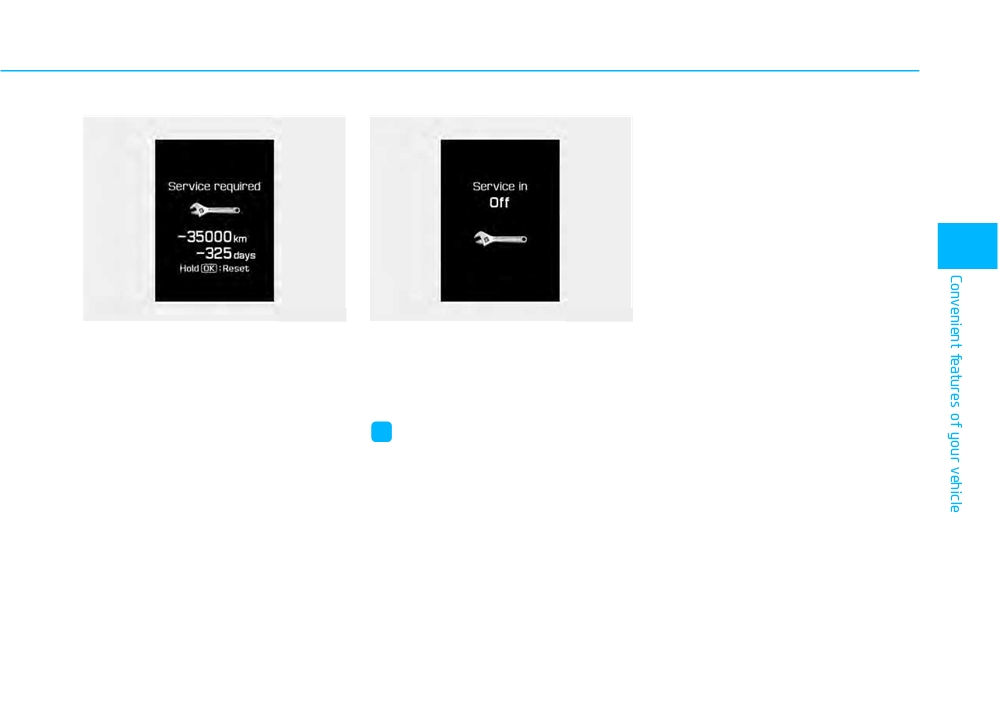

Service required
Service in OFF
If you exceed the specified service
If the service interval is not set,
interval, a message indicating,
"Service in Off" message is dis-
"Service required" will be displayed
played on the LCD display.
each time you turn ON the vehicle.
To reset the service interval, press
i
Information
the OK button for more than 1 sec-
If any of the follow ing conditions
ond.
occur, the m ileage and num ber of days
to service m ay be incorrect.
- T he battery cable is disconnected.
- T he fuse sw itch is turned off.
- T he battery is discharged.
3-65
Convenient features of your vehicle
User settings mode
In this mode, you can change setting of the instrument cluster, doors, lamps, and so on.
D oor
Items
Explanation
• Disable : The auto door lock operation will be deactivated.
• Enable on Speed : All doors will be automatically locked when the vehicle speed exceeds
15 km/h.
Auto Lock
• Enable on Shift : All doors will be automatically locked if the automatic transaxle shift lever is
shifted from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive)
position.
• Disable : The auto door unlock operation will be canceled.
• Vehicle Off : All doors will be automatically unlocked when the ignition key is removed from the
Auto Unlock
ignition switch or the Engine Star/Stop button is set to the OFF position.
• On Shift to P : All doors will be automatically unlocked if the automatic transaxle shift lever is
shifted to the P (Park) position.
3-66
O ther F eatures
Items
Explanation
• Off : The average fuel economy will not reset automatically whenever refueling.
• On (After Ignition) : The average fuel economy will reset automatically when driving.
Fuel Economy Auto Reset
• On (After Refueling) : The average fuel economy will reset automatically when refueling.
For more details, refer to “Trip Computer” in this chapter.
3
Temperature Unit
Choose the temperature unit. (°C,°F)
Language
Choose the language.
If you select this function, the current shift gear position is displayed in the cluster for about 2
Gear position Pop-up
seconds when shifting into other positions (P/R/N/D).
If you do not select this function, the shift gear Pop-up is not displayed in the cluster.
3-67
Convenient features of your vehicle
L ights
Items
Explanation
• Off : The one touch turn signal function will be deactivated.
• 3, 5, 7 Flashes : The turn signal indicator will blink 3, 5, or 7 times when the turn signal lever is
One Touch Turn Signal
moved slightly.
For more details, refer to “Light” in this chapter.
• On : The headlamp delay function will be activated.
Headlamp Delay
• Off : The headlamp delay function will be deactivated.
For more details, refer to “Light” in this chapter.
C onvenience
Items
Explanation
• Off : The steering position function will be deactivated.
Steering Position
• On : The steering position function will be activated.
Service Interval
Items
Explanation
In this mode, you can activate the service interval function with mileage (km or mi.) and period
(months).
Service Interval
• Off : The service interval function will be deactivated.
• On :You can set the service interval (mileage and months).
3-68

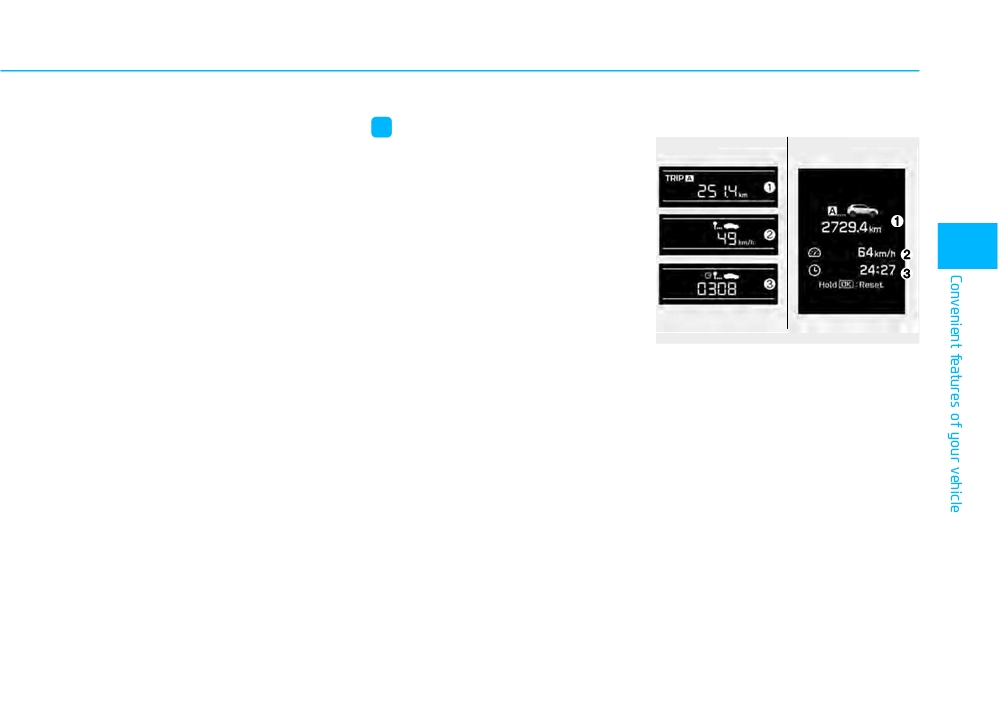

Trip computer
■ Type A
i
Information
To change items, press the TRIP but-
■ Type A
Som e driving inform ation stored in
ton for less than 1 second.
th e
trip
com p u ter
(for
exam p le
Average Vehicle Speed) resets if the
Tripmeter A
battery is disconnected.
Tripmeter B
3
Distance to empty
OGS045055
Average fuel consumption
■ Type B
Instant fuel consumption*
Average speed
Elapsed time
OGS045053
Digital speedometer
on/off setting
The trip computer is a microcomput-
er-controlled driver information sys-
* : if equipped
tem that displays information related
to driving.
3-69
Convenient features of your vehicle
■ Type B
Fuel economy
i
Information
To change items, toggle the
■ Type A
■ Type B
•
If the vehicle is not on level ground
UP/DOWN arrow switch “▲, ▼” on
or the battery pow er has been inter-
the steering wheel.
rupted, the distance to em pty func-
FUEL ECONOMY
tion m ay not operate correctly.
•
T he distance to em pty m ay differ
• Distance To Empty
from the actual driving distance as
• Average Fuel Economy
it
is an estim ate of the available
• Instant Fuel Economy*
driving distance.
•
T he trip com puter m ay not register
additional fuel if less than
6 liters
(1.6 gallons) of fuel are added to the
TRIP A
OIB044159/OGS045141
vehicle.
• Tripmeter [A]
D istance To E m pty
(1)
•
T he fuel econom y and distance to
• Average Vehicle Speed [A]
•
The distance to empty is the esti-
em pty m ay vary significantly based
• Elapsed Time [A]
mated distance the vehicle can be
on
d rivin g
con d ition s,
d rivin g
driven with the remaining fuel in
habits, and condition of the vehicle.
the fuel tank.
•
If the estimated distance is below
TRIP B
1 km, the trip computer will display
• Tripmeter [B]
“---” as distance to empty.
• Average Vehicle Speed [B]
And, "Low Fuel" warning message
• Elapsed Time [B]
is displayed.
Digital Speedometer
* : if equipped
3-70
Average F uel E conom y
(2)
Trip A/B
i
Information
• The average fuel economy is calcu-
■ Type A
■ Type B
T he vehicle m ust be driven for a m in-
lated by the total driving distance
im um of 300 m eters since the last igni-
and fuel consumption since the last
tion key cycle before the average fuel
average fuel economy reset.
econom y is recalculated.
• The average fuel economy can be
reset both manually and automati-
Instant F uel E conom y
(3)
3
cally.
This mode displays the instantaneous
Manual reset
fuel economy while driving when the
vehicle speed is greater than 10 km/h.
To clear the average fuel economy
manually, press the OK button
(or
OIB044158/OGS045104
RESET button) on the steering wheel
for more than 1 second when the aver-
Tripm eter
(1)
age fuel economy is displayed.
• The tripmeter is the total driving
distance since the last tripmeter
Automatic reset
reset.
To automatically reset the average fuel
• To reset the tripmeter, press the
economy after refueling, select the
OK button (or RESET button) on
“After Refueling” feature in the User
the steering wheel for more than 1
Settings Mode on the LCD display
second when the tripmeter is dis-
(Refer to "LCD Display“ in this chapter).
played.
If the
“After Refueling” feature is
selected, the average fuel economy
will be cleared to zero (---), when driv-
ing speed exceeds 1km/h, after refuel-
ing more than 6 liters.
3-71
Convenient features of your vehicle
Average Vehicle Speed
(2)
E lapsed T im e
(3)
Digital Speedometer
• The average vehicle speed is cal-
• The elapsed time is the total driv-
This message shows the speed of
culated by the total driving dis-
ing time since the last elapsed time
the vehicle.
tance and driving time since the
reset.
last average vehicle speed reset.
• To reset the elapsed time, press
• To reset the average vehicle speed,
the OK button (or RESET button)
press the OK button (or RESET
on the steering wheel for more
button) on the steering wheel for
than 1 second when the elapsed
more than 1 second when the aver-
time is displayed.
age vehicle speed is displayed.
i
Information
i
Information
T he elapsed tim e w ill continue to be
•
T he average vehicle speed is not dis-
counted w hile the engine is still run-
played if the driving distance is less
ning
(for exam ple, w hen the vehicle is
than
300 m eters
(0.19 m iles) or the
in traffic or stopped at a stop light.)
driving tim e is less than
10 seconds
since the ignition sw itch or the E ngine
Start/Stop button is turned to O N .
•
T he average vehicle speed w ill con-
tinue to be calculated and w ill start
to decrease if the vehicle is stopped
w hile the engine is still running
(for
exam ple, w hen the vehicle is in traf-
fic or stopped at a stop light.)
3-72
■ Type A
One time driving information mode
If the estimated remaining vehicle
(if equipped)
■ Type A
■ Type B
■ Type B
3
OLF044085R
In case of type A, the digital
OIB044160/OIB044125
speedometer is displayed when
OGS045142/OGS045143
range is below 1.6 km, the range will
“SPEED” sets “ON” in the cluster.
display as "---" and a "Low Fuel" warn-
Pressing the RESET button for more
At the end of each driving cycle, the
ing message (4) will be displayed.
than 1 second, when the “SPEED”
Driving Info message is displayed.
“OFF” is displayed, the digital
This display shows the trip distance
i
Information
speedometer is displayed.
(1), the average fuel economy (2),
and distance to empty (3).
T he driving inform ation resets
4 hours
This information is displayed for a
after the ignition sw itch is turned off.
few seconds when you turn off the
ignition, and then goes off automati-
cally. The information is calculated
for each ignition cycle.
3-73
Light
Exterior lights
Lighting control
n Left-hand drive
3
OGS045057L
OGS045058L
OGS045059L
n Right-hand drive
Headlight position (
)
Parking light position (
)
When the light switch is in the head
When the light switch is in the park-
light position, the headlights, license
ing light position, the parking (posi-
plate light and instrument panel lights
tion) light, license plate light and
are turned ON.
instrument panel lights are turned
ON.
i
Information
OGS045057
The ignition switch must be in the ON
position to turn on the headlights.

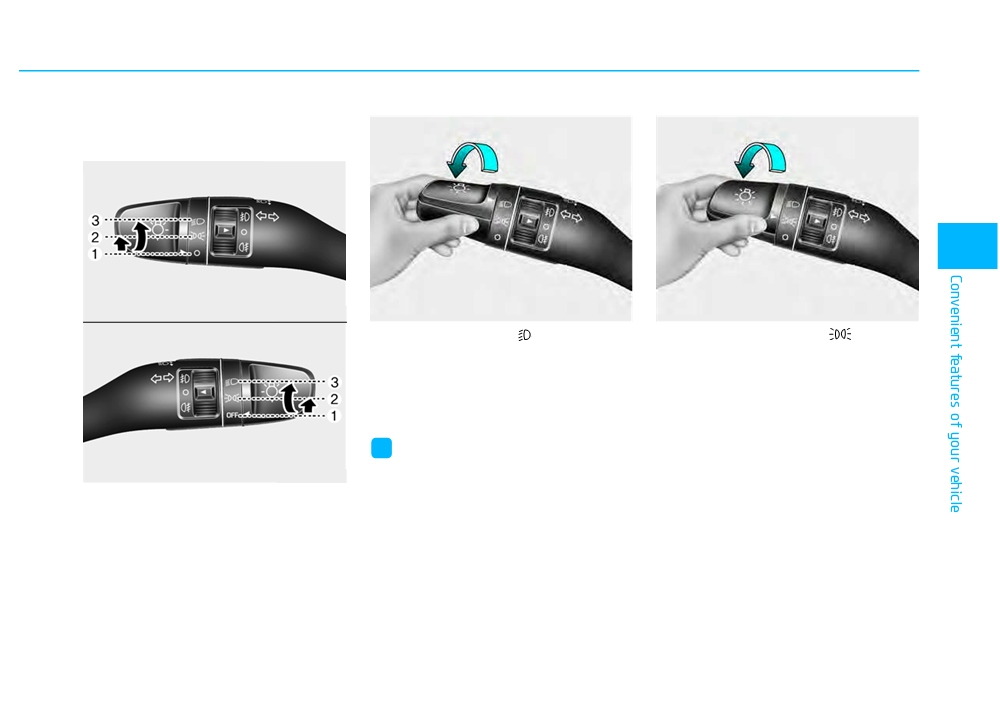

To operate the lights, turn the knob at
the end of the control lever to one of
the following positions:
(1) OFF position
(2) Parking light position
(3) Headlight position
3-74
Convenient features of your vehicle
High beam operation
Rear fog light (if equipped)
OGS045061L
To flash the high beam headlights,
OGS045060L
OGS045062L
pull the lever towards you, then
To turn on the high beam headlamp,
Vehicle with front fog light
release the lever. The high beams
push the lever away from you. The
will remain ON as long as you hold
To turn on the rear fog light:
lever will return to its original position.
the lever towards you.
Position the light switch in the park-
The high beam indicator will light
ing light position, turn the light switch
when the headlamp high beams are
(1) to the front fog light position, and
switched on.
then turn the light switch (1) to the
To turn off the high beam headlamp,
rear fog light position.
pull the lever towards you. The low
To turn the rear fog lights off, do one
beams will turn on.
of the following:
• Turn off the parking light switch.
WARNING
• Turn the light switch to the rear fog
Do not use high beam when there
light position again.
are other vehicles approaching you.
• When the light switch is in the
Using high beam could obstruct the
parking light position, if you turn off
other driver's vision.
the front fog light, the rear fog light
will also turn off.
3-75
Vehicle without front fog light
Front fog light (if equipped)
NOTICE
To turn on the rear fog light:
When in operation, the fog lights
Position the light switch in the head-
consume large amounts of vehicle
lamp position, and then turn the light
electrical power. Only use the fog
switch (1) to the rear fog light position.
lights when visibility is poor.
To turn the rear fog lights off, do one
3
of the following:
• Turn off the headlamp switch.
• Turn the light switch to the rear fog
light position again.
OGS045063L
Fog lights are used to provide
improved visibility when visibility is
poor due to fog, rain or snow, etc.
1. Turn on the park light.
2. Move the light switch (1) to the
front fog light position.
3. To turn off the front fog light, turn
the light switch to the front fog light
position again or turn off the park-
ing light.
3-76
Convenient features of your vehicle
Battery saver function
Headlamp delay function
NOTICE
The purpose of this feature is to pre-
(if equipped)
If the driver gets out of the vehicle
vent the battery from being dis-
If the key is removed from the ignition
through other doors (except driver's
charged. The system automatically
switch or placed in the ACC or
door), the battery saver function
turns off the parking lights when the
LOCK/OFF position with the head-
does not operate and the headlamp
driver removes the ignition key or
lights ON, the headlights
(and/or
delay function does not turn off auto-
turns the engine off (for smart key)
parking lights) remain on for about 5
matically. Therefore, It causes the
and opens the driver-side door.
minutes. However, with the engine off
battery to be discharged. In this
With this feature, the parking lights
if the driver’s door is opened and
case, make sure to turn off the lamp
will turn off automatically if the driver
closed, the headlights (and/or parking
before getting out of the vehicle.
parks on the side of road at night.
lights) are turned off after 15 seconds.
The headlights
(and/or parking
If necessary, to keep the lights on
when the ignition key is removed or
lights) can be turned off by pressing
the lock button on the remote key (or
the engine is turned off (for smart
key), perform the following:
smart key) twice or turning the light
switch to the OFF or AUTO position.
1) Open the driver-side door.
However, if you turn the light switch
2) Turn the parking lights OFF and
to the AUTO position when it is dark
ON again using the light switch on
outside, the headlights will not be
the steering column.
turned off.
3-77
Daytime running light (DRL)
Headlamp leveling device
The higher the number of the switch
(if equipped)
position, the lower the headlamp
beam level. Always keep the head-
The Daytime Running Lights (DRL)
lamp beam at the proper leveling
can make it easier for others to see
position, or headlights may dazzle
the front of your vehicle during the
other road users.
day, especially after dawn and before
sunset.
Listed below are the examples of
proper switch settings. For loading
3
The DRL system will turn the dedi-
conditions other than those listed
cated lamp OFF when:
below, adjust the switch position so
1. The headlights or front fog lights
that the beam level may be the near-
are in the ON position.
est as the condition obtained accord-
2. The engine is turned off.
ing to the list.
OGS045064L
To adjust the headlamp beam level
Loading condition
Switch position
according to the number of the pas-
Driver only
0
sengers and loading weight in the
Driver + Front passenger
0
luggage area, turn the beam leveling
Full passengers
switch.
1
(including driver)
Full passengers (including
driver) + Maximum permis-
2
sible loading
Driver + Maximum permis-
3
sible loading
3-78
Convenient features of your vehicle
Interior lights
Front lamps
Front Room Lamp:
The Front Room Lamp Switch acti-
WARNING
vates the front and rear room lamps
when the switch is pressed in either of
Do not use the interior lights when
the three positions indicated below:
driving in the dark. The interior
: The front or rear room lamps
lights may obscure your view and
come on when the front or rear
cause an accident.
doors are opened if the engine
is running or not. When doors
are unlocked by the remote
NOTICE
key or smart key, the front and
Do not use the interior lights for
rear lamps come on for
extended periods when the engine is
approximately 15 seconds as
OIB044015/Q
turned off or the battery will dis-
long as any door is not
(1) Front Map Lamp
opened. The front and rear
charge.
(2) Front Room Lamp
room lamps go out gradually
after approximately
15 sec-
Interior lamp AUTO cut
onds if the door is closed.
The interior lamps will automatically
Front Map Lamp:
However, if the ignition switch
go off approximately 20 minutes after
Press either the right or left lens to
is in the ON position or all
the engine is turned off and the
turn the map lamp on or off. This light
doors are locked, the front and
doors closed. If a door is opened, the
produces a spot beam for convenient
rear lamps will turn off immedi-
lamp will go off 40 minutes after the
use as a map lamp at night or as a
ately. If a door is opened with
engine is turned off. If the doors are
personal lamp for the driver and the
the ignition switch in the ACC
locked by the remote key or smart
front passenger.
position or the LOCK/OFF
key and the vehicle enters the armed
position, the front and rear
stage of the theft alarm system, the
lamps stay on for about 20
lamps will go off five seconds later.
minutes. However, if a door is
opened with the ignition switch
in the ON position, the lamps
stays on continuously.
3-79
