Hyundai Creta (2016 year). Instruction - part 6
Convenient features of your vehicle
Immobilizer system
Do not attempt to alter this system or
(if equipped)
add other devices to it. Electrical
problems could result that may make
The immobilizer system protects your
your vehicle inoperable.
vehicle from theft. If an improperly
coded key (or other device) is used,
the engine’s fuel system is disabled.
WARNING
When the ignition switch is placed in
In order to prevent theft of your
the ON position, the immobilizer sys-
vehicle, do not leave spare keys
tem indicator should come on briefly,
anywhere in your vehicle. Your
then go off. If the indicator starts to
immobilizer password is a cus-
blink, the system does not recognize
tomer unique password and
the coding of the key.
should be kept confidential.
Place the ignition switch to the
LOCK/OFF position, then place the
ignition switch to the ON position
NOTICE
again.
The transponder in your key is an
The system may not recognize your
important part of the immobilizer sys-
key’s coding if another immobilizer
tem. It is designed to give years of
key or other metal object (i.e., key
trouble-free service, however you
chain) is near the key. The engine
should avoid exposure to moisture,
may not start because the metal may
static electricity and rough handling.
interrupt the transponder signal from
Immobilizer system malfunction
transmitting normally.
could occur.
If the system repeatedly does not
recognize the coding of the key, it is
recommended that you contact your
HYUNDAI dealer.
3-12
DOOR LOCKS
Operating door locks from out-
Remote key
i
Information
side the vehicle
•
In cold and w et clim ates, door lock
Mechanical key
and door m echanism s m ay not w ork
■ Remote key
■ Smart key
properly due to freezing conditions.
•
If the door is locked/unlocked m ulti-
ple tim es in rapid succession w ith
either the vehicle key or door lock
3
sw itch, the system m ay stop operat-
ing tem porarily in order to protect
the circuit and prevent dam age to
system com ponents.
OIB034040
To lock the doors, press the Door
OGS045002L
Lock button (1) on the remote key.
Turn the key toward the rear of the
To unlock the doors, press the Door
vehicle to unlock and toward the front
Unlock button (2) on the remote key.
of the vehicle to lock.
Once the doors are unlocked, they
If you lock/unlock the driver's door
may be opened by pulling the door
with a key, all vehicle doors will
handle.
lock/unlock automatically. (if equipped
When closing the door, push the
with the central door lock system)
door by hand. Make sure that doors
Once the doors are unlocked, they
are closed securely.
may be opened by pulling the door
handle.
When closing the door, push the
door by hand. Make sure that doors
are closed securely.
3-13
Convenient features of your vehicle
Smart key
To lock the doors, press the button on
i
Information
the outside door handle while carry-
ing the smart key with you or press
•
In cold and w et clim ates, door lock
the door lock button on the smart key.
and door m echanism s m ay not w ork
properly due to freezing conditions.
To unlock the doors, press the button
on the outside door handle while car-
•
If the door is locked/unlocked m ulti-
rying the smart key with you or press
ple tim es in rapid succession w ith
the door unlock button on the smart
either the vehicle key or door lock
key.
sw itch, the system m ay stop operat-
ing tem porarily in order to protect
Once the doors are unlocked, they
the circuit and prevent dam age to
may be opened by pulling the door
system com ponents.
OGS045001L
handle.
When closing the door, push the
door by hand. Make sure that doors
are closed securely.
OLMB043003
1. Door lock
2. Door unlock
3. Tailgate open
3-14
Operating door locks from inside
• Front doors cannot be locked if the
With the central door lock/unlock
the vehicle
key is in the ignition switch and any
switch
front door is open.
With the door lock button
• Doors cannot be locked if the
smart key is in the vehicle and any
door is open.
3
i
Information
If a pow er door lock ever fails to func-
tion w hile you are in the vehicle try
one or m ore of the follow ing tech-
niques to exit:
O p erate th e d oor u n lock featu re
OGS045003L
repeatedly
(both electronic and m anu-
OGS045009L
al) w hile sim ultaneously pulling on the
To lock the doors, press the door lock
door handle.
switch (
). All vehicle doors will lock.
•
To unlock a door, push the door
O perate the other door locks and han-
lock button (1) to the “Unlock” posi-
• If the key is in the ignition switch
tion.
dles, front and rear.
and any door is opened, the doors
•
To lock a door, push the door lock
L ow er a front w indow and use the
will not lock even though the door
m echanical key to unlock the door
lock switch (
) is pressed.
button (1) to the “Lock” position.
from outside.
•
To open a door, pull the door han-
• If the smart key is in the vehicle
and any door is opened, the doors
dle (2) outward.
will not lock even though the door
•
If the inner door handle of the dri-
lock switch (
) is pressed.
ver’s (or front passenger’s) door is
pulled when the door lock button is
in the lock position, the button is
unlocked and door opens.
3-15
Convenient features of your vehicle
WARNING
WARNING
The doors should always be fully
Always secure your vehicle
closed and locked while the vehi-
Leaving your vehicle unlocked
cle is in motion. If the doors are
increases the potential risk to you
unlocked, the risk of being thrown
or others from someone hiding in
from the vehicle in a crash is
your vehicle.
increased.
To secure your vehicle, while
depressing the brake, move the shift
lever to the P (Park) position (for
WARNING
OGS045004L
automatic transaxle) or first gear or
To unlock the doors, press the door
Do not leave children or animals
R (Reverse, for manual transaxle),
unlock switch (
). All vehicle doors
engage the parking brake, and
unattended in your vehicle. An
will unlock.
enclosed vehicle can become
place the ignition switch in the
LOCK/OFF position, close all win-
extremely hot, causing death or
dows, lock all doors, and always
serious injury to unattended chil-
take the key with you.
dren or animals who cannot
escape the vehicle. Children might
operate features of the vehicle that
could injure them, or they could
WARNING
encounter other harm, possibly
from someone gaining entry to the
Opening a door when something is
vehicle.
approaching may cause damage
or injury. Be careful when opening
doors and watch for vehicles,
motorcycles, bicycles or pedestri-
ans approaching the vehicle in the
path of the door.
3-16
Auto door lock/unlock features
Child-protector rear door locks
To lock the child safety lock, insert a
key (or screwdriver) into the hole (1)
Impact sensing door unlock sys-
and turn it to the lock (
) position.
tem (if equipped)
To allow a rear door to be opened
All doors will be automatically
from inside the vehicle, unlock the
unlocked when an impact causes the
child safety lock.
air bags to deploy.
WARNING
3
Speed sensing door lock system
(if equipped)
If children accidently open the rear
All doors will be automatically locked
doors while the vehicle is in
when vehicle speed exceeds
15
motion, they could fall out of the
km/h (9 mph).
vehicle. The rear door safety locks
OGS045149L
should always be used whenever
The child safety lock is provided to
children are in the vehicle.
help prevent children seated in the
rear from accidentally opening the
rear doors. The rear door safety locks
should be used whenever children
are in the vehicle.
The child safety lock is located on
the edge of each rear door. When the
child safety lock is in the lock position
(
), the rear door will not open if
the inner door handle is pulled.
3-17
Convenient features of your vehicle
THEFT-ALARM SYSTEM (IF EQUIPPED)
This system helps to protect your
Once the security system is set, open-
vehicle and valuables. The horn will
ing any door, the tailgate, or the hood
sound and the hazard warning lights
without using the remote key or smart
will blink continuously if any of the
key will cause the alarm to activate.
following occurs:
The Theft Alarm System will not set if
- A door is opened without using the
the hood, the tailgate, or any door is
remote key or smart key.
not fully closed. If the system will not
set, check the hood, the tailgate, or
- The tailgate is opened without
the doors are fully closed.
using the remote key or smart key.
Do not attempt to alter this system or
- The engine hood is opened.
add other devices to it.
The alarm continues for 30 seconds,
OIB034042
then the system resets. To turn off
i
Information
the alarm, unlock the doors with the
i Information
remote key or smart key.
•
D o not lock the doors until all pas-
Vehicles equipped w ith a theft alarm
The Theft Alarm System automatical-
sengers have left the vehicle. If the
system w ill have a label attached to
rem ain in g p assen ger leaves th e
ly sets 30 seconds after you lock the
the vehicle w ith the follow ing w ords:
doors and the tailgate. For the system
vehicle w hen the system is arm ed,
1. W A R N IN G
the alarm w ill be activated.
to activate, you must lock the doors
2. SE C U R IT Y SY ST E M
and the tailgate from outside the vehi-
•
If the vehicle is not disarm ed w ith
cle with the remote key or smart key
the rem ote key or sm art key, open
or by pressing the button on the out-
the doors by using the m echanical
side of the door handles with the
key and place the ignition sw itch in
smart key in your possession.
the O N position
(for rem ote key) or
start the engine
(for sm art key) and
The hazard warning lights will blink
and the chime will sound once to
w ait for
30 seconds.
indicate the system is armed.
•
W hen the system is disarm ed but a
door or tailgate is not opened w ithin
30
secon d s, th e system
w ill b e
rearm ed.
3-18
TAILGATE
Opening the tailgate
Closing the tailgate
i
Information
In cold and w et clim ates, door lock
and door m echanism s m ay not w ork
properly due to freezing conditions.
WARNING
3
The tailgate swings upward. Make
sure no objects or people are near
the rear of the vehicle when open-
ing the tailgate.
OGC044007
OGC044008
NOTICE
•
The tailgate is locked or unlocked
To close the tailgate, lower and push
when all doors are locked or
Make certain that you close the tail-
down the tailgate firmly. Make sure
unlocked with the key, remote key,
gate before driving your vehicle.
that the tailgate is securely latched.
smart key or central door lock/
Possible damage may occur to the
unlock switch.
tailgate lift cylinders and attaching
WARNING
hardware if the tailgate is not closed
•
If unlocked, the tailgate can be
prior to driving.
Make sure your hands, feet and
opened by pressing the handle and
other parts of your body are safely
pulling it up.
out of the way before closing the
tailgate.
NOTICE
Make sure nothing is near the tail-
gate latch and striker while closing
the tailgate. It may damage the tail-
gate's latch.
3-19
Convenient features of your vehicle
Emergency tailgate safety
WARNING
WARNING
release
Exhaust fumes
•
For emergencies, be fully aware
of the location of the emergency
If you drive with the tailgate opened,
tailgate safety release lever in
you will draw dangerous exhaust
the vehicle and how to open the
fumes into your vehicle which can
tailgate if you are accidentally
cause serious injury or death to
locked in the luggage compart-
vehicle occupants.
ment.
If you must drive with the tailgate
•
No one should be allowed to
opened, keep the air vents and all
occupy the luggage compart-
windows open so that additional
ment of the vehicle at any time.
outside air comes into the vehicle.
The luggage compartment is a
OGC044006
very dangerous location in the
event of a crash.
Your vehicle is equipped with the
•
Use the release lever for emer-
WARNING
emergency tailgate safety release
lever located on the bottom of the
gencies only. Use with extreme
caution, especially while the
Rear cargo area
tailgate. When someone is inadver-
tently locked in the luggage compart-
vehicle is in motion.
Occupants should never ride in the
ment, the tailgate can be opened by
rear cargo area where no restraints
doing as follows:
are available. To avoid injury in the
1. Input the mechanical key into the
event of an accident or sudden stops,
hole.
occupants should always be properly
2. Push the mechanical key to the
restrained.
right.
3. Push up the tailgate.
3-20
WINDOWS

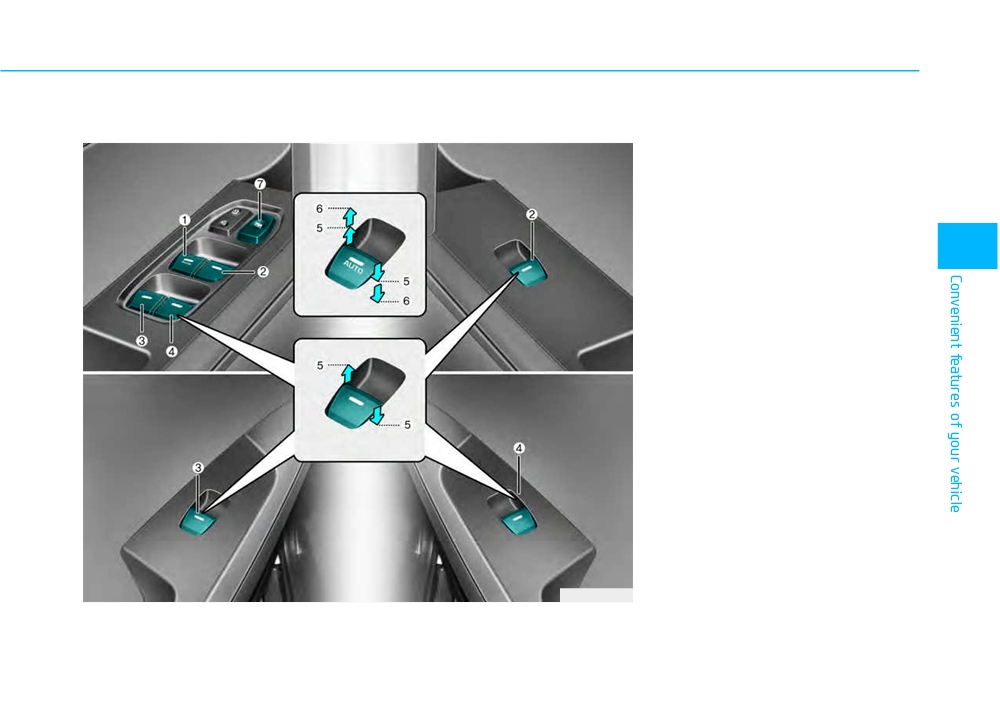

Power windows (if equipped)
(1) Driver’s door power window
switch
(2) Front passenger’s door power
window switch
(3) Rear door power window switch
(Right)
3
(4) Rear door power window switch
(Left)
(5) Window opening and closing
(6) Automatic power window*
(7) Power window lock switch
* : if equipped
OGS045007L
3-21
Convenient features of your vehicle
The ignition switch must be in the ON
Window opening and closing
i
Information
position to be able to raise or lower
the windows. Each door has a Power
•
In cold and w et clim ates, pow er w in-
Window switch to control that door's
dow s m ay not w ork properly due to
window. The driver has a Power
freezing conditions.
Window Lock switch which can block
•
W hile driving w ith the rear w indow s
the operation of passenger windows.
dow n, your vehicle m ay dem onstrate
The power windows will operate for
a w ind buffeting or pulsation noise.
approximately 30 seconds after the
T his noise is norm al and can be
ignition switch is placed in the ACC
reduced or elim inated by taking the
or LOCK/OFF position. However, if
follow ing actions. If the noise occurs
the front doors are opened, the
w ith one or both of the rear w indow s
Power Windows cannot be operated
dow n, partially low er both front w in-
even within the 30 second period.
dow s approxim ately one inch.
OGS045008
To open or close a window, press
down or pull up the front portion of
the corresponding switch to the first
detent position (5).
3-22

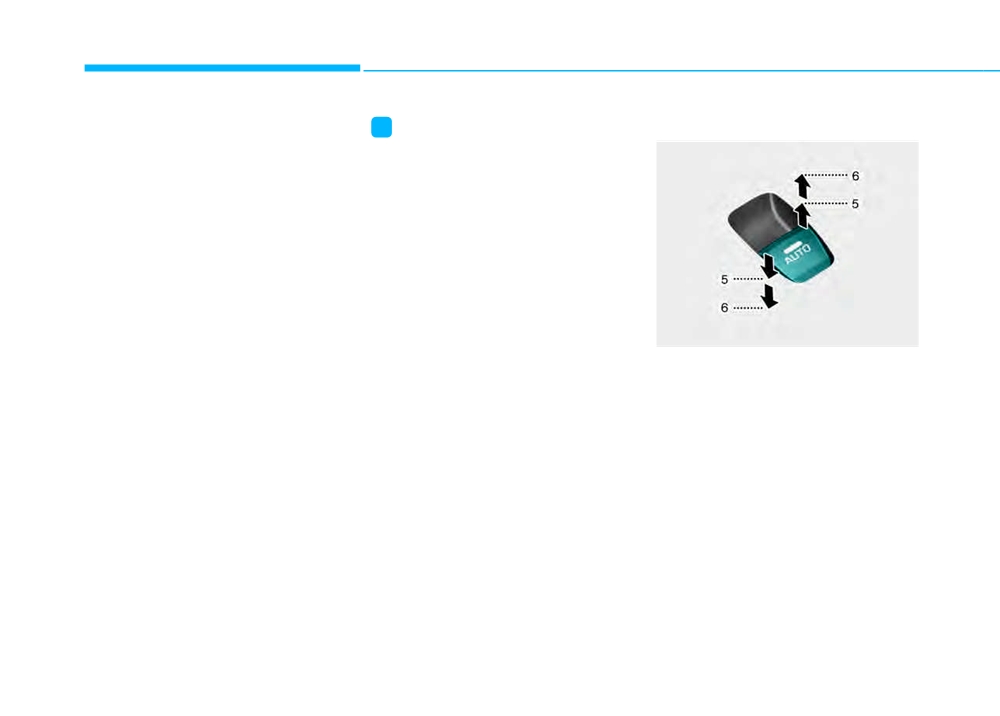

Auto up/down window
To reset the power windows
Automatic reversal (if equipped)
(if equipped)
If the power windows do not operate
Pressing or pulling up the power win-
normally, the automatic power win-
dow switch momentarily to the sec-
dow system must be reset as follows:
ond detent position
(6) completely
1. Place the ignition switch to the ON
lowers or lifts the window even when
position.
the switch is released. To stop the
2. Close the window and continue
window at the desired position while
3
pulling up on the power window
the window is in operation, pull up or
switch for at least 1 second.
press down and release the switch.
If the power windows do not operate
properly after resetting, it is recom-
mended that the system be checked
by an authorized HYUNDAI dealer.
OIB024001

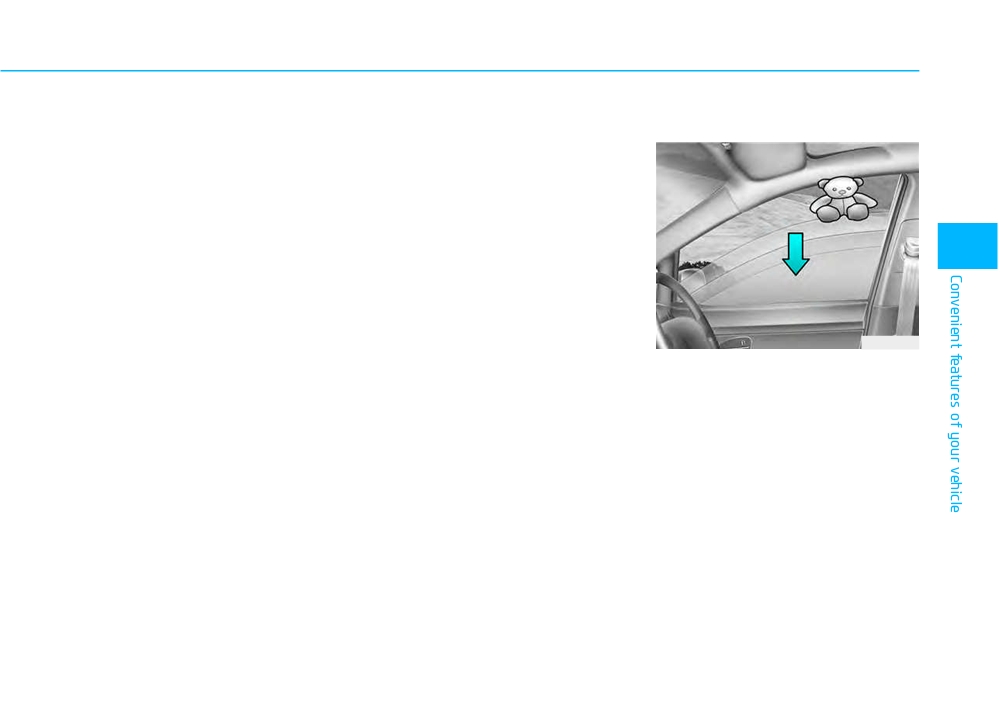

If a window senses any obstacle while
it is closing automatically, it will stop
and lower approximately 30 cm (12
in.) to allow the object to be cleared.
If the window detects the resistance
while the power window switch is
pulled up continuously, the window
will stop upward movement then
lower approximately 2.5 cm (1 in.).
If the power window switch is pulled
up continuously again within 5 sec-
onds after the window is lowered by
the automatic window reversal fea-
ture, the automatic window reversal
will not operate.
3-23
Convenient features of your vehicle
Power window lock switch
When the power window lock switch
i
Information
is pressed:
T he autom atic reverse feature is only
• The driver's master control can
active w hen the
“auto up” feature is
operate the front passenger's power
used by fully pulling up the sw itch to
window but cannot operate the rear
the second detent.
passengers' power windows.
• The front passenger's control can
WARNING
operate the front passenger's
power window.
Make sure heads, other body
• The rear passenger's control can-
parts or other objects are safely
not operate the rear passengers'
out of the way before closing the
power window.
windows to avoid injuries or vehi-
cle damage. Objects less than 4
OGS045011L
mm (0.16 in.) in diameter caught
NOTICE
The driver can disable the power
between the window glass and the
window switches on the rear passen-
• To prevent possible damage to the
upper window channel may not be
gers' doors by pressing the power
power window system, do not
detected by the automatic reverse
window lock switch to the lock posi-
open or close two windows or
window and the window will not
tion (pressed).
more at the same time. This will
stop and reverse direction.
also ensure the longevity of the
fuse.
• Never try to operate the main
switch on the driver's door and the
individual door window switch in
opposite directions at the same
time. If this is done, the window will
stop and cannot be opened or
closed.
3-24
WARNING
(Continued)
•
Do not allow children to play with
Windows
the power windows. Keep the dri-
ver’s door power window lock
•
NEVER leave the keys in your
switch in the LOCK position
vehicle with unsupervised chil-
(pressed). Serious injury can
dren, when the engine is run-
result from unintentional window
ning.
3
operation by the child.
•
NEVER leave any child unat-
•
Do not extend your head, arms
tended in the vehicle. Even very
or body outside the windows
young children may inadvertent-
while driving.
ly cause the vehicle to move,
entangle themselves in the win-
dows, or otherwise injure them-
selves or others.
•
Always double check to make
sure all arms, hands, head and
other obstructions are safely out
of the way before closing a win-
dow.
(Continued)
3-25
Convenient features of your vehicle

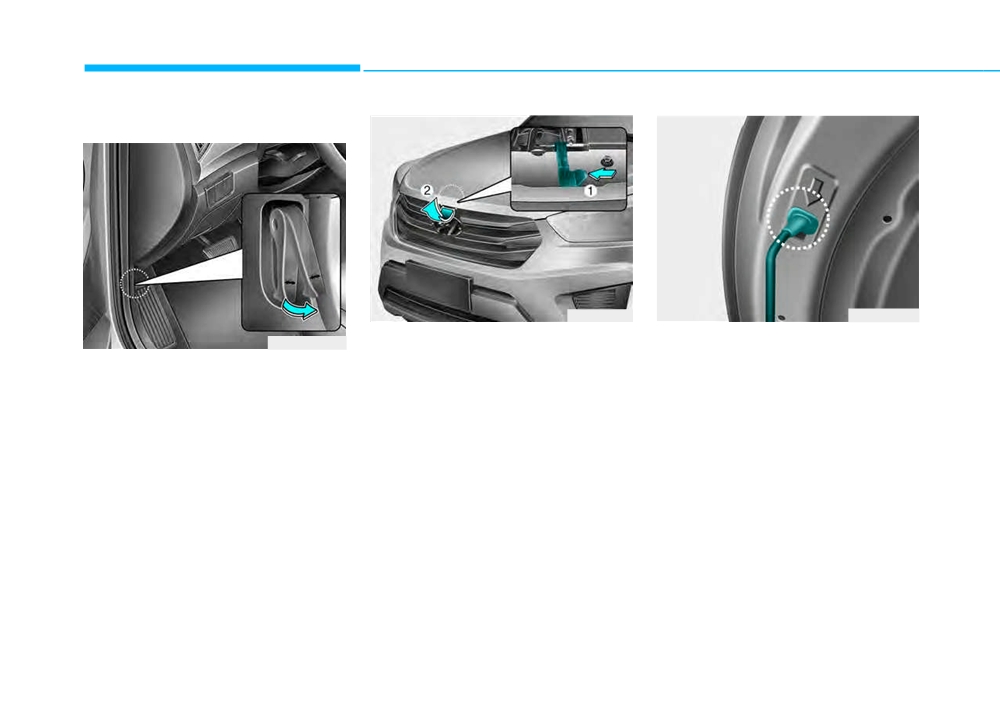

HOOD
Opening the hood
OGC044013
OGC044014
3. Go to the front of the vehicle, raise
4. Pull out the support rod.
OGS045010L
the hood slightly, push the second-
5. Hold the hood opened with the
1. Make sure the shift lever is in P
ary latch up (1) inside of the hood
support rod.
(Park, for automatic transaxle) or
center and lift the hood (2).
first gear or R (Reverse, for manual
transaxle) and set the parking brake.
2. Pull the release lever to unlatch
the hood. The hood should pop
open slightly.
3-26
Closing the hood
WARNING
WARNING
1. Before closing the hood, check the
Support rod
following:
•
Before closing the hood, ensure
• All filler caps in engine compart-
that
all
obstructions are
•
Grasp the support rod in the
ment must be correctly installed.
removed from the hood opening.
area wrapped in rubber. The
• Gloves, rags or any other com-
Closing the hood with an
rubber will help prevent you
obstruction present in the hood
from being burned by hot metal
bustible material must be removed
3
from the engine compartment.
opening may result in property
when the engine is hot.
damage or severe personal
•
The support rod must be insert-
2. Return the support rod to its clip to
injury.
ed completely into the hole pro-
prevent it from rattling.
•
Do not leave gloves, rags or any
vided whenever you inspect the
3. Lower the hood halfway and let it
other combustible material in the
engine compartment. This will
drop. Make sure that it locks into
engine compartment. Doing so
prevent the hood from falling
place.
may cause a heat-induced fire.
and possibly injuring you.
•
Always double check to be sure
that the hood is firmly latched
before driving away. If it is not
latched, the hood could open
while the vehicle is being driven,
causing a total loss of visibility,
which might result in an acci-
dent.
•
Do not move the vehicle with the
hood raised. The view will be
blocked and the hood could fall
or be damaged.
3-27
Convenient features of your vehicle

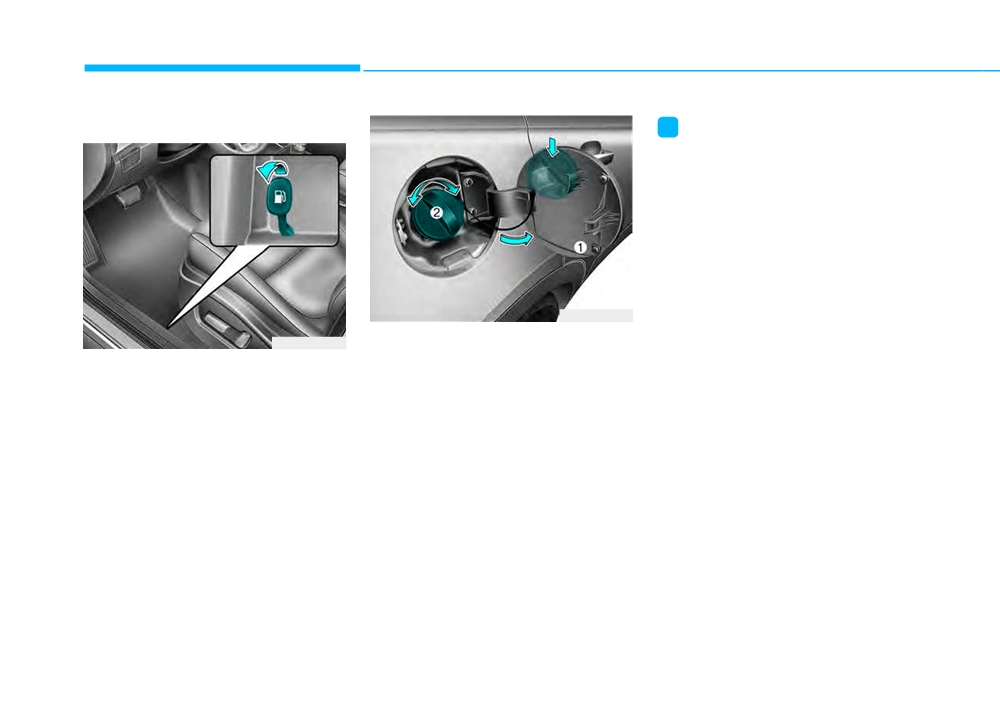

FUEL FILLER DOOR
Opening the fuel filler door
i
Information
If the fuel filler door does not open
because ice has form ed around it, tap
lightly or push on the door to break the
ice and release the door. D o not pry on
the door. If necessary, spray around the
door w ith an approved de-icer fluid
(do
not use radiator anti-freeze) or m ove
the vehicle to a w arm place and allow
the ice to m elt.
OGS045150L
3. Pull the fuel filler door out (1) to
OGS045012L
fully open.
The fuel filler door must be opened
4. To remove the fuel tank cap (2),
from inside the vehicle by pulling up
turn it counterclockwise. You may
the fuel filler door opener.
hear a hissing noise as the pres-
1. Stop the engine.
sure inside the tank equalizes.
2. Pull the fuel filler door opener up.
5. Place the cap on the fuel filler door.
3-28
