Your vehicle at a glance
ExtErior ovErviEw (i)

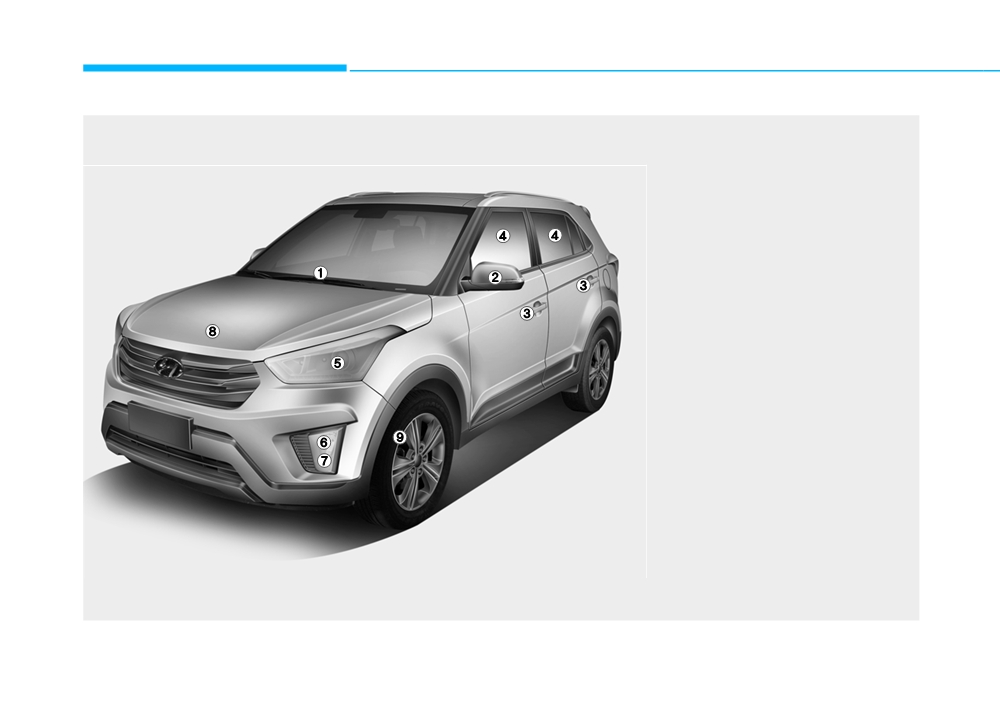

■ Front view
1. Front windshield wiper blades
7-45
2. Outside rearview mirror
3-35
3. Door
3-13
4. Windows
3-21
5. Head light
7-79
6. Front fog light*
7-81
7. Daytime running light*
7-79
8. Hood
3-26
9. Tires and wheels
7-51
* : if equipped
The actual shape may differ from the illustration.
OGC014001
1-2

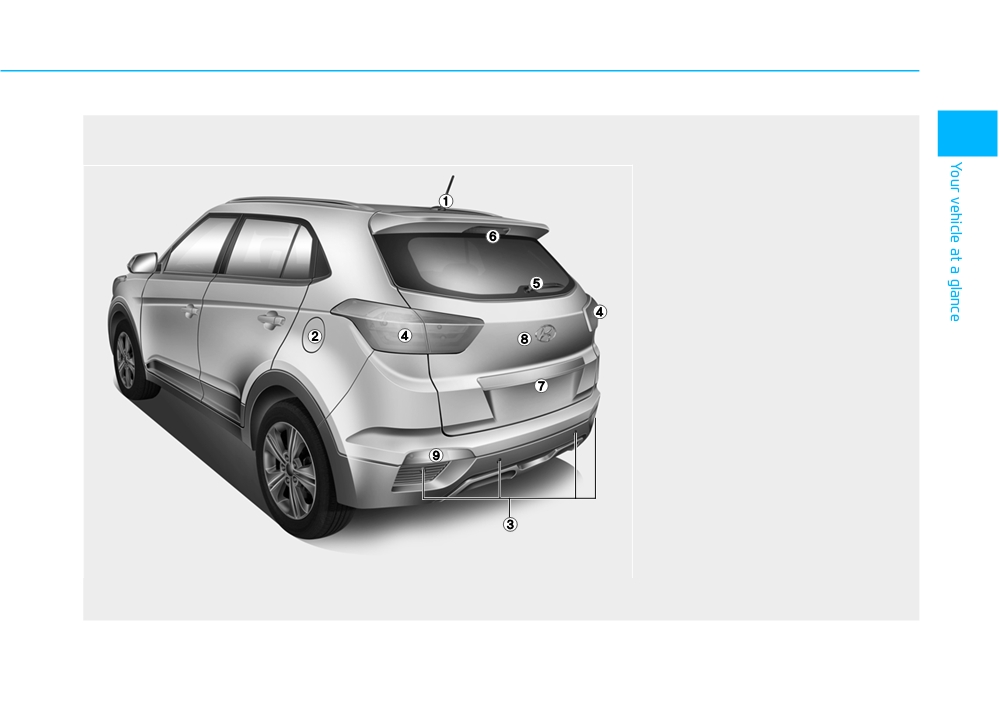

ExtErior ovErviEw (ii)
■ Rear view
1
1. Antenna
4-3
2. Fuel filler lid
3-28
3. Rear parking assist system*
3-85
4. Rear combination lamp
7-84
5. Rear window wiper blade
7-45
6. High mounted stop lamp
7-86
7. Rearview camera*
3-84
8. Tailgate
3-19
9. Rear fog light*
3-54
* : if equipped
The actual shape may differ from the illustration.
OGC014002
1-3
Your vehicle at a glance

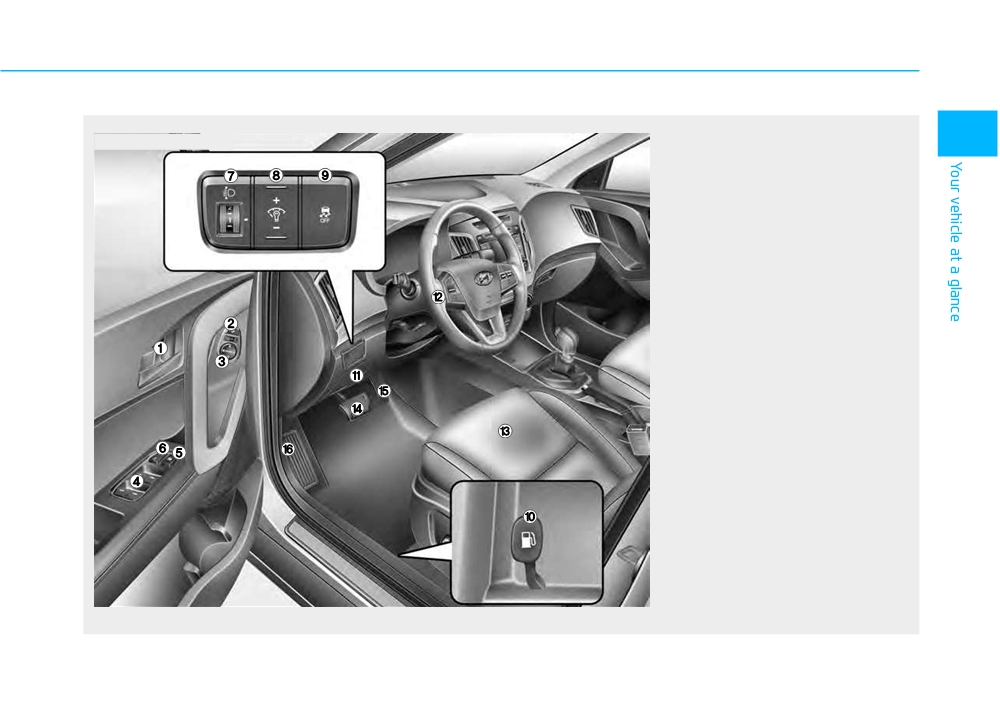

iNtErior ovErviEw (i)

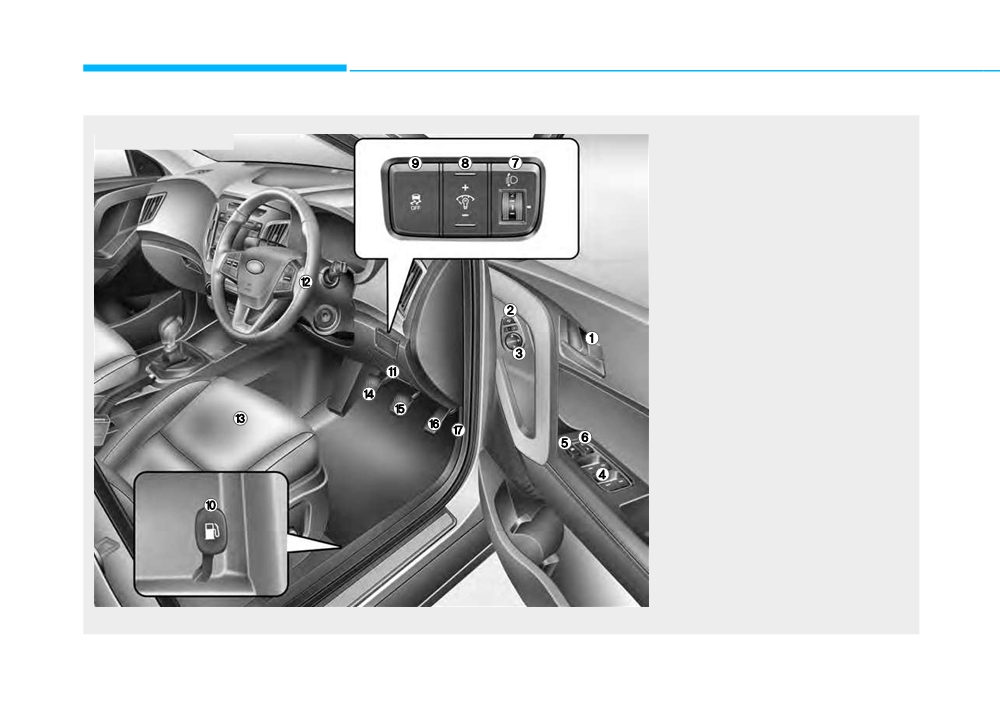

■ Right Hand Drive
1. Door lock/unlock button
3-15
2. Outside rearview mirror folding
switch*
3-36
3. Outside rearview mirror control
switch*
3-36
4. Power window switches*
3-21
5. Power window lock switch*
3-24
6. Central door lock switch
3-15
7. Headlight leveling device*
3-78
8. Instrument panel illumination
control switch*
3-39
9. ESC OFF switch *
5-36
10. Fuel filler door opener
3-28
11. Fuse box
7-64
12. Steering wheel
3-31
13. Seat
2-2
14. Clutch pedal*
5-20
15. Brake pedal
5-30
16. Accelerator pedal
17. Hood release lever
3-26
* : if equipped
The actual shape may differ from the illustration.
OGS015002
1-4
iNtErior ovErviEw (ii)
■ Left Hand Drive
1
1. Door lock/unlock button
3-15
2. Outside rearview mirror folding
switch*
3-36
3. Outside rearview mirror control
switch*
3-36
4. Power window switches*
3-21
5. Power window lock switch*
3-24
6. Central door lock switch
3-15
7. Headlight leveling device*
3-78
8. Instrument panel illumination
control switch*
3-39
9. ESC OFF switch *
5-36
10. Fuel filler door opener
3-28
11. Fuse box
7-64
12. Steering wheel
3-31
13. Seat
2-2
14. Brake pedal
5-30
15. Accelerator pedal
16. Hood release lever
3-26
* : if equipped
The actual shape may differ from the illustration.
OGS015002L
1-5
Your vehicle at a glance

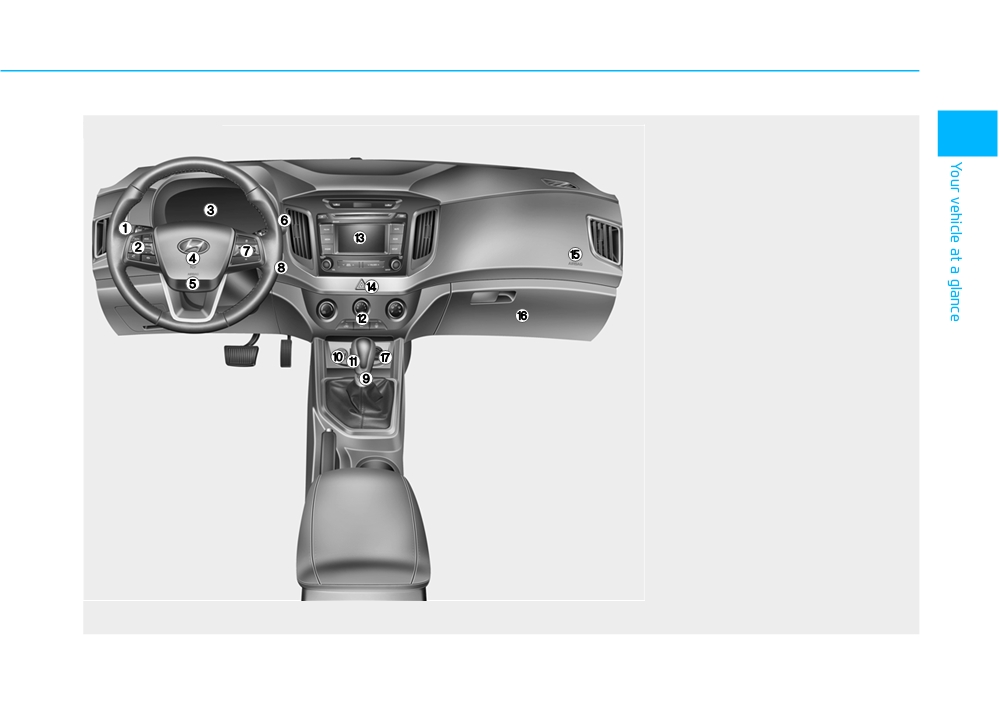

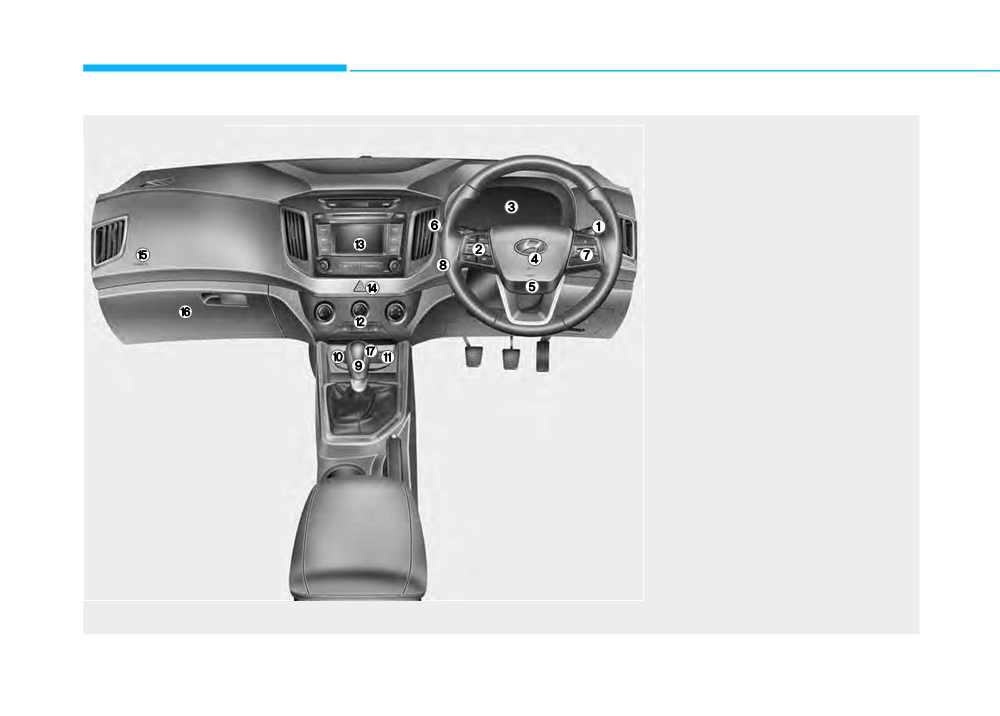

iNStrUMENt PANEL ovErviEw (i)
■ Right Hand Drive
1. Light control/Turn signals
3-74
2. Steering wheel audio controls*
4-4
3. Instrument cluster
3-38
4. Horn
3-32
5. Driver's front air bag*
2-43
6. Wiper/Washer
3-81
7. Trip mode switch*/Cruise control switch*
......................................................3-69/5-43
8. Engine Start/Stop button /
Key ignition switch
5-9/5-5
9. Transaxle Gear Shift lever
5-19
10. Power outlet
3-118
11. Cigarette lighter
3-115
12. Climate control system
3-88
13. Audio system*
4-18
14. Hazard switch
6-2
15. Passenger's front air bag*
2-43
16. Glove box
3-114
17. AUX, USB and iPod® port
4-2
* : if equipped
The actual shape may differ from the illustration.
OGS015003
1-6
iNStrUMENt PANEL ovErviEw (ii)
■ Left Hand Drive
1
1. Light control/Turn signals
3-74
2. Steering wheel audio controls*
4-4
3. Instrument cluster
3-38
4. Horn
3-32
5. Driver's front air bag*
2-42
6. Wiper/Washer
3-81
7. Trip mode switch*/Cruise control switch*
......................................................3-69/5-43
8. Engine Start/Stop button /
Key ignition switch
5-9/5-5
9. Transaxle Gear Shift lever
5-19
10. Cigarette lighter
3-115
11. AUX, USB and iPod® port
4-2
12. Climate control system
3-88
13. Audio system*
4-18
14. Hazard switch
6-2
15. Passenger's front air bag*
2-42
16. Glove box
3-114
17. Power outlet
3-118
* : if equipped
The actual shape may differ from the illustration.
OGS015003L
1-7
Your vehicle at a glance

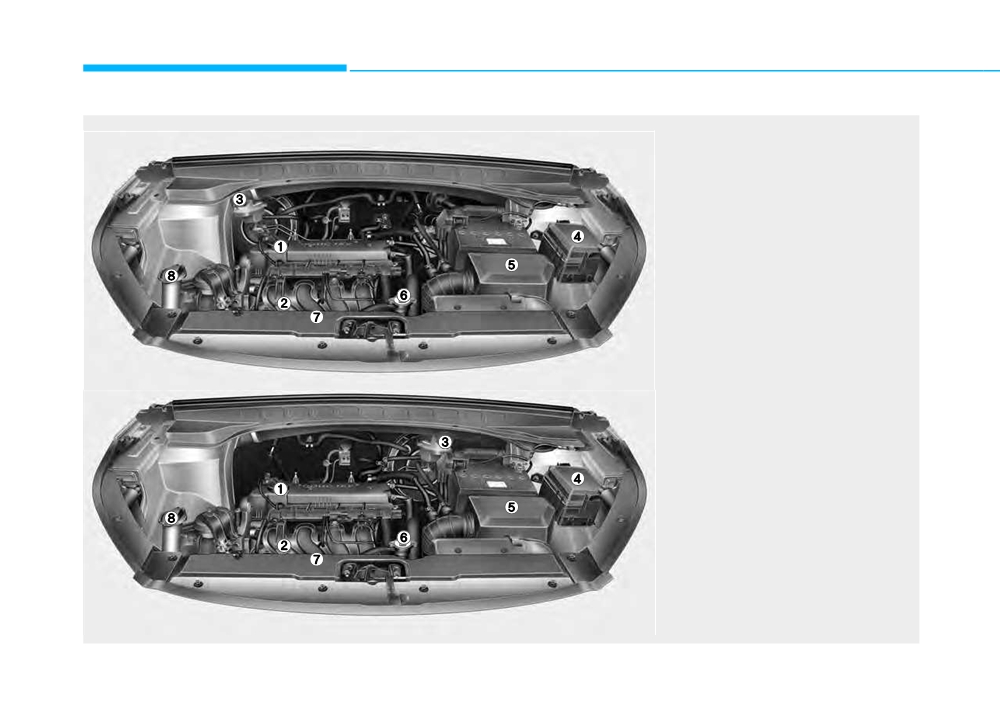

ENGiNE CoMPArtMENt (i)
■ Gasoline Engine (Gamma 1.6 MPI)
- Right Hand Drive
1. Engine oil filler cap
7-32
2. Engine oil dipstick
7-32
3. Brake/clutch* fluid reservoir
7-37
4. Fuse box
7-73
5. Air cleaner
7-41
- Left Hand Drive
6. Radiator cap
7-34
7. Engine coolant reservoir
7-35
8. Windshield washer fluid reservoir
7-39
* : if equipped
The actual engine room in the vehicle may differ from the illustration.
OGS075100/OGS075100L
1-8
ENGiNE CoMPArtMENt (ii)

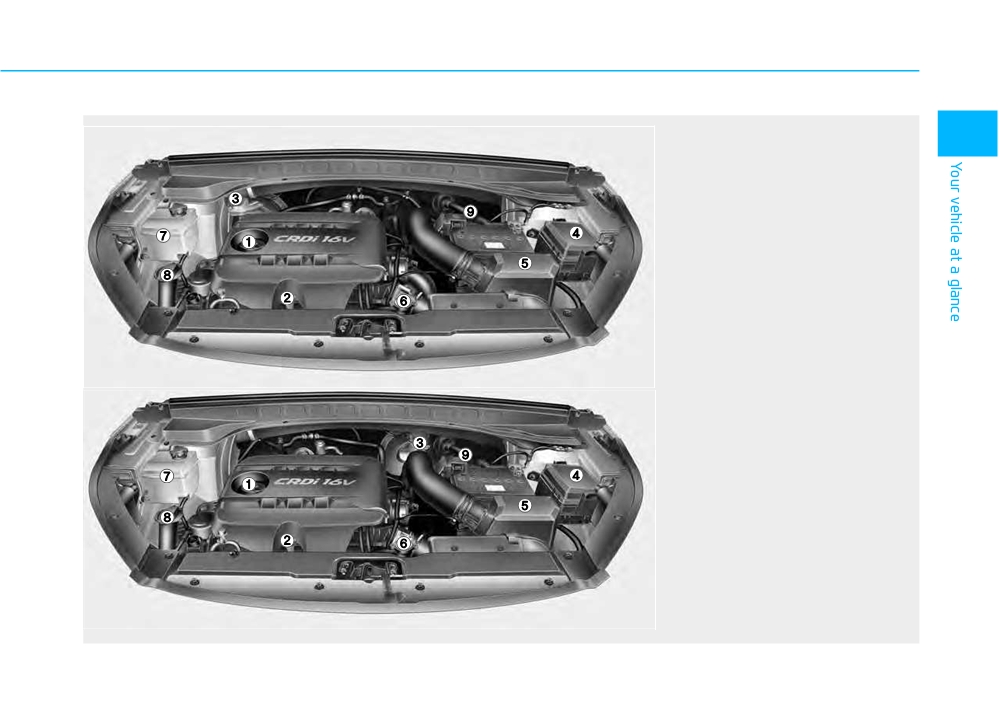

■ Diesel Engine (U2 1.4/1.6 TCI)
1
- Right Hand Drive
1. Engine oil filler cap
7-32
2. Engine oil dipstick
7-32
3. Brake/clutch* fluid reservoir
7-37
4. Fuse box
7-73
5. Air cleaner
7-41
6. Radiator cap
7-34
- Left Hand Drive
7. Engine coolant reservoir
7-35
8. Windshield washer fluid reservoir
7-39
9. Fuel filter
7-40
* : if equipped
The actual engine room in the vehicle may differ from the illustration.
OGS075001/OGS075001L
1-9
Safety system of your vehicle
Seats
2-2
Front seats
2-7
Rear seats
2-13
Seat belts
2-19
2
Pre-tensioner seat belt
2-25
Additional seat belt safety precautions
2-27
Care of seat belts
2-29
Child restraint system
2-31
Children always in the rear
2-31
Installing a Child Restraint System (CRS)
2-33
Air bag-supplemental restraint system(SRS) ..2-42
How does the air bag system operate
2-44
Do not install a child restraint on the
front passenger's seat
2-46
Air bag warning and indicator
2-47
SRS components and functions
2-47
Driver's and passenger's front air bag
2-51
Side impact air bag
2-54
Curtain air bag
2-55
SRS Care
2-62
Air bag warning label
2-64
Safety system of your vehicle
SEATS
■ Left-hand drive

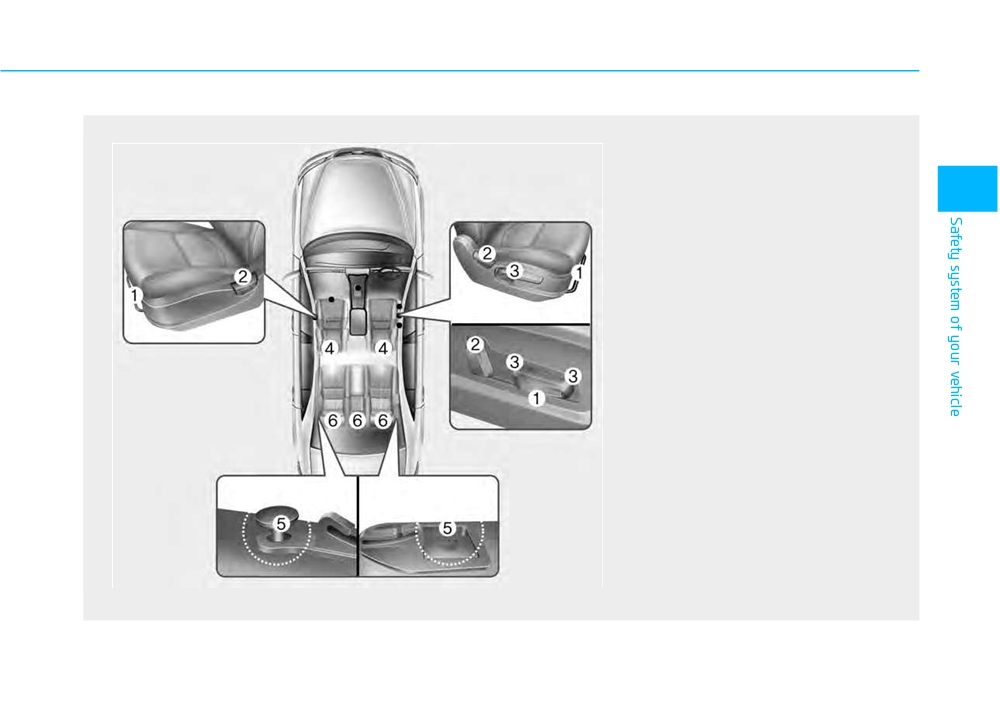

Front seats
1. Seat adjustment, forward/rearward
2. Seatback angle
3. Seat adjustment, height*
4. Headrest adjustment
Rear seats
5. Seat folding*
6. Headrest adjustment*
* : if equipped
■ Type A
■ Type B
The actual feature in the vehicle may differ from the illustration.
OGS035001L
2-2

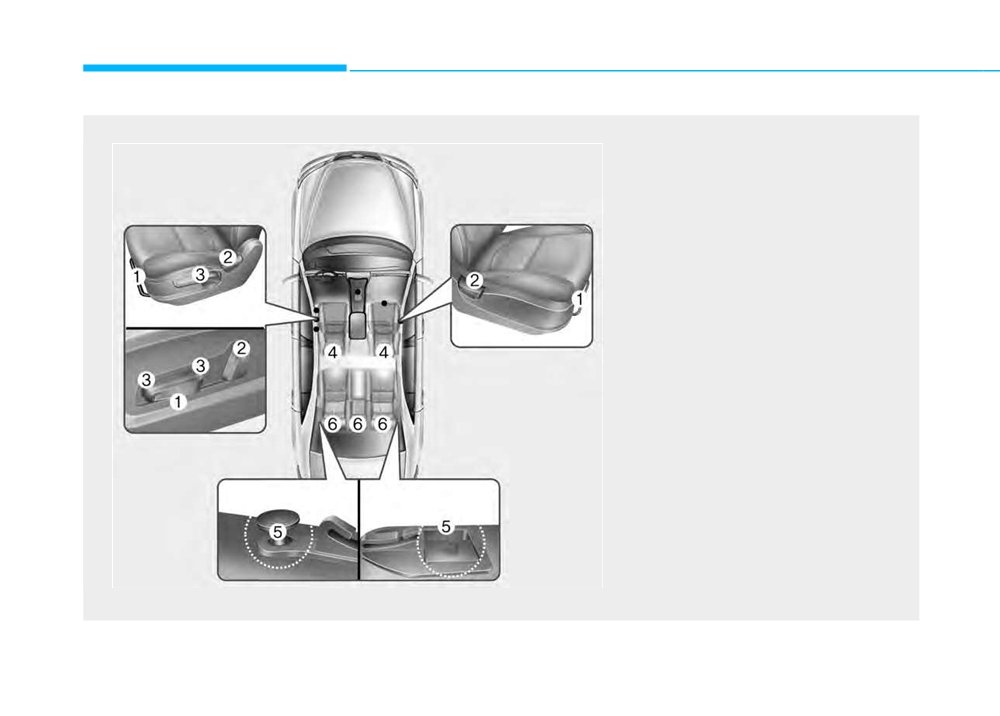

■ Right-hand drive
2
Front seats
1. Seat adjustment, forward/rearward
2. Seatback angle
3. Seat adjustment, height*
4. Headrest adjustment
Rear seats
5. Seat folding*
6. Headrest adjustment*
* : if equipped
■ Type A
■ Type B
The actual feature in the vehicle may differ from the illustration.
OGS035001
2-3
Safety system of your vehicle
WARNING
WARNING
WARNING
Driver responsibility for passengers
Do not use a sitting cushion that
Loose objects
reduces friction between the seat
Loose objects in the driver’s foot
Riding in a vehicle with seatback
and passenger. The passenger's
area could interfere with the oper-
reclined could lead to serious or
hips may slide under the lap por-
ation of the foot pedals, possibly
fatal injury in an accident. If a seat
tion of the seat belt during an acci-
causing an accident. Do not place
is reclined during an accident, the
dent or a sudden stop. Serious or
anything under the front seats.
occupant’s hips may slide under the
fatal internal injuries could result
lap portion of the seat belt applying
because the seat belt can't oper-
great force to the unprotected
ate normally.
abdomen. The protection of your
restraint system (seat belt and air
WARNING
bags) is greatly reduced by reclin-
ing your seat. Serious or fatal inter-
Uprighting seat
nal injuries could result. The driver
When you return the seatback to
must advise the passenger to keep
its upright position, hold the seat-
the seatback in an upright position
back and return it slowly and be
whenever the vehicle is in motion.
sure there are no other occupants
around the seat. If the seatback is
returned without being held and
controlled, the back of the seat
could move forward or backward
resulting in accidental injury to a
person struck by the seatback.
2-4
WARNING
(Continued)
WARNING
•
In order to avoid unnecessary
Driver’s seat
and perhaps severe air bag
Rear seatbacks
injuries, always sit as far back as
•
The rear seatback must be
2
•
Never attempt to adjust seat
possible from the steering wheel
while the vehicle is moving. This
securely latched. If not, passen-
while maintaining comfortable
gers and objects could be thrown
could result in loss of control, and
control of the vehicle.
forward resulting in serious injury
an accident causing death, seri-
or death in the event of a sudden
ous injury, or property damage.
stop or collision.
•
Do not allow anything to interfere
•
Luggage and other cargo should
with the normal position of the
be laid flat in the cargo area. If
seatback. Storing items against a
objects are large, heavy, or must
seatback or in any other way
be piled, they must be secured.
interfering with proper locking of
Under no circumstances should
a seatback could result in serious
cargo be piled higher than the
or fatal injury in a sudden stop or
seatbacks. Failure to follow these
collision.
warnings could result in serious
•
Always drive and ride with your
injury or death in the event of a
seatback upright and the lap por-
sudden stop, collision or rollover.
tion of the seat belt snug and low
•
No passenger should ride in the
across the hips. This is the best
cargo area or sit or lie on folded
position to protect you in case of
seatbacks while the vehicle is
an accident.
moving. All passengers must be
(Continued)
properly seated in seats and
restrained properly while riding.
(Continued)
2-5
Safety system of your vehicle
(Continued)
WARNING
WARNING
•
When resetting the seatback to
the upright position, make sure it is
After adjusting the seat, always
•
Do not adjust the seat while wear-
securely latched by pushing it for-
check that it is securely locked into
ing seat belts. Moving the seat
ward and backwards.
place by attempting to move the
cushion forward may cause
seat forward or backward without
strong pressure on the abdomen.
•
To avoid the possibility of burns,
using the lock release lever.
do not remove the carpet in the
•
Use extreme caution so that
Sudden or unexpected movement
cargo area. Emission control
hands or other objects are not
of the driver's seat could cause
devices beneath this floor gener-
caught in the seat mechanisms
you to lose control of the vehicle
ate high temperatures.
while the seat is moving.
resulting in an accident.
•
Do not put a cigarette lighter on
the floor or seat. When you oper-
ate the seat, gas may gush out of
the lighter and cause fire.
•
If there are occupants in the rear
seats, be careful while adjusting
the front seat position.
2-6

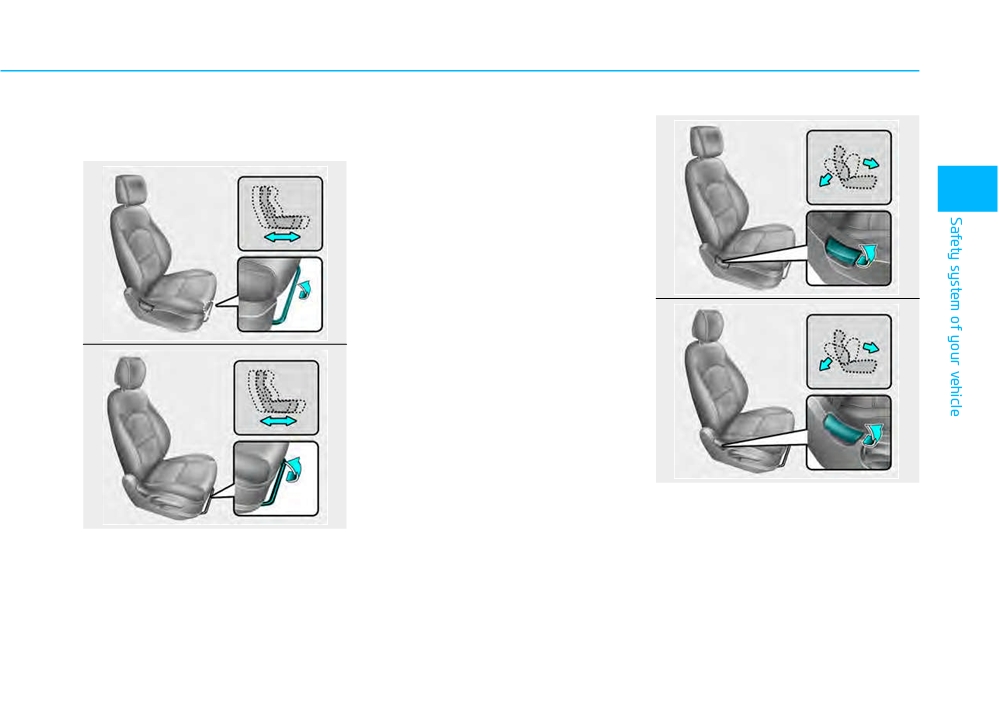

Front seats
2. Slide the seat to the position you
■ Type A
desire.
Manual adjustment
3. Release the lever and make sure
■ Type A
the seat is locked in place.
2
Adjust the seat before driving, and
make sure the seat is locked secure-
ly by trying to move forward and rear-
ward without using the lever. If the
seat moves, it is not locked properly.
OGS035022
■ Type B
OGS035002
■ Type B
OGS035004
Seatback angle
OGS035003
To recline the seatback:
Forward and rearward
1. Lean forward slightly and lift up on
the seatback recline lever.
To move the seat forward or rear-
ward:
2. Carefully lean back on the seat
and adjust the seatback of the
1. Pull the seat slide adjustment
seat to the position you desire.
lever up and hold it.
2-7
|
|
|
