Features of your vehicle
OLM043409E
OLM043411E
OLM043412E

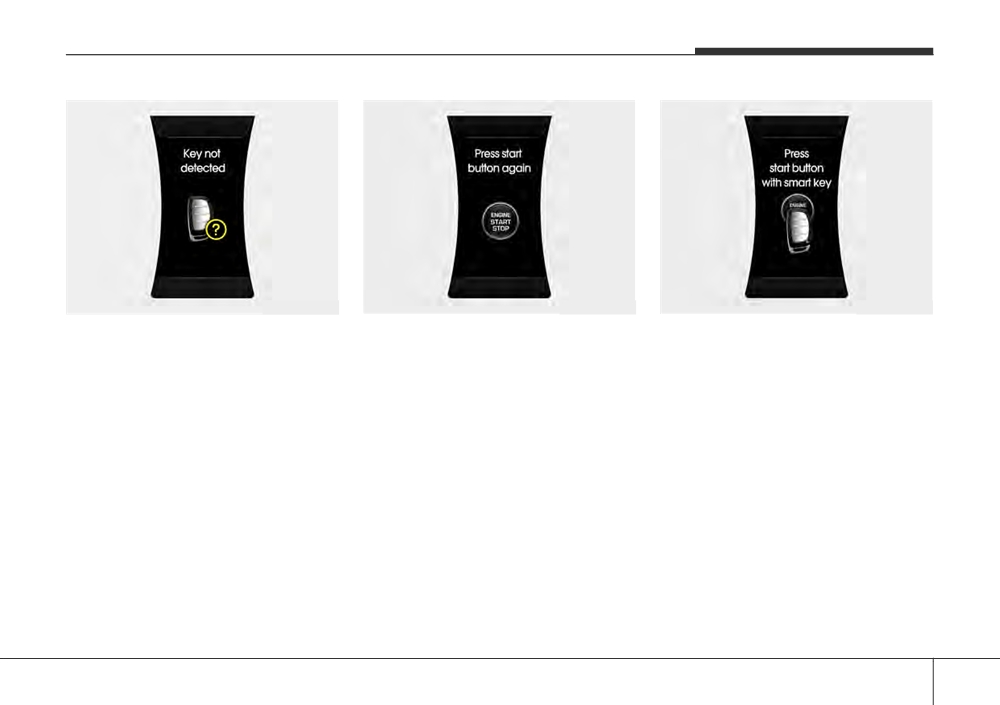

Key not detected
Press start button again
Press start button with smart key
(for smart key system)
(for smart key system)
(for smart key system)
• This warning message illuminates if
• This warning message illuminates if
• This warning message illuminates if
the smart key is not detected when you
you can not operate the Engine
you press the Engine Start/Stop Button
press the Engine Start/Stop Button.
Start/Stop Button when there is a prob-
whilst the warning message “Key not
lem with the Engine Start/Stop Button
detected” is illuminating.
system.
• At this time, the immobiliser indicator
• It means that you could start the
light blinks.
engine by pressing the Engine Start/
Stop Button once more.
• If the warning illuminates each time
you press the Engine Start/Stop
Button, we recommend that you have
the vehicle inspected by a HYUNDAI
authorised repairer.
4 61
Features of your vehicle
OLM043417E
OLM043414E
OLM043418

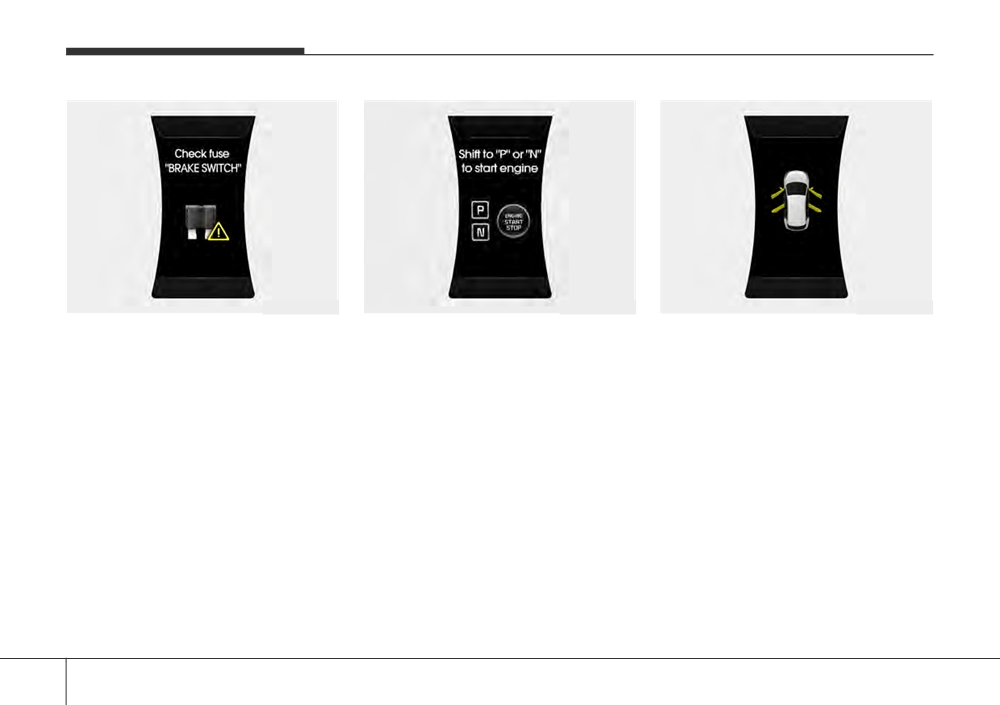

Check fuse "BRAKE SWITCH"
Shift to "P" or "N" to start engine
Door Open
(for smart key system and automatic
(for smart key system and automatic
• It means that any door is open.
transaxle)
transaxle)
• This warning message illuminates if
• This warning message illuminates if
the brake switch fuse is disconnected.
you try to start the engine with the shift
• It means that you should replace the
lever not in the P (Park) or N (Neutral)
fuse with a new one. If that is not pos-
position.
sible, you can start the engine by
pressing the Engine Start/Stop Button
✽ NOTICE
for 10 seconds in the ACC position.
You can start the engine with the shift
lever in the N (Neutral) position. But, for
your safety, we recommend that you start
the engine with the shift lever in the P
(Park) position.
4 62
Features of your vehicle
OLM043419
OLM043420
OLM043501N

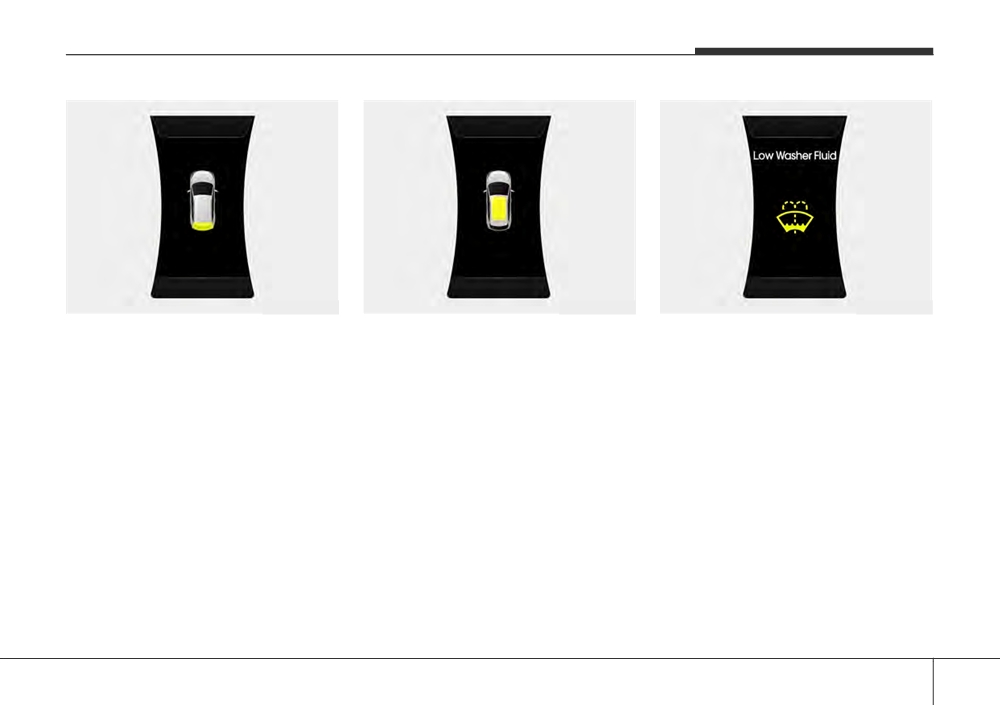

Tailgate Open
Sunroof Open (if equipped)
Low Washer Fluid (if equipped)
• It means that the tailgate is open.
• It means that the sunroof is open.
• This warning message illuminates on
the service reminder mode if the wash-
er fluid level in the reservoir is nearly
empty.
• It means that you should refill the
washer fluid.
4 63
Features of your vehicle
TRIP COMPUTER
■ Type A
✽ NOTICE
Trip Modes
Some driving information stored in the
Trip mode is changed as below whenev-
trip computer
(for example Average
er pushing the button shortly.
Vehicle Speed) resets if the battery is
- Type A : TRIP button
disconnected.
- Type B : [
]
• Type A (if equipped)
OEL043703
TRIP
Elapsed time
■ Type B
Distance
Average
to empty *
vehicle speed
Average fuel
Instant fuel
economy *
economy *
OEL043702
Overview
Description
* : if equipped
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving.
4 64
Features of your vehicle
• Type B (if equipped)
■ Type A
■ Type B
• The tripmeter is the total driving dis-
tance since the last tripmeter reset.
- Distance range: 0.0 ~ 9999.9 km or
mi.
Distance to empty /
• To reset the tripmeter, press Trip button
Average fuel economy /
(Type A : TRIP, Type B :
) for more
Instant fuel economy
than 1 second when the tripmeter is
displayed.
Tripmeter A /
Average Vehicle Speed (2)
• The average vehicle speed is calculat-
Average vehicle speed A /
ed by the total driving distance and
Elapsed time A
OLM049320/OEL049325/
driving time since the last average
OEL049326/OLM044403TU
vehicle speed reset.
Trip A/B
- Speed range: 0 ~ 999 km/h or MPH
Tripmeter B /
Tripmeter (1)
• To reset the average vehicle speed,
Average vehicle speed B /
• Type A
press the trip button (Type A : TRIP,
Elapsed time B
TRIP : Tripmeter
Type B :
) for more than 1 second
when the average vehicle speed is dis-
played.
• Type B
TRIP A :
❈ For controlling the LCD modes, refer
Tripmeter A→
: Mode changed
to "LCD Display Control" in this chap-
TRIP B :
ter.
Tripmeter B→
: Order changed
4 65
Features of your vehicle
✽ NOTICE
■ Type A
■ Type B
✽ NOTICE
• The average vehicle speed is not dis-
•
If the vehicle is not on level ground or
played if the driving distance is less
the battery power has been interrupt-
than 300 meters (0.186 miles) or the
ed, the distance to empty function may
driving time is less than 10 seconds
not operate correctly.
since the ignition switch or Engine
•
The distance to empty may differ
Start/Stop button is turned to ON.
from the actual driving distance as it
• Even if the vehicle is not in motion, the
is an estimate of the available driving
average vehicle speed keeps going
distance.
whilst the engine is running.
•
The trip computer may not register
additional fuel if less than 6 litres (1.6
Elapsed Time (3)
gallons) of fuel are added to the vehi-
• The elapsed time is the total driving
OLM049321/OEL049323/
cle.
OEL049324/OLM043402E
time since the last elapsed time reset.
•
The fuel economy and distance to
- Time range (hh:mm): 00:00 ~ 99:59
Fuel Economy
empty may vary significantly based on
driving conditions, driving habits, and
• To reset the elapsed time, press the
Distance To Empty (1)
condition of the vehicle.
trip button (Type A : TRIP, Type B :
)
• The distance to empty is the estimated
for more than
1 second when the
distance the vehicle can be driven with
elapsed time is displayed.
the remaining fuel.
- Distance range: 50 ~ 9999 km or 30 ~
✽ NOTICE
9999 mi.
Even if the vehicle is not in motion, the
• If the estimated distance is below 50 km
elapsed time keeps going whilst the
(30 mi.), the trip computer will display “--
engine is running.
-” as distance to empty.
4 66
Features of your vehicle
Average Fuel Economy (2)
Automatic reset
Instant Fuel Economy (3)
• The average fuel economy is calculat-
The average fuel economy will be
• This mode displays the instant fuel
ed by the total driving distance and fuel
cleared to zero (---) when the vehicle
economy during the last few seconds
consumption since the last average fuel
speed exceeds 1 km/h after refuelling
when the vehicle speed is more than
economy reset.
more than 6 litres (1.6 gallons).
10 km/h (6.2 MPH).
- Fuel economy range:
~ 99.9
0.0
- Fuel economy range:
L/100km or MPG
✽ NOTICE
Type A : 0 ~ 99.9 L/100 km or MPG
• The average fuel economy can be
Type B : 0 ~ 30 L/100 km or 0 ~ 50
The average fuel economy is not dis-
reset both manually and automatically.
played for more accurate calculation if
MPG
the vehicle does not drive more than 10
Manual reset
seconds or 50 meters (0.03 miles) since
To clear the average fuel economy manu-
the ignition switch or Engine Start/Stop
ally, press the trip button (Type A : TRIP,
button is turned to ON.
Type B :
) for more than 1 second
when the average fuel economy is dis-
played.
4 67
Features of your vehicle
Warnings and indicators
ECO Indicator Light
Air bag warning light
(if equipped)
ECO
(if equipped)
All warning lights are checked by turning
the ignition switch ON (do not start the
engine). If any light does not illuminate,
we recommend that the system be
This indicator light illuminates:
This warning light will illuminate for
checked by a HYUNDAI authorised
When you activate the active ECO sys-
approximately 6 seconds each time you
repairer.
tem by pressing the ACTIVE ECO button.
turn the ignition switch to the ON posi-
After starting the engine, check to make
tion.
sure that all warning lights are off. If any
This light also comes on when the SRS
For more details, refer to “Active ECO
are still on, this indicates a situation that
is not working properly. If the AIR BAG
System” in chapter 5.
needs attention. When releasing the
warning light does not come on, or con-
parking brake, the brake system warning
tinuously remains on after operating for
light should go off. The fuel warning light
about 6 seconds when you turned the
will stay on if the fuel level is low.
ignition switch to the ON position or start-
ed the engine, or if it comes on whilst
driving, we recommend that the system
be inspected by a HYUNDAI authorised
repairer.
4 68
Features of your vehicle
Anti-lock brake system
Electronic brake
✽ NOTICE
(ABS) warning light
force distribution
If the ABS warning light or EBD warn-
(if equipped)
(EBD) system
ing light is on and stays on, the
warning light
speedometer or odometer/tripmeter
This light illuminates if the ignition switch
may not work. Also, the EPS warning
is turned to ON and goes off in approxi-
If two warning lights illuminate at the
light may illuminate and the steering
mately 3 seconds if the system is operat-
same time whilst driving, your vehicle
effort may increase or decrease. In this
ing normally.
may have a malfunction with ABS and
case, we recommend that the system be
If the ABS warning light remains on,
EBD system.
checked by a HYUNDAI authorised
comes on whilst driving, or does not
In this case, your ABS and regular brake
repairer.
come on when the ignition switch is
system may not work normally. We rec-
turned to the ON position, this indicates
ommend that the system be checked by
that there may be a problem with the
a HYUNDAI authorised repairer.
ABS.
If this occurs, we recommend that the
WARNING
system be checked by a HYUNDAI
If the both ABS and Brake warning
authorised repairer. The normal braking
lights are on and stay on, your vehi-
system will still be operational, but with-
cle’s brake system will not work
out the assistance of the anti-lock brake
normally. So you may experience
system.
an unexpected and dangerous situ-
ation during sudden braking. In this
case, avoid high speed driving and
abrupt braking.
We recommend that the system be
checked by a HYUNDAI authorised
repairer.
4 69
Features of your vehicle
Seat belt warning and
Low Beam Indicator Light
Front fog light indicator
chime (if equipped)
(if equipped)
(if equipped)
Seat belt warning light
The indicator illuminates when the front
This indicator light illuminates when the
As a reminder to the driver, the seat belt
headlights are on.
fog lights are ON.
warning light will blink or illuminate for
approximately 6 seconds each time you
High beam indicator
Rear fog light indicator
turn the ignition switch ON regardless of
(if equipped)
belt fastening.
For details, refer to the seat belt on chap-
ter 3.
This indicator illuminates when the rear
This indicator illuminates when the head-
fog lights are ON.
lights are on and in the high beam posi-
Turn signal indicator lights
tion or when the turn signal lever is pulled
into the Flash-to-Pass position.
The blinking green arrows on the instru-
Light on indicator
ment panel show the direction indicated
(if equipped)
by the turn signals. If the arrow comes on
but does not blink, blinks more rapidly
than normal, or does not illuminate at all,
The indicator illuminates when the tail
a malfunction in the turn signal system is
lights or headlights are ON.
indicated. If this occurs, we recommend
that the system be checked by a
HYUNDAI authorised repairer.
This indicator also blinks when the haz-
ard warning switch is turned on.
4 70
Features of your vehicle
Engine oil pressure warn-
Engine oil level warning
ing
CAUTION
light (if equipped)
If the oil pressure warning light
stays on whilst the engine is run-
This warning light indicates the engine oil
ning, serious engine damage may
The engine oil level warning light illumi-
pressure is low.
result. The oil pressure warning
nates when the engine oil level should be
light comes on whenever there is
If the warning light illuminates whilst driv-
checked.
insufficient oil pressure. In normal
ing:
If the warning light comes on, check the
operation, it should come on when
1. Drive safely to the side of the road and
engine oil level as soon as possible and
the ignition switch is turned on,
stop.
add engine oil as required.
then go out when the engine is
2. With the engine off, check the engine
Slowly pour the recommended oil little by
started. If the oil pressure warning
oil level. If the level is low, add oil as
little into a funnel.
(Oil refill capacity
:
light stays on whilst the engine is
required.
approximately 0.6 ~ 1.0 l)
running, there is a serious malfunc-
If the warning light remains on after
tion.
Use only the specified engine oil. (Refer
adding oil or if oil is not available, we rec-
to "Recommended lubricants and capac-
If this happens, stop the car as
ommend that you call a HYUNDAI autho-
ities" in section 8.)
soon as it is safe to do so, turn off
rised repairer.
Do not overfill the engine oil to ensure
the engine and check the oil level. If
the oil level is low, fill the engine oil
the oil level is not above F mark on the
to the proper level and start the
dipstick.
CAUTION
engine again. If the light stays on
If the engine is not stopped immedi-
with the engine running, turn the
ately after the engine oil pressure
engine off immediately. In any
warning light is illuminated, severe
instance where the oil light stays on
damage could result.
when the engine is running, we rec-
ommend that the system be
checked by a HYUNDAI authorised
repairer.
4 71
Features of your vehicle
✽ NOTICE
Parking brake & brake
Your vehicle is equipped with dual-diago-
fluid warning
nal braking systems. This means you still
• If you travel approximately 50~100
have braking on two wheels even if one
km after the engine warms up, after
adding the engine oil, the warning
Parking brake warning
of the dual systems should fail. With only
one of the dual systems working, more
light will go off.
This light is illuminated when the parking
than normal pedal travel and greater
• Cycle the ignition from OFF to ON 3
brake is applied with the ignition switch in
pedal pressure are required to stop the
times within 10 seconds, the warning
the START or ON position. The warning
car. Also, the car will not stop in as short
light will go off immediately. However,
light should go off when the parking
a distance with only a portion of the
when you turn off the warning light
brake is released.
brake system working. If the brakes fail
without adding the engine oil, the light
whilst you are driving, shift to a lower
will come on again after travelling
Low brake fluid level warning
gear for additional engine braking and
approximately 50~100 km after the
If the warning light remains on, it may
stop the car as soon as it is safe to do so.
engine warms up.
indicate that the brake fluid level in the
To check bulb operation, check whether
reservoir is low.
the parking brake and brake fluid warning
CAUTION
If the warning light remains on:
light illuminates when the ignition switch
If the light comes on continuously
1. Drive carefully to the nearest safe
is in the ON position.
after adding the engine oil and trav-
location and stop your vehicle.
elling approximately
50~100 km
2. With the engine stopped, check the
WARNING
after the engine warms up, we rec-
brake fluid level immediately and add
ommend that the system be
Driving the vehicle with a warning
fluid as required. Then check all brake
checked by a HYUNDAI authorised
light on is dangerous. If the brake
components for fluid leaks.
repairer.
warning light remains on, we rec-
3. Do not drive the vehicle if leaks are
ommend that the system be serv-
Even if this light doesn't come on
found, the warning light remains on or
iced by a HYUNDAI authorised
after the engine has started, the
the brakes do not operate properly. We
repairer.
engine oil should be checked and
recommend that you contact a
supplied periodically.
HYUNDAI authorised repairer.
4 72
Features of your vehicle
TPMS (Tyre Pressure Monitoring
Auto stop indicator
System) indicator (if equipped)
WARNING - Safe stopping
(if equipped)
Low tyre pressure telltale
•
The TPMS cannot alert you to
severe and sudden tyre damage
caused by external factors.
This indicator will illuminate when the
•
If you feel any vehicle instability,
engine enters the Idle Stop mode of the
immediately take your foot off the
ISG (Idle Stop and Go) system.
Low tyre pressure position
accelerator, apply the brakes
When the automatic starting occurrs, the
telltale
gradually and with light force,
auto stop indicator on the cluster will
and slowly move to a safe posi-
blink for 5 seconds.
tion off the road.
The low tyre pressure telltale comes on
For more details, refer to the ISG (Idle
for 3 seconds after the ignition switch is
Stop and Go) system on the front of
turned to the "ON" position.
chapter 5.
The low tyre pressure and position tell-
tales illuminate when one or more of your
tyres is significantly underinflated.
✽ NOTICE
The low tyre pressure telltale will illumi-
When the engine automatically starts by
nate after it blinks for approximately one
the ISG system, some warning lights
minute when there is a problem with the
(ABS, ESC, ESC OFF, EPS or Parking
Tyre Pressure Monitoring System.
brake warning light) may turn on for a
If this occurs, we recommend that the
few seconds.
system be checked by a HYUNDAI
This happens because of the low battery
authorised repairer.
voltage. It does not mean the system is
malfunctioning.
For details, refer to the TPMS on chapter 6.
4 73
Features of your vehicle
Charging system warning
Door ajar warning light
Sunroof open warning light
(if equipped)
This warning light illuminates when a
If the driver removes the ignition key
This warning light indicates a malfunction
door is not closed securely with the igni-
(Smart key : turns off the engine) and
of either the generator or electrical
tion switch in any position.
opens the driver-side door when the sun-
charging system.
roof is not fully closed, the warning chime
If the warning light comes on whilst the
will sound for approximately 7 seconds
vehicle is in motion:
Tailgate open warning light
and Sunroof Open Warning Light illumi-
1. Drive to the nearest safe location.
nate or blink for approximately 7 sec-
2. With the engine off, check the genera-
onds.
tor drive belt for looseness or break-
Close the sunroof securely when leaving
age.
This warning light illuminates when the
your vehicle.
3. If the belt is adjusted properly, a prob-
tailgate is not closed securely with the
lem exists somewhere in the electrical
ignition switch in any position.
charging system. We recommend that
the system be checked by a HYUNDAI
Door open position indicator
authorised repairer.
(including tailgate)
This indicator illuminates when a door or
tailgate is not closed securely.
The indicator displays which door or tail-
gate is opened.
4 74
Features of your vehicle
Immobiliser indicator
With smart key system
Low fuel level warning
(if equipped)
If any of the following occurs in a vehicle
equipped with the smart key, the immo-
biliser indicator illuminates, blinks or
Without smart key system
goes off.
This warning light indicates the fuel tank
This indicator illuminates when the
•
When the battery of the smart key is
is nearly empty. When it comes on, you
immobiliser key is inserted and turned to
weak.
should add fuel as soon as possible.
the ON position to start the engine.
- At this time, you can not start the
Driving with the fuel level warning light on
At this time, you can start the engine. The
engine. However, you can start the
or with the fuel level below “E” can cause
engine if you press the Engine
the engine to misfire and damage the
indicator goes out after the engine is run-
Start/Stop Button with the smart key.
catalytic converter.
ning.
(For more details, refer to “Starting
If this indicator blinks when the ignition
the Engine” in section 5).
switch is in the ON position before start-
ing the engine, we recommend that the
•
If the indicator illuminates only for
2
system be checked by a HYUNDAI
seconds and goes out when the
authorised repairer.
ENGINE START/STOP button is
turned to ON position with the smart
key in the vehicle, we recommend that
the system be checked by a HYUNDAI
authorised repairer.
•
When the battery is weak, if the
ENGINE START/STOP button is
pressed, the indicator will blink and you
are not able to start the engine.
However, you are able to start the
engine by pressing the engine
start/stop button with the smart key.
Also, if the smart key system related
parts have a problem, the indicator will
blink.
4 75
Features of your vehicle
Malfunction indicator lamp
(MIL) (check engine light)
CAUTION
CAUTION - Diesel engine
Prolonged driving with the
(if equipped with DPF)
Emission
Control
System
When the malfunction indicator
This indicator light is part of the Engine
Malfunction Indicator Light illumi-
light is blinks, it may stop blinking
Control System which monitors various
nated may cause damage to the
after driving the vehicle at more
emission control system components. If
emission control systems which
than 37 mph (60km/h) or at more
this light illuminates whilst driving, it indi-
could effect drivability and/or fuel
than second gear with 1500 ~ 2000
cates that a potential problem has been
economy.
engine rpm for a certain time (for
detected somewhere in the emission
about 25 minutes).
control system.
If the malfunction indicator light
This light will also illuminate when the
continues to blink in spite of the
CAUTION - Petrol engine
ignition switch is turned to the ON posi-
procedure, we recommend that the
If the Emission Control System
tion, and will go out in a few seconds
system be checked by a HYUNDAI
Malfunction Indicator Light illumi-
after the engine is started. If it illuminates
authorised repairer.
nates, potential catalytic converter
whilst driving, or does not illuminate
If you continue to drive with the
damage is possible which could
when the ignition key is turned to the ON
malfunction indicator light blinking
result in loss of engine power. We
position, we recommend that the system
for a long time, the DPF system can
recommend that the system be
be checked by a HYUNDAI authorised
be damaged and fuel consumption
inspected by a HYUNDAI autho-
repairer.
can be worsen.
rised repairer.
Generally, your vehicle will continue to be
drivable, but we recommend that the sys-
tem be checked by a HYUNDAI autho-
CAUTION - Diesel engine
rised repairer.
If the Emission Control System
Malfunction Indicator Light blinks,
some error related to the injection
quantity adjustment occurs which
could result in loss of engine
power, combustion noise and poor
emission. We recommend that the
system be inspected by a HYUNDAI
authorised repairer.
4 76
Features of your vehicle
Indicator Lights
Electronic Stability Control
Cruise indicator
(ESC) OFF Indicator Light
(if equipped)
Electronic Stability Control
(if equipped)
(ESC) Indicator Light
CRUISE indicator
(if equipped)
This indicator light illumi-
The indicator illuminates when the cruise
nates:
This indicator light illumi-
control system is enabled.
nates:
• Once you set the ignition switch or
The cruise indicator in the instrument
• Once you set the ignition switch or
Engine Start/Stop Button to the ON
cluster is illuminated when the cruise
Engine Start/Stop Button to the ON
position.
control ON-OFF button on the steering
position.
- It illuminates for approximately 3 sec-
wheel is pushed.
onds and then goes off.
The indicator goes off when the cruise
- It illuminates for approximately 3 sec-
• When you deactivate the ESC system
control ON-OFF button is pushed again.
onds and then goes off.
by pressing the ESC OFF button.
For more information about the use of
• When there is a malfunction with the
cruise control, refer to
“Cruise control
ESC system.
system” in section 5.
In this case, we recommend that you
For more details, refer to
“Electronic
have the vehicle inspected by a
Stability Control (ESC)” in chapter 5.
Cruise SET indicator
HYUNDAI authorised repairer.
SET
This indicator light blinks:
Whilst the ESC is operating.
The indicator illuminates when the cruise
control switch (-SET or RES+) is ON.
For more details, refer to
“Electronic
The cruise SET indicator in the instru-
ment cluster is illuminated when the
Stability Control (ESC)” in chapter 5.
cruise control switch (-SET or RES+) is
pushed.
The cruise SET indicator does not illumi-
nate when the cruise control switch
(CANCEL) is pushed or the system is
disengaged.
4 77
