Hyundai ix35 (2016 year). Instruction - part 1

Introduction

INDICATOR SYMBOLS ON THE INSTRUMENT CLUSTER

Door ajar warning light

ESC indicator*

Immobiliser indicator*

Door and tailgate open position

ESC OFF indicator*

Cruise indicator*

light

Tailgate open warning light

ABS warning light

Cruise SET indicator*

Sunroof open warning light

Air bag warning light

Low fuel level warning light

Parking brake & Brake fluid

Electric power steering (EPS)

Seat belt warning light

warning light

system warning light*

Engine oil pressure warning

Low beam indicator*

Shift pattern indicator*

light

Manual transaxle shift indicator*/

High beam indicator

Engine oil level warning light*

Auto transaxle shift indicator*

Front fog light indicator*

4WD system warning light*

Glow indicator (Diesel only)

Fuel filter warning light

Rear fog light indicator*

4WD LOCK indicator*

(Diesel only)

Light on indicator*

Charging system warning light

DBC indicator*

KEY

Turn signal indicator

Malfunction indicator*

Key out warning*

OUT

1 6

Introduction

Low tyre pressure telltale*

Engine coolant temperature

warning light

Low tyre pressure position

telltale*

ECO

ECO indicator*

Auto stop for ISG system

indicator*

*: if equipped

❈: For more detailed explanations, refer

to section 4, “Instrument cluster”.

1 7

Your vehicle at a glance

INTERIOR OVERVIEW

1. Door lock/unlock button

4-16

2. Power window switches*

4-21

3. Central door lock switch*

4-16

4. Power window lock switch*

4-24

5. Outside rearview mirror control

switch*

4-44

6. Outside rearview mirror folding

button*

4-45

7. Fuel filler lid release lever

4-27

8. Instrument panel illumination

control switch*

4-47

9.4WD Lock button*

5-29

10. Idle Stop and Go system OFF

button*

5-17

11. Heated steering wheel button*

4-35

12. DBC button*

5-46

13. ESC OFF button*

5-41

14. Fuse box

7-44

15. Steering wheel

4-34

16. Seat

3-2

17. Brake pedal

5-35

18. Accelerator pedal

19. Bonnet release lever

4-25

* : if equipped

❈ The actual shape may differ from the illustration.

OEL013001R-1

2 2

Your vehicle at a glance

INSTRUMENT PANEL OVERVIEW

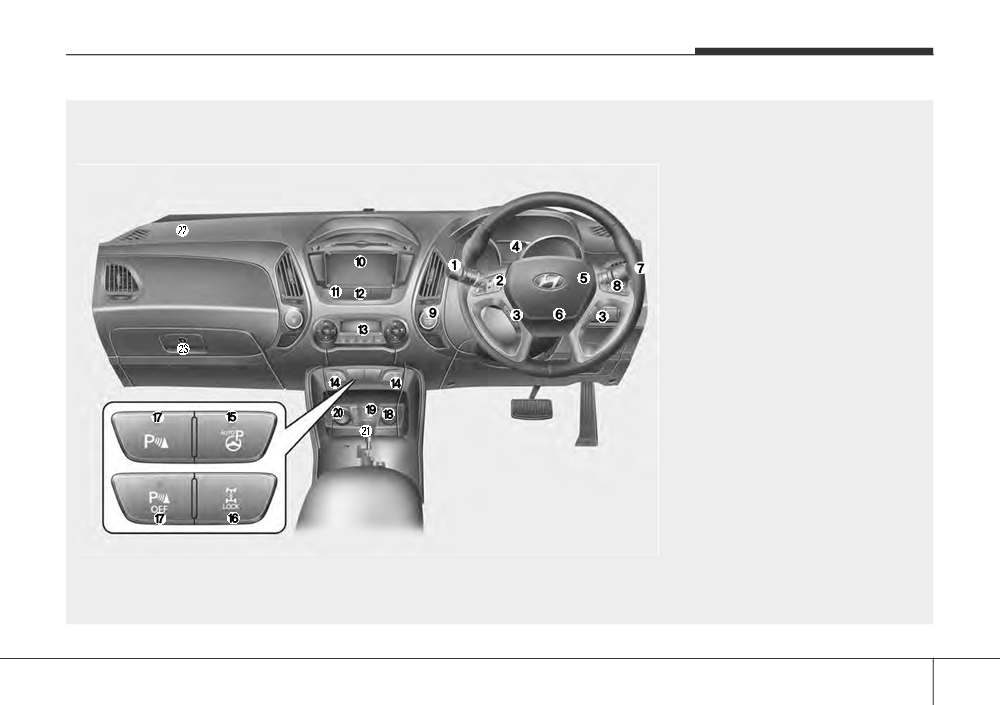

1. Light control/Turn signals

4-100

2. Steering wheel audio controls*

4-146

3. Bluetooth phone controls*

4-179, 232

4. Instrument cluster

4-46

5. Horn

4-36

6. Driver’s front air bag

3-50

7. Wiper/Washer

4-106

8. Auto cruise controls*

5-50

9. Engine start/stop button*

5-9

10.Digital clock and Audio/AVN*

....................................................4-140

11. Passenger’s front air bag ON/OFF

indicator*

3-47

12. Hazard warning flasher switch

4-98

13. Climate control system*

4-115, 124

14. Seat warmer*

3-11

15. Smart parking assist system ON/OFF

button*

4-92

16.4WD Lock button*

5-29

17. Parking assist system ON/OFF

button*

4-81

18. Cigarette lighter*

4-137

19. AUX, USB*

4-140

20. Power outlet*

4-139

21. Shift lever

5-19, 5-22

22. Passenger’s front air bag*

3-50

23. Glove box

4-134

❈ The actual shape may differ from the illustration.

* : if equipped

OEL013002R-1

2 3

Your vehicle at a glance

ENGINE COMPARTMENT

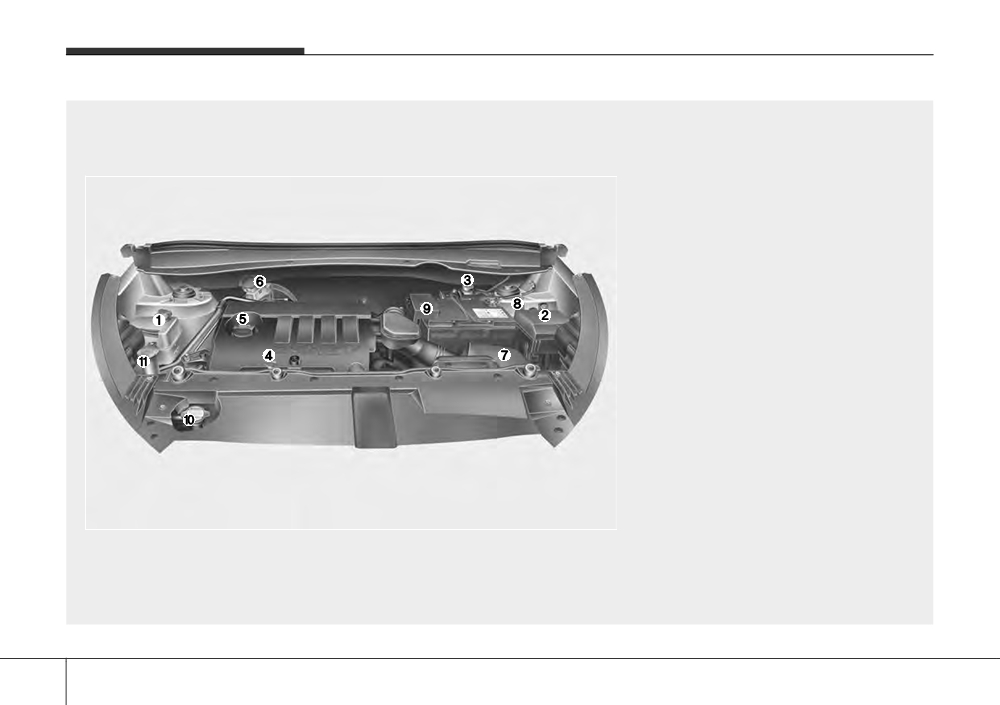

■ Petrol Engine (1.6L)

1. Engine coolant reservoir

7-17

2. Engine oil filler cap

7-15

3. Brake/clutch* fluid reservoir

7-19

4. Air cleaner

7-23

5. Fuse box

7-44

6. Negative battery terminal

7-30

7. Positive battery terminal

7-30

8. Radiator cap

7-18

9. Engine oil dipstick

7-15

10. Windscreen washer fluid

reservoir

7-20

* : if equipped

❈ The actual engine room in the vehicle may differ from the illustration.

OEL070301R

2 4

Your vehicle at a glance

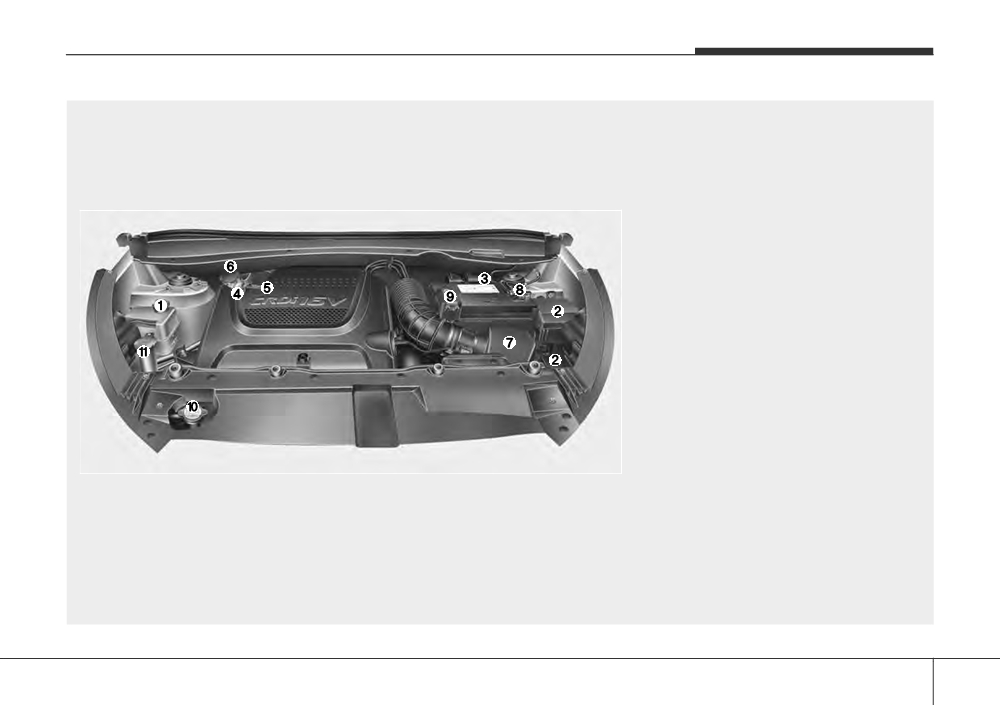

■ Petrol Engine (2.0L) - MPI/GDI

1. Engine coolant reservoir

7-17

2. Engine oil filler cap

7-15

3. Brake/clutch* fluid reservoir

7-19

4. Air cleaner

7-23

5. Fuse box

7-44

6. Negative battery terminal

7-30

7. Positive battery terminal

7-30

8. Radiator cap

7-18

9. Engine oil dipstick

7-15

10. Windscreen washer fluid

reservoir

7-20

* : if equipped

❈ The actual engine room in the vehicle may differ from the illustration.

OEL073300R

2 5

Your vehicle at a glance

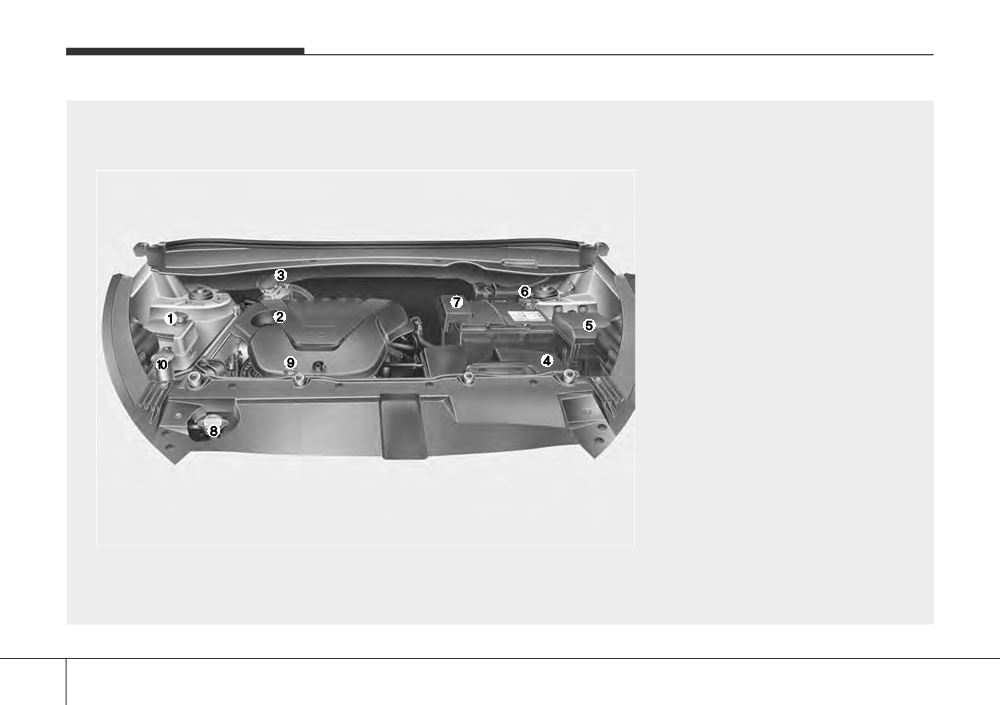

■ Diesel Engine (1.7L)

1. Engine coolant reservoir

7-17

2. Fuse box

7-44

3. Fuel filter

7-21

4. Engine oil dipstick

7-15

5. Engine oil filler cap

7-15

6. Brake/clutch* fluid reservoir

7-19

7. Air cleaner

7-23

8. Negative battery terminal

7-30

9. Positive battery terminal

7-30

10. Radiator cap

7-18

11. Windscreen washer fluid

reservoir

7-20

* : if equipped

❈ The actual engine room in the vehicle may differ from the illustration.

OEL070302R

2 6

Your vehicle at a glance

■ Diesel Engine (2.0L)

1. Engine coolant reservoir

7-17

2. Fuse box

7-44

3. Fuel filter

7-21

4. Engine oil dipstick

7-15

5. Engine oil filler cap

7-15

6. Brake/clutch* fluid reservoir

7-19

7. Air cleaner

7-23

8. Negative battery terminal

7-30

9. Positive battery terminal

7-30

10. Radiator cap

7-18

11. Windscreen washer fluid

reservoir

7-20

* : if equipped

❈ The actual engine room in the vehicle may differ from the illustration.

OLM079002R

2 7

Safety features of your vehicle

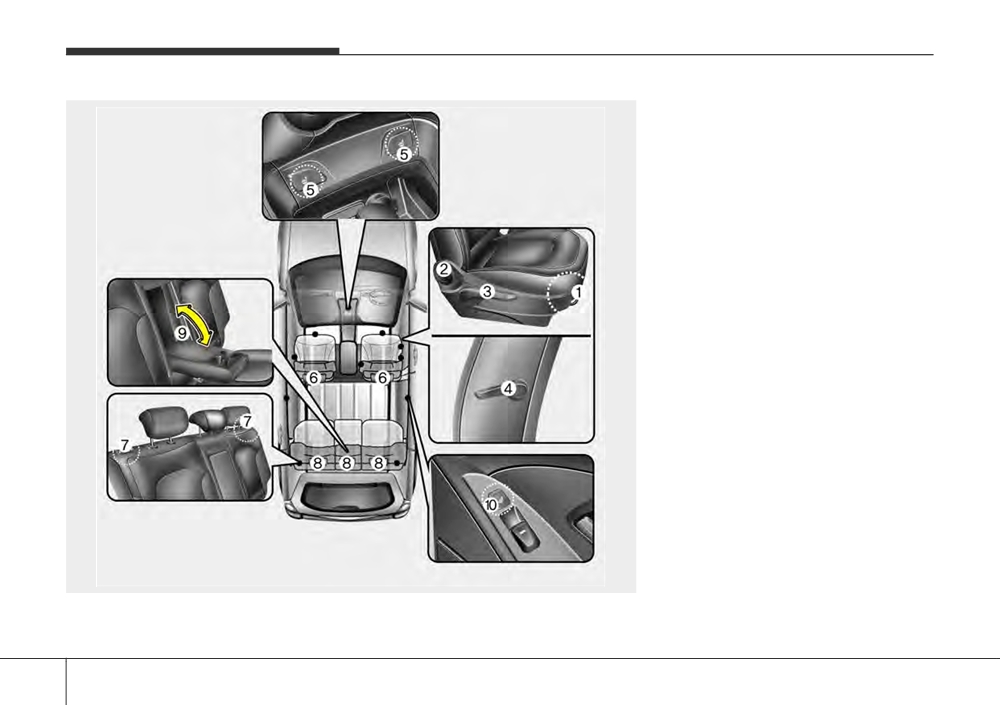

SEAT

Front seat

(1) Forward and backward

(2) Seatback angle

(3) Seat cushion height (Driver’s seat)

(4) Lumbar support (Driver’s seat)*

(5) Seat warmer*

(6) Head restraint

Rear seat

(7) Seatback folding

(8) Head restraint

(9) Armrest

(10) Seat warmer*

* if equipped

OEL039001R

3 2

Safety features of your vehicle

WARNING - Loose objects

WARNING - Driver respon-

WARNING - Driver’s seat

Loose objects in the driver’s foot

sibility for front seat pas-

• Never attempt to adjust seat

area could interfere with the opera-

senger

whilst the vehicle is moving. This

tion of the foot pedals, possibly

Riding in a vehicle with a front seat-

could result in loss of control,

causing an accident. Do not place

back reclined could lead to serious

and an accident causing death,

anything under the front seats.

or fatal injury in an accident. If a

serious injury, or property dam-

age.

front seat is reclined during an

accident, the occupant’s hips may

• Do not allow anything to interfere

slide under the lap portion of the

with the normal position of the

WARNING - Uprighting

seat belt applying great force to the

seatback. Storing items against a

seat

unprotected abdomen. Serious or

seatback or in any other way

When you return the seatback to its

interfering with proper locking of

fatal internal injuries could result.

upright position, hold the seatback

a seatback could result in serious

The driver must advise the front

and return it slowly and be sure

passenger to keep the seatback in

or fatal injury in a sudden stop or

there are no other occupants

an upright position whenever the

collision.

around the seat. If the seatback is

vehicle is in motion.

• Always drive and ride with your

returned without being held and

seatback upright and the lap por-

controlled, the back of the seat

tion of the seat belt snug and low

could spring forward resulting in

across the hips. This is the best

accidental injury to a person struck

WARNING

position to protect you in case of

by the seatback.

Do not use a sitting cushion that

an accident.

reduces friction between the seat

• In order to avoid unnecessary

and passenger. The passenger's

and perhaps severe air bag

hips may slide under the lap por-

injuries, always sit as far back as

tion of the seat belt during an acci-

possible from the steering wheel

dent or a sudden stop. Serious or

whilst maintaining comfortable

fatal internal injuries could result

control of the vehicle. It is recom-

because the seat belt can't operate

mended that your chest is at least

normally.

10 inches (250 mm) away from

the steering wheel.

3 3

Safety features of your vehicle

WARNING - Rear seatbacks

WARNING

WARNING

•

The rear seatback must be

After adjusting the seat, always

•

Do not adjust the seat whilst

securely latched. If not, passen-

check that it is securely locked into

wearing seat belts. Moving the

gers and objects could be thrown

place by attempting to move the

seat cushion forward may cause

forward resulting in serious

seat forward or reverse without

strong pressure on the abdomen.

injury or death in the event of a

using the lock release lever.

•

Use extreme caution so that

sudden stop or collision.

Sudden or unexpected movement

hands or other objects are not

•

Luggage and other cargo should

of the driver's seat could cause you

caught in the seat mechanisms

be laid flat in the cargo area. If

to lose control of the vehicle result-

whilst the seat is moving.

objects are large, heavy, or must

ing in an accident.

•

Do not put a cigarette lighter on

be piled, they must be secured.

the floor or seat. When you oper-

Under no circumstances should

ate the seat, gas may gush out of

cargo be piled higher than the

the lighter and cause fire.

seatbacks. Failure to follow these

•

If there are occupants in the rear

warnings could result in serious

seats, be careful whilst adjusting

injury or death in the event of a

the front seat position.

sudden stop, collision or rollover.

•

Use extreme caution when pick-

•

No passenger should ride in the

ing small objects trapped under

cargo area or sit or lie on folded

the seats or between the seat and

seatbacks whilst the vehicle is

the centre console. Your hands

moving. All passengers must be

might be cut or injured by the

properly seated in seats and

sharp edges of the seats mecha-

restrained properly whilst riding.

nism.

•

When resetting the seatback to

the upright position, make sure it

is securely latched by pushing it

forward and reverse.

3 4

Safety features of your vehicle

OEL039002/H

OEL039003/H

OEL039004/H

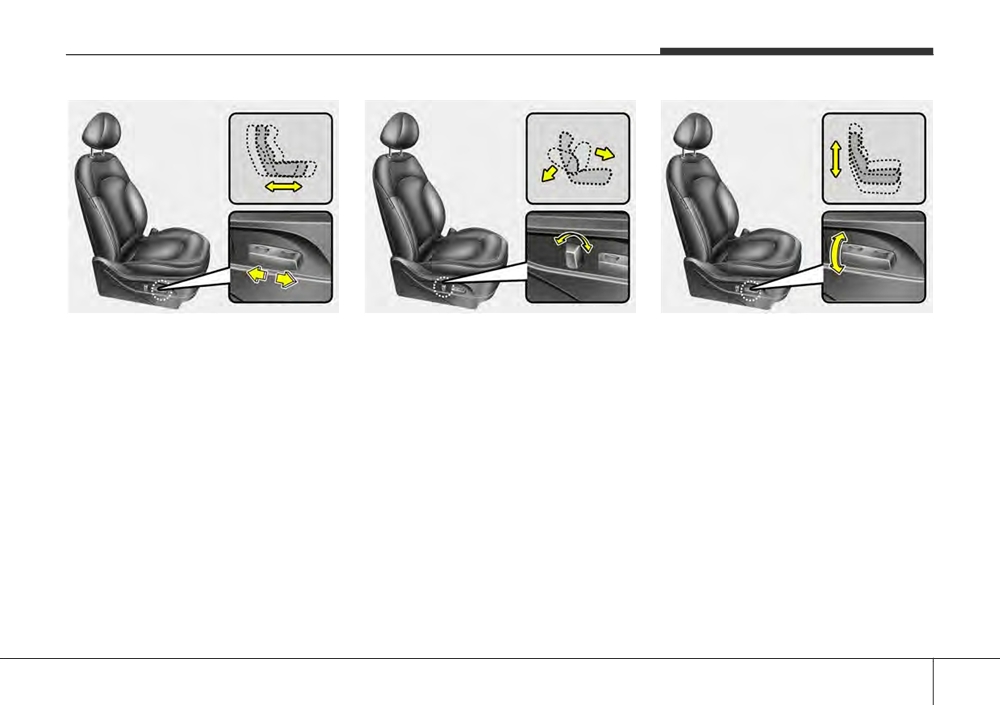

Front seat

Adjusting the seatback recliner

Seat cushion height

To recline the seatback, rotate the knob

(for driver’s seat, if equipped)

Manual adjustment

forward or rearward to the desired angle.

To change the height of the seat cushion,

Forward and backward

push the lever upwards or downwards.

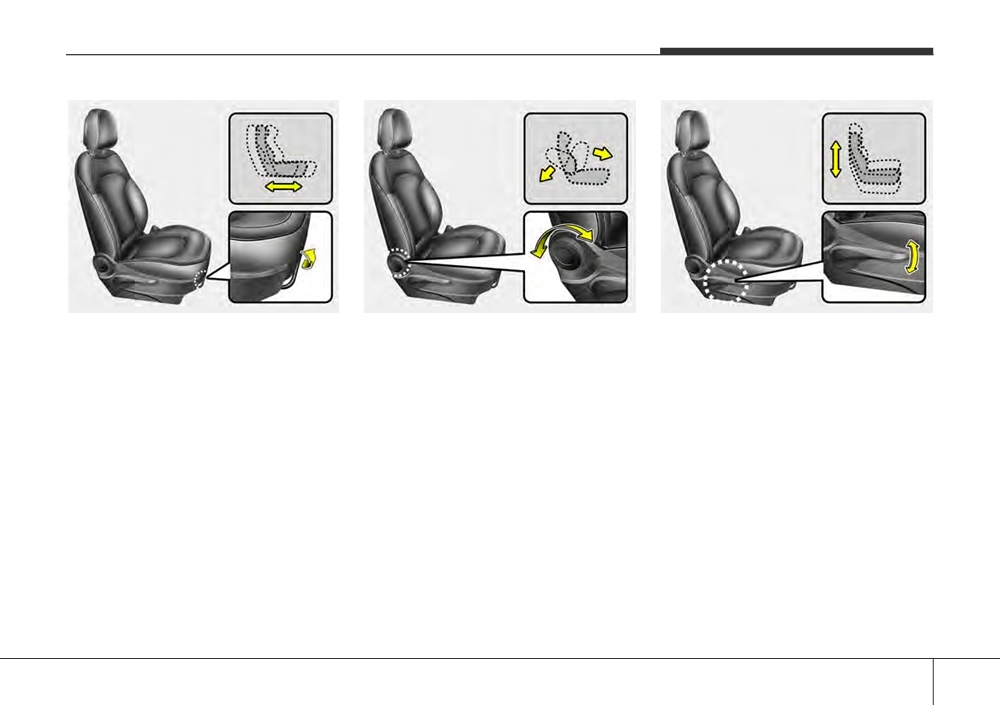

To move the seat forward or backward:

• To lower the seat cushion, push down

1. Pull the seat slide adjustment lever up

the lever several times.

and hold it.

• To raise the seat cushion, pull up the

2. Slide the seat to the position you

lever several times.

desire.

3. Release the lever and make sure the

seat is locked in place.

Adjust the seat before driving, and make

sure the seat is locked securely by trying

to move forward and backward without

using the lever. If the seat moves, it is not

locked properly.

3 5

Safety features of your vehicle

Automatic adjustment (if equipped)

The front seat can be adjusted by using

CAUTION

the control switches located on the out-

•

The power seat is driven by an

side of the seat cushion. Before driving,

electric motor. Stop operating

adjust the seat to the proper position so

once the adjustment is complet-

as to easily control the steering wheel,

ed. Excessive operation may

pedals and switches on the instrument

damage the electrical equipment.

panel.

•

When in operation, the power

seat consumes a large amount of

electrical power. To prevent

WARNING

unnecessary charging system

The power seat is operable with the

drain, don’t adjust the power seat

OEL039005/H

ignition OFF.

longer than necessary whilst the

Therefore, children should never be

engine is not running.

Lumbar support (if equipped)

left unattended in the vehicle.

•

Do not operate two or more power

The lumbar support can be adjusted by

seat control switches at the same

moving the lever on the side of seatback.

time. Doing so may result in

Pivoting the lever increases or decreases

lumbar support.

power seat motor or electrical

component malfunction.

3 6

Safety features of your vehicle

OLM039006/H

OLM039007/H

OLM039008/H

Forward and backward

Seatback angle

Seat height (for driver’s seat)

Push the control switch forward or back-

Push the control switch forward or back-

Pull the control switch up to raise or

ward to move the seat to the desired

ward to move the seatback to the desired

down to lower the seat cushion. Release

position. Release the switch once the

angle. Release the switch once the seat

the switch once the seat reaches the

seat reaches the desired position.

reaches the desired position.

desired position.

3 7

Content   ..  1  2  3   ..
