SA010A1-E
OWNER'S MANUAL
Operation
Maintenance
Specifications
The information in this Owner's Manual is current at the time of publica-
tion. However, the right to amend specifications without notice or
obligation to incorporate such amendments into vehicles already pro-
duced is reserved.
This manual applies to all markets and includes descriptions and expla-
nations of optional as well as standard equipment. As a result, some of
the equipment operating descriptions referred to may not apply to the
particular vehicle with which this manual is supplied.
Please refer to the nearest Hyundai authorised repairer for information
regarding current standard and optional equipment levels.
F
SA020A1-E
Responsibilty For Maintenance
It is the responsibility of the vehicle owner/driver to ensure that all routine mainte-
nance services are undertaken in line with the recommendations specified in Section
5 of this manual. In addition, in order to ensure continued validity of the new vehicle
warranty and safe operation of the vehicle, non scheduled maintenance/running
repairs should be undertaken at the earliest available opportunity.
Under severe operating conditions, more frequent maintenance is required. Details
of the maintenance schedule for such conditions are also given in section 5.
It is recommended that all maintenance operations and repairs are entrusted to a
Hyundai authorised repairer to ensure that the latest repair methods, specialised tooling
and genuine Hyundai parts are used to ensure the continued reliability and safety of the
vehicle.
F2
SA030A1-E
FOREWORD
Hyundai Motor Company wish to take this opportunity to thank you for purchasing a Hyundai product and to
welcome you to the ever increasing number of discriminating motorists who drive Hyundai vehicles. The
advanced engineering and construction methods employed during both design and production of the Hyundai
marque are something of which we are proud, and this commitment to providing a high quality product is
supported by a comprehensive after sales and warranty service of which we are equally proud.
This owner's manual will introduce the operating and maintenance requirements for the vehicle and it is
recommended that it is carefully read to ensure that the maximum performance and durability along with safe
and satisfactory operation are obtained. The recommended routine maintenance servicing along with any
running repairs that may be required should be entrusted to a Hyundai authorised repairer to ensure that only the
latest methods and genuine Hyundai replacement parts are used for the continued reliability, safety and
performance of the vehicle.
Should any question or query exist regarding any aspect of your Hyundai please contact the nearest Hyundai
authorised repairer who will be only too pleased to assist wherever possible.
Note: This owners manual should be considered as part of the vehicle and should be kept in the vehicle at
all times for ease of reference.
In the event of the vehicle being sold please ensure that this manual is left in the vehicle for the reference of
the new owner.
!
CAUTION:
Severe engine and transaxle damage may result from the use of poor quality fuels and lubricants that
do not meet Hyundai specifications. You must always use high quality fuels and lubricants that meet
the specifications listed on Page 9-4 in the Vehicle Specifications section of the Owner's Manual.
Copyright 2008 Hyundai Motor Company. All rights reserved. No part of this publication may be reproduced,
stored in any retrieval system or transmitted in any form or by any means without the prior written permission
of Hyundai Motor Company.
F3
SA040A1-E
CAUTION: MODIFICATIONS TO ORIGINAL VEHICLE
!
SPECIFICATION
Modification to the original vehicle specification may invalidate the manufacturers
warranty and may adversely affect the safety and durability of the vehicle.
Components which are subject to modification or are added to the original vehicle
specification without the express approval of the manufacturer and result in conse-
quential loss or damage are not covered by the vehicle manufacturers warranty.
SA050A1-E
TWO WAY RADIO INSTALLATION
This vehicle is fitted with electronically controlled fuel injection or other micro
processor controlled equipment.
It is possible for incorrectly installed two way radio equipment including mobile
telephones to adversely affect these systems.
Before radio equipment of this kind is installed, please contact your Hyundai authorised
repairer for recommendation regarding the suitability of the particular radio equipment
concerned and the recommended method of installation and equipment location.
Incorrectly installed or unsuitable equipment which gives rise to incorrect functioning
of or damage to electronic vehicle components will not fall within the scope of the
vehicle manufacturers warranty.
F4
A090A01A-AAT
SAFETY AND VEHICLE DAMAGE WARNING
This manual includes information titled as WARNING, CAUTION and NOTE.
These titles indicate the following:
!
WARNING:
This indicates that a condition may result in harm, serious injury or death to
you or other persons if the warning is not heeded. Follow the advice provided
with the warning.
!
CAUTION:
This indicates that a condition may result in damage to your vehicle or its
equipment if the caution is not heeded. Follow the advice provided with the
caution.
NOTE:
This indicates that interesting or helpful information is being provided.
F5
A100A01L-EAT
requirements. Using imitation, counter-
The export specifications are written in
GUIDE TO HYUNDAI GENUINE
feit or used salvage parts is not covered
English only.
PARTS
under the Hyundai New Vehicle Limited
Hyundai Genuine Parts are only sold
Warranty or any other Hyundai war-
through Hyundai authorised repairers.
1. What are Hyundai Genuine
ranty. In addition, any damage to or
Parts?
failure of Genuine Hyundai Parts caused
Hyundai Genuine Parts are the same
by the installation or failure of an imita-
parts used by Hyundai Motor Com-
tion, counterfeit or used salvage part is
pany to manufacture vehicles. They
not covered by Hyundai Motor Com-
are designed and tested for the opti-
pany.
mum safety, performance, and reli-
ability to our customers.
3. How can you tell if you are
purchasing Hyundai Genuine
2. Why should you use genuine
Parts?
parts?
Look for the Hyundai Genuine Parts
Logo on the package (see below).
Hyundai Genuine Parts are engineered
and built to meet rigid manufacturing
A100A03L
A100A01L
A100A02L
A100A04L
F6
TABLE OF CONTENTS
CONTROLS AND EQUIPMENT
1
DRIVING YOUR HYUNDAI
2
IN CASE OF EMERGENCY
3
APPEARANCE CARE
4
VEHICLE MAINTENANCE REQUIREMENTS
5
SECTION
OWNER MAINTENANCE
6
EMISSION CONTROL SYSTEMS
7
CONSUMER INFORMATION
8
VEHICLE SPECIFICATIONS
9
INDEX
10
F7
INSTRUMENTS AND CONTROLS
B250A02GK-EAT
OGK026002UK-1
F8

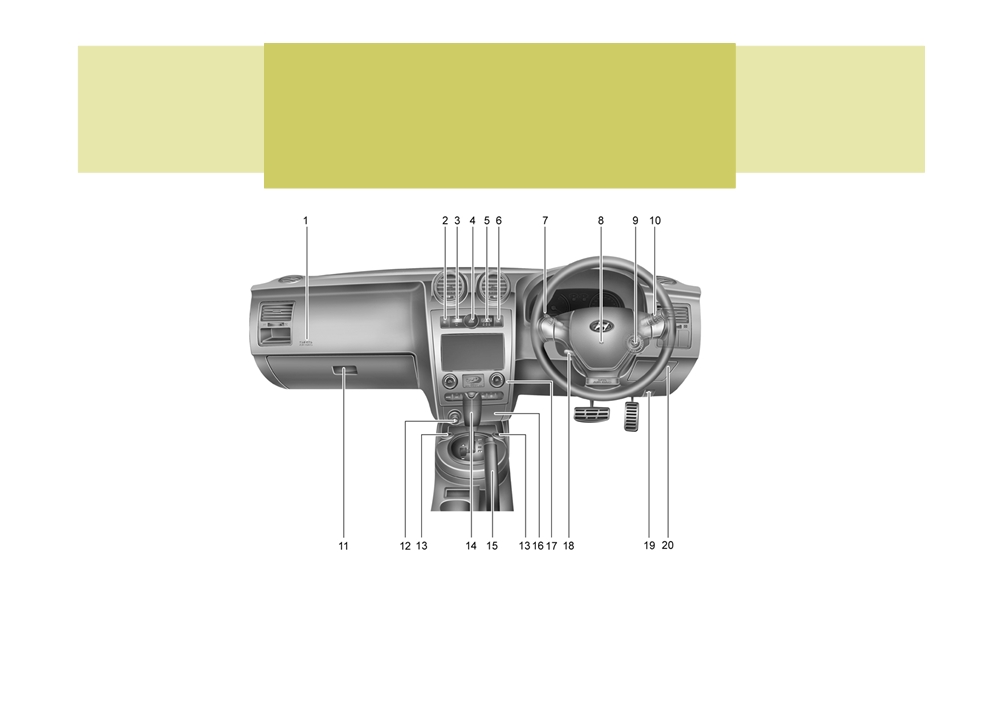

1. Passenger's Air Bag (Not all models)
11. Glove Box
2. Rear Fog Light Switch
12. Cigar Lighter
3. Outside Temperature Switch
13. Front Seat Warmer (Not all models)
4. Hazard Warning Switch
14. Shift Lever
5. Digital Clock
15. Parking Brake Lever
6. Front Fog Light Switch
16. Ashtray
7. Windscreen Wiper/Washer Switch
17. Heating/Air Conditioning Control Panel
8. Horn and Driver's Airbag
18. Steering Wheel Tilt Lever
9. Ignition Switch
19. Bonnet Release Lever
10. Multi-Function Light Switch
20. Fuse and Relay Box
!
CAUTION:
When installing a container of liquid air freshener inside the vehicle, do not place it near the
instrument cluster nor on the instrument panel surface. If there is any leakage from the air
freshener onto these areas (Instrument cluster, instrument panel or air ventilator), it may
damage these parts. If the liquid from the air freshener does leak onto these areas, wash them
with water immediately.
F9
YOUR VEHICLE AT A GLANCE
B255A02GK-EAT

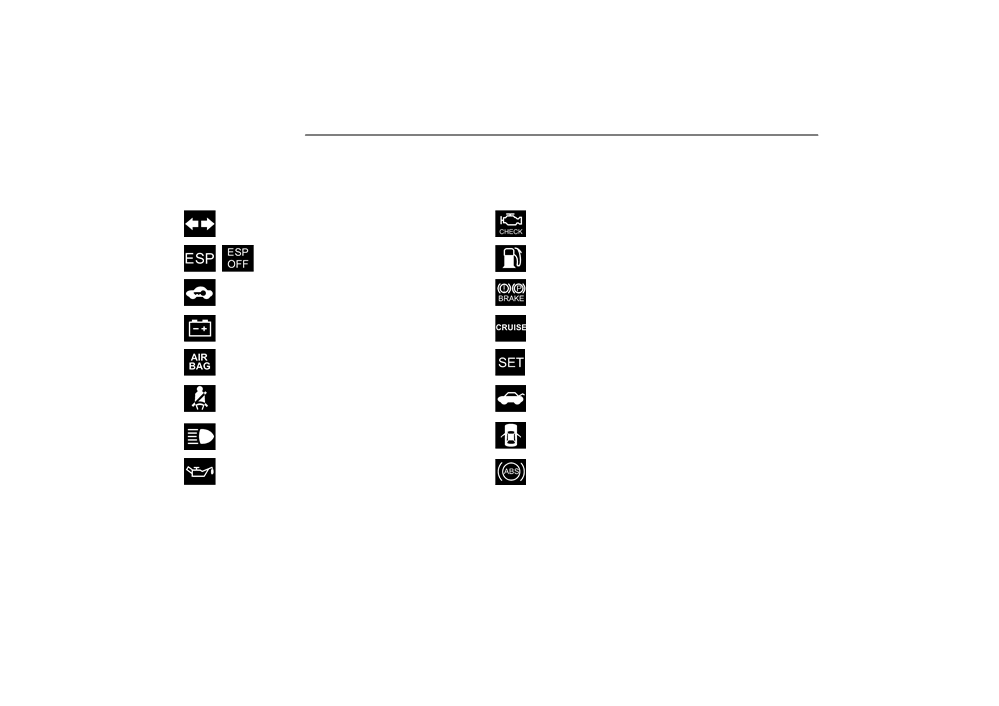

INDICATOR SYMBOLS ON THE INSTRUMENT PANEL
Turn Signal Indicator Lights
Malfunction Indicator Light (Not all models)
Electronic Stability Program (ESP)
Low Fuel Level Warning Light
Indicator Lights (Not all models)
Parking Brake/Low Brake Fluid Level
Immobiliser Warning Light
Warning Light
Charging System Warning Light
CRUISE Indicator Light (Not all models)
SRS (Airbag) Service Reminder Indicator
CRUISE SET Indicator Light (Not all models)
(SRI)
Seat Belt Warning Light
Hatchback Door Open Warning Light
High Beam Indicator Light
Door Open (Ajar) Warning Light
ABS Service Reminder Indicator
Low Oil Pressure Warning Light
(Not all models)
* More detailed explanations of these items will be found beginning on page 1-42.
F10
1 FEATURES OF YOUR HYUNDAI
HEATING AND COOLING CONTROL
82
B710A02GK-EAT
B710B02O-EAT
Centre Ventilator
The centre ventilators are located in the
middle of the dashboard. To change the
direction of the air flow, move the knob
in the centre of the vent up-and-down
and side-to-side. The vents are opened
when the vent knob is moved to " "
position. The vents are closed when the
vent knob is moved to "
". Keep
these vents clear of any obstructions.
B710C01HP-EAT
Side Ventilator
The side ventilators are located on
each side of the dashboard. To change
the direction of the air flow, move the
knob in the centre of the vent up-and-
down and side-to-side. The vents are
opened when the vent knob is moved to
"
" position. The vents are closed
when the vent knob is moved to " ".
Keep these vents clear of any obstruc-
tions.

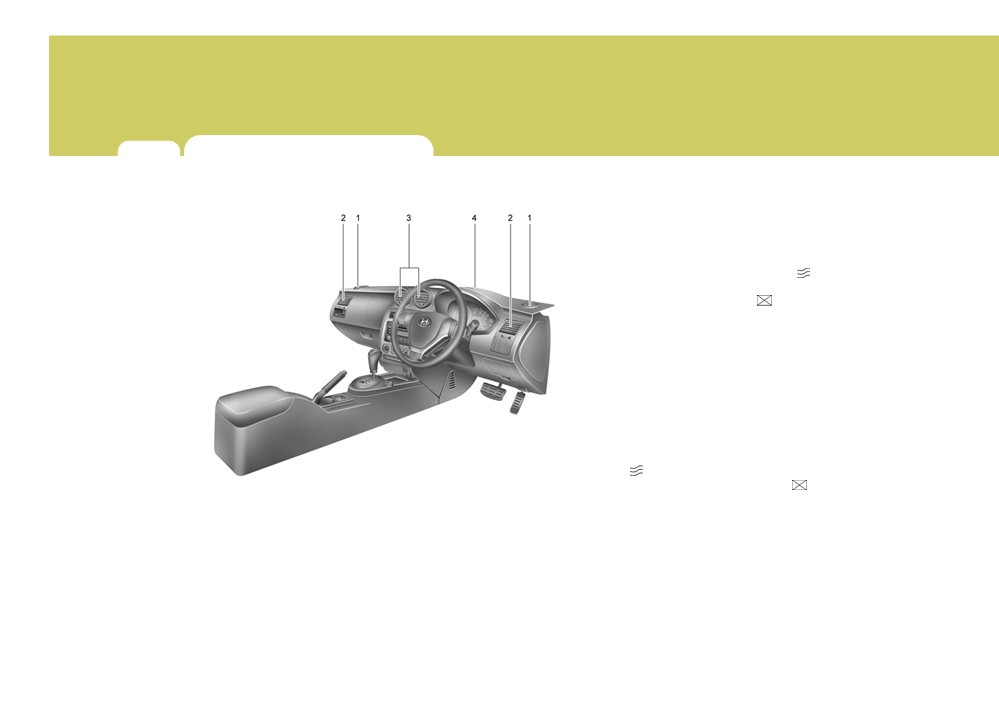

1. Side Defrost Nozzle
2. Side Ventilator
3. Centre Ventilator
4. Windscreen Defrost Ventilator
OGK016003R
FEATURES OF YOUR HYUNDAI
1
HEATING AND VENTILATION
83
B670A02GK-GAT
B670B01A-AAT
B670E02A-AAT

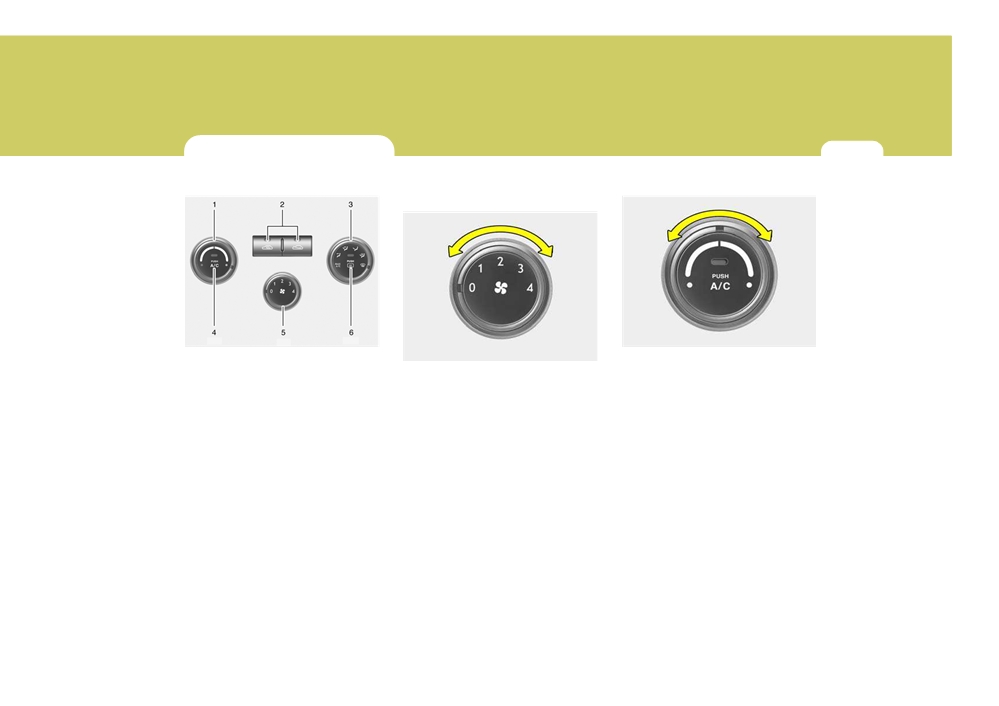

Rotary Type
Fan Speed Control
Temperature Control
(Blower Control)
Cool
Warm
OGK046038L
OGK046043
OGK046045
This control is used to adjust the degree
1. Temperature control switch
This is used to turn the blower fan on or
of heating or cooling desired.
2. Air intake control switch
off and to select the fan speed.
3. Air flow control switch
This blower fan speed, and therefore
4. Air conditioning switch
the volume of air delivered from the
5. Fan speed control switch
system, may be controlled manually by
6. Rear window defroster switch
setting the blower control between the
"1" and "4" positions.
1 FEATURES OF YOUR HYUNDAI
84
B670C02Y-EAT
B670D01MC-EAT
NOTE:

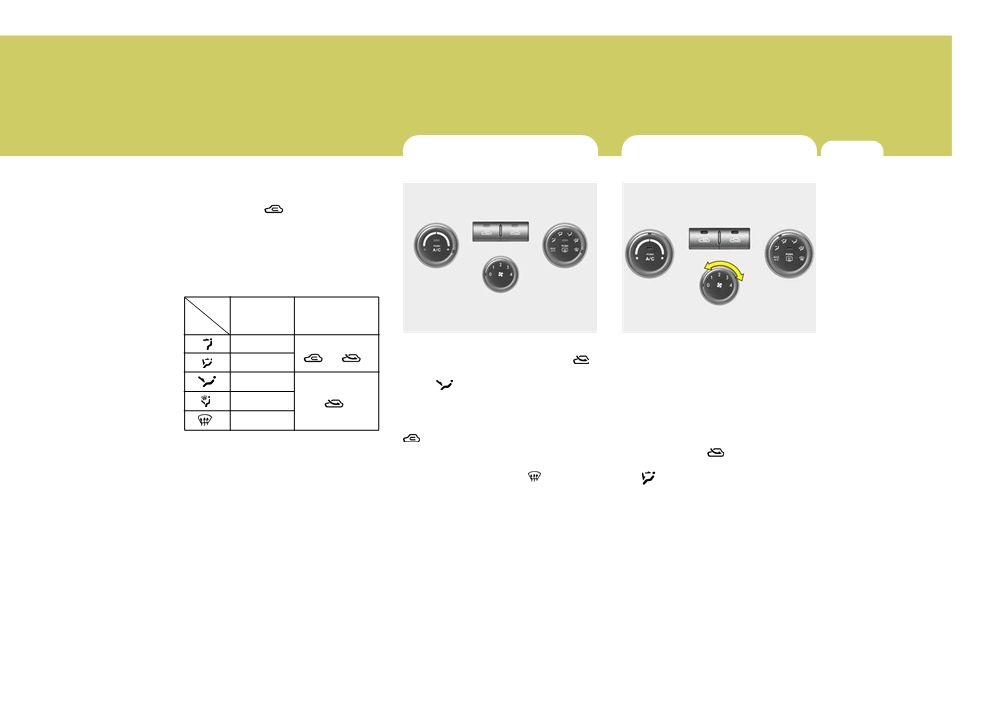

Air Intake Control
Air Flow Control
It should be noted that prolonged
operation of the heating system in
" " mode will give rise to fogging
of the windscreen and side windows
and the air within the passenger com-
partment will become stale. In addi-
tion prolonged use of the air condi-
tioning with the " " mode selected
may result in the air within the pas-
senger compartment becoming ex-
cessively dry.
OGK046044
OGK046039

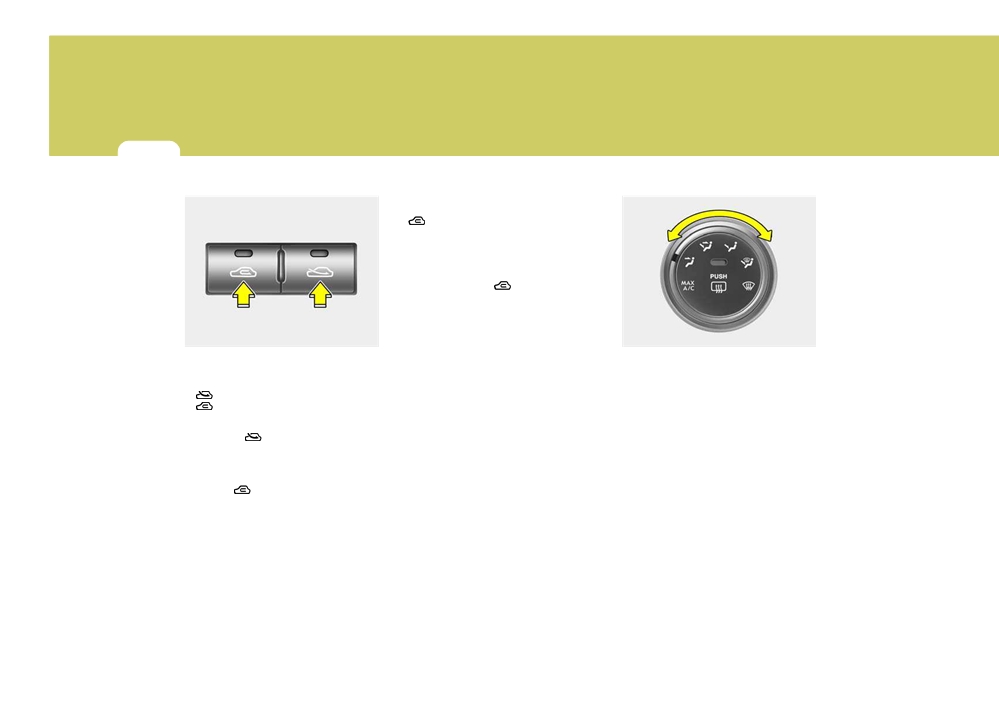

This is used to select fresh outside air
This is used to direct the flow of air. Air
or recirculation of inside air.
can be directed to the floor, dashboard
outlets, or windscreen. Five symbols
Fresh
are used to represent Face, Bi-Level,
Recirculation
Floor, Floor-Defrost and Defrost air po-
sition.
With the "
" mode selected, air
The MAX A/C mode is used to cool the
enters the vehicle from outside and is
inside of the vehicle faster (Not all
heated or cooled according to the other
models).
functions selected.
With the "
" mode selected, air from
within the passenger compartment is
drawn through the heating system and
heated or cooled according to the other
functions selected.
FEATURES OF YOUR HYUNDAI
1
85
OGK016095R
OGK016096R
OGK016097R

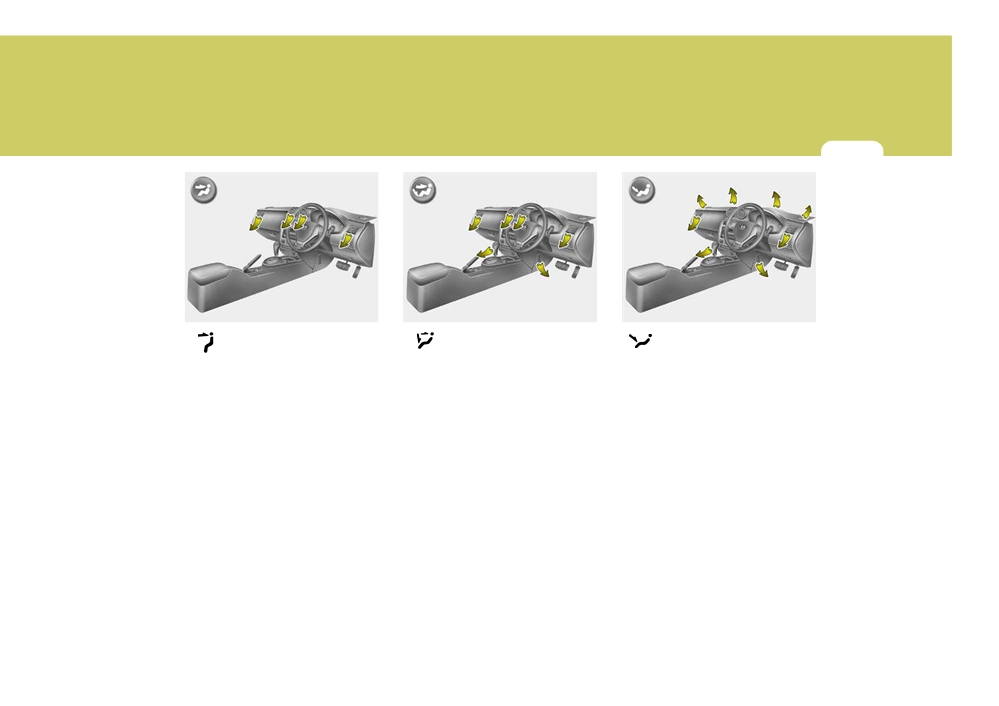

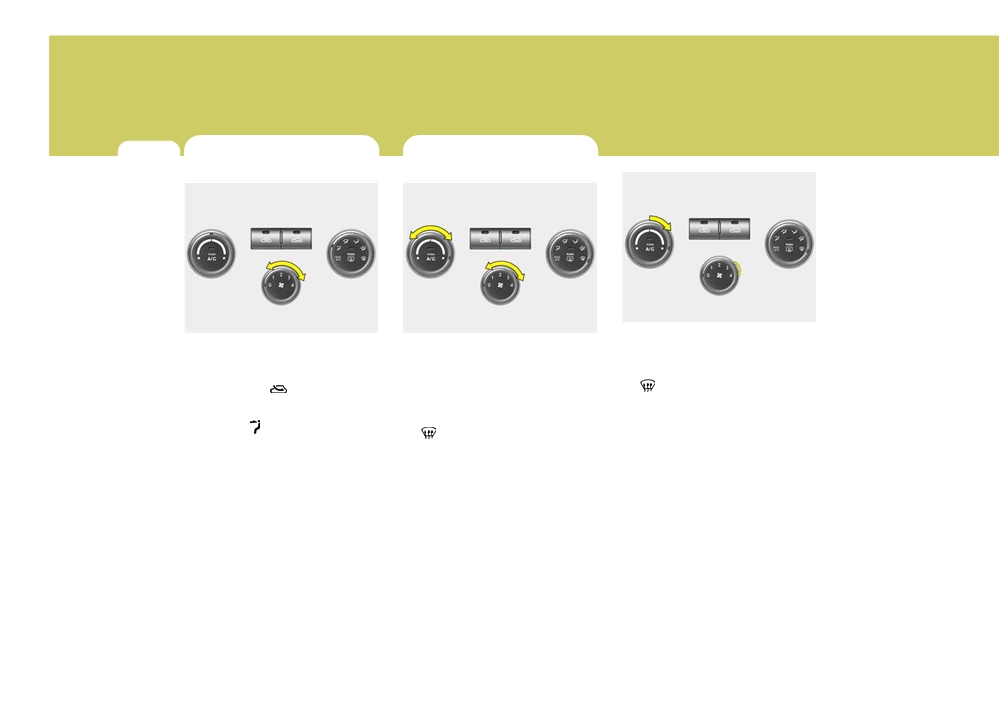

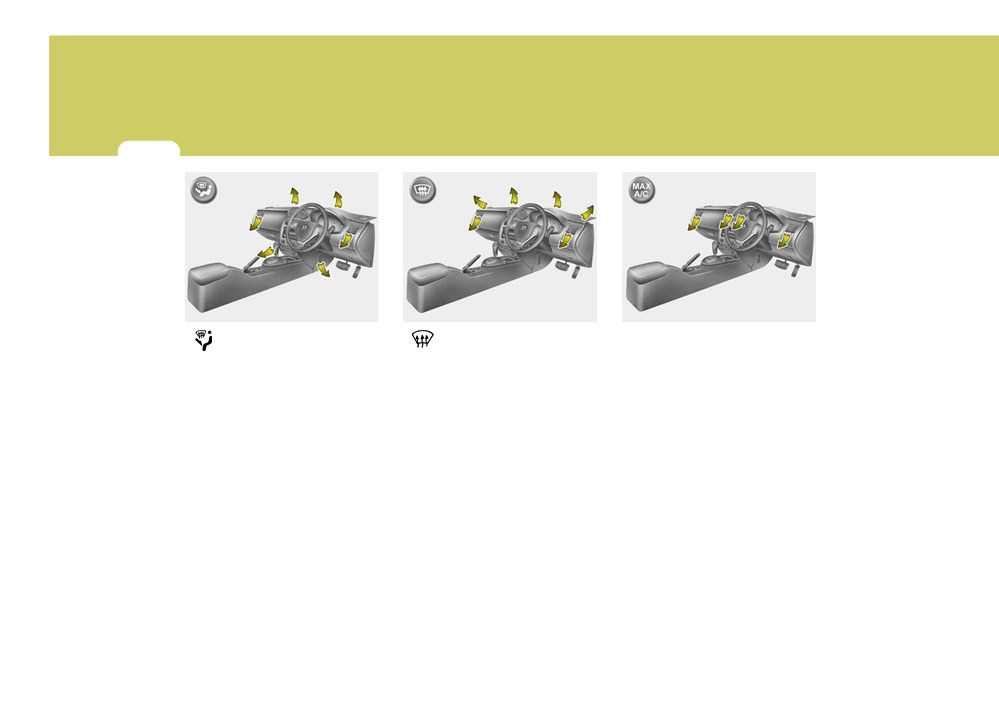

Face-Level
Bi-Level
Floor-Level
Selecting the "Face" mode will cause
Air is discharged through the face vents
Air is discharged through the floor vents,
air to be discharged through the face
and the floor vents. This makes it pos-
windscreen defroster nozzle, side de-
level vents.
sible to have cooler air from the dash-
froster nozzle, side ventilator.
board vents and warmer air from the
floor outlets at the same time.
1 FEATURES OF YOUR HYUNDAI
86
OGK016098R
OGK016099R
OGK016103R
MAX
MAX A/C-Level
Floor-Defrost Level
Defrost-Level
A/C
(Not all models)
Air is discharged through the windscreen
Air is discharged through the windscreen
defroster nozzle, the floor vents, side
defroster nozzle, side defroster nozzle,
Air is discharged through the face level
defroster nozzle, side ventilator.
side ventilator. If the "Defrost" mode is
vents.
If the "Floor-Defrost" mode is selected,
selected, the A/C will turn on automati-
If the "MAX A/C" mode is selected, the
the A/C will turn on automatically and
cally and "Fresh" mode will be acti-
A/C will turn on automatically and "Re-
"Fresh" mode will be activated.
vated.
circulation" mode will be activated.
FEATURES OF YOUR HYUNDAI
1
HEATING CONTROLS
BI-LEVEL HEATING
87
B690A02S-AAT
B700A02A-AAT
NOTE:
o The air intake control switch will
change to " " mode when the
ignition switch is turned "ON" with
the MAX A/C mode selected.
o When you change to another mode
from MAX A/C, the A/C and the air
intake control switch are set as
shown in the following chart.
Air Intake
A/C
Control Switch
OGK046038
OGK016700
ON
For normal heating operation, set the air
Your Hyundai is equipped with bi-level
or
*
intake control to the fresh air (
)
heating controls. This makes it pos-
ON or OFF *
position and the air flow control to the
sible to have cooler air from the dash-
ON or OFF *
floor (
) position.
board vents and warmer air from the
floor outlets at the same time. To use
ON
For faster heating, the air intake control
this feature:
ON
switch should be set in the recirculate (
) position.
o Set the air intake control switch to
*
The A/C or the air intake control
the fresh air (
) position.
switch returns to its former setting.
If the windows fog up, set the air flow
o Set the air flow control at the bi-level
control to the defrost (
) position.
(
) position.
(The A/C will turn on automatically and
o Adjust the fan speed control to the
"Fresh" mode will be activated.)
desired speed.
o Set the temperature control between
For maximum heat, move the tempera-
"Cool" and "Warm".
ture control to "Warm".
1 FEATURES OF YOUR HYUNDAI
VENTILATION
DEFROSTING/DEFOGGING
88
B710A01A-AAT
B720A02FC-EAT
OGK016703
OGK016701
OGK016702
To remove the frost or exterior
Use the heating/ventilation system to
To operate the ventilation system:
fog on the windscreen:
defrost or defog the windscreen:
o Set the air intake control switch at
o Set the air flow control to the defrost
the fresh air (
) position.
To remove the interior fog on the
(
) position. (The A/C will turn on
o To direct all intake air to the dash-
windscreen:
automatically and "Fresh" mode will
board vents, set the airflow control to
be activated.)
o Set the air flow control to the defrost
the face (
) position.
o Set the temperature control to the
(
) position. (The A/C will turn on
o Adjust the fan speed control to the
warm.
automatically and "Fresh" mode will
desired speed.
o Set the fan speed control to position
be activated.)
o Set the temperature control between
"3" or "4".
o Set the temperature control at the
"Cool" and "Warm".
desired position.
o Set the fan speed control between
"1" and "4" position.















Content   ..  14  15  16  17   ..
