Index Hyundai Hyundai Coupe - instruction 2008 year in english
|
|
|
A100A01L-GAT
tation, counterfeit or used salvage
Hyundai Genuine Parts are only
GUIDE TO HYUNDAI GENUINE
parts are not covered under the
sold through authorized Hyundai
PARTS
Hyundai New Vehicle Limited War-
Dealership and Service Center.
ranty or any other Hyundai war-
1.What are Hyundai Genuine Parts?
ranty. In addition, any damage to or
failure of Genuine Hyundai Parts
Hyundai Genuine Parts are the same
caused by the installation or failure
parts used by Hyundai Motor Com-
of an imitation, counterfeit or used
pany to manufacture vehicles. They
salvage part is not covered by
are designed and tested for the
Hyundai Motor Company.
optimum safety, performance, and
reliability to our customers.
3. How can you tell if you purchasing
Hyundai Genuine Parts?
2. Why should you use genuine parts?

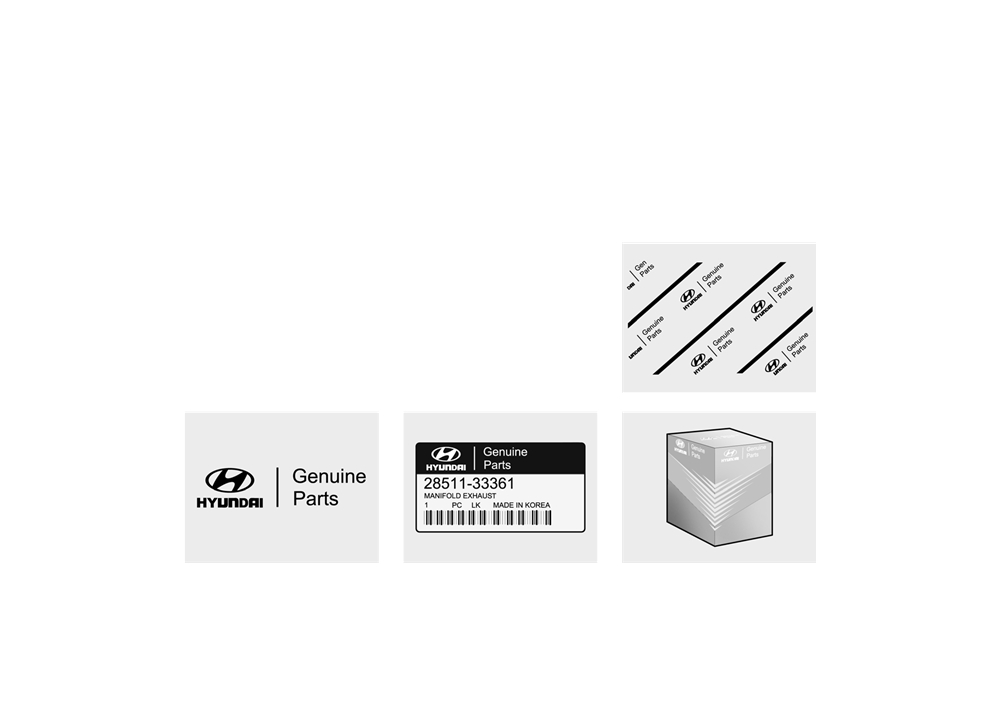

Look for the Hyundai Genuine Parts
Hyundai Genuine Parts are engi-
Logo on the package (see below).
neered and built to meet rigid manu-
facturing requirements. Using imi-
The export specifications are writ-
ten in English only.
A100A03L
A100A01L
A100A02L
A100A04L
F6
TABLE OF CONTENTS
FEATURES OF YOUR HYUNDAI
1
DRIVING YOUR HYUNDAI
2
WHAT TO DO IN AN EMERGENCY
3
CORROSION PREVENTION & APPEARANCE CARE
4
VEHICLE MAINTENANCE REQUIREMENTS
5
SECTION
DO-IT-YOURSELF MAINTENANCE
6
EMISSION CONTROL SYSTEMS
7
CONSUMER INFORMATION
8
VEHICLE SPECIFICATIONS
9
INDEX
10
F7
INSTRUMENTS AND CONTROLS
(LEFT-HAND DRIVE)
B250A01GK-GAT
OGK026002L
F8
1. Multi-Function Light Switch
11.Fuse Box Relay
2. Horn and Driver's Airbag
12.Hood Release Lever
3. Windshield Wiper/Washer Switch
13.Steering Wheel Tilt Lever
4. Ignition Switch
14.Heating and Airconditioning Control Panel
5. Front Fog Light Switch (If installed)
15.Ashtray
6. Digital Clock
16.Front Seat Warmer (If installed)
7. Hazard Warning Switch
17.Parking Brake Lever
8. Outside Temperature Switch
18.Shift Lever
9. Rear Fog Light Switch (If installed)
19.Cigarette Lighter
10.Passenger's Air Bag (If installed)
20.Audio System (If installed)
21.Glove Box
!
CAUTION:
When installing a container of liquid air freshener inside the vehicle, do not place it near the
instrument cluster nor on the instrument panel surface. If there is any leakage from the air
freshener onto these areas (Instrument cluster, instrument panel or air ventilator), it may
damage these parts. If the liquid from the air freshener does leak onto these areas, wash them
with water immediately.
F9
INSTRUMENTS AND CONTROLS
(RIGHT-HAND DRIVE)
B250B02GK-GAT
OGK026002R
F10
1. Passenger's Air Bag (If installed)
11.Glove Box
2. Rear Fog Light Switch (If installed)
12.Audio System (If installed)
3. Outside Temperature Switch
13.Cigarette Lighter
4. Hazard Warning Switch
14.Front Seat Warmer (If installed)
5. Digital Clock
15.Shift Lever
6. Front Fog Light Switch (If installed)
16.Parking Brake Lever
7. Windshield Wiper/Washer Switch
17.Ashtray
8. Horn and Driver's Airbag
18.Heating and Airconditioning Control Panel
9. Ignition Switch
19.Steering Wheel Tilt Lever
10.Multi-Function Light Switch
20.Hood Release Lever
21.Fuse Box Relay
!
CAUTION:
When installing a container of liquid air freshener inside the vehicle, do not place it
near the instrument cluster nor on the instrument panel surface. If there is any
leakage from the air freshener onto these areas (Instrument cluster, instrument panel
or air ventilator), it may damage these parts. If the liquid from the air freshener does
leak onto these areas, wash them with water immediately.
F11
YOUR VEHICLE AT A GLANCE
B255A02GK-GAT
INDICATOR SYMBOLS ON THE INSTRUMENT PANEL
Turn Signal Indicator Lights
Malfunction Indicator Light (If installed)
Electronic Stability Program (ESP)
Low Fuel Level Warning Light
Indicator Light (If installed)
Immobilizer Warning Light (If installed)
Parking Brake/Brake Fluid Level Warning Light
120
Overspeed warning Light (Mideast only)
CRUISE Indicator Light (If installed)
km/h
Charging System Warning Light
CRUISE SET Indicator Light (If installed)
SRS (Airbag) Service Reminder Indicator
Tail Gate Open Warning Light
(SRI)(If installed)
Door Ajar Warning Light
Seat Belt Warning Light
(If installed)
High Beam Indicator Light
ABS Service Reminder Indicator (If installed)
Low Oil Pressure Warning Light
* More detailed explanations of these items will be found beginning on page 1-44.
F12
FEATURES OF YOUR HYUNDAI
Fuel Recommendations
1-2
Breaking In Your New Hyundai
1-3
1
Keys
1-4
Immobilizer System
1-4
Door Locks
1-7
Theft-Alarm System
1-9
Power Windows
1-12
Seats
1-13
Seat Belts
1-20
Child Restraint System
1-25
Supplemental Restraint (AIRBAG) System
1-34
Instrument Cluster and Indicator Lights
1-42
Warning and Indicator Lights
1-44
Trip Computer
1-52
Multi-function Light Switch
1-55
1
Windshield Wiper/Washer Switch
1-58
Sunroof
1-67
Mirror
1-71
Hood Release
1-75
Cruise Control
1-81
Audio Remote Control Switch
1-85
Heating and Cooling Control
1-86
Antenna
1-103
Stereo Sound System
1-105
Audio System
1-107
1 FEATURES OF YOUR HYUNDAI
FUEL RECOMMENDATIONS
2
B010A03A-GAT
If leaded gasoline is used, it will cause
B010B01A-AAT
Use Unleaded Gasoline
the catalytic converter to become inef-
What About Gasohol?
fective and the emission control sys-
Gasohol (a mixture of 90% unleaded
tem to malfunction.
gasoline and 10% ethanol or grain
This can also result in increased main-
alcohol) may be used in your Hyundai.
tenance expense. To avoid accidental
However, if your engine develops
use of leaded fuel, the large nozzle
driveability problems, the use of 100%
used with leaded gasoline at service
unleaded gasoline is recommended.
stations can not be inserted into fuel
Fuels with unspecified quantities of
tank opening of Hyundai vehicle.
alcohol, or alcohols other than ethanol,
should not be used.
NOTE:
o For some countries, Hyundai
OGK016100
B010D01S-AAT
vehicles are designed to use
For Europe - For the optimal vehicle
Do not Use Methanol
leaded gasoline. When you are
performance, we recommend you to
going to use leaded gasoline,
Fuels containing methanol (wood al-
use unleaded gasoline with an octane
ask to Hyundai dealer whether
cohol) should not be used in your
rating of RON (Research Octane Num-
leaded gasoline in your vehicle
Hyundai. This type of fuel can reduce
ber) 95 /AKI (Anti Knock Index) 91 or
is available or not.
vehicle performance and damage com-
higher.
o Octane Rating of leaded gaso-
ponents of the fuel system.
You may use unleaded gasoline with an
line is same with unleaded one.
octane rating of RON 91~94/AKI 87~90
but it may result in slight performance
!
reduction of the vehicle.
CAUTION:
Your Hyundai's New Vehicle Lim-
Except Europe - Unleaded gasoline
ited Warranty may not cover dam-
with a Pump Octane Rating of 87 (Re-
age to the fuel system and perfor-
search Octane Number 91) or higher
mance problems that are caused by
must be used in Hyundai vehicle.
the use of methanol or fuels con-
taining methanol.
FEATURES OF YOUR HYUNDAI
1
BREAKING IN YOUR NEW
3
HYUNDAI
B010E01A-AAT
B020A01S-GAT
o
Whether going fast or slow, vary
Gasolines for Cleaner Air
During the First 2,000 Km (1,200
your speed from time to time.
Miles)
o
Don't let the engine idle longer than
To help contribute to cleaner air,
No formal "break-in" procedure is re-
3 minutes at one time.
Hyundai recommends that you use
quired with your new Hyundai. How-
o
Don't tow a trailer during the first
gasolines treated with detergent addi-
ever, you can contribute to the eco-
2,000 km (1,200 miles) of opera-
tives, which help prevent deposit for-
nomical operation and durability of your
tion.
mation in the engine. These gasolines
Hyundai by observing the following
will help the engine run cleaner and
recommendations during the first 2,000
enhance performance of the Emission
km (1,200 miles).
Control System.
o Don't drive faster than 88 km/h (55
mph).
B010F01A-AAT
o While driving, keep your engine
Operation in Foreign Countries
speed (rpm, or revolutions per
If you are going to drive your Hyundai
minute) between 2,000 rpm and
4,000 rpm.
in another country, be sure to:
o Use moderate acceleration. Don't
o Observe all regulations regarding
start, depress the accelerator pedal
fully.
registration and insurance.
o For the first 300 km (200 miles), try
o Determine that acceptable fuel is
available.
to avoid hard stops.
o Don't lug the engine (in other words,
don't drive so slowly. In too high a
gear that the engine "bucks" shift to
a lower gear).
1 FEATURES OF YOUR HYUNDAI
KEYS
IMMOBILIZER SYSTEM
4
B030A01A-AAT
B030B01S-AAT
B880A01A-GAT
Record Your Key Number
(If Installed)
The immobilizer system is an anti-theft
device, designed to deter automobile theft.
B880B06A-GAT
Keys
OMC025001
B030B01MC
For greater convenience, the same
A code number is stamped on the key
key operates all the locks in your
number plate that came with the keys
Hyundai. However, because the doors
to your Hyundai. This key number plate
can be locked without a key, carrying a
should be kept in a safe place, not in
spare key is recommended in case
the vehicle. The key number should
OHD046100
you accidentally lock one key inside
also be recorded in a place where it
the car.
All of the locks fitted to the vehicle are
can be found in an emergency.
operated by the same key. However,
since it is possible to lock the doors
If you need additional keys, or if you
without the use of the key, care should
should lose your keys, your authorized
be exercised to ensure that the key
Hyundai dealer can make new keys if
does not become locked inside the
you can supply the key number.
vehicle by mistake.
NOTE:
If you make your own duplicate key,
you will not be able to cancel the
system or start the engine.
FEATURES OF YOUR HYUNDAI
1
5
B880C02A-GAT
In the interest of security, the metal tag
Key Numbers
attached to the keys which bears the
!
WARNING:
key number should be removed from
In order to prevent theft of your ve-
the key ring after you receive your new
hicle, do not leave spare keys any-
vehicle. In addition, key numbers can-
where in your vehicle. Your immobi-
not be provided by Hyundai for secu-
lizer password is a customer unique
rity reasons.
password and should be kept confi-
If you need additional keys or if you
dential. Do not leave this number
should lose your keys, your authorized
anywhere in your vehicle.
Hyundai dealer can make new keys.
OMC025002
!
CAUTION:
The vehicle key number is recorded
o When starting the engine, do not
upon a metal tag attached to the keys
use the key with other immobi-
when the vehicle is first delivered to
lizer keys around. Otherwise the
you.
engine may not start or may stop
The key number should be recorded
soon after it starts.
and kept in a safe place in case the
Keep each key separately not to
need to order further keys arises. New
have any malfunction after you
keys are available from any Hyundai
receive your new vehicle.
dealer by quoting the relevant key
o Do not put metal accessories near
number.
the key or ignition switch.
The engine may not start for the
metal accessories may interrupt
the transponder signal from nor-
mally transmitting.
1 FEATURES OF YOUR HYUNDAI
6
B880D02A-GAT
NOTE:
NOTE:
Limp Home Procedures
You can get the limp home pass-
If the engine dies while driving after
word when the vehicle is first deliv-
limp home procedure, you can start
ered to you. If you do not have the
your engine within 8 seconds with-
password, consult your authorized
out limp home procedure again.
Hyundai dealer.
5. If the immobilizer indicator blinks for
1. To set the password you may turn
five seconds, you have to try the
the ignition key "ON" and then turn
limp home procedure again from
it "OFF" according to the digit num-
the beginning.
bers, then the immobilizer indicator
will blink along with the operation of
After doing the limp home procedure,
HNF2011
the ignition key. For example, turn
you have to consult with your autho-
the ignition key once for digit num-
rized Hyundai dealer as soon as pos-
In case the immobilizer warning indi-
ber "1", and twice for "2", and so on.
sible.
cator blinks for five seconds when the
However, for the digit number "0",
ignition key is turned to "ON" position,
you must turn the ignition key for 10
this indicates that the immobilizer sys-
times.
!
tem is out of order. And you cannot
CAUTION:
2. Wait for 3~10 seconds.
start the engine without the limp home
o If you fail to try the limp home
3. You may set the remaining number
procedures with ignition key.
procedure with the sequence of
of digits by following the same pro-
The following procedure is how to start
three times, you have to wait for
cedures 1 and 2.
the engine with the function of the limp
about one hour to do the limp
4. If all of four digits have been tried
home (0, 1, 2, 3 as a sample pass-
home procedure again.
successfully, turn the ignition key
word).
o If you cannot start your engine in
"ON" and check that the immobi-
spite of limp home procedure,
lizer indicator illuminates. From this
have your vehicle towed by an
time, you have to start your engine
authorized Hyundai dealer.
within 30 seconds. If you start your
engine after 30 seconds, your en-
gine will not start.
FEATURES OF YOUR HYUNDAI
1
DOOR LOCKS
7
B030C01Y-AAT
B040A01GK-GAT
B040B01A-AAT
Illuminated Ignition Switch
Locking and Unlocking Front
Doors With a Key
!
WARNING:
o Unlocked doors can be danger-
UNLOCK
ous. Before you drive away (es-
LOCK
pecially if there are children in
the car), be sure that all the doors
are securely closed and locked
so that the doors cannot be inad-
vertently opened from the inside.
This helps ensure that the doors
will not be opened accidentally.
B030C01E-1
Also, when combined with the
OGK046002
Whenever a door is opened, the ignition
proper use of seat belts, locking
switch will be illuminated for your con-
the doors helps keep occupants
o
The door can be locked or unlocked
venience, provided the ignition switch
from being ejected from the car
with a key.
is not in the "ON" position.
in case of an accident.
o
Lock the door by turning the key
The light will go off approximately 10
o Before opening the door, always
toward the front of the vehicle and
seconds after closing the door or when
look for and avoid oncoming traffic.
unlock it by turning the key toward
the ignition switch is turned on.
o A locked-up vehicle can become
the rear.
extremely hot, causing death or
severe injury to unattended chil-
dren, handicapped persons or
animals who cannot escape the
vehicle. Never leave children,
handicapped persons or animals
unattended in your vehicle.
o In case of accident, the door is
unlocked automatically (If in-
stalled).
1 FEATURES OF YOUR HYUNDAI
8
B040C01O-AAT
o To protect against theft, always
B040G02GK-GAT
Locking From the Outside
remove the ignition key, close all
Central Door Lock
windows, and lock all doors when
leaving your vehicle unattended.
B040D01S-AAT
Locking From the Inside
UNLOCK
LOCK
OGK046003
OGK046003
The doors can be locked without a key.
The central door locking is operated by
To lock the doors, first push the inside
pushing the driver's door lock switch
lock switch to the "LOCK" position so
toward the front or rear of the vehicle.
that the red mark on the switch is not
If the passenger door is open when the
visible, then close the door.
switch is pushed, the door will remain
OGK046004L
locked when closed.
NOTE:
To lock the doors from the inside,
o If your vehicle is equipped with
simply close the door and push the
central door locking system, the
lock switch to the "LOCK" position.
door will not lock if the key is left
When this is done, neither the outside
in the ignition switch when the
nor the inside door handle can be
front doors are closed.
used.
o When locking the door this way,
be careful not to lock the door
NOTE:
with the ignition key left in the
When the door is locked, the red
vehicle.
mark on the switch is not visible.
FEATURES OF YOUR HYUNDAI
1
THEFT-ALARM SYSTEM
9
B070A01A-AAT
NOTE:
NOTE:
(If Installed)
o When pushing the switch toward
1) If any door, tail gate or engine
the rear, all doors will unlock.
This system is designed to provide
hood remains open, the system
When pushing the switch toward
protection from unauthorized entry into
will not be armed.
the front, all doors will lock.
the car. This system is operated in
2) If this happens, rearm the system
o When the door is unlocked, the
three stages: the first is the "Armed"
as described above.
red mark on the switch is visible.
stage, the second is the "Alarm" stage,
3) Once the system is armed, only
o The central door locking is oper-
and the third is the "Disarmed" stage.
the tail gate may be unlocked
ated by turning the key (driver's
If triggered, the system provides an
using the key without disarming
door only) toward the front or
audible alarm with blinking of the turn
the system.
rear of the vehicle.
signal light.
o If the door is locked/unlocked mul-
tiple times in rapid succession
!
with either the vehicle key or door
CAUTION:
B070B02GK-AAT
lock switch, the system may stop
Do not arm the system until all
Armed Stage
operating temporarily in order to
passengers have left the car. If the
protect the circuit and prevent
Park the car and stop the engine. Arm
system is armed while a
damage to system components.
the system as described below.
passenger(s) remains in the car,
the alarm may be activated when
1) Remove the ignition key from the
the remaining passenger(s) leaves
ignition switch.
the car.
2) Make sure that the engine hood and
tail gate are closed and latched.
3) Lock the doors using the transmitter
of the keyless entry system.
After completion of the steps above,
the turn signal light will blink once to
indicate that the system is armed.
|
|
|
