FL -294

FUEL SYSTEM

specification : Continuity ( below 1.0

Ω

)

4)

Is the measured resistance within the specification?

YES

▶

Repair short to ground and go to "Verification of Vehicle Repair".

NO

▶

Repair open in control circuit and go to "Verification of Vehicle Repair".

COMPONENT INSPECTION

E712E587

1.

Check EGR actuator component resistance

1)

IG KEY "OFF", ENGINE "OFF".

2)

Disconnect EGR actuator.

3)

Measure the resistance between EGR actuator component terminal 1 and 2.

Specification : 7.3~ 8.8

Ω

(30

℃

)

LFIG418A

4)

Is EEGR actuator component resistance within the specification?

YES

▶

Go to "Verification of Vehicle Repair".

NO

▶

Replace EEGR actuator and go to "Verification of Vehicle Repair".

VERIFICATION OF VEHICLE REPAIR

E932B6BA

Refer to DTC P0489.

DTC TROUBLESHOOTING PROCEDURES

FL -295

DTC P0501 VEHICLE SPEED SENSOR A RANGE/PERFORMANCE

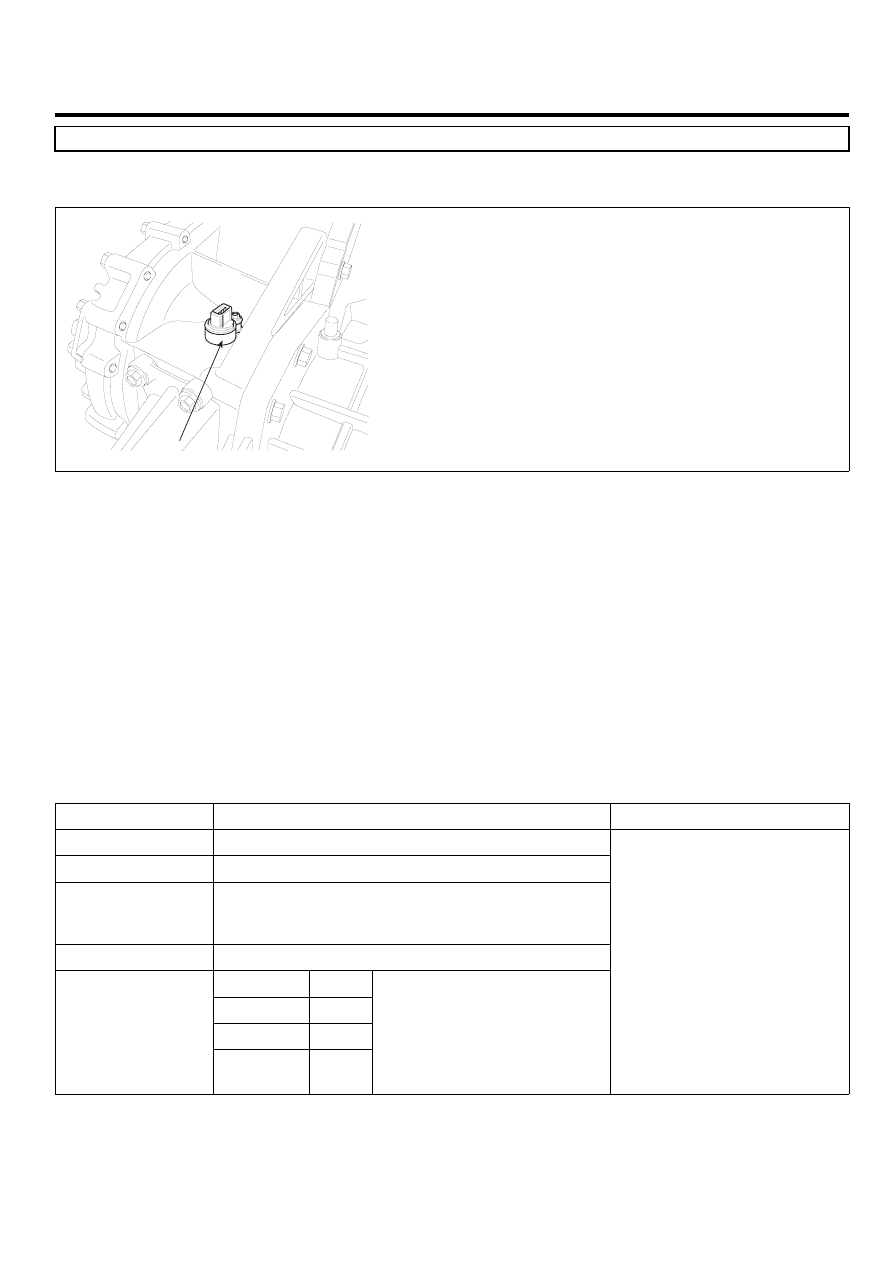

COMPONENT LOCATION

EF2D198E

VSS

SCMFL6505L

GENERAL DESCRIPTION

E6CA14C8

Vehicle Speed Sensor(VSS) is hall sensor type and senses the rotating speed of differential gear mounted on
transaxle.Comparing engine speed with vehicle speed calculated based on vehicle speed sensor signal, ECM recognizes
engaged gear.

And based on the information about engaged gear, ECM performs optimum fuel injection quantity

correction. VSS signal is also used in speed meter of cluster, ETACS(or BCM), aircon control module, navigation
system, etc.

DTC DESCRIPTION

E93D55D0

P0501 is set when vehicle speed below 15Km/h is detected for more than 1 sec. at above 3500RPM and above 38.25
mg/hub of fuel injection quantity

DTC DETECTING CONDITION

EB992519

Item

Detecting Condition

Possible Cause

DTC Strategy

• Signal monitoring

Enable Conditions

• Engine running

Threshold Value

• When vehicle speed below 15Km/h is detected for

more than 1.0 sec. at above 3500RPM and above
38.25 mg/hub of fuel injection quantity.

Diagnostic Time

• Refer to threshold Value

Fuel cut

NO

EGR Off

NO

Fuel Limit

NO

Fail Safe

Check

Lamp

NO

• Vehicle speed sensor circuit
• Vehicle speed sensor

component

FL -296

FUEL SYSTEM

SPECIFICATION

EDB7381D

Sensing Type

LOW Signal Voltage

HIGH Signal Voltage

Signal Duty

Hall sensor type

below 1.5V

above 3.5V

50±5%

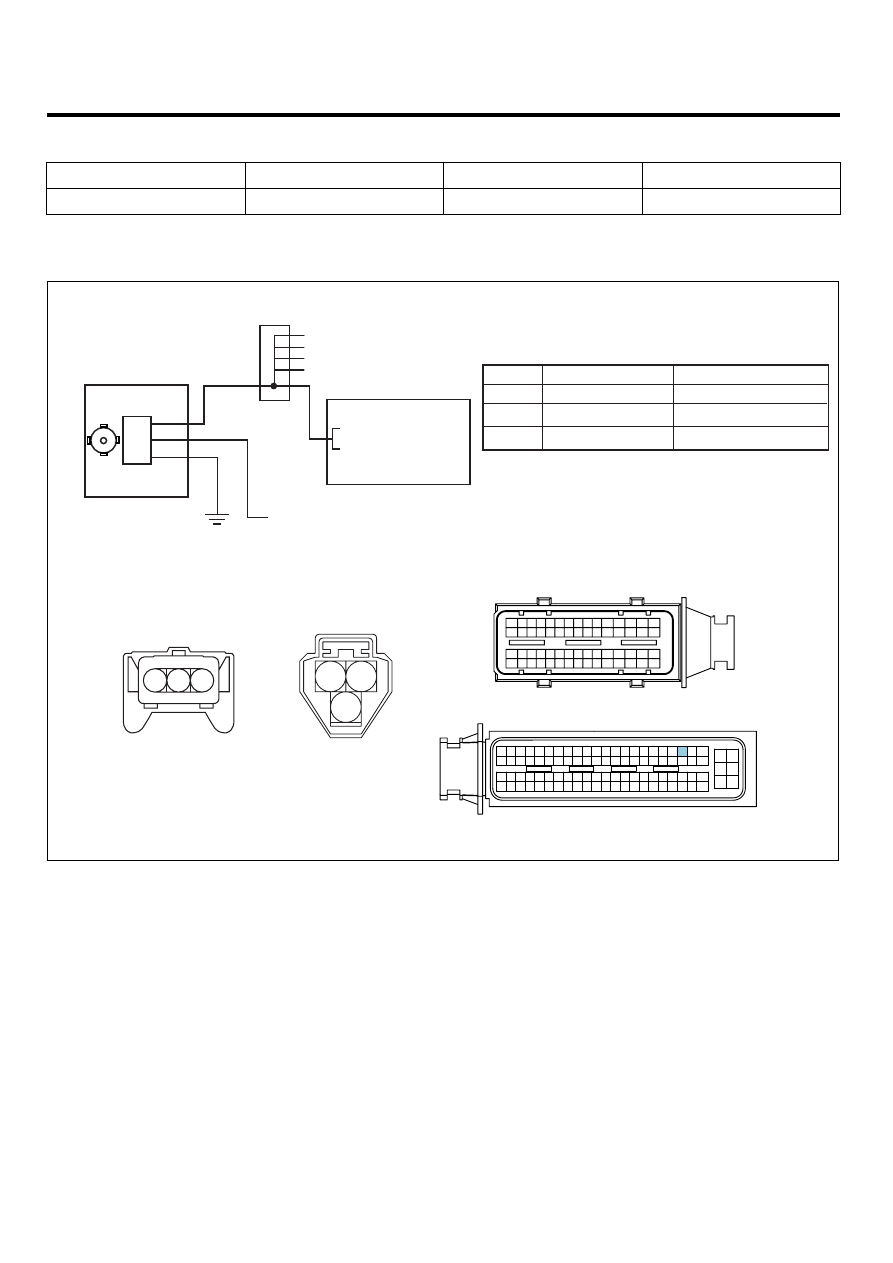

SCHEMATIC DIAGRAM

E9F53019

75 - VSS signal

1

2

2

3

3

1

G11 ground point

IG Power

Chassis Ground

VSS signal

U/H-C terminal 13

ECM C230-K (75)

IG Power (E/R FUSE & RELAY BOX 10A ECU FUSE)

G11

ECM (C230-K)

[A/T] Vehicle Speed Sensor (C270)

[M/T] Vehicle Speed Sensor (C246)

H

Cluster
ETACM
Data Link Connector
A/C control module

3

2

1

C270

VSS [A/T]

C246

VSS [M/T]

C230-K

C230-A

1

30 29

31

32

38

39

36

37

35

33

34

40

42 41

46 45 44 43

48 47

50 49

2

3

4

6

5

8

7

12 11 10 9

13

14

15

18 17

19

16

22

25

27 26

23

20

21

24

28

51

75 74
53 52

73

79 78 77 76

80

81

83 82

84

86 85

87

89 88

90

92 91

93

94

57

69 68

70

71

64

54

55

56

61

58

59

60

63 62

65

66

67

72

[CIRCUIT DIAGRAM]

[HARNESS CONNECTOR]

[CONNECTOR INFORMATION]

Terminal

Connected to

Function

1

2

4

3

6

5

8 7

12

13

16

17

18

23 22

20

21

19

27 26 25 24

28

29

30

14

9

10

11

15

33 32 31

34

37

41

42

40 39 38

35

36

43

44

47 46

49 48

50

53

56

58 57

54

51

52

55

59

60
45

3

1

2

 ECM

SCMFL6400L

DTC TROUBLESHOOTING PROCEDURES

FL -297

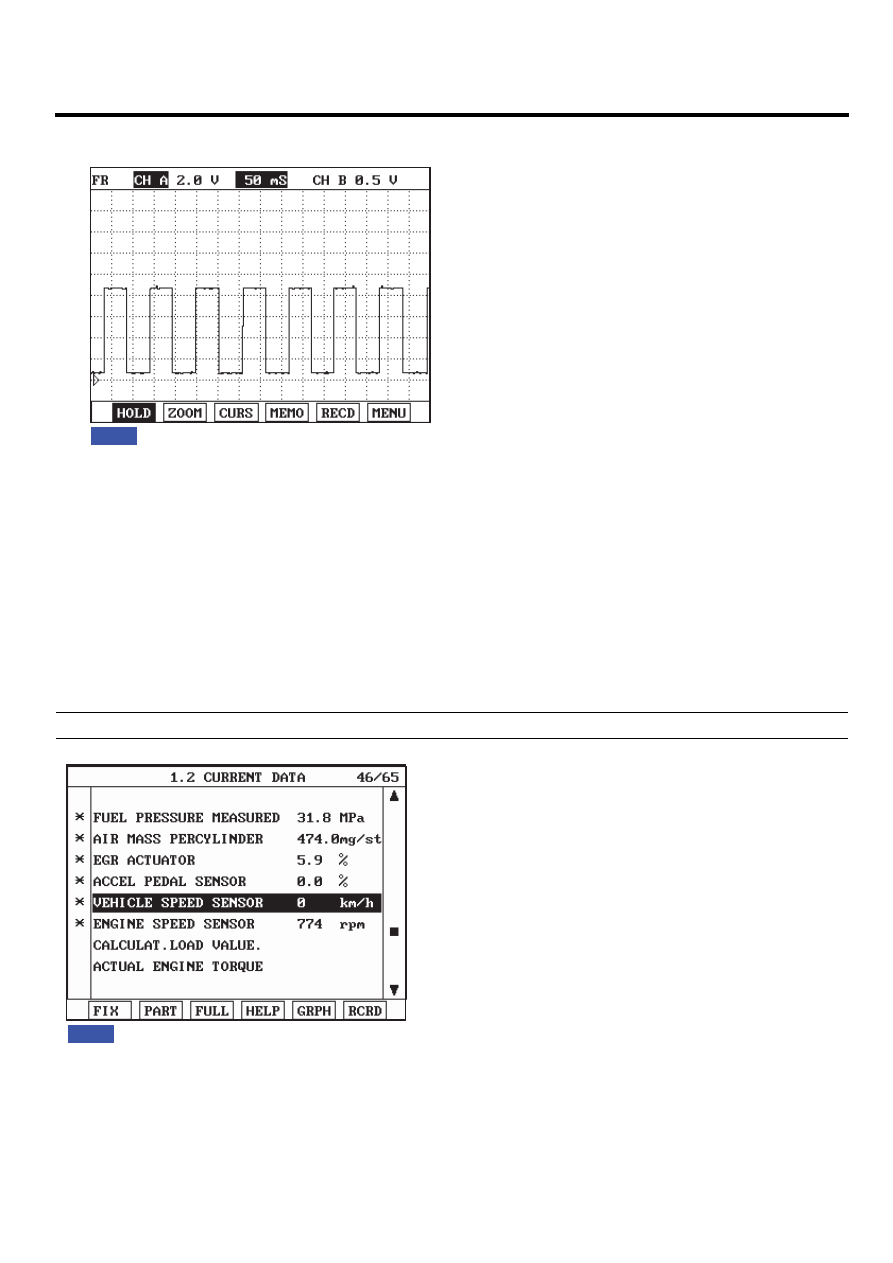

SIGNAL WAVEFORM AND DATA

ECE31503

Fig.1

Fig.1) This is the signal waveform of vehicle speed sensor. Digital waveform,  LOW 0.8V,  HIGH : 10V with 50% duty is outputted.
          ECM detects vehicle speed, sensing  this  ON-OFF period (Hz).

LFIG432A

MONITOR SCANTOOL DATA

EAB7AE87

1.

Connect Scantool to Data Link Connector (DLC).

2.

Warm engine up to normal operating temperature.

3.

Turn "OFF" electrical devices and A/C.

4.

Monitor "VEHICLE SPEED SENSOR " parameter on the Scantool.

specification : current vehicle speed is displayed.

Fig.1

Fig.1) Check if current vehicle speed is same as vehicle speed displayed on the Scantool.

SCMFL6289L

TERMINAL AND CONNECTOR INSPECTION

E3727CDC

1.

Electrical systems consist of a lot of harness and connectors, poor connection of terminals can cause various prob-
lems and damge of component.
