BRAKE SYSTEM

SENSOR OUTPUT ON SCAN TOOL(ABS)

Description

Abbreviation

Unit

Remarks

1

Vehicle speed sensor

VEH. SPD

Km/h

2

Battery voltage

BATT. VOL

V

3

FL Wheel speed sensor

FL WHEEL

Km/h

4

FR Wheel speed sensor

FR WHEEL

Km/h

5

RL Wheel speed sensor

RL WHEEL

Km/h

6

RR Wheel speed sensor

RR WHEEL

Km/h

7

ABS Warning lamp

ABS LAMP

-

8

EBD Warning lamp

EBD LAMP

-

9

Brake Lamp

B/LAMP

-

10

Pump relay state

PUMP RLY

-

11

Valve relay state

VALVE RLY

-

12

Motor

MOTOR

-

13

Front Left valve(IN)

FL INLET

-

14

Front Right valve (IN)

FR INLET

-

15

Rear Left valve (IN)

RL INLET

-

16

Rear Right valve (IN)

RR INLET

-

17

Front Left valve (OUT)

FL OUTLET

-

18

Front Right valve (OUT)

FR OUTLET

-

19

Rear Left valve(OUT)

RL OUTLET

-

20

Rear Right valve (OUT)

RR OUTLET

-

ABS (ANTI-LOCK BRAKE SYSTEM)

BR -53

STANDARD FLOW OF DIAGNOSTIC

TROUBLESHOOTING

E53ECDC7

Gathering information from customer

Recheck trouble code(s) then erase

Basic brake system is normal or not

Refer to BR-Troubleshooting

Problem is intermittent or was
repaired and memory was not cleared.

Recheck trouble symptom

Check trouble codes

Inspection chart for diagnostic trouble
codes

Check diagnostic code

Check diagnostic code

Trouble code displayed

Intermittent malfunction

Does not reoccur

Reoccurs

Trouble code displayed

No trouble code

Abnormal

Normal

Trouble code
displayed

No trouble
code

No trouble
code

* Using the customer problem analysis check sheet for reference, ask the customer as much detail as

possible about the problem.

EJKB055A

NOTES WITH REGARD TO DIAGNOSIS

The phenomena listed in the following table are not abnor-
mal.

Phenomenon

Explanation

System check sound

When starting the engine, a thudding sound can sometimes be
heard coming from inside the engine compartment. This is because
the system operation check is being performed.

ABS operation sound

1.

Sound of the motor inside the ABS hydraulic unit operation (whine).

2.

Sound is generated along with vibration of the brake pedal (scraping).

3.

When ABS operates, sound is generated from the vehicle chassis
due to repeated brake application and release
(Thump : suspension; squeak: tires)

ABS operation (Long braking distance)

For road surfaces such as snow-covered and gravel roads, the braking
distance for vehicles with ABS can sometimes be longer than that
for other vehicles. Accordingly, advise the customer to drive safely
on such roads by lowering the vehicle speed.

Diagnosis detection conditions can vary depending on the diagnosis code. When checking the trouble symptom
after the diagnosis code has been erased, ensure that the requirements listed in "Comment" are met.

BR -54

BRAKE SYSTEM

SCAN TOOL (PRO) CHECK

1.

Turn the ignition switch OFF.

2.

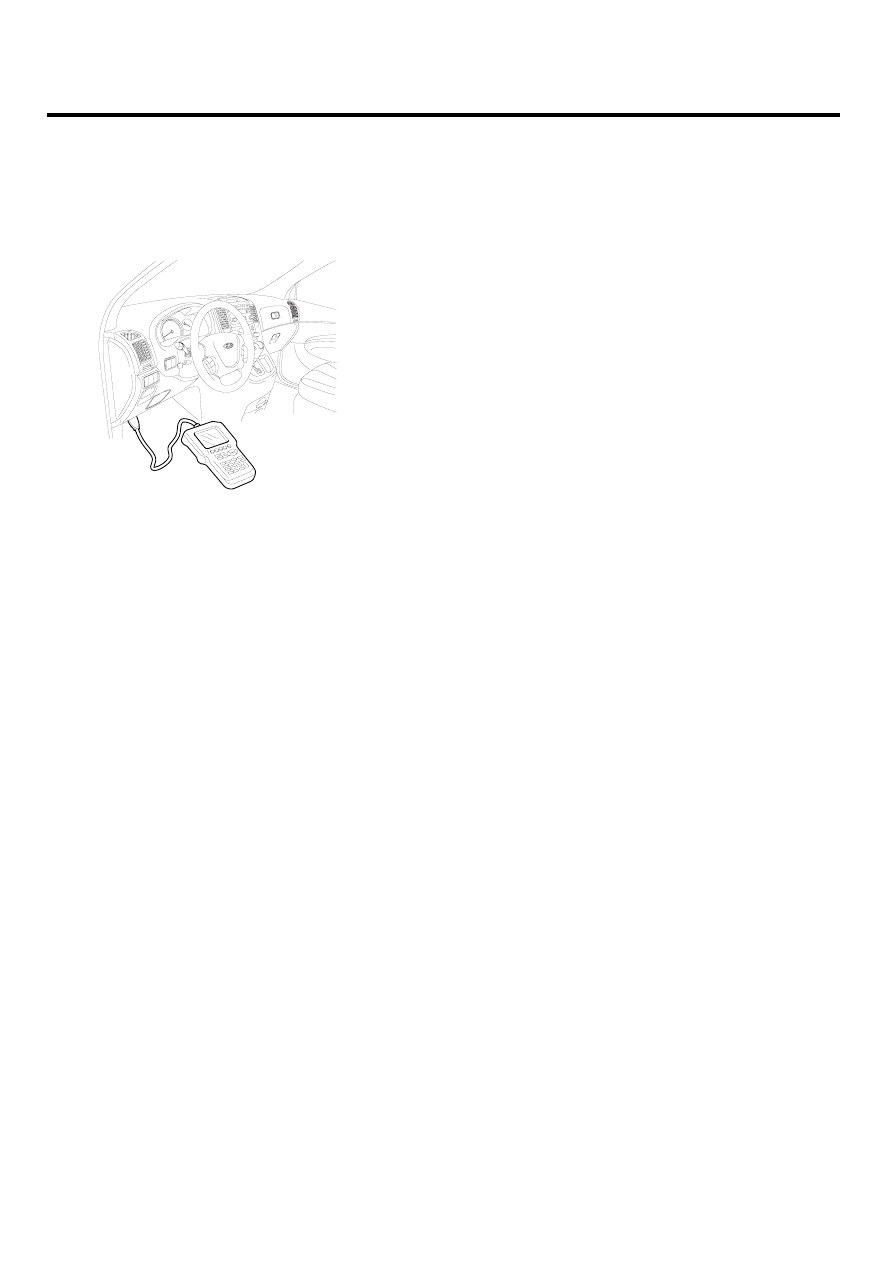

Connector the Scan tool to the 16P data link connec-
tor located the driver’s side kick panel.

ARKF500A

3.

Turn the ignition switch ON.

4.

Check for DTC using the Scan tool

5.

After completion trouble of the repair or correction of
the problem, erase the stored fault codes using the
scan tool.

6.

Disconnect the Scan tool from the 16P data link con-
nector.

ABS (ANTI-LOCK BRAKE SYSTEM)

BR -55

ABS CHECK SHEET

ABS Check Sheet

Customer's Name

Date Vehicle
Brought In

Registration No.

Registration Year

VIN.

Odometer

Km
Miles

Frequency of Occurence of Problem

Continuous

Date the Problem First Occurred

Intermittent  (           times a day)

Inspector's
Name

Symptoms

ABS does not operate.

Intermittent  (           times a day)

ABS does not operate efficiently.

ABS Warning
Light Abnormal

Remains ON

Does not light up

Diagnostic
Trouble Code
Check

Normal Code

Malfunction Code (Code           )

1st Time

2nd Time

Normal Code

Malfunction Code (Code           )

EJDA017A
