Hyundai: Engine D4FA. Manual - part 45





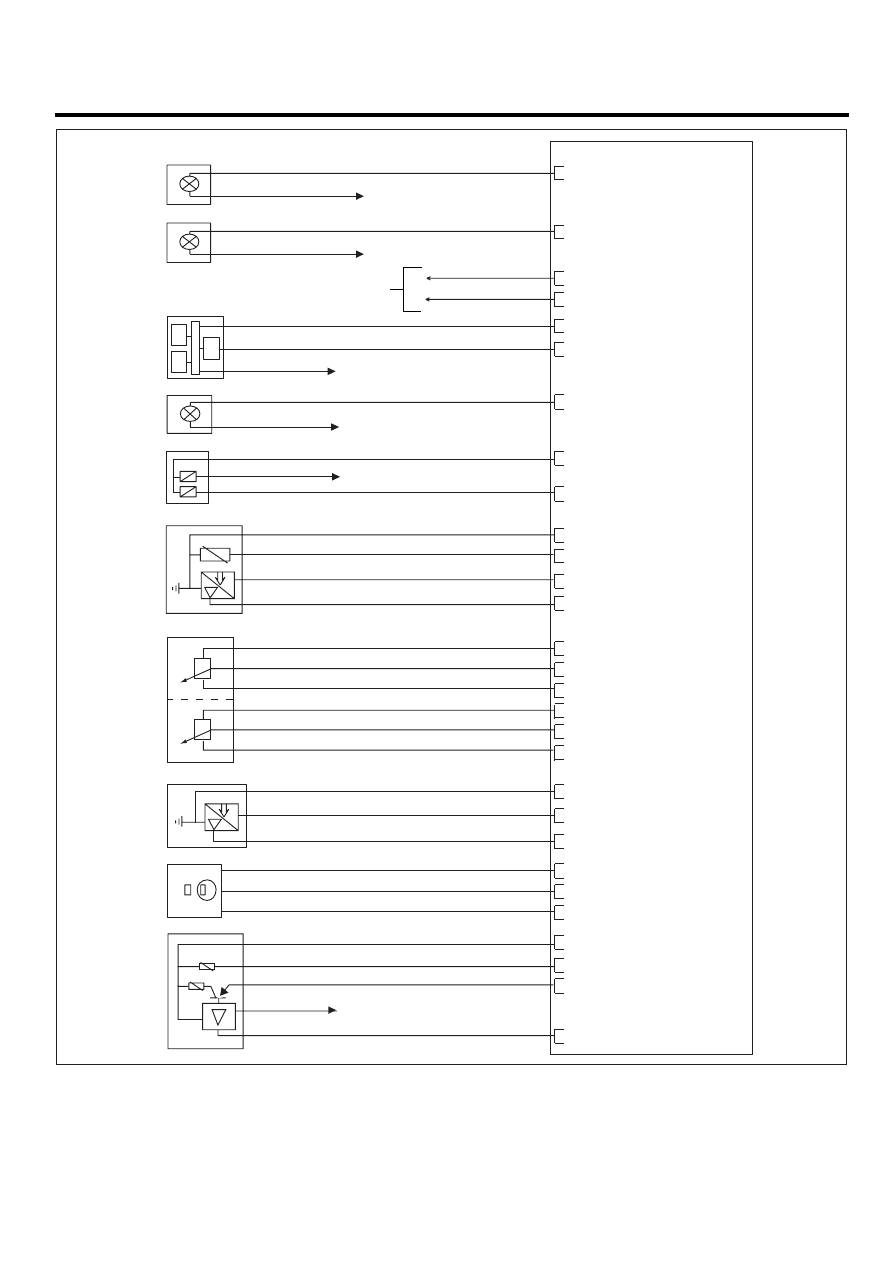

DIESEL CONTROL SYSTEM

FLA -51

68(C101-2)

-MIL CONTROL

47(C101-2))

-IMMOBILIZER DATA LINE

71(C101-2)

-FAN LOW

7(C101-2)

-FAN HIGH

Immobilizer

53(C101-1

)

-IATS SIGNAL

23(C101-1)

-BPS GND

41(C101-1

)

-ECTS GND

58(C101-1)

-ECTS SIGNAL

16(C101-2)

-IMMOBILIZER GND

13(C101-1)

 - BPS SUPPLY(+5V)

92(C101-2)

-IMMOBILIZER LAMP

              CONTROL

E C M

BATTERY(+) after IG key

BATTERY(+) after IG key

MIL

Glow lamp

After main relay

Battery(+)

Battery(+)

Immobilizer lamp

Engine Coolant Temp. Sensor(ECTS)

to Cluster

Boost Pressure Sensor(BPS)

Accelerator Position Sensor(APS)

69(C101-2)

-GLOW LAMP CONTROL

9(C101-2)

-APS1 SIGNAL

45(C101-2)

-APS1 SUPPLY

30(C101-2)

-APS1 GND

1

2

3

6

3

2

1

1

4

3

4

5

2

40(C101-1)

-BPS SIGNAL

8(C101-1)

-RPS GND

Rail Pressure Sensor(RPS)

28(C101-1)

-RPS SUPPLY(+5V)

43(C101-1)

-RPS SIGNAL

Crankshaft Position Sensor(CKPS)

Mass Air Flow Sensor(MAFS)

44(C101-1)

-MAFS GND

89(C101-2)

-IATS SIGNAL

27(C101-1)

-CKPS SIGNAL( + ):AT/( - ):MT

12(C101-1)-CKPS SIGNAL( - ):AT/( + ):MT


31(C101-2)

-APS2 SIGNAL

46(C101-2)

-APS2 SUPPLY

8(C101-2)

-APS2 GND

7(C101-1)

-CKPS SHIELD GND

42(C101-1)

-MAFS SIGNAL

37(C01-1)

-MAFS REFERANCE FREQUENCY

2

1

3

3

2

1

4

1

5

2

P

P

Refer to "Blower & A/C"
Diagram

EGNG106A

FLA -52

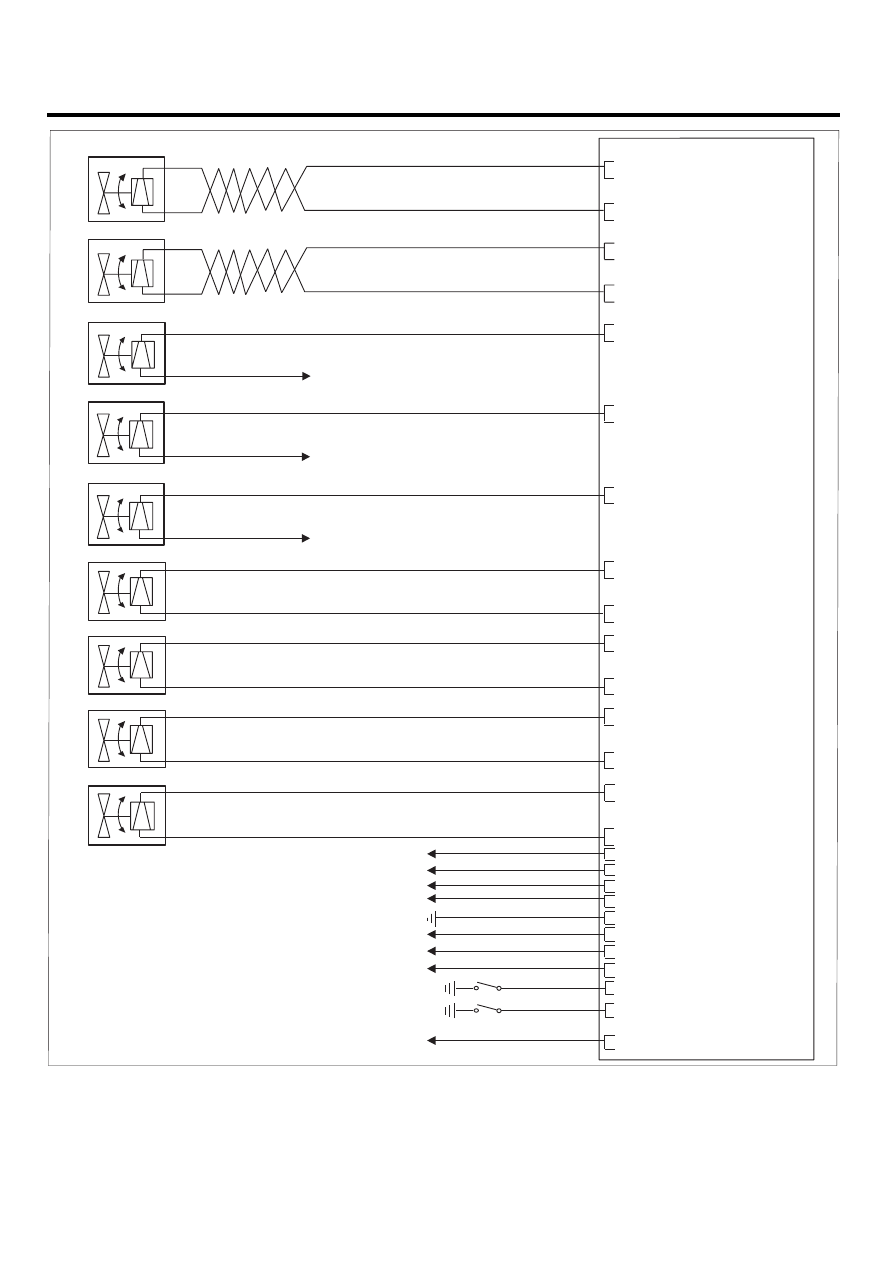

FUEL SYSTEM

4(C101-1)-RAIL PRESSURE CONTROL
               VALVE(HIGH SIDE)

34(C101-1)-RAIL PRESSURE CONTROL
               VALVE(LOW SIDE)

Rail Pressure Control Valve

59(C101-1)-EEGR CONTROL

After Main Relay

EGR Control Solenoid Valve

29(C101-2)-VGT CONTROL

After Main Relay

VGT Control Actuator

Injector 3

Injector 4

Injector 2

Injector 1

16(C101-1)-INJECTOR 1(HIGH SIDE)

47(C101-1)-INJECTOR 1(LOW SIDE)

1(C101-1)-INJECTOR 3(HIGH SIDE)

46(C101-1)-INJECTOR 3(LOW SIDE)

17(C101-1)-INJECTOR 4(HIGH SIDE)

33(C101-1)-INJECTOR 4(LOW SIDE)

2(C101-1)-INJECTOR 2(HIGH SIDE)

2

1

2

1

2

1

E C M

31(C101-1)-INJECTOR 2(LOW SIDE)

1

1

2

2

19(C101-1)-FUEL PRESSURE REGULATOR
               VALVE(HIGH SIDE)

49(C101-1)-FUEL PRESSURE REGULATOR
               VALVE(LOW SIDE)

Fuel Pressure Regulator Valve

1

2

2

90(C101-2)

-THROTTLE FLAP CONTROL

After Main Relay

Throttle Flap Actuator

1

2

1

75(C101-2)-VEHICLE SPEED

Vehicle Speed Signal

84(C101-2)-CAN HIGH

CAN  High

83(C101-2)-CAN LOW

CAN  Low

48(C101-2)-ENGINE SPEED

Engind Speed Signal to Tachometer

81(C101-2)-MT/AT RECOGNITION S/W(AT ONLY)

27(C101-2)-FUEL CONSUMPTION

Fuel Consumption Signal

PTC Heater

DLC

94(C101-2)-PTC HEATER CONTROL

2

1

25(C101-2)-DIAGNOSIS LINE (K-LINE)

EPS control Module

52(C101-2)-Electronic Load singal input

Neutral switch

 57(C101-2)-NEUTRAL S/W SIGNAL(MT ONLY)

Clutch switch

 79(C101-2)-CLUTCH S/W SIGNAL(MT ONLY)

EGNG107A

DIESEL CONTROL SYSTEM

FLA -53

10(C101-2)

-FUEL TEMPERATURE

              SENSOR GND

11(C101-2)

-FUEL TEMPERATURE

              SENSOR SIGNAL

51(C101-2)

-HEATED OXYGEN SENSOR

              HEATER CONTROL

65(C101-2)

-HEATED OXYGEN SENSOR

              CURRENT PUMPING

87(C101-2)

-HEATED OXYGEN

              SENSOR SIGNAL

64(C101-2)

-HEATED OXYGEN

              SENSOR SUPPLY

86(C101-2)

-HEATED OXYGEN

              SENSOR GND

E C M

26(C101-1)

-VSA POSITION SENSOR

              SUPPLY

6

2

1

1

2

4

3

5

5

4

3

2

1

6(C101-1)

-VSA POSITION SENSOR GND

After Main Relay

Heated Oxygen Sensor

Fuel Temperature Sensor

22(C101-2)

-A/C TRANSDUCER SUPPLY

12(C101-2)

-A/C TRANSDUCER GND

13(C101-2)

-A/C TRANSDUCER SIGNAL

30(C101-1)

-VSA MOTOR(-)

60(C101-1)

-VSA MOTOR(+)

56(C101-1)

-VSA POSITION SENSOR

              SIGNAL

3

1

2

A/C Pressure Transducer

Variable Swirl Valve
Actuator(VSA)

M

EGNG108A

FLA -54

FUEL SYSTEM

ECM PROBLEM INSPECTION

PROCEDURE

ED2F36EF

1.

TEST ECM GROUND CIRCUIT: Measure resistance
between ECM and chassis ground using the backside
of ECM harness connector as ECM side check point.
If the problem is found, repair it.

Specification (Resistance)
Between terminal 2 of C01-2 connector and
chassis ground : 1Ω or less
Between terminal 4 of C01-2 connector and
chassis ground : 1Ω or less
Between terminal 6 of C01-2 connector and
chassis ground : 1Ω or less

2.

TEST ECM CONNECTOR: Disconnect the ECM con-
nector and visually check the ground terminals on
ECM side and harness side for bent pins or poor con-
tact contact pressure. If the problem is found, repair
it.

3.

If problem is not found in Step 1 and 2, the ECM could
be faulty. If so, replace the ECM with a new one, and
then check the vehicle again. If the vehicle operates
normally then the problem was likely with the ECM.

4.

RE-TEST THE ORIGINAL ECM : Install the original
ECM (may be broken) into a known-good vehicle and
check the vehicle. If the problem occurs again, re-
place the original ECM with a new one. If problem
does not occur, this is intermittent problem (Refer to
INTERMITTENT PROBLEM PROCEDURE in BASIC
INSPECTION PROCEDURE)

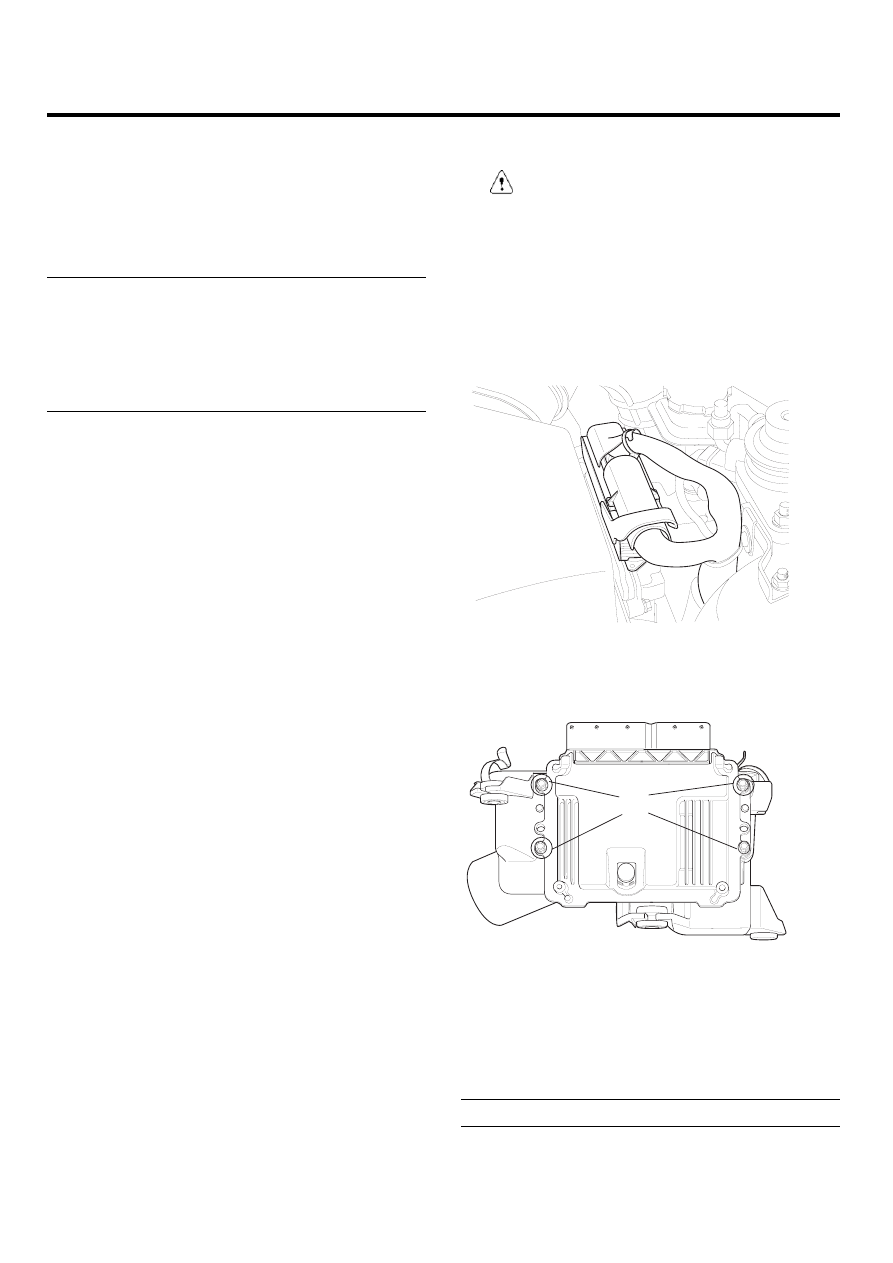

REPLACEMENT

E7FFA26A

CAUTION

When exchanging ECMS, be sure to input injector
data (7 digits) of each cylinder into a new ECM
using a Hi-scan(pro).

1.

After turning ignition switch off, wait for 30sec..

2.

Remove the battery cable(-).

3.

Remove the ECM connector.

AWJF301G

4.

Unfasten four mounting bolts (A).

A

AWJF303A

5.

Remove the ECM from the air cleaner assembly.

6.

Install a new ECM with air cleaner assembly.

7.

Fasten four mounting bolts.

Tightening torque : 0.8 ~ 1.2kgf·m

8.

Using a Hi-scan(pro), input the injector data (7 digits)
into a new ECM as next procedure.
