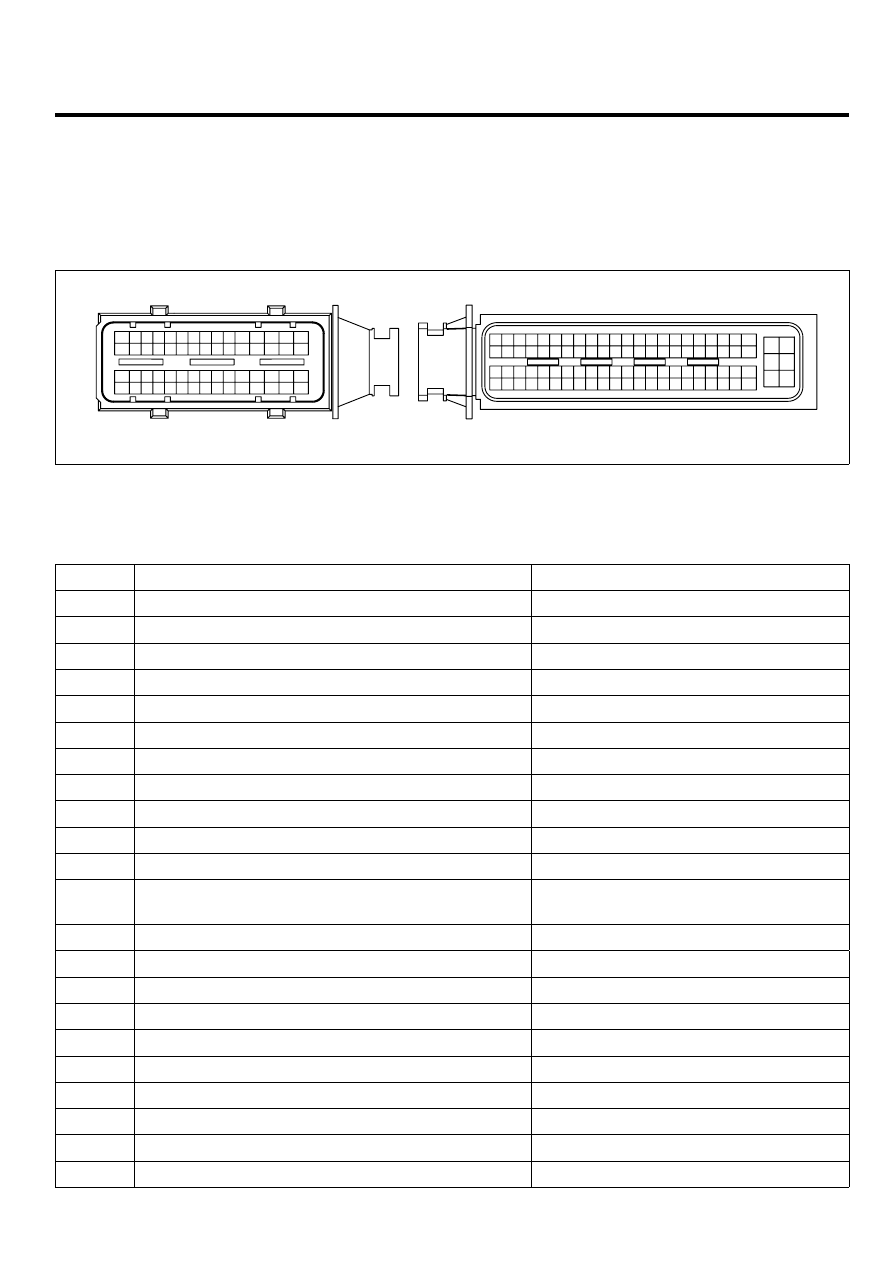

DIESEL CONTROL SYSTEM
FLA -39
ENGINE CONTROL MODULE
(ECM)
ECM
ED5CD9F6
1.
ECM HARNESS CONNECTOR
C101-1
C101-2
1
30 29
31
32
38
39
36
37
35
33
34
40
42 41
46 45 44 43
48 47
50 49
2
3
4
6
5
8
7
12 11 10 9
13
14
15
18 17
19
16
22
25
27 26
23
20
21
24
28
51
75 74
53 52
73
79 78 77 76
80
81
83 82
84
86 85
87
89 88
90
92 91
93
94
57
69 68
70
71
64
54
55
56
61
58
59
60
63 62
65
66
67
72
1
2
4
6
8 7
12
13
16
17
23
20 19
27 26
28
30
33
31
34
37
41
42
40
43
44
47 46
49
50
53
56
58
59
60
*
*
*
* *
* *
*
*
*
*
*
*
* * * *
*
*
*
*
*
*
*
*
EGNG104A
2.
ECM TERMINAL FUNCTION
＜C101-1 CONNECTOR＞
PIN
FUNCTION
CONNECTED TO
1
Injector for Cylinder3(high side)
Injector3
2
Injector for Cylinder2(high side)
Injector2
3
N.A
-
4
Rail pressure control valve supply from BAT+a
Rail pressure control valve
5
N.A
-
6
Variable swirl valve position sendor Ground
Variable swirl valve
7
Crankshaft position sensor shield
Crankshaft position sensor
8
Rail pressure sensor ground
Rail pressure sensor
9
N.A
-
10
N.A
-
11
N.A
-
12
Crankshaft sensor minus signal:AT
Crankshaft sensor plus signal:MT
Crankshaft position sensor
13
Boost pressure sensor supply
Boost pressure sensor
14
N.A
-
15
N.A
-
16
Injector for Cylinder1(high side)
Injector1
17
Injector for Cylinder4(high side)
Injector4
18
N.A
-
19
Fuel pressure regulator valve "high side"(MPROP)
Fuel pressure regulator valve
20
Camshaft position sensor ground
Camshaft position sensor
21
N.A
-
22
N.A
-
