Hyundai Tiburon (2003 year). Manual - part 208











1. Start the engine.

2. Release the parking brake.

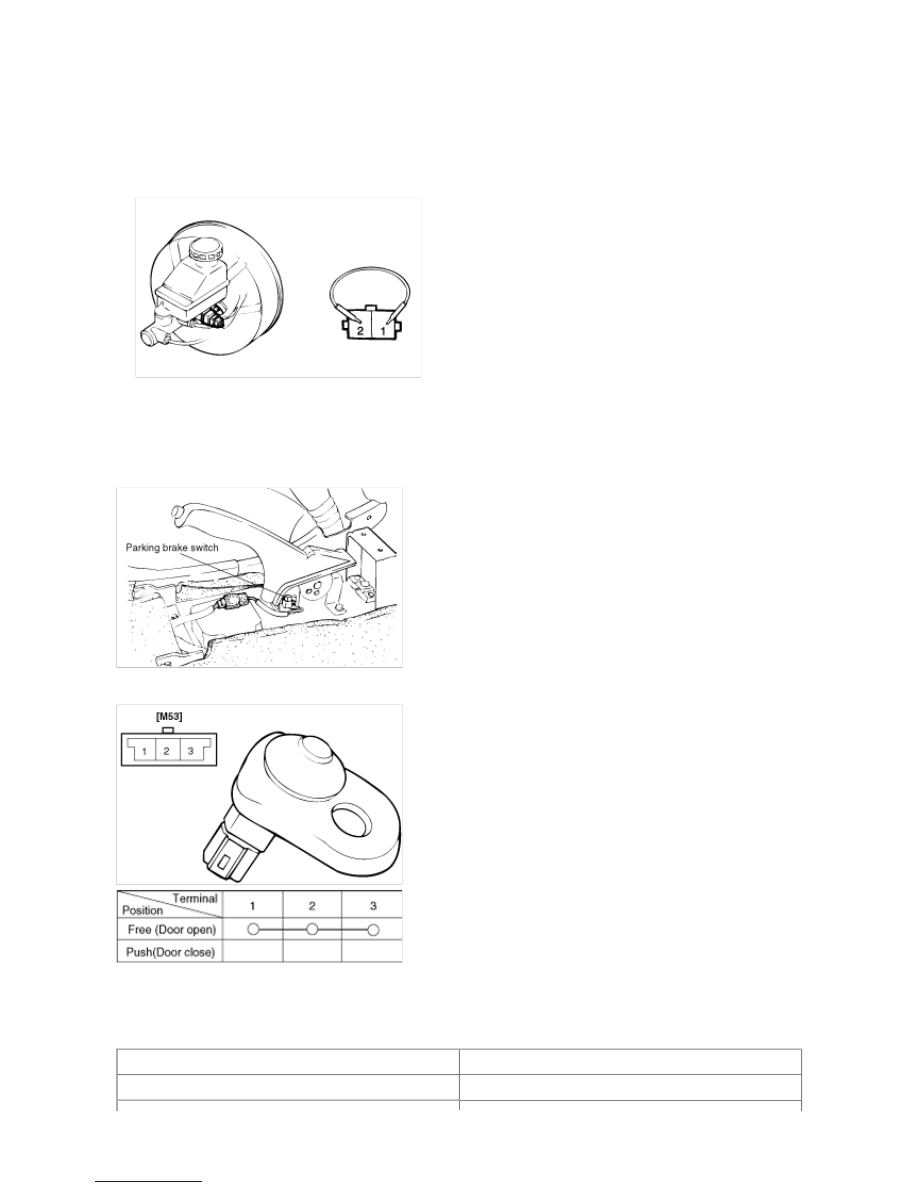

3. Remove the connector from the brake fluid level warning switch.

4. Ground the connector at the harness side.

5. Verify that the warning lamp lights.



PARKING BRAKE SWITCH

1. Check that there is continuity between the terminal and switch body with the switch ON (Lever is pulled).

2. Check that there is no continuity between the terminal and switch body with the switch OFF (Lever is

released).

DOOR SWITCH

SEAT BELT SWITCH

1. Remove the connector from the switch.

2. Check for continuity between terminals.

Seat belt condition

Continuity

Fastened

Non-conductive (

∞Ω





Not fastened

Conductive(0

SEAT BELT WARNING LAMP

Seat belt condition

Warning lamp

Fastened

OFF

Not fastened

ON





TIBURON(GK) > 2003 > G 2.7 V6 DOHC > Body Electrical System > Multi Gauge > Schematic Diagrams,
TIBURON(GK) > 2003 > G 2.7 V6 DOHC > Body Electrical System > Multi Gauge > Schematic Diagrams

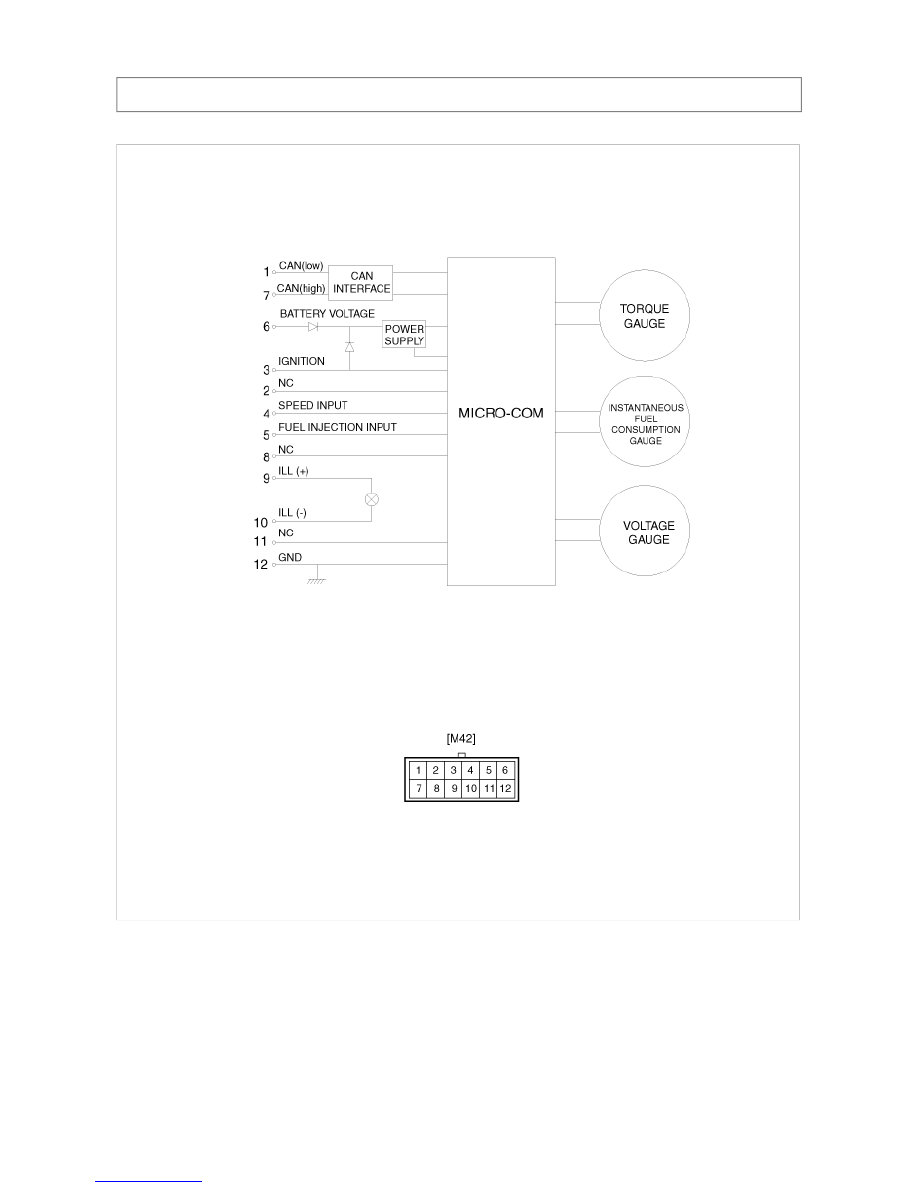

CIRCUIT DIAGRAM

SPECIFICATIONS





TIBURON(GK) > 2003 > G 2.7 V6 DOHC > Body Electrical System > Multi Gauge > Description and
Operation, TIBURON(GK) > 2003 > G 2.7 V6 DOHC > Body Electrical System > Multi Gauge >
Description and Operation

DESCRIPTION

1. Engine torque gauge

It indicates the instantaneous torque variation according RPM of the vehicle. Driver can notice the
instantaneous torque variation with oscillation and outrunning speed, recently a lot of comsumers want their
sports car with performance tuning. They can discern the torque level easily. Engine torque gauge indicates
the engine torque value by communicating CAN signals from engine ECU.

2. Instantaneous fuel consumption gauge

It indicates instantaneous fuel consumption according the driving condition.
Instantaneous fuel consumption gauge inputs the speed signal and fuel injection signal.
Speed signal comes directly from the speed sensor and fuel injection signal is from the engine ECU.
Multi-gauge reads the two signals for 500msec. and calculates the instantaneous fuel consumption. If the
vehicle speed is increasing by constant fuel quantityper hour, the gauge indicates the value increasingly.
It doesn't show the average fuel consumption but only the instantaneous one.

3. Volt gauge

Volt gauge makes a driver properly response during low voltage, informing the vehicle voltage.
Before ignition turned on, when the key is inserted into "ingnition switch on" position, it displays the battery
voltage, after ignition key turnedon, it displays the ignition voltage( battery voltage).
If the voltage is at 8.5V or below, the pointer of the gauge moves to the lower than 8V and if it is at 16V or
more, it moves to the lower than16V.
If the input value is between 8.5V and 16V, the volt gauge points the battery voltage (Ignition voltage is
displayed during the ignition key turned on ).

Items

Display range

Input signal

Gauge operating type

Engine torque

0~400 Nm

ECU engine torque (CAN

communication)

Stepper motor

Instantaneous fuel

consumption

0~30 MPG

Speed signal, Fuel

injection signal

(CAN communication)

Stepper motor

Battery voltage

8~16V

Battery voltage

Stepper motor
