Hyundai Tiburon (2003 year). Manual - part 67







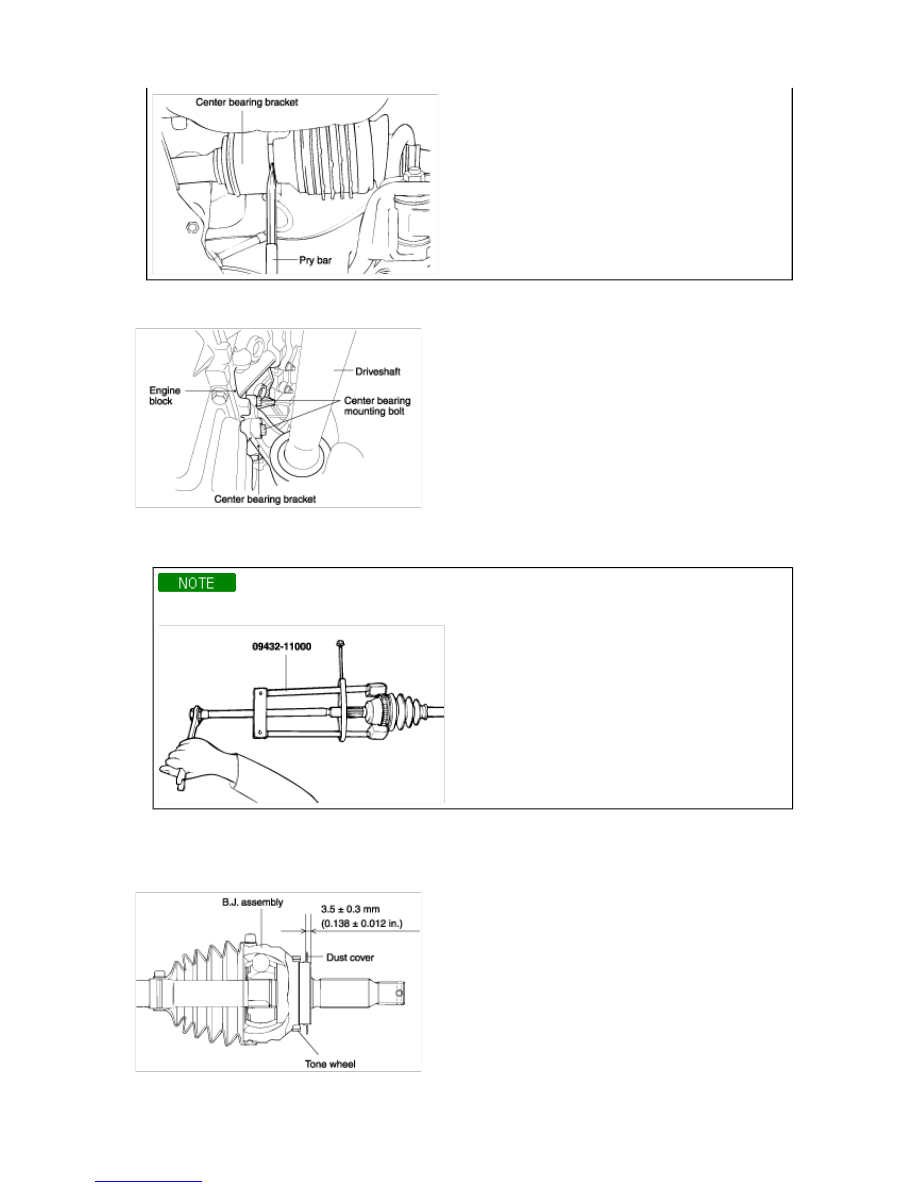

9. Remove the center bearing bracket mounting bolts. Insert the pry bar between the center bearing bracket and

the cylinder block to disconnect thebracket from the cylinder block. (for 2.7L engine)



10. Remove the inner shaft from the center bearing. (for 2.7L engine)

11. Using the special tool (09432-11000), remove the tone wheel.

Before removing the tone wheel, be sure to remove the B.J. assembly side dust cover.



INSTALLATION

1. After installing the birfield joint assembly side tone wheel, install the dust cover, keeping the specified

clearance as below.



2. Apply gear oil on the driveshaft splines and differential case contacting surface.

3. Before installing the driveshaft, set the opening side of the circlip facing downward.

4. After installation, check that the driveshaft cannot be removed by hand.

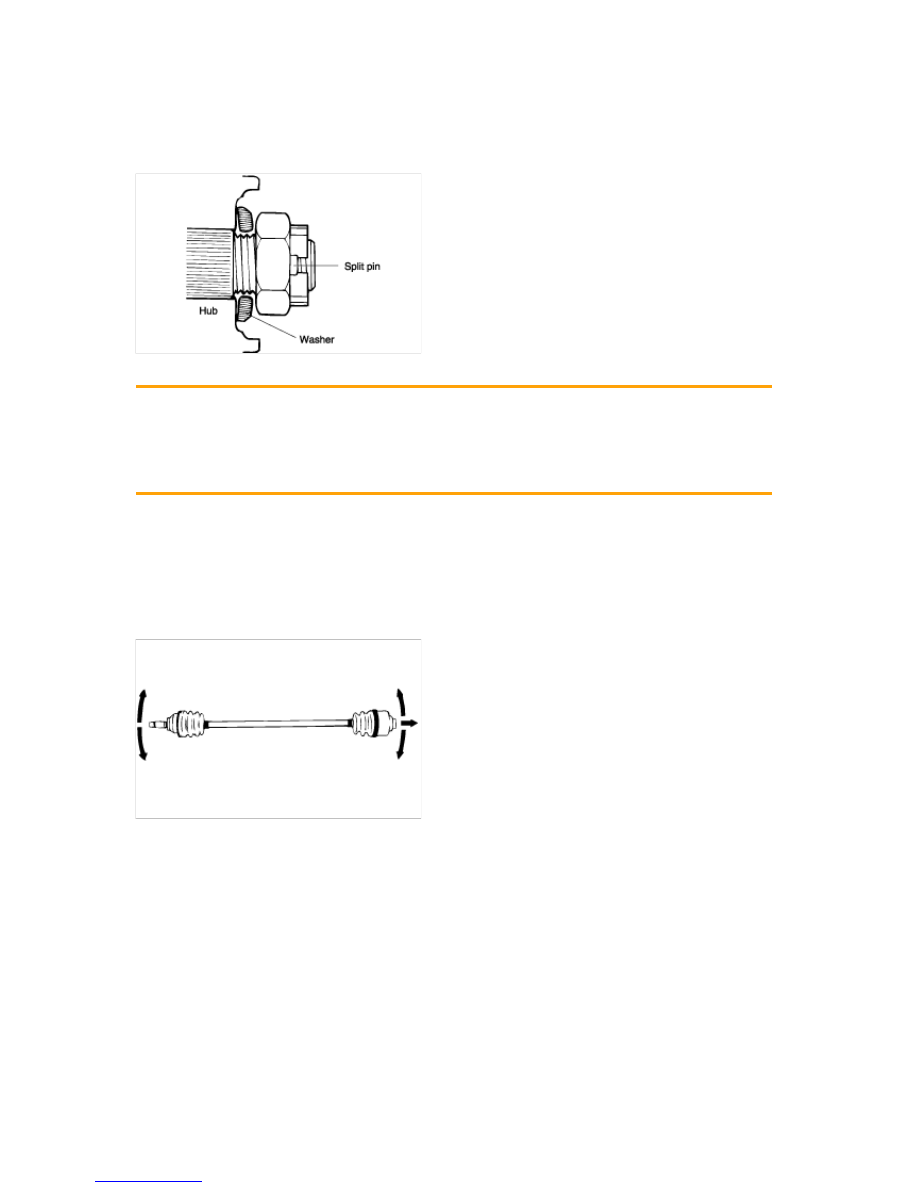

5. Position the convex side of the washer to face outside and install the nut and split pin.

6. Replace the self-locking nuts and split pin with new ones after removal.



7. Tighten the below parts to the specified torque

Driveshaft nut
2.0L : 200~260Nm (2000~2600 kgf·cm, 148~192 lbf·ft)
2.7L : 200~280Nm (2000~2800 kgf·cm, 148~207 lbf·ft)
Lower arm ball joint nut
60~72Nm (600~720 kgf·cm, 44~53 lbf·ft)

INSPECTION

1. Check the driveshaft boots for damage and deterioration.

2. Check the ball joints for wear and damage.

3. Check the splines for wear and damage.

4. Check the dynamic damper for cracks and wear.



INSPECTION

1. Check the driveshaft spline for wear or damage.

2. Check that there is no water or foreign material in the birfield joint.

3. Check the spider assembly for roller rotation, wear or corrosion.

4. Check the groove inside the tripod joint case for wear or corrosion.

5. Check the dynamic damper for damage or cracks.



DISASSEMBLY

1. Do not disassemble the birfield joint assembly.

2. Special grease must be applied to the driveshaft joint. Do not substitute with another type of grease.

3. The boot band should be replaced with a new one.

1. Remove the double offset joint boot bands and pull the double offset joint boot from the double offset joint

outer race.

Be careful not to damage the boot.



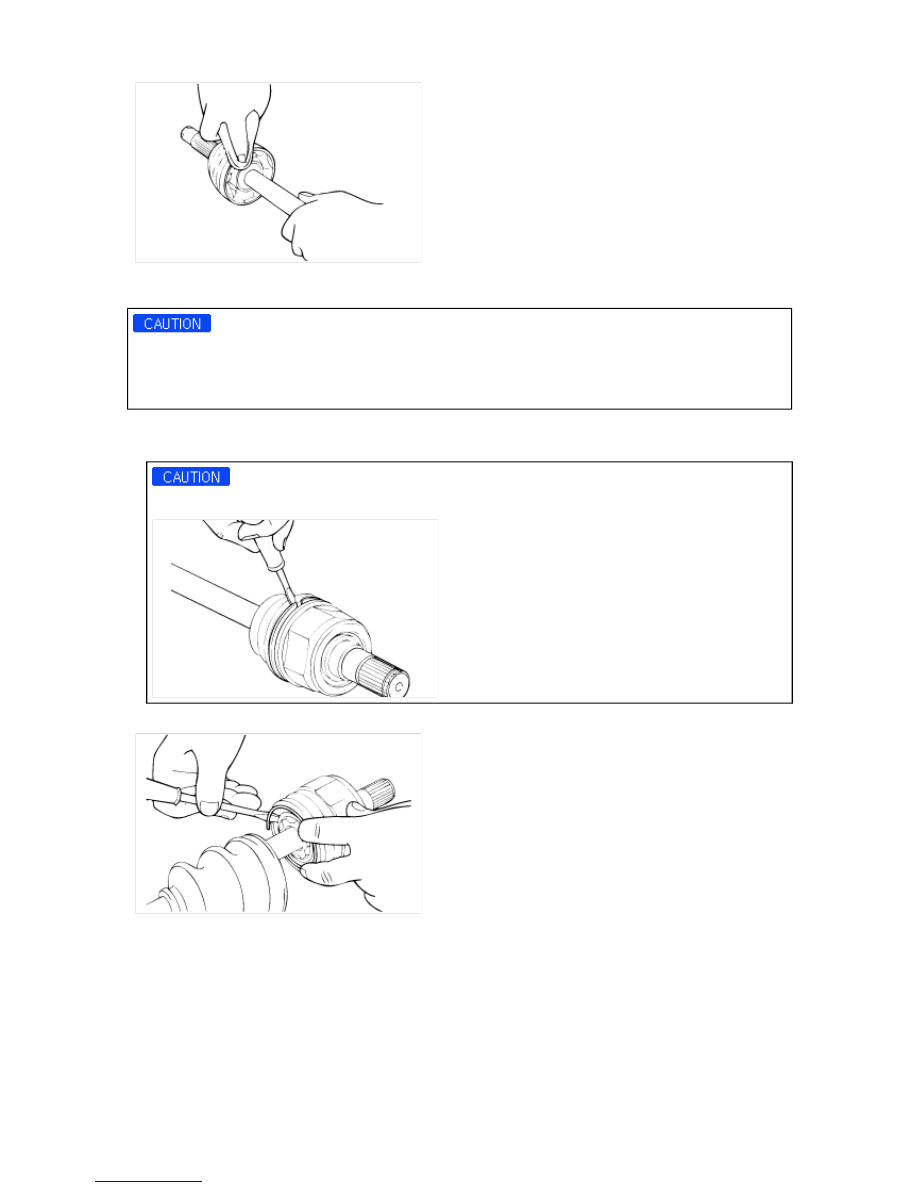

2. Remove the circlip with a flat-tipped screwdriver.



3. Pull out the driveshaft from the double offset joint outer race.

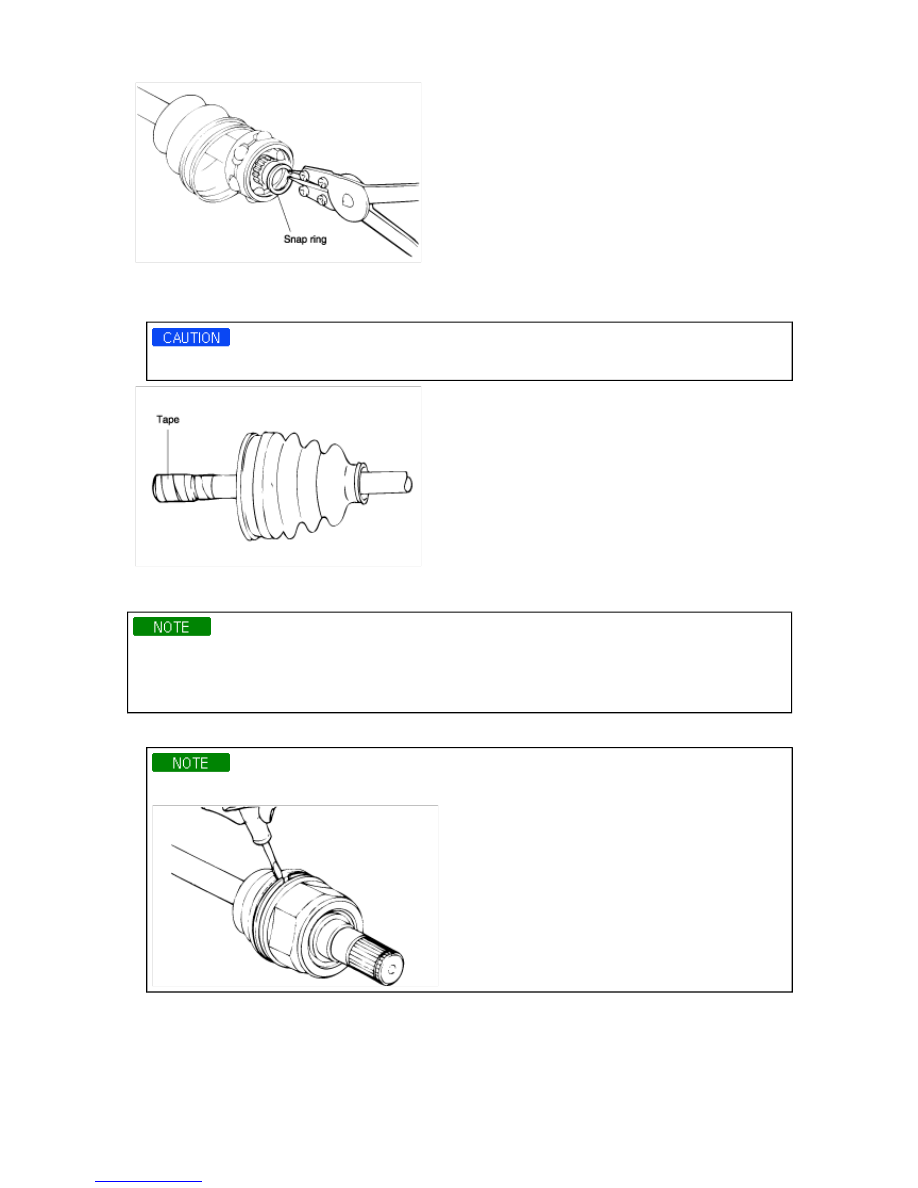

4. Remove the snap ring and take out the inner race, cage and balls as an assembly.



5. Clean the inner race, cage and balls without disassembling.

6. Remove the birfield joint boot bands and pull out the double offset joint boot and birfield joint boot.



If the boot is to be reused, wrap tape around the driveshaft splines to protect the boot.

DISASSEMBLY

• Do not disassemble the birfield joint assembly.

• Special grease must be applied to the driveshaft joint. Do not substitute with another type of grease.

• The boot band should be replaced with a new one.

1. Remove the tripod joint boot bands and pull the tripod joint boot from the tripod joint case.

Be careful not to damage the boot.



2. Remove the snap ring and spider assembly from the driveshaft.
