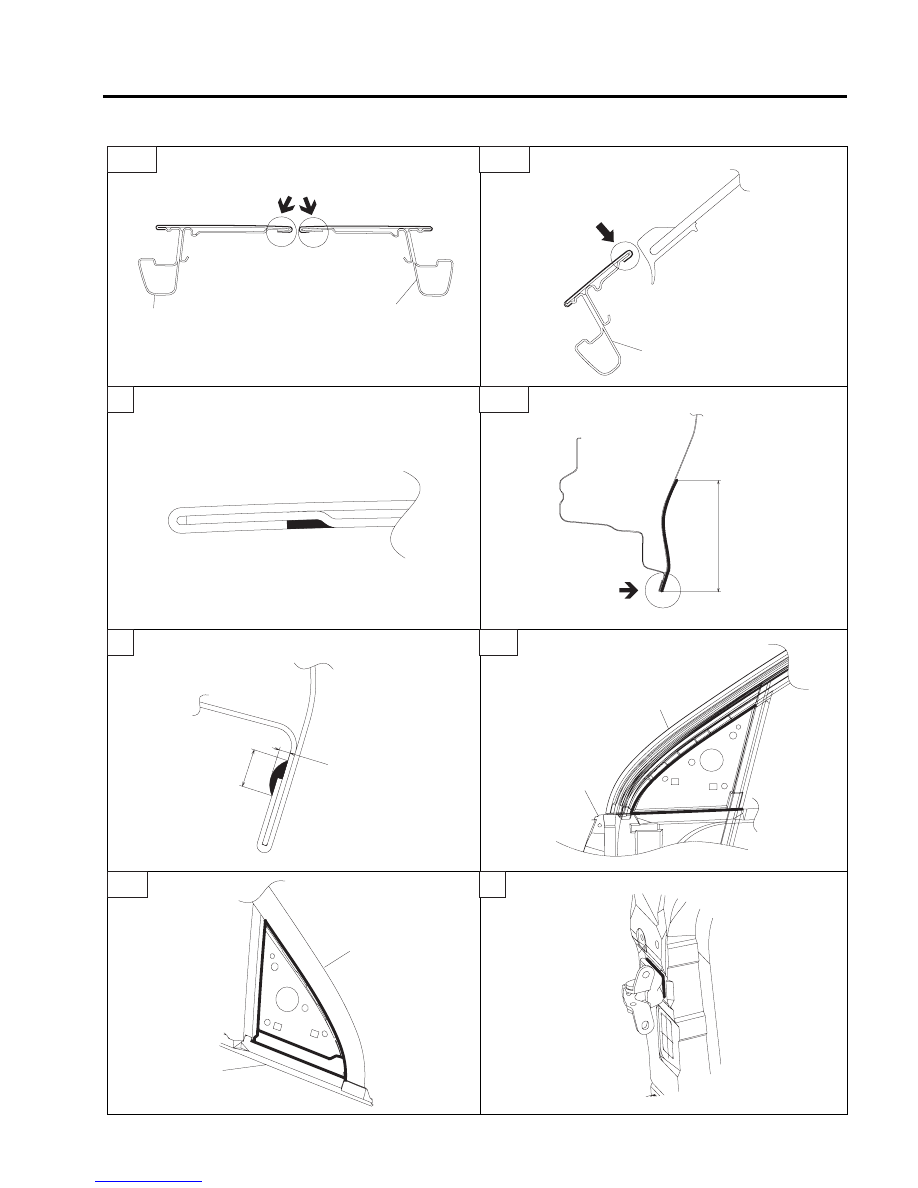

BODY SEALING LOCATIONS

BS-11

BEDBS6028

BEDBS6033

BEDBS6032

BEDBS6030

BEDBS6031

BEDBS6029

A -A

B -B

V

C -C

T

D1

D2

E

BEDBS6027

BEDBS6026

V

94   5 mm

+_

T

V

Rear door front frame

Rear door rear frame

Front door rear frame

Front door inner panel

Front door

outer panel

Front door
frame assembly

Front door

frame assembly

1.5 m

m

5 mm

BS-12

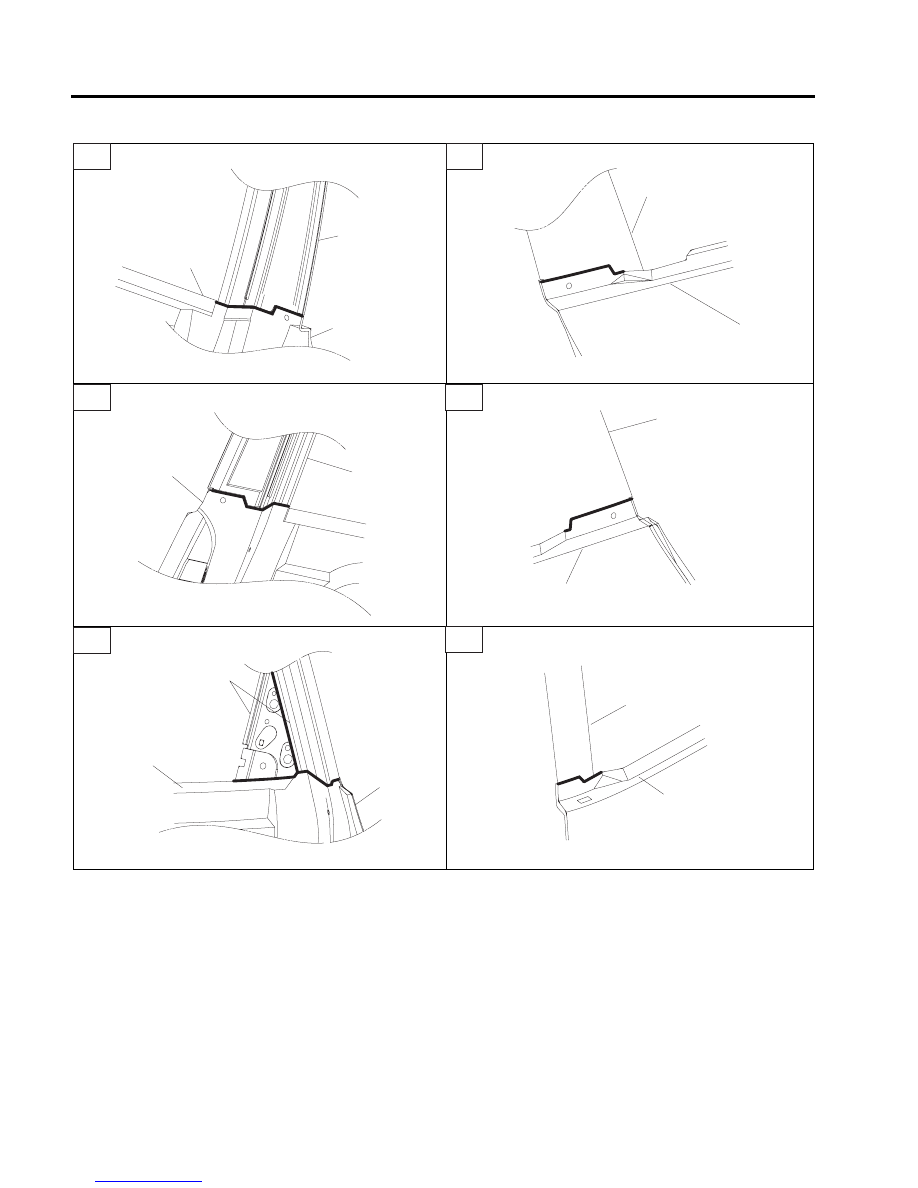

BODY SEALING LOCATIONS

BEDBS6036

BEDBS6038

BEDBS6039

BEDBS6037

F2

BEDBS6035

BEDBS6034

G1

H1

F1

H2

F2

Front door
frame assembly

Front door frame assembly

Front door outer panel

Rear door outer panel

Rear door frame assembly

Front door inner panel

Front door
outer panel

Rear door
frame assembly

Rear door inner panel

Rear door frame assembly

Rear door inner panel

Rear door
outer panel

Rear door frame assembly

Rear door outer panel

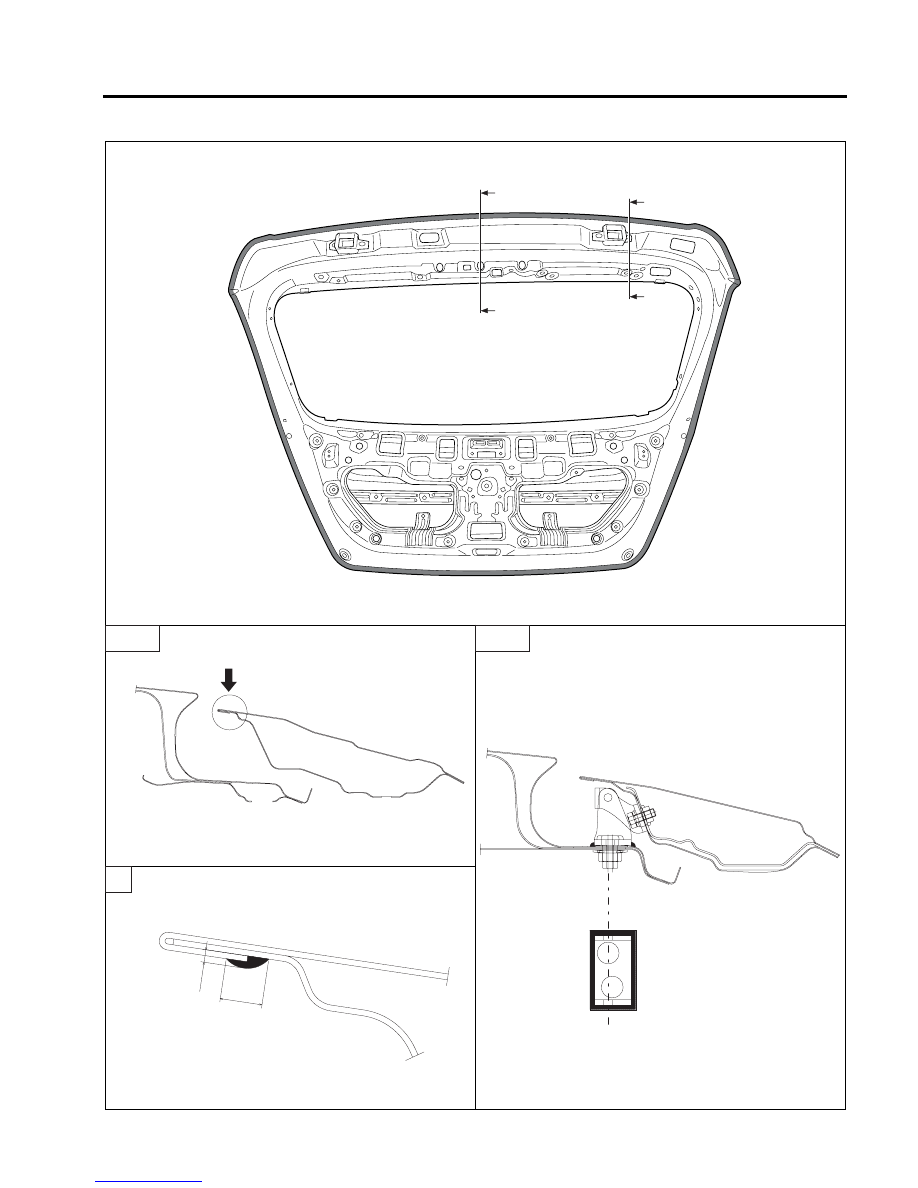

BODY SEALING LOCATIONS

BS-13

BEDBS6024

BFDBS6021

BEDBS6022

Z

BEDBS6023

Z

A - A

B - B

2.5 mm

5mm

A

A

B

B

TAIL GATE

Corrosion

protection

CP

ZINC-PHOSPHATE COAT & CATIONIC
ELECTRODEPOSITION PRIMER

........... CP - 2

ATTACHMENT OF ANTIVIBRATION
PADS

.............................................................. CP - 3

ANTIVIBRATION PADS-LOCATION
& SECTION

...................................................... CP - 4

UNDER BODY & SIDE BODY COAT

..... CP - 7

CAVITY WAX INJECTION

........................... CP - 10

SIDE BODY ...................................................... CP - 10
HOOD .............................................................. CP - 11
TAIL GATE ........................................................ CP - 12
FRONT DOOR & REAR DOOR ....................... CP - 13

UNDER BODY ANTI-CORROSION
AGENT

.............................................................. CP - 14
