Body

Dimensions

BD

GENERAL

......................................................... BD - 2

MEASUREMENT METHOD

....................... BD - 2

PROJECTED DIMENSIONS ............................ BD - 2
ACTUAL-MEASUREMENT DIMENSIONS ...... BD - 2
MEASUREMENT POINT .................................. BD - 2

FRONT BODY

................................................. BD - 3

SIDE BODY

...................................................... BD - 5

INTERIOR A

..................................................... BD - 7

INTERIOR B

..................................................... BD - 10

REAR BODY

.................................................... BD - 12

UNDER BODY
(PROJECTED DIMENSIONS)

................... BD - 14

UNDER BODY
(ACTUAL-MEASUREMENT
DIMENSIONS)

................................................. BD - 16

BD-2

BODY DIMENSIONS

ACTUAL-MEASUREMENT DIMENSIONS

1.

These dimensions indicate the actual linear distance
between measurement points, and are the reference
dimensions for use if a tracking gauge is used for
measurement.

2.

Measure by first adjusting both probes to the same
length (A=A')

CAUTION

Check the probes and gauge itself to make sure
there is no free play.

MEASUREMENT POINT

1.

Measurements should be taken at the hole center.

GENERAL

1.

Basically, all measurements in this manual are taken
with a tracking gauge.

2.

When a measuring tape is used, check to be sure there
is no elongation, twisting or bending.

3.

For measuring dimensions, both projected dimension
and actual-measurement dimension are used in this
manual.

MEASUREMENT METHOD

PROJECTED DIMENSIONS

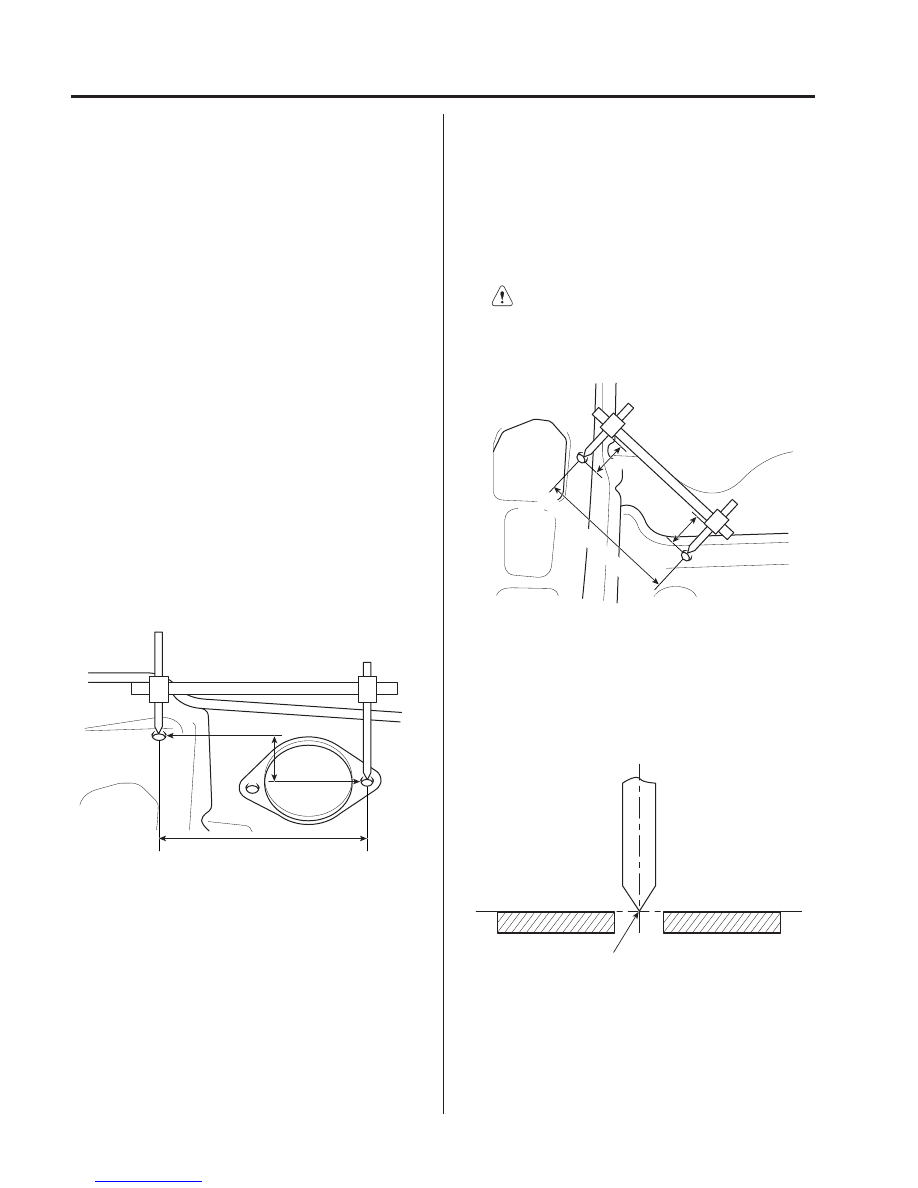

1.

These are the dimensions measured when the
measurement points are projected into the reference
plane, and are the reference dimensions used for body
alterations.

2.

 If the length of the tracking gauge probes are
adjustable, make the measurement by lengthening one
probe by the amount equivalent to the difference in
height of  the two surfaces.

BMCBD6001

Projected Dimension

Height

BMCBD6003

Hole Center

BMCBD6002

Actually-Measured Dimension

A

A'

BODY DIMENSIONS

BD-3

FRONT BODY

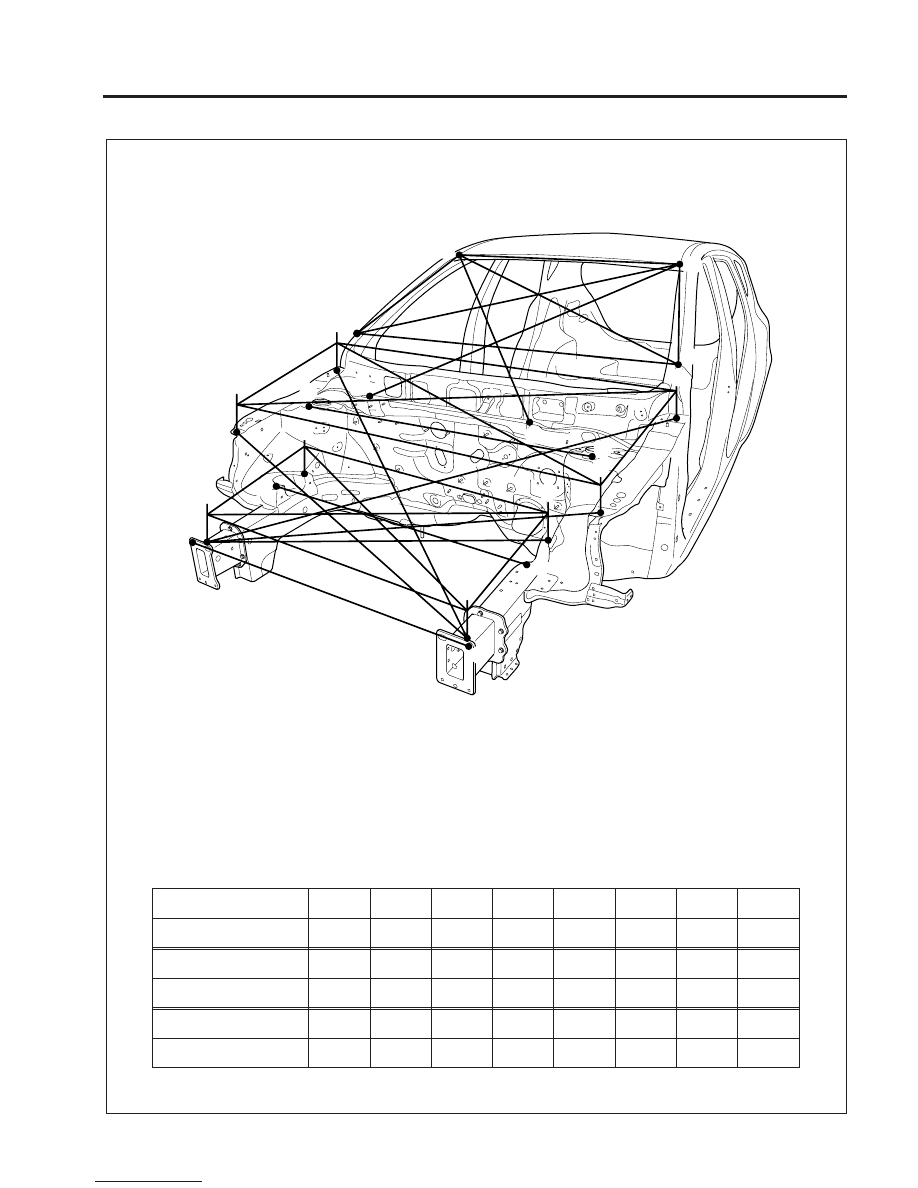

*  These dimensions indicated in this figure are actual-measurement dimensions.

Point symbol

Length(mm)

Point symbol

Length(mm)

Point symbol

Length(mm)

A-A'

E-E'

H'-J

A-B

E-F

H'-J'

A-B'

E-F'

I-I'

A-H'

F-F'



J-J'

B-B'

G-G'

B-H'

H-H'

C-C'

H-J

D-F'

H-J'

1416

1479

1120

650

781

583

1605

1477

995

1283

1063

988

1520

1074

1628

1024

1181

483

1414

1150

BFDBD6101

I

A

B

C

D

E

F

H

G

J

I'

A'

B'

C'

D'

E'

F'

H'

G'

J'

BD-4

BODY DIMENSIONS

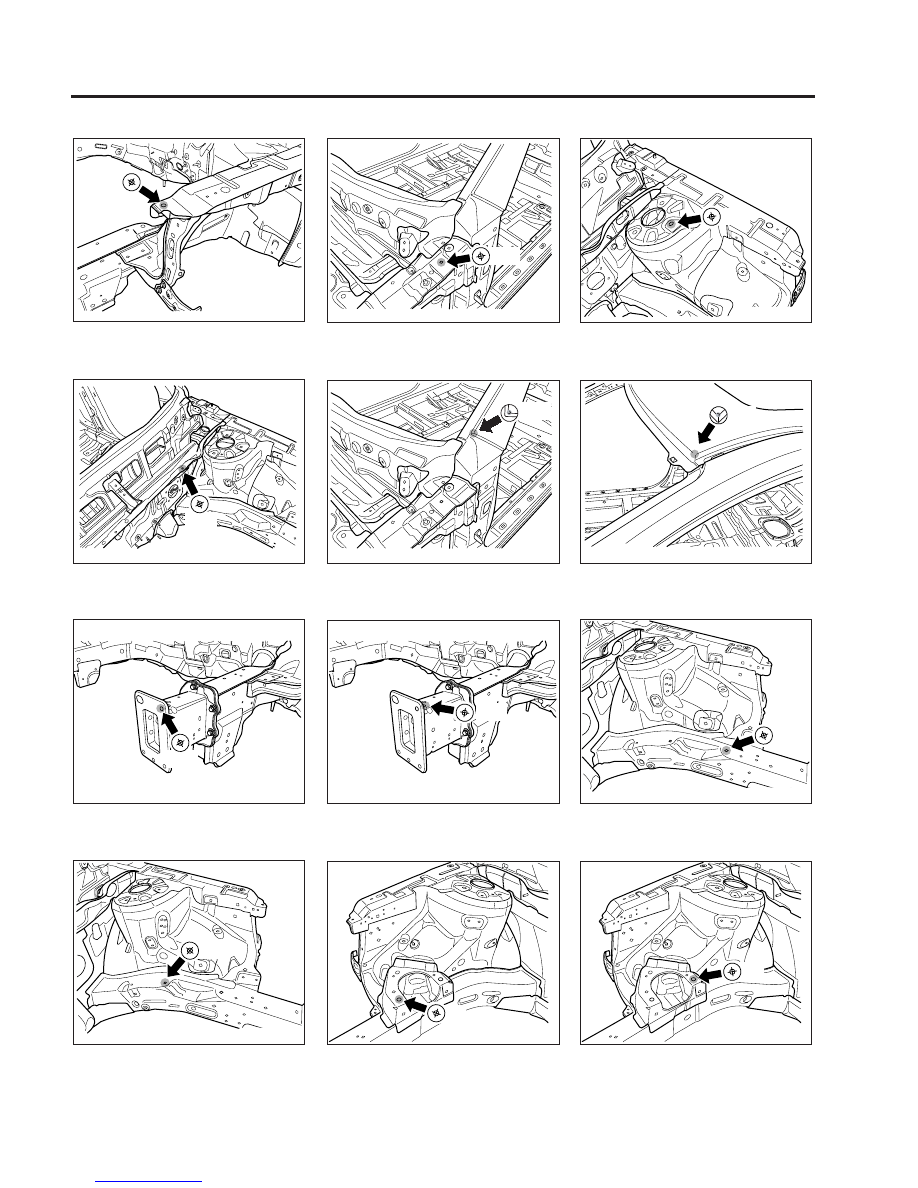

Front end module mounting hole
                                                    (ø9)

Cowl top cover mounting hole     (ø7)

Front end module mounting hole
                                                    (ø9)

Hood hinge mounting hole          (ø9)

Front pillar corner

Tooling hole                                 (ø9)

Front suspension mounting hole
                                                  (ø11)

Roof front corner

Transmission mounting bracket
                                                  (ø11)

Transmission mounting bracket
                                                  (ø11)

Engine mounting bracket hole     (ø13)

Engine mounting bracket hole
                                                  (ø13)



BFDBD6102

BFDBD6103

BFDBD6105

BFDBD6103A

BFDBD6106

BFDBD6107

BFDBD6107A

BFDBD6109

BFDBD6109A

A,A'

B,B'

C,C'

BFDBD6104

D,D'

F,F'

G,G'

E,E'

H,H'

I'

J'

BFDBD6108

BFDBD6108A

I

J
