BODY CONSTRUCTION

BC-3

< Cross-Sectional Views >

BFDBC6105

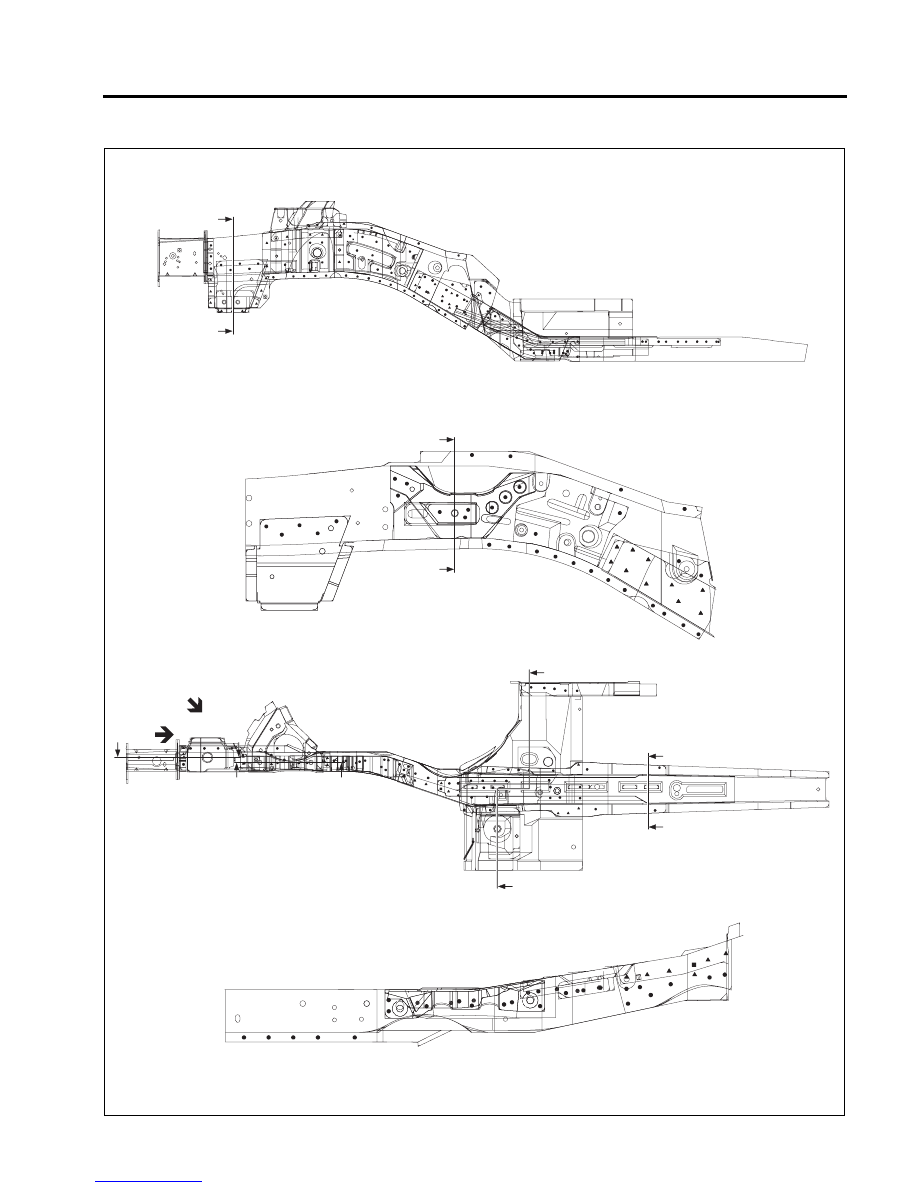

[ SIDE VIEW RH ]

[ SIDE VIEW LH ]

[ TOP VIEW RH ]

[ TOP VIEW LH ]

A

A

B

B

E

E

F

F

C

C

D

D

Z

Y

BC-4

BODY CONSTRUCTION

BENBC6110

 BFDBC6111

BFDBC6109

BFDBC6108

BFDBC6107

BFDBC6106

BFDBC6105A

Front side inner
member assembly

Front side member
outer front extension
assembly

Front side outer

member assembly

Front side member
outer front extension
assembly

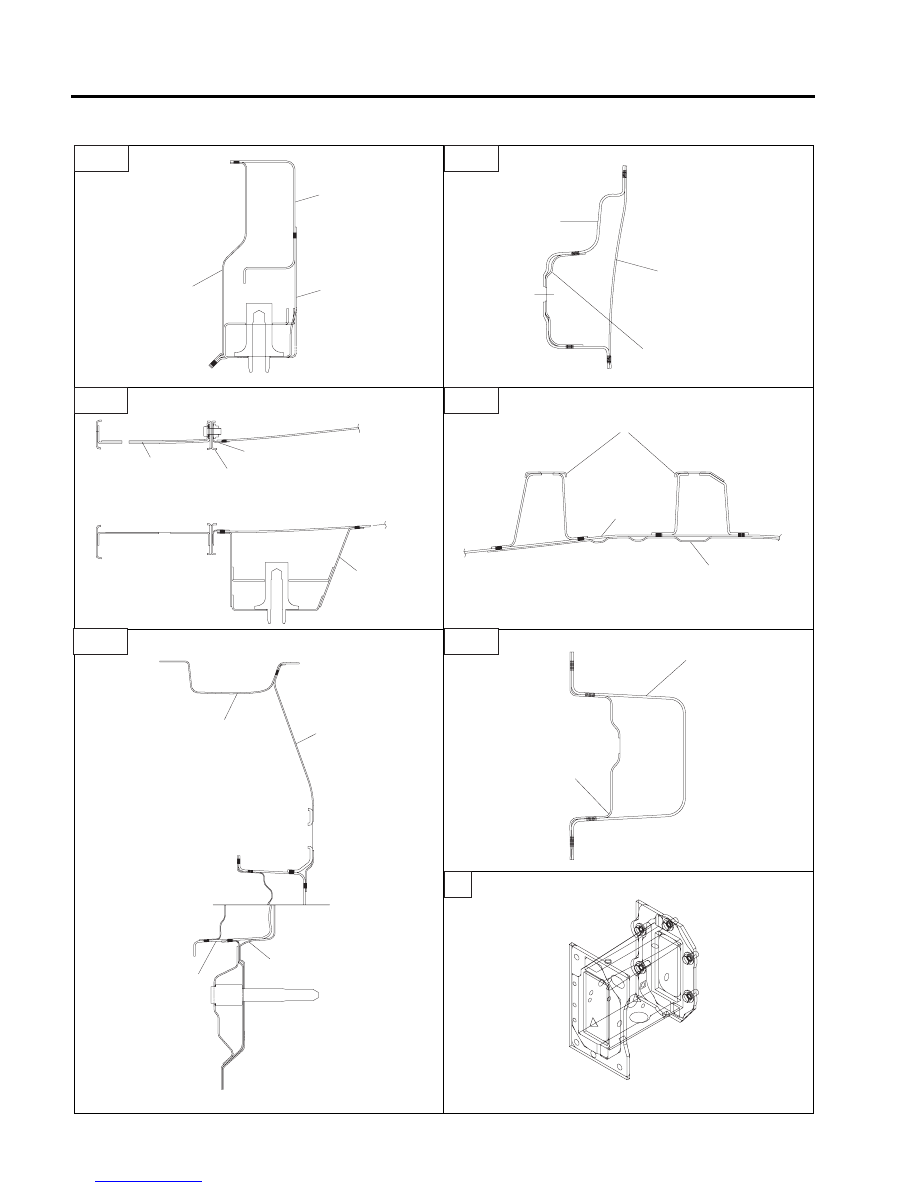

A - A

B - B

D - D

F - F

C - C

Y

E - E

Front side outer
member assembly

Front side inner
memer assembly

Transmission mounting
reinforcement assembly

Engine mounting

support assembly

Front side member

inner reinforcement

assembly

Crash member bracket assembly

Crash member rear
bracket assembly

Front crash

member assembly

Front side inner

member assembly

Side sill inner

front extension

Front side outer member assembly

Front side member
rear lower
extension assembly

Transmission mounting

reinforcement assembly

Subframe rear
mounting bracket assembly

Front side rear

lower member

 assembly

BODY CONSTRUCTION

BC-5

BFDBC6112

Z

BC-6

BODY CONSTRUCTION

FENDER APRON PANEL

BFDBC6113

1

2

3

4

5

6

7

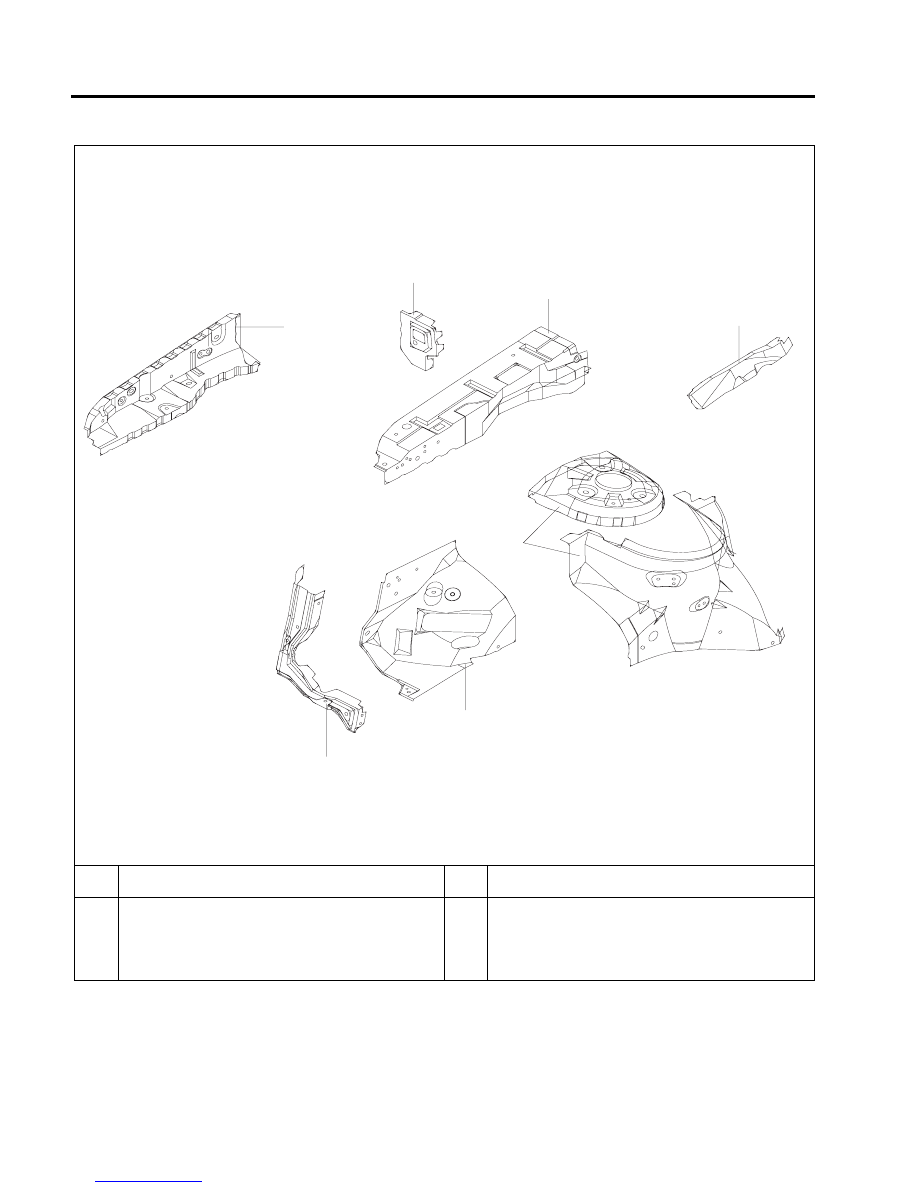

Fender apron inner front reinforcement assembly

Fender apron inner panel assembly

Shock absorber housing complete panel assembly

Fender apron upper outer

Fender apron upper rear gusset

Fender apron upper inner panel assembly

Shock absorber housing reinforcement

PART NAME

No.

PART NAME

No.

1

2

3

4

7

6

5
