BODY CONSTRUCTION - Front body

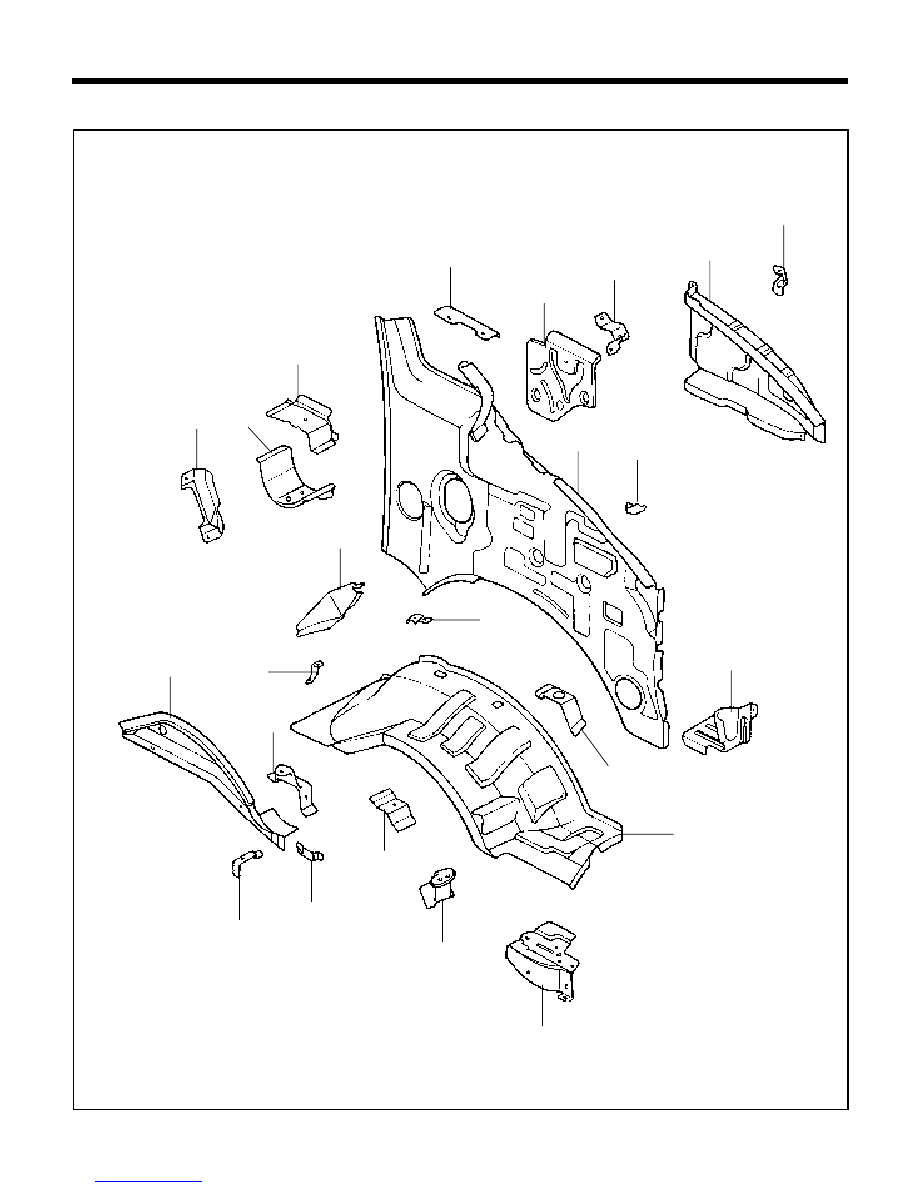

FRONT APRON INNER COMPLETE

CFAA1100

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

7

15

BODY CONSTRUCTION - Front body

No.

PART NAME

Fender mounting (D) bracket.

Front apron outer panel.

Front apron support.

Deck member mounting reinforcement.

Quarter glass defrost bracket.

Front apron inner panel.

Tube bracket.

Fender mounting (A) bracket.

Deck member mounting bracket.

Deck member mounting lower bracket.

Crash pad mounting bracket.

Foot rest bracket.

Under cover duct mounting bracket.

Brake tube mounting bracket.

Washer reservoir tank mounting bracket.

Front wheel house panel.

Extension front wheel house (A) panel.

Air cleaner mounting bracket.

Battery tray mounting reinforcement.

Air cleaner mounting (B) bracket.

Front wheel house side panel extension.

Brake pipe mounting bracket.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

16

BODY CONSTRUCTION - Front body

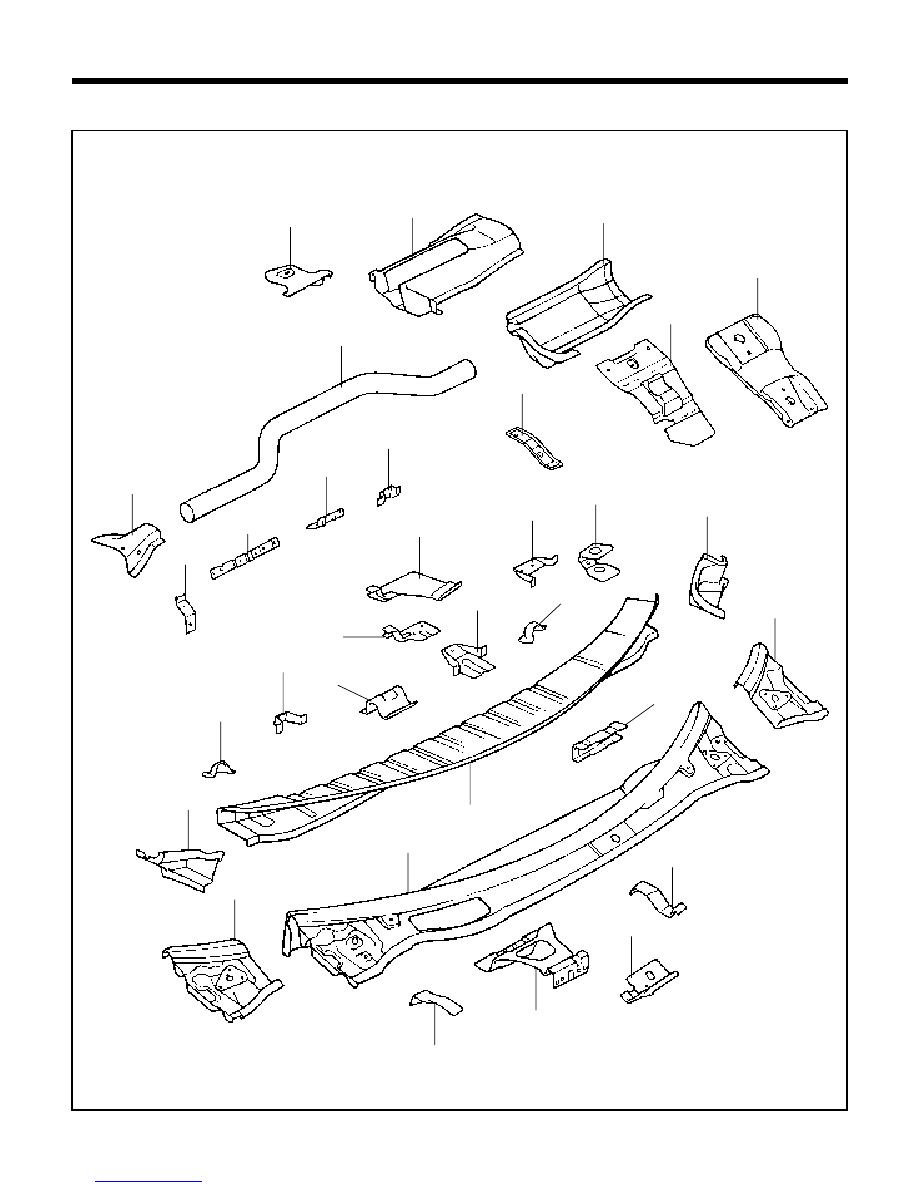

COWL COMPLETE

CFAC1100

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

17

BODY CONSTRUCTION - Front body

No.

PART NAME

Bar upper bracket.

Bar mounting bracket upper.

Bar mounting bracket lower.

Steering column mounting plate.

Bar mounting lower plate.

Cowl crossmember mounting bracket.

Cowl cross bar.

Bar mounting bracket (RH).

Blower mounting bracket.

Evaporator mounting bracket.

Instrument panel center mounting bracket.

Instrument panel mounting bracket (LH).

Deck crossmember upper support.

Brake booster mounting bracket.

Crash pad mounting bracket.

Crash pad bracket (LH).

Brake padel mounting bracket.

Deck crossmember lower support.

Crash pad center bracket.

Heater mounting upper bracket.

Crash pad bracket (RH).

Cowl side inner panel (RH).

Cowl inner upper center panel.

Cowl inner upper bulk head.

Cowl side inner panel (LH).

Cowl side reinforcement bracket (LH).

Cowl top outer panel.

Cowl top outer support No.2.

Window pivot center reinforcement.

Window motor mounting bracket.

Cowl top outer support No.1.

Cowl side reinforcement bracket (RH).

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29
