BODY
CONSTRUCTION

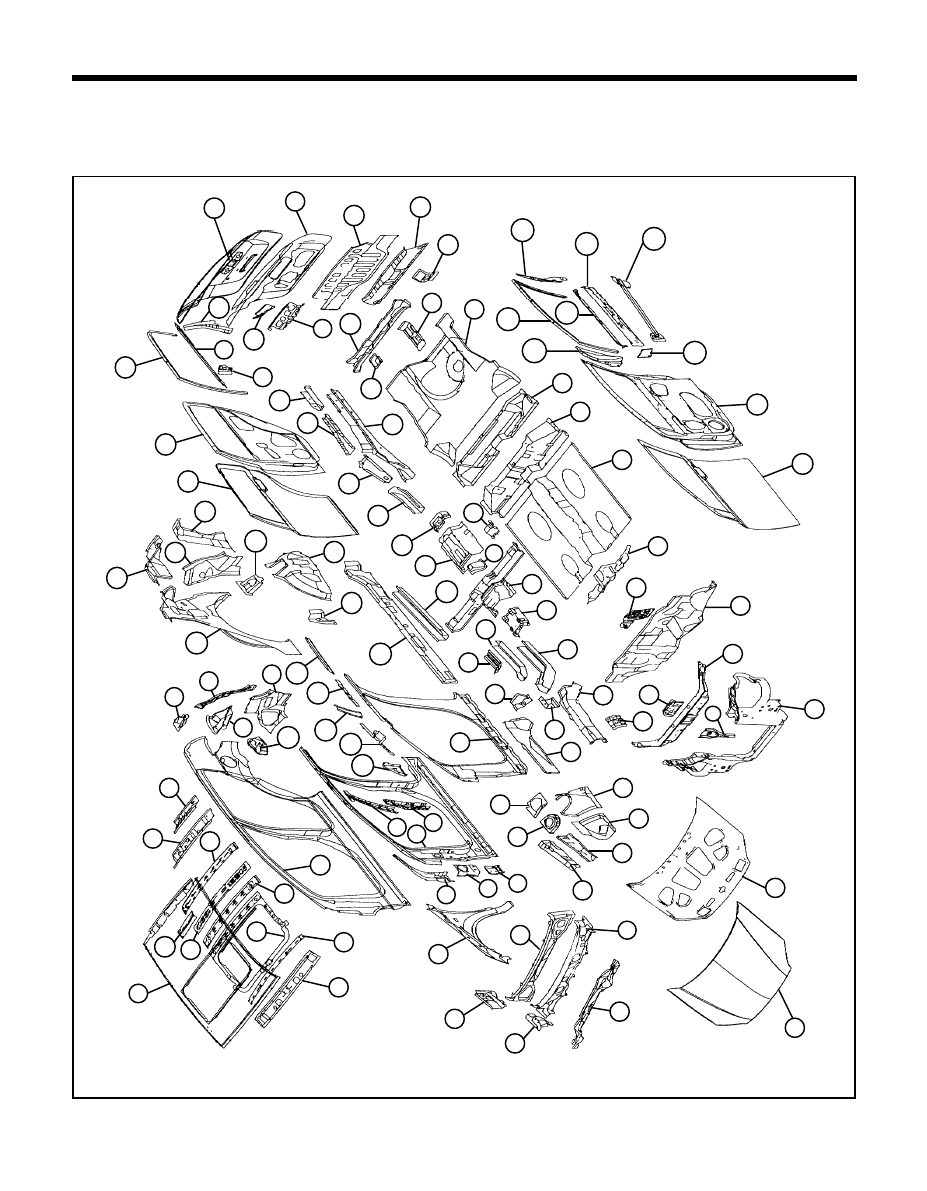

BODY CONSTRUCTION - Body components

BODY COMPONENTS

Body construction will sometimes differ depending on specifications and country of destination. Therefore, please keep in
mind that the information contained herein is based on vehicles for general destination.

TB-0050

101

100

102

103

106

104

105

BODY CONSTRUCTION - Body components

1. Plastic carrier
2. Radiator support upper center panel
3. Radiator support center panel
4. Radiator support center reinforcement
5. Dash panel
6. Brake booster reinforcement
7. Dash lower center reinforcement
8. Center floor panel
9. Rear floor extension
10. Front seat mounting rear side bracket
11. Rear floor front cross member
12. Rear floor panel
13. Towing hook bracket
14. Rear seat rear bracket
15. Rear floor center cross member
16. Tail gate striker reinforcement
17. Rear transverse member
18. Back panel
19. Tail gate wiper motor reinforcement
20. Lifter tail gate side reinforcement
21. Tail gate inner panel
22. Tail gate outer panel
23. Rear door reinforcement beam
24. Rear door belt outer rail
25. Rear door frame rear reinforcement
26. Rear door window channel
27. Rear door inner panel
28. Rear door outer panel
29. Rear floor side member extension
30. Rear floor side member reinforcement
31. Rear floor side member
32. Trailing arm mounting reinforcement
33. Rear floor side front member
34. Parking brake cable mounting bracket
35. Parking brake aperture panel
36. Front seat mounting rear inner bracket
37. Front seat cross member
38. Center floor front reinforcement
39. Center floor side member
40. Side sill inner panel
41. Side inner panel
42. Front side rear member
43. Front side rear lower reinforcement
44. Front side rear lower member
45. Front side member rear lower extension
46. Front side outer member
47. Transmission mounting bracket
48. Front side inner member
49. Battery tray leg reinforcement
50. Fender apron inner front panel
51. Fender apron inner panel
52. Cowl under cover extension
53. Front shock absorber cover panel

54. Fender apron upper member
55. Apron upper reinforcement
56. Hood inner panel
57. Hood outer panel
58. Cowl inner lower panel
59. Cowl side outer panel
60. Cowl top outer panel
61. Cowl side upper outer member
62. Cowl inner rear panel
63. Fender panel
64. Front door upper mounting reinforcement
65. Front pillar outer bracket
66. Front door lower mounting bracket
67. Side outer panel
68. Side outer reinforcement
69. Center pillar outer upper reinforcement
70. Center pillar outer lower reinforcement
71. Rear door lower mounting bracket
72. Front pillar inner upper reinforcement
73. Front side belt upper mounting bracket
74. Assist hold mounting bracket
75. Roof side inner rail
76. Fuel filler housing
77. Quarter outer rear lower extension
78. Quarter outer rear upper extension
79. Rear combination lamp housing panel
80. Tail gate lifter bracket
81. Roof rear upper rail
82. Roof rear lower rail
83. Roof rear center rail
84. Roof center side rail
85. Roof center rail
86. Side roof rear lower reinforcement
87. Side roof reinforcement ring
88. Roof center front rail
89. Roof front rail
90. Roof panel
91. Quarter inner panel
92. Quarter inner upper reinforcement
93. Quarter inner rear lower extension
94. Quarter pillar inner reinforcement
95. Rear spring house cover
96. Wheel house inner front extension
97. Wheel house inner panel
98. Front door outer panel
99. Front door inner panel
100. Front door quadrant reinforcement
101. Front door hinge lower bracket
102. Front door window upper channel
103. Front door frame rear reinforcement
104. Front door belt outer rail
105. Front door belt inner rail
106. Front door reinforcement beam

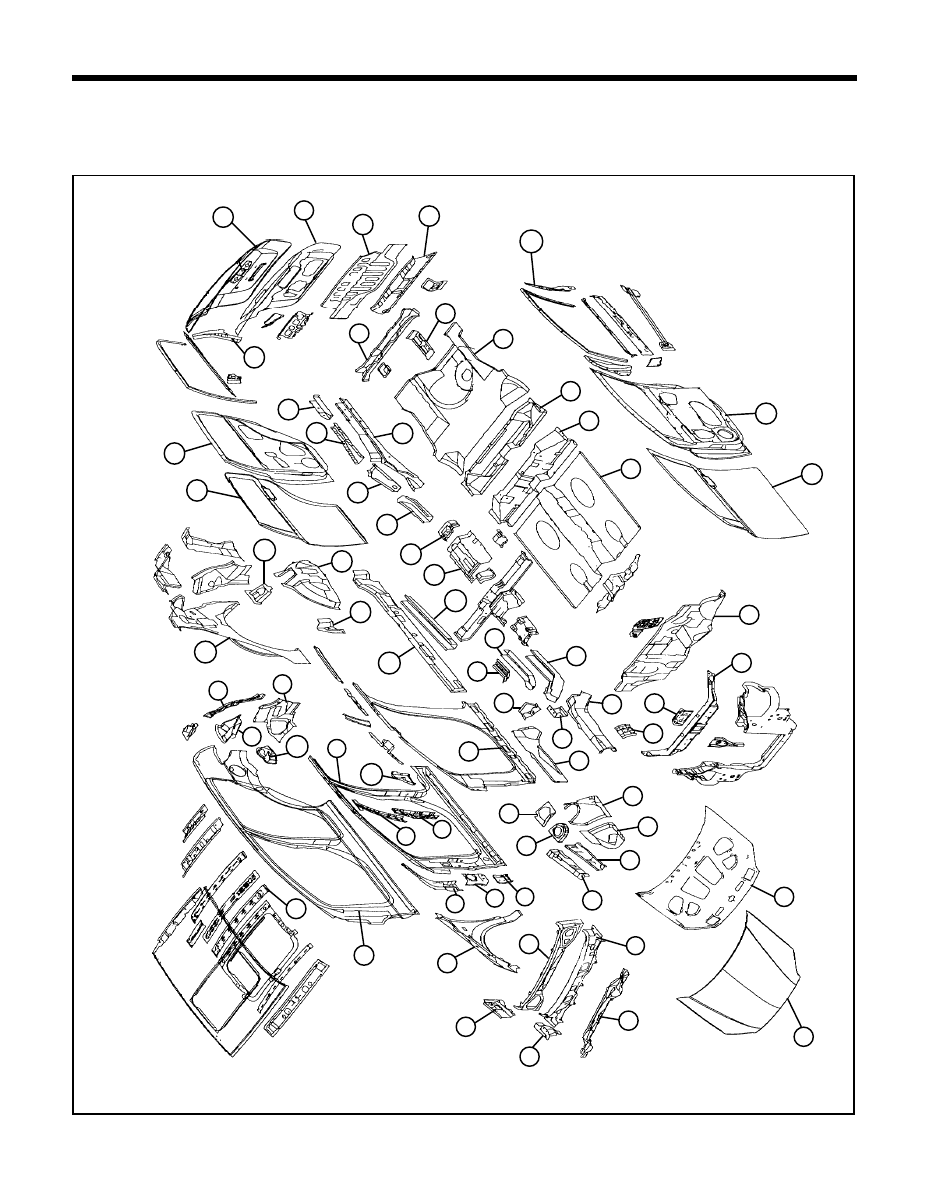

BODY CONSTRUCTION - Zinc-galvanized steel panels

ZINC-GALVANIZED STEEL PANELS

Because galvanized steel panel has excellent resistance, it is used in areas which have a high possibility of painting
deficiency below.

TB-0050
