Hummer H3. Manual - part 1751

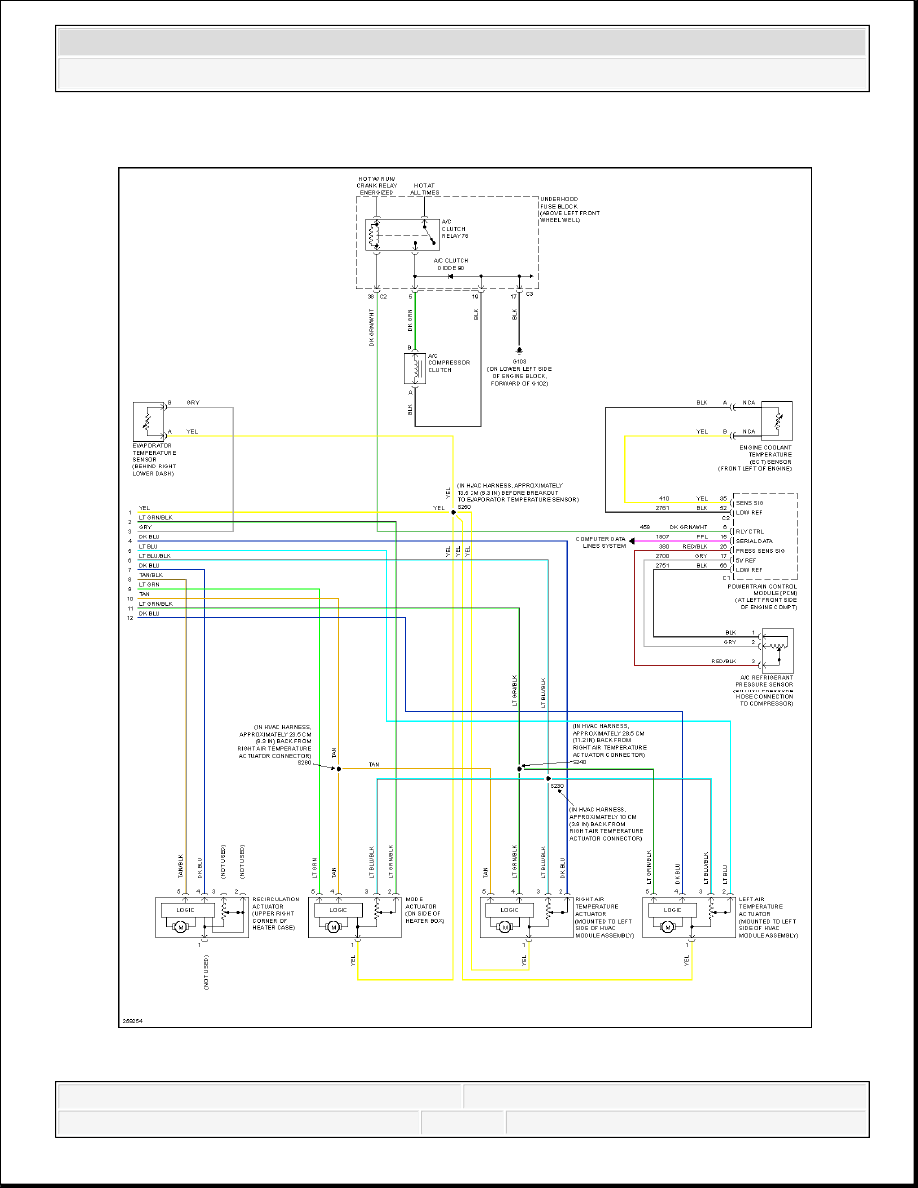

Fig. 1: Compressor Circuit

2007 Hummer H3

2007 SYSTEM WIRING DIAGRAMS Hummer - H3

2007 Hummer H3

2007 SYSTEM WIRING DIAGRAMS Hummer - H3

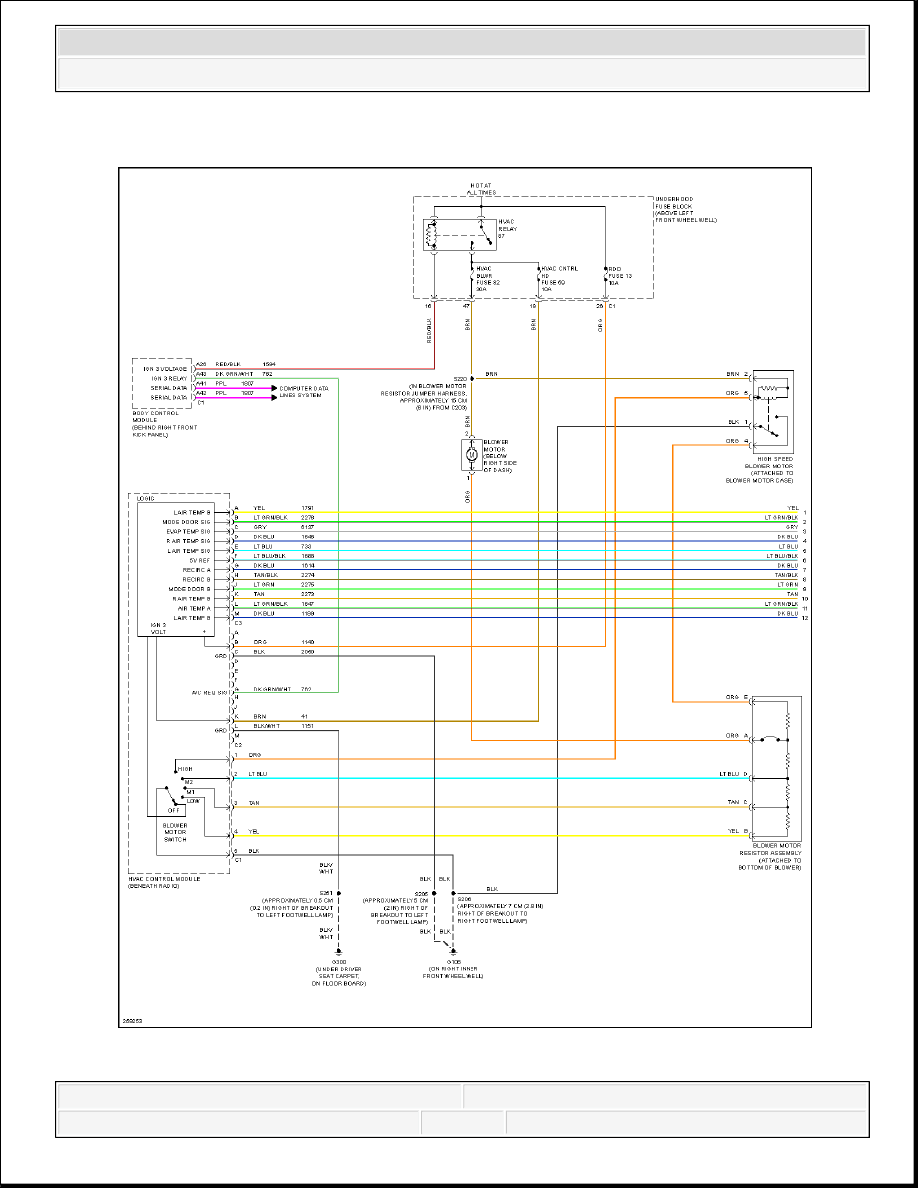

Fig. 2: Manual A/C Circuit (1 of 2)

2007 Hummer H3

2007 SYSTEM WIRING DIAGRAMS Hummer - H3

2007 Hummer H3

2007 SYSTEM WIRING DIAGRAMS Hummer - H3
