An actual dial indicator reading of 0.16 mm (0.006 in) means that there is actually 0.08 mm (0.003 in)
backlash.

Specification: The backlash between the ring gear and the drive pinion should be between 0.08-0.25 mm
(0.003-0.010 in) with a preferred specification of 0.13-0.18 mm (0.005-0.007 in).

6. If the backlash is too small, increase the backlash by turning the left differential adjuster nut sleeve in one

notch using the J 36615 and the right differential adjuster nut sleeve out one notch using theJ 36599-A .
See Special Tools and Equipment .

7. If the backlash is too large, decrease the backlash by turning the right differential adjuster nut sleeve in

one notch using the J 36599-A and the left differential adjuster nut sleeve out one notch using the J
36615 . See Special Tools and Equipment .

8. Recheck the backlash and adjust as necessary.

9. Recheck the rotating torque of the pinion and differential assembly and adjust as necessary.

10. Once the backlash and rotating torque of the pinion and differential assembly is correct, perform a gear

tooth contact pattern check to ensure proper contact between the pinion and the ring gear. Refer to Gear
Tooth Contact Pattern Inspection .

11. Complete the assembly of the differential carrier. Refer to Differential Carrier Assembly - Final

Assembly .

DIFFERENTIAL CARRIER ASSEMBLY - FINAL ASSEMBLY

Tools Required

z

J 36609 Axle Tube Bearing Installer. See Special Tools and Equipment .

z

J 45225 Axle Seal Installer. See Special Tools and Equipment .

z

J 45755 Front Axle Bushing Remover/Installer - 9. See Special Tools and Equipment .25 inch Axle

z

J 8092 Universal Driver Handle - 3/4 in - 10. See Special Tools and Equipment .

IMPORTANT: When adjusting the backlash, observe the following:

z

Always turn the left and the right differential adjuster nut sleeves in
equal amounts.

z

Turning the differential adjuster nut sleeves one notch will change
the backlash about 0.08 mm (0.003 in).



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2



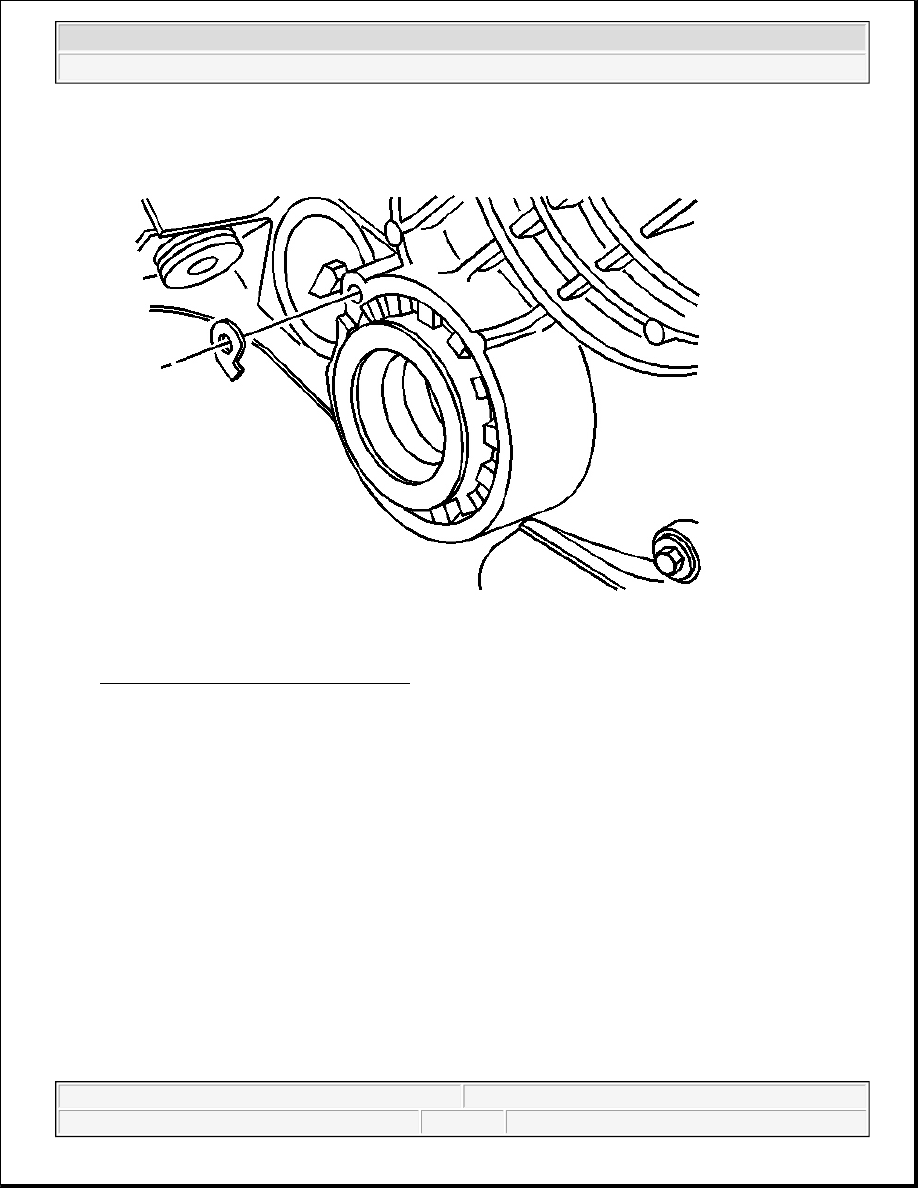

Fig. 127: Bending Right Side Differential Adjuster Nut Lock Tab Over Differential Adjuster Nut
Sleeve
Courtesy of GENERAL MOTORS CORP.

1. Bend the right side differential adjuster nut lock tab over the differential adjuster nut sleeve.



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2



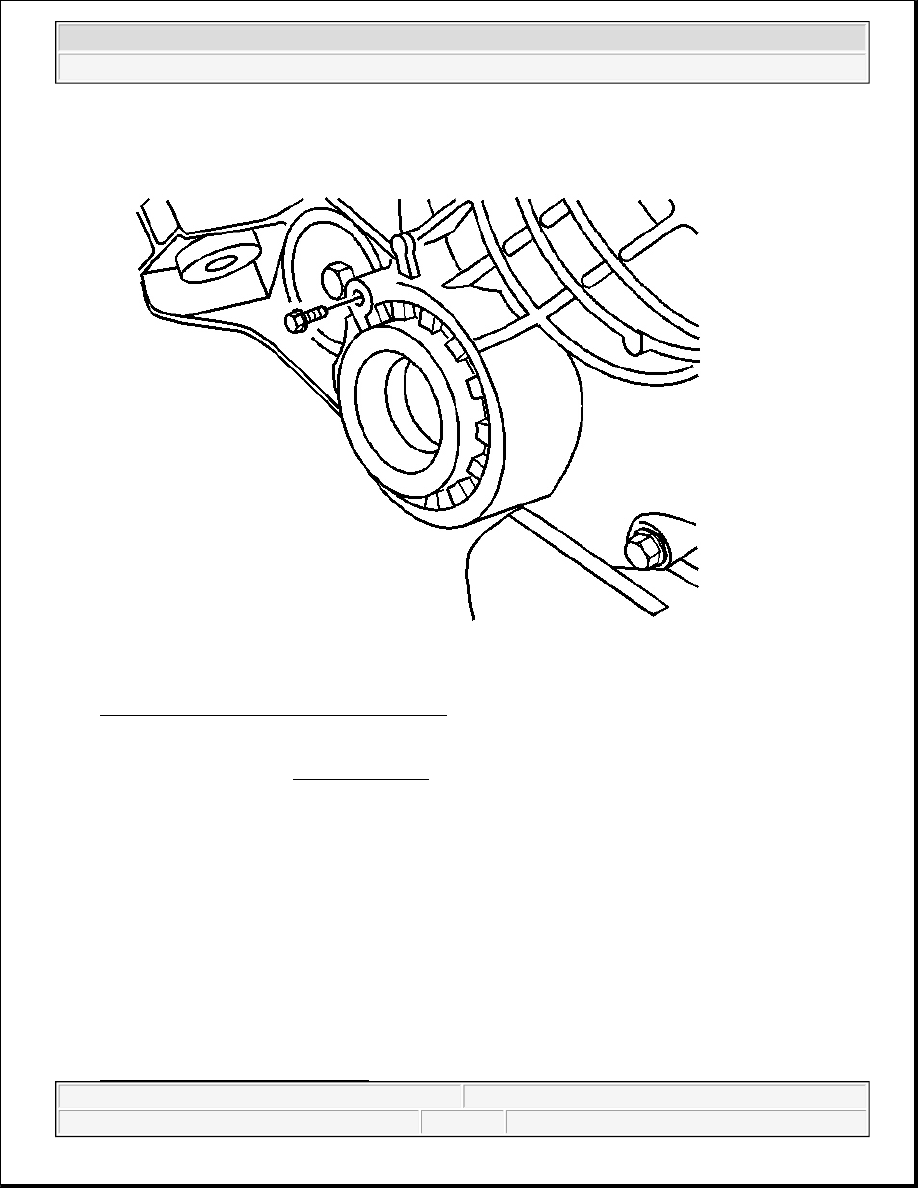

Fig. 128: Differential Adjuster Nut Lock
Courtesy of GENERAL MOTORS CORP.

2. Install the differential adjuster nut lock.



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2



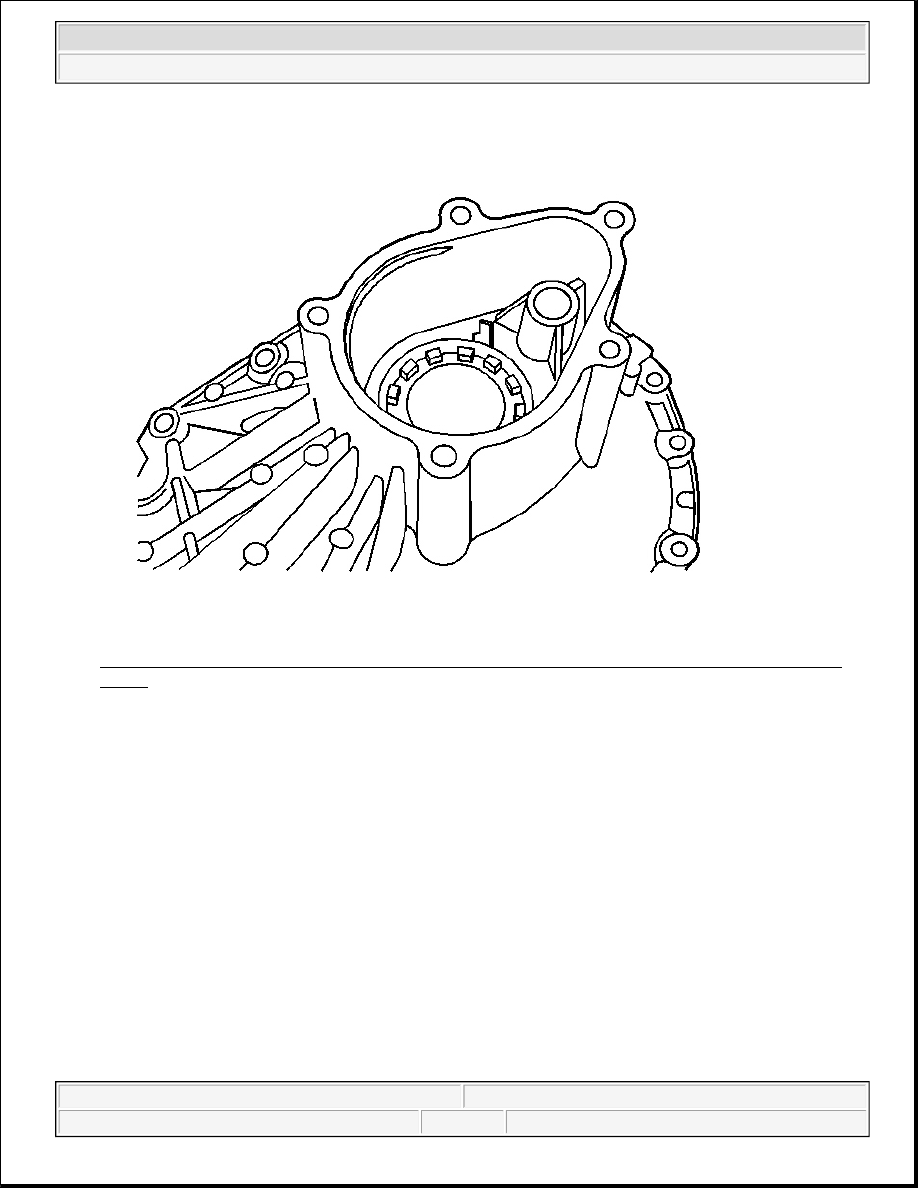

Fig. 129: Differential Adjuster Nut Lock Bolt
Courtesy of GENERAL MOTORS CORP.

3. Install the differential adjuster nut lock bolt.

Tighten: Tighten the differential adjuster lock nut bolt to 20 N.m (15 lb ft).

4. Remove the differential carrier assembly bolts.

5. Remove the right differential carrier case half.

6. Clean the sealing surface of each half of the differential carrier case and the inner axle housing to

differential carrier assembly.

The surfaces must be clean of all the grease and the oil.

7. Apply a bead of sealer to one differential carrier case half sealing surface. Use the correct sealer. Refer to

Sealers, Adhesives, and Lubricants .

NOTE:

Refer to Fastener Notice in Cautions and Notices.
