46. Remove the outer pinion bearing cup by turning the forcing screw clockwise.

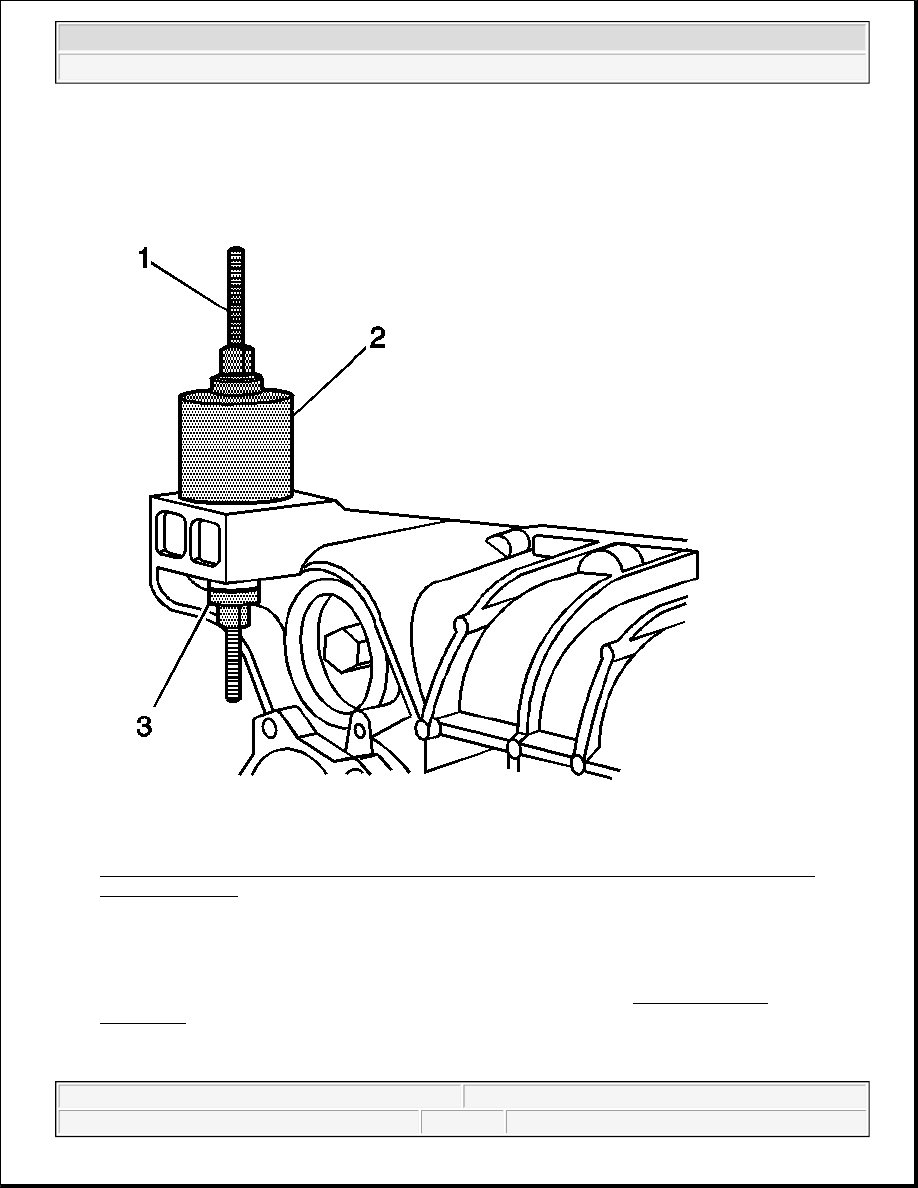

Fig. 90: Installing J 45755-3, J 45755-4, Forcing Screw, Bearing & Washers Over Differential
Carrier Assembly
Courtesy of GENERAL MOTORS CORP.

47. Install the J 45755-3 (2), J 45755-4 (3), and the forcing screw, bearing and the washers (1) over the

differential carrier assembly bushing as shown.

48. Remove the differential carrier assembly bushing using the J 45755 . See Special Tools and

Equipment .

DIFFERENTIAL CASE ASSEMBLY DISASSEMBLE



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2



Tools Required

z

J 22888-D Side Bearing Remover Kit. See Special Tools and Equipment .

z

J 36597 Side Bearing Puller Pilot - 9.25 in Axle

1. Remove the differential side bearing by performing the following steps:

1. Place the differential case in a vise.

Fig. 91: Removing Differential Side Bearings
Courtesy of GENERAL MOTORS CORP.

2. Install the J 22888-20A (2) and the J 36597 (1) as shown. See Special Tools and Equipment .

3. Remove the differential side bearings using the J 22888-20A .



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2



2. Remove the differential assembly from the vise.

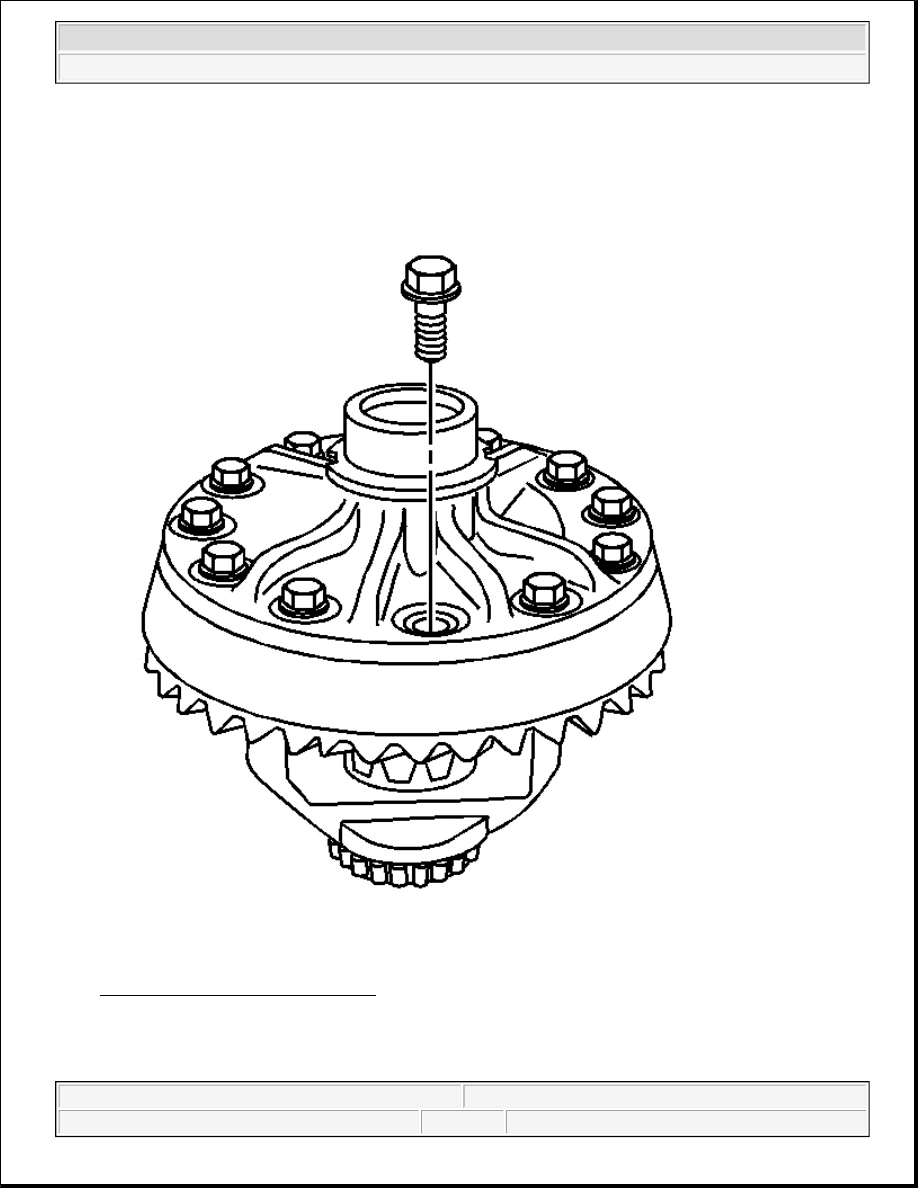

Fig. 92: Identifying Ring Gear Bolts
Courtesy of GENERAL MOTORS CORP.

IMPORTANT: The ring gear bolts have left-hand threads.



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2



3. Remove the ring gear bolts. Discard the bolts.

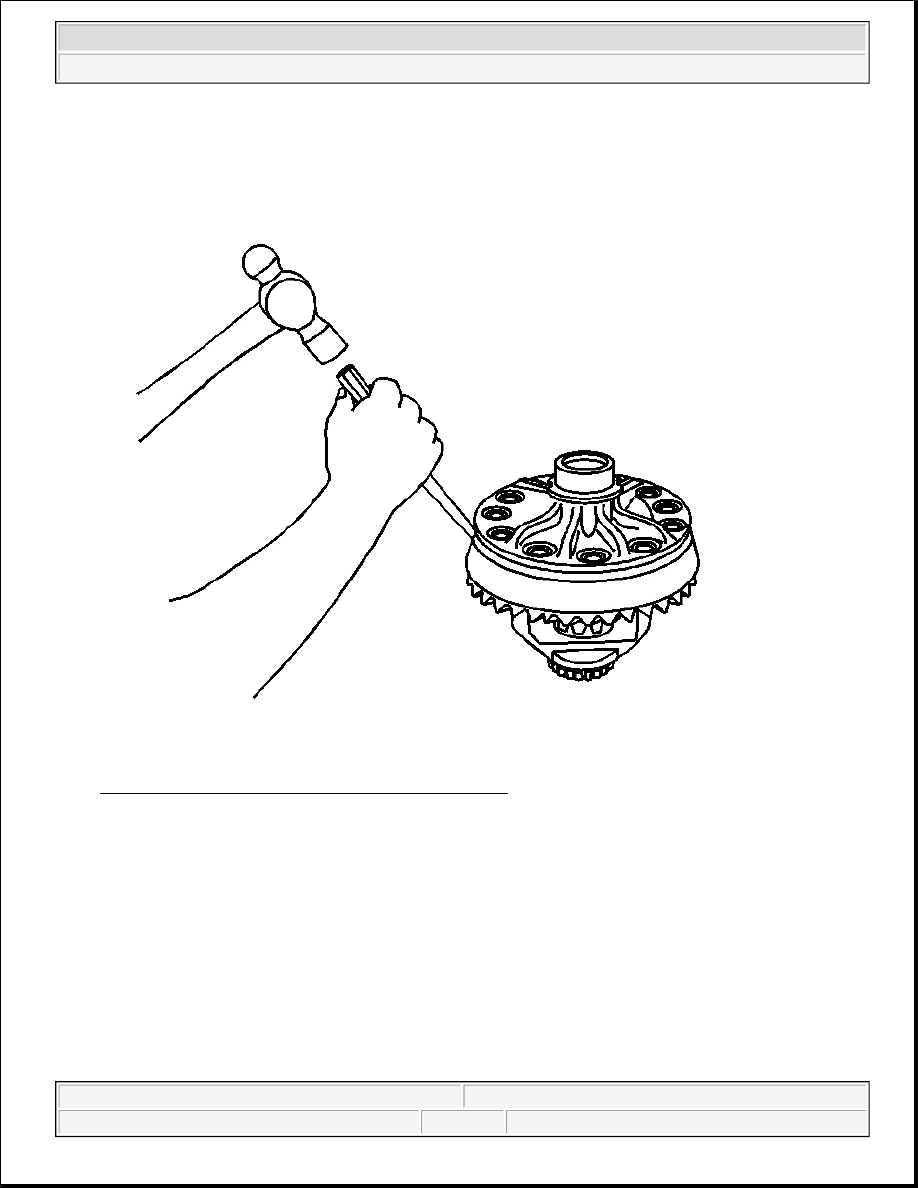

Fig. 93: Removing Ring Gear From Differential Case
Courtesy of GENERAL MOTORS CORP.

4. Remove the ring gear from the differential case.

Drive the ring gear off with a brass drift if necessary.

NOTE:

Do not pry the ring gear from the differential case. Prying the ring gear
from the differential case may cause damage to the ring gear and/or the
differential case.



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2
