Hummer H2. Manual - part 924

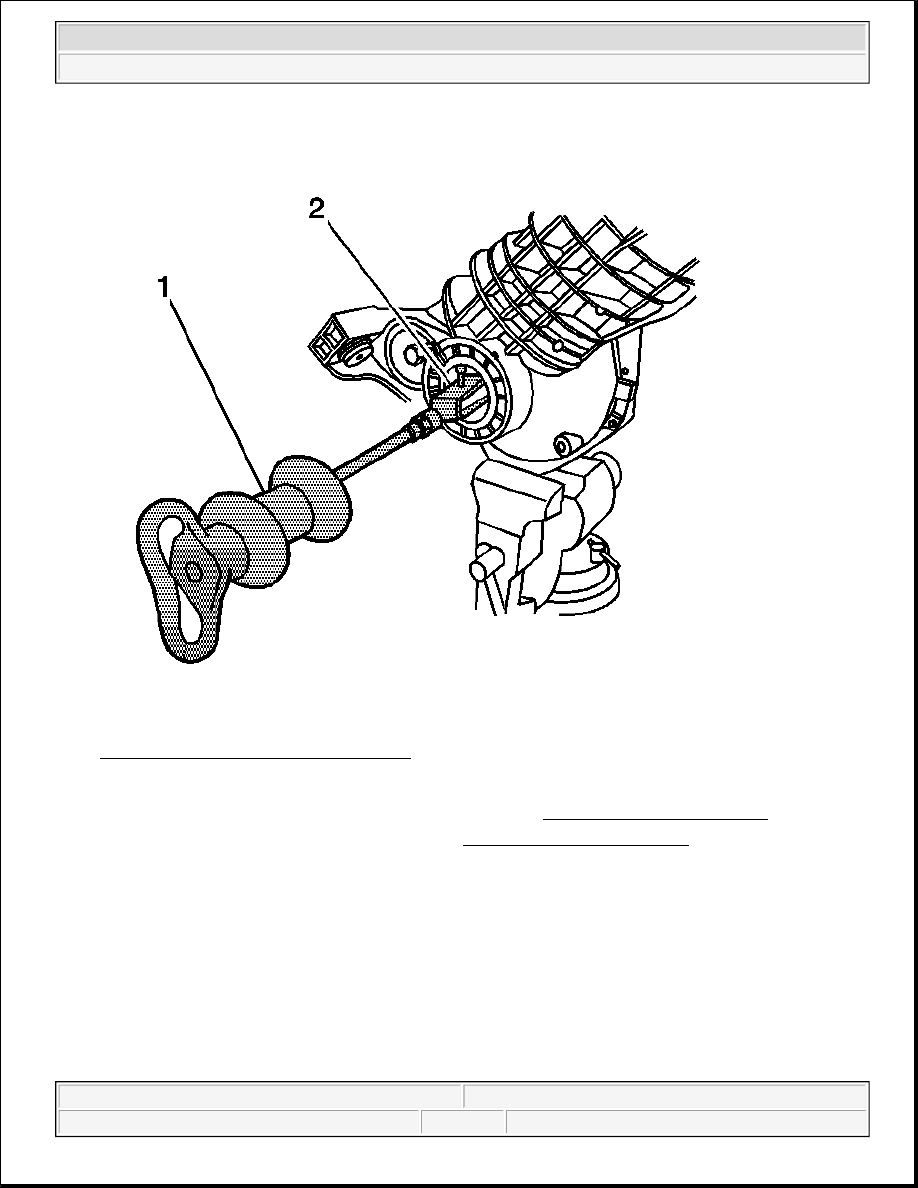

Fig. 70: Installing J 29369-02 Behind Inner Axle Shaft Seal
Courtesy of GENERAL MOTORS CORP.

10. Install the J 29369-2 behind the inner axle shaft bearing. See Special Tools and Equipment .

11. Install the J 2619-01 (2) to the J 29369-2 (1). See Special Tools and Equipment .

12. Remove the inner axle shaft bearing using the J 2619-01 .

13. Place the differential carrier assembly into a vise.

Clamp only on the mounting flange of the differential carrier assembly case.



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2



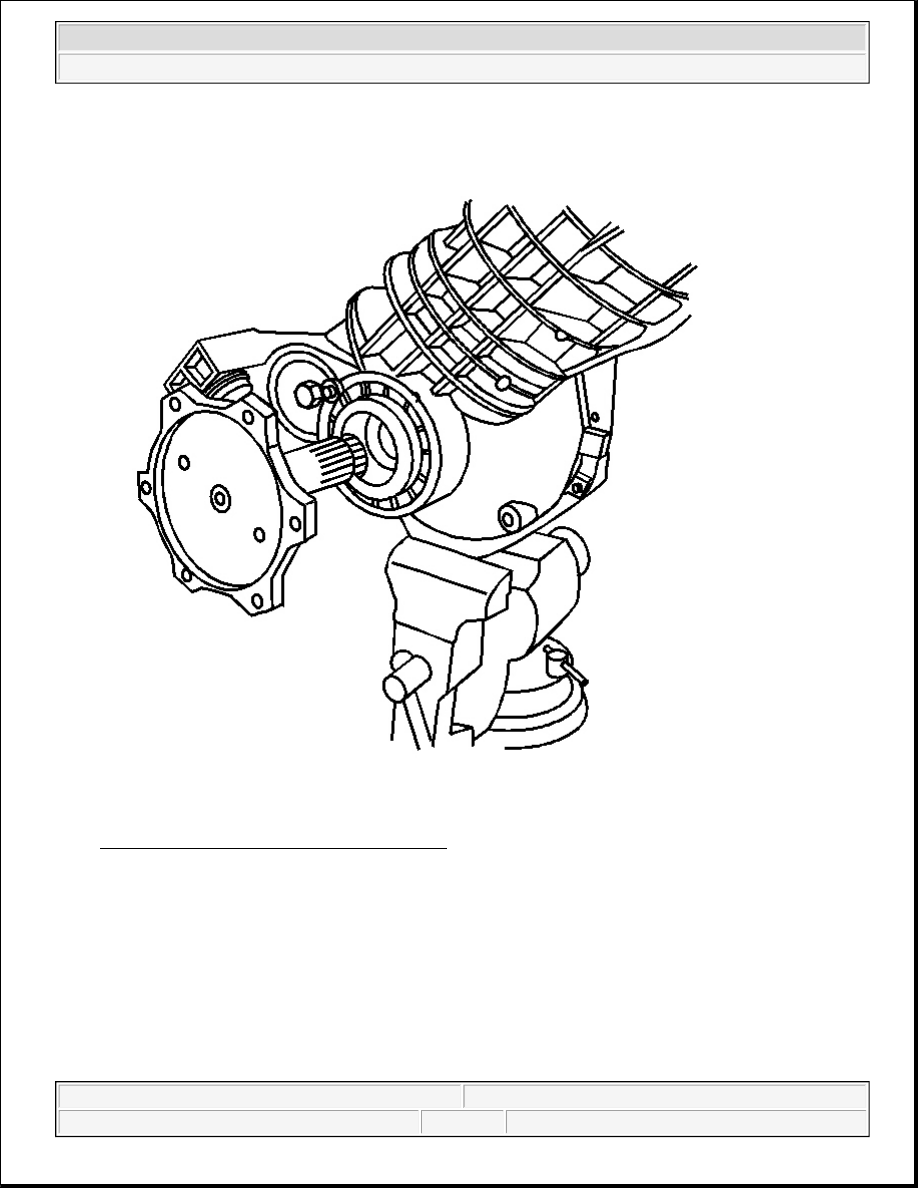

Fig. 71: Removing Left Side Inner Axle Shaft
Courtesy of GENERAL MOTORS CORP.

14. Remove the left side inner axle shaft using a hammer and a brass drift.



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2



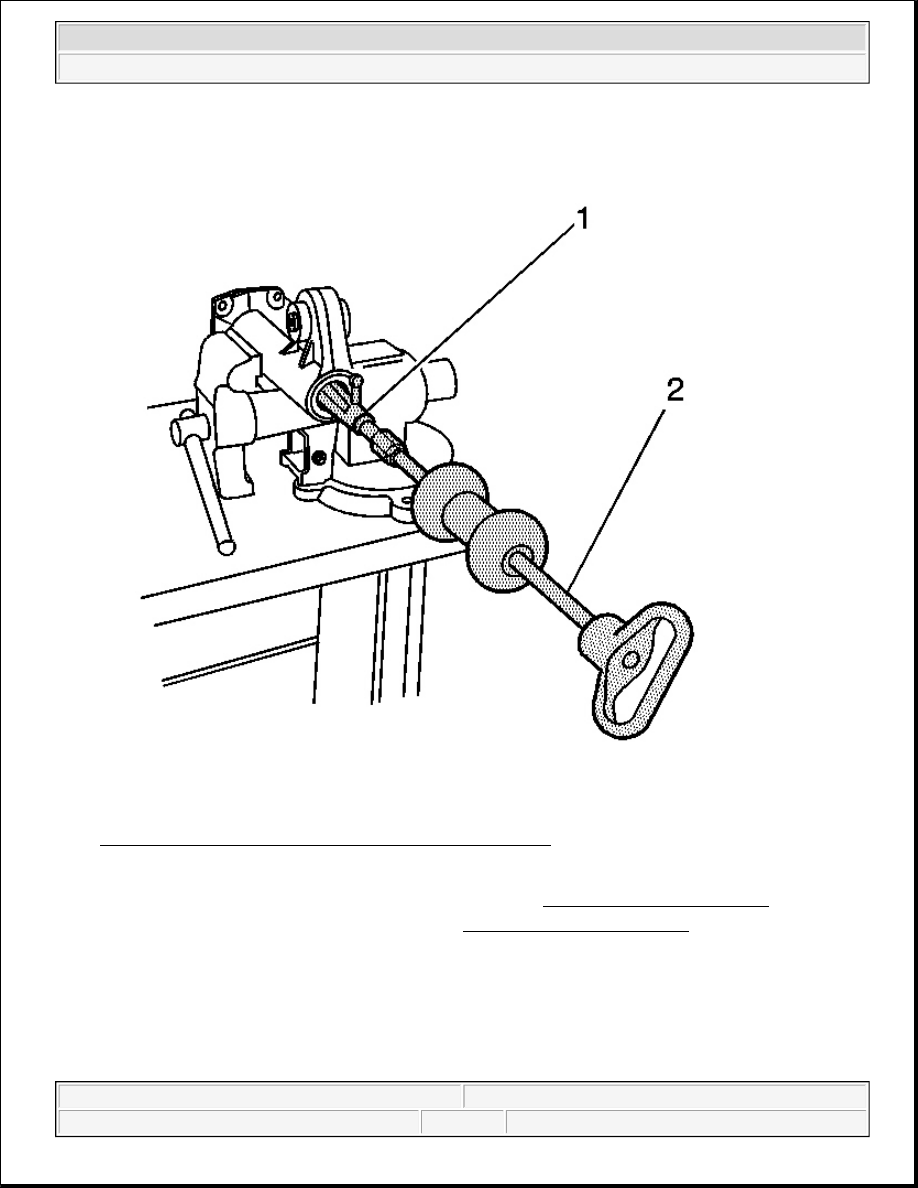

Fig. 72: Installing J 2619-01 & J 29369-2
Courtesy of GENERAL MOTORS CORP.

15. Install the J 29369-2 (2) behind the inner axle shaft seal. See Special Tools and Equipment .

16. Install the J 2619-01 (1) to the J 29369-2 (2). See Special Tools and Equipment .

17. Remove the inner axle shaft seal using the J 2619-01 .



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2



Fig. 73: Installing J 29369-2 Behind Inner Axle Shaft Seal Or Inner Axle Shaft Bearing
Courtesy of GENERAL MOTORS CORP.

18. Install the J 29369-2 (2) behind the inner axle shaft bearing. See Special Tools and Equipment .

19. Install the J 2619-01 (1) to the J 29369-2 (2). See Special Tools and Equipment .

20. Remove the inner axle shaft bearing using the J 2619-01 .



2004 Hummer H2

2004 DRIVELINE/AXLE Front Drive Axle - Hummer H2
